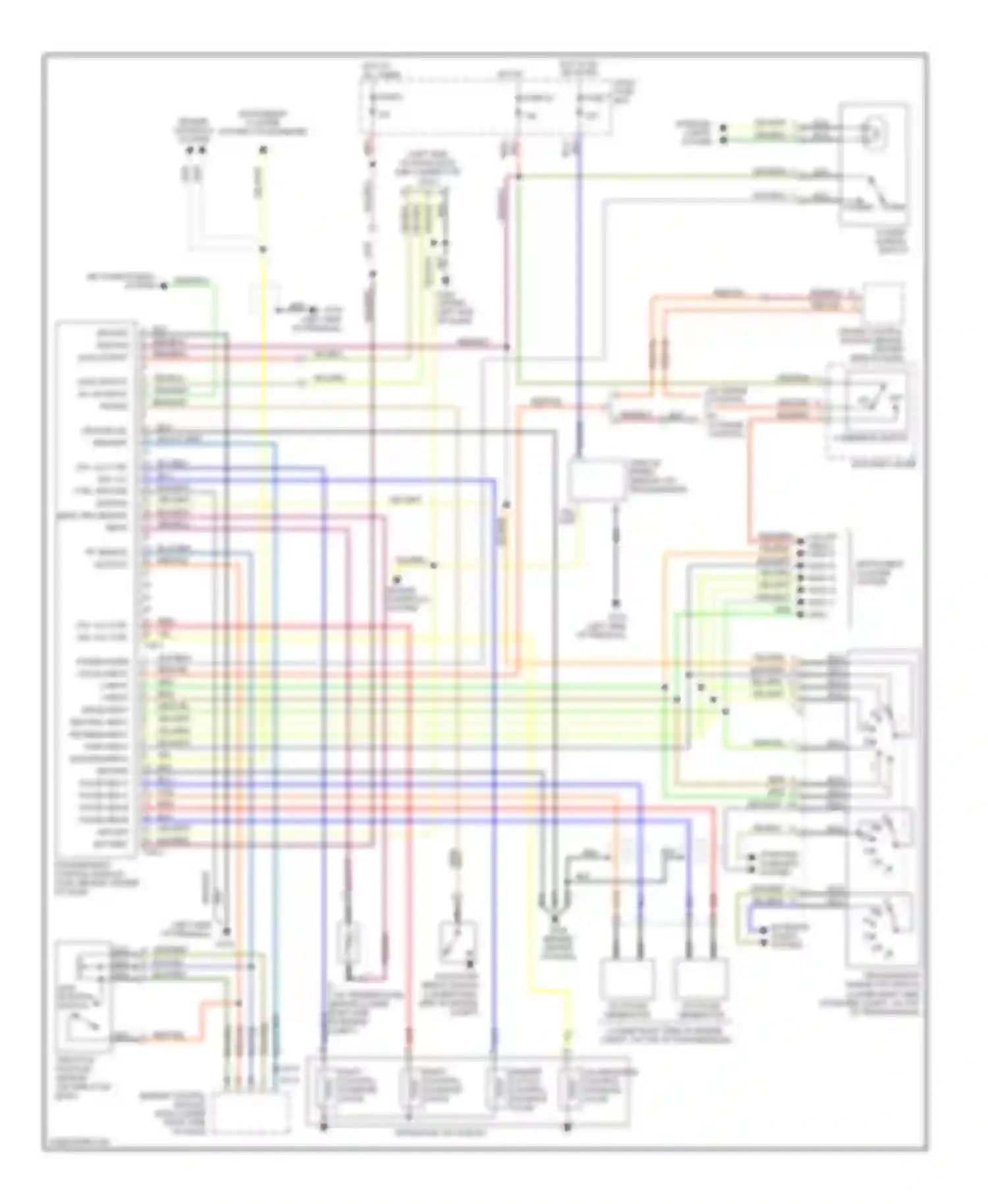

Hyundai Sonata III facelift (1996-1998) sol vlv ctrl sol vlv ctrl ground ignition sens grd sensor input Wiring diagram

A/T OIL TEMPERATURE SENSOR (LOWER RIGHT SIDE OF ENGINE COMPT) A/T PULSE GENERATOR "A" A/T PULSE GENERATOR "B" AIR CONDITIONING SYSTEM ATM SHIFT LEVER BLK WIRE BLK/GRN WIRE BLK/RED WIRE BLK/WHT WIRE BLU RED/ WIRE BLU WIRE BLU/ BLK WIRE BLU/BLK WIRE BLU/GRN WIRE BLU/LT GRN WIRE BLU/YEL WIRE BRN WIRE BRN/WHT WIRE CRUISE CONTROL MODULE (BEHIND CENTER SIDE OF DASH) DAMPER CLUTCH CONTROL SOLENOID VALVE DASH FUSE BOX DIAG OUTPUT A/C SW INPUT KICKDN SW ENGINE CONTROL MODULE (ECM) (UNDER RIGHT SIDE OF DASH) ENGINE CONTROLS SYSTEM FUSE 22 FUSE 5 FUSE 7 GRN WIRE GRN/BLK WIRE GRN/RED WIRE GRN/WHT WIRE GRN/YEL WIRE GROUND MIL REQUEST HOT AT ALL TIMES HOT IN ON HOT IN ON OR START IDLE POSITION SWITCH INSTRUMENT CLUSTER SYSTEM INSTRUMENT CLUSTER SYSTEM (TACHOMETER) KICK DOWN SERVO SWITCH (LOWER RIGHT SIDE OF ENGINE COMPT) NCA WIRE O/D OFF INDIC L INDIC P INDIC R INDIC N INDIC D INDIC 2 INDIC OFF ON OIL PRESSURE CONTROL SOLENOID VALVE ORG/ WIRE OVERDRIVE SWITCH POWER NORM POWER/ NORMAL SWITCH RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/YEL WIRE SHIFT CONTROL SOLENOID VALVE A SHIFT CONTROL SOLENOID VALVE B SOL VLV CTRL SOL VLV CTRL SOL VLV CTRL SOL VLV CTRL GROUND IGNITION SENS GRD SENSOR INPUT STARTING/ CHARGING SYSTEM THROTTLE POSITION SENSOR (ON THROTTLE BODY) TP SENSOR IDLE POS SW TRANSAXLE VALVE BODY TRANSMISSION CONTROL MODULE (TCM) (BEHIND CENTER OF DASH) VEHICLE SPEED SENSOR (ON TRANSMISSION) W/ CRUISE CONTROL W/O CRUISE CONTROL WHT WIRE WHT/BLK WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/RED WIRE YEL/WHT WIRE
