Hyundai Sonata III (1993-1996) shift lock circuit Wiring diagram
This page shows the only wiring diagram for the component.shift lock circuit, which is found in the car Hyundai Sonata III (1993-1996). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

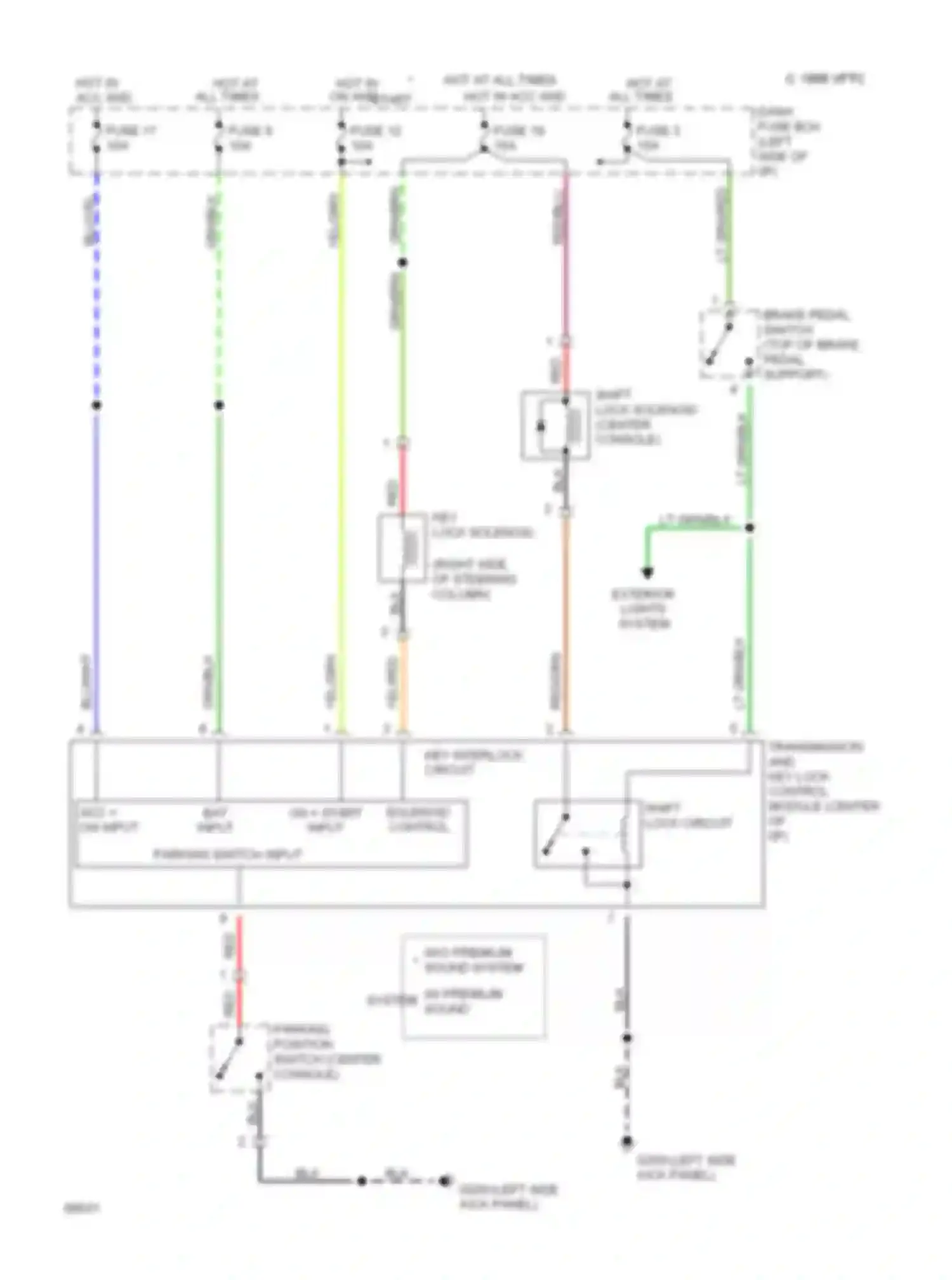

Wiring diagram shift lock circuit (1 of 1)
1995 VFTC
ACC + ON INPUT
BAT INPUT
BLK WIRE
BLU/WHT WIRE
BLU/YEL WIRE
BRAKE PEDAL SWITCH (TOP OF BRAKE PEDAL SUPPORT)
DASH FUSE BOX (LEFT SIDE OF I/P)
FUSE 12
FUSE 17
FUSE 19
FUSE 3
FUSE 8
GRN/BLK WIRE
GRN/BRN WIRE
HOT AT ALL TIMES
HOT AT ALL TIMES HOT IN ACC AND ON
HOT IN ACC AND ON
HOT IN ON AND START
KEY INTERLOCK CIRCUIT
KEY LOCK SOLENOID
LT GRN/BLK WIRE
LT GRN/RED WIRE
PARKING POSITION SWITCH (CENTER CONSOLE)
PARKING SWITCH INPUT
RED WIRE
RED/BLU WIRE
RED/GRN WIRE
SHIFT LOCK CIRCUIT
SHIFT LOCK SOLENOID (CENTER CONSOLE)
SOLENOID CONTROL ON + START INPUT
TRANSMISSION AND KEY LOCK CONTROL MODULE (CENTER OF I/P)
W/ PREMIUM SOUND SYSTEM
W/O PREMIUM SOUND SYSTEM
YEL/GRN WIRE
YEL/RED WIRE
