Wiring Diagrams for Hyundai Elantra VII facelift (2023-2024)

Active bodyworks circuit

Automatic a/c circuit, except hybrid Automatic a/c circuit, hybrid Manual a/c circuit

Anti-lock brakes circuit, except hybrid w/ esc & epb Anti-lock brakes circuit, except hybrid w/ esc w/o epb Anti-lock brakes circuit, except hybrid w/o esc Anti-lock brakes circuit, hybrid

Anti-theft circuit, w/ nfc Anti-theft circuit, w/o nfc

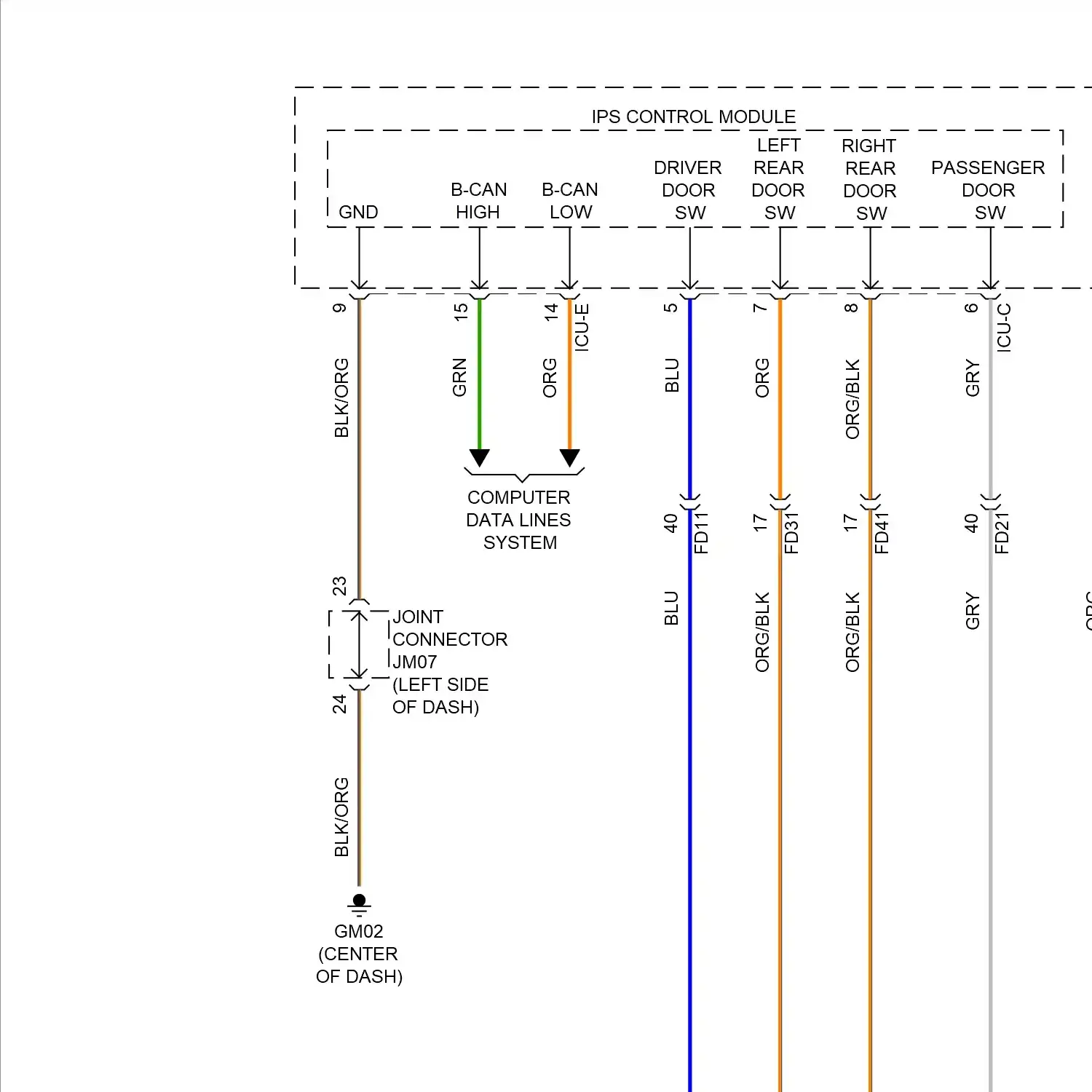

Integrated control unit circuit Ips control module circuit, except hybrid Ips control module circuit, hybrid

Computer data lines circuit, except hybrid Computer data lines circuit, hybrid

Cooling fan circuit, except hybrid Cooling fan circuit, hybrid

Cruise control circuit, except hybrid Cruise control circuit, hybrid

Defoggers circuit, w/ auto defogger Defoggers circuit, w/o auto defogger

Electronic power steering circuit

Wiring diagram engine performance 1.6l hybrid, hybrid control circuit Wiring diagram engine performance 1.6l hybrid, mfi control circuit

Wiring diagram engine performance 1.6l turbo

Wiring diagram engine performance 2.0l

Backup lamps circuit Exterior lamps circuit

Ground distribution circuit, except hybrid Ground distribution circuit, hybrid

Autolamps circuit Headlamps circuit

Horn circuit

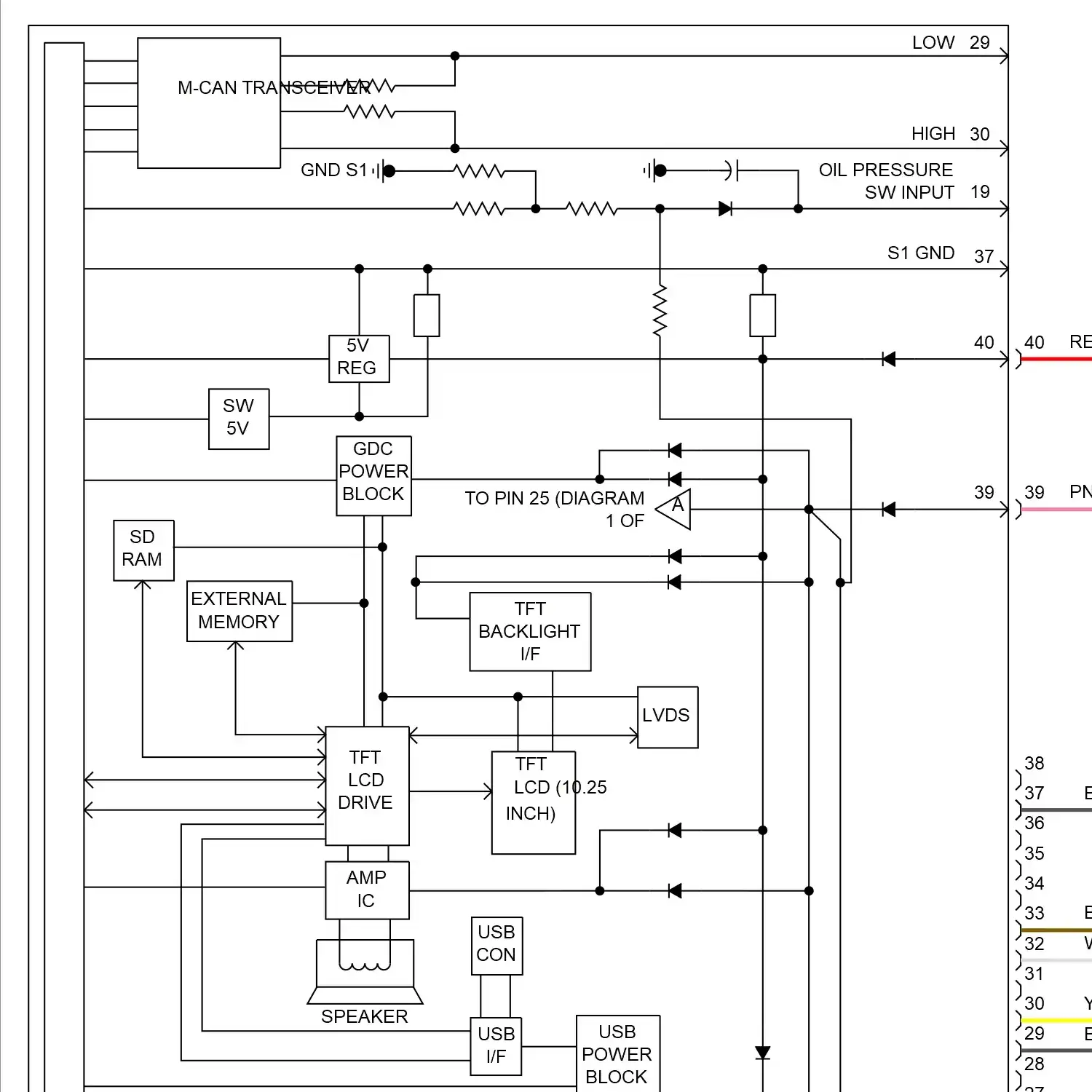

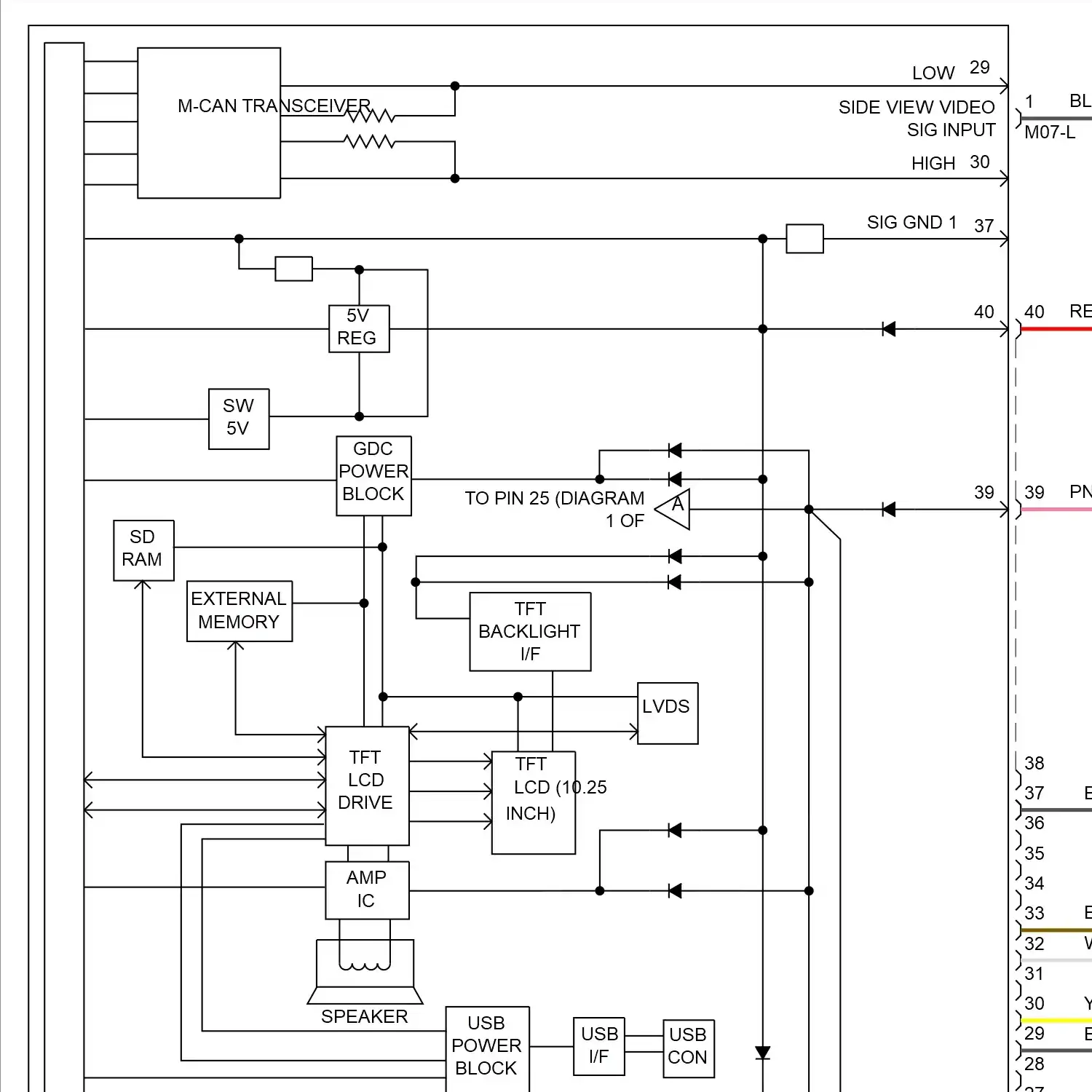

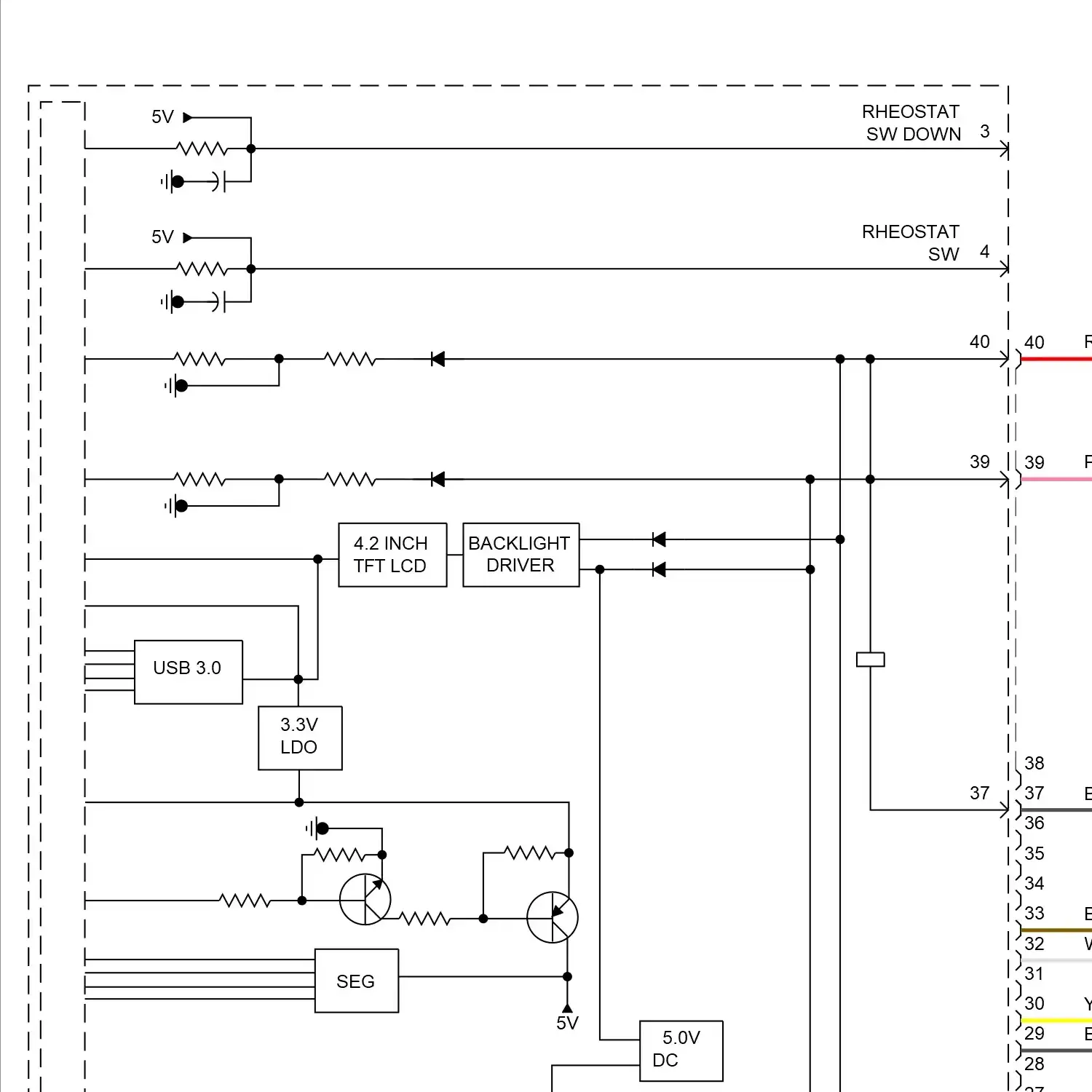

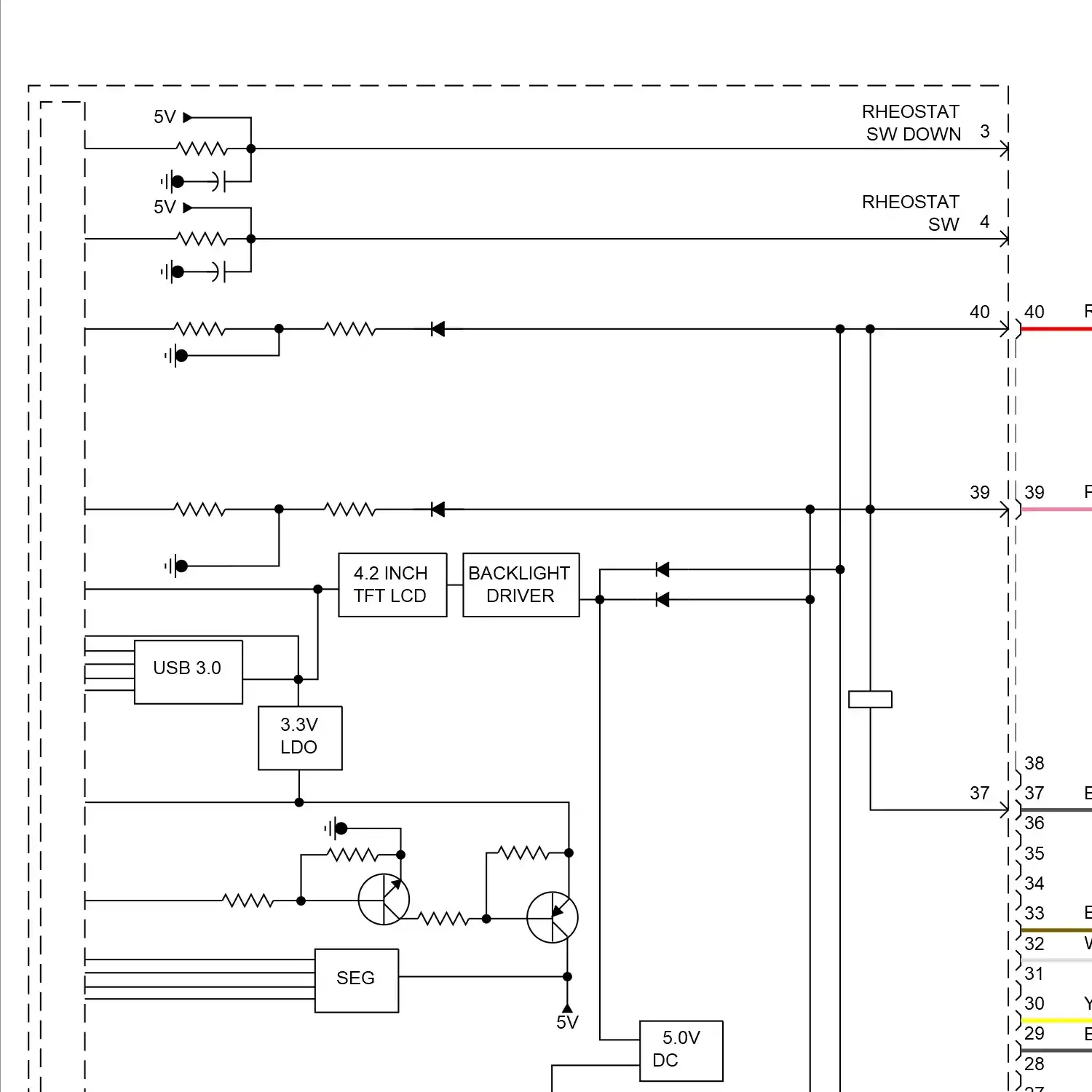

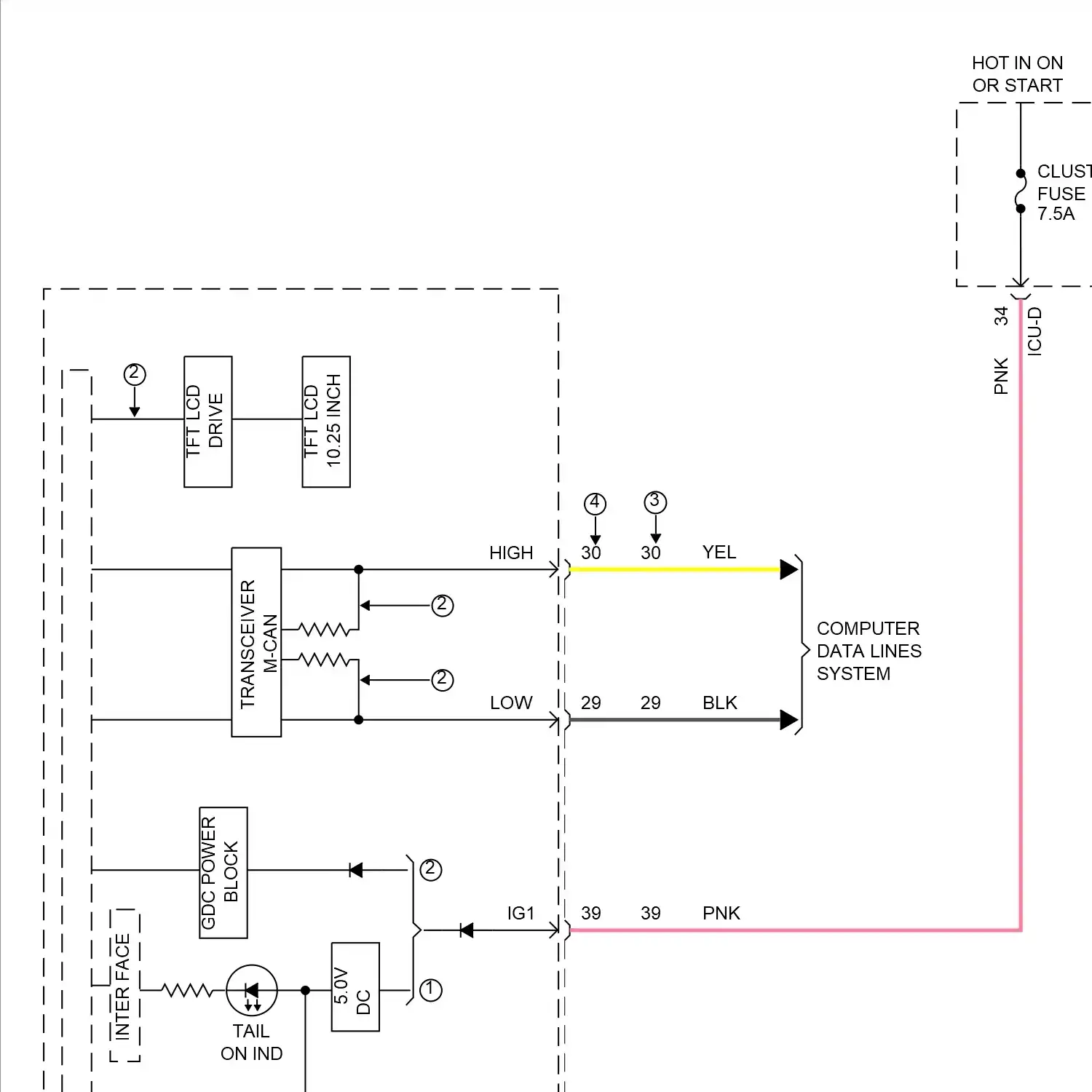

Instrument cluster circuit, except hybrid w/ 10.25 inch tft lcd Instrument cluster circuit, except hybrid w/ 4.2 inch tft lcd Instrument cluster circuit, hybrid w/ 10.25 inch tft lcd Instrument cluster circuit, hybrid w/ 4.2 inch tft lcd

Courtesy lamps circuit Instrument illumination circuit

Memory systems circuit

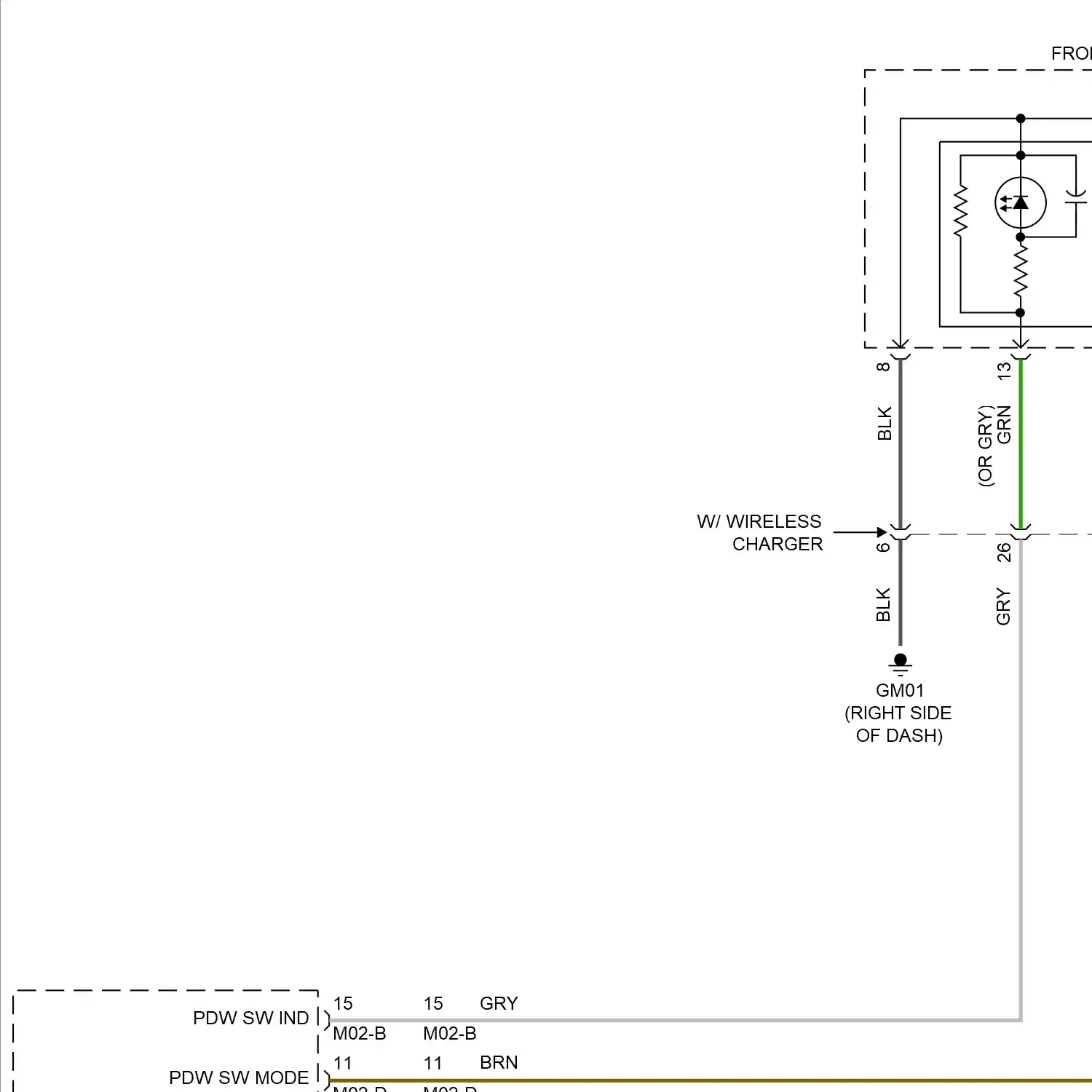

Blind spot information system circuit Lane keeping assist circuit Navigation circuit, w/ amplifier Navigation circuit, w/o amplifier Parking assistant circuit, w/ adas Parking assistant circuit, w/o adas Rear view camera circuit

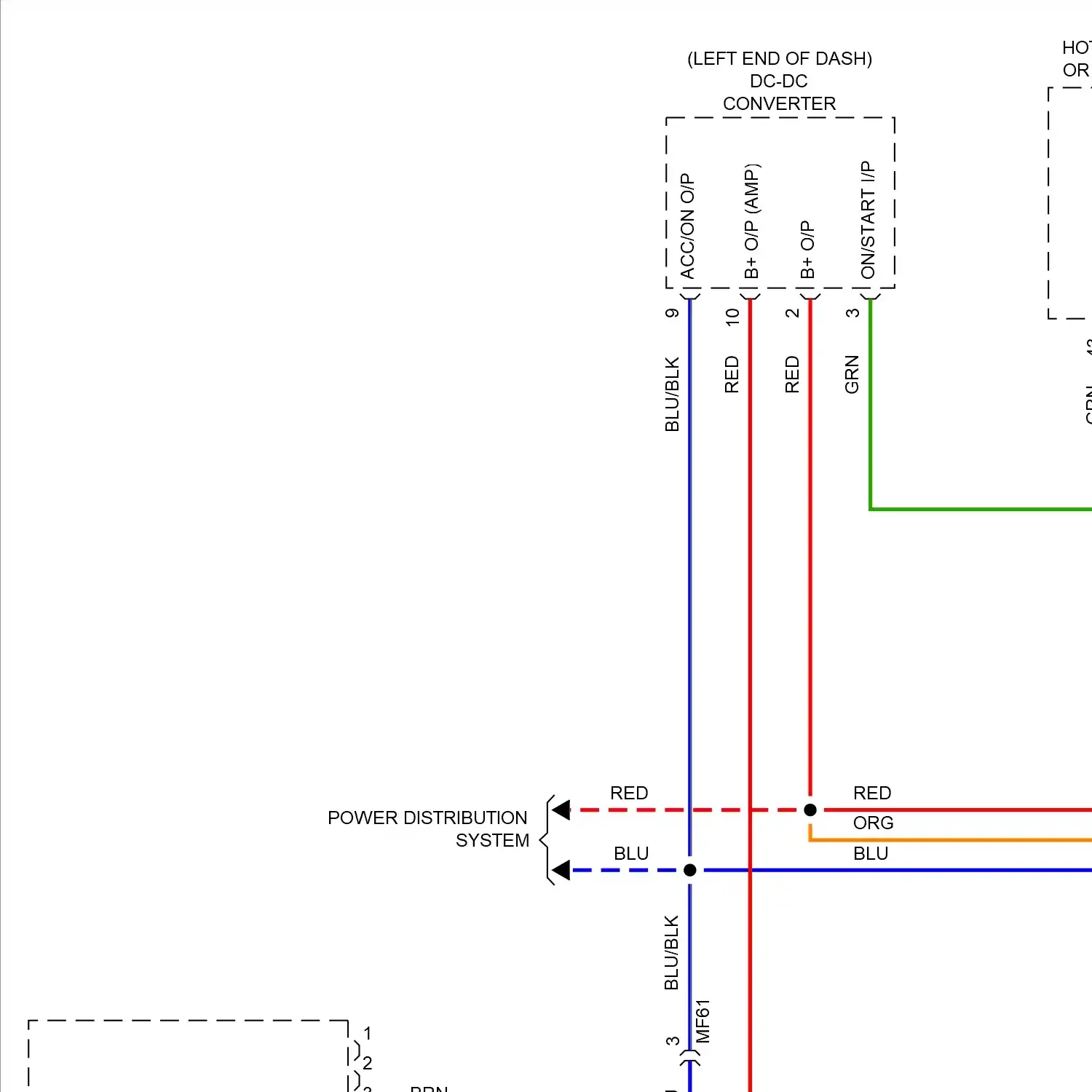

Power distribution circuit, except hybrid Power distribution circuit, hybrid

Power door locks circuit, w/ nfc Power door locks circuit, w/o nfc

Electrochromic mirror circuit Power mirrors circuit

Driver power seat circuit Front heated seats circuit Heated steering wheel circuit Passenger power seat circuit Rear heated seats circuit Seat ventilation circuit

Power top/sunroof circuit, except hybrid Power top/sunroof circuit, hybrid

1.6l hybrid, power windows circuit, w/ driver auto down power window 1.6l hybrid, power windows circuit, w/ driver auto up/down & safety power windows 1.6l hybrid, power windows circuit, w/ driver/passenger auto up/down & safety power windows

1.6l turbo, power windows circuit, w/ driver auto down power window 1.6l turbo, power windows circuit, w/ driver auto up/down & safety power windows 1.6l turbo, power windows circuit, w/ driver/passenger auto up/down & safety power windows

2.0l, power windows circuit, w/ driver auto down power window 2.0l, power windows circuit, w/ driver auto up/down & safety power windows 2.0l, power windows circuit, w/ driver/passenger auto up/down & safety power windows

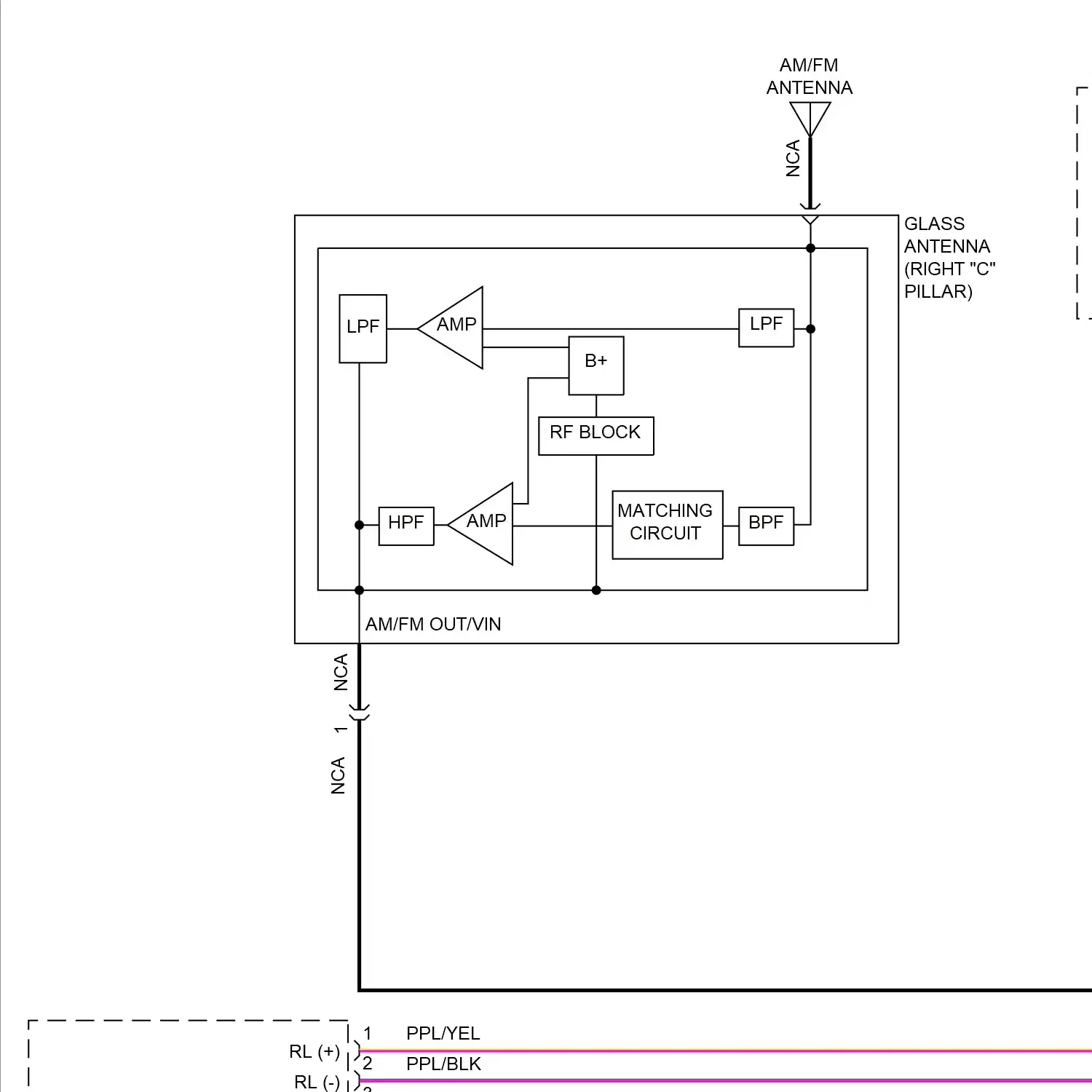

Radio circuit, w/ navigation & amplifier Radio circuit, w/ navigation w/o amplifier Radio circuit, w/o navigation & amplifier Radio circuit, w/o navigation w/ amplifier

Electric parking brake circuit, except hybrid Electric parking brake circuit, hybrid Shift interlock circuit, except hybrid cvt Shift interlock circuit, except hybrid dct Shift interlock circuit, hybrid

Charging circuit Starting circuit, w/o smart key Starting circuit, w/ smart key

Supplemental restraints circuit

1.6l hybrid, transmission circuit

1.6l turbo, transmission circuit

2.0l, transmission circuit

Trunk release circuit

Chime circuit Tire pressure monitoring circuit

Wiper/washer circuit

ANTI-LOCK BRAKES SYSTEM BATTERY C/FAN 1 BURGLAR ALARM HORN RLY CTRL C-CAN TRANSCEIVER C-CAN TRANSCEIVER GDC POWER CENTER DOOR LOCK RLY CTRL DOOR LOCK DOOR LOCK IND DOOR LOCK RLY CTRL DOOR LOCK/UNLOCK SIG DRV DOOR LK/UNLK SW CAPA SENS LOCK FULL TRUNK LOCK OPEN SW SW HORN RLY CTRL HV BATTERY TEMP GND HV BATTERY TEMP SIG 1 HV BATTERY TEMP SIG 2 HV BATTERY TEMP SIG 3 HV BATTERY TEMP SIG 4 IGN COIL CTRL CYL 1 IGN COIL CTRL CYL 2 IGN COIL CTRL CYL 3 IGN COIL CTRL CYL 4 IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 IGNITION COIL CTRL 3 IGNITION COIL CTRL 2 INJECTOR 1 CTRL IGNITION COIL CTRL CYL 1 IGNITION COIL CTRL CYL 2 IGNITION COIL CTRL CYL 3 IGNITION COIL CTRL CYL 4 M-CAN TRANSCEIVER MAIN BATTERY MODULE 1 MAIN BATTERY MODULE 2 MAIN BATTERY MODULE 3 MAIN BATTERY MODULE 4 MAIN BATTERY MODULE 5 MAIN BATTERY MODULE 6 MAIN BATTERY MODULE 7 MAIN BATTERY MODULE 8 ON BATTERY) PASS DOOR LK/UNLK SW CAPA SENS LOCK PRE-CHARGE RESISTOR TRUNK TRUNK LID HANDLE FULL LOCK SW SW VIS CTRL IGNITION COIL CTRL 1 IGNITION COIL CTRL 4 INJECTOR 4 CTRL W/ AMPLIFIER W/O AMPLIFIER

(RIGHT FRONT OF ENGINE AUTO DEFOGGER ACTUATOR AUTO DEFOGGER ACTUATOR CLOSE AUTO DEFOGGER ACTUATOR F/B AUTO DEFOGGER ACTUATOR OPEN BLOWER MOTOR CHECK ENGINE IND CLUTCH ACTUATOR CLUTCH MOTOR 1 GND CLUTCH MOTOR 1 HALL 1 CLUTCH MOTOR 1 HALL 2 CLUTCH MOTOR 1 HALL 3 CLUTCH MOTOR 1 PHASE U CLUTCH MOTOR 1 PHASE V CLUTCH MOTOR 1 PHASE W CLUTCH MOTOR 1 SUPPLY CLUTCH MOTOR 2 GND CLUTCH MOTOR 2 HALL 1 CLUTCH MOTOR 2 HALL 2 CLUTCH MOTOR 2 HALL 3 CLUTCH MOTOR 2 PHASE U CLUTCH MOTOR 2 PHASE V CLUTCH MOTOR 2 PHASE W CLUTCH MOTOR 2 SUPPLY COOLING FAN MOTOR CVVD ACTUATOR DRIVER AIR VENTILATION SEAT BLOWER MOTOR DRIVER DOOR LOCK ACTUATOR DRIVER FRONT HEIGHT ADJUSTER MOTOR DRIVER LUMBAR SUPPORT MOTOR DRIVER LUMBAR SUPPORT MOTOR DRIVER RECLINING, LUMBAR SUPPORT MOTOR DRIVER POWER WINDOW MOTOR DRIVER REAR HEIGHT ADJUSTER MOTOR DRIVER RECLINING MOTOR DRIVER RECLINING MOTOR DRIVER RECLINING, LUMBAR SUPPORT MOTOR DRIVER RECLINING, LUMBAR SUPPORT MOTOR DRIVER SLIDE MOTOR DRIVER TEMPERATURE ACTUATOR DRV BLOWER MOTOR B+ DRV BLOWER MOTOR GND DRV BLOWER MOTOR RPM DRV BLOWER MOTOR SPEED ENGINE CONTROLS SYSTEM ENGINE CTRL RLY CTRL ENGINE CTRL RLY ON PWR ENGINE IND ENGINE RPM ENGINE RPM INPUT ENGINE RPM O/P ENGINE RPM OUTPUT ENGINE START SW ENGINE START) ETC MOTOR, +/- FRONT WIPER MOTOR FUEL PUMP MOTOR FUEL SENDER, FUEL PUMP MOTOR HAPTIC MOTOR HIGH MOTOR HYBRID MOTOR HYBRID STARTER, GENERATOR MOTOR INTAKE ACTUATOR INTAKE ACTUATOR F/B INTAKE ACTUATOR FRE INTAKE ACTUATOR REC LEFT REAR DOOR LOCK ACTUATOR LEFT REAR EPB ACTUATOR LEFT REAR POWER WINDOW MOTOR MODE ACTUATOR MODE ACTUATOR DEF MODE ACTUATOR F/B MODE ACTUATOR VENT MOTOR CONTROL MOTOR RESOLVER MOTOR RESOLVER SENS 2 MOTOR RESOLVER SENS 3 MOTOR RESOLVER SENS 4 MOTOR RESOLVER SHIELD MOTOR SW PWR MOTOR U MOTOR V MOTOR W O HSWS MOTOR PASSENGER AIR VENTILATION SEAT BLOWER MOTOR PASSENGER BLOWER MOTOR B+ PASSENGER BLOWER MOTOR RPM PASSENGER BLOWER MOTOR SPEED PASSENGER DOOR LOCK ACTUATOR PASSENGER POWER WINDOW MOTOR PASSENGER RECLINING MOTOR PASSENGER SLIDE MOTOR PASSENGER TEMPERATURE ACTUATOR RIGHT REAR DOOR LOCK ACTUATOR RIGHT REAR EPB ACTUATOR RIGHT REAR POWER WINDOW MOTOR RL MOTOR + RR MOTOR - SHIFT MOTOR 1 GND SHIFT MOTOR 1 HALL 1 SHIFT MOTOR 1 HALL 2 SHIFT MOTOR 1 HALL 3 SHIFT MOTOR 1 PHASE U SHIFT MOTOR 1 PHASE V SHIFT MOTOR 1 PHASE W SHIFT MOTOR 1 SUPPLY SHIFT MOTOR 2 GND SHIFT MOTOR 2 HALL 1 SHIFT MOTOR 2 HALL 2 SHIFT MOTOR 2 HALL 3 SHIFT MOTOR 2 PHASE U SHIFT MOTOR 2 PHASE V SHIFT MOTOR 2 PHASE W SHIFT MOTOR 2 SUPPLY START MOTOR START SOLENOID START MOTOR SUNROOF MOTOR TOP OF ENGINE) WASHER MOTOR WIPER MOTOR

AM/FM ANTENNA ANTENNA GND ANTENNA GND DRIVER ANTENNA GND ANTENNA GROUND ANTENNA POWER ANTENNA PWR ANTENNA PWR DRIVER ANTENNA POWER IMMO POWER COMBINATION ANTENNA DRIVER DOOR ANTENNA GROUND DRIVER DOOR ANTENNA POWER DRIVER DOOR NFC ANTENNA DRIVER DOOR OUTSIDE HANDLE ANTENNA GLASS ANTENNA GNSS ANTENNA INTERIOR ANTENNA GROUND INTERIOR ANTENNA POWER P-CAN HIGH ANTENNA PWR P-CAN LOW ANTENNA GND PASS DOOR ANTENNA ANTENNA PWR PASS DOOR ANTENNA GND ANTENNA GND PASS DOOR ANTENNA GROUND PASS DOOR ANTENNA POWER PASSENGER DOOR NFC ANTENNA PASSENGER DOOR OUTSIDE HANDLE ANTENNA SMART KEY TRUNK ANTENNA SXM ANTENNA TRUNK ANTENNA GND TRUNK ANTENNA GROUND TRUNK ANTENNA POWER

REGULATOR CIRCUIT START STOP BUTTON SWITCH START/STOP BUTTON SWITCH

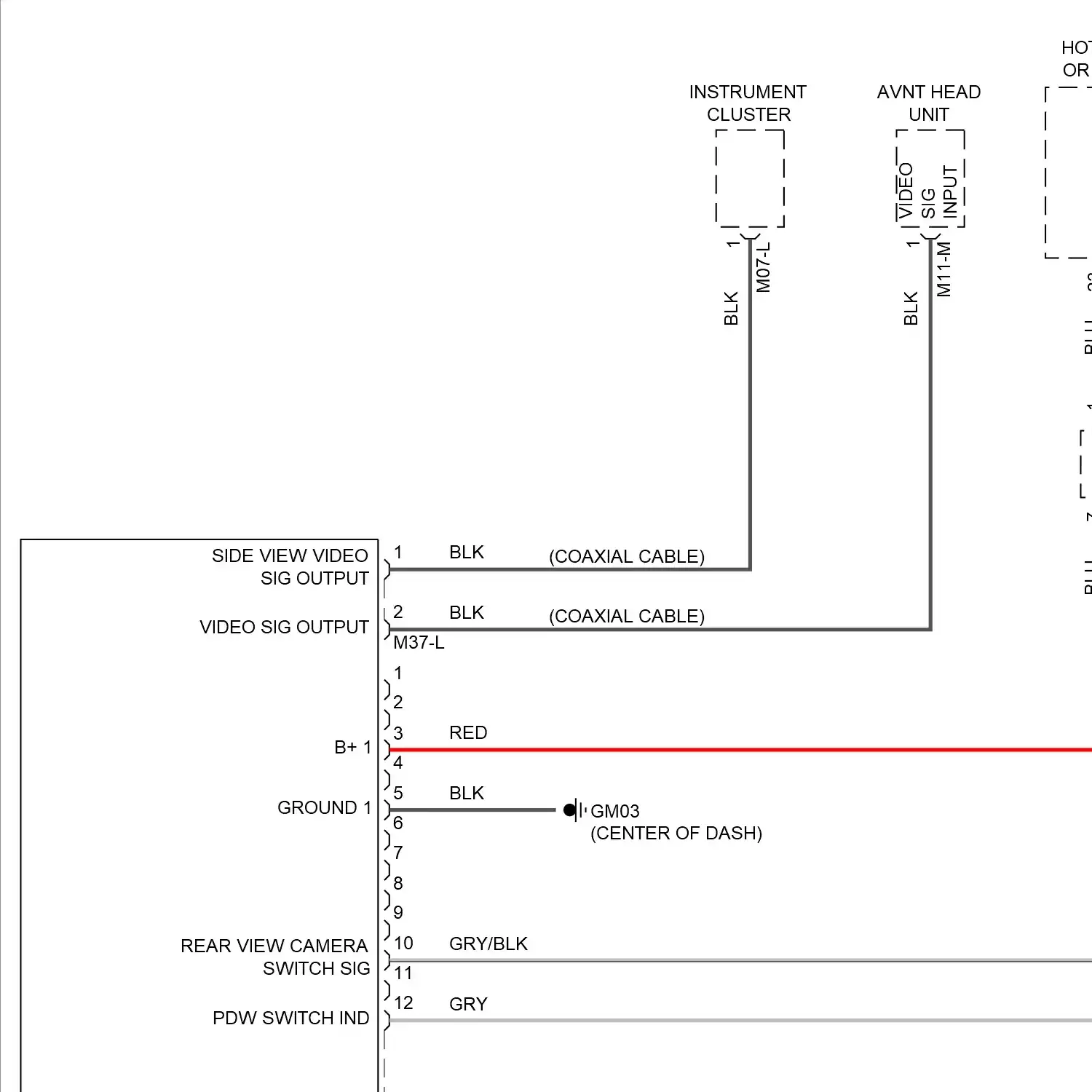

CAMERA DETECT 1 CAMERA SW SIG DOOR CAMERA FRONT VIEW CAMERA REAR VIEW CAMERA REAR VIEW CAMERA GND REAR VIEW CAMERA PWR REAR VIEW CAMERA SHIELD REAR VIEW CAMERA SW SIG REAR VIEW CAMERA V-GND REAR VIEW CAMERA V-IN
