Wiring Diagrams for Hyundai Elantra VI facelift (2018-2020)

Automatic a/c circuit Manual a/c circuit

Anti-lock brakes circuit Autonomous emergency brake circuit

Forced entry circuit Immobilizer circuit, w/o smart key system Immobilizer circuit, w/ smart key system

Body control module circuit, ad Body control module circuit, ada Ips control module circuit, ad Ips control module circuit, ada

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

Defoggers circuit, w/ auto defogger Defoggers circuit, w/o auto defogger

Electronic power steering circuit

Wiring diagram engine performance 1.4l turbo

Wiring diagram engine performance 1.6l turbo

Wiring diagram engine performance 2.0l, a/t Wiring diagram engine performance 2.0l, ivt

Backup lamps circuit Exterior lamps circuit

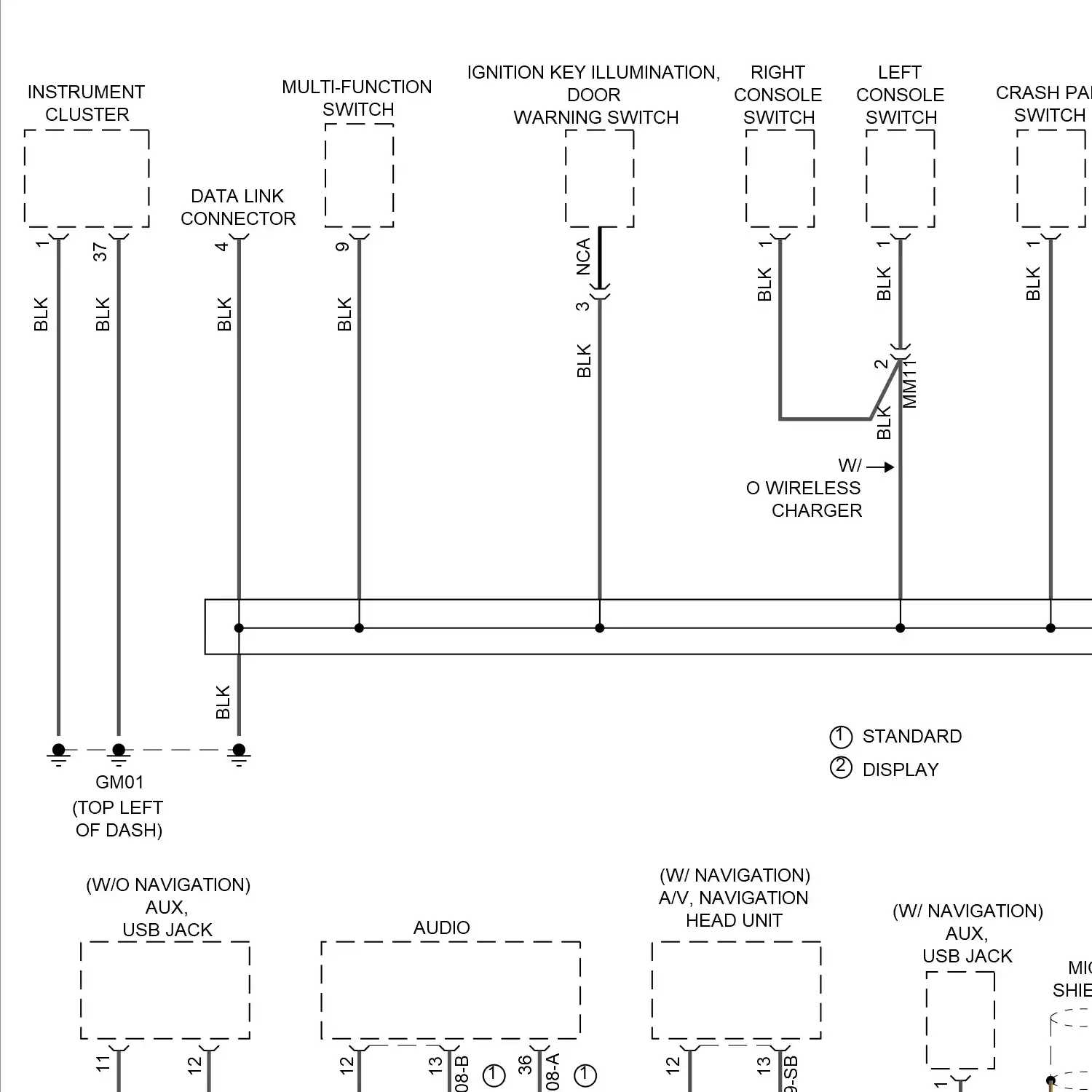

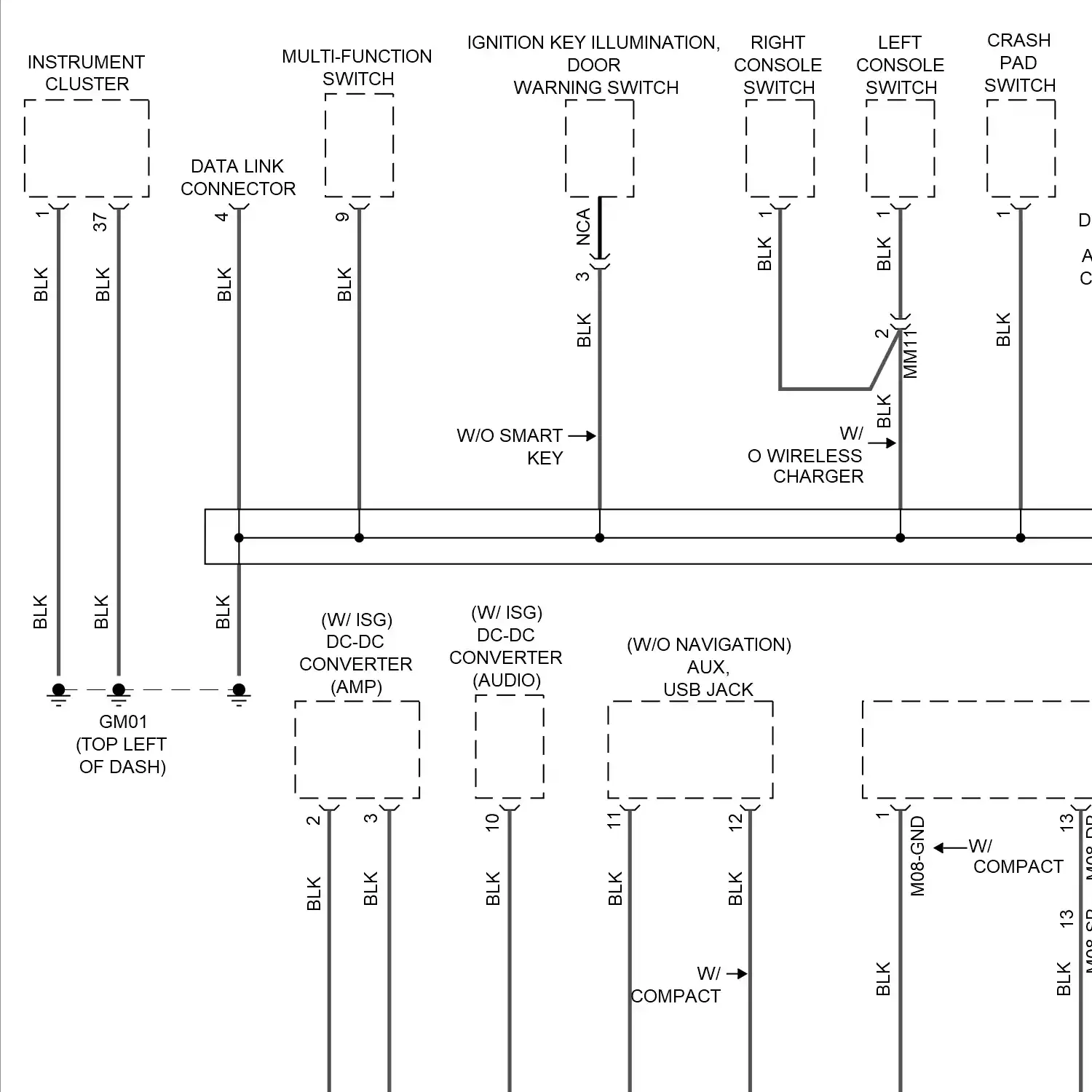

Ground distribution circuit, ad Ground distribution circuit, ada

Autolamps circuit Headlamps circuit

Horn circuit

Instrument cluster circuit, ada w/ conventional cluster Instrument cluster circuit, ada w/ supervision Instrument cluster circuit, ad w/ conventional cluster Instrument cluster circuit, ad w/ supervision

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Memory mirrors circuit

Blind spot information system circuit, ad Blind spot information system circuit, ada Lane keeping assist circuit Navigation circuit, w/ amplifier Navigation circuit, w/o amplifier Parking assistant circuit

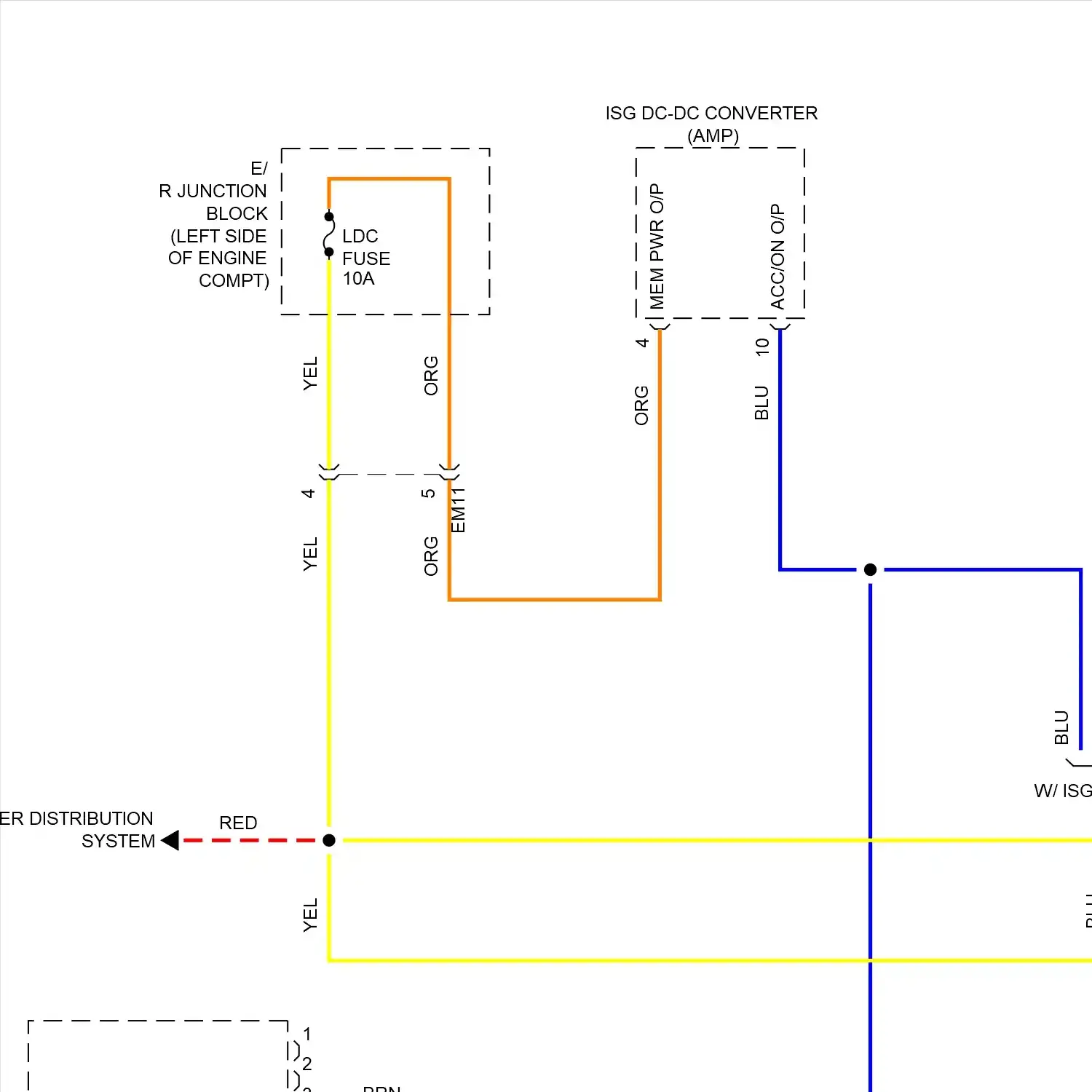

Power distribution circuit, ad Power distribution circuit, ada

Power door locks circuit

Electrochromic mirror circuit, w/ home link & mts Electrochromic mirror circuit, w/ home link w/o mts Electrochromic mirror circuit, w/o home link Power mirrors circuit

Front heated seats circuit, ad Front heated seats circuit, ada Heated steering wheel circuit Power seats circuit Rear heated seats circuit

Power top/sunroof circuit

Power windows circuit, w/ ims Power windows circuit, w/o ims w/ auto up/down power windows Power windows circuit, w/o ims w/o auto up/down power windows

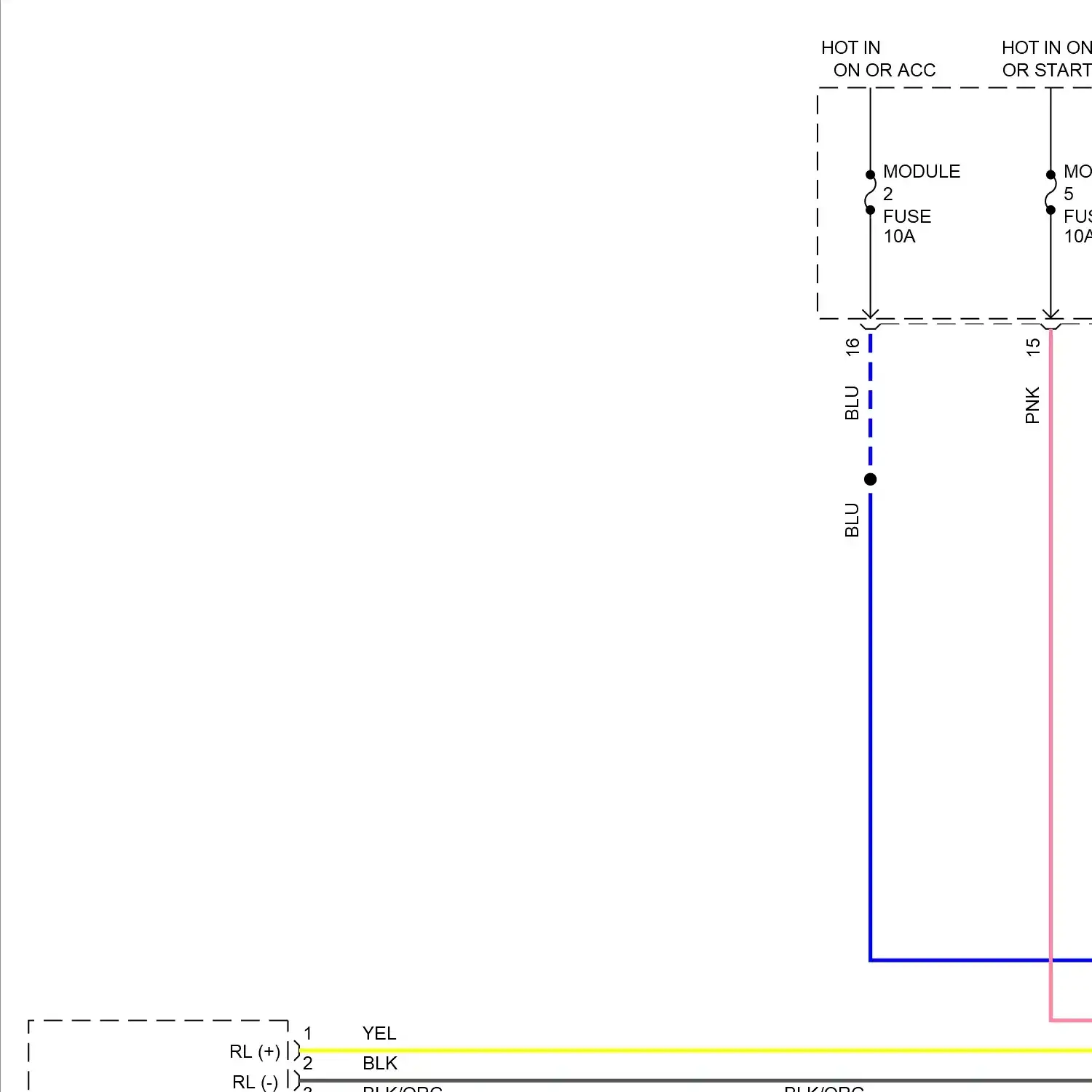

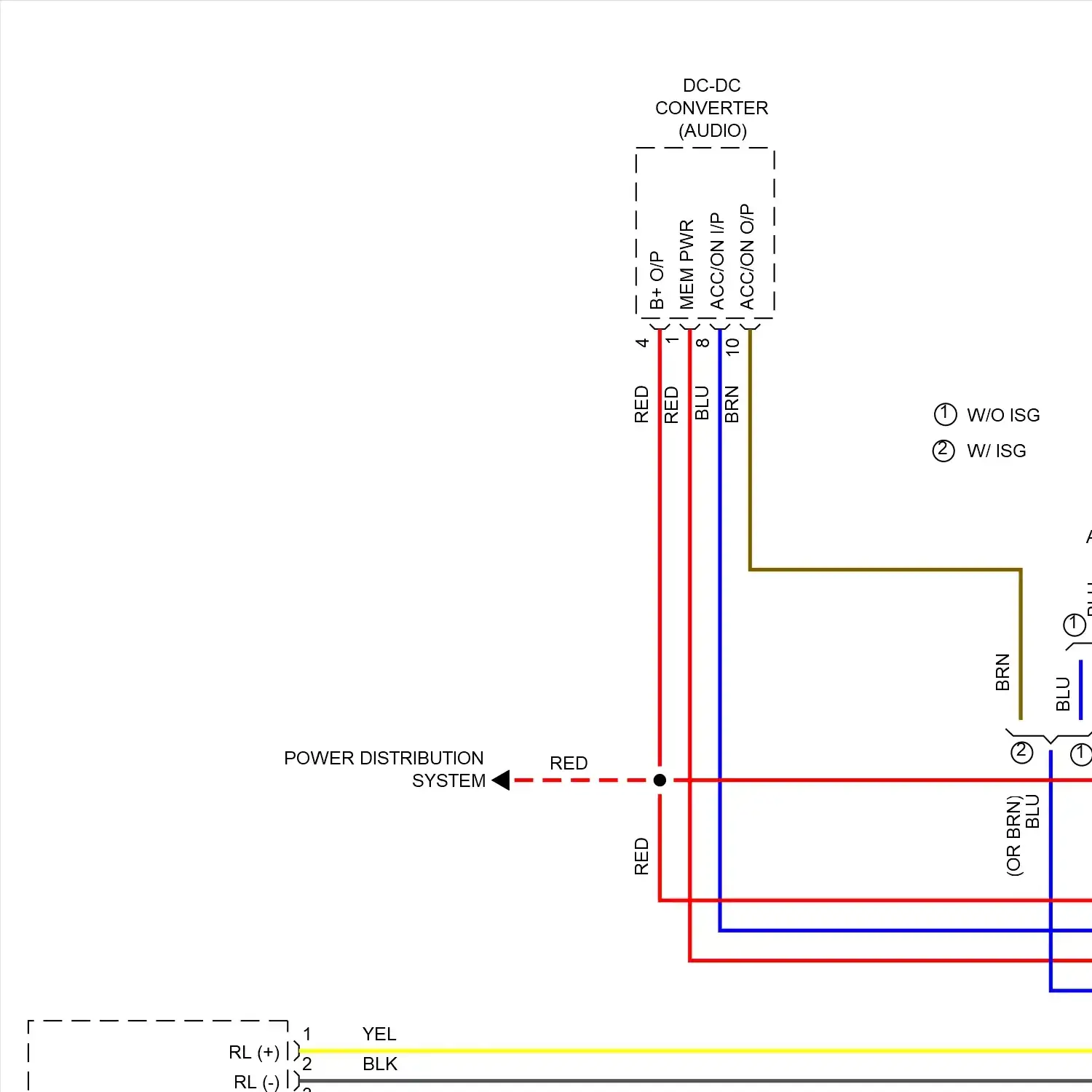

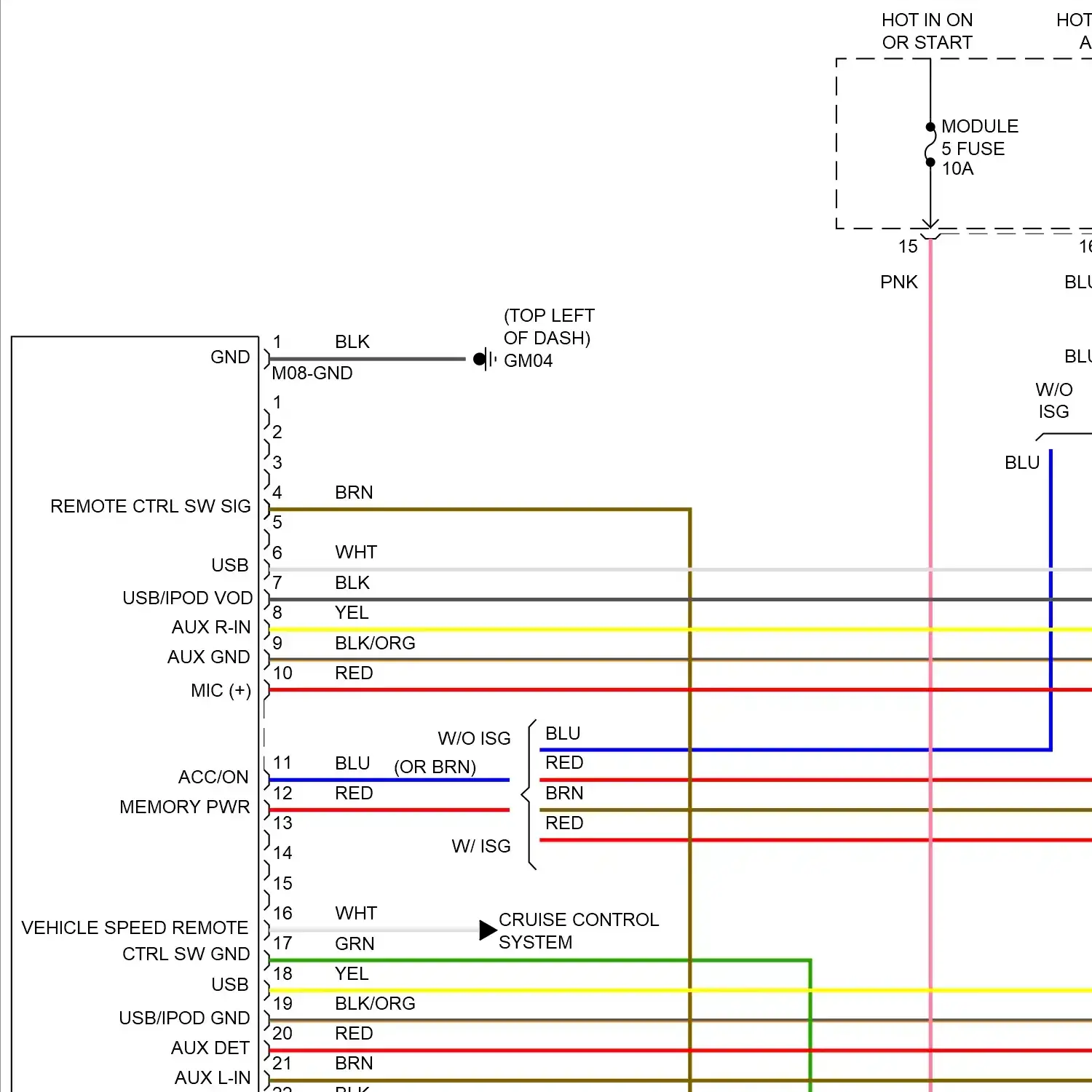

Radio circuit, ada w/o navigation display & compact Radio circuit, ada w/o navigation & display w/ compact Radio circuit, ad w/o navigation & display Radio circuit, w/ navigation & amplifier Radio circuit, w/ navigation w/o amplifier Radio circuit, w/o navigation w/ display & amplifier Radio circuit, w/o navigation w/ display w/o amplifier

1.4l turbo, shift interlock circuit

1.6l turbo, shift interlock circuit

2.0l, shift interlock circuit

1.4l turbo, charging circuit 1.4l turbo, starting circuit, w/o smart key 1.4l turbo, starting circuit, w/ smart key

1.6l turbo, charging circuit 1.6l turbo, starting circuit, w/o smart key 1.6l turbo, starting circuit, w/ smart key

2.0l, charging circuit 2.0l, starting circuit, w/o smart key 2.0l, starting circuit, w/ smart key

Supplemental restraints circuit

1.4l turbo, transmission circuit

1.6l turbo, transmission circuit

2.0l, transmission circuit, a/t 2.0l, transmission circuit, ivt

Trunk release circuit

Chime circuit Tire pressure monitoring circuit

Wiper/washer circuit

ALTERNATOR COM ALTERNATOR FR ANTENNA COIL ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES, INSTRUMENT CLUSTER SYSTEMS AUTO LR WINDOW LOCK B-CAN TRANSCEIVER IC BATTERY JUNCTION BLOCK BURGLAR ALARM HORN RLY CTRL C-CAN TRANSCEIVER DOOR LOCK DOOR LOCK DOOR UNLOCK DOOR LOCK RLY CTRL DUAL HORN HORN RLY CTRL IGN COIL CTRL CYL 1 IGN COIL CTRL CYL 2 IGN COIL CTRL CYL 3 IGN COIL CTRL CYL 4 IGN COIL CYL 1 IGN COIL CYL 2 IGN COIL CYL 3 IGN COIL CYL 4 IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 INJECTOR CTRL 4 IGN COIL CYL 3 IGN COIL CYL 2 ON/START INPUT M-CAN TRANSCEIVER RR WINDOW LOCK SHUNT RESISTOR SINGLE HORN TRANSCEIVER IC W/ AMPLIFIER W/ DUAL HORN W/ SINGLE HORN W/O AMPLIFIER WINDOW LOCK

AUTO DEFOGGER ACTUATOR AUTO DEFOGGER ACTUATOR CLOSE AUTO DEFOGGER ACTUATOR F/B AUTO DEFOGGER ACTUATOR OPEN BLOWER MOTOR CHECK ENGINE IND CLUTCH MOTOR 1 GND CLUTCH MOTOR 1 HALL 1 CLUTCH MOTOR 1 HALL 2 CLUTCH MOTOR 1 HALL 3 CLUTCH MOTOR 1 PHASE U CLUTCH MOTOR 1 PHASE V CLUTCH MOTOR 1 PHASE W CLUTCH MOTOR 1 SUPPLY CLUTCH MOTOR 2 GND CLUTCH MOTOR 2 HALL 1 CLUTCH MOTOR 2 HALL 2 CLUTCH MOTOR 2 HALL 3 CLUTCH MOTOR 2 PHASE U CLUTCH MOTOR 2 PHASE V CLUTCH MOTOR 2 PHASE W CLUTCH MOTOR 2 SUPPLY COOLING FAN MOTOR DRIVER DOOR LOCK ACTUATOR DRIVER FRONT HEIGHT ADJUSTER MOTOR DRIVER LUMBAR SUPPORT MOTOR DRIVER LUMBAR SUPPORT MOTOR DRIVER RECLINING, LUMBAR SUPPORT MOTOR DRIVER POWER WINDOW MOTOR DRIVER REAR HEIGHT ADJUSTER MOTOR DRIVER RECLINING MOTOR DRIVER RECLINING MOTOR DRIVER RECLINING, LUMBAR SUPPORT MOTOR DRIVER RECLINING, LUMBAR SUPPORT MOTOR DRIVER SLIDE MOTOR DRIVER TEMPERATURE ACTUATOR ELECTRIC WASTEGATE ACTUATOR ENGINE CONTROLS SYSTEM ENGINE CTRL ENGINE CTRL RLY CTRL ENGINE CTRL RLY ON INPUT ENGINE CTRL SIG ENGINE ROOM JUNCTION BLOCK ENGINE RPM ENGINE RPM OUTPUT ENGINE SPEED SIG ETC MOTOR, +/- FUEL PUMP MOTOR FUEL SENDER, FUEL PUMP MOTOR INTAKE ACTUATOR LEFT REAR DOOR LOCK ACTUATOR LEFT REAR POWER WINDOW MOTOR MODE ACTUATOR MOTOR CONTROL PASSENGER DOOR LOCK ACTUATOR PASSENGER POWER WINDOW MOTOR PASSENGER TEMPERATURE ACTUATOR REAR DOOR LOCK ACTUATOR RIGHT REAR DOOR LOCK ACTUATOR RIGHT REAR POWER WINDOW MOTOR SELECT ACTUATOR SHIFT ACTUATOR SHIFT MOTOR 1 GND SHIFT MOTOR 1 HALL 1 SHIFT MOTOR 1 HALL 2 SHIFT MOTOR 1 HALL 3 SHIFT MOTOR 1 PHASE U SHIFT MOTOR 1 PHASE V SHIFT MOTOR 1 PHASE W SHIFT MOTOR 1 SUPPLY SHIFT MOTOR 2 GND SHIFT MOTOR 2 HALL 1 SHIFT MOTOR 2 HALL 2 SHIFT MOTOR 2 HALL 3 SHIFT MOTOR 2 PHASE U SHIFT MOTOR 2 PHASE V SHIFT MOTOR 2 PHASE W SHIFT MOTOR 2 SUPPLY START MOTOR START SOLENOID START MOTOR SUNROOF MOTOR TOP OF ENGINE) VARIABLE CHARGE MOTION ACTUATOR WASHER MOTOR WIPER MOTOR

COMBI ANTENNA GLASS ANTENNA SMART KEY BUMPER ANTENNA SMART KEY TRUNK ANTENNA

FUEL PRESSURE REGULATOR VALVE START STOP BUTTON SWITCH START/STOP BUTTON SWITCH W/ 3 STEPS BUTTON W/O 3 STEPS BUTTON

CAMERA B+ CAMERA DETECT CAMERA GND CAMERA P GND CAMERA SHIELD CAMERA V/GND CAMERA V/IN CAMERA VIDEO GND CAMERA VIDEO IN REAR VIEW CAMERA W/ DYNAMIC GUIDE CAMERA

CCP-CAN CHECK CONNECTOR DATA LINK CONNECTOR JOINT CONNECTOR UMA JOINT CONNECTOR UMB JOINT CONNECTOR UMC JOINT CONNECTOR UMD JOINT CONNECTOR UME JOINT CONNECTOR UMF JOINT CONNECTOR URA MULTIPURPOSE CHECK CONNECTOR USB CHARGING CONNECTOR

A/C CONTROL MODULE ESP CONTROL MODULE FRONT SEAT WARMER CONTROL MODULE FUEL PUMP CONTROL MODULE FUEL PUMP CONTROL MODULE/ FUEL SENDER, FUEL PUMP MOTOR IPS CONTROL MODULE REAR SEAT WARMER CONTROL MODULE SMART JUNCTION BLOCK IPS CONTROL MODULE SMART KEY CONTROL MODULE SRS CONTROL MODULE

A/V, NAVIGATION HEAD UNIT CONTROL UNIT) ECU 1 FUSE ECU 2 FUSE ECU 3 FUSE ECU 4 FUSE ECU 5 FUSE ESC MODULE ESC UNIT ESC UNIT FORWARD COLLISION AVOIDANCE ASSIST UNIT LANE KEEPING ASSIST UNIT LEFT BLIND-SPOT COLLISION WARNING UNIT MDPS UNIT RIGHT BLIND-SPOT COLLISION WARNING UNIT SAFETY WINDOW ECU

A/BAG IND FUSE A/C COMP FUSE A/CON 1 FUSE A/CON 2 FUSE A/CON FUSE ABS 1 FUSE ABS 2 FUSE ABS 3 FUSE AIR BAG FUSE AMP FUSE AMS FUSE B+1 FUSE B+2 FUSE B+3 FUSE B+4 FUSE B+5 FUSE B/UP LAMP FUSE BLOWER FUSE BRAKE SWITCH FUSE CLUSTER FUSE COOLING FAN 1 FUSE COOLING FAN 2 FUSE DCT 1 FUSE DCT 2 FUSE DR LOCK FUSE FCA FUSE FUEL PUMP FUSE FUSE SW CTRL FUSE SWITCH H/LAMP HI FUSE HEATED MIRROR FUSE HEATED STEERING FUSE HORN FUSE IGN COIL FUSE INJECTOR FUSE INTERIOR LAMP FUSE LDC FUSE MAIN FUSE MDPS FUSE MEMORY 1 FUSE MEMORY 2 FUSE MODULE 1 FUSE MODULE 2 FUSE MODULE 3 FUSE MODULE 4 FUSE MODULE 5 FUSE MODULE 6 FUSE MODULE 7 FUSE MULTI FUSE 1 MULTI FUSE 2 MULTI FUSE 3 MULTI MEDIA FUSE MULTIMEDIA FUSE P/WDW LH FUSE P/WDW RH FUSE P/WINDOW LH FUSE P/WINDOW RH FUSE PDM 1 FUSE PDM 2 FUSE PDM 3 FUSE POWER OUTLET 1 FUSE POWER OUTLET 2 FUSE POWER OUTLET 3 FUSE POWER WINDOW LH FUSE POWER WINDOW RH FUSE PTC HEATER FUSE REAR HEATED FUSE S/HEATER FRT FUSE S/HEATER RR FUSE START FUSE STOP LAMP FUSE STOP LP FUSE SUNROOF FUSE TCU 1 FUSE TCU 2 FUSE TRUNK FUSE VACUUM PUMP 1 FUSE VACUUM PUMP 2 FUSE WASHER FUSE WIPER 1 FUSE WIPER 2 FUSE

HEATER GND HEATER PWR PTC HEATER PTC HEATER RLY CTRL SENS HEATER STEERING WHEEL HEATER OUT STEERING WHEEL HEATER POWER STEERING WHEEL HEATER PWR

A/T SHIFT LEVER INDICATOR BCW INDICATOR WIRELESS CHARGER INDICATOR

B/UP LAMP BACKUP LAMP DEFOGGER, EXTERIOR LIGHTS SYSTEMS EXTERIOR LIGHTS EXTERIOR LIGHTS, DEFOGGER SYSTEMS HIGH MOUNTED STOP LAMP LAMP FAILURE IND LAMP SIG LEFT BACKUP LAMP LEFT FRONT TURN SIGNAL LAMP LEFT FRONT VANITY LAMP LEFT LICENSE LAMP LEFT MAP LAMP OVERHEAD CONSOLE LAMP PAB OFF LAMP PAB OFF LAMP OFF SW PARKING LAMP PUDDLE LAMP PUDDLE LAMP OUT RIGHT BACKUP LAMP RIGHT FRONT TURN SIGNAL LAMP RIGHT FRONT VANITY LAMP RIGHT LICENSE LAMP RIGHT MAP LAMP ROOM LAMP ROOM LAMP OUT STOP LAMP STOP LAMP HOOD SIG SW STOP LAMP SIGNAL TAIL LAMP TAIL LAMP IN TRUNK LID TRUNK MAIN HANDLE ROOM GND LAMP SW TRUNK ROOM LAMP TURN BACKUP LAMP LAMP SIG SIG TURN LAMP TURN LAMP SIG

CURRENT PUMP FUEL PUMP RLY CTRL FUEL PUMP RLY CTRL CCV CTRL VACUUM PUMP

A/C COMP RELAY A/C COMP RELAY PCB BLOCK A/CON RELAY CTRL BLOWER RELAY BURGLAR ALARM HORN RELAY CONTROL BURGLAR ALARM RELAY BURGLAR ALARM RELAY CONTROL COOLING FAN 1 RELAY COOLING FAN 2 RELAY DOOR LOCK RELAY DOOR LOCK RELAY 1 DOOR UNLOCK RELAY ENGINE CONTROL RELAY FRONT WIPER HIGH RELAY FUEL PUMP RELAY FWD SLIDE RELAY GROUND BWD H/LAMP HI RELAY HEAD LAMP RELAY CONTROL HEADLAMP HIGH RELAY HEADLAMP HIGH RELAY CONTROL HORN RELAY HOT W/ LEAK CURRENT AUTO CUT DEVICE RELAY ENERGIZED LEAK CURRENT AUTO CUT DEVICE RELAY LEAK CURRENT AUTO CUT DEVICE RELAY CONTROL LEAK CURRENT AUTO CUT RELAY P/WDW LH RELAY CTRL P/WDW RH RELAY CTRL PCB BLOCK A/C COMP RELAY PDM 2 RELAY PDM 3 RELAY PDM 4 RELAY POWER OUTLET RELAY POWER WINDOW LH RELAY POWER WINDOW RH RELAY PTC HEATER RELAY REAR HEATED RELAY RELAY CTRL START RELAY TRUNK RELAY TWO TURN UNLOCK RELAY W/ TWO TURN RELAY W/O TWO TURN RELAY WIPER RELAY CTRL HIGH WIPER RELAY CTRL LOW

ACCEL PEDAL POSITION SENSOR AMBIENT TEMPERATURE SENSOR AUTO DEFOGGER SENSOR AUTO LIGHT SENSOR AUTO LIGHT, PHOTO SENSOR BATTERY SENSOR BOOST PRESSURE SENSOR BRAKE BOOSTER VACUUM PRESSURE SENSOR BRAKE FLUID LEVEL SENSOR BRAKE FLUID LVL SENSOR SW C-CAN LOW SENSOR SIG APT SIG CAMSHAFT POSITION SENSOR 1 CAMSHAFT POSITION SENSOR 2 CLUTCH SPEED SENSOR ASSEMBLY CRANKSHAFT POSITION SENSOR DRIVER FRONT IMPACT SENSOR DRIVER FRONT SIDE IMPACT SENSOR DRIVER SIDE IMPACT PRESSURE SENSOR DRV FRONT IMPACT SENSOR HIGH DRV FRONT IMPACT SENSOR LOW DRV FRONT SIDE IMPACT SENSOR HIGH DRV FRONT SIDE IMPACT SENSOR LOW DRV SIDE IMPACT PRESSURE SENSOR HIGH DRV SIDE IMPACT PRESSURE SENSOR LOW ELECTRONIC THERMO SENSOR ENGINE COOLANT TEMPERATURE SENSOR ETC MOTOR, THROTTLE POSITION SENSOR EVAPORATOR SENSOR FUEL PRESSURE SENSOR FUEL TANK PRESSURE SENSOR HALL EFFECT SENSOR HALL SENSOR IN CAR SENSOR INDICATOR SWITCH SENSOR INPUT SPEED SENSOR KNOCK SENSOR KNOCK SENSOR GND KNOCK SENSOR SHIELD KNOCK SENSOR SIG LEFT CENTER PARKING DISTANCE WARNING REVERSE SENSOR LEFT FRONT TIRE PRESSURE SENSOR LEFT FRONT WHEEL SENSOR LEFT PARKING DISTANCE WARNING REVERSE SENSOR LEFT REAR TIRE PRESSURE SENSOR LEFT REAR WHEEL SENSOR LEFT REVERSE PARKING DISTANCE WARNING SENSOR MAP SENSOR MASS AIR FLOW SENSOR MIRROR POSITION SENSOR OUTPUT SPEED SENSOR PASS FRONT IMPACT SENSOR HIGH PASS FRONT IMPACT SENSOR LOW PASS FRONT SIDE IMPACT SENSOR HIGH PASS FRONT SIDE IMPACT SENSOR LOW PASS SIDE IMPACT PRESSURE SENSOR HIGH PASS SIDE IMPACT PRESSURE SENSOR LOW PASSENGER FRONT IMPACT SENSOR PASSENGER FRONT SIDE IMPACT SENSOR PASSENGER OCCUPANT DETECTION SENSOR PASSENGER SIDE IMPACT PRESSURE SENSOR PDW SENSOR POWER PDW SENSOR POWER OUT PHOTO SENSOR PRESSURE SENSOR RAIL PRESSURE SENSOR RIGHT CENTER PARKING DISTANCE WARNING REVERSE SENSOR RIGHT FRONT TIRE PRESSURE SENSOR RIGHT FRONT WHEEL SENSOR RIGHT PARKING DISTANCE WARNING REVERSE SENSOR RIGHT REAR TIRE PRESSURE SENSOR RIGHT REAR WHEEL SENSOR RIGHT REVERSE PARKING DISTANCE WARNING SENSOR SENSOR 1 FUSE SENSOR 2 FUSE SENSOR 3 FUSE SENSOR GND SENSOR GROUND SENSOR GROUND APT GND SENSOR OUTPUT SENSOR POWER SENSOR PWR SENSOR PWR APT/FTP SPLY SENSOR SUPPLY SPEED SENSOR TURBINE THROTTLE POSITION SENSOR WASHER LEVEL SENSOR

CENTER SPEAKER DRIVER DOOR SPEAKER DRIVER DOOR TWEETER SPEAKER LEFT REAR DOOR SPEAKER PASSENGER DOOR SPEAKER PASSENGER DOOR TWEETER SPEAKER RIGHT REAR DOOR SPEAKER SPEAKER 1+ SPEAKER 2+ WOOFER SPEAKER

BACKUP LAMP SWITCH BCW SWITCH BLOWER SWITCH BRAKE LIGHT SWITCH BRAKE TEST SWITCH BSD SWITCH CLOSE SWITCH CLUTCH SWITCH CRASH PAD SWITCH DMS SWITCH DOOR LOCK SWITCH DOWN SHIFT CLUTCH SWITCH DRIVE MODE SWITCH DRIVER DOOR SWITCH DRIVER FRONT HEIGHT ADJUSTER SWITCH DRIVER HEATER SWITCH DRIVER IMS SWITCH DRIVER MODE SWITCH DRIVER REAR HEIGHT ADJUSTER SWITCH DRIVER RECLINING LIMIT SWITCH DRIVER RECLINING SWITCH DRIVER SEAT BELT BUCKLE SWITCH DRIVER SEAT MANUAL SWITCH DRIVER SLIDE SWITCH DRIVER WINDOW SWITCH ESC OFF SWITCH HAZARD SWITCH HEADLAMP HIGH SWITCH OUT HEADLAMP LOW BACKUP SWITCH OUT HOOD SWITCH HORN SWITCH IGNITION KEY ILLUMINATION, DOOR WARNING SWITCH IGNITION LOCK SWITCH IGNITION LOCK, CLUTCH SWITCH IGNITION SWITCH INHIBITOR SWITCH D INPUT INHIBITOR SWITCH N INPUT INHIBITOR SWITCH P INPUT INHIBITOR SWITCH R INPUT ISG SWITCH KEY-IN SWITCH LAMP SWITCH LEFT CONSOLE SWITCH LEFT REAR DOOR SWITCH LEFT REAR POWER WINDOW SWITCH LEFT REAR SEAT WARMER SWITCH LEFT REAR WINDOW SWITCH LEFT STEERING WHEEL REMOTE CONTROL SWITCH LEFT TELLTALE SWITCH LIGHT SWITCH OUT LIGHT SWITCH SIG LKA-L SWITCH LOW IND SWITCH MULTI- FUNCTION SWITCH NEUTRAL SWITCH OIL PRESSURE SWITCH OPEN SWITCH P POSITION SWITCH P/N SWITCH PARKING BRAKE SWITCH PARKING SWITCH PASSENGER DOOR SWITCH PASSENGER HEATER SWITCH PASSENGER POWER WINDOW SWITCH PASSENGER SEAT BELT BUCKLE SWITCH PASSENGER WINDOW SWITCH POSITION SWITCH CODE D POSITION SWITCH CODE N POSITION SWITCH CODE P POSITION SWITCH CODE R POWER OUTSIDE MIRROR SWITCH POWER WINDOW MAIN SWITCH REAR DEFOGGER SWITCH REAR DEFOGGER SWITCH INPUT RIGHT CONSOLE SWITCH RIGHT REAR DOOR SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT REAR SEAT WARMER SWITCH RIGHT REAR WINDOW SWITCH RIGHT STEERING WHEEL REMOTE CONTROL SWITCH RIGHT TELLTALE SWITCH SELECT SWITCH SELECTOR SWITCH SPORT MODE SWITCH START SWITCH INPUT STEERING WHEEL HEATER SWITCH STEERING WHEEL SWITCH STEERING WHEEL SWITCH IN STEERING WHEEL SWITCH IND STOP LAMP SWITCH SUNROOF SWITCH SWITCH CONTROL SWITCH OUT TELL TALE LH SWITCH TELL TALE RH SWITCH TILT UP SWITCH TRANSAXLE RANGE SWITCH TRUNK LID HANDLE SWITCH TRUNK LID OUTSIDE HANDLE SWITCH TRUNK OPEN SWITCH TRUNK ROOM LAMP SWITCH WIPER SWITCH

ATM SOLENOID CANISTER CLOSE VALVE FUEL PRESSURE CONTROL VALVE HIGH BEAM SOLENOID KEY SOLENOID OIL CONTROL VALVE 1 OIL CONTROL VALVE 2 OIL CONTROL VALVE 3 PURGE CONTROL SOLENOID VALVE RCV CONTROL SOLENOID VALVE RECIRCULATION VALVE SELECT 1 SOLENOID PUSH SELECT 2 SOLENOID PULL SELECT 2 SOLENOID PUSH SELECT SOLENOID 1 GND SELECT SOLENOID 1 SIG SELECT SOLENOID 1 SPLY SELECT SOLENOID 2 GND SELECT SOLENOID 2 SIG SELECT SOLENOID 2 SPLY SHIFT LOCK SOLENOID SOLENOID GROUND SOLENOID PWR 1 SOLENOID PWR 2 SOLENOID PWR A SOLENOID PWR B START SOLENOID VARIABLE INTAKE SOLENOID VALVE

(OR RED/ WIRE APS 2 SPLY PNK APS 1 SPLY WIRE BLK BRN/ WIRE BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/ORG WIRE BLK/WHT WIRE BLK/YEL WIRE BLU GRY/ WIRE BLU WIRE BLU/BLK WIRE BLU/GRN WIRE BLU/ORG WIRE BLU/WHT WIRE BLU/YEL WIRE BLUE LED BRN GRY/ WIRE BRN WIRE BRN/BLK WIRE BRN/ORG WIRE BRN/RED WIRE BRN/WHT WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/ORG WIRE GRN/WHT WIRE GRN/YEL WIRE GROUND PNK MEMORY PWR WIRE GRY WIRE GRY/BLK WIRE GRY/ORG WIRE LED GREEN LT GRN WIRE LT GRN/BLK WIRE LT GRN/WHT WIRE MEMORY PWR PNK ON/START IN WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/WHT WIRE OUT SPD SIG PNK OUT SPD PWR WIRE PNK DEFOGGER SYSTEM WIRE PNK MEMORY POWER WIRE PNK ON/START IN WIRE PNK PNK WIRE PNK SIGNAL WIRE PNK WIRE PNK/BLK WIRE PNK/WHT WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/GRN WIRE RED/ORG WIRE RED/WHT WIRE RED/YEL WIRE SOL PWR 2 PNK SS B WIRE SSB BLUE LED SUPPLY PNK SIGNAL WIRE VIO WIRE VIO/WHT WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/ORG WIRE WHT/RED WIRE YEL WIRE YEL/BLK WIRE YEL/GRN WIRE YEL/ORG WIRE YEL/RED WIRE YEL/WHT WIRE YELLOW)

1.4L TURBO 1.4L TURBO 1.6L TURBO 2.0L ADA 2.0L AD 1.4L TURBO 2.0L 1.4L TURBO, 1.6L TURBO 1.6 TURBO 1.6L 2 3 ON/START INPUT 2.0L 2.0L 1.4L TURBO, 1.6L TURBO 2.0L ADA 1.4L TURBO 4 3 2.0L 1.6 L TURBO 1.4L TURBO W/O CLUTCH 1.4L TURBO W/ CLUTCH 2.0L AD 2.0L AD 2.0L ADA 2.0L ADA 2.0L ADA 1.4L TURBO 2.0L AD 1.6L TURBO 2.0L, 1.6L TURBO 2.0L, 1.6L TURBO 2.0L, 1.6L TURBO 5 3.5 MONO TFT LCD 4.2 TFT LCD 3.5 MONO TFT LCD W/ ISG 3.5 SEG LCD 25 VFS 26 VFS "ON" "P" POS SW "P" POSITION SW 'B' OUTPUT (IF (OR (W/ STANDARD +, - OK +VP A/C COMP RLY CTRL A/C PRESSURE TRANSDUCER A/CON BLOWER SIG A/CON RLY CTRL A/T CVT A/T DCT A/T DCT M/T A/T, DCT A/T M/T A/T M/T W/O IMMOBILIZER W/ IMMOBILIZER 1.4L TURBO 6 2.0L A/T, IVT ABS IND. ACC RLY CTRL ACC/ON I/P ACC/ON IN ACC/ON INPUT ACC/ON O/P ACC/ON OUT ACC/ON OUTPUT AD ADA AD, ADA W/O ISG ADA AD ADA AD W/O WIRELESS CHARGER W/ WIRELESS CHARGER ADA W/ ISG AIR BAG AIR BAG IND AIR CONDITIONING SYSTEM ALT COM ALT L IN AM/FM F/CABLE AMBER LED ANT 2 GND ANT 2 PWR ANT #1 GND ANT #1 PWR ANT-G ANT-R ANT-S ANTI-THEFT ANTI-THEFT SYSTEM APS 1 GND APS 1 PWR APS 1 SIG APS 1 SPLY APS 1 SPLY APS 1 PWR APS 2 GND APS 2 PWR APS 2 SIG APS 2 SPLY APS 2 SPLY APS 2 PWR APT GND APT SIG APT/FTP SPLY ARISU CONTROL ARISU CTRL AUTHORIZATION SIGNAL AUTO CUT RLY CTRL AUTO DEFOG ACTR CLOSE AUTO DEFOG ACTR F/B AUTO DEFOG ACTR OPEN AUTO DOWN AUTO LIGHT SENS GND AUTO LIGHT SENS PWR AUTO LIGHT SENS SIG AUTO STOP IND AUTO UP UP AUTOMATIC A/C AUTOMATIC A/C MANUAL A/C AUX DET AUX DETECT AUX GND AUX L + AUX L IN AUX R + AUX R IN AUX, USB JACK B + OUT PUT B+ BPF B+ MEMORY POWER OUTPUT B+ OUT B-CAN B-CAN B-CAN LOW HIGH B-CAN HI B-CAN HIGH B-CAN LO B-CAN LOW BACKUP SIG BATT TEMP BCW IND BCW ON/OFF IND BCW ON/OFF SW BLADE POSITION SW IN BLOWER MAX ON SIG BLOWER ON SIGNAL BPS GND BPS SIG BRAKE FLUID LVL SW IN BRAKE IND BRAKE LIGHT SW BRAKE PARKING FLUID BRAKE LEVEL SW SENS BRAKE SW SIG BRAKE TEST SW BRK FLUID BRK LIGHT SW BRK SW SIG BRK TEST SW BRK TEST SW SIG BUMPER ANT GND BUMPER ANT PWR BURGLAR ALARM BURGLAR ALARM RLY CTRL C-CAN C-CAN HI C-CAN HIGH C-CAN LO C-CAN LOW CALL END CALL SEND CAN HIGH CAN LOW CCP CAN CCP CAN HI CCP CAN LO CCP-CAN HIGH CCP-CAN LOW CCV CTRL CENTER REAR OF LUGGAGE COMPT) CHARGE IND CHARGING SYSTEM CIGARETTE LIGHTER CIGARETTE LIGHTER ILLUMINATION CKPS GND CKPS SIG CLEAN SIG CLUTCH SPEED 1 GROUND CLUTCH SPEED 1 SUPPLY CLUTCH SPEED 2 GROUND CLUTCH SPEED 2 SUPPLY CLUTCH SW CLUTCH UD VFS CMPS SPLY COMMON GND COMPUTER DATA COMPUTER DATA LINES SYSTEM CONSTANT CURRENT CONTROL IC COOLING FAN 2 RLY CTRL COOLING FAN 1 RLY CTRL COOLING FAN CONTROLLER COOLING FAN RLY CTRL COOLING FANS SYSTEM CRASH IN CRASH O/P CRUISE CONTROL SYSTEM CRUISE CONTROL SYSTEM WIPER/WASHER SYSTEM CRUISE IND CRUISE ON/OFF CRUISE ON/OFF RES+ CTR + CTRL GND CTRL RLY CTRL SW CURRENT ADJUST CURRENT DIRECT CUT OFF I/P CUT OFF INPUT CURRENT CUT OFF INPUT MEMORY OUTPUT CVVT 1 CVVT 2 CVVT 3 CVVT EXHAUST CVVT INTAKE D IND D OUT DATA LINES DCT A/T, CVT DCT DCT DCT M/T DEFOGGER SYSTEM DETENT OUT DIAL LCD ILL DIAL LED ILL DIMMING CIRCUIT DIRECTION VCC DOOR LK SW DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR OPEN IND DOOR SW DOOR UNLOCK DOOR UNLOCK RLY CTRL DOWN GND DOWN OFF DOWN SHIFT DOWN UP DOWN/ AUTO DOWN DOWN/ LEFT DPF IND DR LK DR LK/UNLK SIG DR TEMP ACTR COOL DR TEMP ACTR F/B DR TEMP ACTR WARM DR UNLK DRIVE IC DRIVE MODE DRIVER AIR BAG DRIVER BACK WARMER DRIVER CURTAIN AIR BAG DRIVER DOOR DRIVER DOOR KEY UNLK SIG DRIVER DOOR MODULE DRIVER DOOR SW DRIVER DR ANT GND DRIVER DR ANT PWR DRIVER DR LK/UNLK SW DRIVER DR SW DRIVER IC DRIVER IMS MODULE DRIVER KNEE AIR BAG DRIVER POWER OUTSIDE MIRROR DRIVER SAFETY POWER WINDOW MODULE DRIVER SEAT ANCHOR PRETENSIONER DRIVER SEAT BELT PRETENSIONER DRIVER SEAT WARMER DRIVER SIDE AIR BAG DRIVER SMART KEY OUTSIDE HANDLE DRIVER'S DOOR DRIVER/ PASSENGER DR KEY LK SIG DRL GND DRV CURTAIN AIR BAG HIGH DRV CURTAIN AIR BAG LOW DRV DOOR SW DRV DR DRV DR KEY DRV DR SW DRV FRT HEIGHT MTR DN DRV FRT HEIGHT MTR SIG DRV FRT HEIGHT MTR UP DRV FRT HEIGHT SW DN DRV FRT HEIGHT SW UP DRV KNEE AIR BAG HIGH DRV KNEE AIR BAG LOW DRV LK SW LK DRV LK SW UNLK DRV RECLINING MTR FR DRV RECLINING MTR RR DRV RECLINING MTR SIG DRV RECLINING SW FR DRV RECLINING SW RR DRV RR HEIGHT MTR DN DRV RR HEIGHT MTR SIG DRV RR HEIGHT MTR UP DRV RR HEIGHT SW DN DRV RR HEIGHT SW UP DRV SEAT BELT DRV SEAT BELT ANCHOR PRETENSIONER HIGH DRV SEAT BELT ANCHOR PRETENSIONER LOW DRV SEAT BELT PRETENTIONER HIGH DRV SEAT BELT PRETENTIONER LOW DRV SIDE AIR BAG HIGH DRV SIDE AIR BAG LOW DRV SLIDE MTR FR DRV SLIDE MTR RR DRV SLIDE MTR SIG DRV SLIDE SW FR DRV SLIDE SW RR DRV/PASS DR E/R JUNCTION BLOCK E/R-A E/R-B E/R-C E/R-D EC MIRROR CONTROL ECTS GND ECTS SIG ECV GND ECV GROUND ECV POWER EGR SIG ELECTRO- CHROMIC MIRROR ELECTROCHROMIC MIRROR ELECTRONIC A/C COMPRESSOR EMS COM ENG CTRL RLY CTRL ESC IND ESC MODULE ESC OFF IND ESC OFF SW EXTERNAL BUZZER EXTERNAL MEMORY FAN PWM FCA IND FET GATE FL PWD AUTO FL PWD DOWN FL PWD UP FL SIG FL VCC FLEX RAY HIGH FLEX RAY LOW FPS GND FPS INPUT FPS PWR FR PWD AUTO FR PWD DOWN FR PWD UP FR SIG FR VCC FTP GND FTP SIG FTPS GND FTPS SIG FUEL GAUGE FUEL INJECTOR 1 FUEL INJECTOR 2 FUEL INJECTOR 3 FUEL INJECTOR 4 FUEL SENDER FUEL TANK FUEL TANK LEVEL SENDER GLOW IND GND GND GROUND DISTRIBUTION SYSTEM HALL 1 HALL 2 HALL 3 HAZARD LAMPS SW HAZARD SIG HAZARD SW HDLP HIGH SW HEADLAMP HIGH SW IN HEADLAMP LOW SIG HEADLIGHTS SYSTEM HIGH BEAM IND HIGH IND HIGH LOW HL 1 HL 1 HL 2 HL 2 HL 3 HL 3 HL VL HOME LINK HOOD OPEN IND HOOD SW HORNS SYSTEM HOT AT ALL TIMES HOT IN HOT IN ACC OR ON HOT IN ON HOT IN ON OR ACC HOT IN ON OR START I/P PWR I/P-A I/P-B I/P-C I/P-D I/P-E I/P-F IAT SENS IAT SIG IC IGNITER IGNITION KEY IMMO COM LINE IMMO DATA LINE IMMO GND IMMO IND IMMO PWR IMMOBILIZER MODULE IMS MEMORY 1 IMS MEMORY 2 IN SPD PWR IN SPD SIG INJECTOR 1 INJECTOR 1 CTRL INJECTOR 2 INJECTOR 2 CTRL INJECTOR 3 INJECTOR 3 CTRL INJECTOR 4 INJECTOR 4 CTRL INJECTOR CTRL 1 INJECTOR CTRL 2 INJECTOR CTRL 3 INPUT SIG INTERFACE INPUT SPEED 1 GND INPUT SPEED 1 SUPPLY INPUT SPEED 2 GND INPUT SPEED 2 SUPPLY INPUT SPEED SIG INPUT SPEED SPLY INSTRUMENT CLUSTER INT LO INT/VOL SW INT/VOL SW IN INTAKE ACTR F/B INTAKE ACTR FRE INTAKE ACTR REC IONIZER DIAG IPS CONTROL IPS CTRL IPS MEMORY PWR ISG DC-DC CONVERTER J/C UMC K LINE K-LINE SIG INTERFACE KEY HOLE ILL KEY IN SW KEY INTERLOCK KEY LK KEY LK SIG KEY OUT IND KEY UNLK KEYPAD GND KEYPAD SIG KEYPAD SIGNAL KNOCK SENS GND KNOCK SENS SIG LEAK CURRENT LEAK CURRENT AUTO CUT DEVICE LED GND LEFT HEADLAMP LEFT REAR DOOR SW LEFT REAR POWER WINDOW MODULE LEFT RIGHT LEFT TURN IND LEFT/ RIGHT UP/ DOWN LEVEL IN LEVEL SENDER LEVEL SENS LH BCW IND LH RR DR SW LID 1 LID 2 LIGHT SW LIGHT SW SIG LIN COMMUNICATION LIN LINE LIN/DIAGNOSTIC DATA LINE LINE VFS LINES SYSTEM LK/UNLK SIG LOCAL CAN HIGH LOCAL CAN LOW LOW BEAM IND LOW FUEL IND LOW HIGH LOW IND LOW WASHER LOW WASHER IND LR DOWN LR DR LR PASS LR PASS DOOR DOOR SW SW LR UP M-CAN M-CAN HI M-CAN HIGH M-CAN LO M-CAN LOW M/T N SW MANUAL A/C MAP/CMPS SPLY MAP/FTPS SPLY MAP/FTPS/EWGA SENS PWR MASTER IND MATCHING CIRCUIT MATCHING RFC CIRCUIT MDPS IND MEM PWR MEM PWR CPU MEM PWR LOAD MEM PWR O/P MEMORY CTRL PWR MEMORY POWER MEMORY POWER OUTPUT MEMORY PWR MIC - MIC SHIELD MICRO CONTROLLER MID IND MIRR DOWN LEFT MIRR DOWN RH MIRR DOWN RIGHT MIRR SELECT L MIRR SELECT R MIRR UP LEFT MIRR UP RH MIRR UP RIGHT MODE ACTR DEF MODE ACTR F/B MODE ACTR VENT MODE SEEK DN SEEK UP MONO - MONO LCD ILL MONO TFT LCD MTS KEY N IND N OUT NAVIGATION SYSTEM NERNST VOLT NOT USED NTC + GND NTC- OD VFS OD VFS PRIMARY OFF DOWN OFF ON OFF SW OFF UP OFF UP DOWN OIL LEVEL IND OIL PRESSURE OIL PRESSURE IND OIL TEMP + OIL TEMP SENS ON IN ON INPUT ON OFF ON START INPUT ON/ BACKUP SIGNAL ON/START I/P ON/START IN ON/START INPUT OPEN ALARM OPF IND OUTPUT SPEED SIG OUTPUT SPEED SPLY OUTSIDE MIRROR OVER SPEED IND P IND P OUT P-GND P/N SW P/WDW RLY CTRL PAB OFF PADDLE SW DOWN PADDLE SW UP PARKING BRAKE IND. PARKING BRAKE SW IN PARKING BRAKE SW INPUT PARKING BRK PARKING BRK SW PARKING DISTANCE PARKING DISTANCE WARNING-REVERSE SENS PWR PASS CURTAIN AIR BAG HIGH PASS CURTAIN AIR BAG LOW PASS DOOR SW PASS DR PASS DR ANT GND PASS DR ANT PWR PASS DR KEY PASS DR LK/UNLK SW PASS DR SW PASS SEAT BELT PASS SEAT BELT ANCHOR PRETENSIONER HIGH PASS SEAT BELT ANCHOR PRETENSIONER LOW PASS SEAT BELT IND PASS SEAT BELT PRETENTIONER HIGH PASS SEAT BELT PRETENTIONER LOW PASS SIDE AIR BAG HIGH PASS SIDE AIR BAG LOW PASS TEMP ACTR COOL PASS TEMP ACTR F/B PASS TEMP ACTR WARM PASSENGER AIR BAG 1 PASSENGER AIR BAG 2 PASSENGER BACK WARMER PASSENGER CURTAIN AIR BAG PASSENGER DOOR KEY UNLK DRV SIG PASSENGER DOOR MODULE PASSENGER POWER OUTSIDE MIRROR PASSENGER SEAT ANCHOR PRETENSIONER PASSENGER SEAT BELT PRETENSIONER PASSENGER SEAT WARMER PASSENGER SIDE AIR BAG PASSENGER SMART KEY OUTSIDE HANDLE PASSENGER'S DOOR PCB BLOCK PCSV CTRL POINT LCD ILL POINT LED ILL POS SW CODE D POS SW CODE N POS SW CODE P POS SW CODE R POSITION, SIDE MARKER POWER 1/2 POWER 1/2 SPLY POWER B+ POWER CONDITIONING POWER DISTRIBUTION POWER DISTRIBUTION SYSTEM POWER GND POWER GROUND POWER INPUTS POWER OUTLET POWER OUTLET 1 POWER OUTLET 2 POWER TOPS SYSTEM POWER WINDOWS SYSTEM PRESS SENS SECONDARY PRESS SPLY 1/2 PRESSURE SENS + PRESSURE SUPPLY 1/2 PRIMARY SPD SENS PWM FAN CTRL PWM GND PWR 1/2 PWR 3 PWR 3 PRIMARY PRESS SENS SIG 2 SIG 1 PWR GND PWR SUPPLY REGULATION PWR-1 R - OUT R IND RANGE SW SIG D RANGE SW SIG N RANGE SW SIG P RANGE SW SIG R RCV CTRL REAR DEFOGGER REAR DEFOGGER IND REAR DEFOGGER SW REAR DEFOGGER SW IN REMOTE + REMOTE CTRL SW GND REMOTE CTRL SW SIG RES+ REVERSE PROTECTION, FILTER RF SIG RH BCW IND RH RR DR SW RHEOSTAT DOWN IN RHEOSTAT DOWN SW RHEOSTAT UP IN RHEOSTAT UP SW RIGHT END OF DASH) RIGHT HEADLAMP RIGHT REAR DOOR SW RIGHT REAR POWER WINDOW MODULE RIGHT TURN IND RIGHT TURN IND TFT LCD DRIVE RL PWD DOWN RL PWD UP RL SIG RL VCC RLY CTRL ROOM LP OUT RPS GND RPS SIG RR DOOR SW RR DOWN RR DR - RR HEATED RLY CTRL RR PWD DOWN RR PWD UP RR SIG RR UP RR VCC S GND S OUT SAFETY PWR WDW SAFETY PWR WINDOW ENABLE OUT SEAT BELT IND SEAT BELT IND AMP IC SEATS SYSTEM SECONDARY PRES SUPPLY SECONDARY PRESS SPLY SEEK DOWN SEEK UP SEG LCD SEG LCD ILL SELECT 2 POSITION SELECT 2 SOL PUSH SELECT 2 SUPPLY SELECT POSITION SENS 1 GND SELECT POSITION SENS 1 PULL SELECT POSITION SENS 1 PUSH SELECT POSITION SENS 1 SIG SELECT POSITION SENS 1 SPLY SELECT POSITION SENS 2 GND SELECT POSITION SENS 2 PULL SELECT POSITION SENS 2 SIG SELECT POSITION SENS 2 SPLY SELECT SW SENS GND SENS H SENS INTERFACE SENS PWR SENS SIG SENS SPLY SENS V SERIAL SIG INTERFACE SET IND SET SW SET- SHIELD GND SHIFT INTERLOCK SYSTEM SIG A SIG B SIG C SIG FILTER SIG GND SIGNAL 1 SIGNAL 1 PRESSURE SIGNAL 2 SIGNAL 2 PR SEN SMART JUNCTION BLOCK SOL CLUTCH SOL DC SOL LP SOL PRIMARY SOL PWR 1 SOL SECONDARY SOUND SYSTEMS SPD INPUT SPD SENS SPEED OUT SS A SS B SSB AMBER LED SSB ILL SSB ILL GND SSB ILL GROUND SSB ILL POWER SSB ILL PWR SSB SW 1 SSB SW 2 STANDARD DISPLAY START FD SIG START FEEDBACK SIG START RLY START RLY CTRL START RLY OUT START SIG START SIG INPUT START SW I/P START SW INPUT STARTING CIRCUIT STARTING SIG STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING WHEEL HEATED MODULE STEERING WHEEL SW IND STEERING WHEEL SW SIG STEERING WHEEL) STOP LP SIG SUNROOF OPEN SW IN SUPPLEMENTAL RESTRAINTS SYSTEM SW 1 SW 2 SW IN SW INPUT SW POWER SW REG SW SIG T/CON VFS TAIL OFF TAIL ON IND TEMP OUT TEMPERATURE GAUGE TEST SW TFT LCD THERMO SENS TILT UP TO DIMMING CIRCUIT TPMS IND TPS 1 SIG TPS 1 SPLY TPS 2 SIG TPS GND TPS PWR TPS SIG 1 TPS SIG 2 TPS SPLY TPS SPLY TPS PWR TRANSAXLE RANGE SW SIG D TRANSAXLE RANGE SW SIG N TRANSAXLE RANGE SW SIG P TRANSAXLE RANGE SW SIG R TRANSMISSIONS SYSTEM TRANSPONDER READER IC TRUNK ANT GND TRUNK ANT PWR TRUNK LID LATCH TRUNK LID RLY CTRL TRUNK OPEN IND TRUNK OPEN SW TRUNK RLY CTRL TRUNK ROOM LP TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN LEFT TURN RIGHT TURN SIGNAL TWO TURN TWO TURN UNLK RLY LK CTRL UD VFS UNLK SIG UP AUTO DOWN UP DOWN UP SHIFT UP SHIFT MASS AIR OUTPUT UP/ RIGHT USB D- USB GND USB VCC USB VOD USB/IPOD GND USB/IPOD VOD USER SWITCHES V OUT VBATT MTR RLY VCM FEEDBACK GND VEH SPD VEHICLE SPD VEHICLE SPD IN VEHICLE SPEED VEHICLE SPEED "P" POS SW IGN LK SW VEHICLE SPEED INPUT VEHICLE SPEED REMOTE CTRL SW GND VFS 26 VFS CLUTCH VFS DC VFS LINE VFS LP VFS OD VFS PRIMARY VFS SECONDARY VFS T/CON VFS UD VIRTUAL GND VIS CTRL VOL 2 VOL 3 VOL 4 VOL SIG VOL VOL W/ AMP W/ BCW W/ BI-FUNCTION W/ BI-FUNCTION W/O BI-FUNCTION W/ COMPACT W/ DISPLAY W/ DISPLAY W/ NAVIGATION, W/O NAVIGATION W/ DISPLAY W/O NAVIGATION, DISPLAY W/ DISPLAY W/O DISPLAY AD ADA W/ DISPLAY W/O DISPLAY, COMPACT W/ FCA W/ IMMOBILIZER W/ ISG W/ ISG W/O ISG W/ LED W/ LED W/O LED W/ MEMORY W/ NAVIGATION W/ REAR SEAT WARMER W/ SEAT WARMER W/ SG W/ SMART KEY W/ SMART KEY W/O SMART KEY W/ SMART KEY, IMMO W/O SMART KEY, IMMO W/ WIRELESS CHARGER W/ WIRELESS CHARGER W/O WIRELESS CHARGER W/AMP W/O AMP W/ISG W/O ISG W/O AMP W/O BCW W/O DISPLAY W/O DISPLAY W/ DISPLAY W/O DISPLAY W/ WIRELESS CHARGER W/O WIRELESS CHARGER W/O DISPLAY, COMPACT W/O DISPLAY, COMPACT W/ DISPLAY W/ COMPACT W/O DISPLAY, STANDARD W/O FCA W/O IMMOBILIZER W/O IMMOBILIZER W/ IMMOBILIZER W/O ISG W/O ISG W/ ISG W/O LED W/O MEMORY W/O NAVIGATION W/O NAVIGATION W/ STANDARD W/O NAVIGATION W/ DISPLAY W/ NAVIGATION W/O NAVIGATION, DISPLAY W/O NAVIGATION W/ DISPLAY W/ NAVIGATION W/O REAR SEAT WARMER W/O REAR SEAT WARMER W/ REAR SEAT WARMER W/O SG W/O SMART KEY W/O SMART KEY/ IMMOBILIZER W/O SUNROOF W/ SUNROOF W/O WIRELESS CHARGER W/O WIRELESS CHARGER W/ WIRELESS CHARGER WARNING SYSTEMS WARNING, SUPPLEMENTAL RESTRAINTS SYSTEMS WASHER SIG WATER SEPARATOR IND WGV CTRL WIPER BACKUP SW SIG WIPER INT/ WIPER LOW WIPER LOW B/UP SW IN WIPER RLY CTRL HI WIPER RLY CTRL LO WIPER SIG WIPER SW WIPER SW SIG WIPER, LIGHT GND WIPER/WASHER SYSTEM WIRELESS CHARGER
