Hyundai Elantra III (2000-2003) taillamp relay auto cut control input Wiring diagram
This page shows the only wiring diagram for the component.taillamp relay auto cut control input, which is found in the car Hyundai Elantra III (2000-2003). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

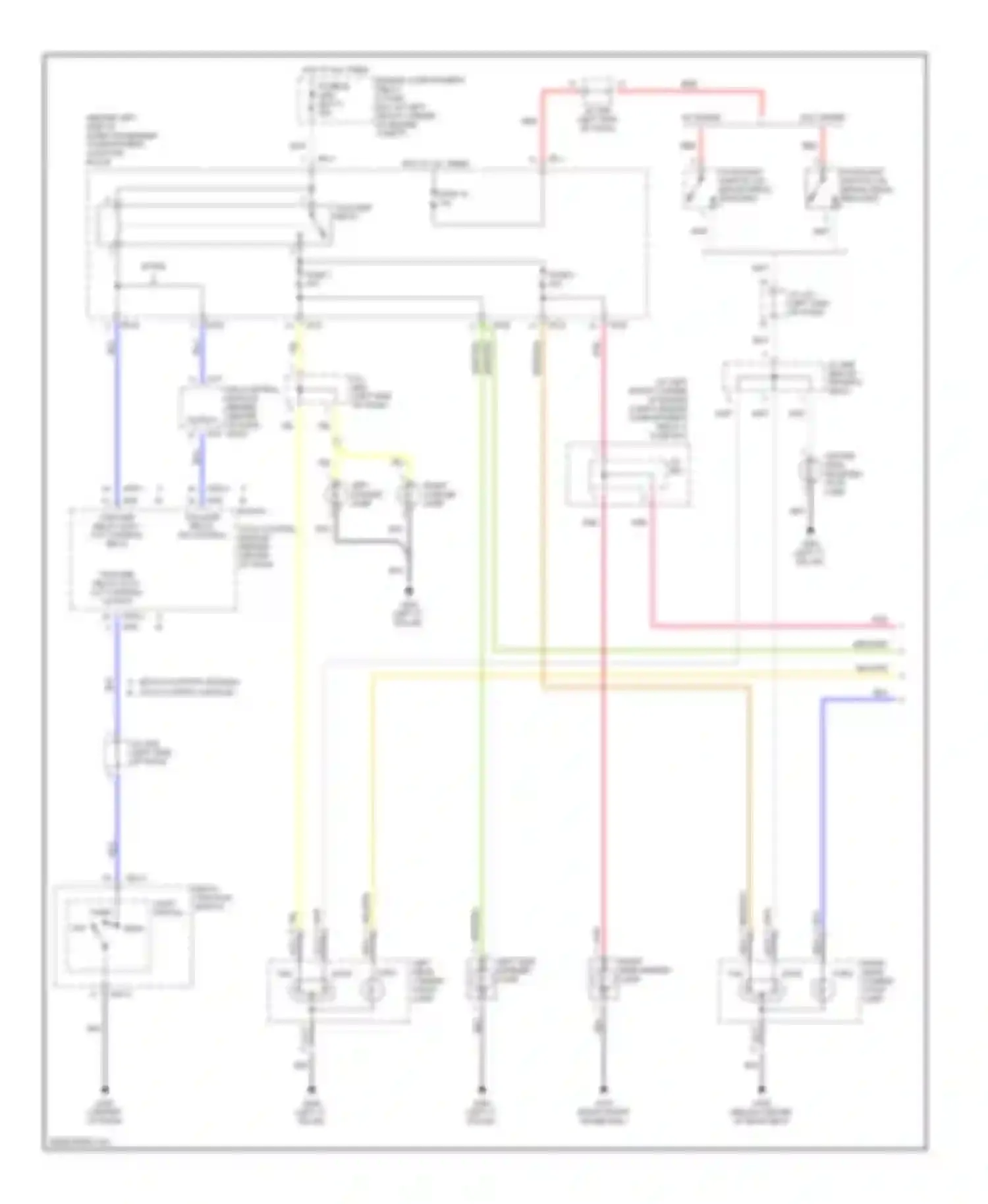

Wiring diagram taillamp relay auto cut control input (1 of 1)
BLK WIRE
BLU WIRE
BRN/ORG WIRE
CENTER HIGH MOUNTED STOP LAMP
DRL CONTROL MODULE (BEHIND CENTER OF DASH) INPUT
ENGINE COMPARTMENT RELAY & FUSE BOX (AT LEFT FRONT CORNER OF ENGINE COMPT)
ETACS/ TACS CONTROL MODULE (BEHIND CENTER OF DASH) TAILLAMP RELAY ON CONTROL
FUSE 16
FUSE 6
FUSE 7
FUSIBLE LINK (BATT)
GRN/ORG WIRE
HOT AT ALL TIMES
I/P-A
I/P-B
I/P-D
I/P-H
I/P-J
J/C
LEFT "C" PILLAR)
LEFT LICENSE LAMP
LEFT REAR COMBIN- ATION LAMP
LEFT SIDE MARKER LAMP
LIGHT SWITCH PARK
MULTI- FUNCTION SWITCH
NCA NCA WIRE
NCA WIRE
OFF HEAD
OUTPUT
PNK WIRE
RED WIRE
RIGHT LICENSE LAMP
RIGHT REAR COMBIN- ATION LAMP TURN STOP
RIGHT SIDE MARKER LAMP TAIL
STOPLIGHT SWITCH (ON BRAKE PEDAL BRACKET)
TAILLAMP RELAY AUTO CUT CONTROL INPUT
TAILLAMP RELAY AUTO CUT CONTROL OUTPUT
TAILLIGHT RELAY
TURN TAIL STOP
W/ CRUISE
W/ DRL
W/O CRUISE
WHT WIRE
YEL WIRE
YEL/ORG WIRE
Go to component -> Exterior lamps circuit (1 of 2) -> TAILLAMP RELAY AUTO CUT CONTROL INPUT
