Hyundai Azera II (2011-2014) engine coolant temperature sensor (rear of sensor Wiring diagram
This page shows the only wiring diagram for the component.engine coolant temperature sensor (rear of sensor, which is found in the car Hyundai Azera II (2011-2014). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

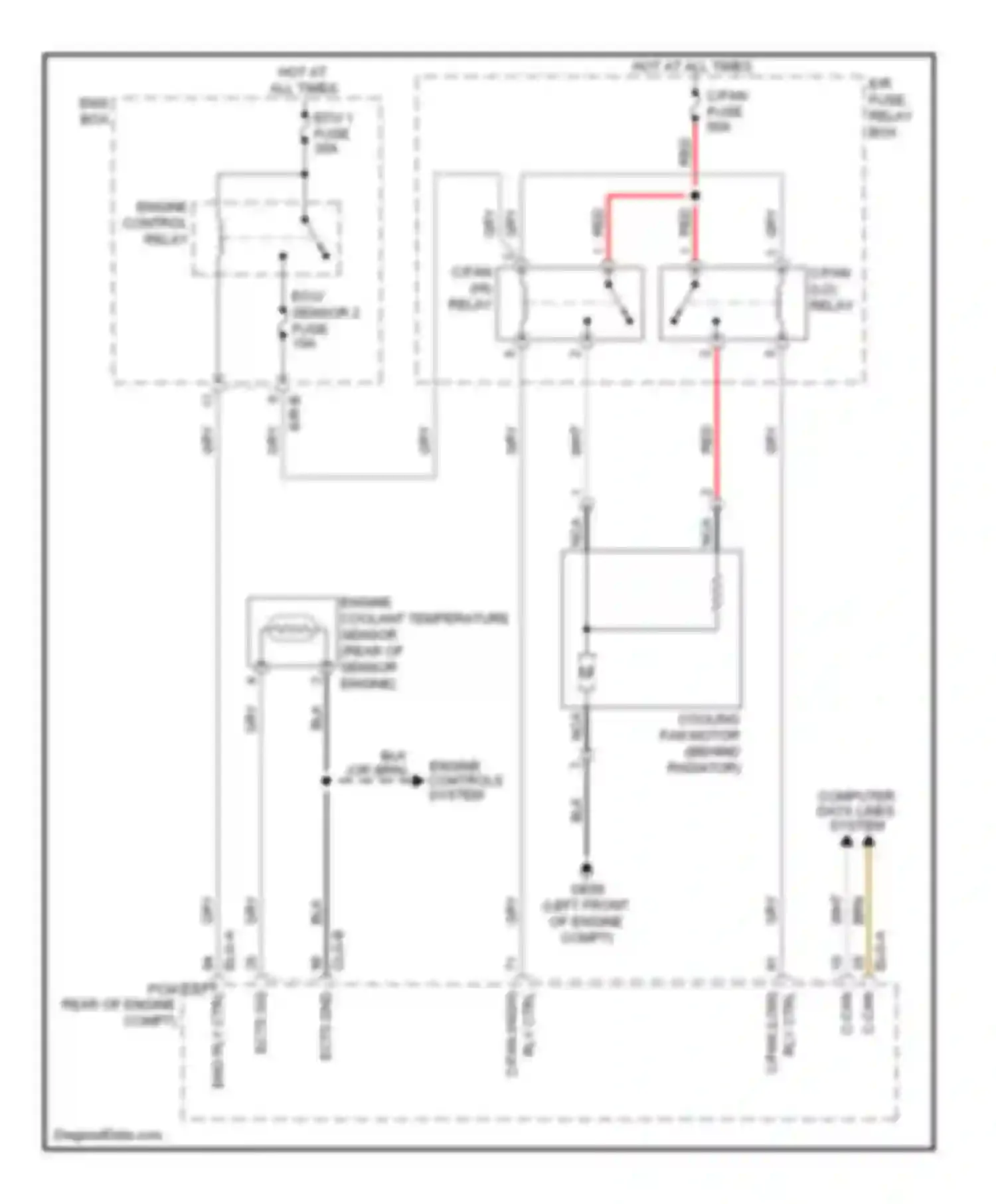

Wiring diagram engine coolant temperature sensor (rear of sensor (1 of 1)
BLK WIRE
BRN WIRE
C-CAN HI
C-CAN LO
C/FAN (HIGH)
C/FAN FUSE
C/FAN HI RELAY
C/FAN LO RELAY
C/FAN LOW
CLG-B
COMPUTER DATA LINES SYSTEM
COOLING FAN MOTOR (BEHIND RADIATOR)
E/R FUSE, RELAY BOX
E/R-B
ECTS GND
ECTS SIG
ECU 1 FUSE
ECU/ SENSOR 2 FUSE
ELG-A
EMS BOX
ENG RLY CTRL
ENGINE
ENGINE CONTROL RELAY
ENGINE CONTROLS SYSTEM
ENGINE COOLANT TEMPERATURE SENSOR (REAR OF SENSOR
GRY WIRE
HOT AT ALL TIMES
NCA WIRE
PCM (LEFT REAR OF ENGINE COMPT)
RED WIRE
RLY CTRL
WHT WIRE
Go to component -> Cooling fan circuit -> ENGINE COOLANT TEMPERATURE SENSOR (REAR OF SENSOR
