Honda S2000 AP2 facelift (2003-2009) rear window defogger switch Wiring diagrams

This page contains all the electrical diagrams for the component. rear window defogger switch, in which he is found in the car Honda S2000 AP2 facelift (2003-2009). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

Wiring diagram rear window defogger switch (1 of 3)

Wiring diagram rear window defogger switch for Honda S2000 AP2 facelift (2003-2009)

Get access

AUXILIARY UNDER-HOOD FUSE BOX (AT REAR LEFT OF ENGINE COMPARTMENT) FUSE 34 BLK WIRE BLK/RED WIRE BLK/YEL WIRE BLU WIRE BRN WIRE CONVERTIBLE TOP DISABLE SWITCH (W/ HARDTOP) (UNDER DRIVER'S ROLL BAR) FUSE 19 FUSE 6 GAUGE ASSEMBLY GRN WIRE GRN/YEL WIRE HOT AT ALL TIMES HOT IN ON HOT IN ON W/ ENGINE NOT CRANKING LT GRN WIRE LT GRN/WHT WIRE NOISE COND- ENSER (AT LEFT SIDE OF TRUNK) ON IND- ICATOR POWER TOPS SYSTEM REAR WINDOW DEFOGGER DIODE (AT LEFT SIDE OF TRUNK) REAR WINDOW DEFOGGER (W/ HARD- TOP) REAR WINDOW DEFOGGER (W/ SOFTTOP) REAR WINDOW DEFOGGER CHANGE RELAY (AT LEFT SIDE OF TRUNK) REAR WINDOW DEFOGGER SWITCH REAR WINDOW DEFOGGER SWITCH LIGHT RED WIRE UNDER-DASH FUSE/RELAY BOX (UNDER LEFT SIDE OF DASH) WHT WIRE WHT/GRN WIRE YEL WIRE

Go to component: -> Defoggers circuit -> REAR WINDOW DEFOGGER SWITCH

Wiring diagram rear window defogger switch (2 of 3)

Wiring diagram rear window defogger switch for Honda S2000 AP2 facelift (2003-2009)

Get access

AUDIO UNIT BLK WIRE BLOWER POWER TRANSISTOR CONVERTIBLE TOP CONTROL UNIT CRUISE CONTROL MAIN SWITCH DRIVER'S DOOR KEY CYLINDER SWITCH DRIVER'S DOOR LATCH DRL CONTROL UNIT ENGINE EPS CONTROL UNIT GAUGE ASSEMBLY HEATER CONTROL PANEL INVERTER KEYLESS DOOR LOCK CONTROL UNIT LEFT BRAKE LIGHT/ SIDE MARKER/ TAILLIGHT LEFT HEADLIGHT LOW BEAM LEFT REAR TURN SIGNAL LIGHT LEFT BACK-UP LIGHT LICENSE PLATE LIGHT RIGHT BACK-UP LIGHT MES CONNECTOR POWER MIRROR SWITCH POWER WINDOW MASTER SWITCH RADIO REMOTE SWITCH PASSENGER'S WINDOW SWITCH REAR WINDOW DEFOGGER SWITCH RIGHT BRAKE LIGHT/ SIDE MARKER/ TAILLIGHT RIGHT HEADLIGHT LOW BEAM RIGHT REAR TURN SIGNAL LIGHT SWITCH USA VSA OFF SWITCH

Go to component: -> Ground distribution circuit (3 of 3) -> REAR WINDOW DEFOGGER SWITCH

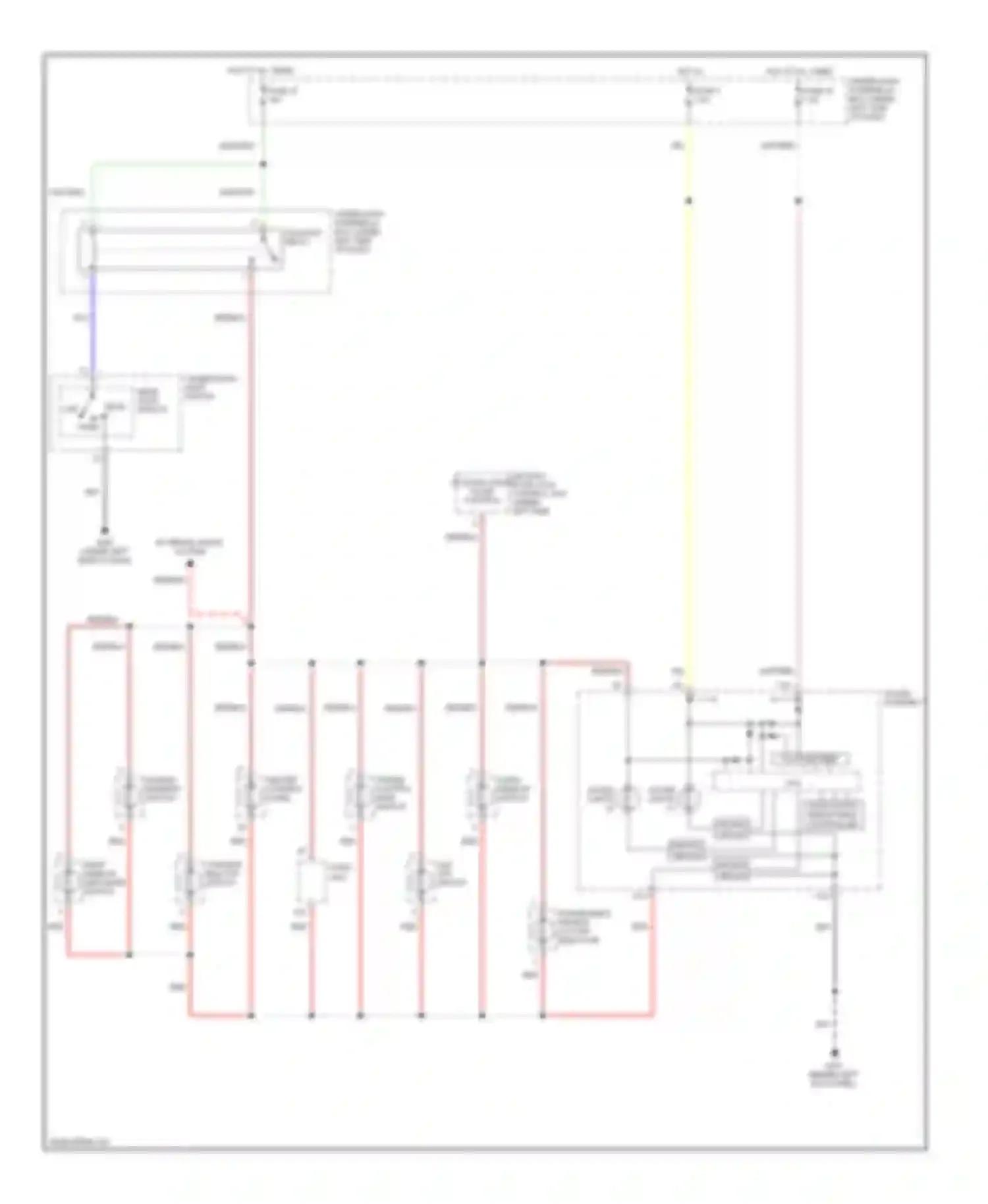

Wiring diagram rear window defogger switch (3 of 3)

Wiring diagram rear window defogger switch for Honda S2000 AP2 facelift (2003-2009)

Get access

AUDIO REMOTE SWITCH AUDIO UNIT BLK WIRE BLU WIRE COMBINATION LIGHT SWITCH CONVERT- IBLE TOP SWITCH CRUISE CONTROL MAIN SWITCH DASH LIGHTS BRIGHTNESS CONTROLLER DRIVING CIRCUIT FUSE 23 FUSE 25 FUSE 5 GAUGE ASSEMBLY GAUGE LIGHTS (2) GAUGE LIGHTS (7) HAZARD WARNING SWITCH HEAD HEAD LIGHT SWITCH HEATER CONTROL PANEL HOT AT ALL TIMES HOT IN ON KEYLESS DOOR LOCK CONTROL UNIT (UNDER LEFT SIDE OF DASH) LIGHTS FLASH CONTROL OFF PARK PASSENGER'S AIR-BAG CUT-OFF INDICATOR REAR WINDOW DEFOGGER SWITCH RED WIRE RED/BLK WIRE TAILLIGHT RELAY UNDER-DASH FUSE/RELAY BOX (UNDER LEFT SIDE OF DASH) VOLTAGE FEED VSA OFF SWITCH WHT/GRN WIRE WHT/RED WIRE YEL WIRE

Go to component: -> Instrument illumination circuit -> REAR WINDOW DEFOGGER SWITCH
