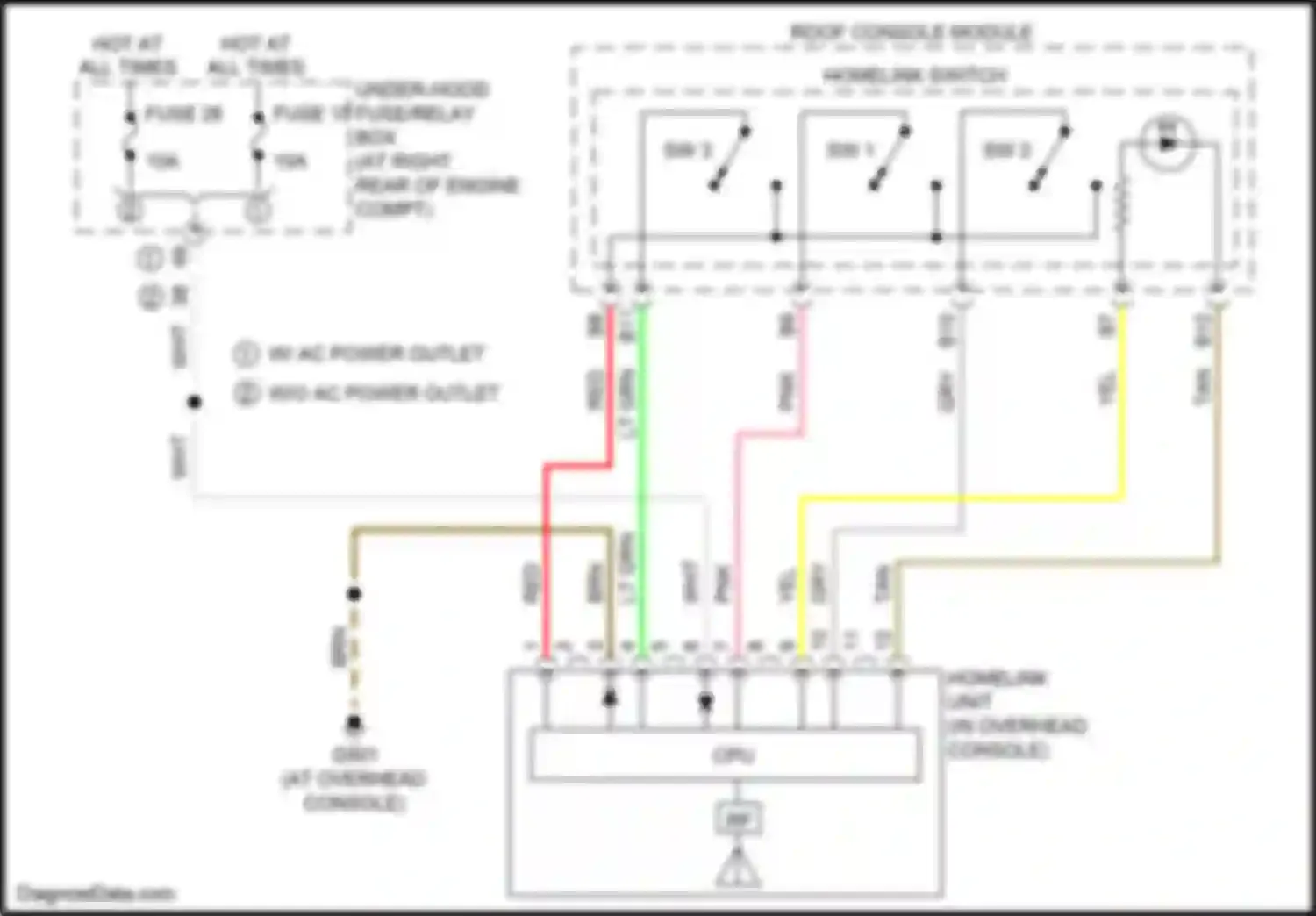

Honda Ridgeline II (2016-2021) roof console module Wiring diagrams

BLK WIRE BLU WIRE DOOR DRIVER'S DOOR SWITCH FRONT PASSENGER'S DOOR SWITCH FUEL FILL DOOR OPENER SWITCH FUSE 15 FUSE 26 GRN WIRE GRY WIRE HOT AT ALL TIMES INSTRUMENT ILLUMINATION CIRCUIT INTERIOR LIGHT SWITCH LEFT CARGO AREA LIGHT LEFT FRONT INDIVIDUAL MAP LIGHT LEFT FRONT INDIVIDUAL MAP LIGHT SWITCH LEFT INTERIOR LIGHT LEFT REAR DOOR SWITCH LT BLU WIRE LT GRN WIRE OFF OFF ON PNK WIRE PPL RED WIRE RIGHT CARGO AREA LIGHT RIGHT FRONT INDIVIDUAL MAP LIGHT RIGHT FRONT INDIVIDUAL MAP LIGHT SWITCH RIGHT INTERIOR LIGHT RIGHT REAR DOOR SWITCH ROOF CONSOLE MODULE UNDER-HOOD FUSE/RELAY BOX W/ LED W/ LED W/O LED W/O AC POWER OUTLET W/O LED WHT WIRE

BLK WIRE BLU WIRE DOOR DRIVER'S DOOR SWITCH FRONT PASSENGER'S DOOR SWITCH FUSE 15 FUSE 26 GRN WIRE GRY WIRE HOT AT ALL TIMES INSTRUMENT ILLUMINATION CIRCUIT INTERIOR LIGHT SWITCH LEFT FRONT INDIVIDUAL MAP LIGHT LEFT FRONT INDIVIDUAL MAP LIGHT SWITCH LEFT INTERIOR LIGHT LEFT REAR DOOR SWITCH LT BLU WIRE LT GRN WIRE OFF OFF OFF ON ON OFF ON PNK WIRE PPL RED WIRE RIGHT FRONT INDIVIDUAL MAP LIGHT RIGHT FRONT INDIVIDUAL MAP LIGHT SWITCH RIGHT INTERIOR LIGHT RIGHT REAR DOOR SWITCH ROOF CONSOLE MODULE UNDER-HOOD FUSE/RELAY BOX W/O AC POWER OUTLET WHT WIRE

AUTO HIGH BEAM CONTROL UNIT AUTOMATIC DIMMING INSIDE MIRROR AUTOMATIC LIGHTING/RAIN SENSOR BLK WIRE BRN WIRE DRIVER'S LUMBAR SUPPORT SWITCH DRIVER'S POWER SEAT ADJUSTMENT SWITCH DRIVER'S SEAT DRIVER'S SEAT BELT BUCKLE SWITCH DRIVER'S SEAT CUSHION BLOWER MOTOR DRIVER'S SEAT CUSHION HEATER DRIVER'S SEAT HEATER RELAY (HIGH) DRIVER'S SEAT HEATER RELAY (LOW) DRIVER'S SEAT POSITION SENSOR DRIVER'S SEAT- BACK HEATER DRIVER'S SEAT-BACK BLOWER MOTOR DRIVER'S SUNVISOR FRONT INDIVIDUAL MAP LIGHT HOMELINK UNIT INTERIOR LIGHT SWITCH LEFT REAR DOOR LOCK ACTUATOR/KNOB SWITCH LEFT REAR POWER WINDOW SWITCH MICU MOONROOF MOTOR/ CONTROL UNIT MULTI-PURPOSE CAMERA UNIT PASSENGER'S SUNVISOR POWER SEAT CONTROL UNIT REAR SEAT HEATER RELAY ROOF CONSOLE MODULE UNDER-DASH FUSE/RELAY BOX VENTILATED SEAT CONTROL UNIT W/ A/C POWER OUTLET W/O A/C POWER OUTLET W/ MOONROOF W/O MOONROOF

BRN WIRE FUSE 15 FUSE 26 GRY WIRE HOMELINK SWITCH HOMELINK UNIT HOT AT ALL TIMES LT GRN WIRE PNK WIRE RED WIRE ROOF CONSOLE MODULE SW 1 SW 2 SW 3 TAN WIRE UNDER-HOOD FUSE/RELAY BOX W/ A/C POWER OUTLET W/O A/C POWER OUTLET WHT WIRE YEL WIRE

A/T GEAR POSITION INDICATOR PANEL LIGHT AC INVERTER SWITCH AUDIO REMOTE SWITCH BLK WIRE BLU WIRE CABLE REEL CARGO AREA LIGHT SWITCH CARGO AREA LIGHT/HEATED WINDSHIELD WIPER AREA SWITCH CRUISE CONTROL/ ACC COMBINATION SWITCH/ LKAS SWITCH DASHLIGHTS BRIGHTNESS CONTROL SWITCH ECON SWITCH GRN WIRE GRY WIRE HFL-NAVIGATION VOICE CONTROL SWITCH/ HEATED STEERING WHEEL SWITCH HFL-SWITCH (W/O NAVIGATION) HOMELINK UNIT INTERIOR LIGHT SWITCH JOINT 5 JOINT 7 PARKING, BACKUP SENSOR/LDW/ RDM OFF SWITCH PNK WIRE POWER MIRROR SWITCH REAR CONTROL PANEL (IF EQUIPPED) RED WIRE ROOF CONSOLE MODULE SELECT/ RESET/ INFORMATION SWITCH VSA/CMBS OFF SWITCH W/ NAVIGATION W/O AC POWER OUTLET W/O MOONROOF W/O NAVIGATION W/ NAVIGATION W/ A/C POWER OUTLET W/O A/C POWER OUTLET

A/T GEAR POSITION INDICATOR PANEL LIGHT AUDIO REMOTE SWITCH BEVERAGE HOLDER LIGHT BLU WIRE CABLE REEL CARGO AREA LIGHT SWITCH CARGO AREA LIGHT/HEATED WINDSHIELD WIPER AREA SWITCH CD PLAYER UNIT CLIMATE CONTROL UNIT DASHLIGHTS BRIGHTNESS CONTROL SWITCH DRIVER'S FOOTWELL LIGHT DRIVER'S LUMBAR SUPPORT SWITCH DRIVER'S SEAT HEATER SWITCH DRIVER'S VENTILATED SEAT HEATER SWITCH ECON SWITCH FROM AUXILIARY UNDER-HOOD FUSE/RELAY BOX (DIAGRAM 1 OF 10) FROM FUSE 27 (DIAGRAM 7 OF 10) FRONT CONSOLE BOX LIGHT FRONT PASSENGER'S FOOTWELL LIGHT FRONT PASSENGER'S SEAT HEATER SWITCH FRONT PASSENGER'S VENTILATED SEAT HEATER SWITCH FUSE 25 FUSE 26 FUSE 37 FUSE 38 GLOVE BOX LIGHT GRY WIRE HAZARD WARNING SWITCH/ FRONT PASSENGER'S AIR BAG CUT-OFF INDICATOR HOMELINK UNIT HVAC CONTROL UNIT INTELLIGENT TRACTION MANAGEMENT SWITCH INTERIOR LIGHT SWITCH JOINT 5 JOINT 6 MICU PARKING, BACKUP SENSOR/LDW/ RDM OFF SWITCH POWER MIRROR SWITCH PPL REAR CONTROL PANEL RED/BLK WIRE ROOF CONSOLE MODULE SNOW SWITCH TO AC INVERTER SWITCH (DIAGRAM 6 OF 10) UNDER-DASH FUSE/RELAY BOX VSA/CMBS OFF SWITCH W/ A/C POWER OUTLET W/O A/C POWER OUTLET W/O AC POWER OUTLET W/O MOONROOF

AUTO AUTO OPEN CLOSE AUTO CLOSE AUTO OPEN BLK WIRE BLU WIRE BRN WIRE CLOSE CLOSE RELAY COMPUTER DATA LINES SYSTEM CONTROL CONTROL UNIT) DOOR LOCK KNOB DRIVER'S DOOR LOCK ACTUATOR/ KNOB SWITCH/KEY CYLINDER SWITCH DRIVER'S DOOR LOCK KNOB SWITCH FRONT PASSENGER'S DOOR SWITCH FRONT PASSENGER'S POWER WINDOW SWITCH FUSE 14 FUSE 29 GRN WIRE GRY WIRE HALL SENSOR HOT AT ALL TIMES KEY LOCK LT BLU WIRE LT GRN WIRE MICU MOONROOF MOTOR CONTROL UNIT (RIGHT FRONT OF ROOF) MOONROOF SWITCH MOTOR OFF OPEN OFF OPEN CLOSE OPEN RELAY ORG/ WIRE POWER WINDOW MASTER SWITCH RELAY ENERGIZED ROOF CONSOLE MODULE TAN WIRE TILT SWITCH UNDER-DASH FUSE/RELAY BOX UNIT) UNLOCK WHT WIRE YEL WIRE

AS SWITCH AUTO DOWN AUXILIARY UNDER-HOOD FUSE/RELAY BOX BACK POWER WINDOW SWITCH BLK WIRE BLU WIRE BRN WIRE CLOSE COMPUTER DATA LINES SYSTEM CONTROL UNIT) DOWN UP DOWN UP DR SWITCH DRIVER'S DOOR SWITCH DRIVER'S POWER WINDOW MOTOR FRONT PASSENGER'S DOOR SWITCH FUSE 1 FUSE 1-3 FUSE 11 FUSE 12 FUSE 13 FUSE 23 FUSE 4 GRN WIRE GRY WIRE HALL IC UNIT (PULSER) HOT AT ALL TIMES IND LR SWITCH LT BLU WIRE LT GRN WIRE MAIN MAIN SWITCH MICU MOONROOF MOTOR/ CONTROL UNIT OFF POWER WINDOW MASTER SWITCH POWER WINDOW RELAY PPL REAR OF ENGINE COMPT) RED WIRE RELAY ENERGIZED ROOF CONSOLE MODULE RR SWITCH TAN WIRE UNDER-DASH FUSE/RELAY BOX UP AUTO WHT WIRE YEL WIRE
