Honda Prelude IV (1992-1996) door switch input Wiring diagram

This page shows the only wiring diagram for the component.door switch input, which is found in the car Honda Prelude IV (1992-1996). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

Wiring diagram door switch input (1 of 1)

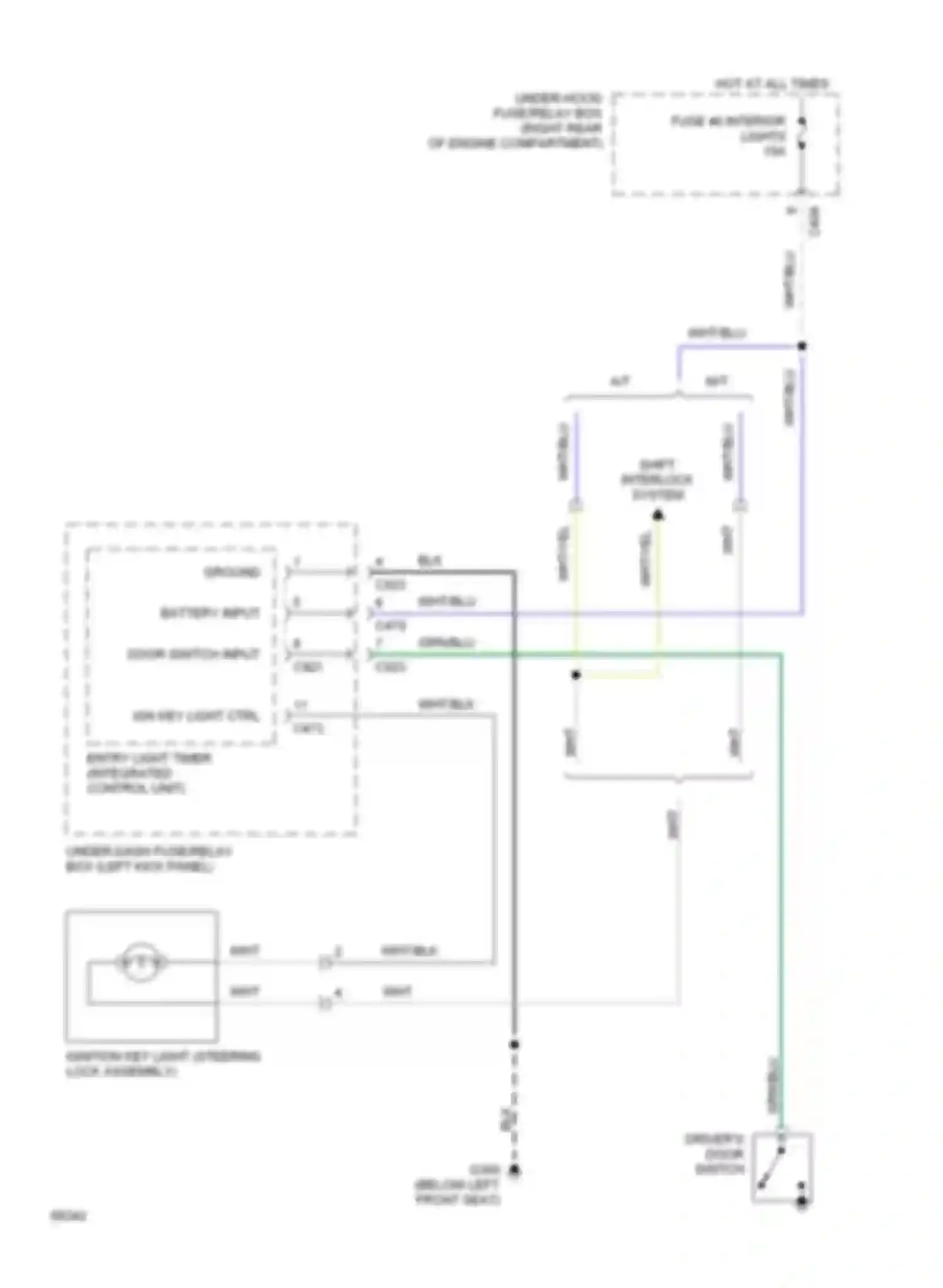

Wiring diagram door switch input for Honda Prelude IV (1992-1996)

Get access

A/T BATTERY INPUT BLK WIRE DOOR SWITCH INPUT DRIVER'S DOOR SWITCH ENTRY LIGHT TIMER (INTEGRATED CONTROL UNIT) FUSE 46 INTERIOR LIGHTS GRN/BLU WIRE GROUND HOT AT ALL TIMES IGN KEY LIGHT CTRL IGNITION KEY LIGHT STEERING LOCK ASSEMBLY M/T SHIFT INTERLOCK SYSTEM UNDER-DASH FUSE/RELAY BOX (LEFT KICK PANEL) UNDER-HOOD FUSE/RELAY BOX (RIGHT REAR OF ENGINE COMPARTMENT) WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/YEL WIRE

Go to component: -> Ignition key light circuit -> DOOR SWITCH INPUT
