Honda Prelude IV (1992-1996) charge indicator Wiring diagram
This page shows the only wiring diagram for the component.charge indicator, which is found in the car Honda Prelude IV (1992-1996). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

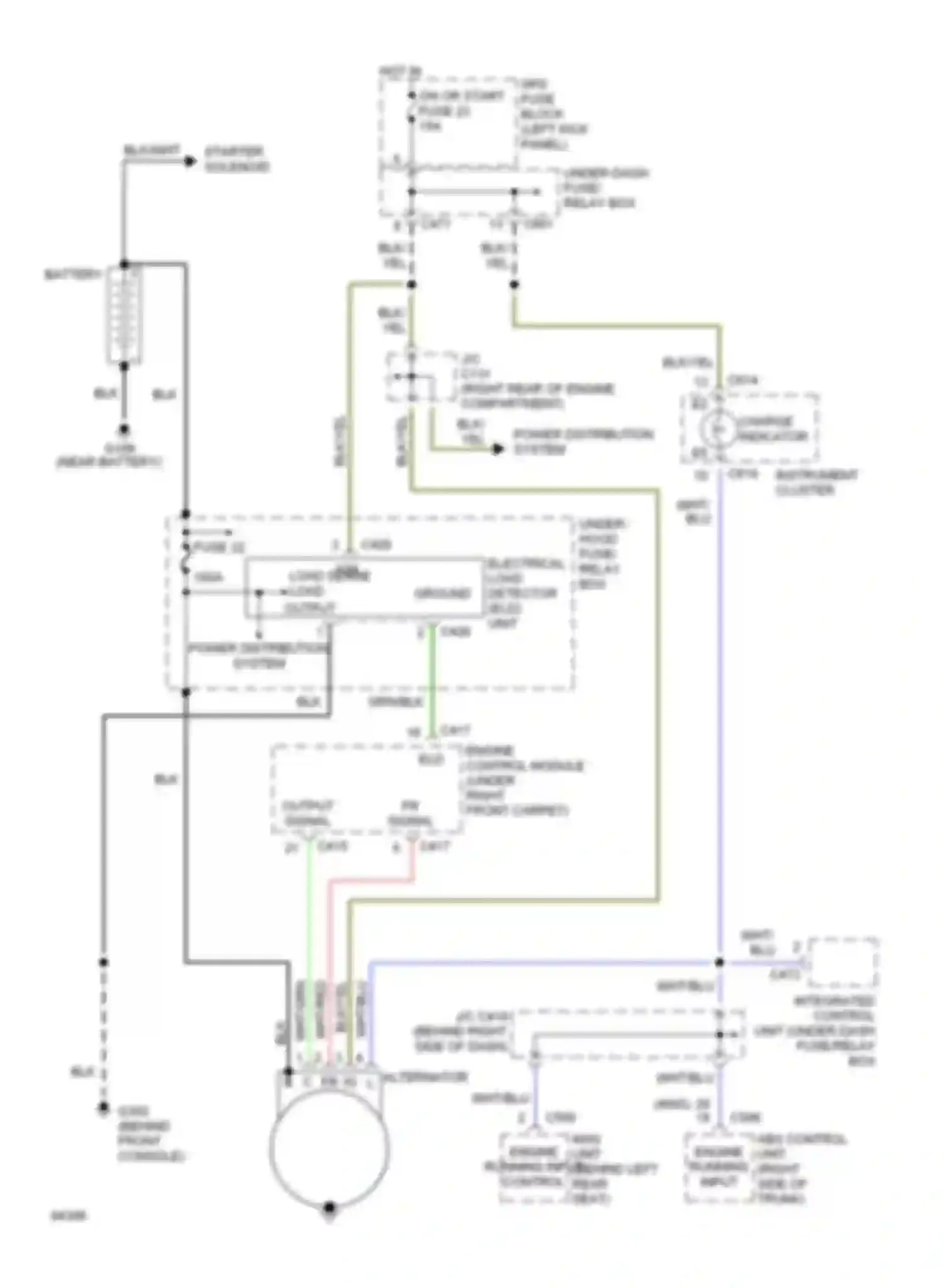

Wiring diagram charge indicator (1 of 1)
ABS CONTROL UNIT (RIGHT SIDE OF TRUNK) ENGINE RUNNING INPUT
ALTERNATOR IG FR
BATTERY
BLK WIRE
BLK/WHT WIRE
BLK/YEL WIRE
BLU WIRE
CHARGE INDICATOR
ELECTRICAL LOAD DETECTOR (ELD) UNIT IGN LOAD SENSE LOAD GROUND OUTPUT
ENGINE CONTROL MODULE (UNDER RIGHT FRONT CARPET) ELD
ENGINE RUNNING INPUT CONTROL UNIT (BEHIND LEFT REAR SEAT)
FUSE 32
GRN/BLK WIRE
HOT IN ON OR START FUSE 23
INSTRUMENT CLUSTER
INTEGRATED CONTROL UNIT (UNDER-DASH FUSE/RELAY BOX)
J/C
OUTPUT SIGNAL FR SIGNAL
POWER DISTRIBUTION SYSTEM
SRS FUSE BLOCK
STARTER SOLENOID
UNDER- DASH FUSE/ RELAY BOX
UNDER- HOOD FUSE/ RELAY BOX
WHT WIRE
WHT/BLU WIRE
WHT/GRN WIRE
WHT/RED WIRE
YEL WIRE
Go to component: -> Charging circuit -> CHARGE INDICATOR
