Car Wiring Diagrams for Automatic day/night mirror circuit for Honda Pilot I (2002-2005)

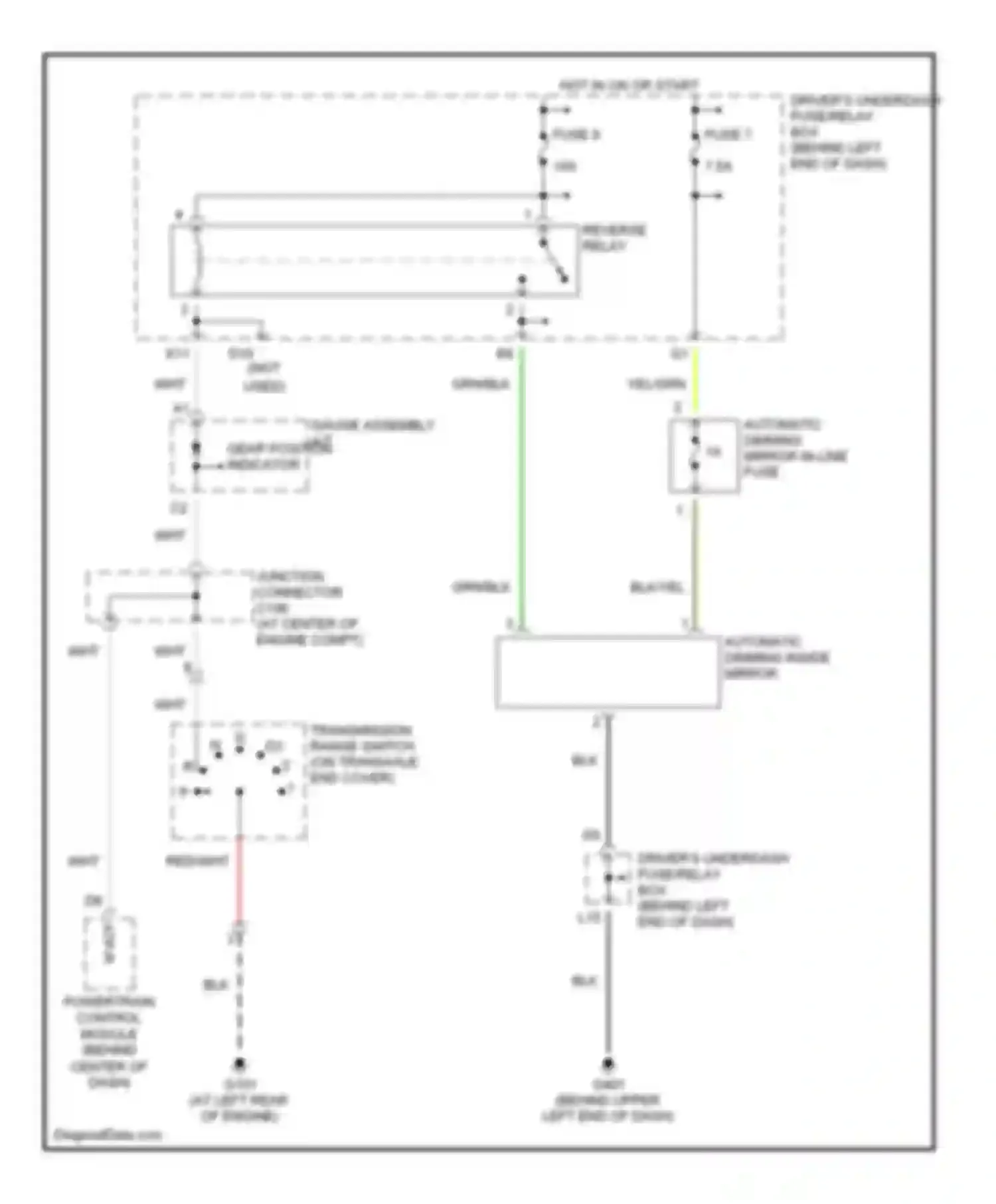

ATP-R AUTOMATIC DIMMING INSIDE MIRROR AUTOMATIC DIMMING MIRROR IN-LINE FUSE BLK WIRE BLK/YEL WIRE DRIVER'S UNDERDASH FUSE/RELAY BOX (BEHIND LEFT END OF DASH) FUSE 7 FUSE 9 GAUGE ASSEMBLY A/T GEAR POSITION INDICATOR GRN/BLK WIRE HOT IN ON OR START JUNCTION CONNECTOR POWERTRAIN CONTROL MODULE (BEHIND CENTER OF DASH) RED/WHT WIRE REVERSE RELAY TRANSMISSION RANGE SWITCH (ON TRANSAXLE END COVER) WHT WIRE YEL/GRN WIRE
