Honda Passport III (2019-2021) front fog light indicator Wiring diagram
This page shows the only wiring diagram for the component.front fog light indicator, which is found in the car Honda Passport III (2019-2021). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

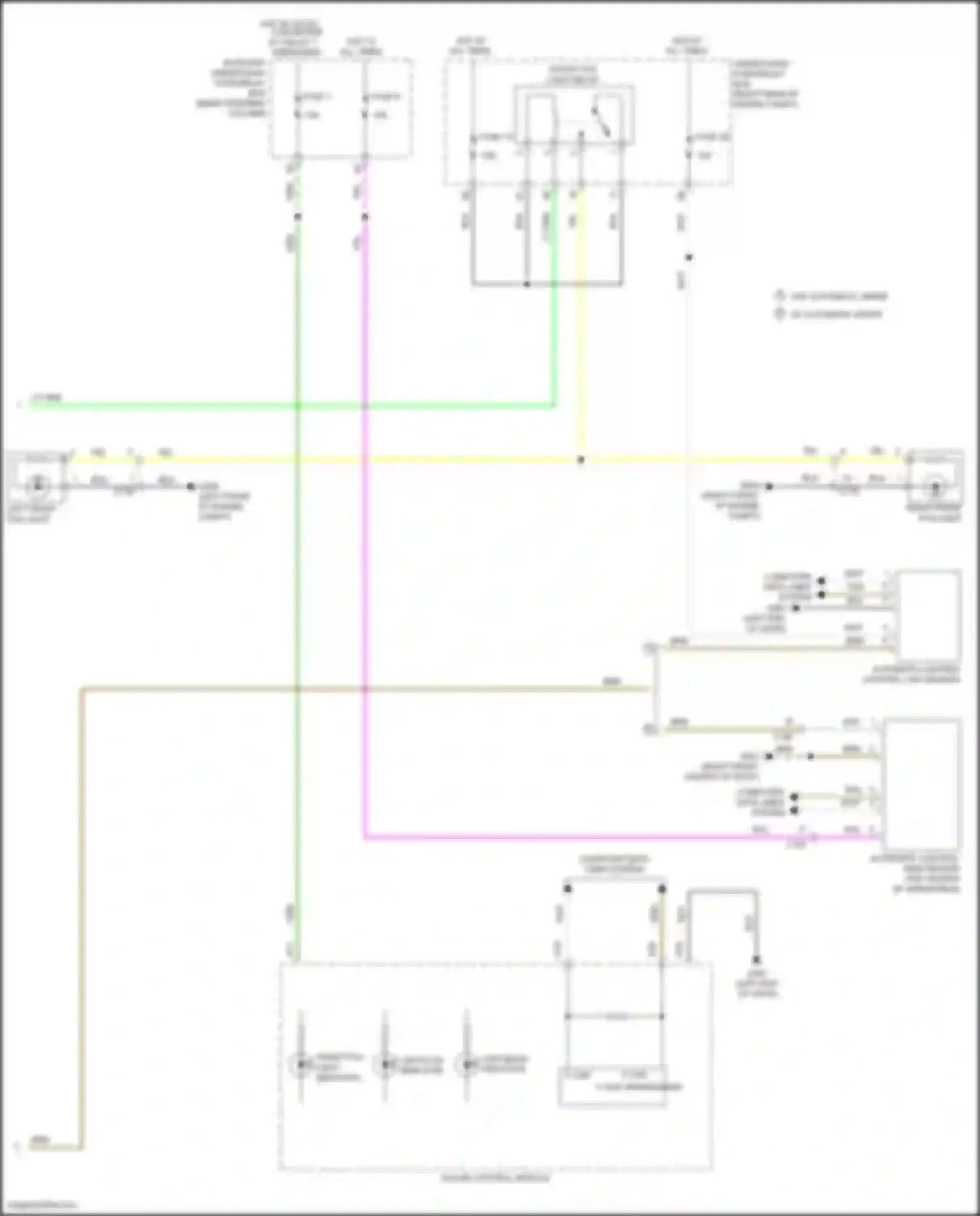

Wiring diagram front fog light indicator (1 of 1)
AUTOMATIC LIGHTING CONTROL UNIT-SENSOR
AUTOMATIC LIGHTING/ RAIN SENSOR
AUXILIARY UNDER-DASH FUSE/RELAY BOX
BLK WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
F-CAN H
F-CAN L
F-CAN TRANSCEIVER
FRONT FOG LIGHT INDICATOR
FRONT FOG LIGHT RELAY
FUSE 1
FUSE 15
FUSE 26
FUSE 6
GAUGE CONTROL MODULE
GRN WIRE
GRY WIRE
HIGH BEAM INDICATOR
HOT AT ALL TIMES
HOT W/ DC-DC CONVERTER
LEFT FRONT FOG LIGHT
LIGHTS ON INDICATOR
LT GRN WIRE
PPL
RIGHT FRONT FOG LIGHT
TAN WIRE
UNDER-HOOD FUSE/RELAY BOX
WHT WIRE
YEL WIRE
Go to component -> Headlamps circuit (2 of 2) -> FRONT FOG LIGHT INDICATOR
