Honda Passport II (1997-2002) power seat switch rear window defogger Wiring diagram
This page shows the only wiring diagram for the component.power seat switch rear window defogger, which is found in the car Honda Passport II (1997-2002). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

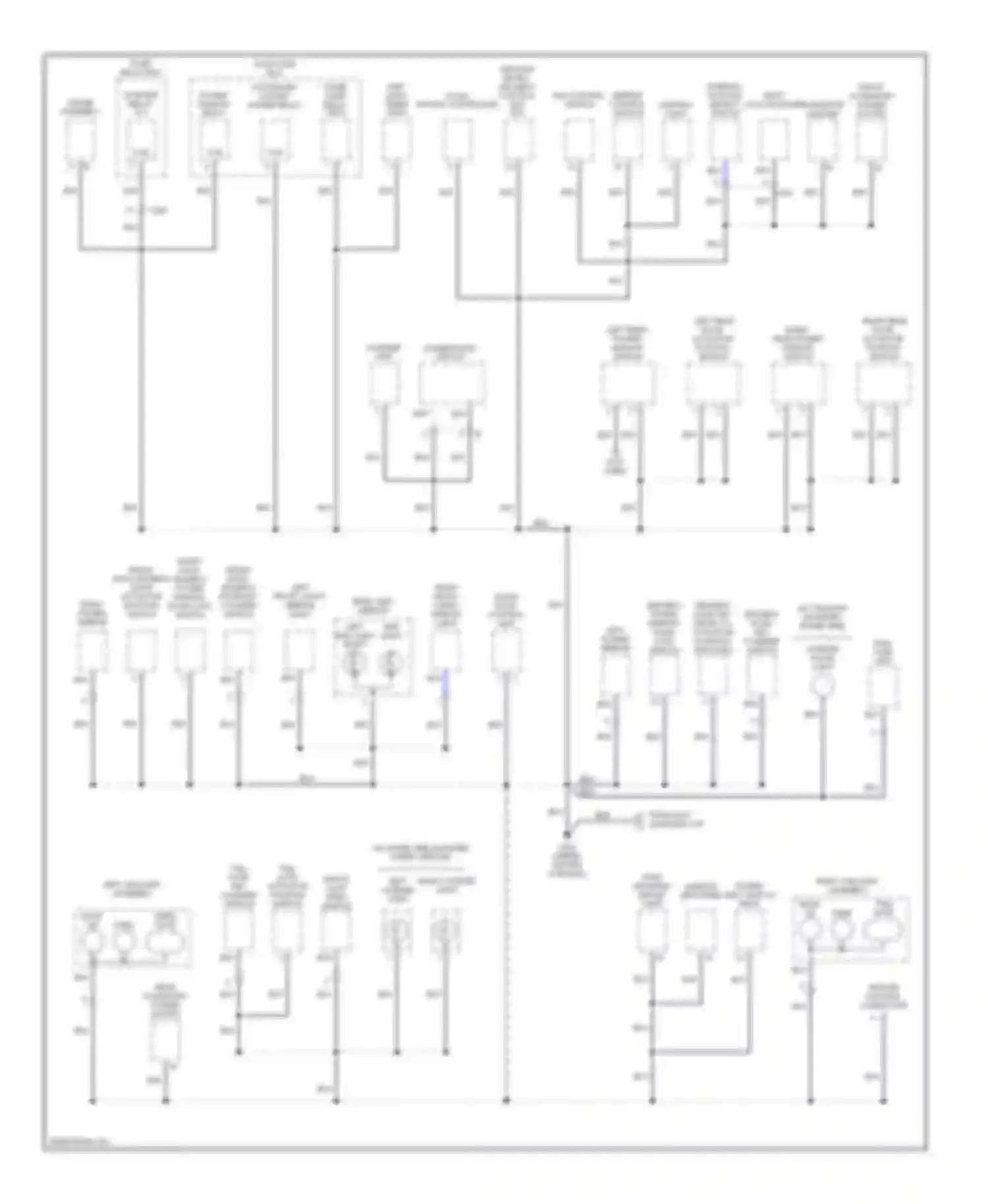

Wiring diagram power seat switch rear window defogger (1 of 1)
ASHTRAY LIGHT
BACK-UP
BLK WIRE
BLU WIRE
CIGARETTE LIGHTER
COIL
COMBINATION SWITCH
DASH FUSE BOX ACCESSORY SOCKET POWER RELAY
DOME LIGHT RELAY (2001)
DRIVER'S POWER WINDOW, DOOR LOCK SWITCH
FAN CONTROL SWITCH
FLASHER UNIT
FRONT ACCESSORY POWER SOCKET
FRONT PASS- ENGER'S DOOR ACTUATOR POSITION SWITCH
FRONT PASS- ENGER'S DOOR KEY CYLINDER SWITCH
FRONT PASS- ENGER'S POWER WINDOW, DOOR LOCK SWITCH
FUEL TANK UNIT
FUSE/ RELAY BOX
GAUGE ASSEMBLY
HIGH-MOUNTED BRAKE LIGHT
ILLUM- INATION CONTROLLER
KEYLESS ENTRY, SECURITY CONTROL UNIT (EX)
LEFT FRONT VANITY MIRROR LIGHT
LEFT LICENSE LIGHT RIGHT LICENSE LIGHT
LEFT MAP LIGHT RIGHT MAP LIGHT
LEFT POWER MIRROR
LEFT REAR DOOR ACTUATOR POSITION SWITCH
LEFT REAR POWER WINDOW SWITCH
LEFT TAILLIGHT ASSEMBLY
LICENSE PLATE LIGHT
MAP LIGHT TIMER (2001)
MIRROR CONTROL SWITCH
MOON ROOF CONTROL UNIT
PARK/ STOP TURN
PARKING POSITION DETECT SWITCH
POWER SEAT SWITCH REAR WINDOW DEFOGGER
POWER WINDOW RELAY
REAR ACCESSORY POWER SOCKET
REAR VIEW MIRROR)
RIGHT FRONT VANITY MIRROR LIGHT
RIGHT POWER MIRROR
RIGHT REAR DOOR ACTUATOR POSITION SWITCH
RIGHT REAR POWER WINDOW SWITCH
RIGHT TAILLIGHT ASSEMBLY
SHIFT LOCK SOLENOID
STARTER RELAY (LX)
TAIL STOP TURN
TRAILER LIGHTING CONNECTOR
WHT WIRE
Go to component -> Ground distribution circuit (3 of 3) -> POWER SEAT SWITCH REAR WINDOW DEFOGGER
