Honda Passport II (1997-2002) power multiplexed win cntl in ground win mtr cntl win mtr cntl Wiring diagram
This page shows the only wiring diagram for the component.power multiplexed win cntl in ground win mtr cntl win mtr cntl, which is found in the car Honda Passport II (1997-2002). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

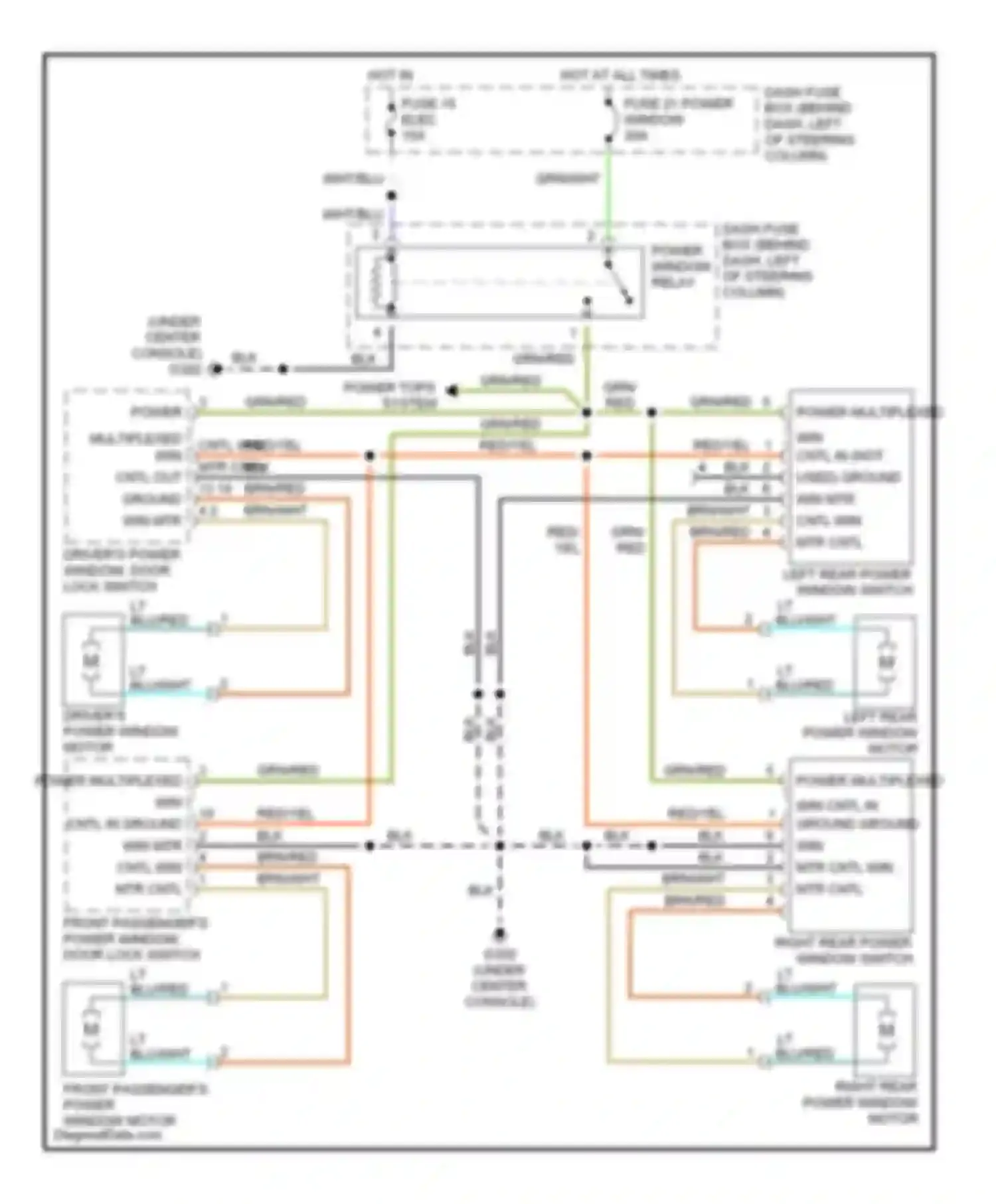

Wiring diagram power multiplexed win cntl in ground win mtr cntl win mtr cntl (1 of 1)
BLK WIRE
BLU/RED WIRE
BLU/WHT WIRE
BRN/RED WIRE
BRN/WHT WIRE
DASH FUSE BOX (BEHIND DASH, LEFT OF STEERING COLUMN)
DRIVER'S POWER WINDOW MOTOR
DRIVER'S POWER WINDOW, DOOR LOCK SWITCH
FRONT PASSENGER'S POWER WINDOW MOTOR
FRONT PASSENGER'S POWER WINDOW, DOOR LOCK SWITCH
FUSE 15 ELEC IG
FUSE 21 POWER WINDOW
GRN WIRE
GRN/RED WIRE
GRN/WHT WIRE
HOT AT ALL TIMES
HOT IN ON
LEFT REAR POWER WINDOW MOTOR
LEFT REAR POWER WINDOW SWITCH
MULTIPLEXED WIN CNTL OUT GROUND WIN MTR CNTL WIN MTR CNTL 13 14 4 2
POWER
POWER MULTIPLEXED WIN CNTL IN (NOT USED) GROUND WIN MTR CNTL WIN MTR CNTL
POWER MULTIPLEXED WIN CNTL IN GROUND GROUND WIN MTR CNTL WIN MTR CNTL
POWER MULTIPLEXED WIN CNTL IN GROUND WIN MTR CNTL WIN MTR CNTL
POWER TOPS SYSTEM
POWER WINDOW RELAY
RED WIRE
RED/YEL WIRE
RIGHT REAR POWER WINDOW MOTOR
RIGHT REAR POWER WINDOW SWITCH
WHT/BLU WIRE
YEL WIRE
