Honda Passport II (1997-2002) fuse 21 power window Wiring diagrams
This page contains all the electrical diagrams for the component. fuse 21 power window, in which he is found in the car Honda Passport II (1997-2002). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram fuse 21 power window (1 of 2)
2 2 (2001) (1999, 2000)
BLK WIRE
BLU WIRE
BRN WIRE
CLOSE/ TILT (POP-UP)
CLOSE/ TILT (POP-UP) RELAY
CLOSED IN TILT (POP-UP), FULLY OPEN POSITIONS. OPEN IN ALL OTHER POSITIONS
DASH FUSE BOX (BEHIND DASH, LEFT OF STEERING COLUMN)
FUSE 15 ELEC IG
FUSE 21 POWER WINDOW
GRN WIRE
GRN/RED WIRE
HOT AT ALL TIMES
HOT IN ON
LIMIT SWITCHES
MOON ROOF CONTROL UNIT (CENTER FRONT OF ROOF)
MOON ROOF MOTOR (CENTER FRONT OF ROOF)
MOON- ROOF SWITCH
OPEN RELAY
ORG/ WIRE
POWER WINDOW RELAY
POWER WINDOW SYSTEM
PPL
RED WIRE
SAFETY STOP SWITCH
SOLID STATE
TILT SWITCH
WHT WIRE
YEL WIRE
Go to component -> Power top/sunroof circuits -> FUSE 21 POWER WINDOW

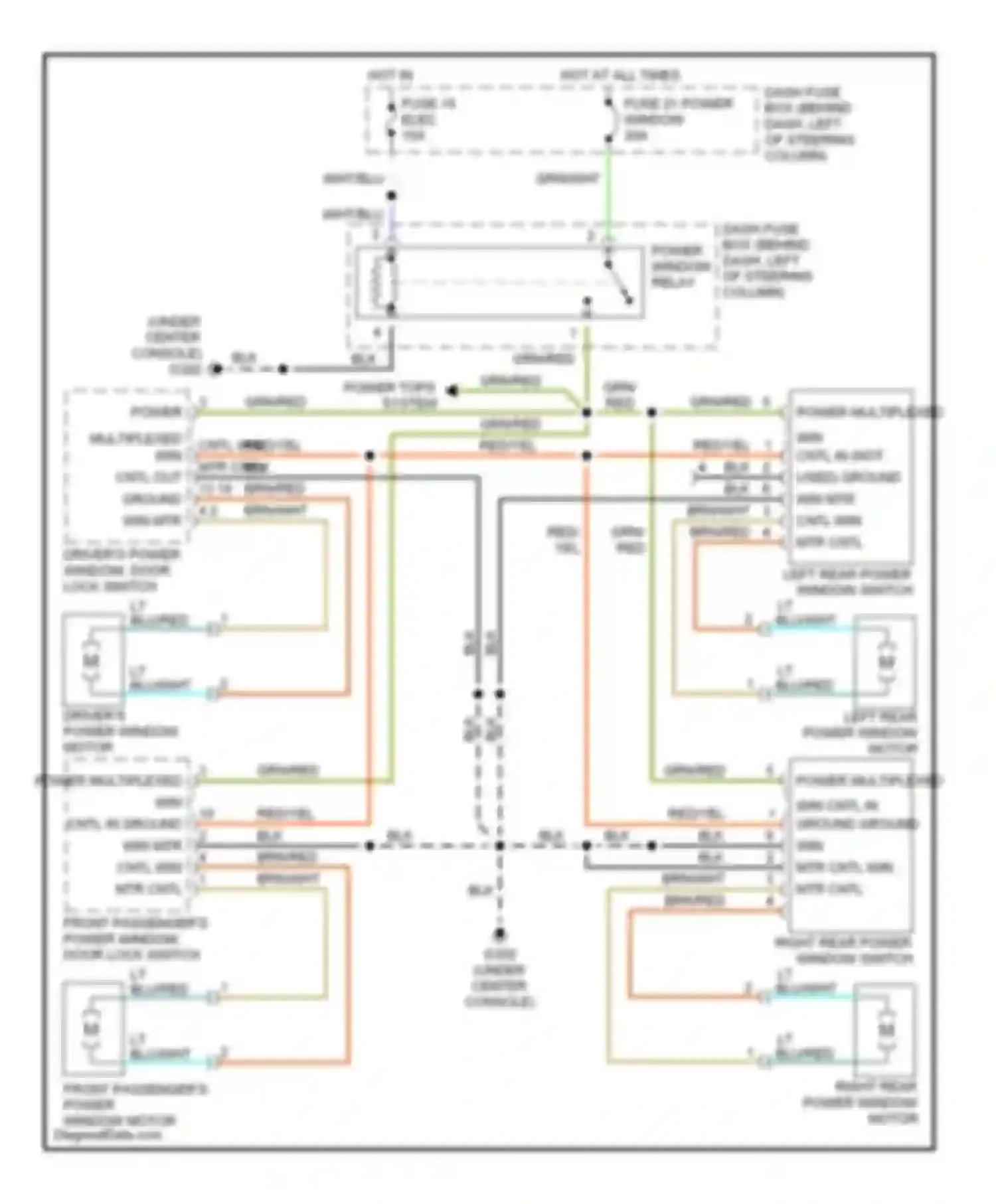

Wiring diagram fuse 21 power window (2 of 2)
BLK WIRE
BLU/RED WIRE
BLU/WHT WIRE
BRN/RED WIRE
BRN/WHT WIRE
DASH FUSE BOX (BEHIND DASH, LEFT OF STEERING COLUMN)
DRIVER'S POWER WINDOW MOTOR
DRIVER'S POWER WINDOW, DOOR LOCK SWITCH
FRONT PASSENGER'S POWER WINDOW MOTOR
FRONT PASSENGER'S POWER WINDOW, DOOR LOCK SWITCH
FUSE 15 ELEC IG
FUSE 21 POWER WINDOW
GRN WIRE
GRN/RED WIRE
GRN/WHT WIRE
HOT AT ALL TIMES
HOT IN ON
LEFT REAR POWER WINDOW MOTOR
LEFT REAR POWER WINDOW SWITCH
MULTIPLEXED WIN CNTL OUT GROUND WIN MTR CNTL WIN MTR CNTL 13 14 4 2
POWER
POWER MULTIPLEXED WIN CNTL IN (NOT USED) GROUND WIN MTR CNTL WIN MTR CNTL
POWER MULTIPLEXED WIN CNTL IN GROUND GROUND WIN MTR CNTL WIN MTR CNTL
POWER MULTIPLEXED WIN CNTL IN GROUND WIN MTR CNTL WIN MTR CNTL
POWER TOPS SYSTEM
POWER WINDOW RELAY
RED WIRE
RED/YEL WIRE
RIGHT REAR POWER WINDOW MOTOR
RIGHT REAR POWER WINDOW SWITCH
WHT/BLU WIRE
YEL WIRE
Go to component -> Power window circuit -> FUSE 21 POWER WINDOW
