Honda Passport II (1997-2002) air source selector lever Wiring diagram
This page shows the only wiring diagram for the component.air source selector lever, which is found in the car Honda Passport II (1997-2002). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

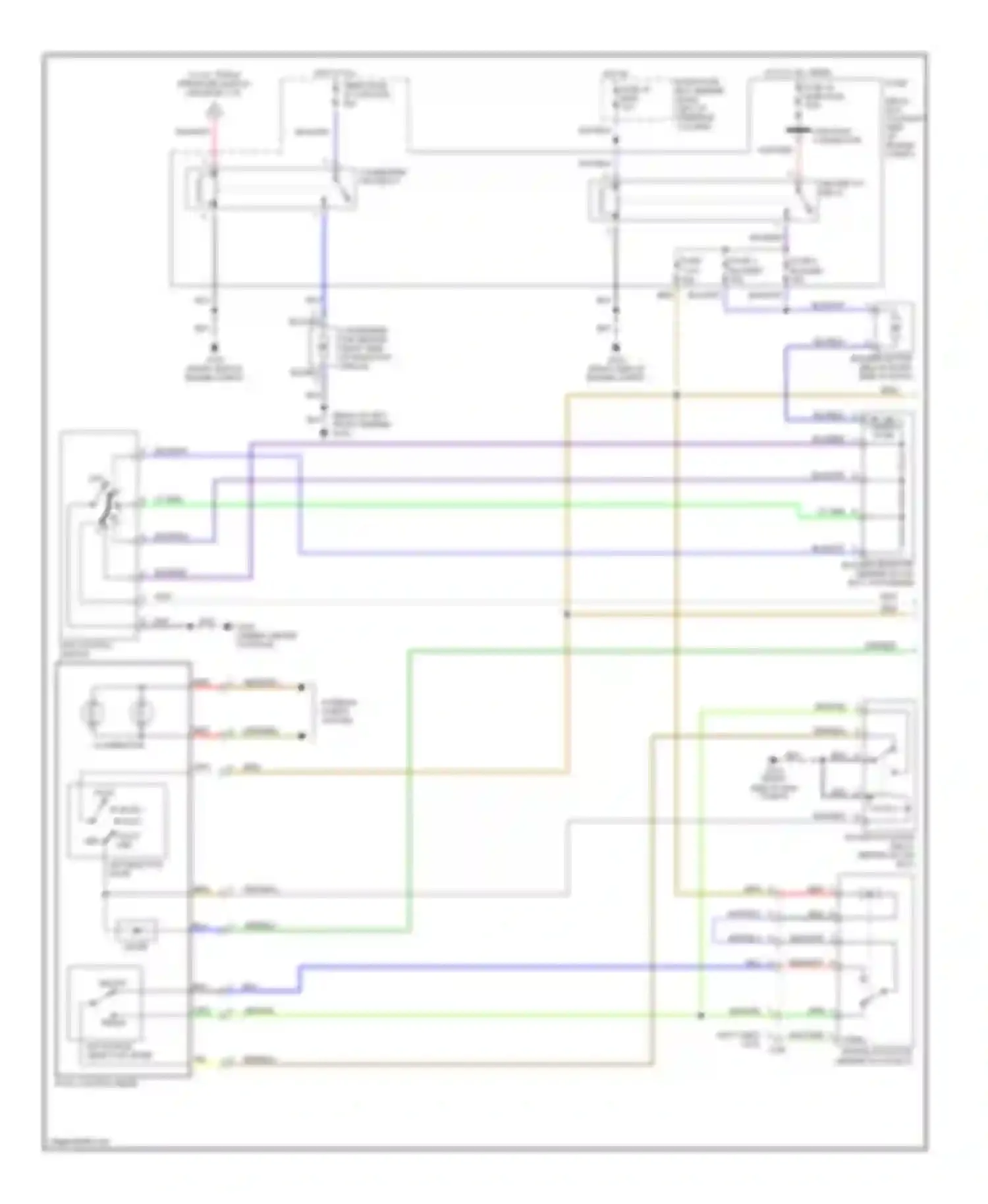

Wiring diagram air source selector lever (1 of 1)
AIR SELECTOR KNOB
AIR SOURCE SELECTOR LEVER
BI-LEV FOOT FOOT/ DEF DEF
BLK WIRE
BLK/WHT WIRE
BLOWER MOTOR (BELOW RIGHT SIDE OF DASH)
BLOWER RESISTOR (BEHIND GLOVE BOX, ON PLENUM)
BLU WIRE
BLU/BLK WIRE
BLU/GRN WIRE
BLU/ORG WIRE
BLU/RED WIRE
BLU/WHT WIRE
BRN WIRE
BRN/BLK WIRE
CONDENSER FAN (BEHIND RIGHT SIDE OF RADIATOR GRILLE)
CONDENSER FAN RELAY
DASH FUSE BOX (BEHIND DASH, LEFT OF STEERING COLUMN)
DIODE
FACE
FAN CONTROL SWITCH
FRESH
FUSE 15 ELEC IG
FUSE 16 MAIN FUSE
FUSE 5 BLOWER
FUSE 6 BLOWER
FUSE 7 A/C
FUSE/ RELAY BOX (ON RIGHT SIDE OF ENGINE COMPT)
GRN WIRE
GRN/BLK WIRE
GRN/RED WIRE
GRN/YEL WIRE
HEATER-A/C RELAY
HOT AT ALL TIMES
HOT AT ALL TIMES FUSE 20 COND FAN
HOT IN ON
HVAC CONTROL BEZEL
ILLUMINATION
INTAKE ACTUATOR (BEHIND GLOVE BOX)
INTAKE ACTUATOR RELAY (BEHIND GLOVE BOX)
JUNCTION CONNECTOR A
LT GRN WIRE
NOT USED NOT USED
OFF
PNK/WHT WIRE
RECIRC
RED WIRE
RED/GRN WIRE
RED/WHT WIRE
THERMO FUSE
TO A/C TRIPLE PRESSURE SWITCH (DIAGRAM 2 OF 2)
WHT WIRE
WHT/BLK WIRE
WHT/BLU WIRE
WHT/GRN WIRE
WHT/RED WIRE
YEL WIRE
Go to component -> Manual a/c circuit (1 of 2) -> AIR SOURCE SELECTOR LEVER
