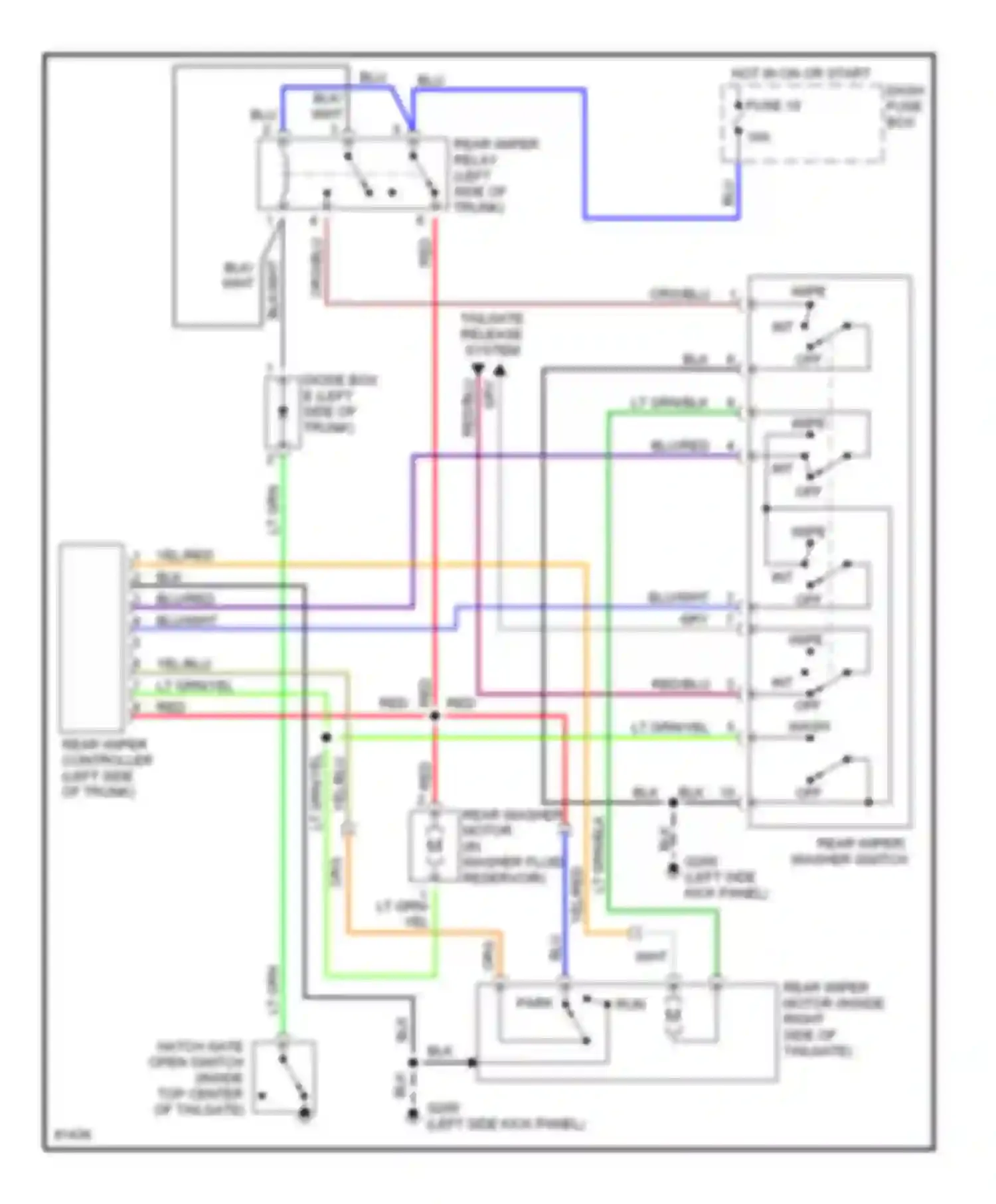

Rear washer/wiper circuit, early production for Honda Passport I (1993-1997)
Rear washer/wiper circuit, early production
BLK WIRE
BLK/WHT WIRE
BLU WIRE
BLU/RED WIRE
BLU/WHT WIRE
DASH FUSE BOX
DIODE BOX E (LEFT SIDE OF TRUNK)
FUSE 10
GRY WIRE
HATCH GATE OPEN SWITCH (INSIDE TOP CENTER OF TAILGATE)
HOT IN ON OR START
INT 3 7 OFF
INT OFF
INT OFF WASH
LT GRN WIRE
LT GRN/BLK WIRE
LT GRN/YEL WIRE
OFF
ORG/ WIRE
ORG/BLU WIRE
PARK
REAR WASHER MOTOR (IN WASHER FLUID RESERVOIR)
REAR WIPER CONTROLLER (LEFT SIDE OF TRUNK)
REAR WIPER MOTOR (INSIDE RIGHT SIDE OF TAILGATE)
REAR WIPER RELAY (LEFT SIDE OF TRUNK)
REAR WIPER/ WASHER SWITCH
RED WIRE
RED/BLU WIRE
RUN WIRE
TAILGATE RELEASE SYSTEM
WHT WIRE
WIPE
YEL WIRE
YEL/BLU WIRE
YEL/RED WIRE
