Honda Passport I (1993-1997) supple- mental restraint system wiring diagram
This page shows the only wiring diagram for the component.supple- mental restraint system, which is found in the car Honda Passport I (1993-1997). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

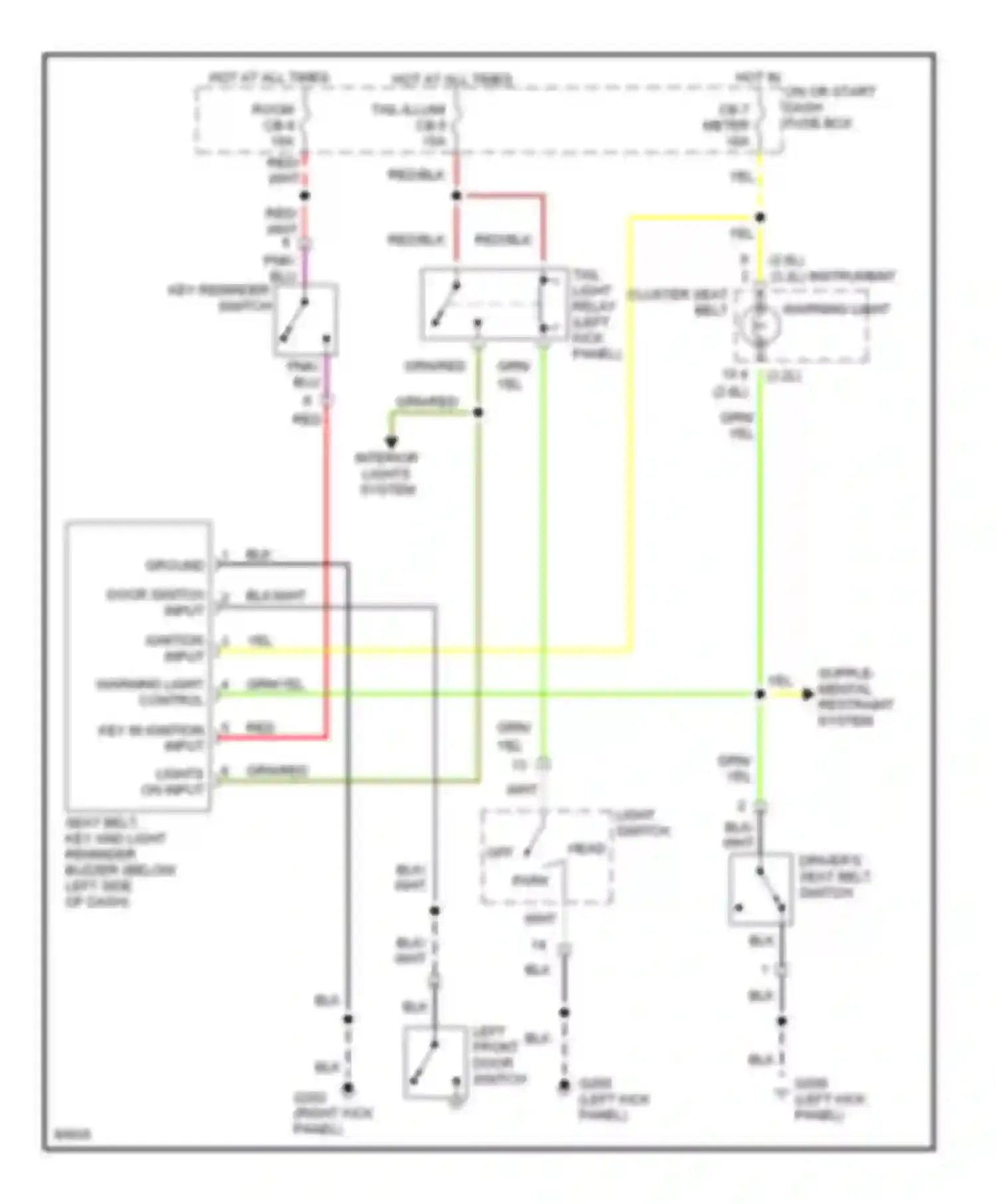

supple- mental restraint system wiring diagram (1 of 1)
10 4 (2.6L) (3.2L)
BLK WIRE
BLK/WHT WIRE
BLU WIRE
DOOR SWITCH INPUT
DRIVER'S SEAT BELT SWITCH
GRN WIRE
GRN/RED WIRE
GRN/YEL WIRE
GROUND
HEAD
HOT AT ALL TIMES
HOT IN ON OR START DASH FUSE BOX CB-7 METER
IGNITION INPUT
KEY IN IGNITION INPUT
KEY REMINDER SWITCH
LEFT FRONT DOOR SWITCH
LIGHT SWITCH
LIGHTS ON INPUT
OFF
PARK
PNK WIRE
RED WIRE
RED/BLK WIRE
ROOM CB-9
SEAT BELT, KEY AND LIGHT REMINDER BUZZER (BELOW LEFT SIDE OF DASH)
SUPPLE- MENTAL RESTRAINT SYSTEM
TAIL LIGHT RELAY (LEFT KICK PANEL)
TAIL-ILLUMI CB-5
WARNING LIGHT CONTROL
WHT WIRE
YEL WIRE
Go to component -> Warning system circuits, late production -> SUPPLE- MENTAL RESTRAINT SYSTEM
