Honda Passport I (1993-1997) rr def no. 2 cb fuse 18 Wiring diagram
This page shows the only wiring diagram for the component.rr def no. 2 cb fuse 18, which is found in the car Honda Passport I (1993-1997). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

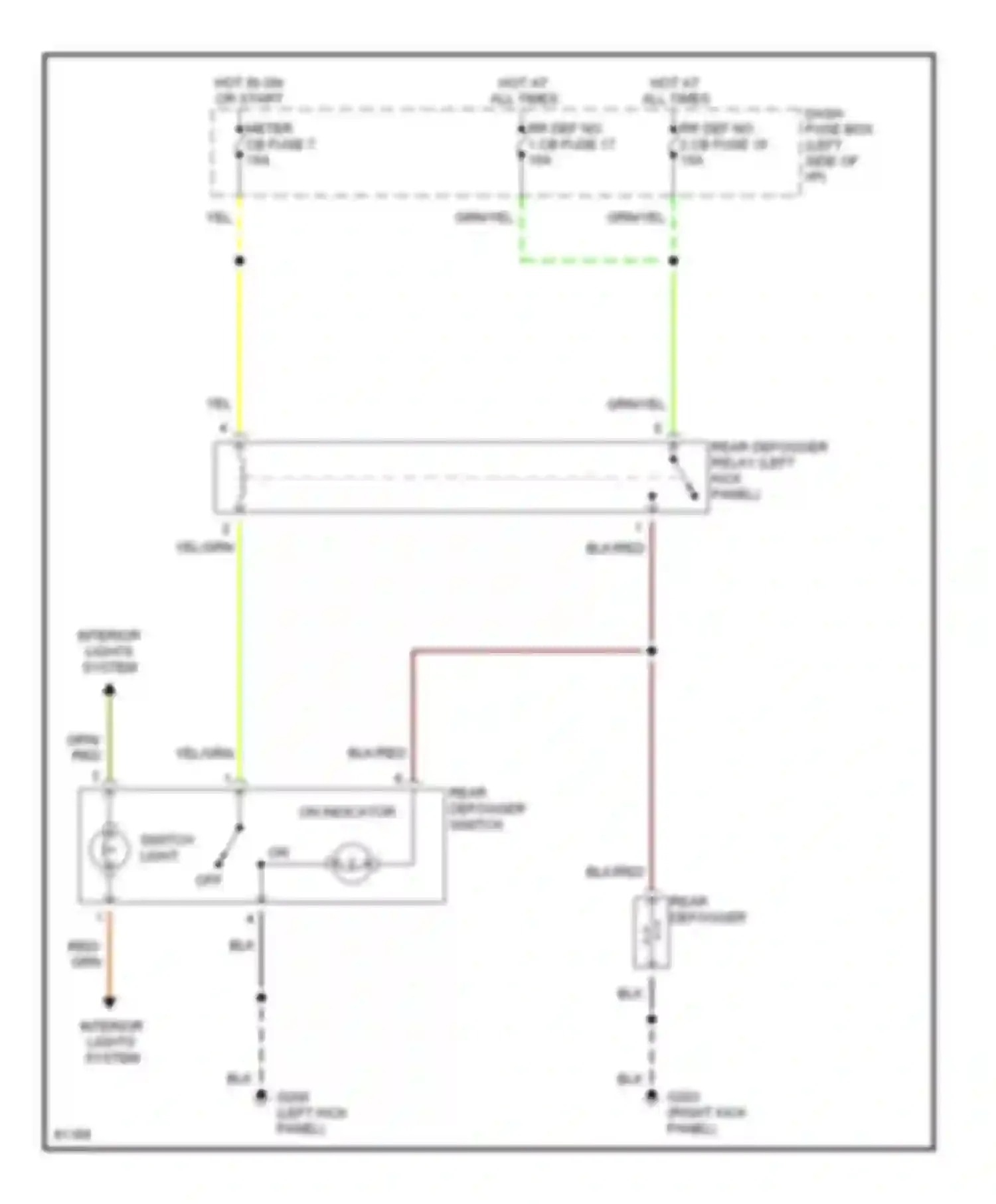

Wiring diagram rr def no. 2 cb fuse 18 (1 of 1)
BLK WIRE
BLK/RED WIRE
DASH FUSE BOX (LEFT SIDE OF I/P)
GRN WIRE
GRN/YEL WIRE
HOT AT ALL TIMES
HOT IN ON OR START
METER CB FUSE 7
OFF
ON INDICATOR
REAR DEFOGGER
REAR DEFOGGER RELAY (LEFT KICK PANEL)
REAR DEFOGGER SWITCH
RED WIRE
RR DEF NO. 1 CB FUSE 17
RR DEF NO. 2 CB FUSE 18
SWITCH LIGHT
YEL WIRE
YEL/GRN WIRE
Go to component -> Defogger circuit, late production -> RR DEF NO. 2 CB FUSE 18
