Honda Passport I (1993-1997) front wiper cb-11 Wiring diagrams
This page contains all the electrical diagrams for the component. front wiper cb-11, in which he is found in the car Honda Passport I (1993-1997). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

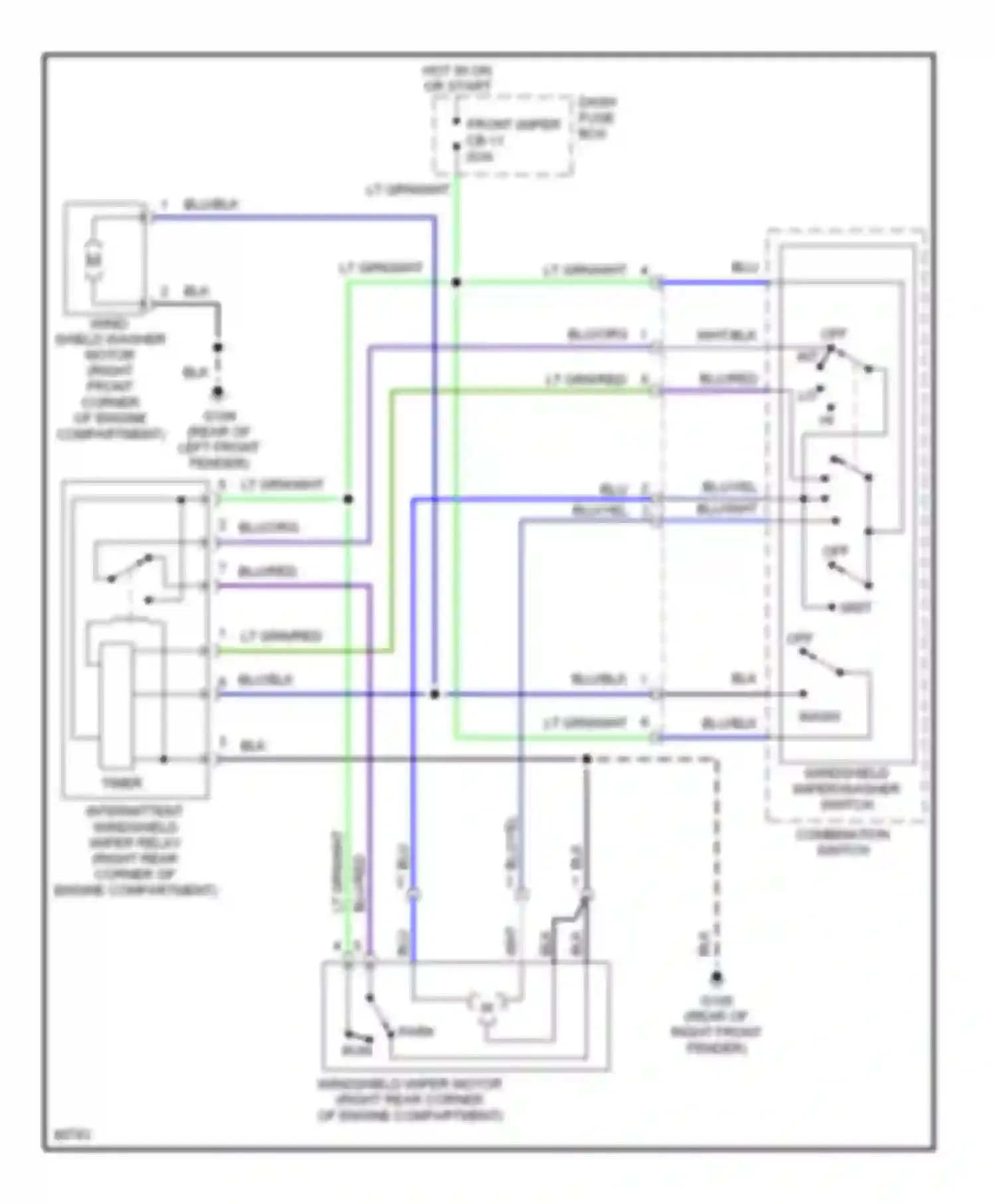

front wiper cb-11 wiring diagram (1 of 3)
BLK WIRE
BLU WIRE
BLU/BLK WIRE
BLU/ORG WIRE
BLU/RED WIRE
BLU/WHT WIRE
BLU/YEL WIRE
COMBINATION SWITCH
DASH FUSE BOX
FRONT WIPER CB-11
HOT IN ON OR START
INTERMITTENT WINDSHIELD WIPER RELAY (RIGHT REAR CORNER OF ENGINE COMPARTMENT)
LO HI
LT GRN/RED WIRE
LT GRN/WHT WIRE
MIST
OFF
OFF INT
PARK
RUN WIRE
TIMER
WASH
WHT WIRE
WHT/BLK WIRE
WIND- SHIELD WASHER MOTOR (RIGHT FRONT CORNER OF ENGINE COMPARTMENT)
WINDSHIELD WIPER MOTOR (RIGHT REAR CORNER OF ENGINE COMPARTMENT)
WINDSHIELD WIPER/WASHER SWITCH
Go to component -> Front washer/wiper circuit, with intermittent (late production) -> FRONT WIPER CB-11
front wiper cb-11 wiring diagram (2 of 3)
BLK WIRE
BLU WIRE
BLU/BLK WIRE
BLU/ORG WIRE
BLU/RED WIRE
BLU/WHT WIRE
BLU/YEL WIRE
COMBINATION SWITCH
DASH FUSE BOX
FRONT WIPER CB-11
HOT IN ON OR START
LT GRN/RED WIRE
LT GRN/WHT WIRE
MIST
OFF
PARK
RUN WIRE
WASH
WHT WIRE
WHT/BLK WIRE
WIND- SHIELD WASHER MOTOR (RIGHT FRONT CORNER OF ENGINE COMPARTMENT)
WINDSHIELD WIPER MOTOR (RIGHT REAR CORNER OF ENGINE COMPARTMENT)
WINDSHIELD WIPER/WASHER SWITCH
Go to component -> Front washer/wiper circuit, without intermittent (late production) -> FRONT WIPER CB-11
front wiper cb-11 wiring diagram (3 of 3)
2.6L
2.6L 3.2L
3 12 (2.6L) (3.2L)
3.2L
9 3 (2.6L) (3.2L)
A/T
A/T ONLY
A/T SHIFT INDICATOR CONTROLLER PURGE
ALTERNATOR
AUTOMATIC TRANSMISSION MODE SWITCH
BACK UP LIGHTS SWITCH
BACK-UP TURN CB-15
BLK/ORG WIRE
BLK/RED WIRE
BLK/YEL WIRE
BLU WIRE
BLU/BLK WIRE
CLUTCH SWITCH
COMBINATION SWITCH
CRUISE CONTROL MAIN UNIT
CRUISE CONTROL UNIT
DASH FUSE BOX
DIODE BOX B
ECM MAIN RELAY IGNITION COIL
ELEC IGN CB-12 (3.2L ONLY)
ENGINE DEVICE CB-3
EVAPORATIVE EMISSION CANISTER PURGE VACUUM SWITCHING VALVE
EXHAUST GAS REC- IRCULATION PURGE VACUUM SWITCHING VALVE
FROM IGN SW (DIAGRAM 1 OF 3)
FRONT WIPER CB-11
FUSE/RELAY BOX
GAUGE ASSEMBLY
HAZARD WARNING SWITCH
IGN COIL CB-4
INTERMITTENT WINDSHIELD WIPER RELAY OR CONNECTOR PLUG
LT GRN/WHT WIRE
M/T
M/T ONLY
METER CB-7
MIRROR DEFROSTER SWITCH
POWER WINDOW RELAY
RADIO NOISE SUPPRESSOR
REAR DEFOGGER RELAY SHIFT LOCK CONTROLLER
REAR WIPER CB-16
REAR WIPER RELAY
RED WIRE
SENSING, DIOGNOSTIC MODULE
SRS NO 1 CB-21
SRS NO 2 CB-22
VEHICLE SPEED SENSOR SEAT BELT, KEY, LIGHT REMINDER BUZZER
WHT/BLU WIRE
WHT/GRN WIRE
WINDSHIELD WIPER MOTOR
WINDSHIELD WIPER/ WASHER SWITCH
YEL WIRE
YEL/BLU WIRE
YEL/GRN WIRE
Go to component -> Power distribution circuit, late production (3 of 3) -> FRONT WIPER CB-11
