Honda Odyssey V (2013-2017) headlight leveling control unit Wiring diagrams
This page contains all the electrical diagrams for the component. headlight leveling control unit, in which he is found in the car Honda Odyssey V (2013-2017). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

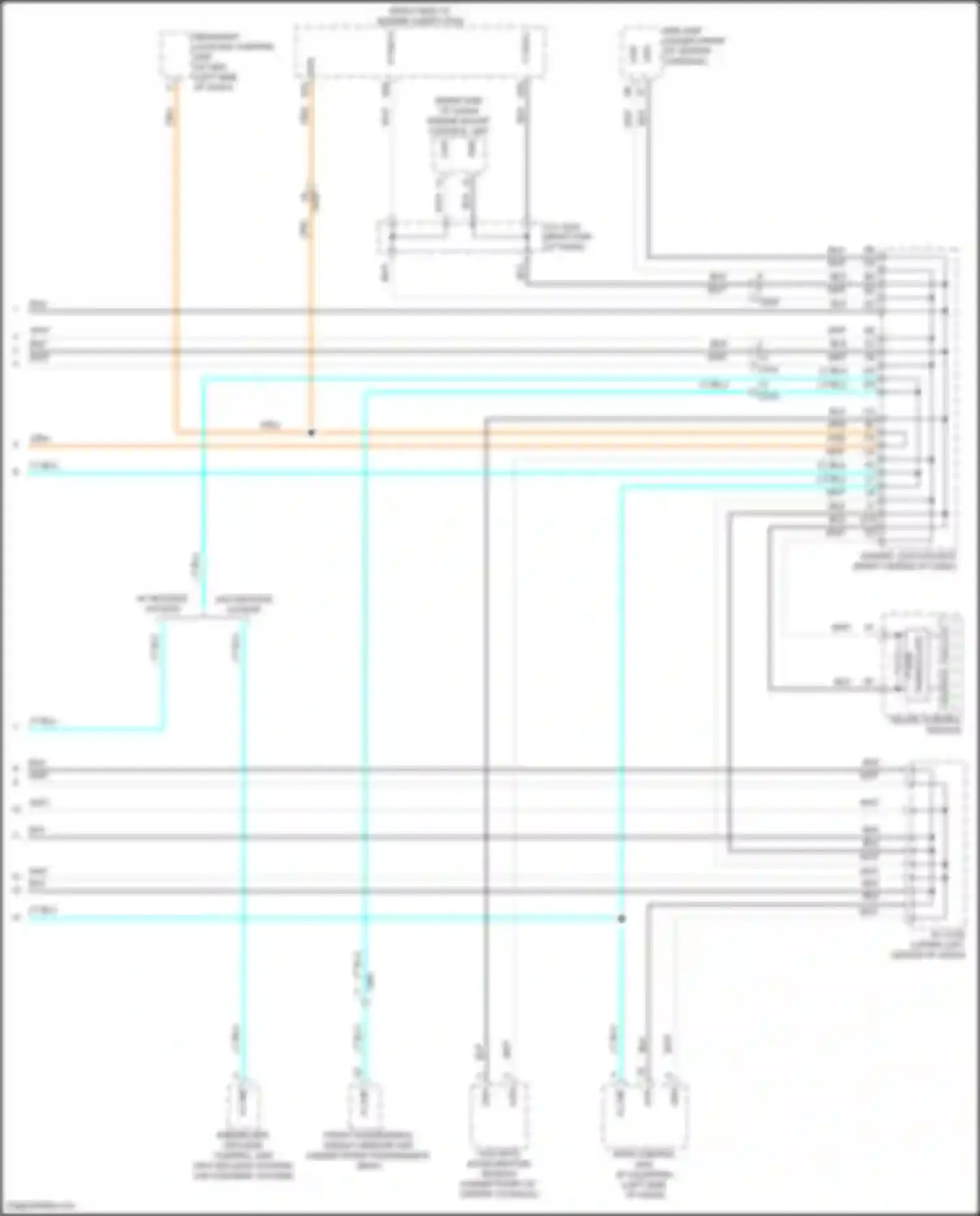

headlight leveling control unit wiring diagram (1 of 5)
BLK WIRE
CAN L
CENTER JUNCTION BOX (RIGHT CENTER OF DASH)
CONTROL CIRCUITS
ENGINE MOUNT CONTROL UNIT
F-CAN
F-CAN H
F-CAN L
FRONT PASSENGER'S WEIGHT SENSOR UNIT
GAUGE CONTROL MODULE
HEADLIGHT LEVELING CONTROL UNIT
IMMOBILIZER KEYLESS CONTROL UNIT
K LINE
LT BLU WIRE
ORG/ WIRE
RIGHT END OF DASH)
SCS
SRS UNIT
TPMS CONTROL UNIT
TRANSCEIVER/
W/ HID
W/ KEYLESS ACCESS
W/O KEYLESS ACCESS
WHT WIRE
YAW RATE ACCELERATION SENSOR
Go to component -> Data link connector circuit (2 of 2) -> HEADLIGHT LEVELING CONTROL UNIT

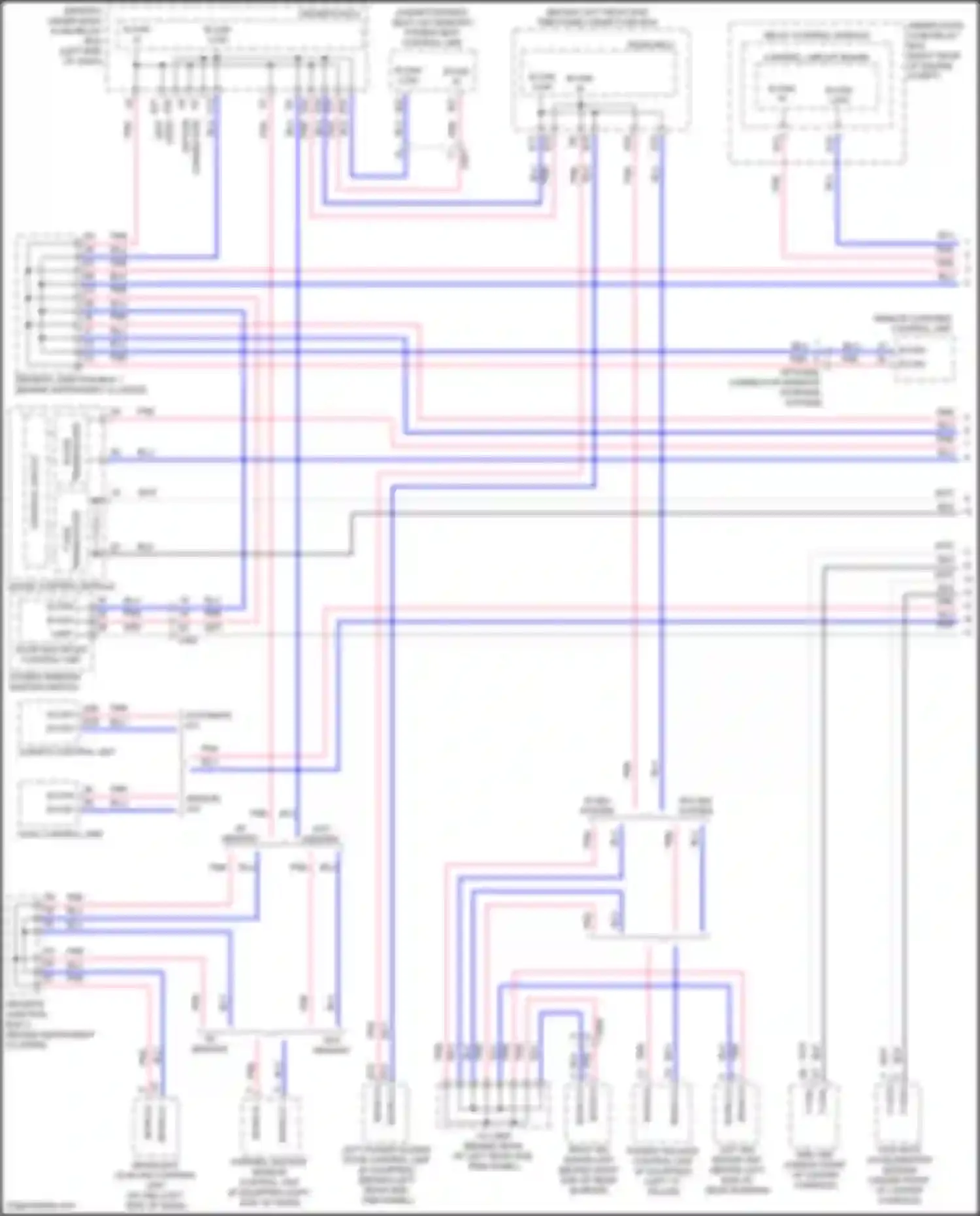

headlight leveling control unit wiring diagram (2 of 5)
AUTOMATIC A/C
B-CAN
B-CAN H
B-CAN HI
B-CAN L
B-CAN LO
B-CAN LOW
BCAN-HI
BCAN-LO
BLK WIRE
BLU WIRE
CLIMATE CONTROL UNIT
CONNECTOR
CONTROL CIRCUIT
CONTROL CIRCUIT BOARD
DOOR MULTIPLEX CONTROL UNIT
DRIVER'S JUNCTION BOX 1 (BEHIND INSTRUMENT CLUSTER)
DRIVER'S JUNCTION BOX 2
DRIVER'S MICU
DRIVER'S UNDER-DASH FUSE/RELAY BOX
F-CAN
F-CAN HI
F-CAN LO
GAUGE CONTROL MODULE
GRY WIRE
HEADLIGHT LEVELING CONTROL UNIT
HVAC CONTROL UNIT
LEFT BSI RADAR UNIT
LEFT POWER SLIDING DOOR CONTROL UNIT
MANUAL A/C
OPTION
OPTIONAL CONNECTOR (REMOTE STARTING SYSTEM)
PARKING, BACKUP SENSOR CONTROL UNIT
PNK PNK WIRE
PNK WIRE
POWER SEAT CONTROL UNIT
POWER TAILGATE CONTROL UNIT
POWER WINDOW MASTER SWITCH
REAR MICU
RELAY CONTROL MODULE
REMOTE STARTING CONTROL UNIT
RIGHT BSI RADAR UNIT
SRS UNIT
TRANSCEIVER/
UART
UNDER-HOOD FUSE/RELAY BOX
USED)
W/ BSI SYSTEM
W/ MEMORY
W/O BSI SYSTEM
W/O MEMORY
WHT WIRE
YAW RATE ACCELERATION SENSOR
Go to component -> F-can & b-can circuit (1 of 2) -> HEADLIGHT LEVELING CONTROL UNIT

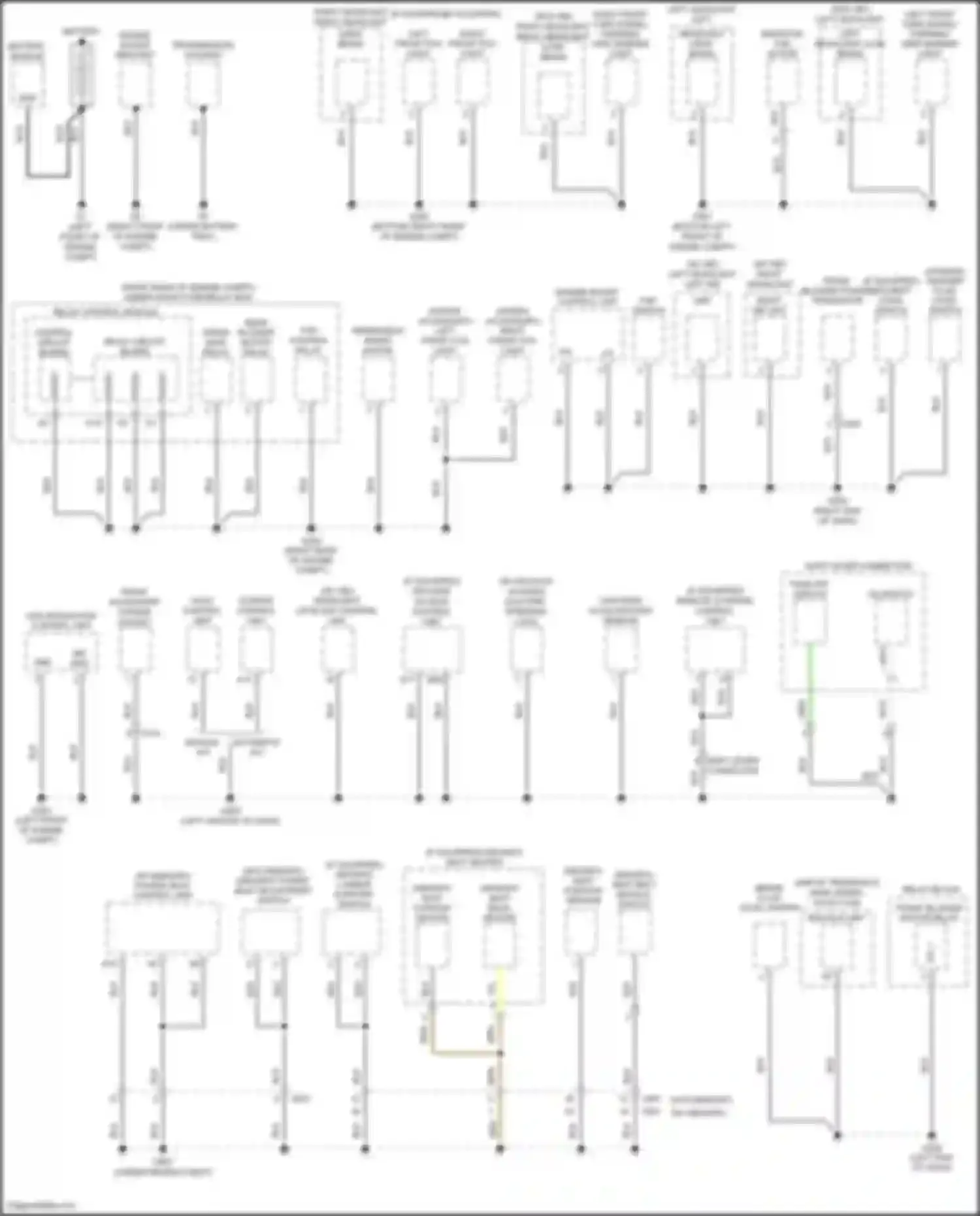

headlight leveling control unit wiring diagram (3 of 5)
AUTOMATIC A/C
BATTERY
BATTERY SENSOR
BLK WIRE
BRAKE FLUID LEVEL SWITCH
BRN WIRE
CANADA
CLIMATE CONTROL UNIT
CONTROL CIRCUIT BOARD
DRIVER'S LUMBAR SUPPORT SWITCH
DRIVER'S POWER SEAT ADJUSTMENT SWITCH
DRIVER'S SEAT BELT BUCKLE SWITCH
DRIVER'S SEAT CUSHION HEATER
DRIVER'S SEAT POSITION SENSOR
DRIVER'S SEAT- BACK HEATER
ELECTRIC STEERING LOCK
ENGINE MOUNT BRACKET
ENGINE MOUNT CONTROL UNIT
FAN CONTROL RELAY
FRONT ACCESSORY POWER SOCKET
FRONT BLOWER MOTOR RELAY
FRONT BLOWER POWER TRANSISTOR
GRN WIRE
HEADLIGHT LEVELING CONTROL UNIT
HONDA ACCESSORY
HVAC CONTROL UNIT
KEYLESS ACCESS CONTROL UNIT
LEFT FRONT FOG LIGHT
LEFT FRONT TURN SIGNAL/ PARKING/ SIDE MARKER LIGHT
LEFT HEADLIGHT LEFT HEADLIGHT (HIGH BEAM)
LEFT HEADLIGHT LEFT HEADLIGHT (LOW BEAM)
LEFT HEADLIGHT LEFT HID UNIT
MAIN UNDER- HOOD FUSE BOX ELD UNIT
MANUAL A/C
MR-GND
NCA WIRE
PARK PIN SWITCH
POWER SEAT CONTROL UNIT
PSP SWITCH
RADIATOR FAN MOTOR
REAR BLOWER MOTOR RELAY
RELAY BLOCK
RELAY CIRCUIT BOARD
RELAY CONTROL MODULE
REMOTE STARTING CONTROL UNIT
RIGHT END OF DASH)
RIGHT FRONT FOG LIGHT
RIGHT FRONT TURN SIGNAL/ PARKING/ SIDE MARKER LIGHT
RIGHT HEADLIGHT RIGHT HEADLIGHT (HIGH BEAM)
RIGHT HEADLIGHT RIGHT HEADLIGHT (LOW BEAM)
RIGHT HEADLIGHT RIGHT HID UNIT
SECURITY HOOD SWITCH
SG-1
SHIFT LEVER CONNECTOR
TRANSMISSION HOUSING)
VSA MODULATOR CONTROL UNIT
W/ HID
W/ KEYLESS ACCESS
W/ MEMORY
W/O HID
W/O MEMORY
W/O MEMORY W/ MEMORY
WASHER FLUID LEVEL SWITCH
WHT WIRE
WINDSHIELD WIPER MOTOR
WIPER MAIN RELAY
YAW RATE ACCELERATION SENSOR
YEL WIRE
Go to component -> Ground distribution circuit (1 of 5) -> HEADLIGHT LEVELING CONTROL UNIT

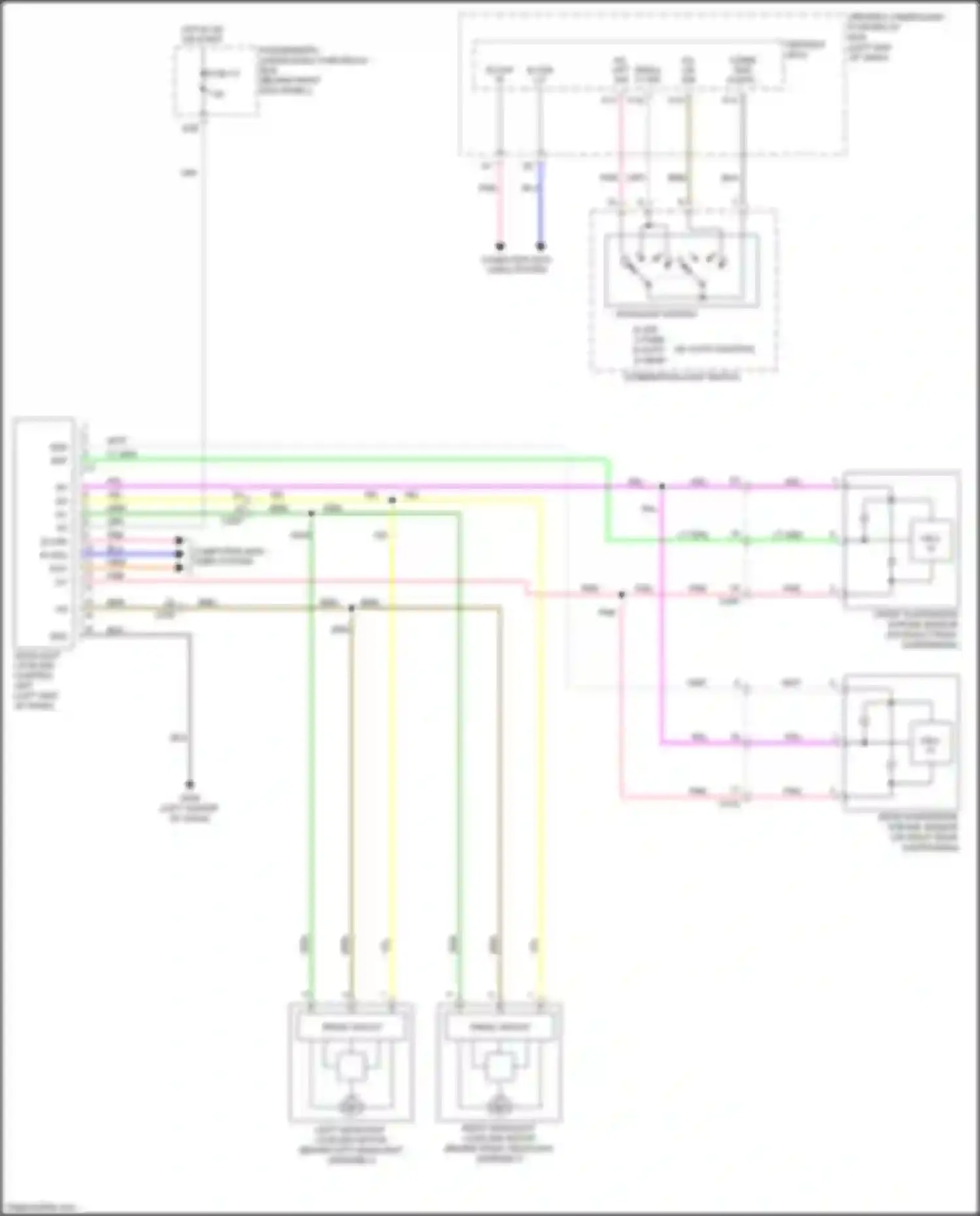

headlight leveling control unit wiring diagram (4 of 5)
0) OFF 1) PARK 2) AUTO 3) HEAD
B-CAN HI
B-CAN L
B-CAN LO
BLK WIRE
BLU WIRE
BRN WIRE
COMBI GND (LIGHT)
COMBINATION LIGHT SWITCH
COMPUTER DATA LINES SYSTEM
DRIVE CIRCUIT
DRIVER'S MICU
DRIVER'S UNDER-DASH FUSE/RELAY BOX
FRONT SUSPENSION STROKE SENSOR
FUSE 21
GRN WIRE
GRY WIRE
H/L ON SW
H/L SMALL OFF LT SW SW
HEADLIGHT LEVELING CONTROL UNIT
HEADLIGHT SWITCH
HOT IN ON OR START
LEFT HEADLIGHT LEVELING MOTOR
LT GRN WIRE
ORG/ WIRE
PASSENGER'S UNDER-DASH FUSE/RELAY BOX
PNK B-CAN H WIRE
PNK WIRE
PPL
PPL SG
REAR SUSPENSION STROKE SENSOR
RIGHT HEADLIGHT LEVELING MOTOR
SCS PNK SV WIRE
SSF 4 5
SSR+
WHT WIRE
YEL WIRE
Go to component -> Headlamps leveling circuit -> HEADLIGHT LEVELING CONTROL UNIT

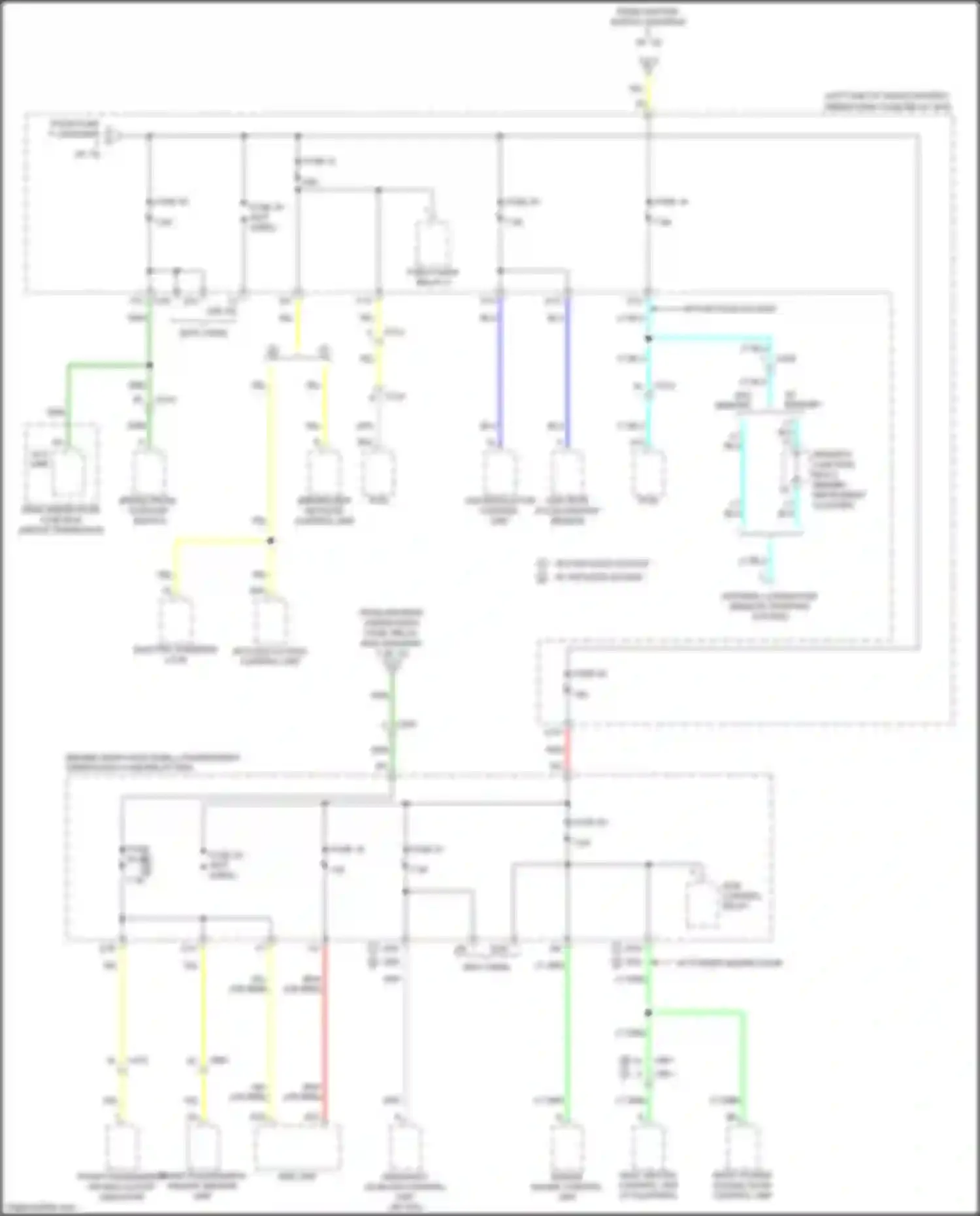

headlight leveling control unit wiring diagram (5 of 5)
ACM CONTROL RELAY
BLU WIRE
BRAKE PEDAL POSITION SWITCH
DRIVER'S JUNCTION BOX 2
ELD UNIT
ELECTRIC STEERING LOCK
ENGINE MOUNT CONTROL UNIT
FROM DRIVER'S UNDER-DASH FUSE/ RELAY BOX (DIAGRAM 7 OF 10)
FROM FUSE 11 (DIAGRAM 7 OF 10)
FROM IGNITION SWITCH (DIAGRAM 5 OF 10)
FRONT PASSENGER'S AIR BAG CUTOFF INDICATOR
FRONT PASSENGER'S WEIGHT SENSOR UNIT
FUSE 14
FUSE 19
FUSE 20
FUSE 21
FUSE 22
FUSE 23
FUSE 23 24
FUSE 24
FUSE 34
GRN WIRE
GRY WIRE
HEADLIGHT LEVELING CONTROL UNIT
IMMOBILIZER KEYLESS CONTROL UNIT
KEYLESS ACCESS CONTROL UNIT
LT BLU WIRE
LT GRN WIRE
MAIN UNDER- HOOD FUSE BOX
OPTIONAL CONNECTOR (REMOTE STARTING SYSTEM)
PCM
PGM-FI MAIN RELAY 2
RED WIRE
RIGHT POWER SLIDING DOOR CONTROL UNIT
SEAT HEATER CONTROL UNIT
SRS UNIT
VSA MODULATOR CONTROL UNIT
W/ HID
W/ MEMORY
W/O KEYLESS ACCESS
W/O KEYLESS ACCESS W/ KEYLESS ACCESS
W/O MEMORY
YAW RATE ACCELERATION SENSOR
YEL WIRE
Go to component -> Power distribution circuit (8 of 10) -> HEADLIGHT LEVELING CONTROL UNIT
