Honda Odyssey V (2013-2017) b- b- h/l sgnd can can back lo hi up Wiring diagram
This page shows the only wiring diagram for the component.b- b- h/l sgnd can can back lo hi up, which is found in the car Honda Odyssey V (2013-2017). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

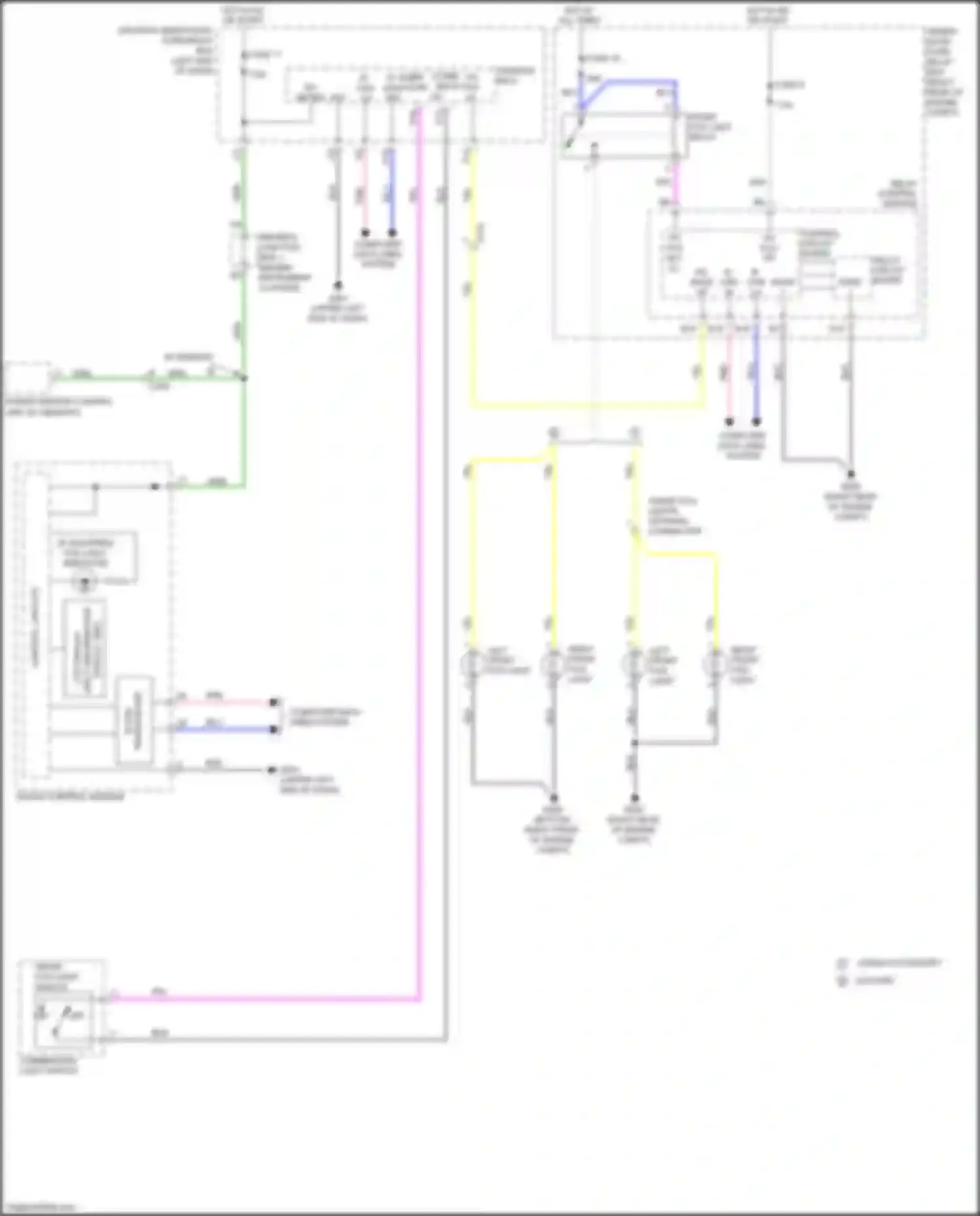

Wiring diagram b- b- h/l sgnd can can back lo hi up (1 of 1)
B- B- H/L SGND CAN CAN BACK LO HI UP
B-CAN
BLK WIRE
BLU WIRE
COMBI FR B- GND BACK FOG CAN (LIGHT) UP HI LO SW
COMBINATION LIGHT SWITCH
COMPUTER DATA LINES SYSTEM
CONTROL CIRCUIT BOARD
CONTROL CIRCUITS
DISPLAY (MID)
DRIVER'S JUNCTION BOX 1
DRIVER'S MICU
DRIVER'S UNDER-DASH FUSE/RELAY BOX
ECU FR
FACTORY
FOG LIGHT INDICATOR
FR FOG RLY CL-
FRONT FOG LIGHT RELAY
FRONT FOG LIGHT SWITCH
FRONT FOG LIGHTS OPTIONAL CONNECTOR
FUSE 11
FUSE 18
FUSE 6
GAUGE CONTROL MODULE
GRN WIRE
GRY WIRE
H/L
HONDA ACCESSORY
HOT AT ALL TIMES
HOT IN ON OR START
LCD DISPLAY OR
LEFT FRONT FOG
LEFT FRONT FOG LIGHT
LIGHT
METER
MULTI-INFORMATION
OFF
PNK WIRE
POWER MIRROR CONTROL UNIT (W/ MEMORY)
PPL
RELAY CIRCUIT BOARD
RELAY CONTROL MODULE
RIGHT FRONT FOG LIGHT
SGND
TRANSCEIVER/
UNDER- HOOD FUSE/ RELAY BOX
W/ MEMORY
YEL WIRE
Go to component -> Fog lamp circuit -> B- B- H/L SGND CAN CAN BACK LO HI UP
