Rear washer/wiper circuit for Honda Odyssey II (1999-2003)

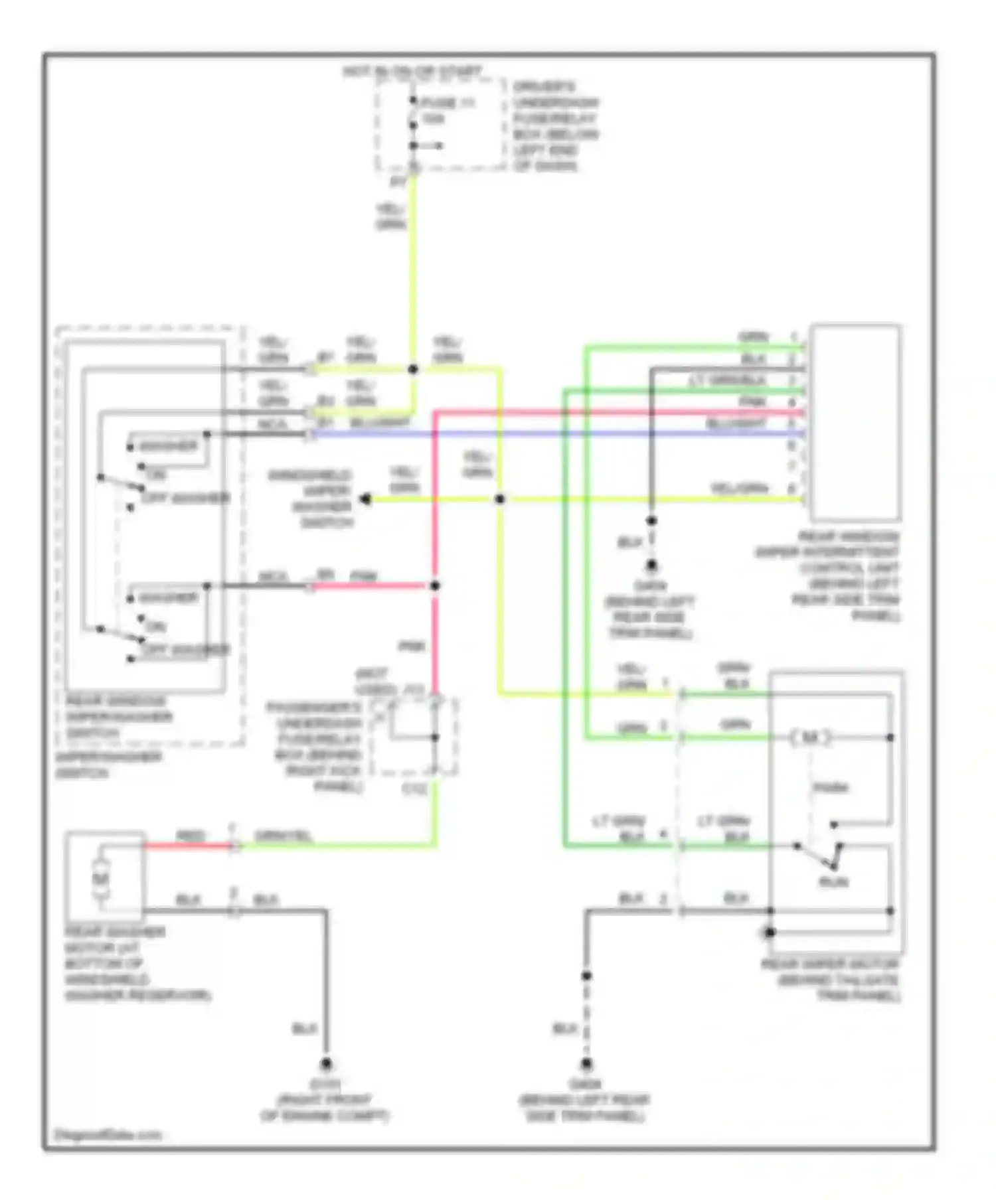

Rear washer/wiper circuit
BLK WIRE
BLU/WHT WIRE
DRIVER'S UNDERDASH FUSE/RELAY BOX (BELOW LEFT END OF DASH)
FUSE 11
GRN WIRE
GRN/YEL WIRE
HOT IN ON OR START
LT GRN WIRE
LT GRN/BLK WIRE
NCA WIRE
ON OFF WASHER
PARK
PASSENGER'S UNDERDASH FUSE/RELAY BOX (BEHIND RIGHT KICK PANEL)
PNK WIRE
REAR WASHER MOTOR (AT BOTTOM OF WINDSHIELD WASHER RESERVOIR)
REAR WINDOW WIPER INTERMITTENT CONTROL UNIT (BEHIND LEFT REAR SIDE TRIM PANEL)
REAR WINDOW WIPER/WASHER SWITCH
REAR WIPER MOTOR (BEHIND TAILGATE TRIM PANEL)
RED WIRE
RUN WIRE
WASHER
WINDSHIELD WIPER/ WASHER SWITCH
WIPER/WASHER SWITCH
YEL WIRE
YEL/GRN WIRE
