Wiring diagrams for Honda Odyssey (North America) V facelift (2017-2020)

Automatic a/c circuit

Anti-lock brakes circuit

Anti-theft circuit

Body control module circuit Power distribution module circuit

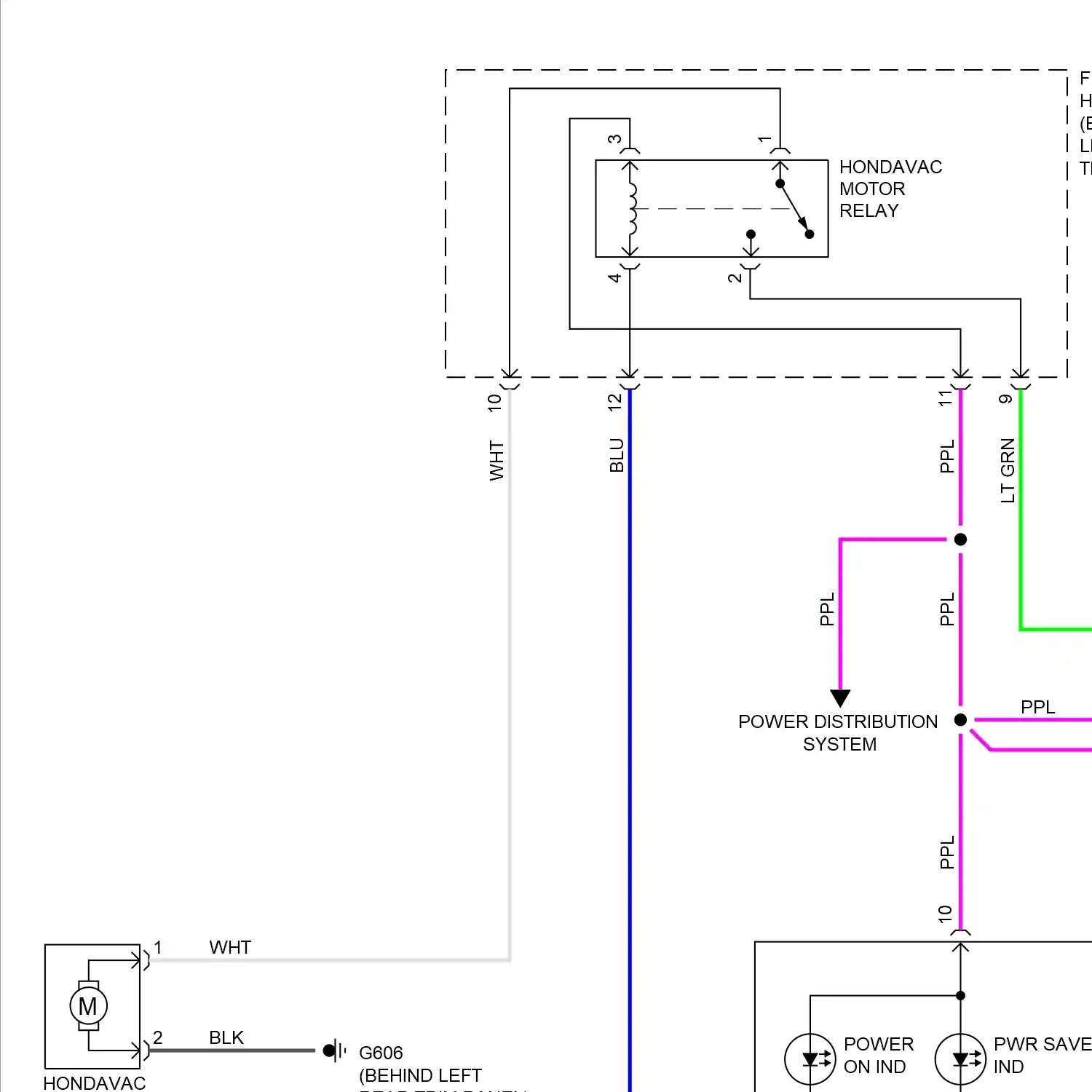

Cabin accessories circuit

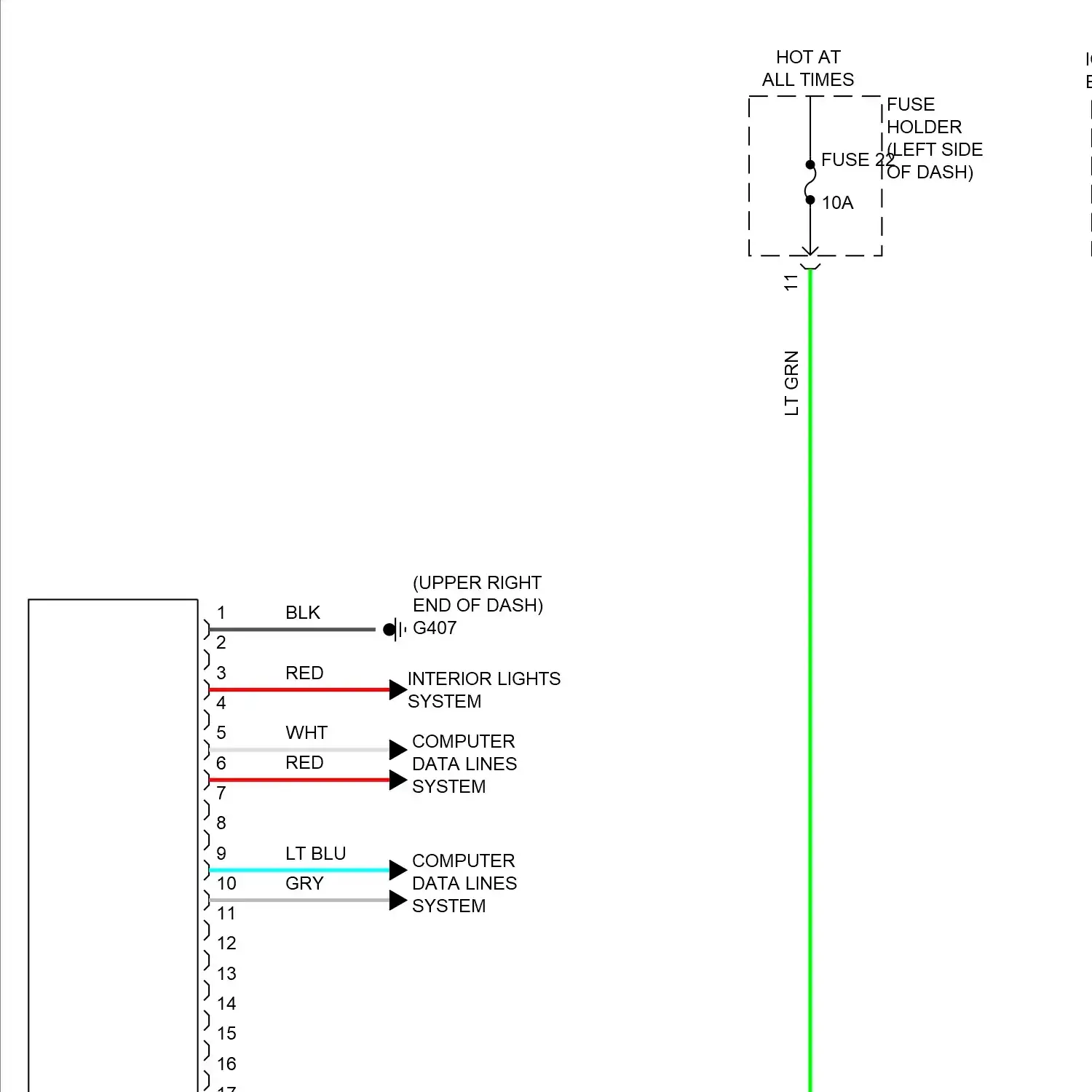

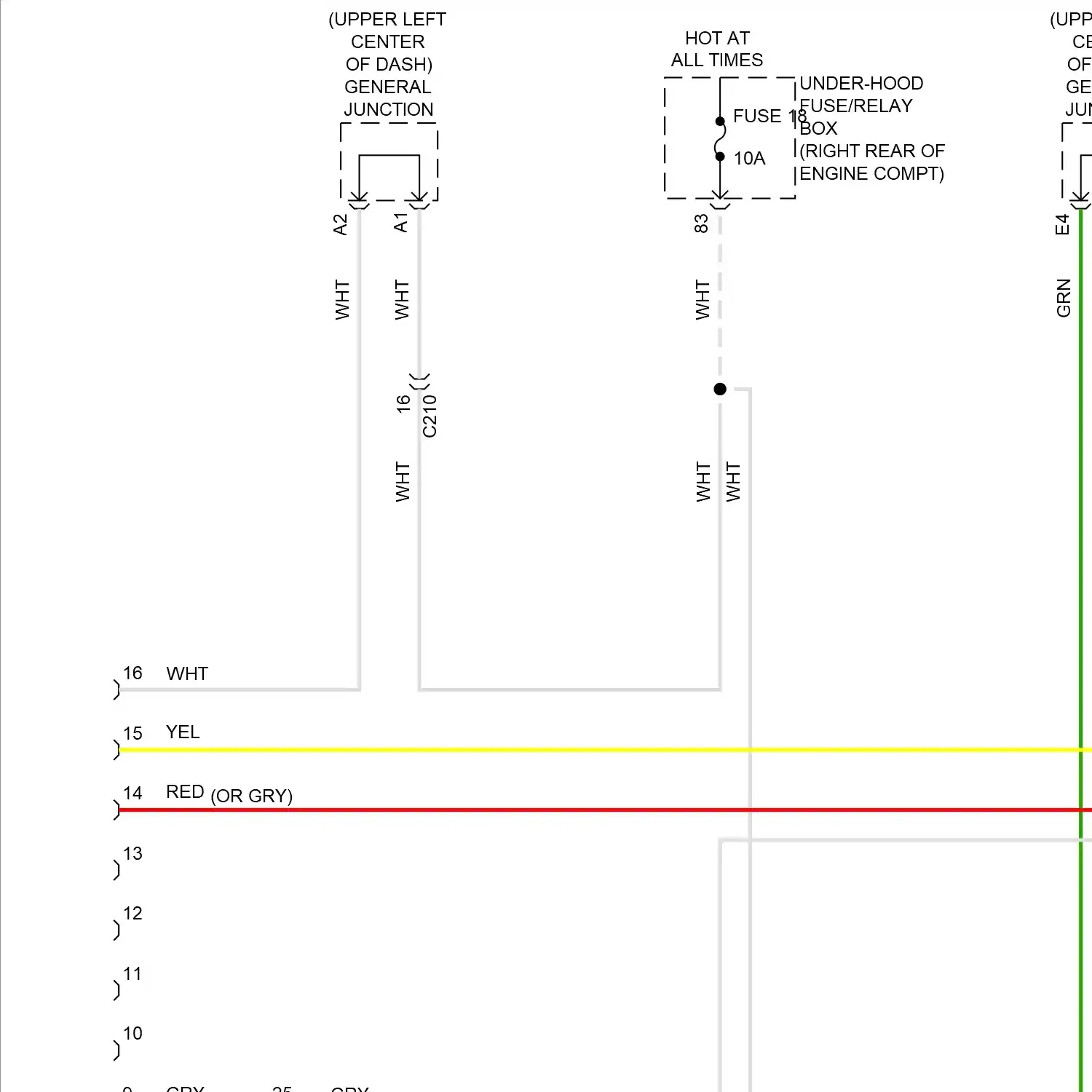

Computer data lines circuit

Cooling fan circuit

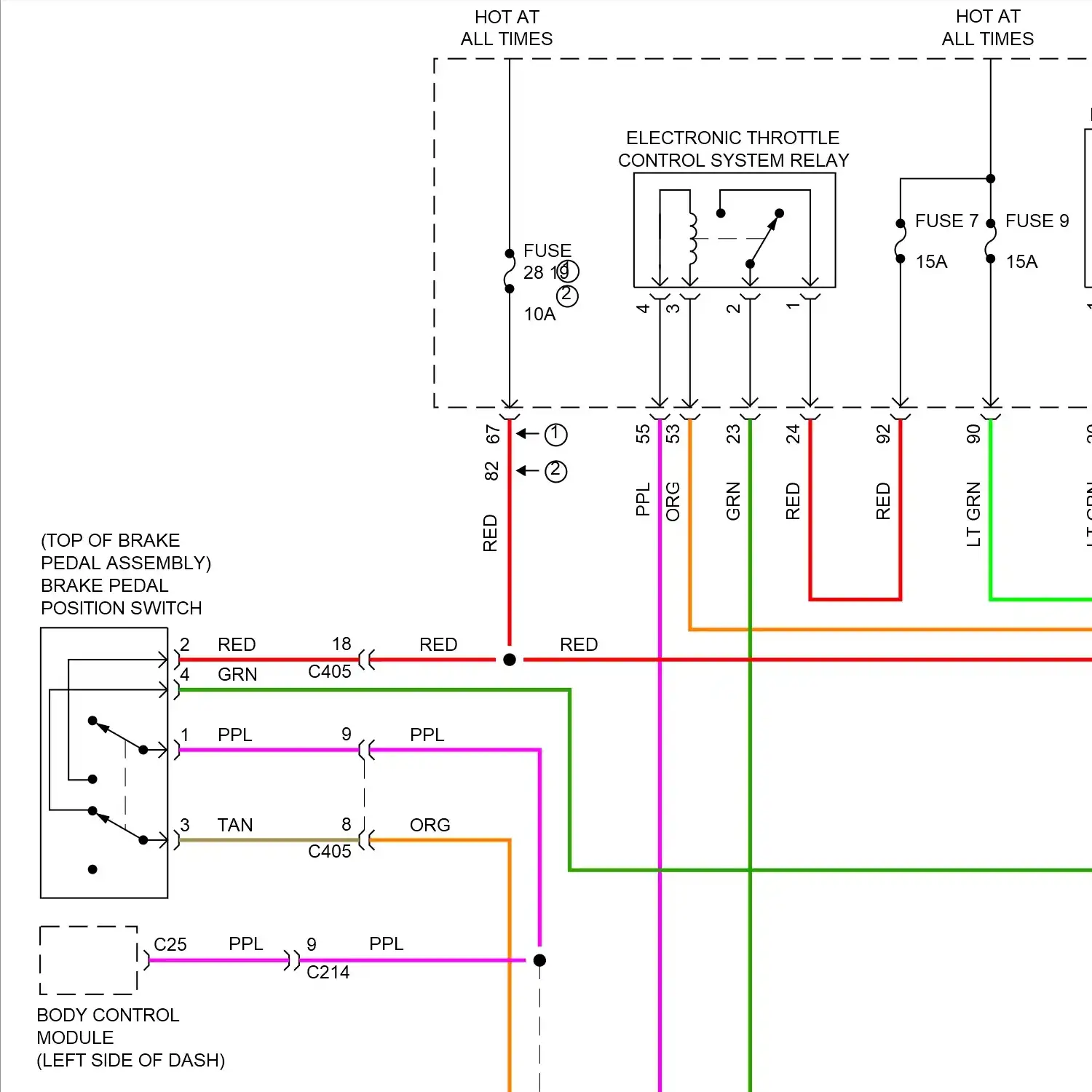

Cruise control circuit

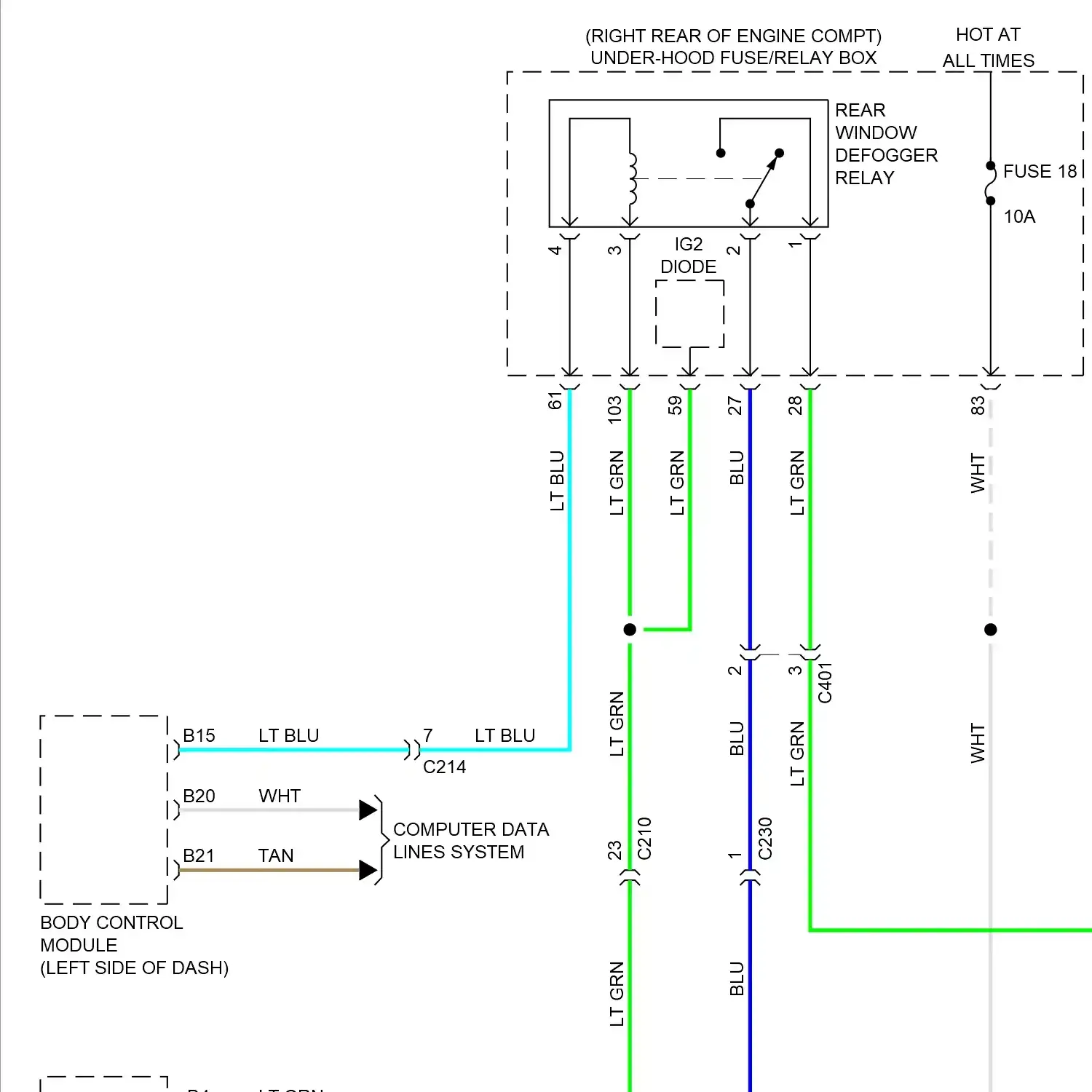

Heated windshield circuit Mirror heater & rear defogger circuit

Electronic power steering circuit

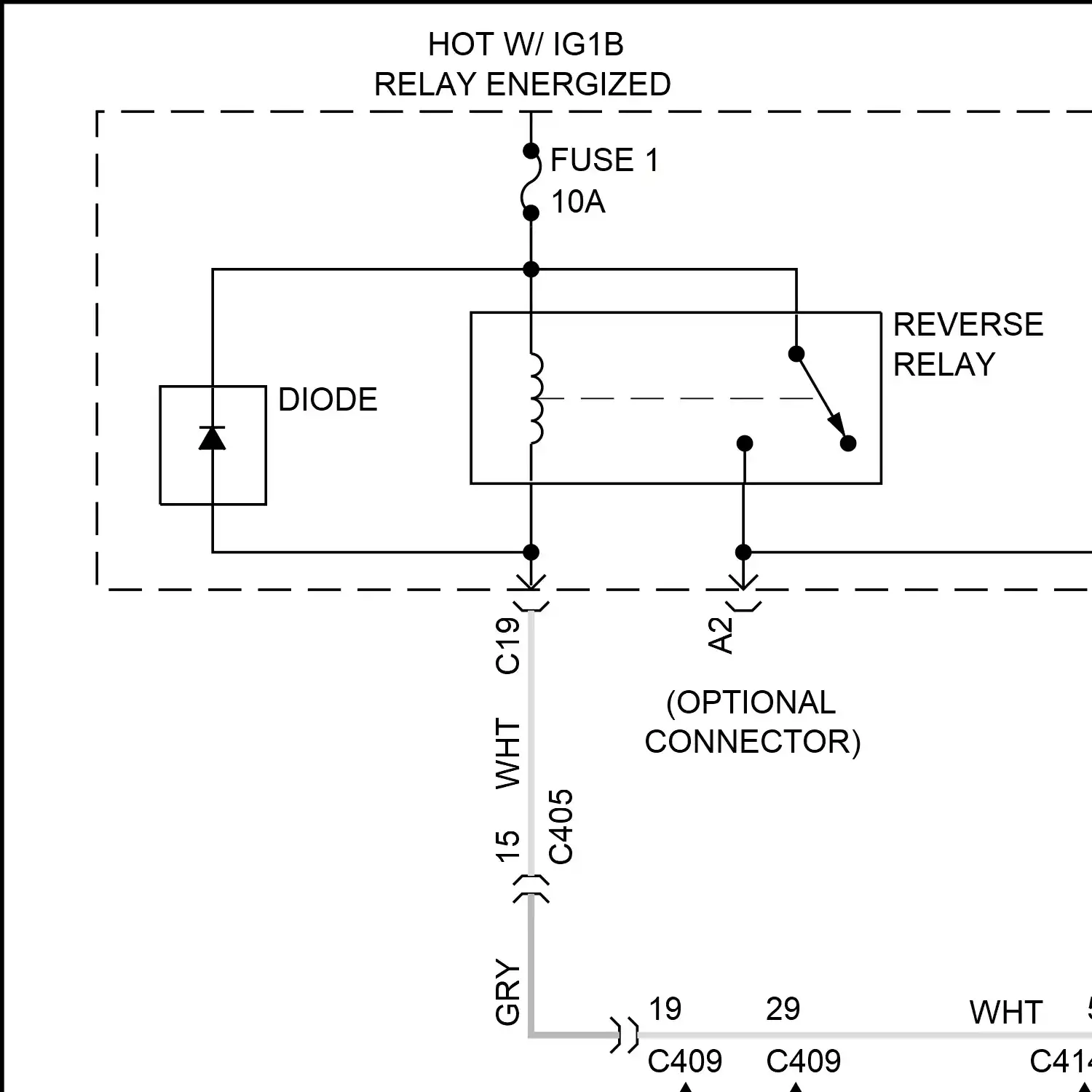

Backup lamps circuit Exterior lamps circuit

Horn circuit

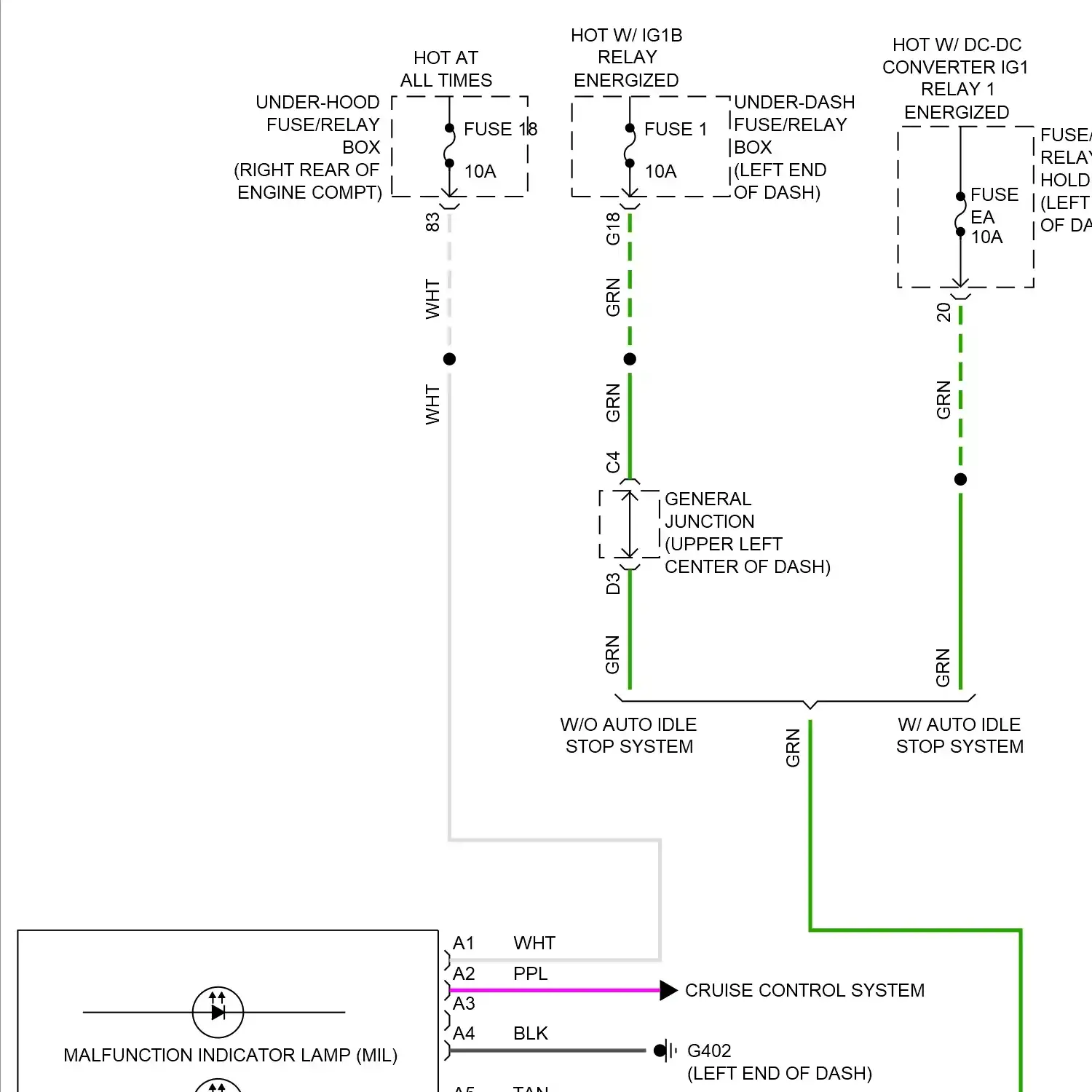

Instrument cluster circuit

Courtesy lamps circuit Entry light timer circuit Instrument illumination circuit

Blind spot information system circuit Hands free module circuit Home link remote control circuit Lane watch camera circuit Multipurpose camera circuit Navigation circuit, 11 speakers Navigation circuit, 7 speakers Parking assistant circuit Rear camera circuit

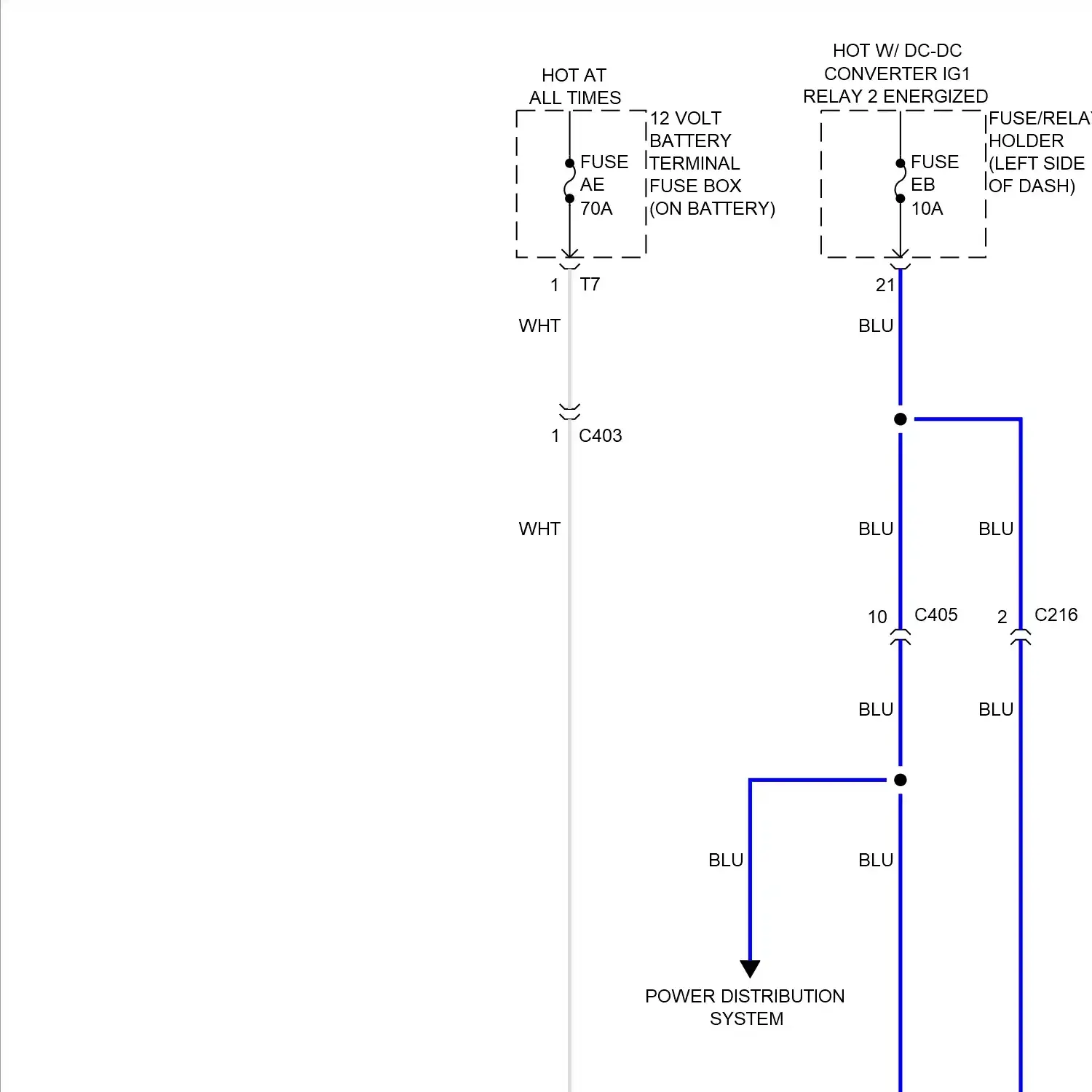

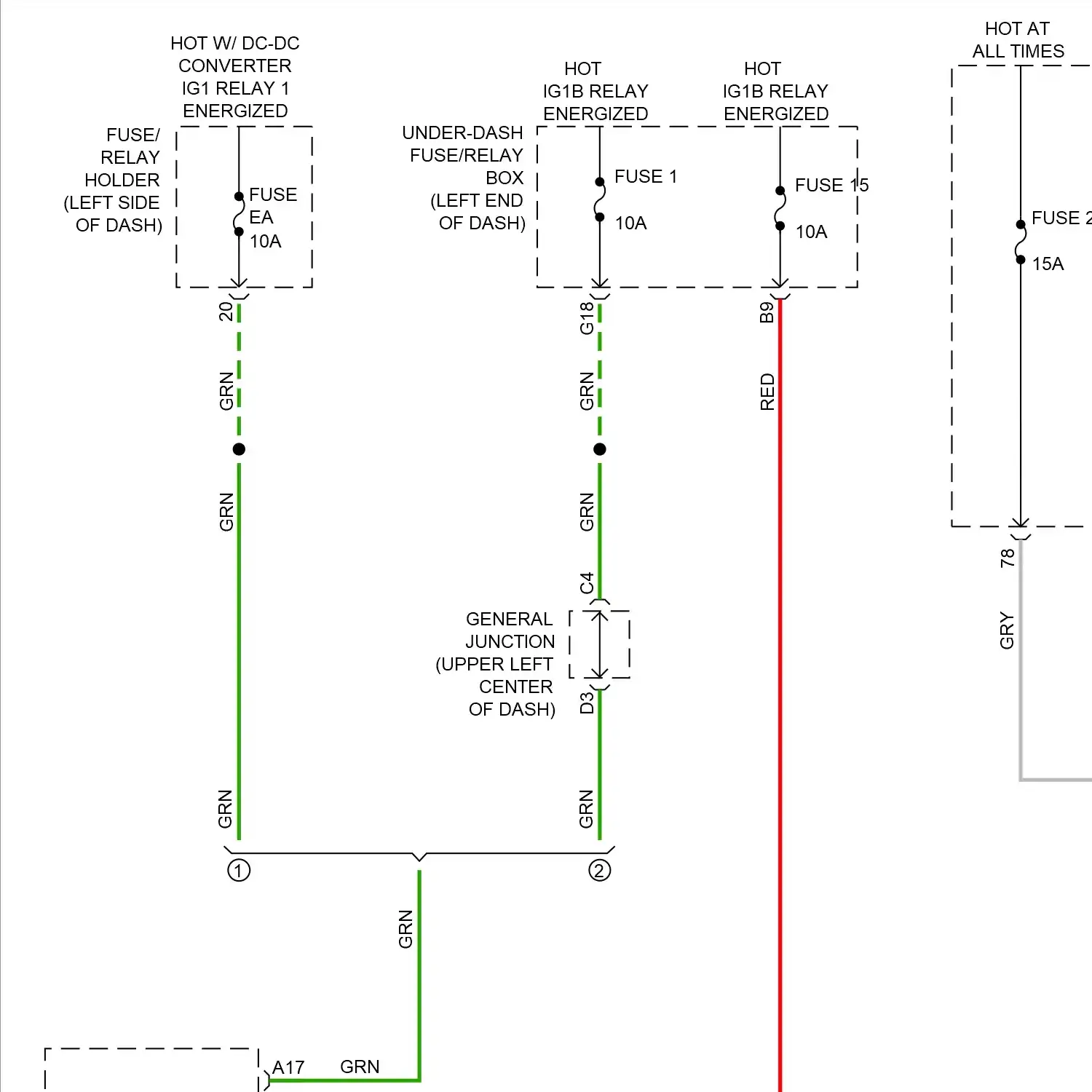

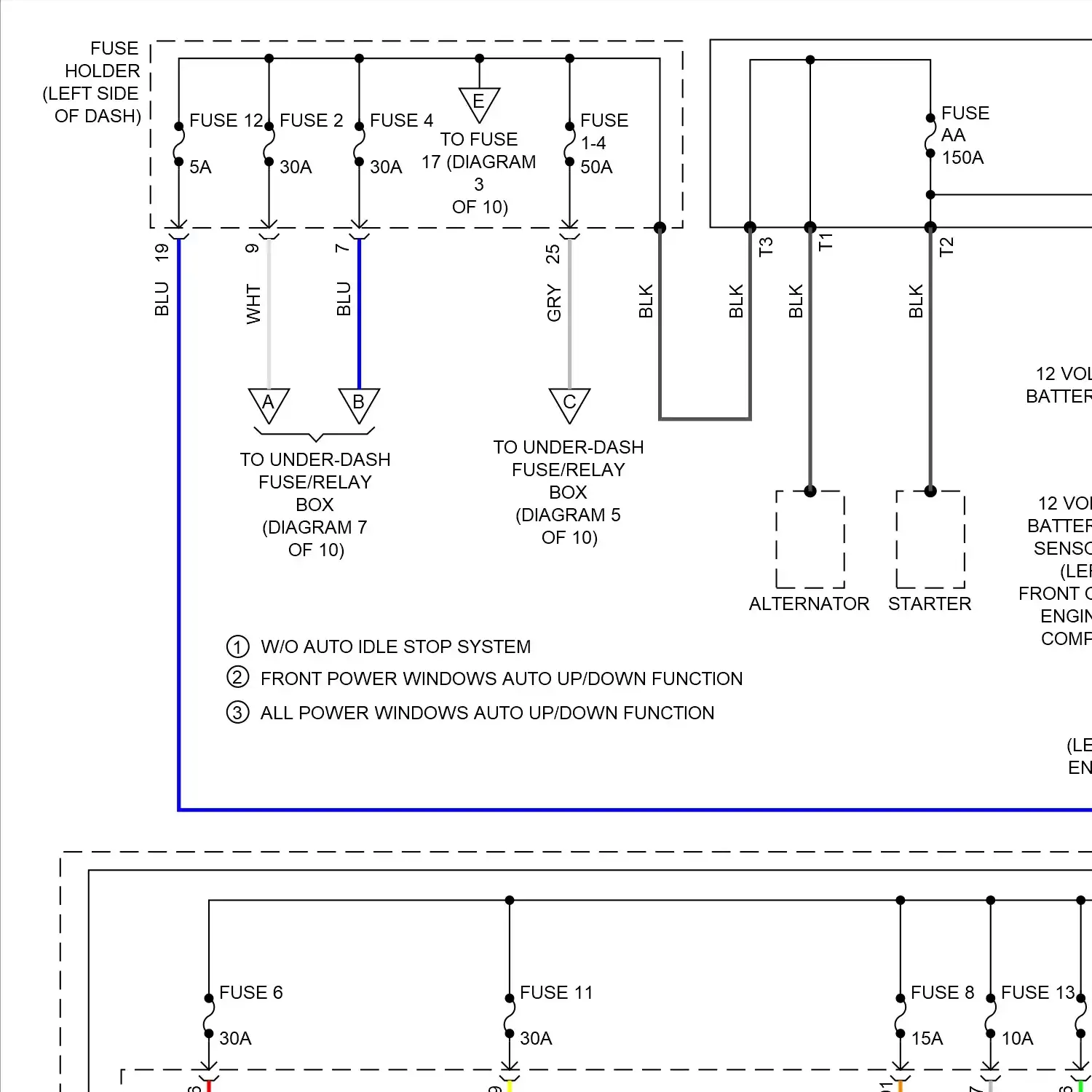

Power distribution circuit

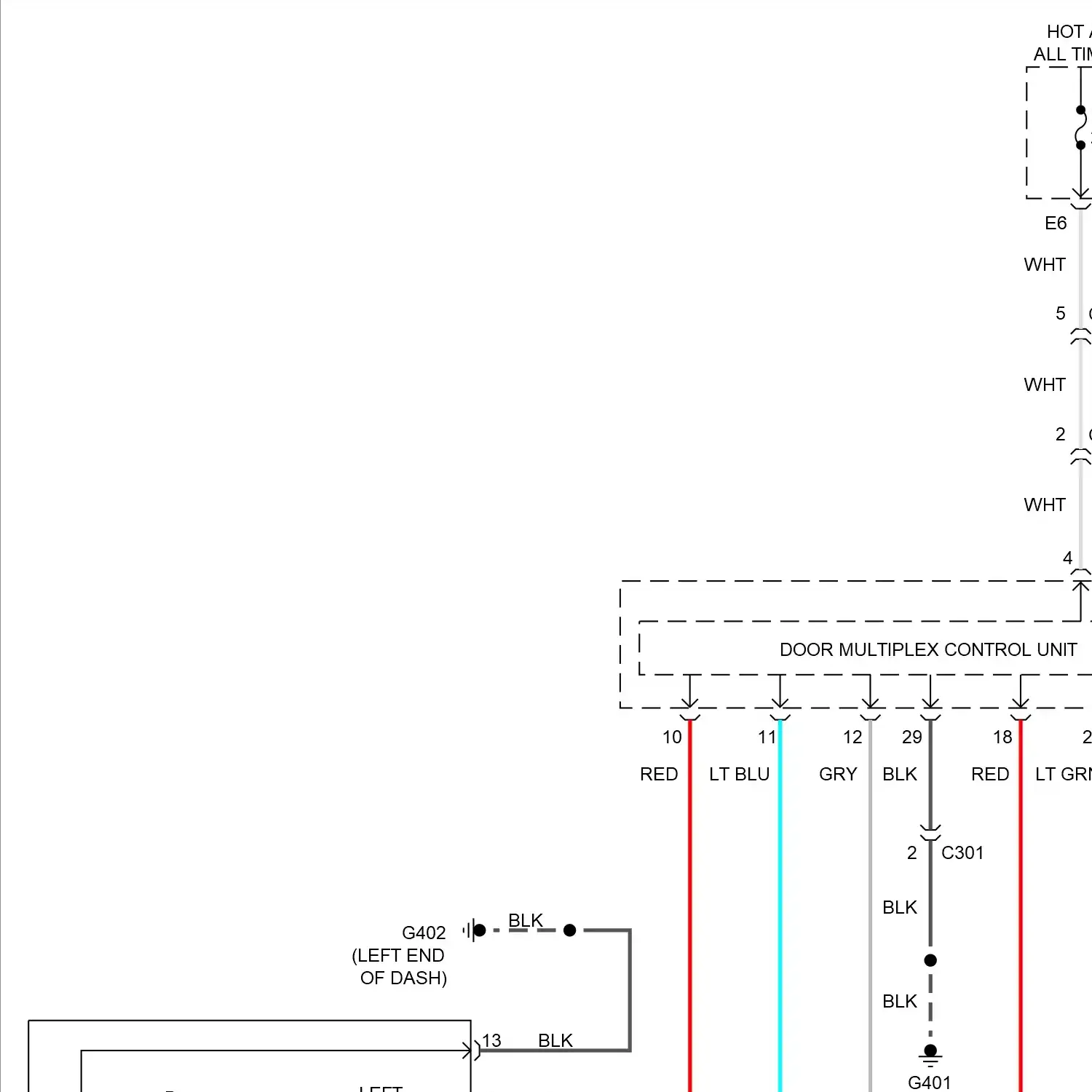

Power door locks circuit

Automatic day/night mirror circuit Power mirrors circuit

Power top/sunroof circuit

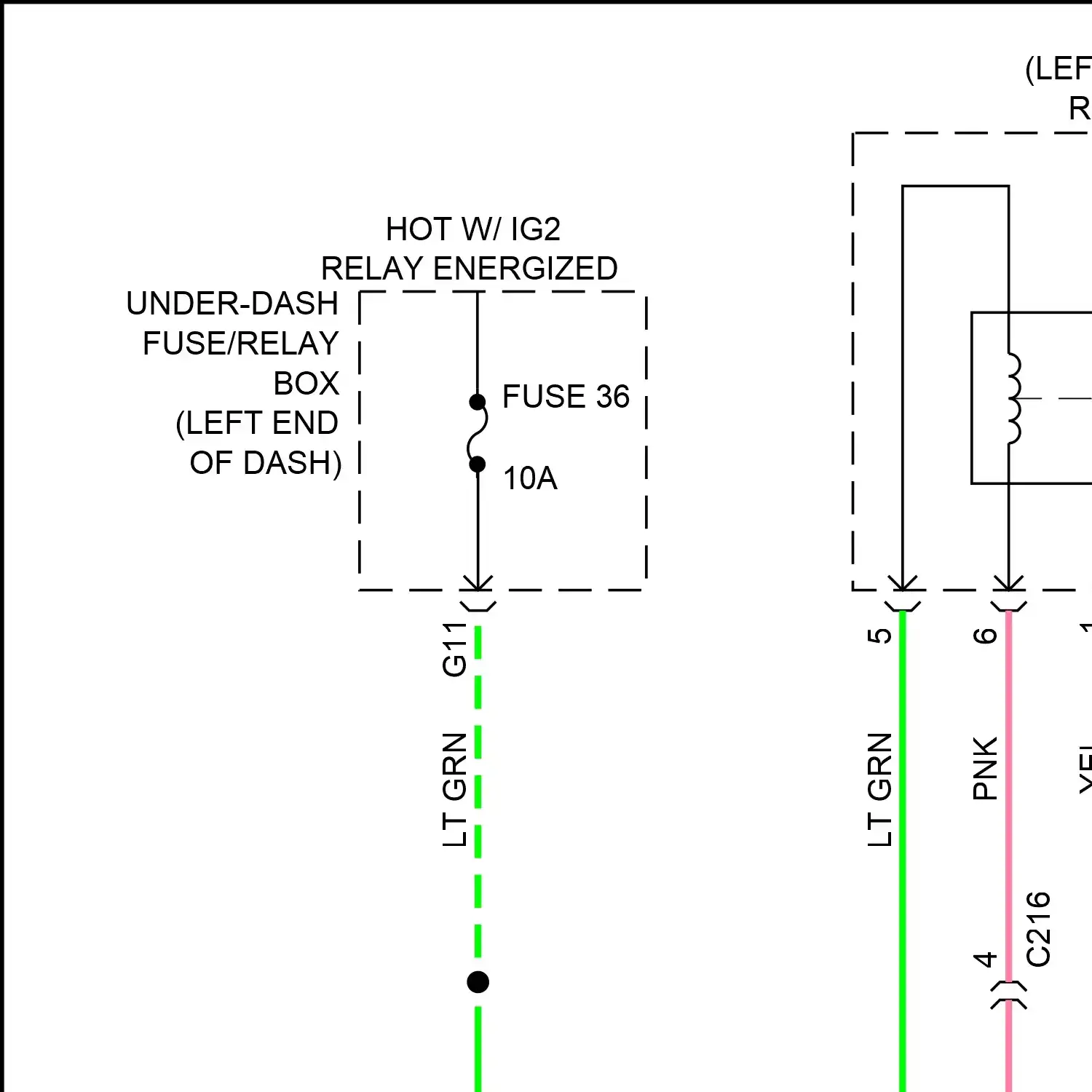

Shift interlock circuit

Charging circuit Starting circuit

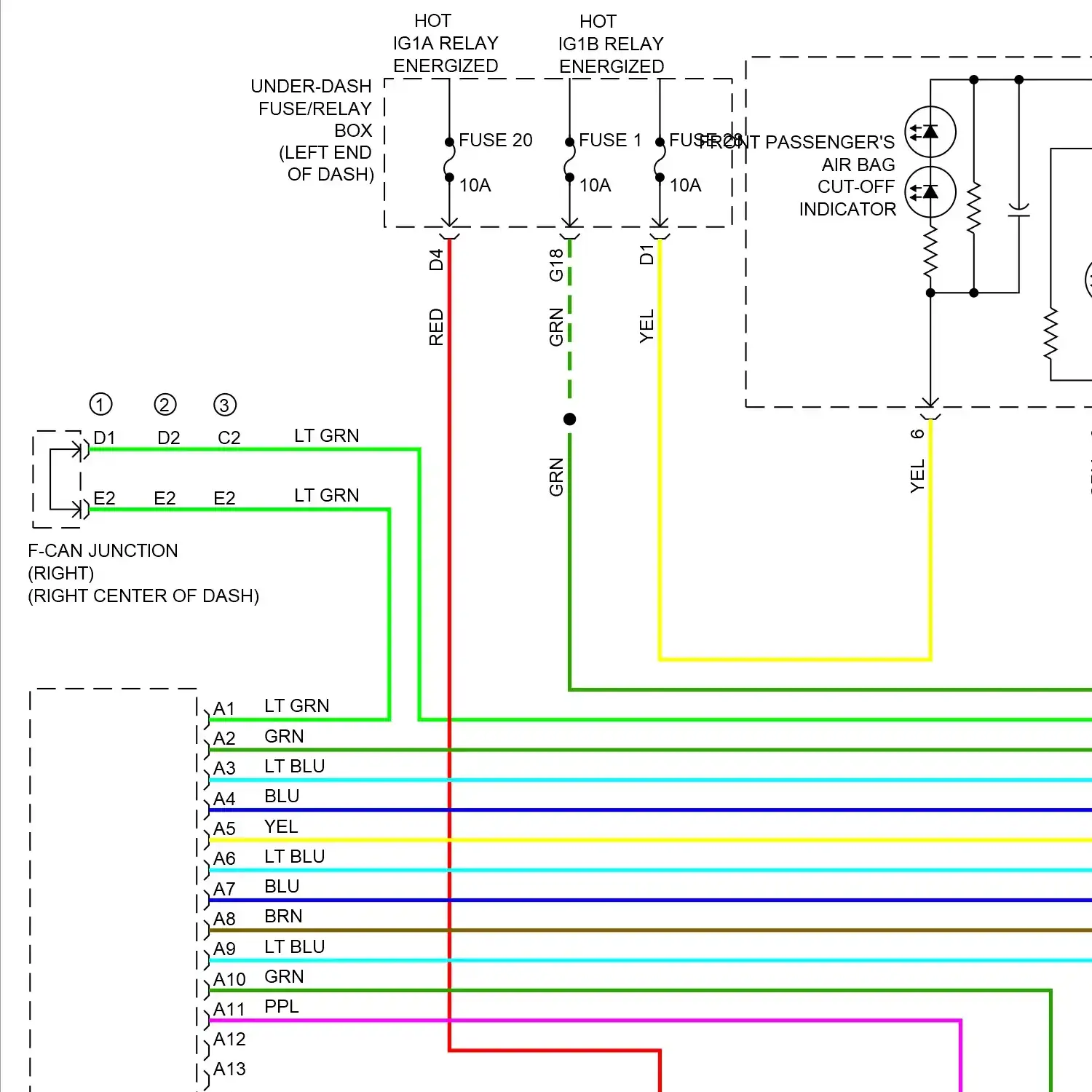

Supplemental restraints circuit

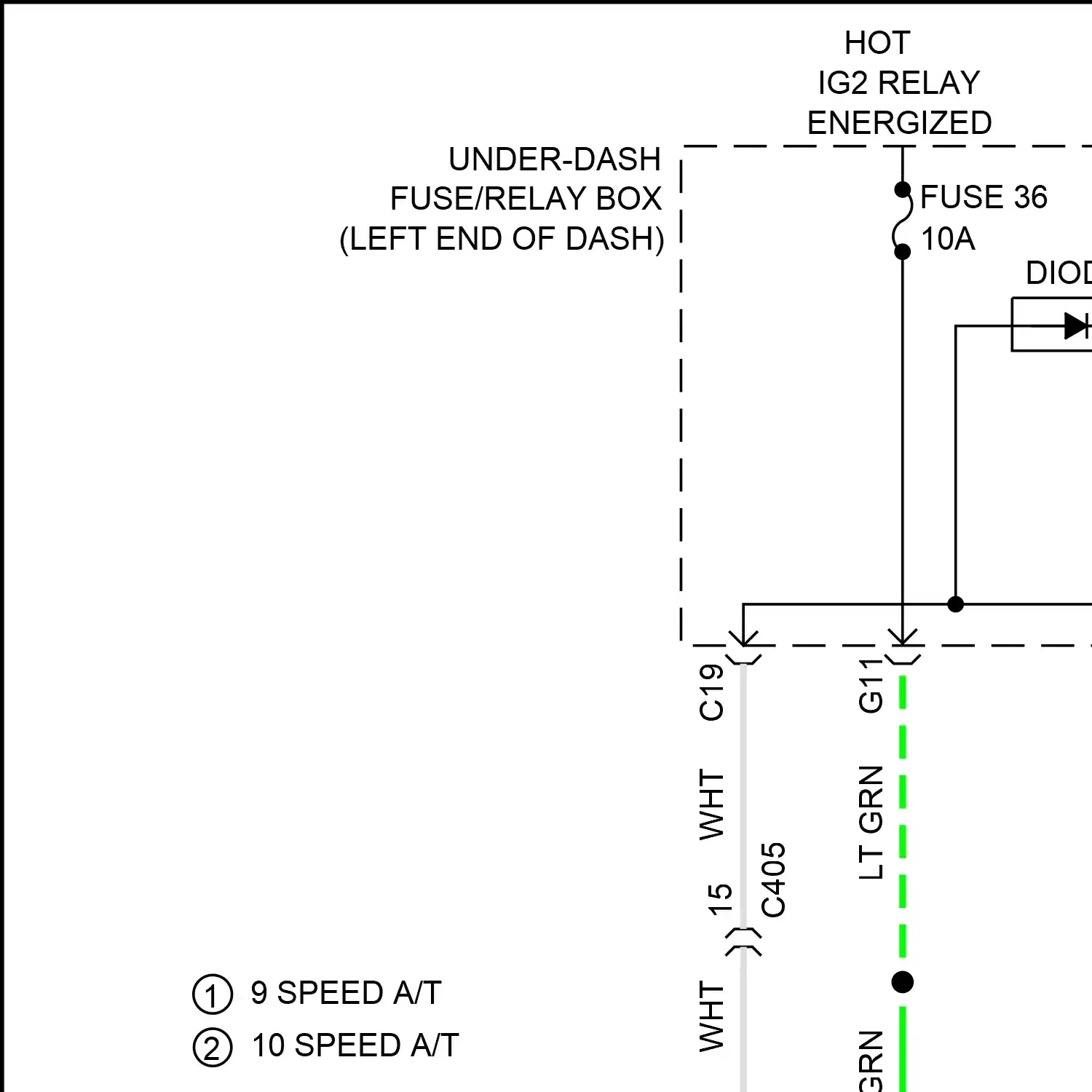

Transmission circuit, 10 speed a/t Transmission circuit, 9 speed a/t

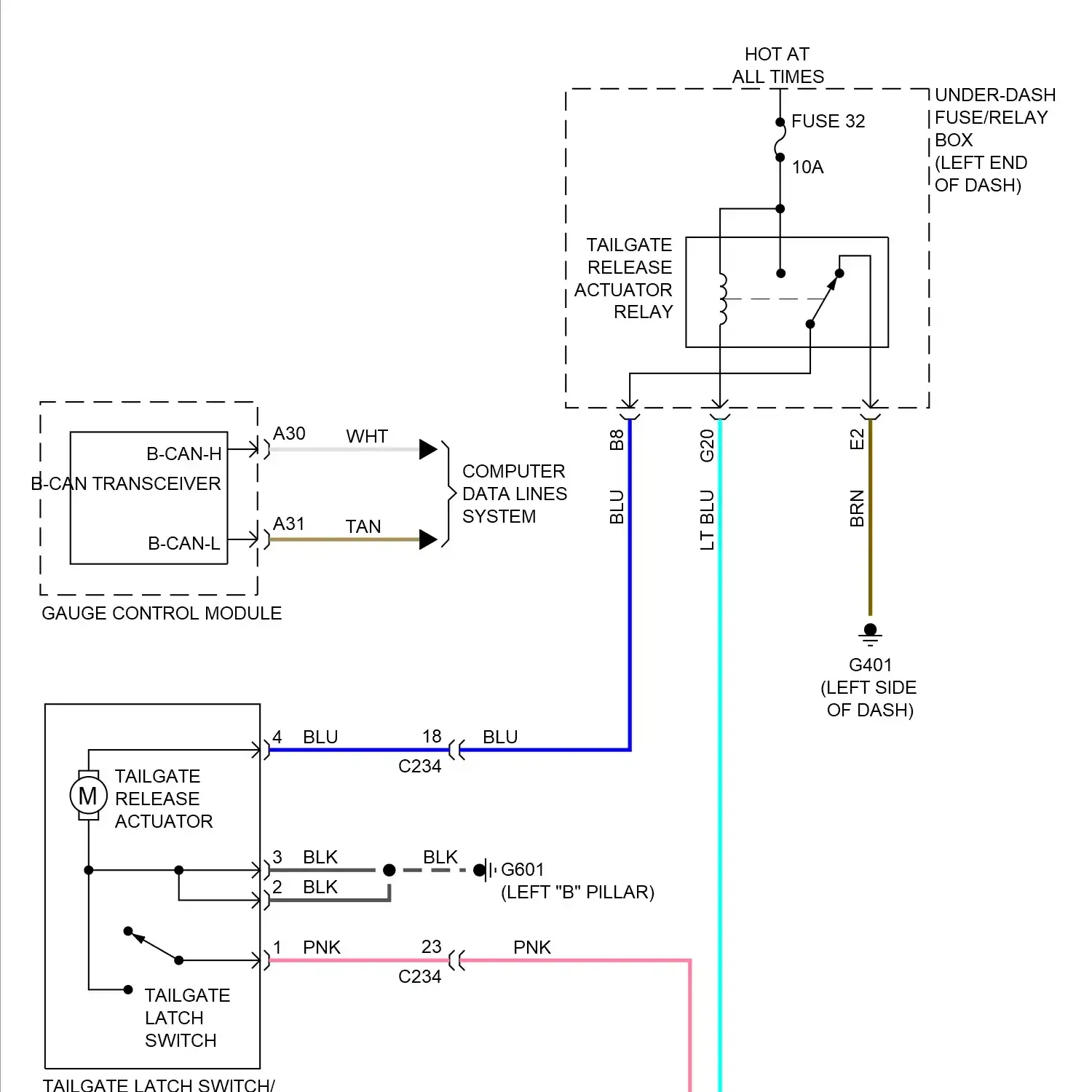

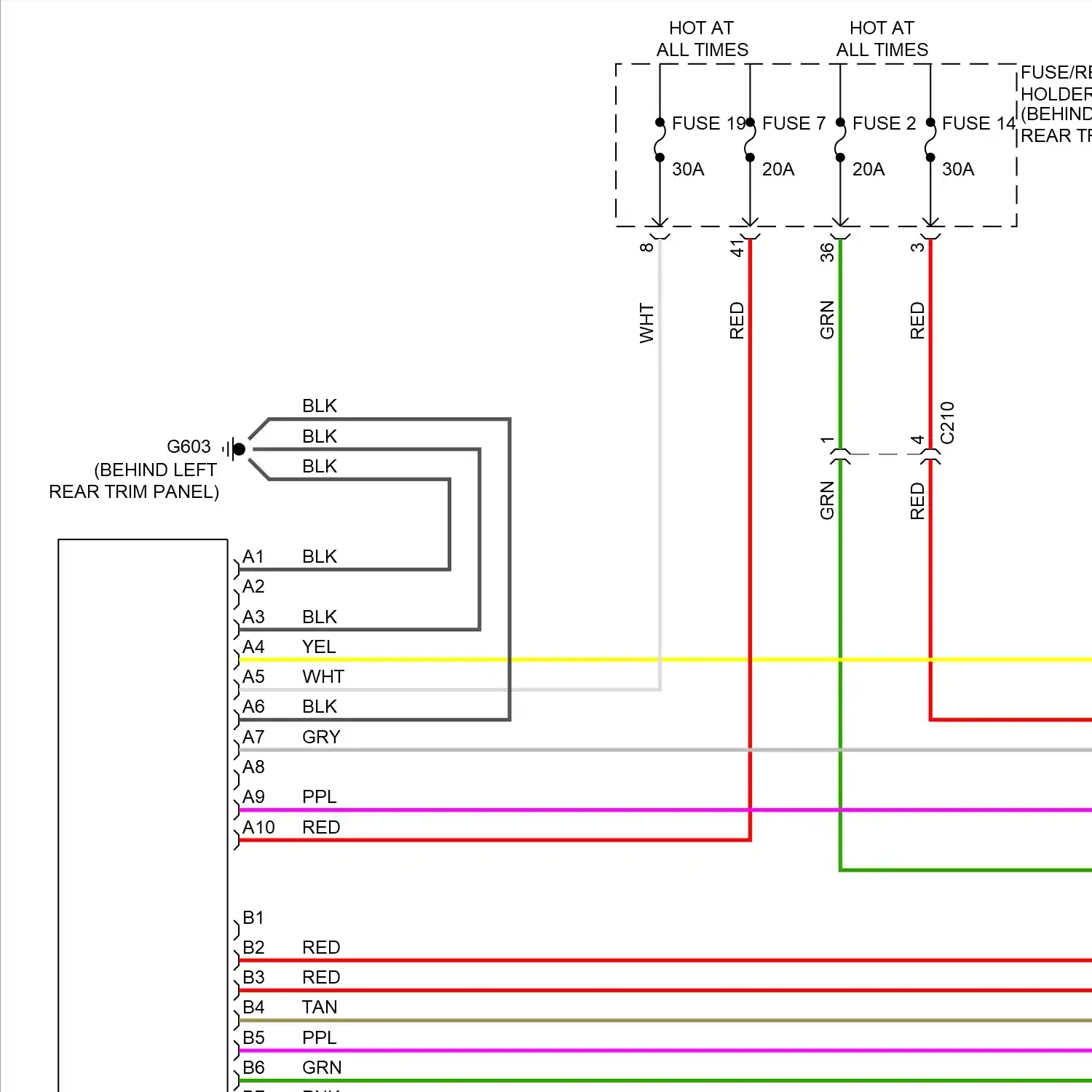

Power sliding door circuit Power tailgate circuit Tailgate & fuel door release circuit

Chime circuit Tire pressure monitoring circuit

Front wiper/washer circuit Rear wiper/washer circuit

12 VOLT BATTERY ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES, DOOR LOCKS, ANTI-THEFT, INTERIOR LIGHTS SYSTEMS B-CAN TRANSCEIVER DIODE A DOOR LOCK KNOB ELECTRIC STEERING LOCK F-CAN TRANSCEIVER IGPS DIODE ON BATTERY) STEREO AMPLIFIER W/ ELECTRIC STEERING LOCK W/O ELECTRIC STEERING LOCK W/O ELECTRIC STEERING LOCK

12 VOLT BATTERY FAN MOTOR A/C CONDENSER FAN MOTOR AIR MIX CONTROL MOTOR CLOSER MOTOR CLOSER/ RELEASE MOTOR DRIVER'S DOOR LOCK ACTUATOR DRIVER'S SEAT CUSHION BLOWER MOTOR DRIVER'S SEAT-BACK BLOWER MOTOR ENGINE CONTROLS SYSTEM EPS MOTOR FRONT BLOWER MOTOR FRONT PASSENGER'S DOOR LOCK ACTUATOR FRONT PASSENGER'S SEAT CUSHION BLOWER MOTOR FRONT PASSENGER'S SEAT-BACK BLOWER MOTOR FUEL FILL DOOR LOCK ACTUATOR HONDAVAC MOTOR LEFT POWER SLIDING MOTOR LEFT REAR ELECTRIC PARKING BRAKE ACTUATOR LEFT SLIDING DOOR LOCK ACTUATOR LEFT/RIGHT MOTOR MIRROR ACTUATOR MODE CONTROL MOTOR A MODE CONTROL MOTOR B PARKING LOCK ACTUATOR PASSENGER'S AIR MIX CONTROL MOTOR POWER TAILGATE MOTOR RADIATOR FAN MOTOR REAR AIR MIX CONTROL MOTOR REAR BLOWER MOTOR REAR MODE CONTROL MOTOR REAR WINDOW WIPER MOTOR RECIRCULATION CONTROL MOTOR RIGHT POWER SLIDING MOTOR RIGHT REAR ELECTRIC PARKING BRAKE ACTUATOR RIGHT SLIDING DOOR LOCK ACTUATOR TAILGATE RELEASE ACTUATOR THROTTLE ACTUATOR UP/DOWN MOTOR WINDSHIELD/ REAR WINDOW WASHER MOTOR

FRONT INTERIOR LF ANTENNA LEFT FRONT LF ANTENNA/INITIATOR LEFT REAR LF ANTENNA/INITIATOR LF ANTENNA MIDDLE INTERIOR LF ANTENNA REAR INTERIOR LF ANTENNA RIGHT FRONT LF ANTENNA/ INITIATOR RIGHT FRONT LF ANTENNA/INITIATOR RIGHT REAR LF ANTENNA/INITIATOR ROOF ANTENNA WINDOW ANTENNA

PRESSURE REGULATOR

CABIN WATCH CAMERA LANE WATCH CAMERA

4-PIN CONNECTOR CARGO AREA ACCESSORY POWER SOCKET FRONT ACCESSORY POWER SOCKET LEFT REAR ACCESSORY POWER SOCKET OPTIONAL CONNECTOR

BODY CONTROL MODULE BODY CONTROL MODULE CIRCUIT EPS CONTROL MODULE GAUGE CONTROL MODULE SBW SHIFTER CONTROL MODULE TRANSMISSION CONTROL MODULE

ANC/ACTIVE SOUND CONTROL UNIT AUDIO UNIT BD PLAYER UNIT CENTER DISPLAY UNIT CLIMATE CONTROL UNIT CONTROL UNIT) DOOR MULTIPLEX CONTROL UNIT ENGINE MOUNT CONTROL UNIT EPS CONTROL UNIT FUEL TANK UNIT HEATED STEERING WHEEL CONTROL UNIT INFOTAINMENT CONTROL UNIT LEFT POWER SLIDING DOOR CONTROL UNIT LEFT SIDE BSI RADAR UNIT MOONROOF MOTOR/ CONTROL UNIT MULTIPURPOSE CAMERA UNIT NEAR FIELD COMMUNICATION UNIT POWER MIRROR CONTROL UNIT POWER SEAT CONTROL UNIT POWER TAILGATE CLOSER UNIT POWER TAILGATE CONTROL UNIT RES CONTROL UNIT RIGHT POWER SLIDING DOOR CONTROL UNIT RIGHT SIDE BSI RADAR UNIT SRS UNIT TELEMATICS CONTROL UNIT TUNER AMPLIFIER UNIT TUNER UNIT USB CHARGER UNIT VENTILATED SEAT/ SEAT HEATER CONTROL UNIT VENTILATED SEAT/SEAT HEATER CONTROL UNIT VSA MODULATOR CONTROL UNIT W/O MULTIPURPOSE CAMERA UNIT W/ MULTIPURPOSE CAMERA UNIT WINDSHIELD WIPER CONTROL UNIT/MOTOR

12 VOLT BATTERY TERMINAL FUSE BOX FUSE 1 FUSE 1-2 FUSE 1-3 FUSE 1-4 FUSE 1-5 FUSE 1-7 FUSE 1-8 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE 19 28 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 28 19 FUSE 29 FUSE 30 FUSE 31 FUSE 32 FUSE 33 FUSE 34 FUSE 35 FUSE 36 FUSE 37 FUSE 38 FUSE 39 FUSE AA FUSE AB FUSE AC FUSE AD FUSE AE FUSE AF FUSE EA FUSE EB FUSE EC FUSE ED FUSE EF FUSE EG FUSE HOLDER

LEFT HEADLIGHT RIGHT HEADLIGHT

BRAKE SYSTEM INDICATOR CHARGING SYSTEM INDICATOR FRONT FOG LIGHT INDICATOR FRONT PASSENGER'S AIR BAG CUT-OFF INDICATOR HAZARD WARNING SWITCH/ FRONT PASSENGER'S AIR BAG CUT-OFF INDICATOR HAZARD WARNING SWITCH/FRONT PASSENGER'S AIR BAG CUT-OFF INDICATOR HIGH BEAM INDICATOR LEFT BSI ALERT INDICATOR LEFT TURN SIGNAL INDICATOR LIGHTS ON INDICATOR LOW OIL PRESSURE INDICATOR POWER SLIDING DOOR INDICATOR RIGHT BSI ALERT INDICATOR RIGHT TURN SIGNAL INDICATOR SEAT BELT REMINDER INDICATOR SECURITY INDICATOR SRS INDICATOR TPMS INDICATOR

DOOR LOCKS, ANTI-THEFT, INTERIOR LIGHTS SYSTEMS DOOR LOCKS, ANTI-THEFT, INTERIOR LIGHTS, TRUNK, TAILGATE, FUEL DOORS SYSTEMS EXTERIOR LIGHTS, MIRRORS SYSTEMS INTERIOR LIGHTS, TRUNK, TAILGATE, FUEL DOORS SYSTEMS W/ DECORATION LIGHTS

A/C CONDENSER FAN RELAY ACC RELAY BRAKE LIGHT RELAY CARGO AREA ACCESSORY POWER SOCKET RELAY CLOSE RELAY DC-DC CONVERTER ACC RELAY ELECTRONIC THROTTLE CONTROL SYSTEM RELAY FAN CONTROL RELAY FRONT ACCESSORY POWER SOCKET RELAY FUEL FILL DOOR LOCK ACTUATOR RELAY FUSE/ RELAY HOLDER A FUSE/ RELAY HOLDER B FUSE/RELAY HOLDER A FUSE/RELAY HOLDER B HEATED STEERING WHEEL RELAY HEATED WINDSHIELD WIPER AREA RELAY HONDAVAC MOTOR RELAY HONDAVAC MOTOR RELAY FUSE/RELAY HOLDER B HOT W/ ACC RELAY ENERGIZED HOT W/ PGM-FI MAIN RELAY 1 ENERGIZED INJECTOR RELAY LEFT REAR ACCESSORY POWER SOCKET RELAY LEFT REAR POWER WINDOW RELAY RELAY HOLDER B LEFT SLIDING DOOR LOCK RELAY LEFT SLIDING DOOR UNLOCK RELAY OPEN RELAY PGM-FI MAIN RELAY 1 RADIATOR FAN RELAY REAR WINDOW DEFOGGER RELAY REAR WINDOW WASHER MOTOR RELAY RELAY 1 ENERGIZED RELAY 2 ENERGIZED RELAY ENERGIZED REVERSE RELAY RIGHT REAR POWER WINDOW RELAY RELAY HOLDER B STARTER CUT RELAY 1 STARTER CUT RELAY 2 TAILGATE RELEASE ACTUATOR RELAY UNDER- DASH FUSE/ RELAY BOX UNDER- HOOD FUSE/ RELAY BOX UNDER-DASH FUSE/RELAY BOX UNDER-HOOD FUSE/RELAY BOX WINDSHIELD WASHER MOTOR RELAY

12 VOLT BATTERY SENSOR A/C PRESSURE SENSOR APP SENSOR A APP SENSOR A/B APP SENSOR B ATF TEMPERATURE SENSOR AUTOMATIC LIGHTING CONTROL UNIT-SENSOR AUTOMATIC LIGHTING/ RAIN SENSOR AUTOMATIC LIGHTING/RAIN SENSOR BRAKE BOOSTER PRESSURE SENSOR COUNTERSHAFT SPEED SENSOR DRIVER'S DOOR OUTER HANDLE TOUCH SENSOR/LOCK SWITCH DRIVER'S SEAT POSITION SENSOR DUAL SPEED SENSOR ECT SENSOR 1 ECT SENSOR 2 FRONT EVAPORATOR TEMPERATURE SENSOR FRONT PASSENGER'S DOOR OUTER HANDLE TOUCH SENSOR/ LOCK SWITCH FTP SENSOR HALL SENSOR HANDS FREE ACCESS POWER TAILGATE CONTROL UNIT/SENSOR HUMIDITY/IN-CAR TEMPERATURE SENSOR HYDRAULIC CONTROL UNIT/ SENSOR UNIT HYDRAULIC CONTROL UNIT/SENSOR UNIT LEFT FRONT CORNER SENSOR LEFT FRONT IMPACT SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT POWER SLIDING DOOR PINCH SENSOR LEFT POWER TAILGATE PINCH SENSOR LEFT REAR CENTER SENSOR LEFT REAR CORNER SENSOR LEFT REAR WHEEL SPEED SENSOR LEFT SLIDING DOOR OUTER HANDLE TOUCH SENSOR MAF/IAT SENSOR MAINSHAFT SPEED SENSOR MOTOR ANGLE SENSOR OUTSIDE AIR TEMPERATURE SENSOR PARK POSITION SENSOR PARKING ACTUATOR VALVE STROKE SENSOR PARKING, BACKUP SENSOR CONTROL UNIT PARKING, BACKUP SENSOR SWITCH PARKING, BACKUP SENSOR SWITCH/ VSA OFF SWITCH POWER TAILGATE SENSOR REAR EVAPORATOR TEMPERATURE SENSOR REAR SAFING SENSOR RIGHT FRONT CORNER SENSOR RIGHT FRONT IMPACT SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT POWER SLIDING DOOR PINCH SENSOR RIGHT POWER TAILGATE PINCH SENSOR RIGHT REAR CENTER SENSOR RIGHT REAR CORNER SENSOR RIGHT REAR WHEEL SPEED SENSOR RIGHT SLIDING DOOR OUTER HANDLE TOUCH SENSOR ROCKER ARM OIL PRESSURE SENSOR SLIDING MOTOR SENSOR STEERING ANGLE SENSOR SUNLIGHT SENSOR THROTTLE OPEN SENSOR TORQUE SENSOR TOUCH SENSOR TRANSMISSION FLUID PRESSURE SENSOR TRANSMISSION FLUID PRESSURE SENSOR A TRANSMISSION FLUID PRESSURE SENSOR B TRANSMISSION FLUID PRESSURE SENSOR C TRANSMISSION FLUID PRESSURE SENSOR D TRANSMISSION FLUID PRESSURE SENSOR E TRANSMISSION FLUID PRESSURE SENSOR F TWO-WAY CLUTCH ACTUATOR VALVE STROKE SENSOR W/ HANDLE FREE ACCESS POWER TAILGATE CONTROL UNIT/SENSOR W/O HANDLE FREE ACCESS POWER TAILGATE CONTROL UNIT/SENSOR

11 SPEAKER 7 SPEAKER CENTER ROOF SPEAKER DRIVER'S DOOR SPEAKER FRONT PASSENGER'S DOOR SPEAKER LEFT REAR DOOR SPEAKER LEFT SATELLITE SPEAKER RIGHT REAR DOOR SPEAKER RIGHT SATELLITE SPEAKER

ACC COMBINATION SWITCH APPLY SWITCH AUDIO REMOTE- HFL SWITCH AUTOMATIC BRAKE HOLD SWITCH BRAKE FLUID LEVEL SWITCH BRAKE PEDAL POSITION SWITCH CANCEL SWITCH CHILDPROOF LOCK SWITCH CHILDPROOF SAFETY SWITCH CMBS OFF SWITCH CMBS OFF SWITCH/ RDM SWITCH COMBINATION LIGHT SWITCH CRUISE SWITCH DIMMER SWITCH DISTANCE SWITCH DRIVER POWER TAILGATE SWITCH DRIVER'S DOOR KEY CYLINDER SWITCH DRIVER'S DOOR LOCK ACTUATOR/ KNOB SWITCH/ KEY CYLINDER SWITCH DRIVER'S DOOR LOCK ACTUATOR/KNOB SWITCH/ KEY CYLINDER SWITCH DRIVER'S DOOR LOCK ACTUATOR/KNOB SWITCH/KEY CYLINDER SWITCH DRIVER'S DOOR LOCK SWITCH DRIVER'S DOOR SWITCH DRIVER'S POWER SEAT ADJUSTMENT SWITCH DRIVER'S POWER SLIDING DOOR SWITCH DRIVER'S POWER TAILGATE SWITCH DRIVER'S SEAT BELT BUCKLE SWITCH DRIVER'S SEAT HEATER SWITCH DRIVER'S VENTILATED SEAT/ SEAT HEATER SWITCH DRIVER'S VENTILATED SEAT/SEAT HEATER SWITCH DRIVING POSITION MEMORY SWITCH ECON SWITCH/ SNOW SWITCH/ IDLE STOP OFF SWITCH ECON SWITCH/SNOW SWITCH/ IDLE STOP OFF SWITCH ELECTRIC PARKING BRAKE SWITCH ENGINE START/STOP SWITCH FRONT PASSENGER'S DOOR LOCK ACTUATOR/ KNOB SWITCH FRONT PASSENGER'S DOOR LOCK SWITCH FRONT PASSENGER'S DOOR SWITCH FRONT PASSENGER'S POWER SEAT ADJUSTMENT SWITCH FRONT PASSENGER'S POWER WINDOW SWITCH FRONT PASSENGER'S SEAT BELT BUCKLE SWITCH FRONT PASSENGER'S SEAT HEATER SWITCH FRONT PASSENGER'S VENTILATED SEAT/ SEAT HEATER SWITCH FRONT PASSENGER'S VENTILATED SEAT/SEAT HEATER SWITCH FUEL FILL DOOR SWITCH FUEL FILL DOOR SWITCH/ FUEL FILL DOOR LOCK ACTUATOR FULL LATCH SWITCH HALF LATCH SWITCH HEADLIGHT SWITCH HEATED STEERING WHEEL SWITCH HEATED WINDSHIELD WIPER AREA SWITCH HONDAVAC SWITCH HOOD LATCH SWITCH HORN SWITCH INTERIOR LIGHT MOONROOF SWITCH INTERIOR LIGHT/MOONROOF SWITCH KEY CYLINDER SWITCH LANE WATCH SWITCH LEFT B-PILLAR POWER SLIDING DOOR SWITCH LEFT POWER SLIDING DOOR REMOTE CONTROL SWITCH LEFT REAR POWER WINDOW SWITCH LEFT SLIDING DOOR LOCK ACTUATOR/ KNOB SWITCH LEFT SLIDING DOOR LOCK ACTUATOR/KNOB SWITCH LEFT SLIDING DOOR SWITCH LKAS SWITCH LOCK KNOB SWITCH LOCK SWITCH LOWER LATCH RELEASE SWITCH MAGNETIC SWITCH NEUTRAL 1 SWITCH NEUTRAL 2 SWITCH NEUTRAL SWITCH NEUTRAL SWITCH 1 NEUTRAL SWITCH 2 OUTER HANDLE SWITCH POWER LUMBER SUPPORT SWITCH POWER MIRROR SWITCH POWER TAILGATE INSIDE SWITCH POWER WINDOW MASTER SWITCH RATCHET SWITCH RDM SWITCH REAR WINDOW DEFOGGER/ MIRROR DEFOGGER SWITCH REAR WIPER/ WASHER SWITCH RELEASE SWITCH REMOTE CONTROL SWITCH 1 REMOTE CONTROL SWITCH 2 REMOTE CONTROL SWITCH 3 RES/+ SWITCH RIGHT B-PILLAR POWER SLIDING DOOR SWITCH RIGHT POWER SLIDING DOOR REMOTE CONTROL SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT SLIDING DOOR LOCK ACTUATOR/ KNOB SWITCH RIGHT SLIDING DOOR LOCK ACTUATOR/KNOB SWITCH RIGHT SLIDING DOOR SWITCH SET SWITCH SWITCH 1 SWITCH 2 SWITCH 3 TAILGATE LATCH SWITCH TAILGATE LATCH SWITCH/ TAILGATE RELEASE ACTUATOR TAILGATE LATCH SWITCH/TAILGATE RELEASE ACTUATOR TAILGATE OUTER HANDLE SWITCH/ LICENSE PLATE LIGHT TAILGATE OUTER HANDLE SWITCH/LICENSE PLATE LIGHT TELEMATICS SWITCH MODULE TILT SWITCH TRANSMISSION FLUID PRESSURE SWITCH TURN SIGNAL SWITCH VSA OFF SWITCH VSA SWITCH W/O AUTO IDLE STOP SWITCH W/ AUTO IDLE STOP SWITCH WASHER FLUID LEVEL SWITCH WASHER SWITCH WINDSHIELD WIPER SWITCH WIPER/WASHER SWITCH

CLUTCH PRESSURE CONTROL SOLENOID VALVE A CLUTCH PRESSURE CONTROL SOLENOID VALVE B CLUTCH PRESSURE CONTROL SOLENOID VALVE C CLUTCH PRESSURE CONTROL SOLENOID VALVE D CLUTCH PRESSURE CONTROL SOLENOID VALVE E CLUTCH PRESSURE CONTROL SOLENOID VALVE F CLUTCH PRESSURE CONTROL SOLENOID VALVE G CLUTCH PRESSURE CONTROL SOLENOID VALVE H EVAP CANISTER PURGE VALVE EVAP CANISTER VENT SHUT VALVE SHIFT SOLENOID VALVE A SHIFT SOLENOID VALVE B SHIFT SOLENOID VALVE C SHIFT SOLENOID VALVE D SHIFT SOLENOID VALVE E SHIFT SOLENOID VALVE F SHIFT SOLENOID VALVE G SOLENOID VALVE VARIABLE CAPACITY CONTROL SOLENOID

(OR RED/ WIRE BLK WIRE BLU WIRE BRN WIRE GRN WIRE GRY WIRE LT BLU WIRE LT GRN WIRE NCA WIRE ORG/ WIRE PNK PNK WIRE PNK SOUND SYSTEMS WIRE PNK W/ POWER TAILGATE WIRE PNK W/O POWER TAILGATE WIRE PNK WIRE PPL/GRY WIRE PPL/PNK WIRE RED WIRE RED/BLU WIRE TAN WIRE WHT WIRE YEL WIRE

0) LOW 1) HIGH 2) PASS 0) OFF 1) PARK 2) AUTO 3) HEAD 9 SPEED 9 SPEED 10 SPEED 9 SPEED A/T 10 SPEED A/T 10 SPEED 10 SPEED A/T 10 SPEED A/T 9 SPEED A/T 10 SPEED A/T, 9 SPEED A/T W/ NAVIGATION 9 SPEED A/T W/O NAVIGATION 594068 2018-HON-16-01 A/C COMPRESSOR AC POWER OUTLET AIR CONDITIONING SYSTEM AMBIENT LIGHT ASSIST) AUTO AUTO CLOSE OPEN AUTO AUTO OPEN CLOSE AUTOMATIC DIMMING INSIDE MIRROR/ HOMELINK REMOTE CONTROL AUTOMATIC DIMMING INSIDE MIRROR/HOMELINK REMOTE CONTROL B-CAN B-CAN H B-CAN H B-CAN L B-CAN L B-CAN_H B-CAN_L BRAKE SYSTEM IND CABIN ACCESSORIES SYSTEM CABLE REEL CAN GATEWAY CAN L CARGO AREA LIGHT CENTER DASH BOARD DECORATION LIGHT CLOSE OPEN COMPUTER DATA LINES SYSTEM CONSOLE BOX LIGHT COURTESY LAMPS CIRCUIT CRUISE CONTROL SYSTEM DC-DC CONVERTER DEFOGGER SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT, TRUNK, TAILGATE, FUEL DOORS SYSTEMS DOOR MULTIPLEX DRIVER'S DASH BOARD DECORATION LIGHT DRIVER'S DOOR DRIVER'S DOOR COURTESY LIGHT DRIVER'S DOOR INNER HANDLE LIGHT DRIVER'S FOOTWELL LIGHT DRIVER'S KNEE AIR BAG INFLATOR DRIVER'S SEAT BELT TENSIONER DRIVER'S SIDE AIR BAG INFLATOR DRIVER'S VANITY MIRROR LIGHT ENTER DOWN ENTER LEFT F-CAN F-CAN H F-CAN L FLOOR JUNCTION FRONT HFL-ANC/ ACTIVE SOUND CONTROL MICROPHONE FRONT HFL-ANC/ACTIVE SOUND CONTROL MICROPHONE FRONT INDIVIDUAL MAP LIGHT FRONT PASSENGER'S AIR BAG ACTIVE VENT TETHER CUTTER FRONT PASSENGER'S AIR BAG INFLATOR FRONT PASSENGER'S DOOR COURTESY LIGHT FRONT PASSENGER'S DOOR INNER HANDLE LIGHT FRONT PASSENGER'S KNEE AIR BAG INFLATOR FRONT PASSENGER'S SEAT BELT TENSIONER FRONT PASSENGER'S SIDE AIR BAG INFLATOR FRONT POWER TRANSISTOR GENERAL JUNCTION GLOVE BOX LIGHT HEADLIGHTS SYSTEM HEATED WINDSHIELD WIPER AREA HIGH MOUNT BRAKE LIGHT HOME TALK HORNS SYSTEM HOT AT ALL TIMES HOT DC-DC HOT W/ HOT W/ DC-DC HOT W/ DC-DC CONVERTER IDLE STOP ILLUMINATION CONTROL ILLUMINATION JUNCTION A ILLUMINATION JUNCTION B INTERMITTENT DWELL TIME CONTROLLER KEYLESS BUZZER LEFT B-CAN JUNCTION LEFT BACKUP LIGHT LEFT BRAKE LIGHT LEFT CESS ARTICULATED HARNESS LEFT FRONT DOOR TWEETER LEFT FRONT PARKING/ DAYTIME RUNNING LIGHT LEFT FRONT SIDE MARKER LIGHT LEFT FRONT TURN SIGNAL/ PARKING LIGHT LEFT INNER TAILLIGHT LEFT POWER MIRROR LEFT REAR TURN SIGNAL LIGHT LEFT RES AUXILIARY JACK ASSEMBLY LEFT SIDE CURTAIN AIR BAG INFLATOR LEFT SIDE TURN SIGNAL LIGHT LEFT SLIDING DOOR REAR LATCH LEFT TAILLIGHT MILLIMETER WAVE RADAR MOST I/F NAVIGATION SYSTEM NAVIGATION, SOUND SYSTEMS OFF HOOK OFF OPEN CLOSE ON HOOK ON OFF OFF OPEN CLOSE PASSENGER'S DASH BOARD DECORATION LIGHT PASSENGER'S FOOTWELL LIGHT PASSENGER'S VANITY MIRROR LIGHT POWER DISTRIBUTION MODULE POWER DISTRIBUTION SYSTEM POWER MIRROR DEFOGGER POWER ON IND POWER SLIDING DOOR CIRCUIT POWER WINDOWS SYSTEM PWR SAVE IND REAR ANC/ ACTIVE SOUND CONTROL MICROPHONE REAR CLIMATE CONTROL PANEL REAR WINDOW DEFOGGER RES SCREEN RIGHT B-CAN JUNCTION RIGHT BACKUP LIGHT RIGHT BRAKE LIGHT RIGHT CESS ARTICULATED HARNESS RIGHT CLOSE RIGHT END OF DASH) RIGHT FRONT DOOR TWEETER RIGHT FRONT PARKING/ DAYTIME RUNNING LIGHT RIGHT FRONT SIDE MARKER LIGHT RIGHT FRONT TURN SIGNAL/ PARKING LIGHT RIGHT INNER TAILLIGHT RIGHT OPEN RIGHT POWER MIRROR RIGHT REAR TURN SIGNAL LIGHT RIGHT RES AUXILIARY JACK ASSEMBLY RIGHT SIDE CURTAIN AIR BAG INFLATOR RIGHT SIDE OF RADIATOR) RIGHT SIDE TURN SIGNAL LIGHT RIGHT SLIDING DOOR REAR LATCH RIGHT TAILLIGHT SEATS SYSTEM SHUTTER GRILLE SLIDING DOOR BUZZER SMART FET SMART FET POWER DISTRIBUTION MODULE SOUND SYSTEMS SUPPLEMENTAL RESTRAINTS SYSTEM TRANSMISSIONS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM USB PORT/ AUXILIARY JACK ASSEMBLY USB PORT/AUXILIARY JACK ASSEMBLY VOL DOWN VOL DOWN VOL UP VOL UP W/ AUTO IDLE STOP SYSTEM W/O AUTO IDLE STOP SYSTEM W/ BSI W/O BSI W/ POWER SLIDING DOOR W/O POWER SLIDING DOOR W/ COLOR AUDIO W/ DISPLAY AUDIO W/ DISPLAY AUDIO W/ DISPLAY AUDIO W/ COLOR AUDIO W/ KEYLESS ACCESS SYSTEM W/ KEYLESS ACCESS SYSTEM W/O KEYLESS ACCESS SYSTEM W/ LANE WATCH W/O LANE WATCH W/ LANE WATCH W/O MEMORY W/ LANE WATCH W/O MEMORY W/ LANE WATCH, MEMORY W/O LANE WATCH W/ LANE WATCH, MEMORY W/ MEMORY W/ NAVIGATION W/O NAVIGATION W/O LANE WATCH W/ LANE WATCH W/ POWER SLIDING DOOR W/O POWER SLIDING DOOR W/ POWER TAILGATE W/ SEAT HEATERS W/ TELEMATICS W/O AUTO IDLE STOP SYSTEM W/ AUTO IDLE STOP SYSTEM W/O KEYLESS ACCESS SYSTEM W/O LANE WATCH W/O MEMORY W/O POWER TAILGATE W/O POWER TAILGATE W/ POWER TAILGATE W/O POWER TAILGATE W/ POWER TAILGATE W/ DISPLAY AUDIO W/O SEAT HEATERS W/O SEAT HEATERS W/ SEAT HEATERS W/O TELEMATICS W/O VENTILATION WIPER/WASHER SYSTEM WIRELESS CHARGER
