Wiring diagrams for Honda Jazz GG facelift (2011-2014)

Active bodyworks circuit

Automatic a/c circuit Manual a/c circuit

Advanced hydraulic booster circuit Anti-lock brakes circuit, electric vehicle Anti-lock brakes circuit, except electric vehicle

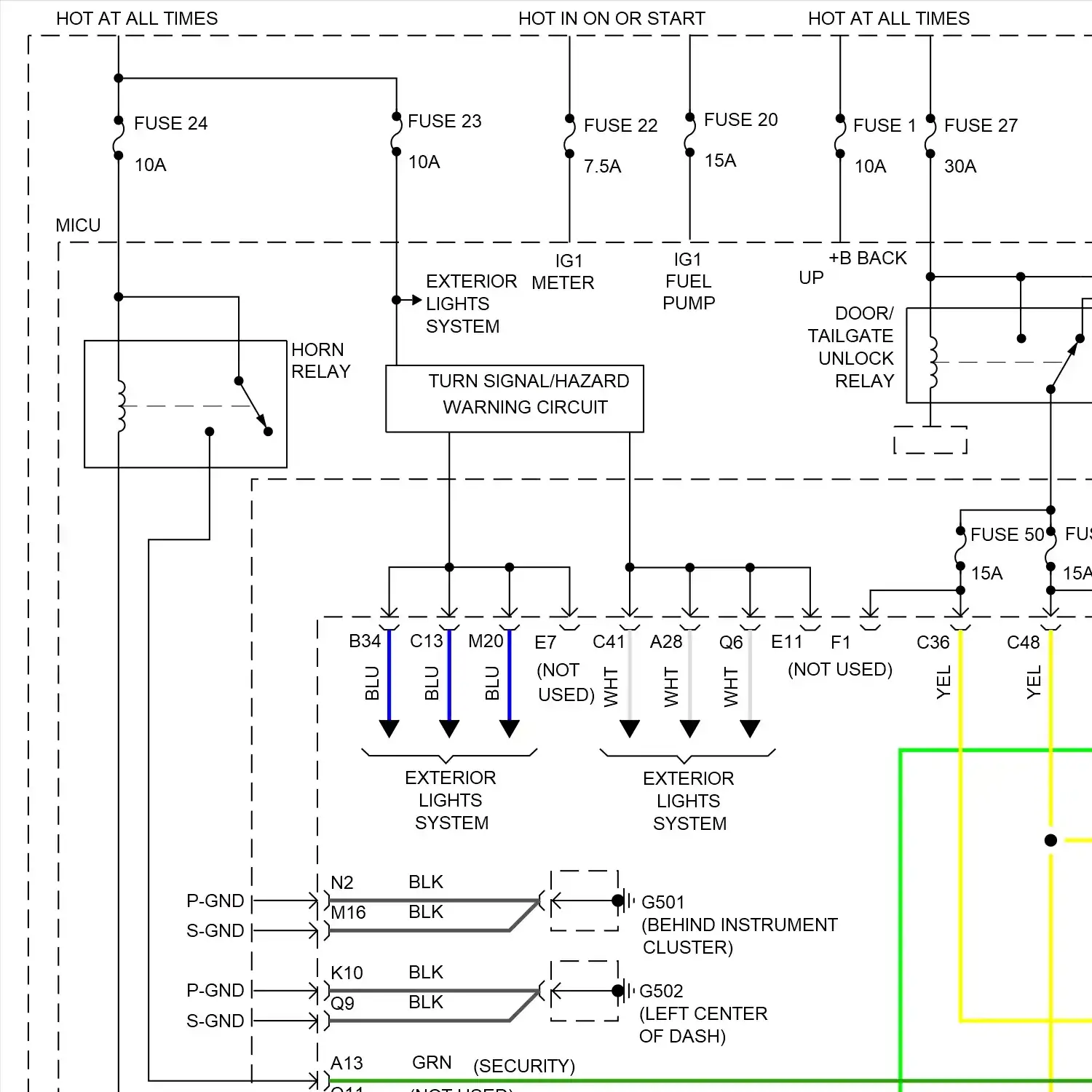

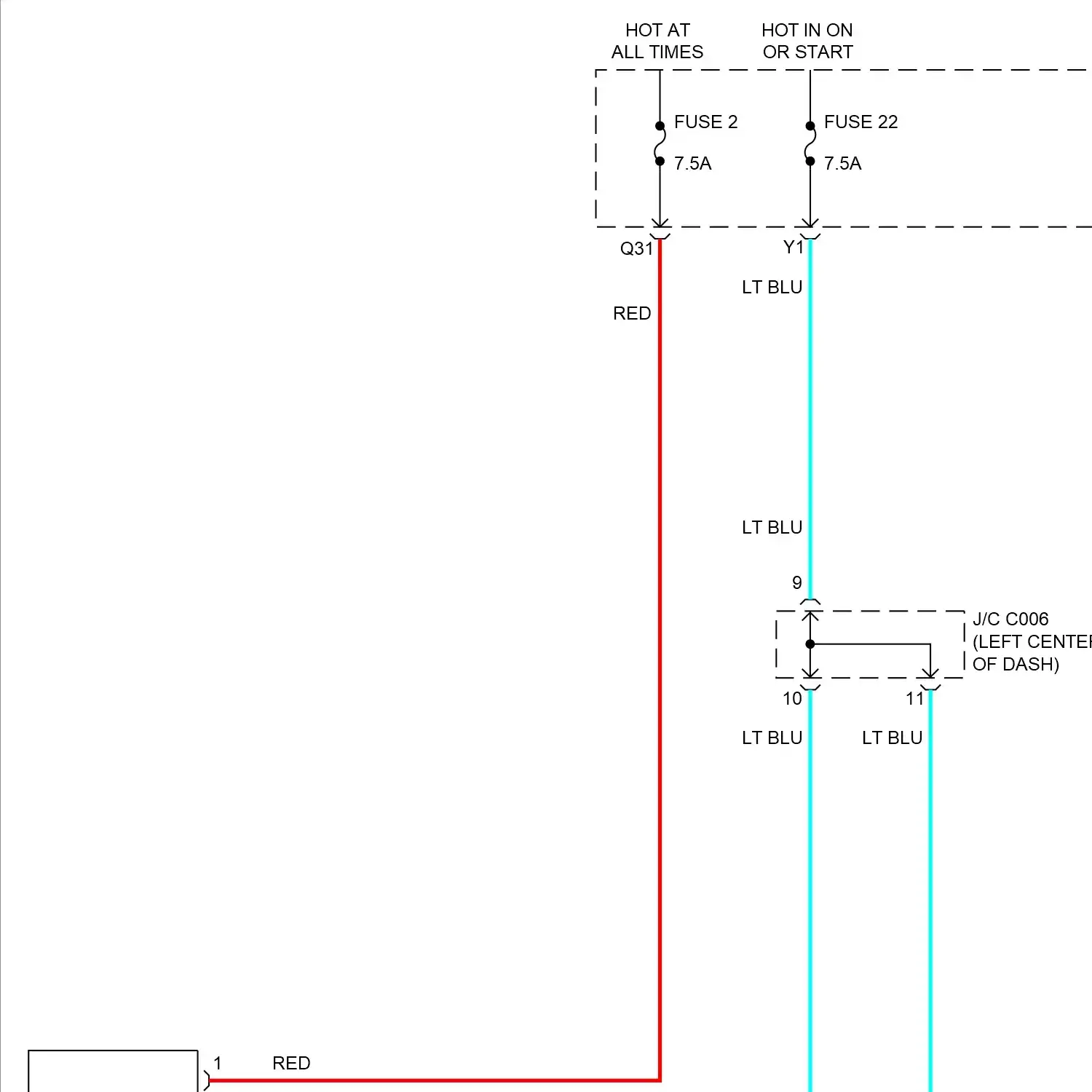

Forced entry circuit, electric vehicle Forced entry circuit, except electric vehicle Immobilizer circuit, electric vehicle Immobilizer circuit, except electric vehicle

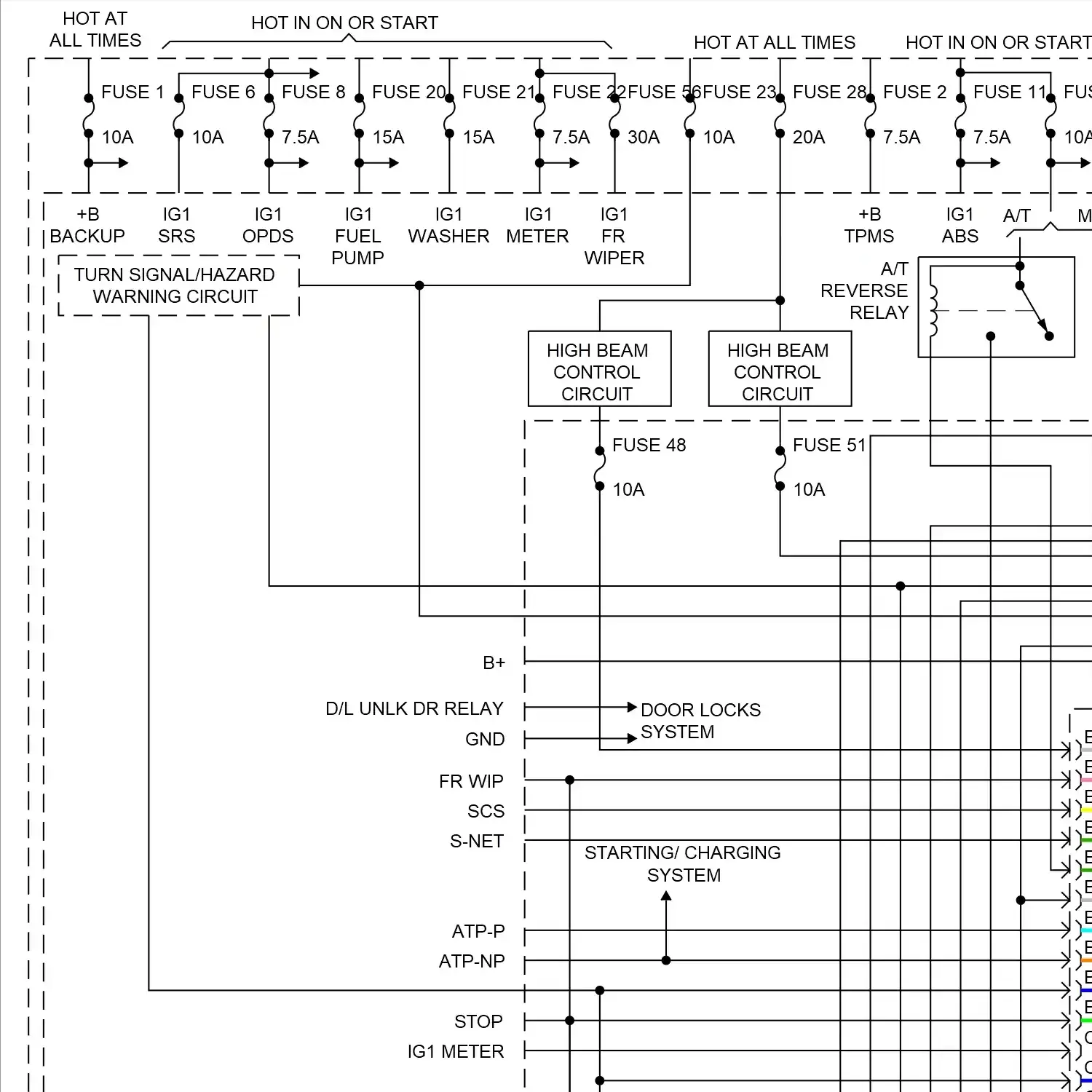

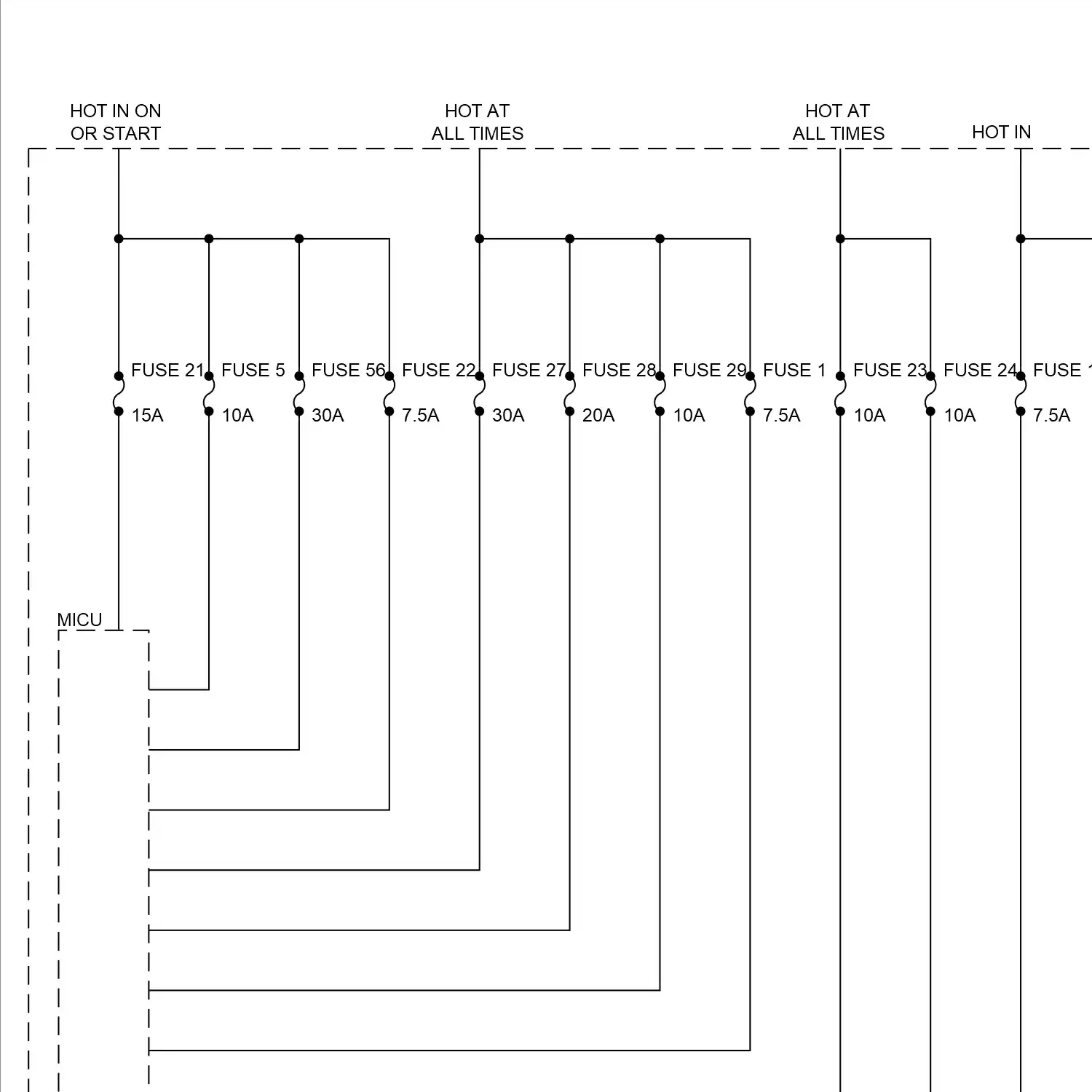

Body control modules circuit, electric vehicle Body control modules circuit, except electric vehicle

Computer data lines circuit, electric vehicle Computer data lines circuit, except electric vehicle

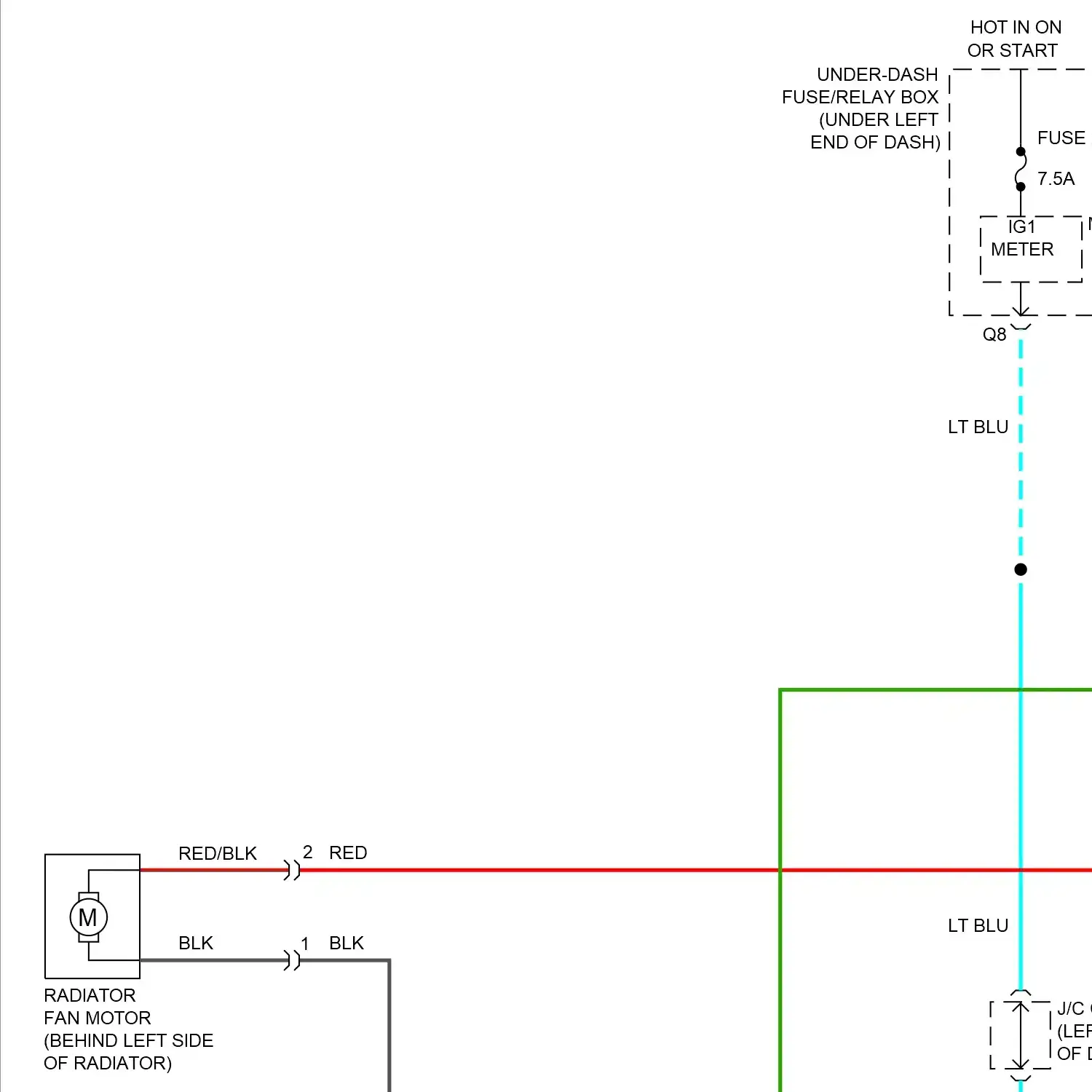

Cooling fan circuit, electric vehicle Cooling fan circuit, except electric vehicle

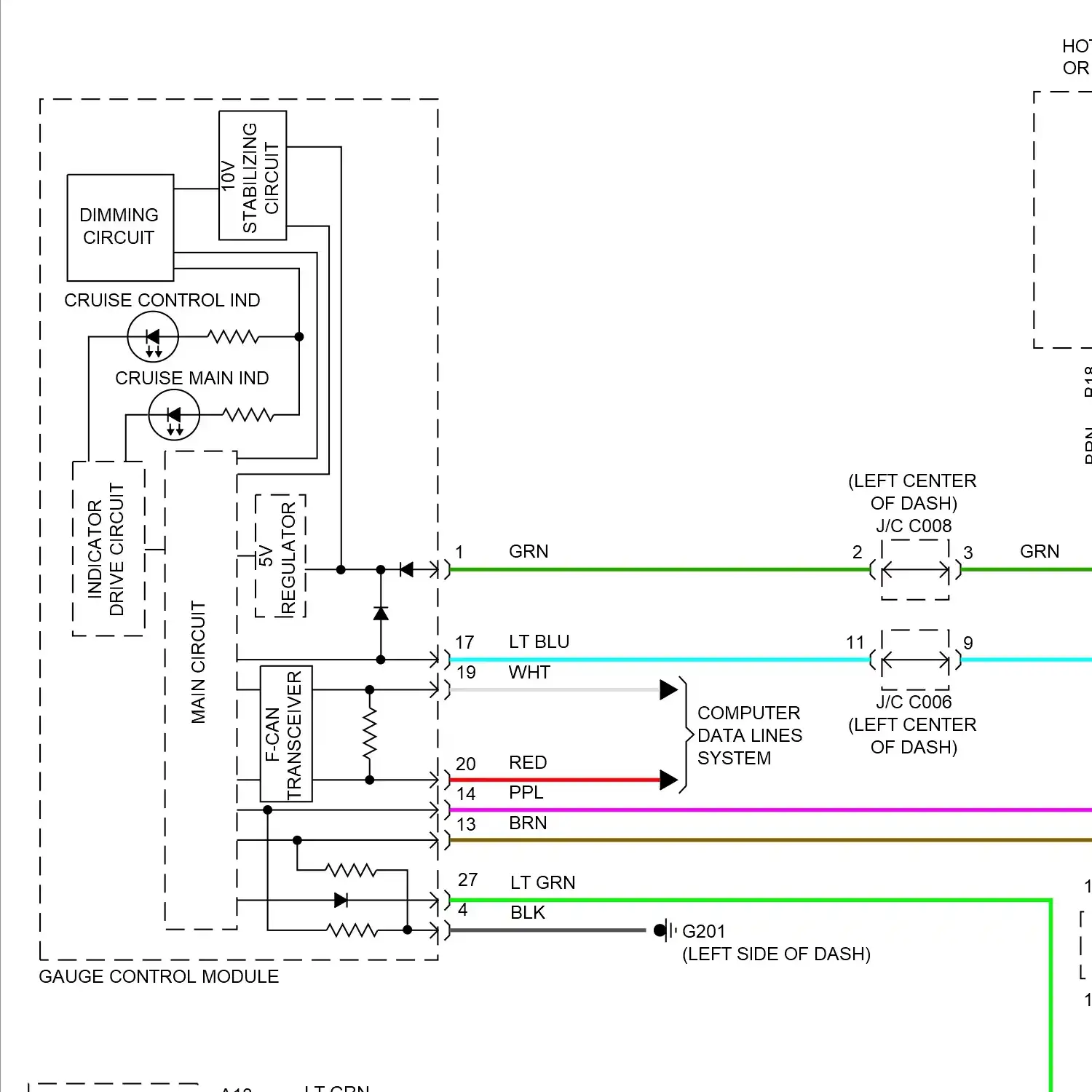

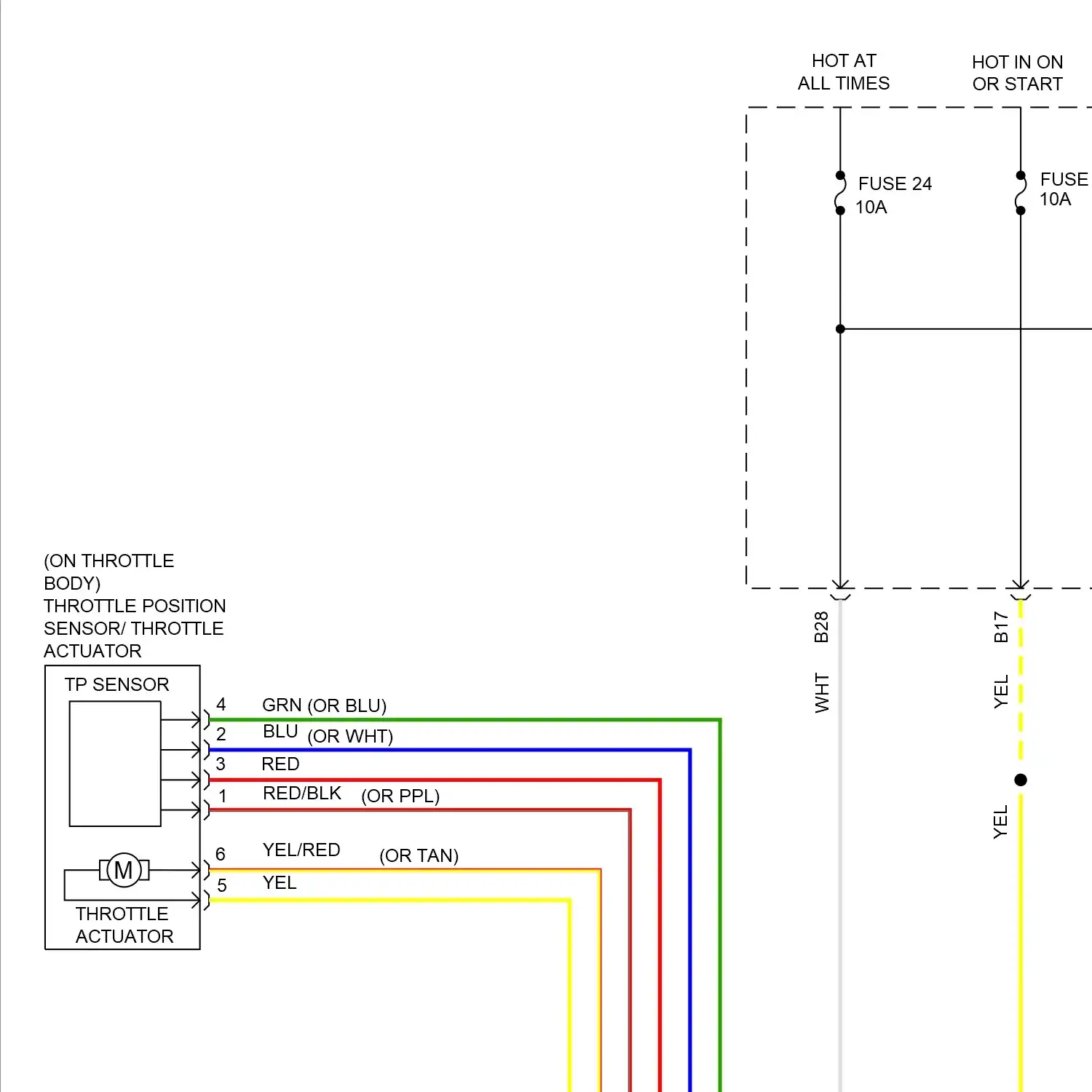

Cruise control circuit, electric vehicle Cruise control circuit, except electric vehicle

Defoggers circuit, electric vehicle Defoggers circuit, except electric vehicle w/o power mirror defogger Defoggers circuit, except electric vehicle w/ power mirror defogger

Electronic power steering circuit, electric vehicle Electronic power steering circuit, except electric vehicle

Wiring diagram engine performance 1.5l

Wiring diagram engine performance electric

Backup lamps circuit, electric vehicle Backup lamps circuit, except electric vehicle a/t Backup lamps circuit, except electric vehicle m/t Exterior lamps circuit, electric vehicle Exterior lamps circuit, except electric vehicle

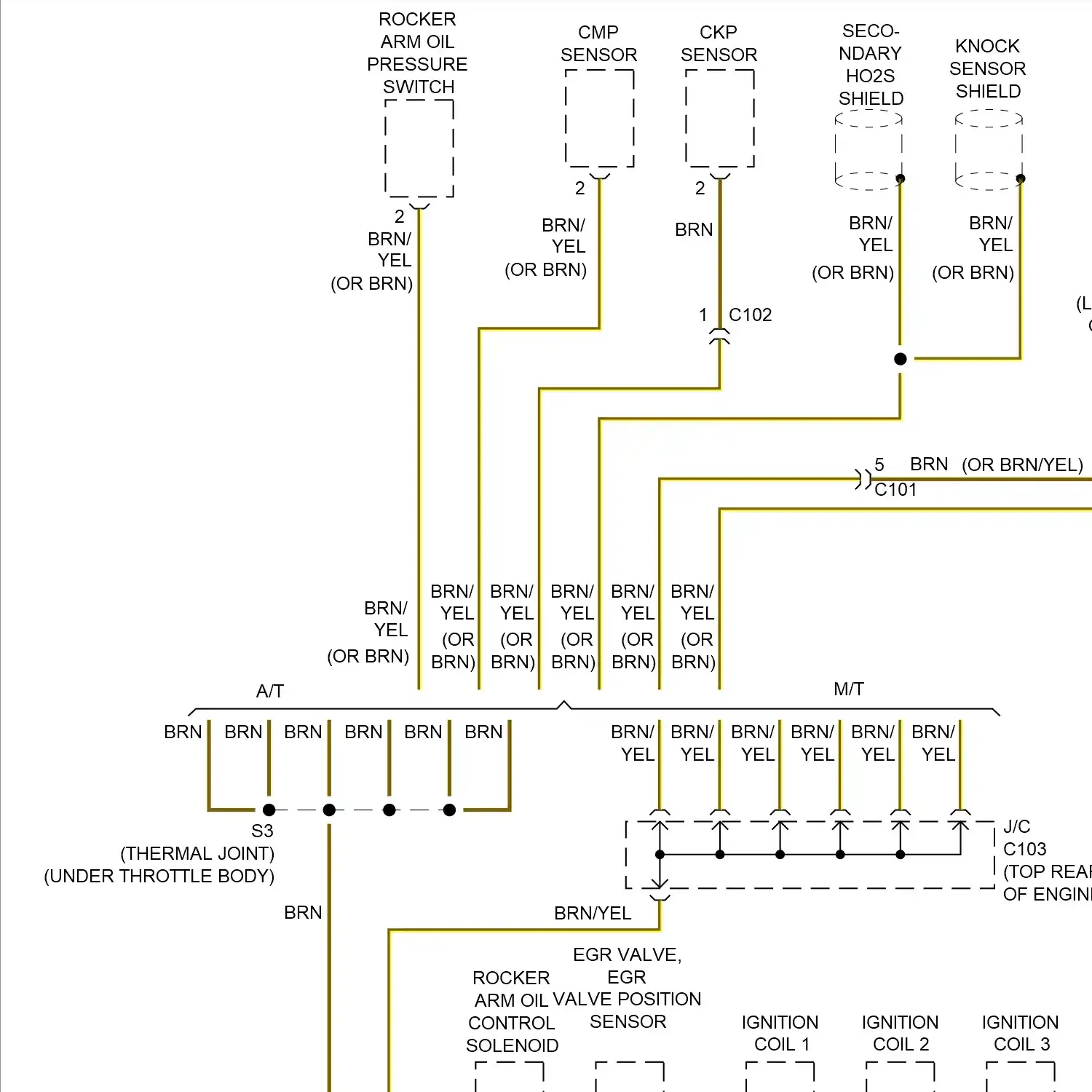

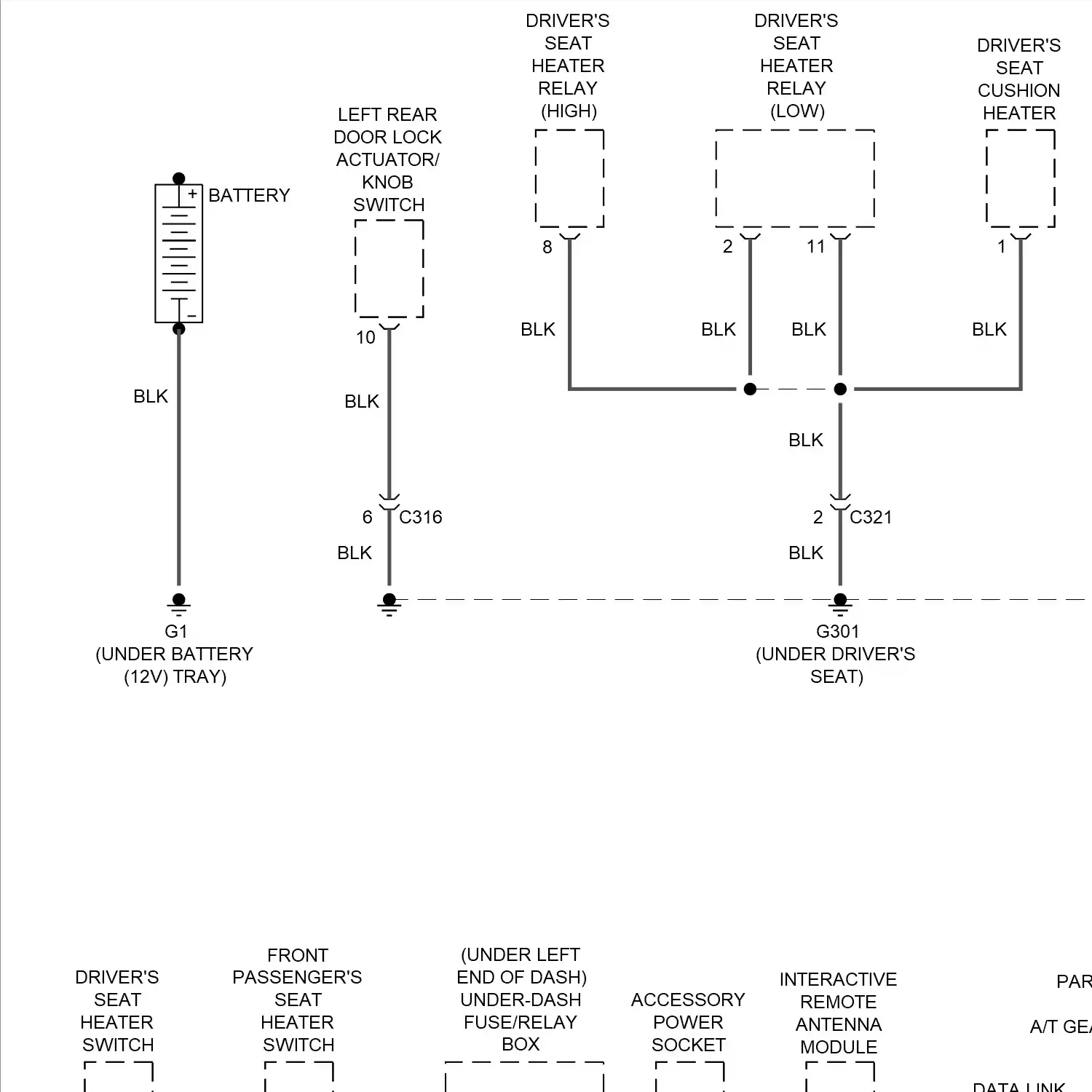

Ground distribution circuit, electric vehicle Ground distribution circuit, except electric vehicle

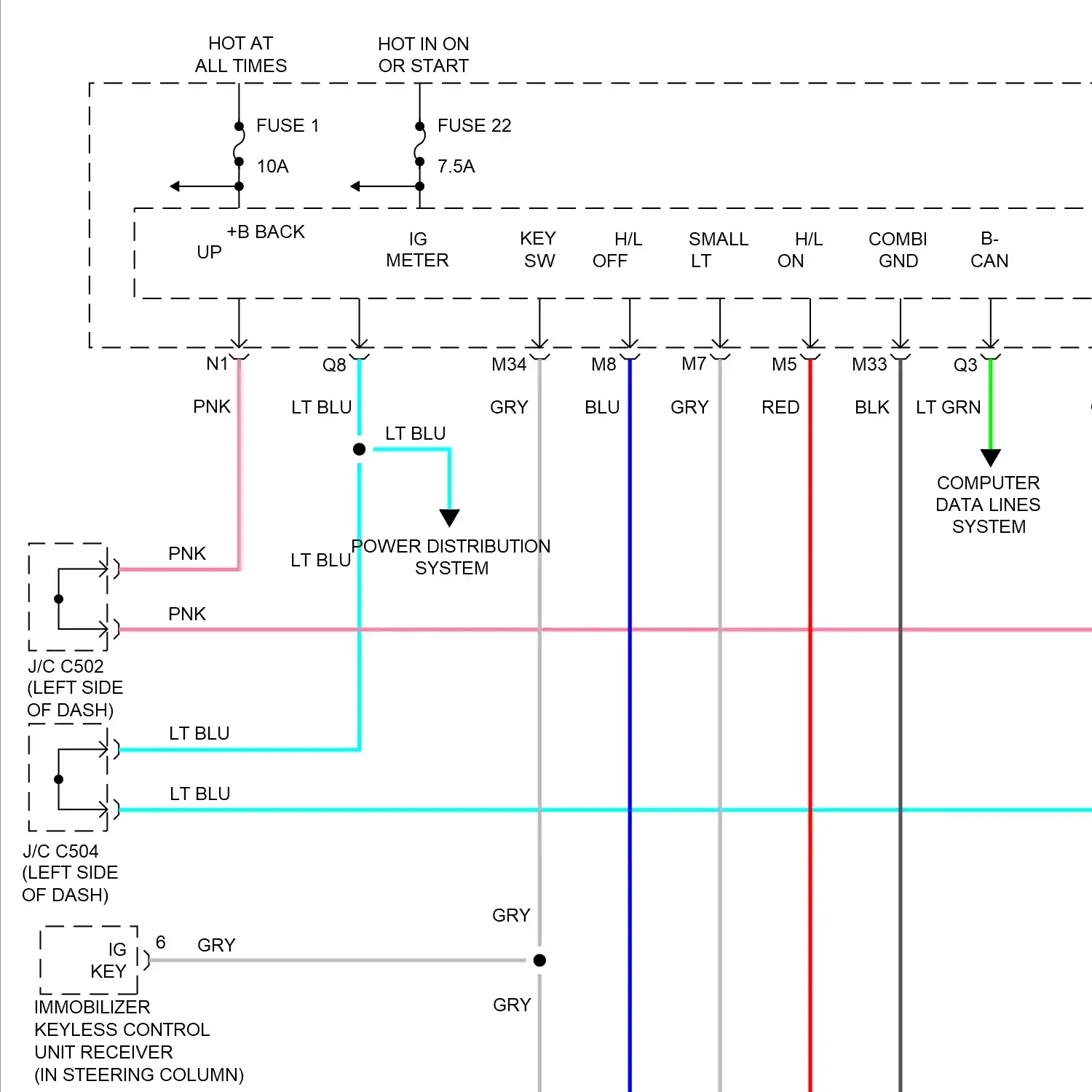

Fog lamp circuit, accessory Fog lamp circuit, factory installed Headlamps circuit, electric vehicle Headlamps circuit, except electric vehicle

Horn circuit, electric vehicle Horn circuit, except electric vehicle w/o security Horn circuit, except electric vehicle w/ security

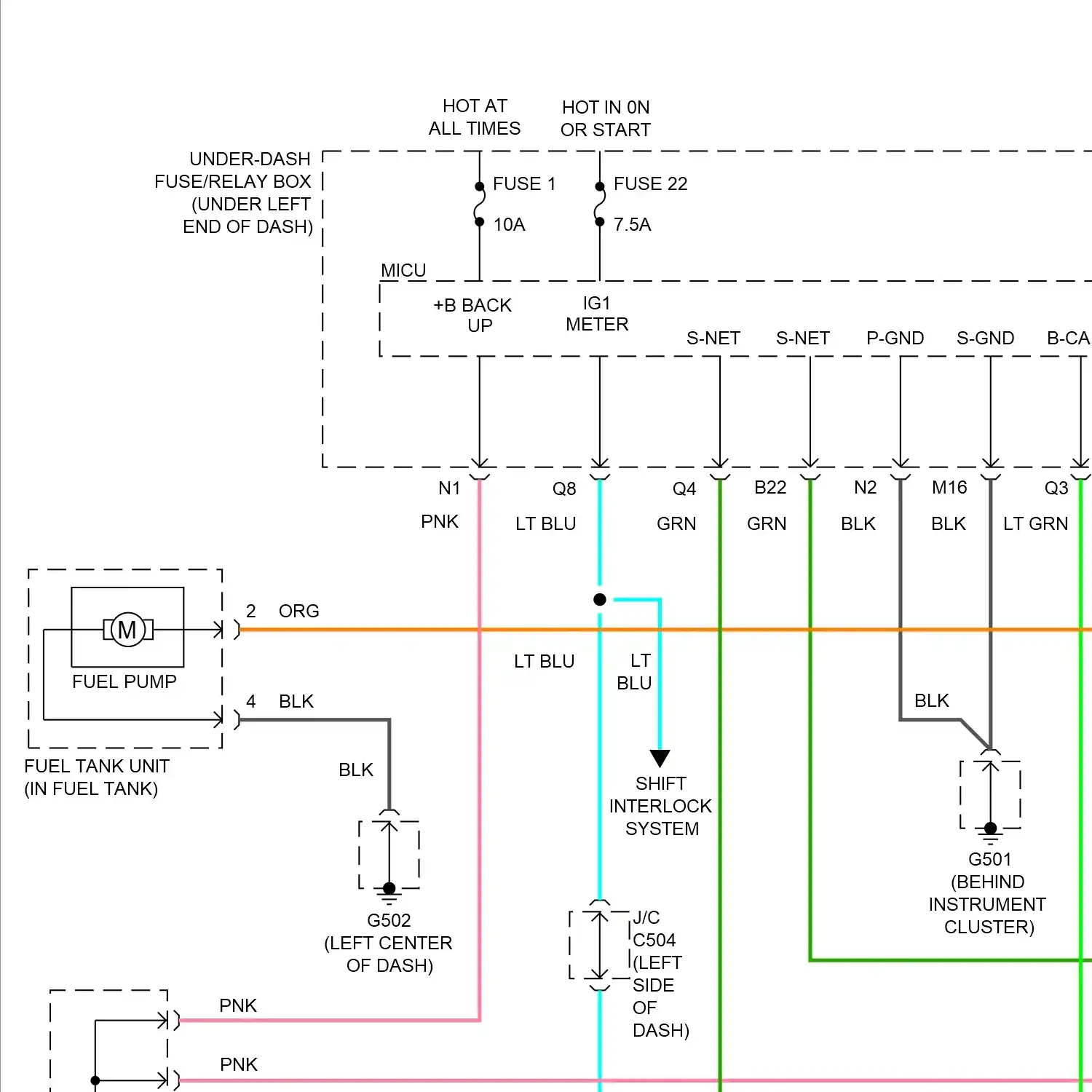

Instrument cluster circuit, electric vehicle Instrument cluster circuit, except electric vehicle

Courtesy lamps circuit, electric vehicle Courtesy lamps circuit, except electric vehicle Instrument illumination circuit, electric vehicle Instrument illumination circuit, except electric vehicle

Navigation circuit, electric vehicle Navigation circuit, except electric vehicle Rear camera circuit

Power distribution circuit, electric vehicle Power distribution circuit, except electric vehicle

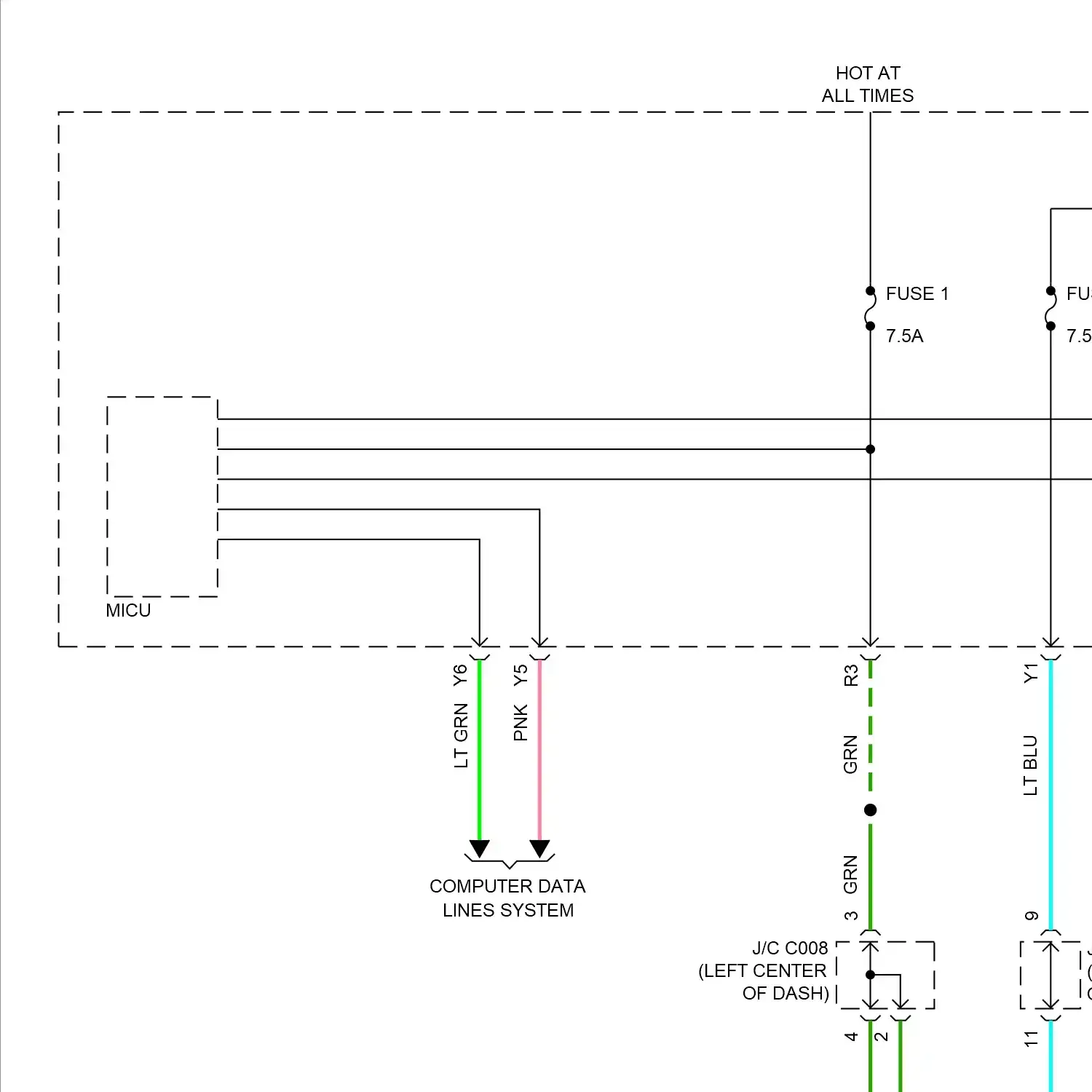

Power door locks circuit, electric vehicle Power door locks circuit, except electric vehicle

Power mirrors circuit, electric vehicle Power mirrors circuit, except electric vehicle

Power seats circuit

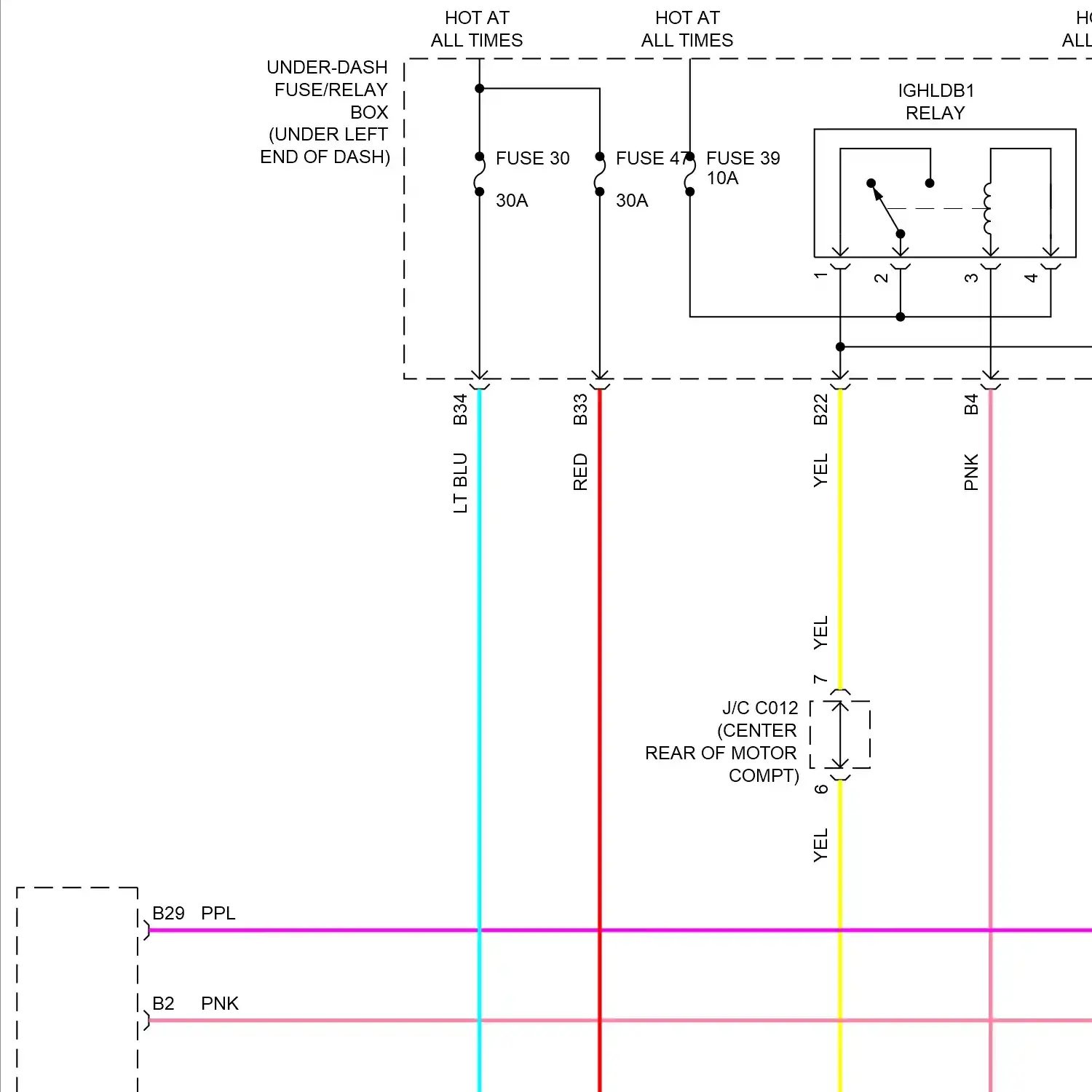

Power windows circuit, electric vehicle Power windows circuit, except electric vehicle

Radio circuit, electric vehicle w/ navigation Radio circuit, except electric vehicle w/ navigation Radio circuit, w/o navigation

Shift interlock circuit, electric vehicle Shift interlock circuit, except electric vehicle

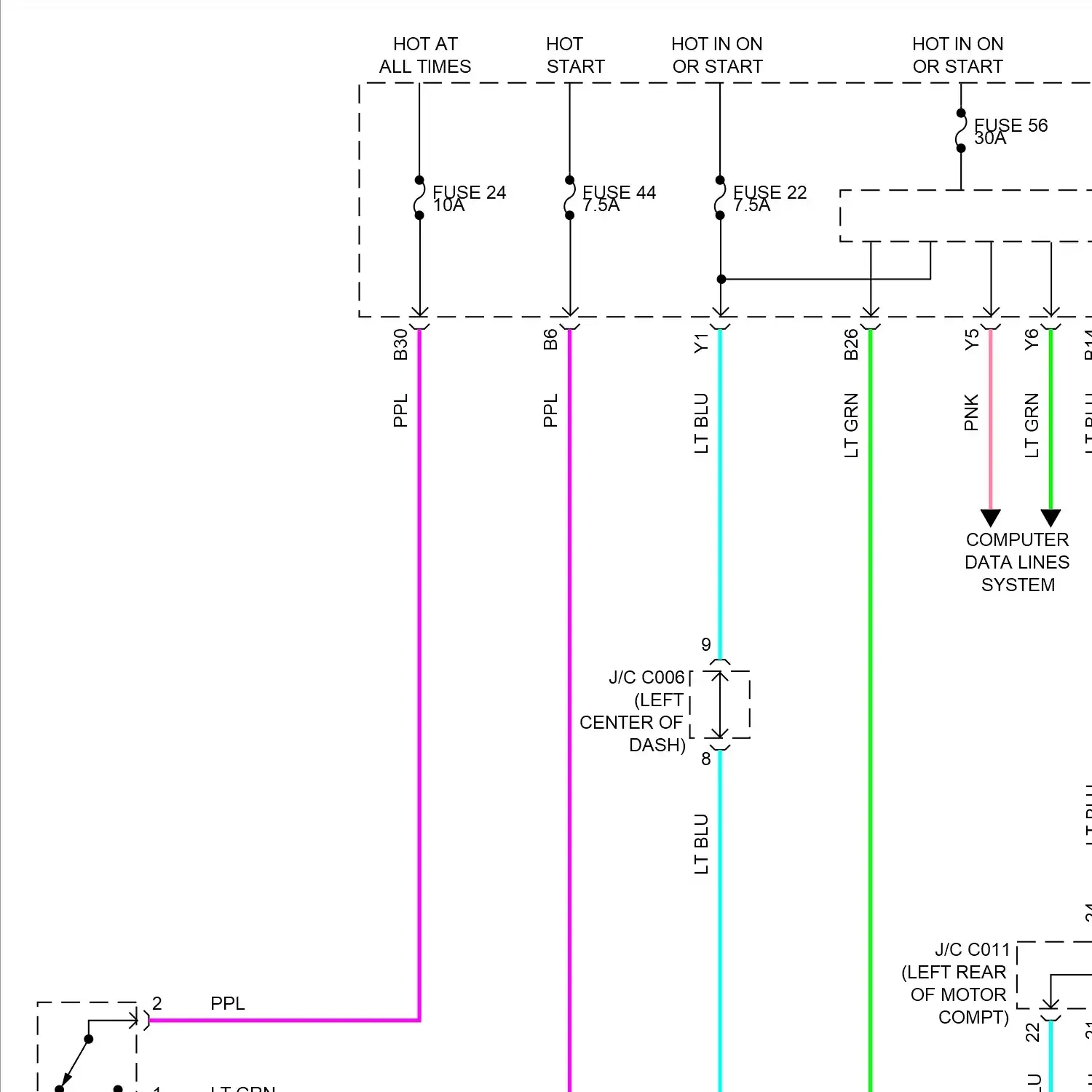

Charging circuit Remote starting circuit Starting circuit

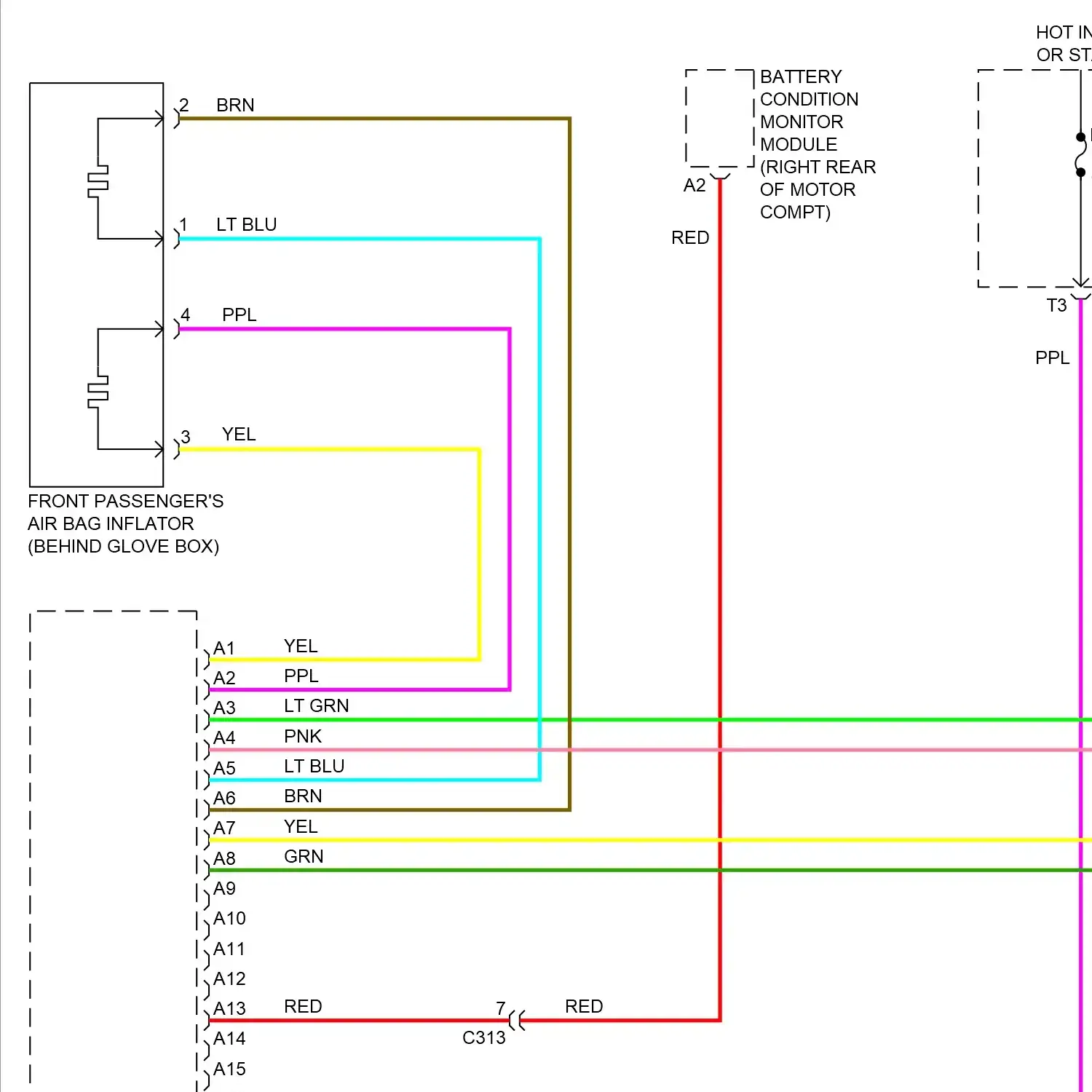

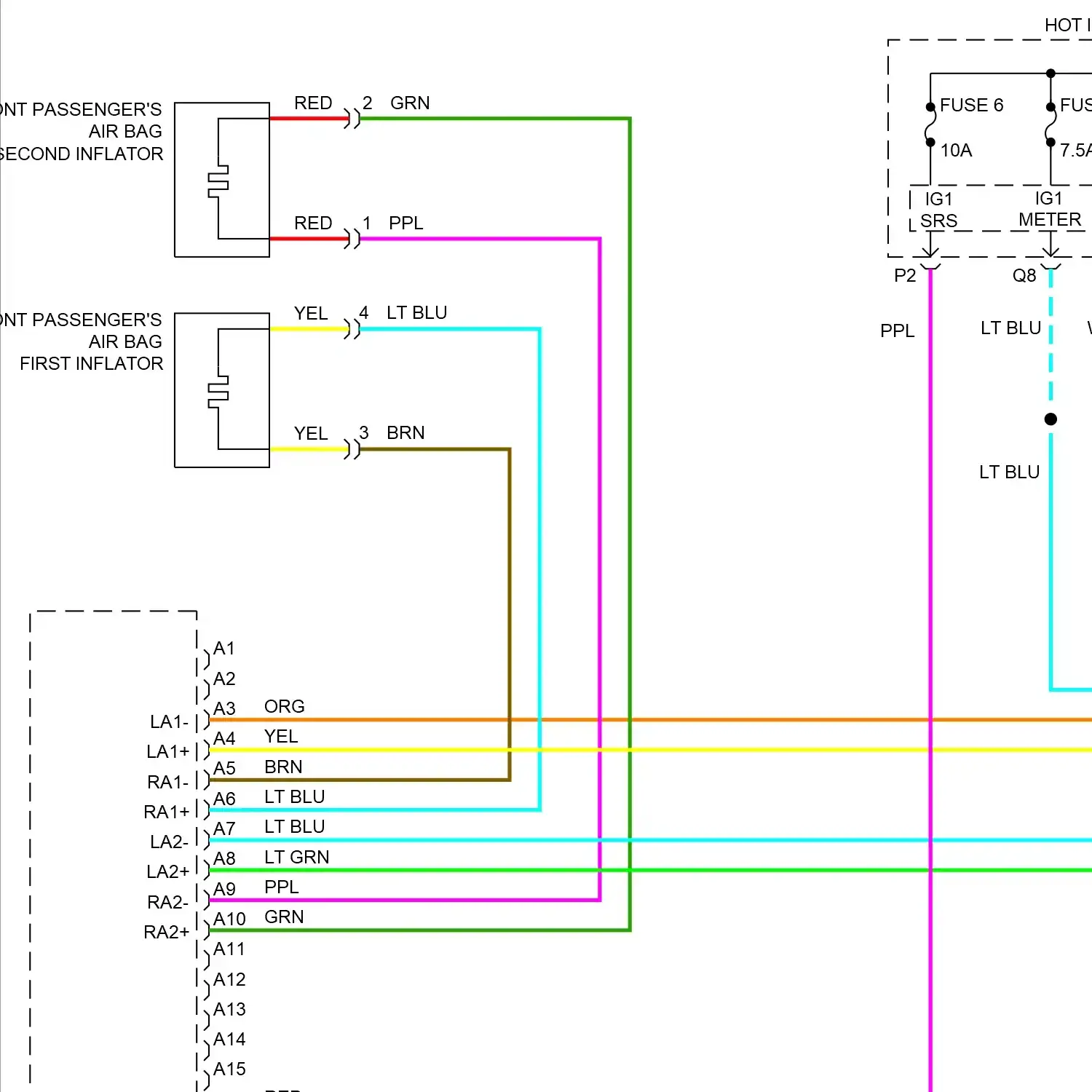

Supplemental restraints circuit, electric vehicle Supplemental restraints circuit, except electric vehicle

Transmission circuit, electric vehicle Transmission circuit, except electric vehicle

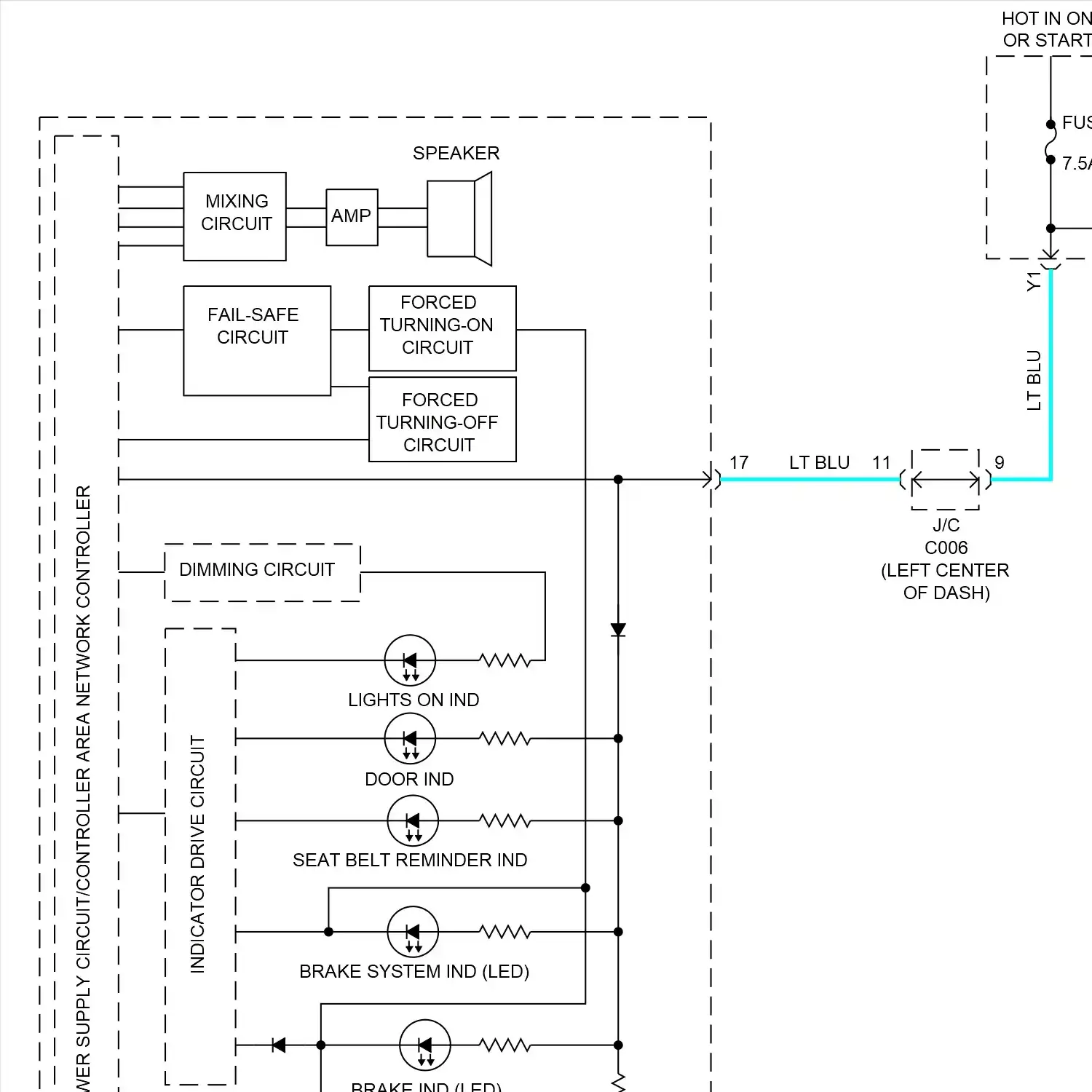

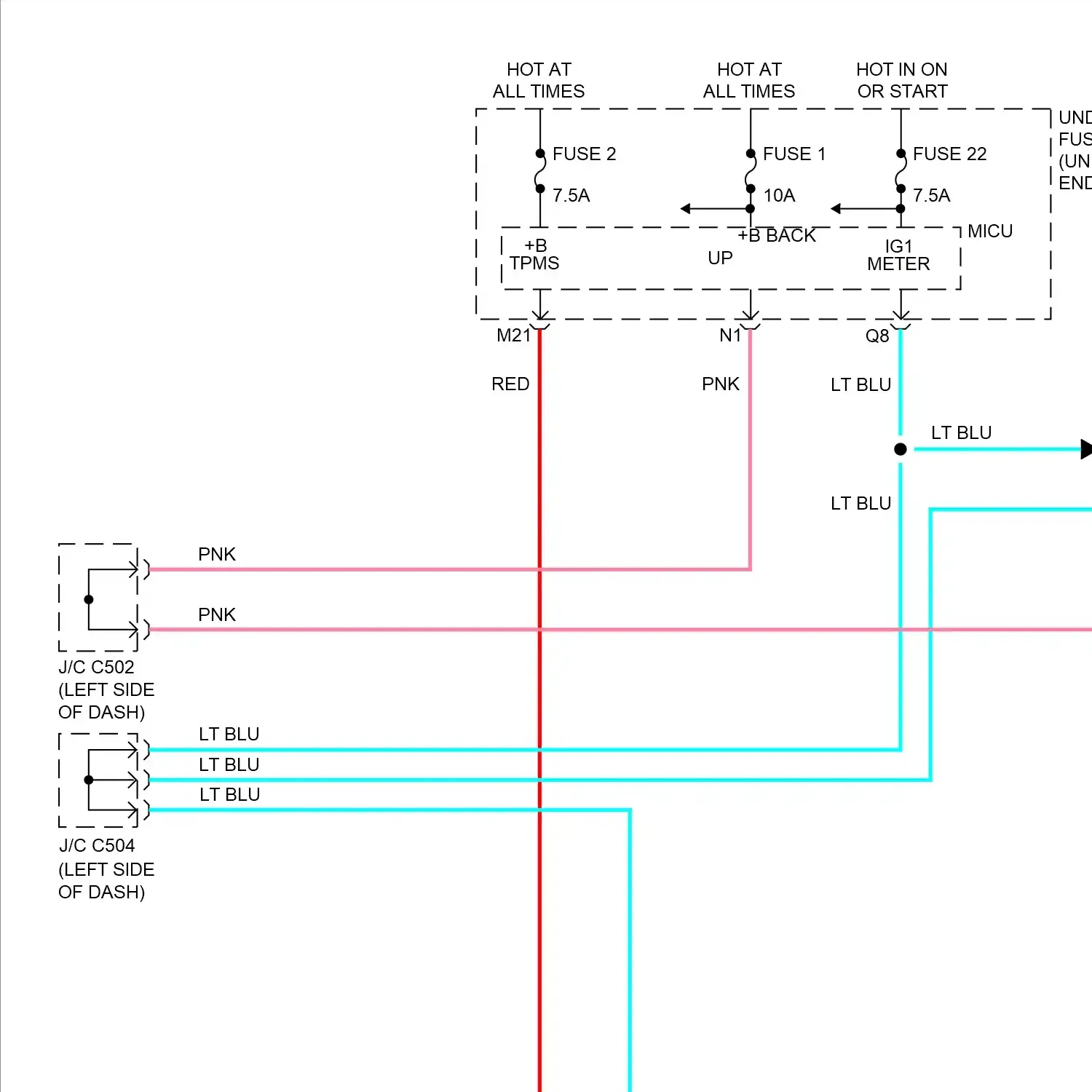

Chime circuit, electric vehicle Chime circuit, except electric vehicle Tire pressure monitoring circuit, electric vehicle Tire pressure monitoring circuit, except electric vehicle

Front wiper/washer circuit, electric vehicle Front wiper/washer circuit, except electric vehicle Rear wiper/washer circuit, electric vehicle Rear wiper/washer circuit, except electric vehicle

1 = PULL-IN COIL 2 = HOLD-IN COIL +B STOP& HORN +B STOP, HORN OPTION ANTI-LOCK BRAKES SYSTEM AREA NETWORK TRANSCEIVER B-CAN TRANSCEIVER BATTERY CONDITION MONITOR MODULE BATTERY FAN 1 BATTERY FAN 2 BATTERY MODULE BLOWER RESISTOR BLUETOOTH TRANSCEIVER BLUTOOTH TRANSCEIVER BODY CONTROLLER AREA NETWORK TRANSCEIVER DOOR LOCK DOOR LOCK KNOB DOOR LOCK KNOB KEY DOOR LOCKS, ANTI-LOCK BRAKES SYSTEMS F-CAN TRANSCEIVER F-CAN TRANSCEIVER F-CAN L F-CAN H FAST CONTROLLER AREA NETWORK TRANSCEIVER IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 KC DR LOCK KC DR LOCK SW KEY LOCK SOL + LITHIUM ION BATTERY CHARGE LEVEL GAUGE MICU +B STOP, HORN NETWORK TRANSCEIVER ON BATTERY) RR DEF COIL SECURITY HORN SHIFT LOCK SIL DR LOCK SIL DR LOCK SW ST RLY COIL STOP, HORN SUB AMPLIFIER UNLOCK LOCK

A/C CONDENSER FAN MOTOR ACTIVE BODYWORKS, ENGINE CONTROLS, TRANSMISSIONS SYSTEMS BLOWER MOTOR CHARGE LID ACTUATOR DOOR LOCK ACTUATOR DOOR LOCKS, ENGINE CONTROLS SYSTEMS DRIVER'S DOOR LOCK ACTUATOR DRIVER'S POWER WINDOW MOTOR ENGINE CONTROL SYSTEM ENGINE CONTROLS SYSTEM ENGINE CONTROLS, TRANSMISSIONS SYSTEMS ENGINE ST SIG ENGINE START SIG EPS MOTOR FRONT PASSENGER'S DOOR LOCK ACTUATOR FRONT PASSENGER'S POWER WINDOW MOTOR LEFT REAR DOOR LOCK ACTUATOR LEFT REAR POWER WINDOW MOTOR LEFT/ RIGHT MOTOR MOTOR SHIELD RADIATOR FAN MOTOR REAR WINDOW WIPER MOTOR RECIRCULATION CONTROL MOTOR RIGHT REAR DOOR LOCK ACTUATOR RIGHT REAR POWER WINDOW MOTOR STARTER MOTOR TAILGATE LOCK ACTUATOR THROTTLE ACTUATOR UP/ DOWN MOTOR WASHER MOTOR WINDOW WASHER MOTOR WINDSHIELD WIPER MOTOR

AM/FM ANTENNA AM/FM ANTENNA AMPLIFIER AM/FM/TEL/ GPS ANTENNA ANTENNA INPUT GPS ANTENNA INTEGRATION ANTENNA INTERACTIVE REMOTE ANTENNA INTERACTIVE REMOTE ANTENNA MODULE REMOTE STARTING SYSTEM ANTENNA

REARVIEW CAMERA

ACCESSORY POWER SOCKET ANTENNA LEAD CONNECTOR EPS MOTOR CONNECTOR IGNITION SWITCH CONNECTOR MICU SERVICE CHECK CONNECTOR OPTION CONNECTOR OPTION CONNECTOR OPTIONAL CONNECTOR POWER MIRROR SWITCH CONNECTOR REMOTE STARTING SYSTEM CONNECTOR 1 REMOTE STARTING SYSTEM CONNECTOR 2 REMOTE STARTING/ SECURITY IN-LINE CONNECTOR SERVICE CHECK CONNECTOR

GAUGE CONTROL MODULE MOTOR CONTROL MODULE TELEMATICS CONTROL MODULE

ACOUSTIC VEHICLE ALERTING CONTROL UNIT ACOUSTIC VEHICLE ALTERING CONTROL UNIT AUDIO UNIT AUDIO- NAVIGATION UNIT CLIMATE CONTROL UNIT CONTROL UNIT) ELD UNIT ELD UNIT UNDER-DASH FUSE/RELAY BOX ELECTRIC SERVO BRAKE CONTROL UNIT EPS CONTROL UNIT FUEL GAUGE SENDING UNIT FUEL TANK UNIT HANDS FREE LINK CONTROL UNIT HANDS FREELINK CONTROL UNIT HANDSFREE- LINK CONTROL UNIT HANDSFREELINK CONTROL UNIT HIGH HIGH BEAM BEAM CONTROL CONTROL UNIT UNIT IMMOBILIZER KEYLESS CONTROL UNIT IMMOBILIZER KEYLESS CONTROL UNIT RECEIVER INTERACTIVE REMOTE CONTROL UNIT MANAGEMENT ECU ODS UNIT POWER CONTROL UNIT POWER CONTROL UNIT SHIELD REMOTE STARTING CONTROL UNIT REMOTE STARTING CONTROL UNIT GROUND REMOTE STARTING CONTROL UNIT IN-LINE FUSE SECURITY CONTROL UNIT SRS UNIT TELEMATICS CONTROL UNIT TPMS CONTROL UNIT UNIT) USB ADAPTER CONTROL UNIT VSA MODULATOR CONTROL UNIT

AMBIENT LIGHT IN LINE FUSE AUXILIARY UNDER-DASH FUSE BOX AUXILIARY UNDER-HOOD FUSE BOX BATTERY TERMINAL FUSE BOX FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 7 FUSE 8 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 14 MICU FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 20 FUSE 7 FUSE 21 FUSE 22 FUSE 22 FUSE 1 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 29 FUSE 30 FUSE 31 FUSE 32 FUSE 33 FUSE 34 FUSE 35 FUSE 36 FUSE 37 FUSE 38 FUSE 39 FUSE 40 FUSE 41 FUSE 42 FUSE 41 FUSE 43 FUSE 44 FUSE 45 FUSE 46 FUSE 47 FUSE 48 FUSE 49 FUSE 50 FUSE 51 FUSE 51 FUSE 48 FUSE 52 FUSE 53 FUSE 54 FUSE 55 FUSE 56 FUSE 57 FUSE 58 FUSE 59 FUSE 60-1 FUSE 60-2 IG 1 FUSE IG 2/ START FUSE MICU FUSE 55 MICU FUSE 55 +B MULTI-FUSE 60 SECURITY IN-LINE FUSE

LEFT HEADLIGHT LEFT HEADLIGHT BULB RIGHT HEADLIGHT RIGHT HEADLIGHT BULB

DRIVER'S SEAT CUSHION HEATER DRIVER'S SEAT- BACK HEATER ELECTRICAL COOLANT HEATER FRONT PASSENGER'S SEAT CUSHION HEATER HEATER CONTROL PANEL HEATER-A/C CONTROL PANEL

A/T GEAR POSITION INDICATOR DRIVE CIRCUIT A/T GEAR POSITION INDICATOR DRIVING CIRCUIT A/T GEAR POSITION INDICATOR PANEL LIGHT A/T GEAR POSITION INDICATOR PANEL LIGHT/ PARK PIN SWITCH/ SHIFT LOCK SOLENOID A/T GEAR POSITION INDICATOR PANEL LIGHT/ PARK PIN SWITCH/SHIFT LOCK SOLENOID A/T GEAR POSITION INDICATOR PANEL LIGHT/PARK PIN SWITCH/SHIFT LOCK SOLENOID CHARGE INDICATOR CHARGING SYSTEM INDICATOR DOOR/TAILGATE OPEN INDICATOR DRL INDICATOR FOG LIGHT INDICATOR FRONT PASSENGER'S AIR BAG CUT-OFF INDICATOR FRONT PASSENGER'S AIR BAG CUTOFF INDICATOR HIGH BEAM INDICATOR HIGH INDICATOR IMMOBILIZER INDICATOR IMMOBILIZER SYSTEM INDICATOR INDICATOR CIRCUIT INDICATOR DIMMING CIRCUIT INDICATOR DRIVE INDICATOR DRIVE CIRCUIT LIGHTS ON INDICATOR LOW INDICATOR LOW TIRE PRESSURE INDICATOR MESSAGE INDICATOR PARK PIN SWITCH/ SHIFT LOCK SOLENOID/ A/T GEAR POSITION INDICATOR PANEL LIGHT PARK PIN SWITCH/SHIFT LOCK SOLENOID/A/T GEAR POSITION INDICATOR PANEL LIGHT POINTER BRIGHTNESS CONTROL AND DIMMING CIRCUIT REAR WINDOW DEFOGGER SWITCH INDICATOR SEAT BELT REMINDER INDICATOR SECURITY INDICATOR SEQUENTIAL SPORTSHIFT MODE SHIFT INDICATOR SHIFT POSITION INDICATOR DRIVING CIRCUIT SHIFT POSITION INDICATOR PANEL LIGHT SIDE AIR BAG CUT-OFF INDICATOR SRS INDICATOR TO A/T GEAR POSITION INDICATOR DRIVING CIRCUIT TO INDICATOR DIMMING CIRCUIT TPMS INDICATOR

FOG LIGHTS INDIVIDUAL MAP LIGHTS LIGHTS ON IND LIGHTS SYSTEM W/ FOG- LIGHTS W/ INDIVIDUAL MAP LIGHTS W/O FOG- LIGHTS

ELECTRIC HEATER WATER PUMP ELECTRIC WATER PUMP FUEL PUMP

A/C COMPRESSOR CLUTCH RELAY A/C CONDENSER FAN RELAY A/C MAIN RELAY A/T REVERSE RELAY AUXILIARY UNDER HOOD RELAY BOX BATTERY FAN RELAY 1 BATTERY FAN RELAY 2 BLOWER MOTOR RELAY CHARGE LID RELAY COOLING EWP RELAY D/L UNLK DR RELAY DOOR LOCK RELAY DOOR TAILGATE/UNLOCK RELAY DOOR/ TAILGATE UNLOCK RELAY DOOR/TAILGATE UNLOCK RELAY DRIVER'S DOOR UNLOCK RELAY ELECTRIC HEATER WATER PUMP RELAY ETCS CONTROL RELAY FAN CONTROL RELAY FOG LIGHT RELAY HEADLIGHT LOW BEAM RELAY HORN RELAY HOT W/ POWER WINDOW RELAY ENERGIZED IG 1 RELAY IG 2 RELAY IGHLDA RELAY IGNITION COIL RELAY LIGHTING RELAY M/C RELAY PGM-FI MAIN RELAY 1 PGM-FI MAIN RELAY 2 POWER WINDOW RELAY RADIATOR FAN RELAY REAR WINDOW DEFOGGER RELAY RELAY GND SELECTABLE UNLOCK RELAY START RELAY STARTER CUT RELAY TAILLIGHT RELAY UNDER- DASH FUSE/ RELAY BOX UNDER-DASH FUSE/RELAY UNDER-DASH FUSE/RELAY BOX UNDER-DASH FUSE/RELAY BOX CONNECTOR H UNDER-DASH FUSE/RELAY BOX CONNECTOR Q UNLOCK RELAY

A/C PRESSURE SENSOR A/F SENSOR A/F SENSOR RELAY ACCELERATOR PEDAL POSITION SENSOR ANGLE SENSOR APP SENSOR APP SENSOR A APP SENSOR B ATF TEMPERATURE SENSOR BAROMETER SENSOR BATTERY CURRENT SENSOR BATTERY MODULE INTAKE AIR TEMPERATURE SENSOR BRAKE PEDAL STROKE SENSOR BRAKE PEDAL STROKE SENSOR SHIELD CKP SENSOR CMP SENSOR DRIVER SEAT POSITION SENSOR DRIVER'S SEAT POSITION SENSOR ECT SENSOR 1 ECT SENSOR 2 EGR VALVE/ EGR VALVE POSITION SENSOR EPS MOTOR ANGLE SENSOR EPS MOTOR/EPS MOTOR ANGLE SENSOR EPS TORQUE SENSOR EVAPORATOR TEMPERATURE SENSOR FTP SENSOR HUMIDITY SENSOR HUMIDITY/IN-CAR TEMPERATURE SENSOR IAT SENSOR IN-CAR TEMPERATURE SENSOR KNOCK SENSOR KNOCK SENSOR SHIELD LEAK SENSOR LEFT FRONT IMPACT SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT REAR WHEEL SPEED SENSOR LOWER HYDRAULIC PRESSURE SENSOR MAF SENSOR MAF/ IAT SENSOR MAF/IAT SENSOR MAP SENSOR MOTOR CURRENT SENSOR MOTOR TEMPERATURE SENSOR OPDS SENSOR OUTSIDE AIR TEMPERATURE SENSOR RIGHT FRONT IMPACT SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT REAR WHEEL SPEED SENSOR SENSOR B SENSOR GROUND SENSOR INPUT STEERING ANGLE SENSOR SUNLIGHT SENSOR THROTTLE POSITION SENSOR/ THROTTLE ACTUATOR TP SENSOR TP SENSOR/THROTTLE ACTUATOR UPPER HYDRAULIC PRESSURE SENSOR YAW RATE ACCELERATION SENSOR YAW RATE- LATERAL ACCELER- ATION SENSOR YAW RATE-LATERAL ACCELERATION SENSOR

ACOUSTIC VEHICLE ALERTING SPEAKER DRIVER'S DOOR SPEAKER FRONT PASSENGER'S DOOR SPEAKER LEFT REAR DOOR SPEAKER RIGHT REAR DOOR SPEAKER

3 MODE SWITCH A/C PRESSURE SWITCH A/C SWITCH AMBIENT LIGHT SWITCH AUDIO REMOTE SWITCH BACK SWITCH BACKUP LIGHT SWITCH BRAKE FLUID LEVEL SWITCH BRAKE PEDAL POSITION SWITCH BRIGHTENING SWITCH CANCEL SWITCH CHANNEL DOWN SWITCH CHANNEL UP SWITCH CHARGE LID OPENER SWITCH CLUTCH INTERLOCK SWITCH CLUTCH PEDAL POSITION SWITCH COMBINATION LIGHT SWITCH CONTROL SWITCH CRUISE CONTROL COMBINATION SWITCH CRUISE CONTROL MAIN SWITCH IND CYLINDER SWITCH DIMMER/FLASH- TO-PASS SWITCH DIMMING SWITCH DOOR LOCK KNOB SWITCH DRIVER'S DOOR LOCK ACTUATOR/ KNOB SWITCH DRIVER'S DOOR LOCK ACTUATOR/ KNOB SWITCH/ KEY CYLINDER SWITCH DRIVER'S DOOR LOCK ACTUATOR/KNOB SWITCH DRIVER'S DOOR LOCK ACTUATOR/KNOB SWITCH/ KEY CYLINDER SWITCH DRIVER'S DOOR LOCK ACTUATOR/KNOB SWITCH/KEY CYLINDER SWITCH DRIVER'S DOOR LOCK KNOB SWITCH DRIVER'S DOOR LOCK SWITCH DRIVER'S DOOR SWITCH DRIVER'S SEAT BELT BUCKLE SWITCH DRIVER'S SEAT BELT SWITCH DRIVER'S SEAT HEATER SWITCH DRIVER'S SWITCH ECON SWITCH FOG LIGHT SWITCH FRONT PASSENGER'S DOOR LOCK ACTUATOR/ KNOB SWITCH FRONT PASSENGER'S DOOR LOCK ACTUATOR/KNOB SWITCH FRONT PASSENGER'S DOOR SWITCH FRONT PASSENGER'S POWER WINDOW SWITCH FRONT PASSENGER'S SEAT BELT BUCKLE SWITCH FRONT PASSENGER'S SEAT BELT SWITCH FRONT PASSENGER'S SEAT HEATER SWITCH FRONT PASSENGER'S SWITCH HANG UP SWITCH HAZARD WARNING SWITCH HEADLIGHT SWITCH HEATER FAN SWITCH HEATER-A/C CONTROL PANEL HEATER FAN SWITCH HFL BACK SWITCH HFL SWITCH HFL TALK SWITCH HFL- NAVIGATION VOICE CONTROL SWITCH HORN SWITCH IGNITION KEY SWITCH IGNITION SWITCH ILLUMINATION LAMP SWITCH KEY CYLINDER SWITCH KEY SWITCH KM/H, MPH CHANGE SWITCH KNOB SWITCH LEFT REAR DOOR LOCK ACTUATOR/ KNOB SWITCH LEFT REAR DOOR LOCK ACTUATOR/KNOB SWITCH LEFT REAR DOOR SWITCH LEFT REAR POWER WINDOW SWITCH LEFT REAR SWITCH MAIN SWITCH MAIN SWITCH IND MODE CONTROL SWITCH MODE SWITCH MULTI- INFORMATION SWITCH NORMAL SWITCH ODOMETER/TRIP METER/SELECT/ RESET SWITCH OFF HOOK SWITCH OIL PRESSURE SWITCH ON HOOK SWITCH PARK PIN SWITCH PARKING BRAKE SWITCH PICK-UP SWITCH POWER KEY SWITCH POWER MIRROR SWITCH POWER PIN SWITCH POWER SWITCH POWER WINDOW MASTER SWITCH REAR WINDOW DEFOGGER SWITCH REAR WINDOW DEFOGGER SWITCH IND REAR WINDOW WIPER/ WASHER SWITCH REAR WINDOW/ POWER MIRROR DEFOGGER SWITCH REAR WINDOW/POWER MIRROR DEFOGGERS SWITCH RESUME + SWITCH RIGHT REAR DOOR LOCK ACTUATOR/ KNOB SWITCH RIGHT REAR DOOR LOCK ACTUATOR/KNOB SWITCH RIGHT REAR DOOR SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT REAR SWITCH ROCKER ARM OIL PRESSURE SWITCH SECURITY HOOD SWITCH SET SWITCH SPORT SWITCH SWITCH 1 SWITCH 2 SWITCH 3 SWITCH ILLUMI- NATION TAILGATE LATCH SWITCH TALK SWITCH TRANSMISSION RANGE SWITCH TURN SIGNAL SWITCH VOICE CONTROL SWITCH VOLUME DOWN SWITCH VOLUME UP SWITCH VSA OFF SWITCH WASHER FLUID LEVEL SWITCH WASHER SWITCH WINDSHIELD WASHER SWITCH WINDSHIELD WIPER SWITCH WIPER SWITCH WIPER/ WASHER SWITCH WIPER/WASHER SWITCH

A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE A A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE B A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE C EVAP CANISTER PURGE VALVE EVAP CANISTER VENT SHUT VALVE KEY INTERLOCK SOLENOID MASTER CUT VALVE PEDAL FORCE SIMULATOR VALVE ROCKER ARM OIL CONTROL SOLENOID SHIFT LOCK SOLENOID STARTER SOLENOID STARTER SOLENOID STARTER

(OR RED/ WIRE BLK WIRE BLK/RED WIRE BLK/WHT WIRE BLU WIRE BLU/WHT WIRE BRN WIRE BRN/YEL WIRE FTP PNK SLS WIRE GREEN/WHT) WIRE GRN WIRE GRN/ORG WIRE GRN/RED WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/RED WIRE LT BLU WIRE LT GRN WIRE LT GRN/BLK WIRE LT PNK WIRE LT PPL PNK WIRE NCA WIRE ORG/ WIRE ORG/WHT WIRE PNK ELD WIRE PNK LT WIRE PNK PNK PNK WIRE PNK PNK WIRE PNK PPL WIRE PNK VBU WIRE PNK WIRE RED WIRE RED/BLK WIRE RED/WHT WIRE RL-GND PPL SVCC PNK FR-GND WIRE RUN WIRE TAN WIRE VIO WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/GRN WIRE WHT/RED WIRE YEL WIRE YEL/BLK WIRE YEL/RED WIRE

0 = LOW 1 = HIGH 2 = PASSING 0 OFF 1 PARK 2 HEAD 0) OF 1) UP 2) DOWN 3) AUTO DOWN 4) AUTO UP 0) OFF 1) UP 2) DOWN 3) AUTO DOWN 5) AUTO UP 3 OF 3) (OR (OR LT +B ABS BACKUP +B ABS TPMS +B BACK METER UP +B BACK UP +B BACKUP +B FR FOG +B H/MIRR +B OPTION +B P/W AS +B P/W AS METER +B PPL PPL HOOD SW +B TPMS -OFF CIRCUIT -OR- -OR- -OR- -OR- -OR- A/C COMPRESSOR A/C COMPRESSOR CLUTCH A/T GEAR POSITION DIMMING CIRCUIT A/T M/T ABS IND. ACC CIGAR ACS HAC ACTIVE BODYWORKS SYSTEM AIR CONDITIONING SYSTEM AIR CONDITIONING, DOOR LOCKS SYSTEMS ANT B+ ANTI-THEFT SYSTEM ANTI-THEFT, DOOR LOCKS, SOUND SYSTEMS AREA NETWORK AREA NETWORK CONTROLLER ATP D ATP NP ATP- METER ATP-P AUDIO L+ AUDIO R- AUDIO SH AUXILIARY JACK ASSEMBLY B-CAN B-CAN H B-CAN L B-CAN TRANCEIVER BACK LT- BACK-UP BACKUP +B BKSW PPL CRMTCLS BODY CONTROLLER BOX) BRAKE IND BRAKE SYSTEM IND BRAKE WARNING IND BUS - BUS SH BUSBAR A BUSBAR B BYPASS CONT- ACTOR CABLE REEL CAN HI CAN L CAN LO CARGO AREA LIGHT CARGO LT- CEILING LIGHT CHARG PLUG CONNECT IND CHARGE INLET CHARGING SYSTEM IND CHK S-GND CIRCUIT FAIL-SAFE COMBI GND COMPULSORY TURNING- OFF CIRCUIT COMPULSORY TURNING- ON CIRCUIT COMPUTER DATA COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM CONSOLE BOX LIGHT CONTROL IND CONTROLLER AREA CONTROLLER AREA NETWORK CONTROLLER CONVERTER) COOLANT HIGH TEMPERATURE IND COOLANT LOW TEMPERATURE IND COOLING FANS SYSTEM COURTESY LAMPS CIRCUIT CPU/POWER SUPPLY CIRCUIT CONTROLLER AREA NETWORK CONTROLLER CPU/POWER SUPPLY CIRCUIT/ CPU/POWER SUPPLY CIRCUIT/CONT/CONTROLLER AREA NETWORK CONTROLLER CPU/POWER SUPPLY CIRCUIT/CONTROLLER CPU/POWER SUPPLY CIRCUIT/CONTROLLER AREA NETWORK CONTROLLER CRMTCLS APSB CRUISE CONTROL CRUISE CONTROL IND CRUISE CONTROL SYSTEM CRUISE CONTROL, HORNS SYSTEMS CRUISE MAIN IND CUT-OFF IND SIDE AIR BAG D/L UNLCK DR RLY DAY LT DAY LT HAC DC-DC CONVERTER DEFOGGER SYSTEM DEFOGGER, MIRRORS, AIR CONDITIONING SYSTEMS DIAL BRIGHTNESS CONTROL AND DIMMING CIRCUIT DIM SW DIMMING CIRCUIT DL UNLOCK DR RLY DN UP DOOR IND DOOR KEY DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT, POWER DISTRIBUTION SYSTEMS DOOR ON DOOR/TAILGATE OPEN IND DOWN GND DOWN RIGHT DOWN UP DOWN/ UP/ RIGHT LEFT DRIVE CIRCUIT DRIVE PPL INPUT DRIVER'S AIR BAG FIRST INFLATOR DRIVER'S AIR BAG SECOND INFLATOR DRIVER'S AMBIENT LIGHT DRIVER'S DOOR DRIVER'S SEAT BELT TENSIONER DRIVER'S SIDE AIR BAG INFLATOR DRL IND ELECTRONIC POWER STEERING SYSTEM EMPTY IND ENG ST SIG PPL HOOD SW EPS IND ETCSM- EXCEPT SECURITY F CAN TRANCEIVER F-CAN F-CAN H F-CAN HI F-CAN L F-CAN LO F-CANH F-CANL FAIL FORCED SAFE TURNING-ON CIRCUIT FAIL SAFE CIRCUIT FAIL-SAFE FAST CONTROLLER FAST CONTROLLER AREA FL+B FL-GND FM DISTRIBUTOR FOG LIGHT FOG LIGHT IND FORCED TURNING OFF CIRCUIT FORCED TURNING ON CIRCUIT FR FOG FR FOG RLY FR FOG SW FR RR WASHER WASHER GND MTR MTR FR WASHER MTR FR WASHER WASHER MTR MTR FR WIP AS FR WIP FR WIP HI AS FR WIP HI, FR WIP HI, LO SW FR WIP INT, LO METER SW FR WIP INT, LO SW FR WIP LO FR WIP MIST SW FR WIP WASH SW FR WIPER FR+B FR-L FR-R FROM FAIL-SAFE CIRCUIT FRONT INDIVIDUAL MAP LIGHT FRONT PASSENGER'S AIR BAG FIRST INFLATOR FRONT PASSENGER'S AIR BAG INFLATOR FRONT PASSENGER'S AIR BAG SECOND INFLATOR FRONT PASSENGER'S AMBIENT LIGHT FRONT PASSENGER'S SEAT BELT TENSIONER FRONT PASSENGER'S SIDE AIR BAG INFLATOR FSR +B FUEL GAUGE GA-NET BUS SH GA-NET BUS- GATE DRIVER BOARD GND GND H/L LO RLY H/L OFF COMBI SW GND H/L OFF SW H/L ON SW HANDS- FREE LINK HANDY DR SW HAZ SW HEADLAMPS CIRCUIT HEADLIGHTS SYSTEM HEADLIGHTS, ANTI-THEFT, DOOR LOCKS, SHIFT INTERLOCK SYSTEMS HFL MICROPHONE HFL-NAVIGATION MICROPHONE HFT ICON HFT MUTE HFT-NAVI MIC SH HFT-NAVI MIC+ HIGH BEAM CONTROL CIRCUIT HIGH BEAM DIMMING CIRCUIT HIGH BEAM IND HIGH HIGH HIGH MOUNT BRAKE LIGHT HONDA ACCESSORY HOOD SW HORNS SYSTEM HORNS, CRUISE CONTROL SYSTEMS HOT AT ALL TIMES HOT IN HOT IN ACC OR ON HOT IN ON HOT IN ON OR ACC HOT IN ON OR START IG KEY SW IG METER IGR DAY LT ILLUMINATION CONTROL ILLUMINATION CONTROL, DIMMING ILLUMINATION CONTROL, DIMMING CIRCUIT FOR AMBIENT ILLUMINATION CONTROL, DIMMING CIRCUIT FOR MODE ILLUMINATION CONTROL, DIMMING CIRCUIT FOR MODE COLOR ILLUMINATION ENCODER IMMOB SIG IMMOBILIZER IND IMMOBILIZER SYSTEM IND INFO/ PREVIOUS INSTRUMENT CLUSTER SYSTEM INSTRUMENT ILLUMINATION CIRCUIT INT LOW OFF HIGH MIST INT OFF LOW INT OFF LOW MIST HIGH INTERIOR LIGHT SYSTEM INTR LT- K LINE KC DR UNLOCK KC DR UNLOCK SW KEY SW LCD BACK LIGHT LCD BRIGHTNESS CONTROL AND DIMMING CIRCUIT LEFT "C" PILLAR) LEFT BACKUP LIGHT LEFT BRAKE LIGHT/ TAILLIGHT LEFT FOG LIGHT LEFT FRONT PARKING LIGHT/ SIDE MARKER LIGHT LEFT FRONT PARKING LIGHT/SIDE MARKER LIGHT LEFT FRONT PARKING/ SIDE MARKER LIGHT LEFT FRONT TURN SIGNAL LIGHT LEFT LICENSE LEFT LICENSE PLATE LIGHT LEFT POWER MIRROR LEFT REAR TURN SIGNAL LIGHT LEFT SIDE CURTAIN AIR BAG INFLATOR LEFT TAILLIGHT/ BRAKE LIGHT LEFT TAILLIGHT/BRAKE LIGHT LEFT TURN LEFT TURN SIGNAL IND LEFT TWEETER LFS- LINES SYSTEM LOW CHARGE IND LOW FUEL IND LOW OIL PRESSURE IND LOW TIRE PRESSURE IND LRP- LSA - LT LT M/T A/T MAIN CIRCUIT MAIN CONT- ACTOR N MAIN CONT- ACTOR P MAINTENANCE REQUIRED IND MESSAGE IND MIC GND MIC SH GND MIC SIG MICU +B MICU +B BACK METER UP MICU +B P/W RLY AS MICU ATP-NP MICU ATP-R MIDDLE OF DASH) MIL IND MIXING CIRCUIT MODE 1 MODE 2 MODE 3 MODE 5 MODE 4 MPI MODULE MR +B MR-GND MULTI- MULTI-INFORMATION MULTI-INFORMATION DISPLAY NAVIGATION SYSTEM NAVIGATION, SOUND SYSTEMS NETWORK CONTROLLER NOT USED NOT USED OFF OFF OFF ON OFF PARK OFF RR WIPE ON CIRCUIT ON IND. ON OFF OR START P PIN SW P- S- GND P-GND P-GND P-GND P/W RLY PADDLE SHIFTERS PARK AUTO PASSING SW PLATE LIGHT PLSB PLSA POWER CHARGE GAUGE POWER DISTRIBUTION SYSTEM POWER INPUT POWER SYSTEM IND POWER TRANSISTOR POWER WINDOWS SYSTEM PPL LT PPL PPL RADIO SW RANGE LCD REAR WINDOW DEFOGGER REDUCED IND REMINDER IND REMOTE + REMOTE GND REMOTE SIG REMOTE STARTING/ SECURITY INLINE CONNECTION RF IN RF SH RFS- RIGHT BACKUP LIGHT RIGHT BRAKE LIGHT/ TAILLIGHT RIGHT END OF DASH) RIGHT FOG LIGHT RIGHT FRONT PARKING LIGHT/ SIDE MARKER LIGHT RIGHT FRONT PARKING LIGHT/SIDE MARKER LIGHT RIGHT FRONT PARKING/ SIDE MARKER LIGHT RIGHT FRONT TURN SIGNAL LIGHT RIGHT LEFT RIGHT LICENSE RIGHT LICENSE PLATE LIGHT RIGHT POWER MIRROR RIGHT REAR TURN SIGNAL LIGHT RIGHT SIDE CURTAIN AIR BAG INFLATOR RIGHT TAILLIGHT/ BRAKE LIGHT RIGHT TAILLIGHT/BRAKE LIGHT RIGHT TURN RIGHT TURN SIGNAL IND RIGHT TWEETER RL+B RR WASH RR WASH RR WASHER MTR RR WIP RR WIP SW RR WIP WASH SW RR WIPER RR+B RR-GND RR-L RR-R RSA- S GND S- P- GND GND S-NET SCALE BRIGHTNESS CONTROL AND DIMMING CIRCUIT SEAT BELT SEAT BELT REMINDER IND SEATS SYSTEM SEATS, MIRRORS, AIR CONDITIONING SYSTEMS SECURITY BLINKING SECURITY GROUND SECURITY IND SECURITY IND BLINKING CIRCUIT SEL RESET SET- SHIELD GND SHIFT INTERLOCK SYSTEM SHIFT INTERLOCK, TRANSMISSIONS SYSTEMS SIDE AIR BAG CUT-OFF IND SIG GND SIGNAL IND SIL AS UNLOCK SIL AS UNLOCK SW SIL DR UNLOCK SIL DR UNLOCK SW SIL RA UNLCK SW SIL RA UNLOCK SIL RD UNLCK SW SIL RD UNLOCK SLS+ SMALL LT SW SOC EMPTY IND SOUND SYSTEM SOUND SYSTEMS SP LCD SPARK PLUG SRS BACK LT SRS GND 2 SRS IND SS+ STABILIZE CIRCUIT STABILIZER CIRCUIT STARTING CIRCUIT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STARTING/CHARGING, TRANSMISSIONS SYSTEMS STEERING GEAR BOX STEERING WHEEL) STOP SW STR-A STR-B STR-B PPL SVCC STR-Z STRG SW SUB + SUB- RLY SUPPLEMENTAL RESTRAINTS SYSTEM SW I/P SYSTEM IND T/G SW TELM SIG - TELM SIG SH THERMAL PROTECTOR TO FORCED TURNING-ON CIRCUIT TOP OF TRANSMISSION) TPMS IND TRANSMISSIONS SYSTEM TURN L SW TURN R SW TURN SIGNAL/ HAZARD WARNING CIRCUIT TURN SIGNAL/HAZARD TURN SIGNAL/HAZARD WARNING CIRCUIT TURNING-ON UP LEFT UP/ RIGHT DOWN/ LEFT USB DATA - USB DET USB DET GND USB GND USB PORT USB SH USB VBUS VMP DR VSA IND VSA OFF IND VSA SYSTEM IND VSS OUT W/ A/C W/ CRUISE CONTROL W/ HONDA ACCESSORY W/ HONDA ACCESSORY W/O HONDA ACCESSORY W/ NAVIGATION W/ PADDLE SHIFTERS W/ POWER DOOR LOCKS W/ POWER MIRROR DEFOGGER W/ POWER MIRROR DEFOGGERS W/ POWER MIRROR DEFOGGERS W/O POWER MIRROR DEFOGGERS W/ SECURITY W/ TPMS W/ TWEETERS W/ VSA W/O A/C W/O HONDA ACCESSORY W/O NAVIGATION W/O PADDLE SHIFTERS W/O POWER MIRROR DEFOGGER W/O POWER MIRROR DEFOGGERS W/ POWER MIRROR DEFOGGERS W/O SECURITY W/O TWEETERS WARNING DRIVE WARNING DRIVE CIRCUIT WARNING SYSTEMS WARNING, SOUND, NAVIGATION SYSTEMS WARNING, TRANSMISSIONS SYSTEMS WASH WASH WASHER FLUID LEVEL IND WIPER/WASHER SYSTEM
