Back-up lamps circuit, a/t for Honda Element I (2004-2009)

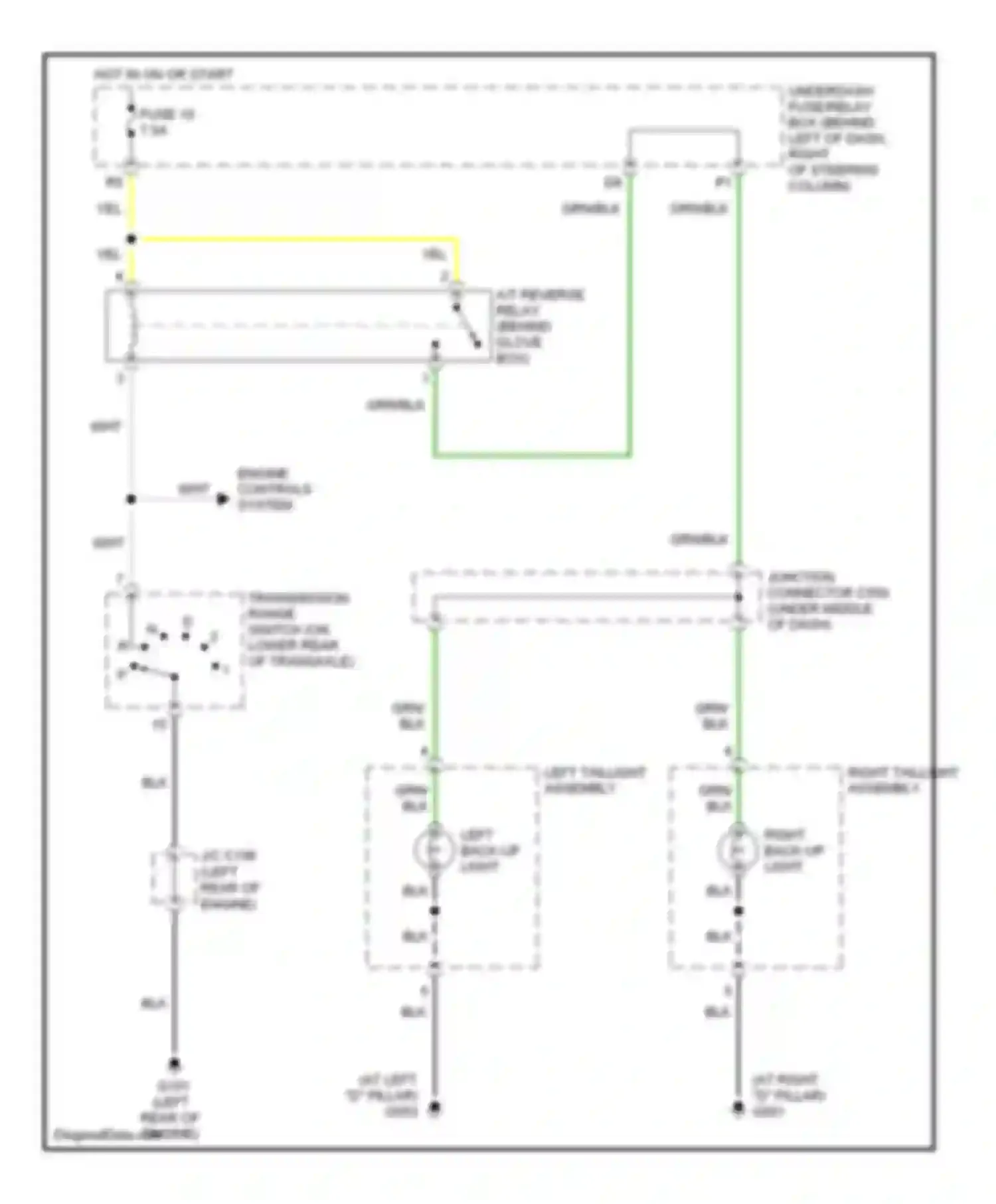

Back-up lamps circuit, a/t
A/T REVERSE RELAY (BEHIND GLOVE BOX)
BLK WIRE
ENGINE CONTROLS SYSTEM
FUSE 10
GRN WIRE
GRN/BLK WIRE
HOT IN ON OR START
JUNCTION
LEFT BACK-UP LIGHT
LEFT TAILLIGHT ASSEMBLY
RIGHT BACK-UP LIGHT
RIGHT TAILLIGHT ASSEMBLY
TRANSMISSION RANGE SWITCH (ON LOWER REAR OF TRANSAXLE)
UNDERDASH FUSE/RELAY BOX (BEHIND LEFT OF DASH, RIGHT OF STEERING COLUMN)
WHT WIRE
YEL WIRE
