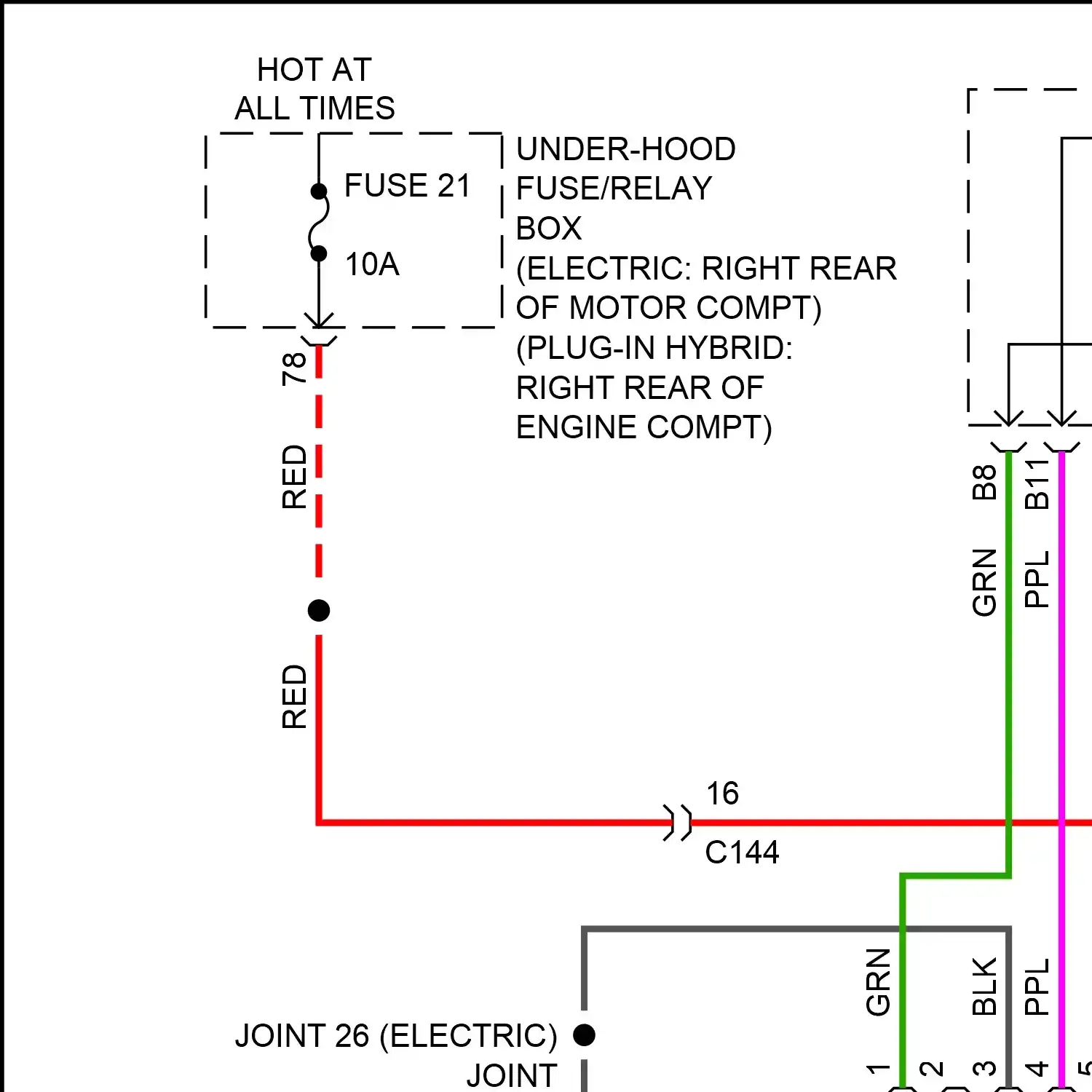

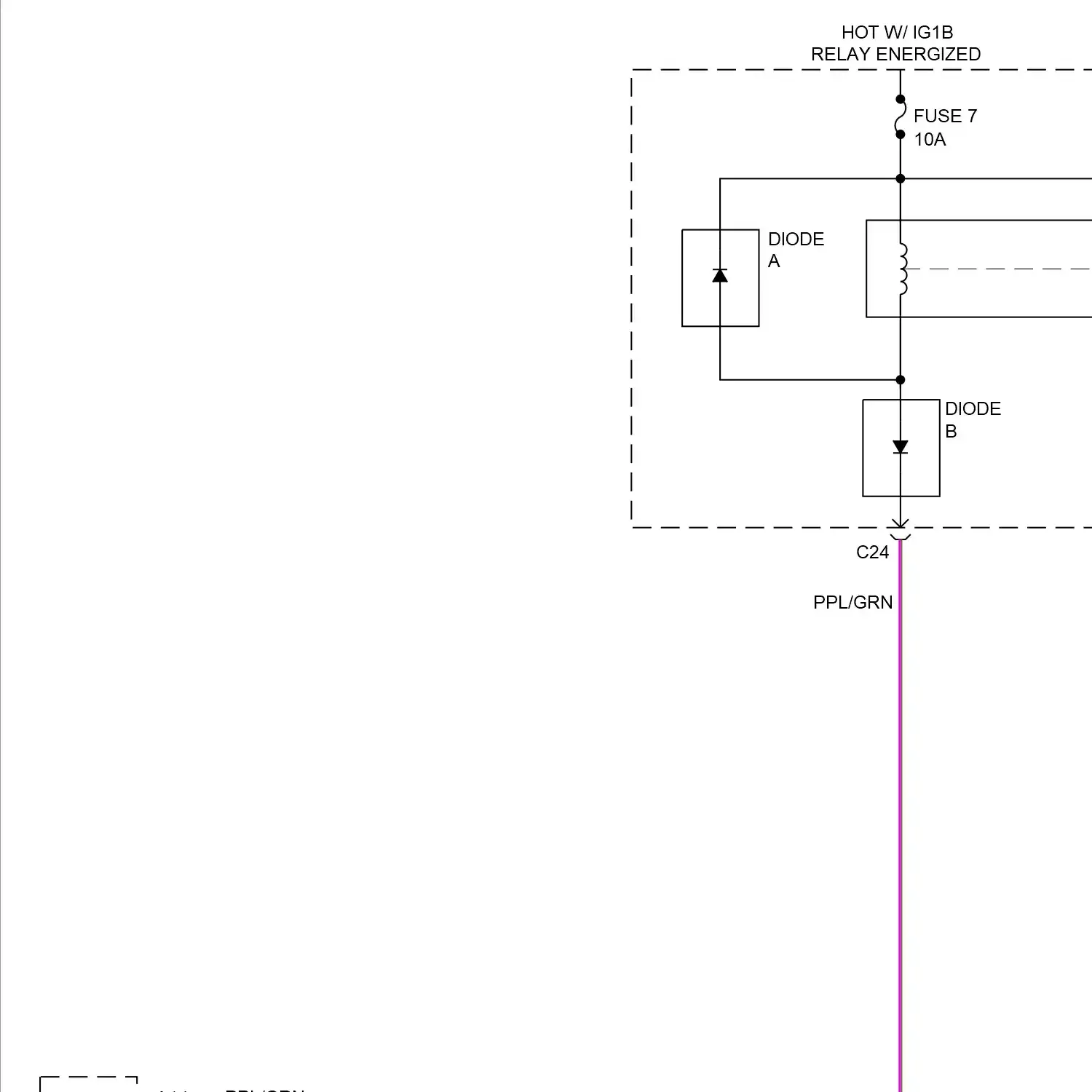

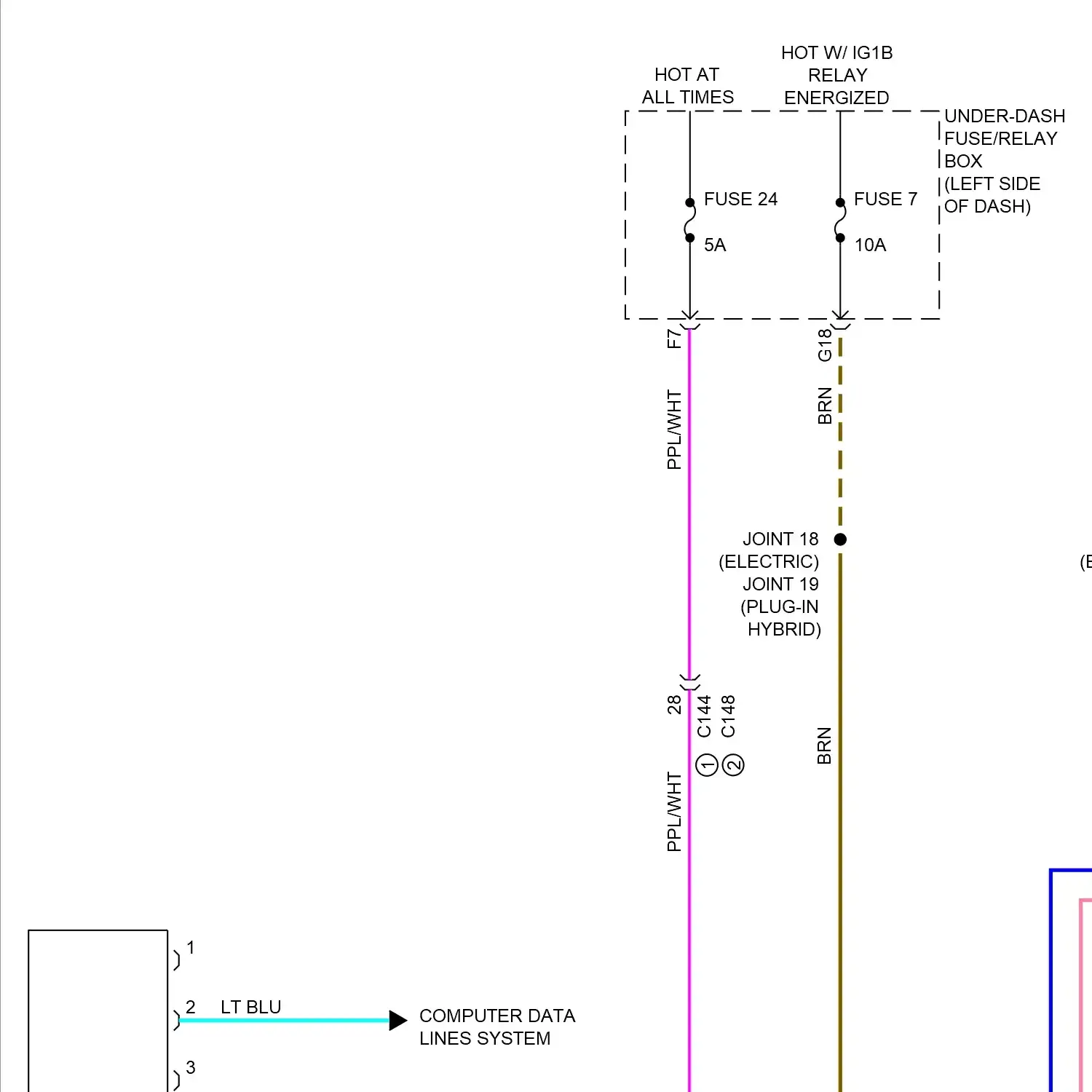

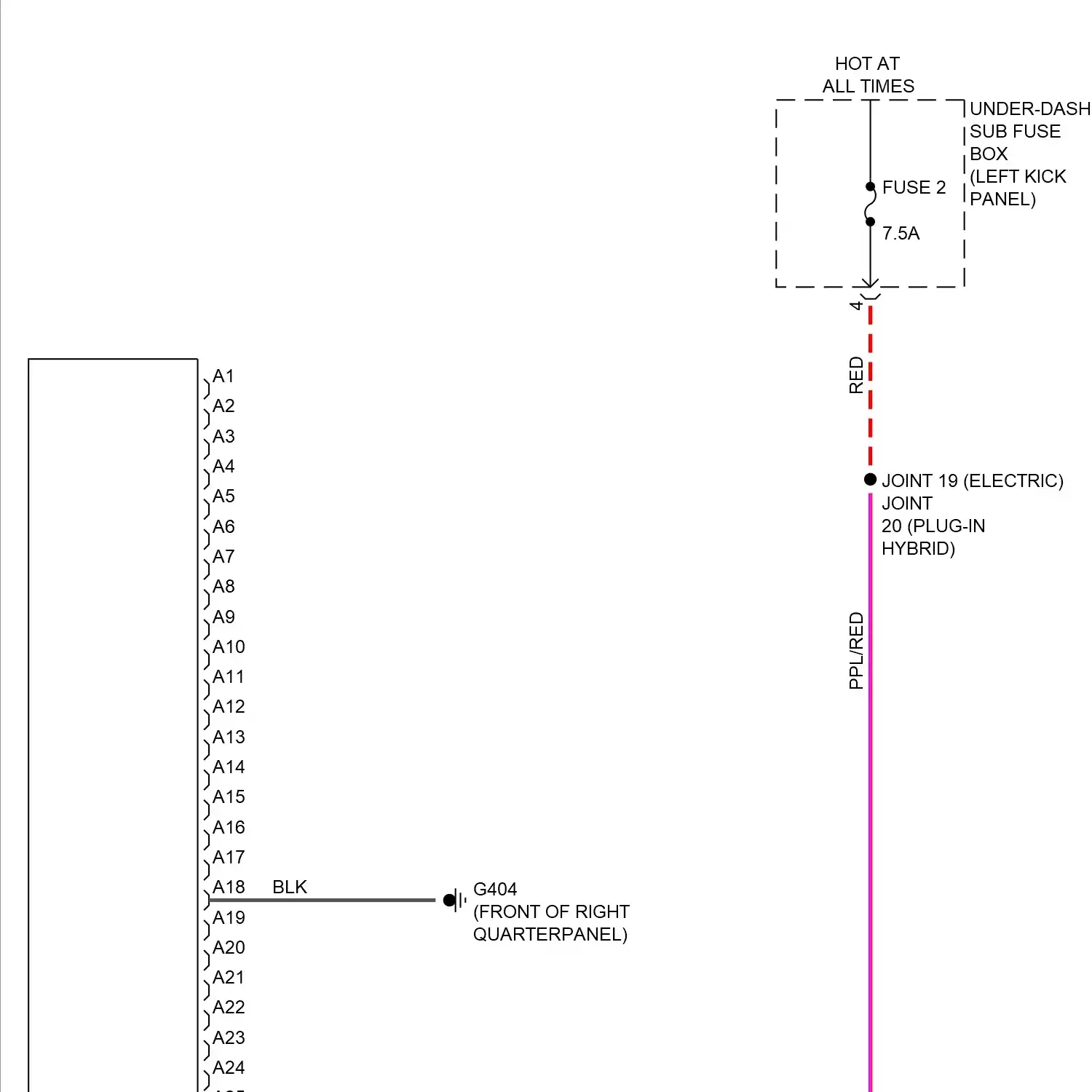

Wiring Diagrams for Honda Clarity II (2016-2021)

1.5l, automatic a/c circuit

Electric, automatic a/c circuit

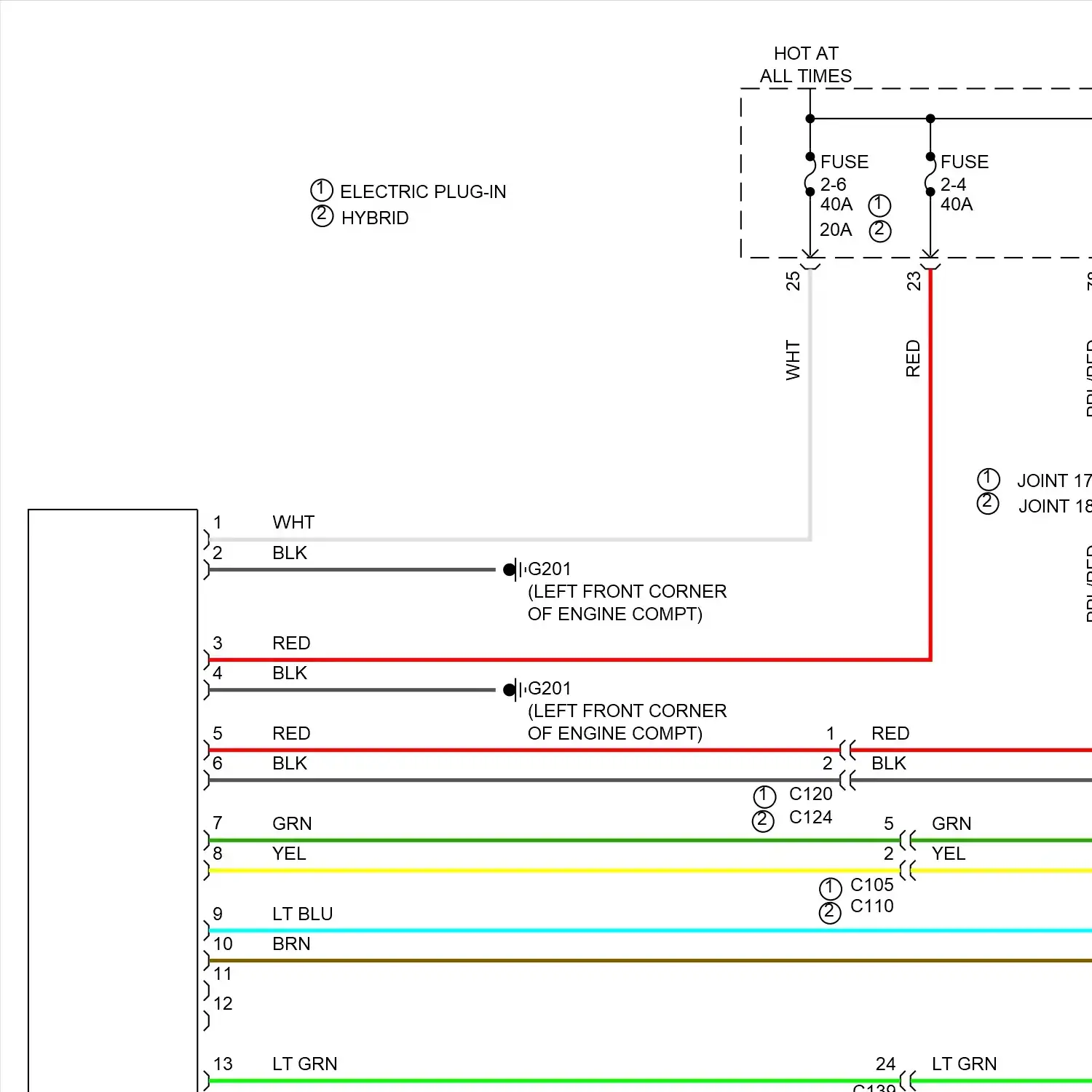

Anti-lock brakes circuit Electric servo brake system circuit

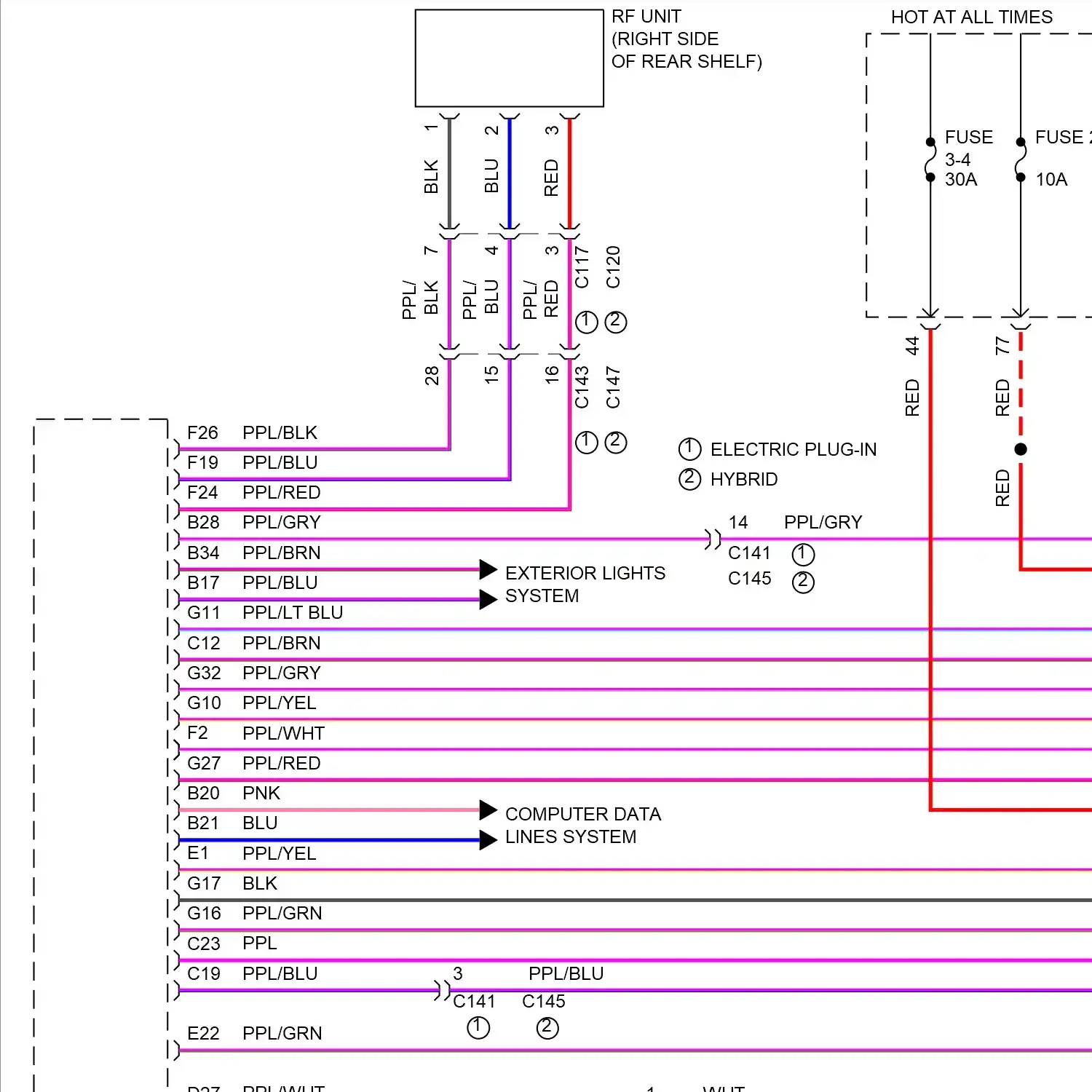

Anti-theft circuit

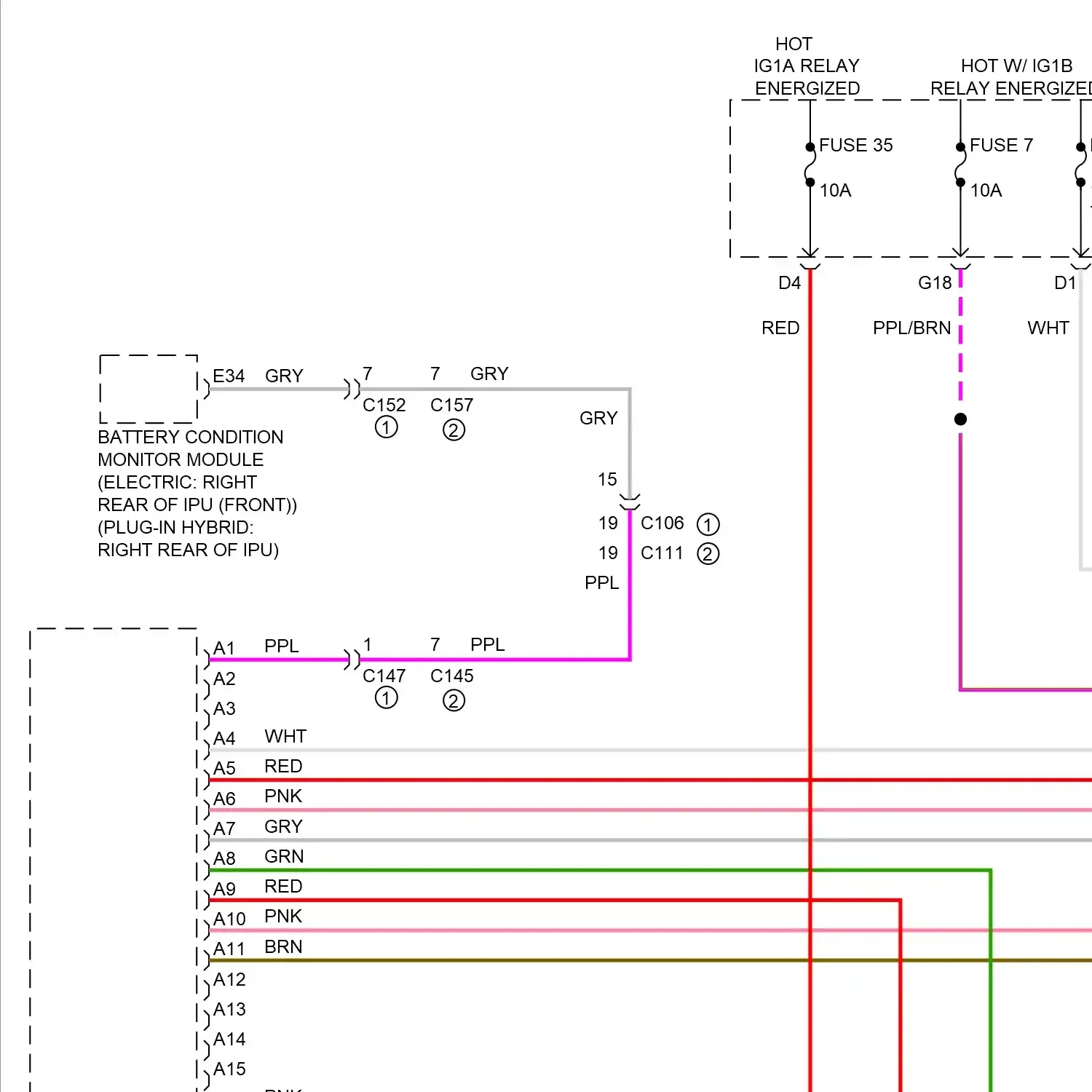

Body control modules circuit

1.5l, computer data lines circuit

Electric, computer data lines circuit

1.5l, cooling fan circuit

Electric, cooling fan circuit

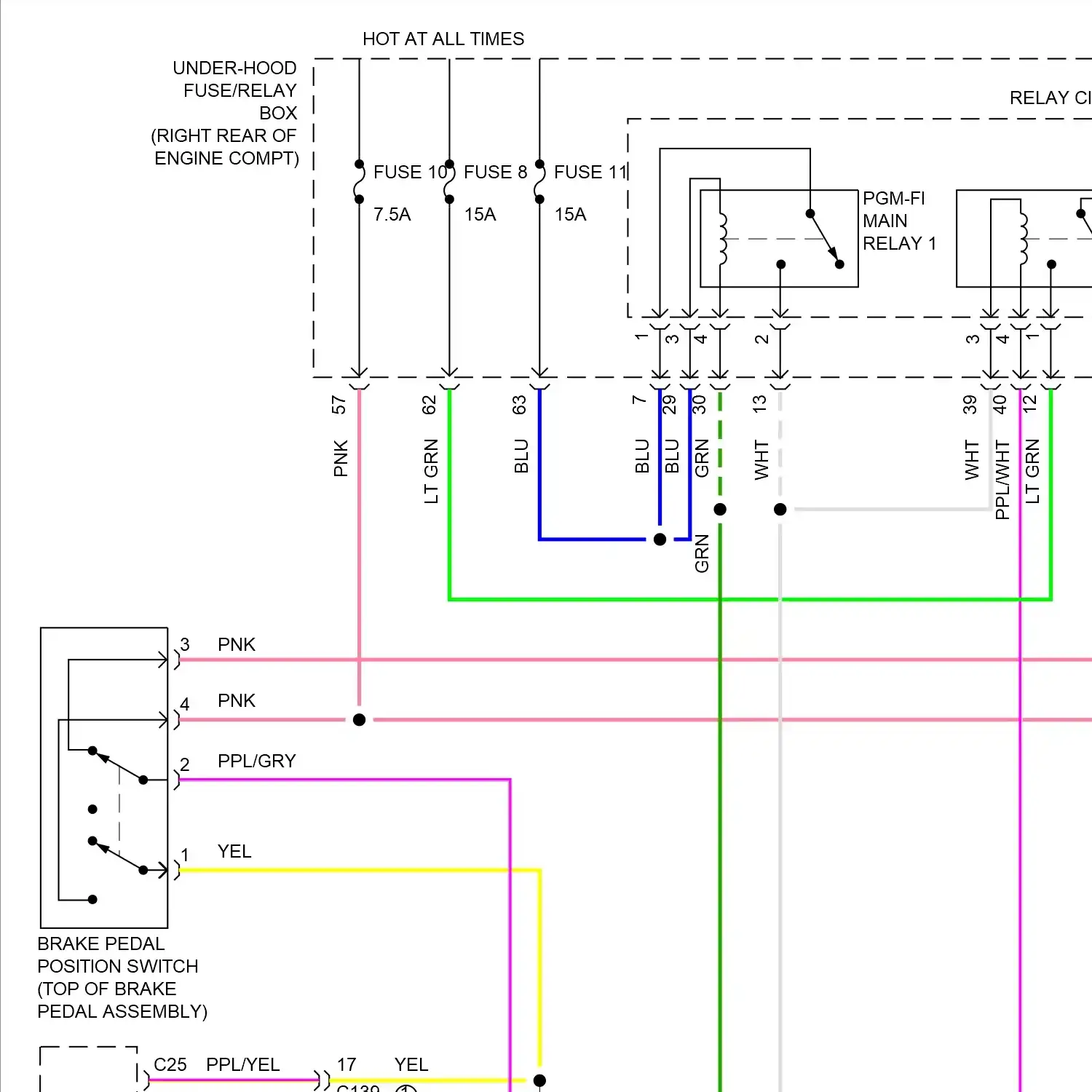

Cruise control circuit

Defoggers circuit

Electronic power steering circuit

Wiring diagram engine performance 1.5l, engine controls circuit Wiring diagram engine performance 1.5l, hybrid control circuit Wiring diagram engine performance 1.5l, virtual engine sound system circuit

Wiring diagram engine performance electric, engine controls circuit Wiring diagram engine performance electric, virtual engine sound system circuit

Backup lamps circuit Exterior lamps circuit

1.5l, ground distribution circuit

Electric, ground distribution circuit

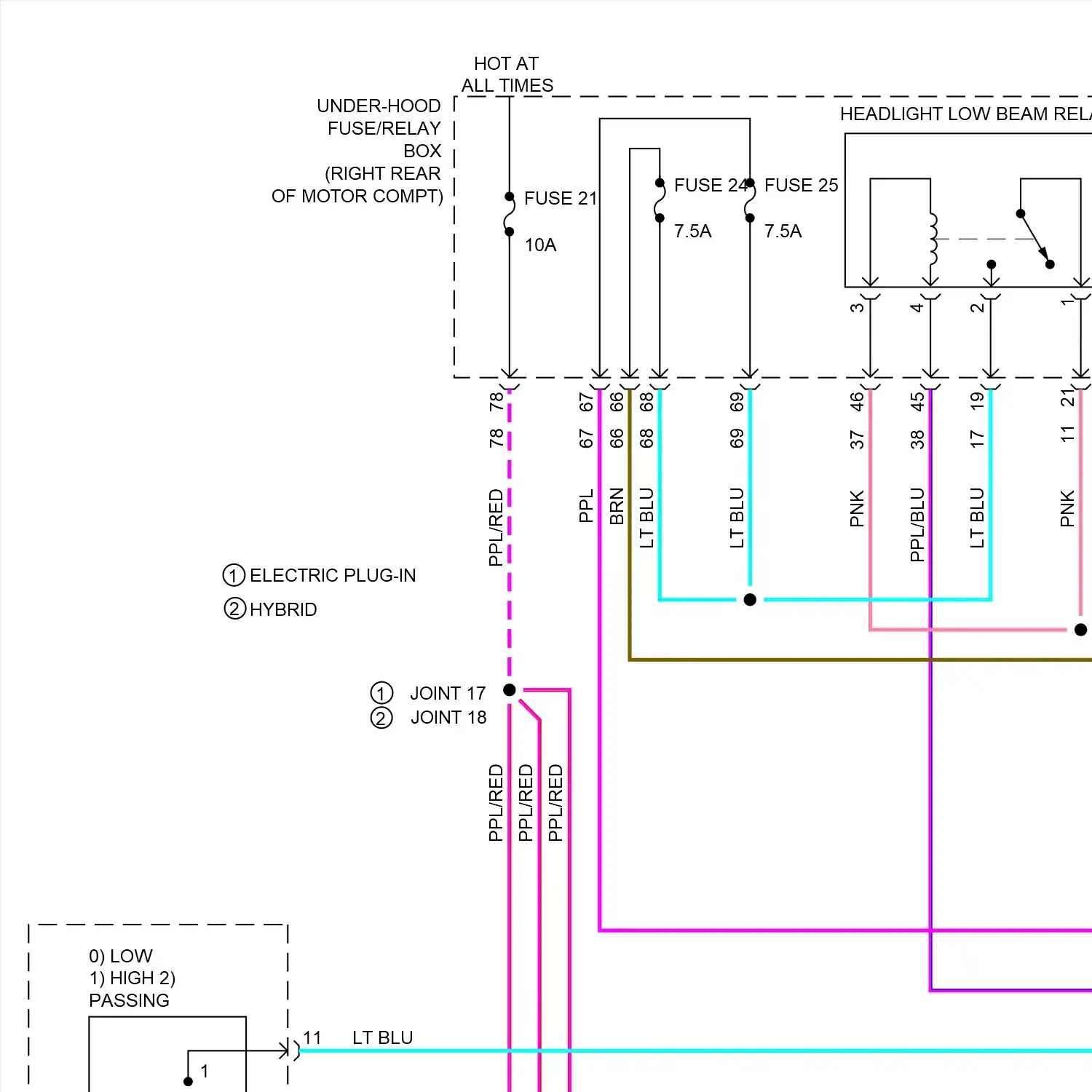

Headlights circuit

Horn circuit

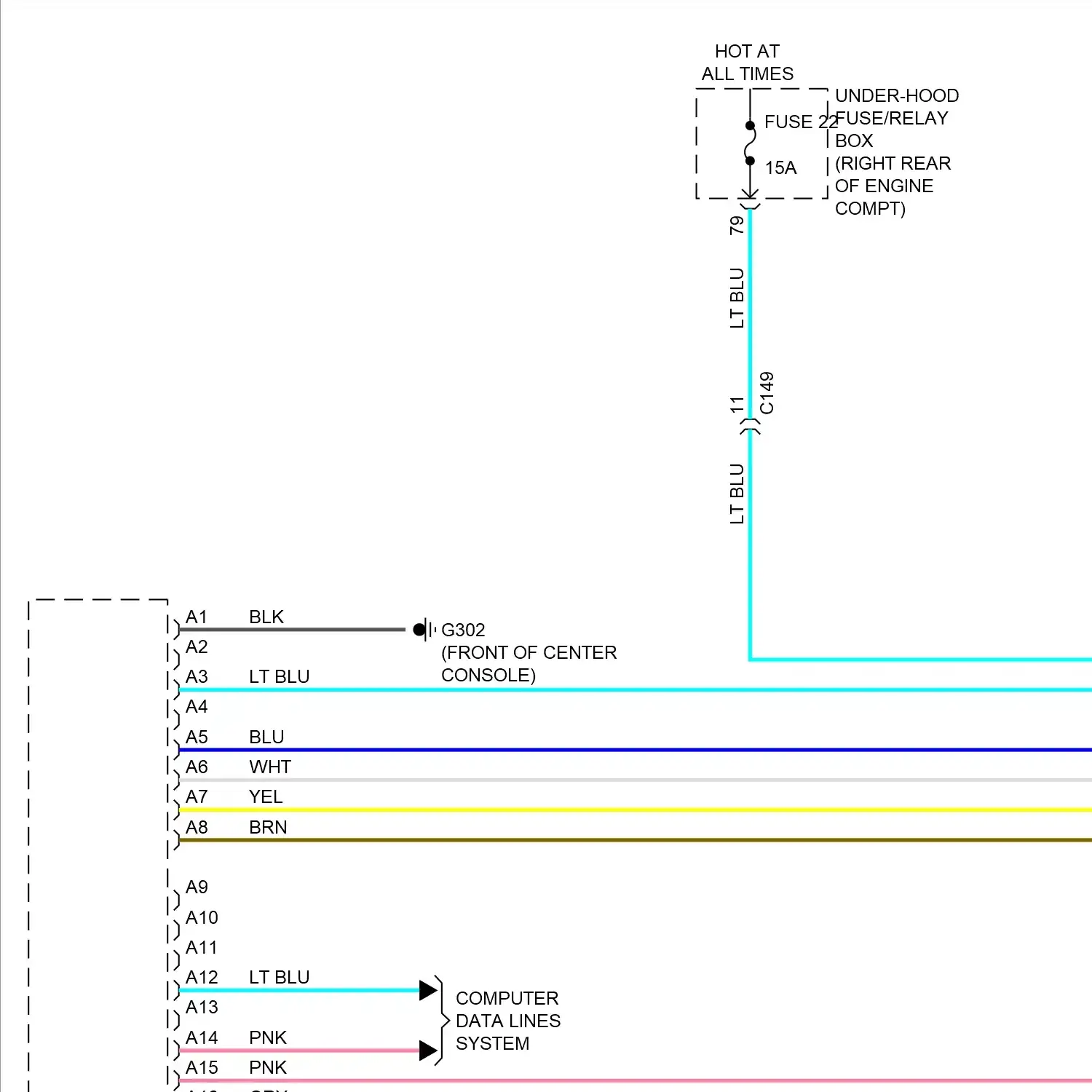

Instrument cluster circuit

Courtesy lamps circuit Entry light timer circuit Instrument illumination circuit

Memory systems circuit

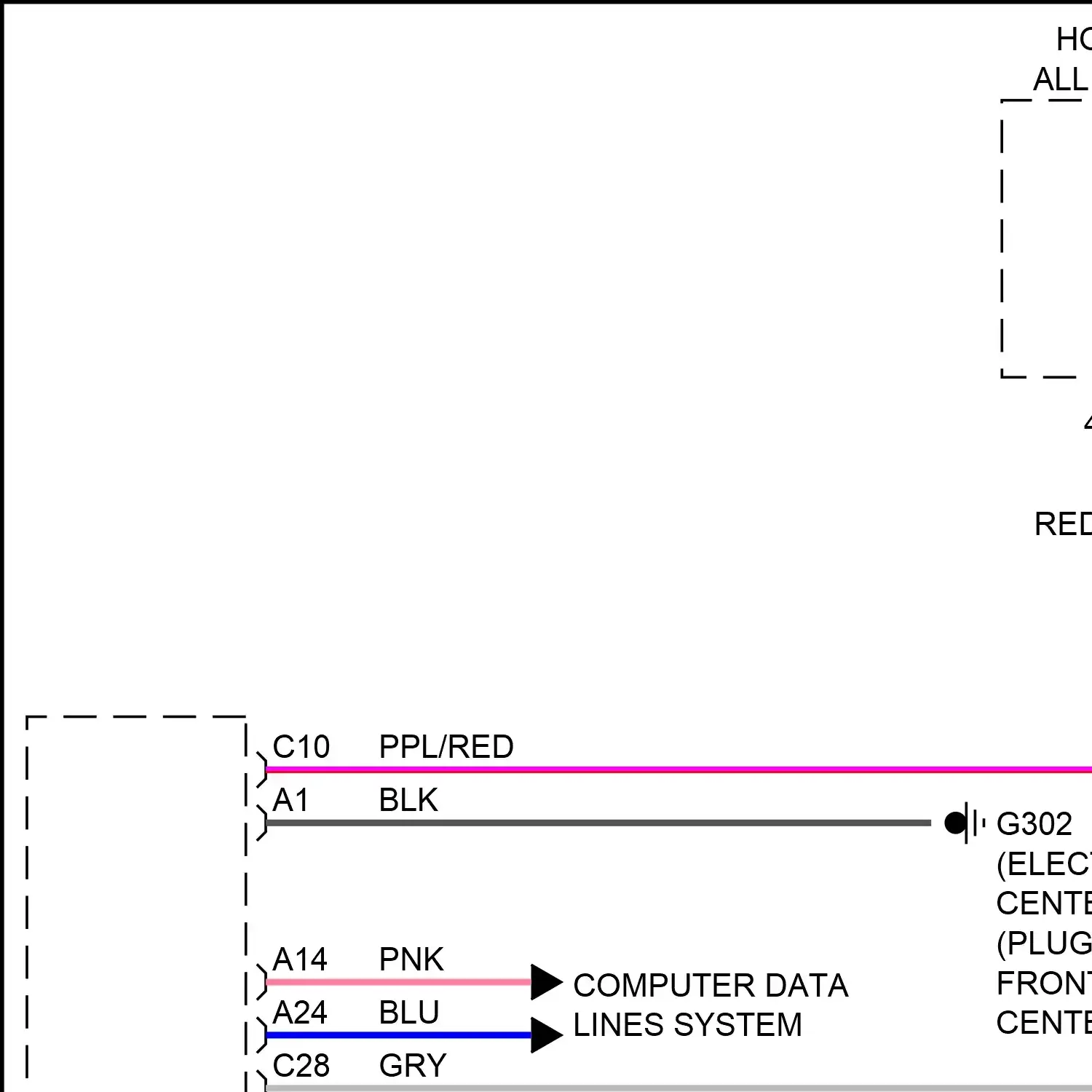

Home link remote control circuit Lane watch camera circuit Multipurpose camera circuit Navigation circuit Rear camera circuit Telematics circuit

1.5l, power distribution circuit

Electric, power distribution circuit

Power door locks circuit

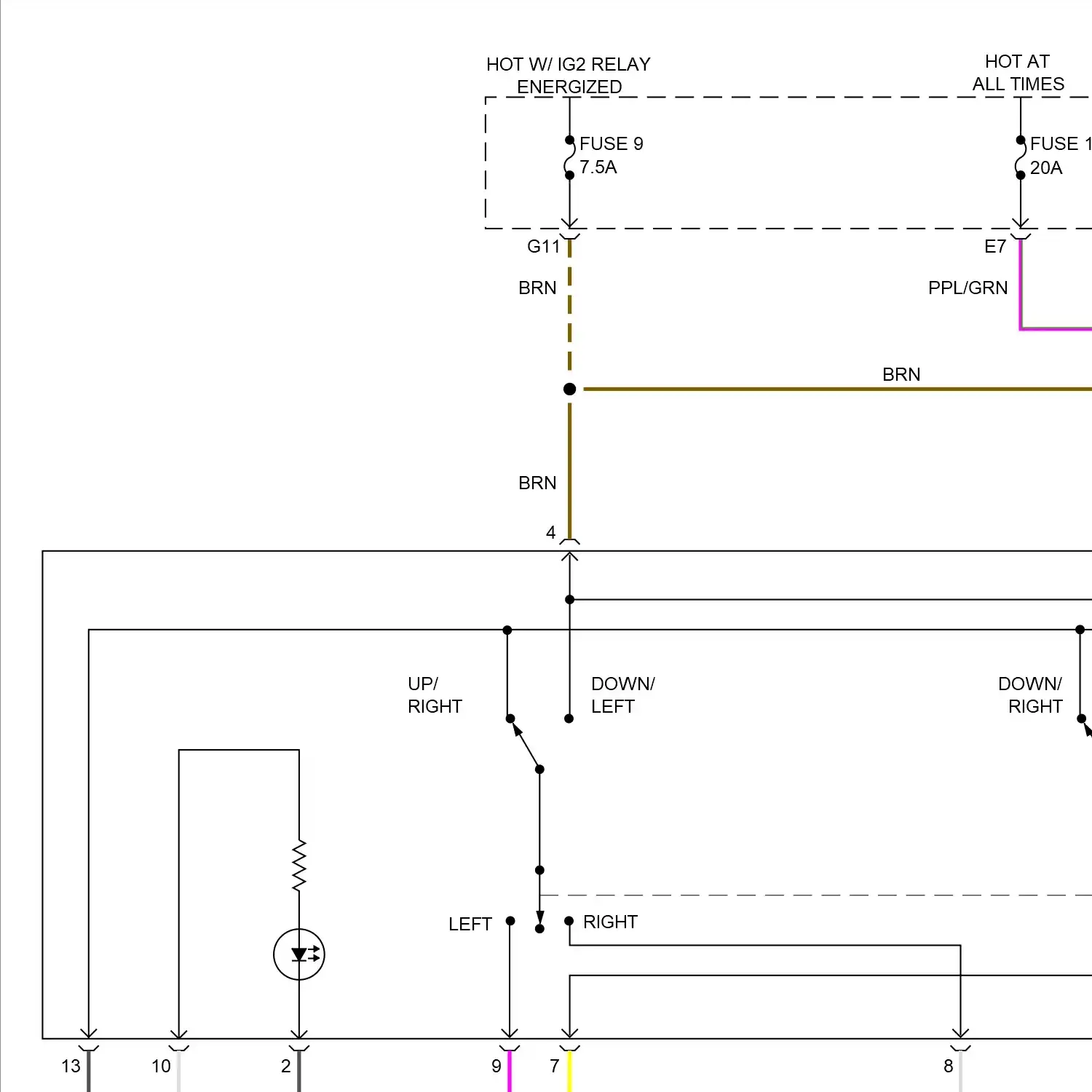

Automatic day/night mirror circuit Power mirrors circuit

Front heated seats circuit Passenger power seat circuit

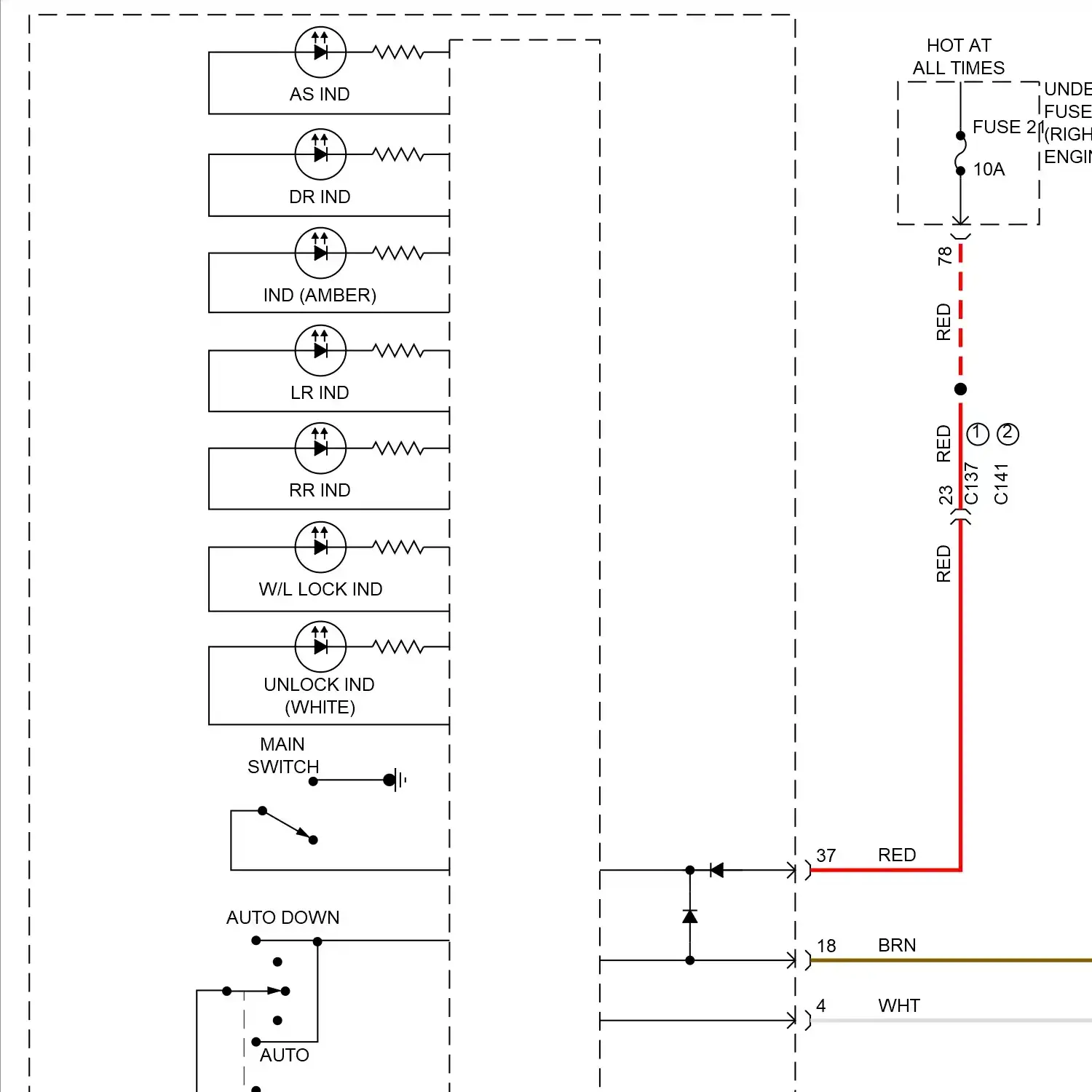

Power windows circuit

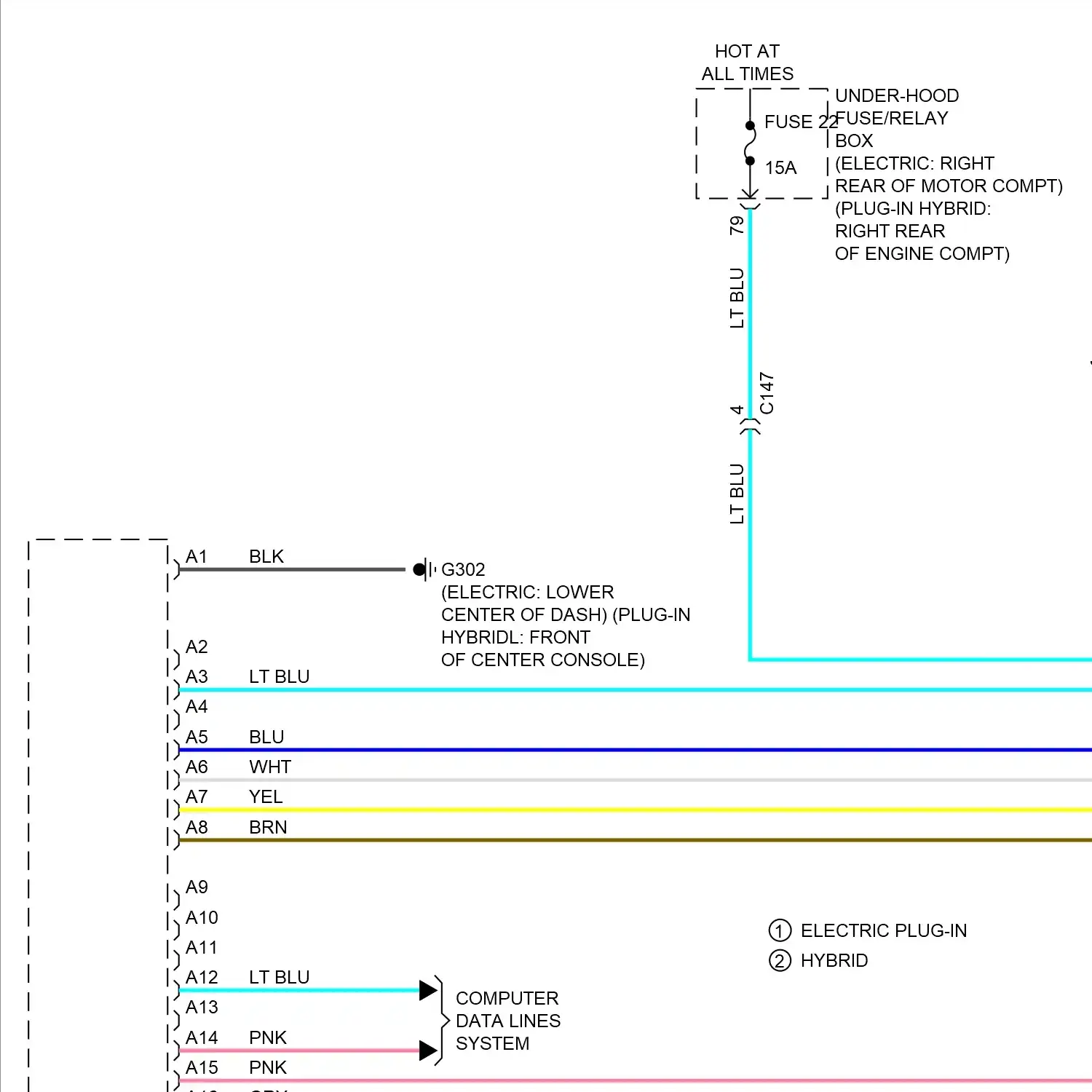

Radio circuit, w/ navigation Radio circuit, w/o navigation

Electric parking brake circuit Shift interlock circuit

Supplemental restraints circuit

1.5l, transmission circuit

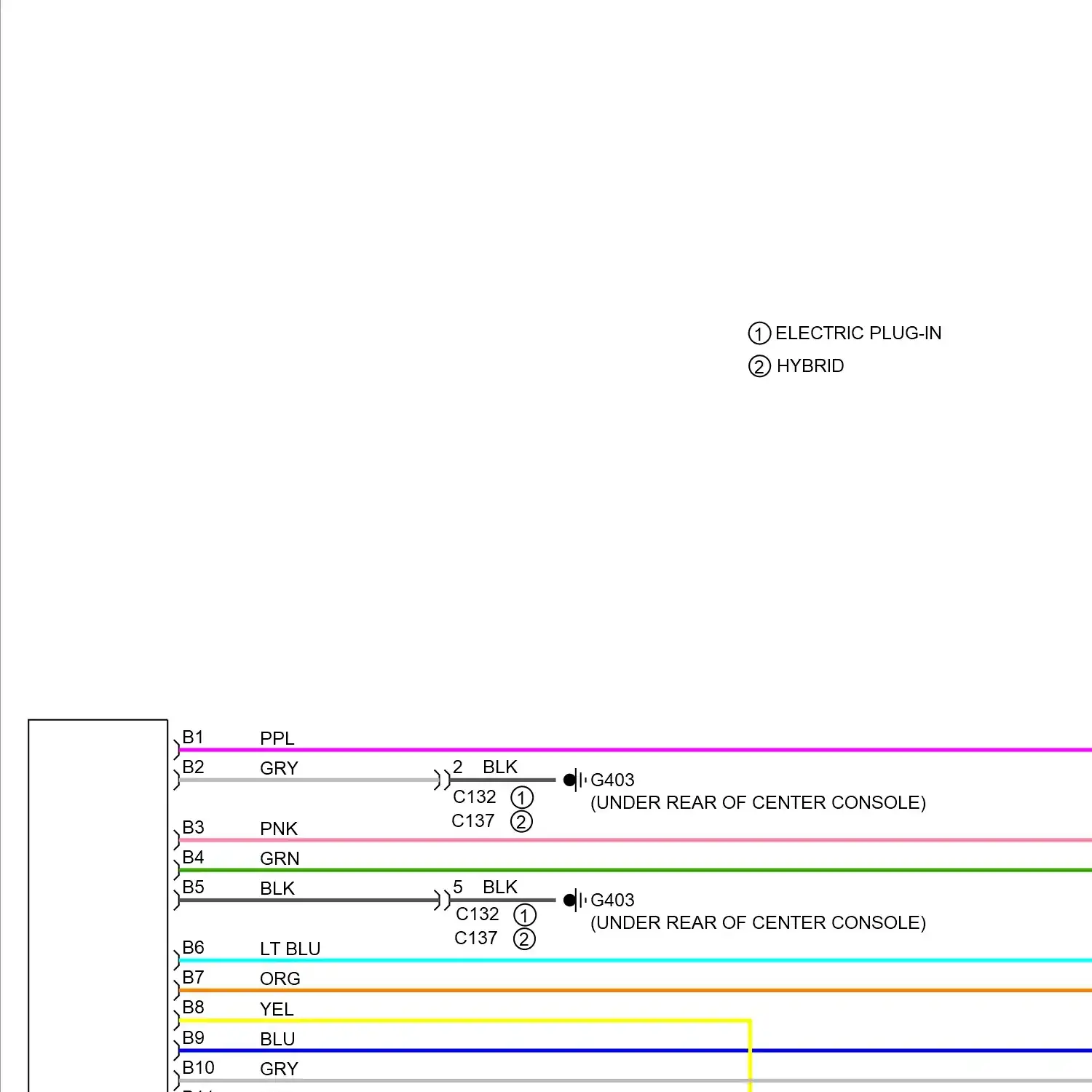

Electric, transmission circuit

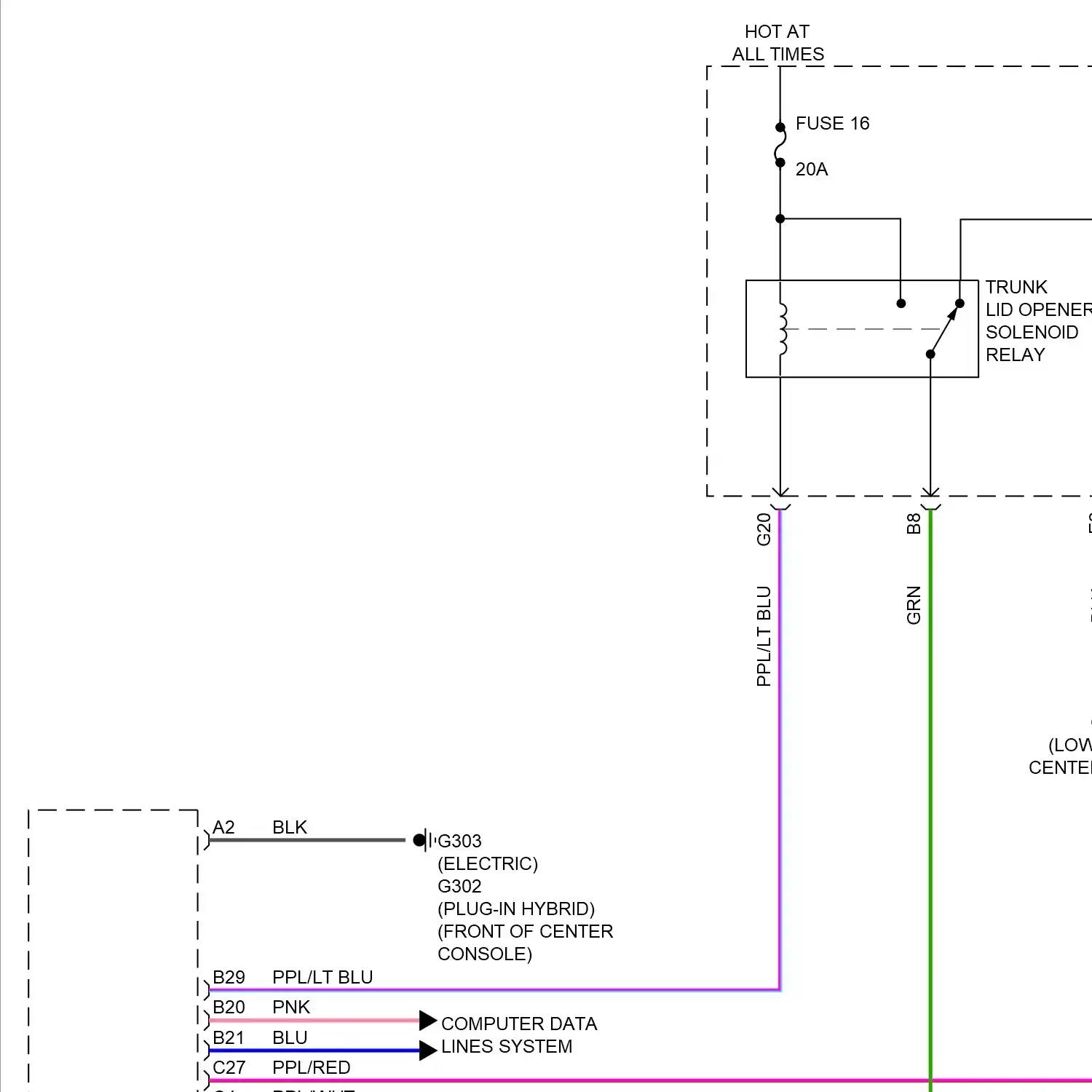

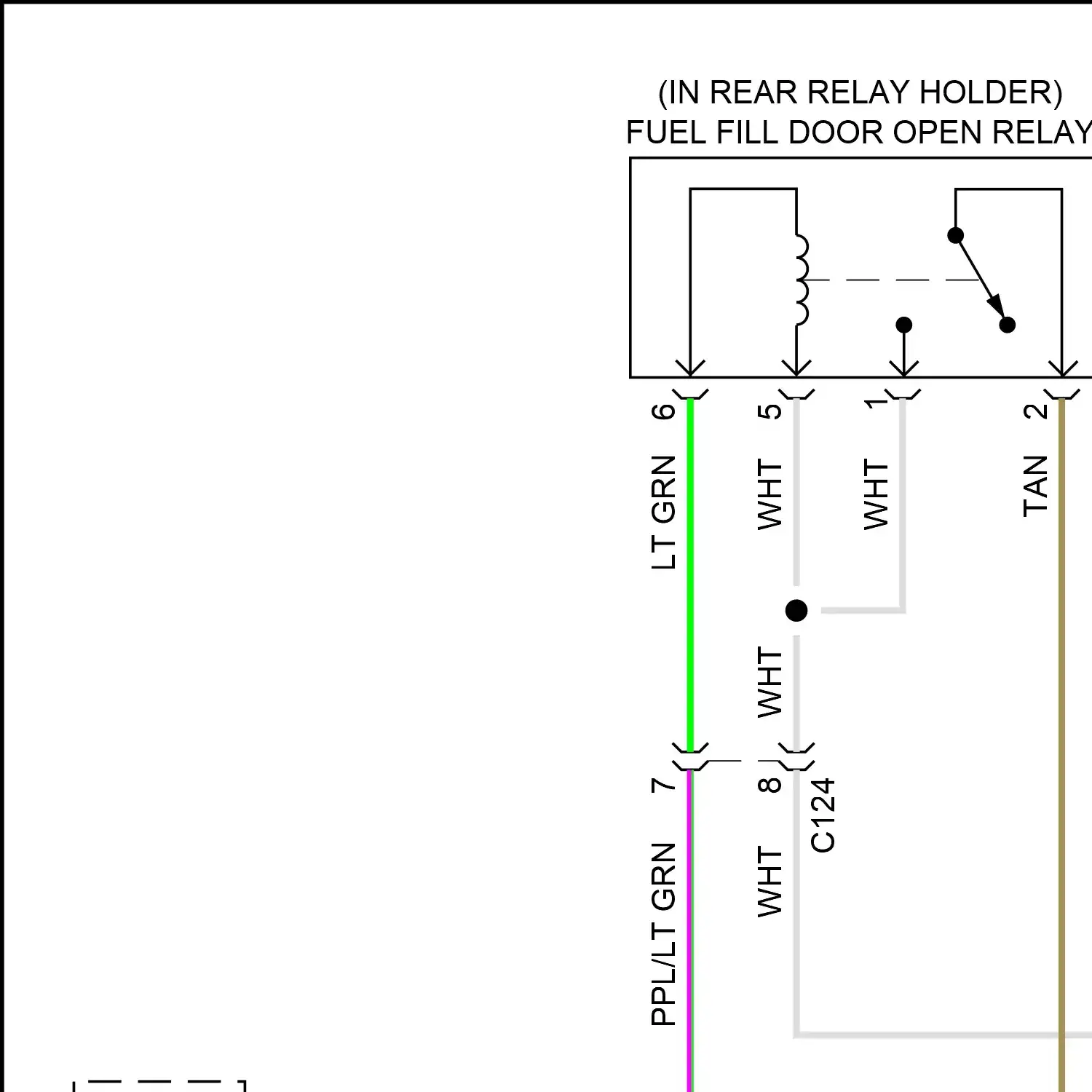

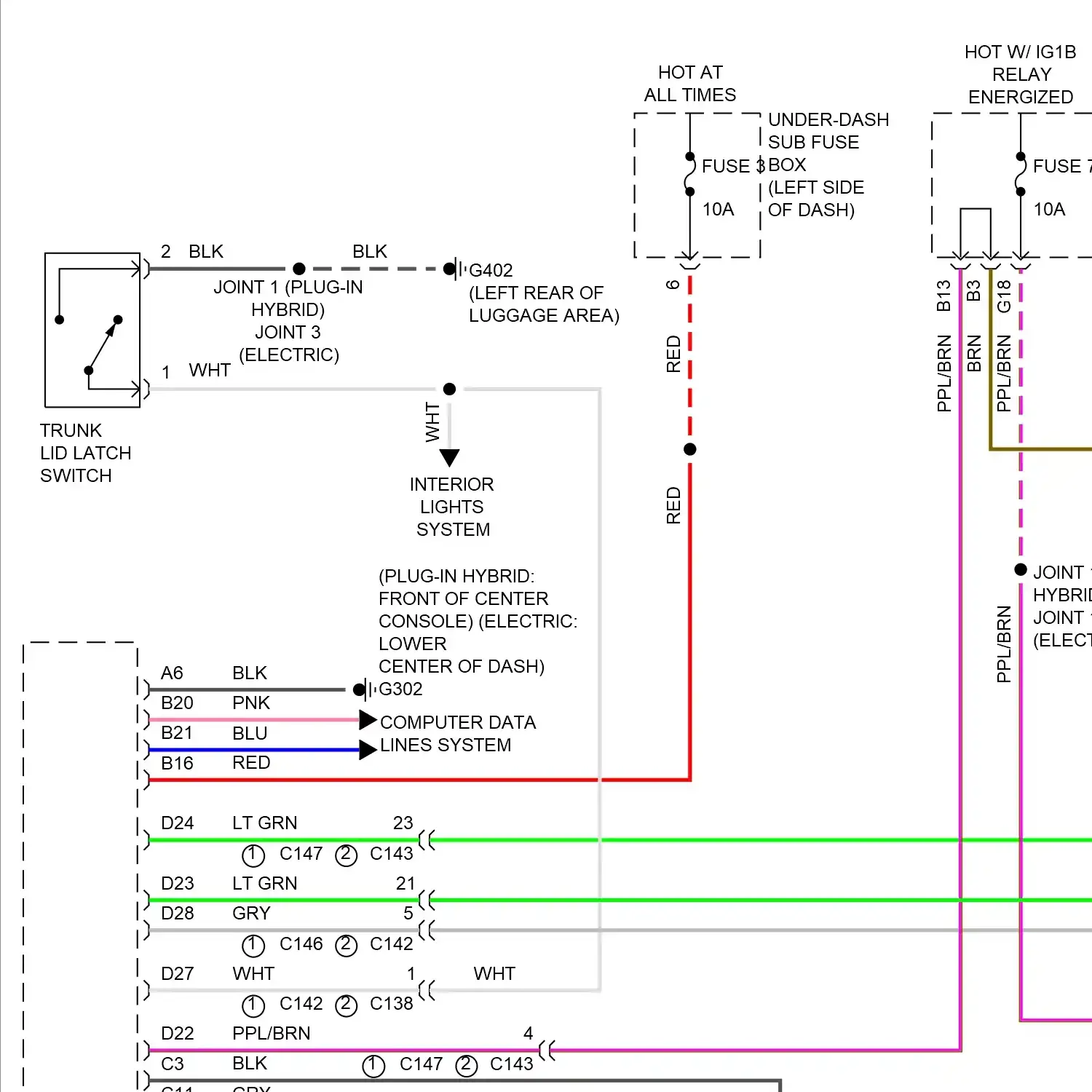

Fuel door release circuit Trunk release circuit

Warning systems circuit

Wiper/washer circuit

12 VOLT BATTERY ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES, CRUISE CONTROL SYSTEMS B-CAN TRANSCEIVER BATTERY CHARGE BATTERY CHARGER BATTERY CHARGER SHIELD BATTERY CONDITION MONITOR MODULE A BATTERY CONDITION MONITOR MODULE B BATTERY CONDITION MONITOR MODULE C DIODE A DIODE B DOOR LOCK KNOB F-CAN TRANSCEIVER IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 LIN TRANSCEIVER LOCK IND ON BATTERY) RESISTOR A W/L LOCK IND

BLOWER MOTOR CHARGE LID ACTUATOR CHARGER LID ACTUATOR DRIVER'S AIR MIX CONTROL MOTOR DRIVER'S POWER WINDOW MOTOR DRIVER'S SEAT FRONT UP-DOWN MOTOR DRIVER'S SEAT REAR UP-DOWN MOTOR DRIVER'S SEAT RECLINE MOTOR DRIVER'S SEAT SLIDE MOTOR ELECTRIC ENGINE COOLANT PUMP ELECTRIC VTC MOTOR ENGINE CONTROLS CIRCUIT ENGINE CONTROLS SYSTEM EPS MOTOR FRONT PASSENGER'S POWER WINDOW MOTOR FRONT PASSENGER'S SEAT RECLINE MOTOR FRONT PASSENGER'S SEAT SLIDE MOTOR HEAT BYPASS CONTROL MOTOR LEFT ACTUATOR LEFT REAR POWER WINDOW MOTOR LEFT/ RIGHT MOTOR MODE CONTROL MOTOR PASSENGER'S AIR MIX CONTROL MOTOR RADIATOR MAIN FAN MOTOR RECIRCULATION CONTROL MOTOR RIGHT ACTUATOR RIGHT REAR POWER WINDOW MOTOR RIGHT/ LEFT MOTOR TANDEM MOTOR CYLINDER THROTTLE ACTUATOR UP/ DOWN MOTOR WINDSHIELD WASHER MOTOR

FRONT INTERIOR LF ANTENNA GPS ANTENNA LF ANTENNA REAR BUMPER LF ANTENNA REAR INTERIOR LF ANTENNA REAR SHELF LF ANTENNA

CURRENT REGULATOR

LANE WATCH CAMERA REAR CAMERA CIRCUIT REAR VIEW CAMERA

4-PIN CONNECTOR CONSOLE ACCESSORY POWER SOCKET DUMMY CONNECTOR A FRONT ACCESSORY POWER SOCKET IPU CONNECTOR BASE A IPU CONNECTOR BASE B IPU CONNECTOR BASE C IPU CONNECTOR BASE C SHIELD IPU CONNECTOR BASE D IPU CONNECTOR BASE F OPTIONAL CONNECTOR A

BATTERY CHARGE CONTROL MODULE BODY CONTROL MODULE GAUGE CONTROL MODULE SBW SHIFTER CONTROL MODULE

ACOUSTIC VEHICLE ALERTING CONTROL UNIT ACTIVE NOISE CANCELLATION UNIT AUDIO UNIT AUDIO- NAVIGATION UNIT CENTER DISPLAY UNIT CLIMATE CONTROL UNIT CONTROL UNIT) DOOR MULTIPLEX CONTROL UNIT DRIVER'S WINDSHIELD WIPER CONTROL UNIT/ MOTOR DRIVER'S WINDSHIELD WIPER CONTROL UNIT/MOTOR ELECTRIC SERVO BRAKE CONTROL UNIT ELECTRIC SERVO BRAKE CONTROL UNIT SHIELD EPS CONTROL UNIT FRONT SEAT HEATER CONTROL UNIT FUEL GAUGE SENDING UNIT FUEL TANK UNIT HEAT PUMP CONTROL UNIT HOMELINK UNIT MANAGEMENT ECU MULTIPURPOSE CAMERA UNIT PARK PAWL ACTUATOR DRIVER UNIT PASSENGER'S WINDSHIELD WIPER CONTROL UNIT/ MOTOR PASSENGER'S WINDSHIELD WIPER CONTROL UNIT/MOTOR PLC UNIT POWER SEAT CONTROL UNIT RADIATOR MAIN FAN MOTOR RCF UNIT 1 RADIATOR SUB FAN MOTOR RCF UNIT 2 RF UNIT RFC UNIT 1 RFC UNIT 2 RFC UNIT 2 RADIATOR SUB FAN MOTOR SRS UNIT TELEMATICS CONTROL UNIT VSA MODULATOR CONTROL UNIT WASHER MOTOR CONTROL UNIT

12 VOLT BATTERY TERMINAL FUSE BOX AUXILIARY UNDER-DASH FUSE BOX AUXILIARY UNDER-HOOD FUSE BOX FUSE 1 FUSE 2 FUSE 2-1 FUSE 2-2 FUSE 2-3 FUSE 2-4 FUSE 2-5 FUSE 2-6 FUSE 3 FUSE 3-1 FUSE 3-2 FUSE 3-3 FUSE 3-4 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 12-1 FUSE 12-2 FUSE 12-3 FUSE 12-4 FUSE 12-5 FUSE 12-6 FUSE 12-8 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 29 FUSE 30 FUSE 31 FUSE 32 FUSE 33 FUSE 34 FUSE 35 FUSE 37 FUSE 38 FUSE 39 IPU FUSE A IPU FUSE B UNDER-DASH SUB FUSE BOX A UNDER-DASH SUB FUSE BOX B

LEFT HEADLIGHT RIGHT HEADLIGHT

DRIVER'S SEAT CUSHION HEATER DRIVER'S SEAT- BACK HEATER ELECTRIC COOLANT HEATER FRONT PASSENGER'S CUSHION HEATER FRONT PASSENGER'S SEAT BACK HEATER FRONT PASSENGER'S SEAT CUSHION HEATER HIGH-VOLTAGE PTC HEATER

ABS INDICATOR BRAKE HOLD INDICATOR CHARGE LID ILLUMINATION LAMP/ CHARGE INDICATOR CMBS INDICATOR EPS INDICATOR FRONT PASSENGER'S AIR BAG CUTOFF INDICATOR HIGH BEAM INDICATOR LEFT TURN SIGNAL INDICATOR LIGHTS ON INDICATOR LOW TIRE PRESSURE/ TPMS INDICATOR RIGHT TURN SIGNAL INDICATOR SEAT BELT REMINDER INDICATOR SECURITY INDICATOR LED SHIFT POSITION INDICATOR VSA INDICATOR VSA OFF INDICATOR

EXTERIOR LIGHTS INTERIOR LIGHTS INTERIOR LIGHTS, TRUNK, TAILGATE, FUEL DOORS SYSTEMS LIGHTS ON IND

DT ELECTRIC WATER PUMP ELECTRIC HEATER COOLANT PUMP ES ELECTRIC WATER PUMP

A/C MAIN RELAY ACC RELAY AUXILIARY UNDER HOOD RELAY BOX AUXILIARY UNDER-HOOD FUSE/RELAY BOX BLOWER MOTOR RELAY BRAKE LIGHT RELAY CHARGE CONNECTOR LOCK RELAY CHARGE CONNECTOR UNLOCK RELAY CHARGE LID ACTUATOR RELAY CHARGE LID ACTUATOR RELAY UNDER-DASH RELAY HOLDER B CHARGE LID ACTUATOR RELAY UNDER-DASH RELAY HOLDER C CONSOLE ACCESSORY POWER SOCKET RELAY DAYTIME RUNNING LIGHT RELAY DT ELECTRIC WATER PUMP RELAY DT ELECTRIC WATER PUMP RELAY AUXILIARY UNDER-HOOD FUSE/RELAY BOX ELECTRIC THROTTLE SYSTEM CONTROL RELAY ELECTRIC VTC RELAY ELECTRONIC THROTTLE SYSTEM CONTROL RELAY ENGINE EWP RELAY ES ELECTRIC WATER PUMP RELAY ES WATER VALVE RELAY FRONT ACCESSORY POWER SOCKET RELAY FRONT SEAT HEATER RELAY FRONT SEAT HEATER RELAY CIRCUIT FUEL FILL DOOR OPEN RELAY HEADLIGHT LOW BEAM RELAY HEAT PUMP VALVE RELAY HORN RELAY HOT W/ ACC RELAY ENERGIZED HOT W/ ELECTRONIC THROTTLE CONTROL SYSTEM CONTROL RELAY ENERGIZED HOT W/ IGB RELAY ENERGIZED IGA RELAY IGB RELAY IGC RELAY IGMG RELAY IGNITION COIL RELAY INTERIOR LIGHTS CUT RELAY PARK PAWL ACTUATOR RELAY PARK PAWL ACTUATOR RELAY UNDER-HOOD FUSE/RELAY BOX PARKING PAWL ACTUATOR RELAY PGM-FI MAIN RELAY 1 PGM-FI MAIN RELAY 2 QCCNT RELAY REAR WINDOW DEFOGGER RELAY RELAY CIRCUIT BOARD RELAY CIRCUIT BOARD BRAKE LIGHT RELAY RELAY CIRCUIT BOARD FUSE 18 RELAY ENERGIZED REVERSE RELAY RFC 1 RELAY RFC 2 RELAY SECURITY HORN RELAY TAILLIGHT RELAY TO RELAY CIRCUIT TRUNK LID OPENER SOLENOID RELAY TRUNK LID OPENER SOLENOID RELAY CIRCUIT UNDER- DASH FUSE/ RELAY BOX UNDER- HOOD FUSE/ RELAY BOX UNDER-DASH FUSE/RELAY BOX UNDER-DASH RELAY HOLDER A UNDER-DASH RELAY HOLDER B UNDER-DASH RELAY HOLDER C UNDER-HOOD FUSE/RELAY BOX UNDER-HOOD FUSE/RELAY BOX RELAY CIRCUIT BOARD

12 VOLT BATTERY SENSOR A/C COMPRESSOR INLET TEMPERATURE SENSOR A/C COMPRESSOR OUTLET TEMPERATURE SENSOR A/C CONDENSER OUTLET TEMPERATURE SENSOR A/C PRESSURE SENSOR APP SENSOR APP SENSOR 1 APP SENSOR 2 APP SENSOR A APP SENSOR B ATF TEMPERATURE SENSOR AUTOMATIC LIGHTING CONTROL UNIT-SENSOR BATTERY CURRENT SENSOR A BATTERY CURRENT SENSOR B BATTERY CURRENT SENSOR C BRAKE PEDAL STROKE SENSOR CKP SENSOR CMP SENSOR A CMP SENSOR B DRIVER'S HVAC TEMPERATURE SENSOR DRIVER'S PTC HEATER TEMPERATURE SENSOR DRIVER'S SEAT POSITION SENSOR DT RADIATOR COOLANT TEMPERATURE SENSOR ECT SENSOR 1 ECT SENSOR 2 EGR VALVE POSITION SENSOR EPS MOTOR ANGLE SENSOR ES COOLANT TEMPERATURE SENSOR 1 ES COOLANT TEMPERATURE SENSOR 2 ES COOLANT TEMPERATURE SENSOR 3 ES COOLANT TEMPERATURE SENSOR 4 EVAPORATOR TEMPERATURE SENSOR FTP SENSOR GENERATOR MOTOR ROTOR POSITION SENSOR GENERATOR MOTOR TEMPERATURE SENSOR HALL SENSOR HEATER CORE TEMPERATURE SENSOR HUMIDITY/ IN CAR TEMPERATURE SENSOR HUMIDITY/IN-CAR TEMPERATURE SENSOR IAT SENSOR 2 INTERIOR HEAT EXCHANGER INLET TEMPERATURE SENSOR INTERIOR HEAT EXCHANGER OUTLET PRESSURE SENSOR INTERIOR HEAT EXCHANGER OUTLET TEMPERATURE SENSOR KNOCK SENSOR KNOCK SENSOR SHIELD LEFT FRONT IMPACT SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT REAR WHEEL SPEED SENSOR MAF SENSOR/ IAT SENSOR 1 MOTOR ROTOR POSITION SENSOR MOTOR TEMPERATURE SENSOR OUTSIDE AIR TEMPERATURE SENSOR OUTSIDE AIR TEMPERATURE SENSOR A OUTSIDE AIR TEMPERATURE SENSOR B PARK POSITION SENSOR PASSENGER'S HVAC TEMPERATURE SENSOR PASSENGER'S PTC HEATER TEMPERATURE SENSOR POSITION SENSOR QUICK CHARGE INLET VOLTAGE SENSOR RIGHT FRONT IMPACT SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT REAR WHEEL SPEED SENSOR ROCKER ARM OIL PRESSURE SENSOR THROTTLE OPEN SENSOR TORQUE SENSOR TOUCH SENSOR TRACTION MOTOR ROTOR POSITION SENSOR TRACTION MOTOR TEMPERATURE SENSOR TRANSMISSION FLUID PRESSURE SENSOR

ACOUSTIC VEHICLE ALERTING SPEAKER DRIVER'S DOOR SPEAKER FRONT PASSENGER'S DOOR SPEAKER LEFT REAR DOOR SPEAKER RIGHT REAR DOOR SPEAKER

ACC COMBINATION SWITCH ACOUSTIC VEHICLE ALERTING SYSTEM OFF SWITCH/ VSA OFF SWITCH AUDIO REMOTE- HFL SWITCH AUTOMATIC BRAKE HOLD SWITCH BRAKE FLUID LEVEL SWITCH BRAKE HOLD SWITCH BRAKE PEDAL POSITION SWITCH CANCEL SWITCH CHARGE LID OPENER SWITCH CHARGE LID SWITCH CHARGER LID SWITCH CMBS OFF SWITCH CMBS OFF SWITCH/ RDM SWITCH CMBS OFF SWITCH/RDM SWITCH COMBINATION LIGHT SWITCH DASHLIGHTS BRIGHTNESS CONTROL SWITCH DISTANCE SWITCH DRIVER'S DOOR LOCK KNOB SWITCH DRIVER'S DOOR LOCK SWITCH DRIVER'S DOOR SWITCH DRIVER'S SEAT BELT BUCKLE SWITCH DRIVER'S SWITCH DRIVING POSITION MEMORY SWITCH ECON SWITCH ECON/SPORT MODE/EV SWITCH ELECTRIC PARKING BRAKE SWITCH FRONT PASSENGER'S DOOR LOCK SWITCH FRONT PASSENGER'S DOOR SWITCH FRONT PASSENGER'S POWER SEAT ADJUSTMENT SWITCH FRONT PASSENGER'S POWER WINDOW SWITCH FRONT PASSENGER'S SEAT BELT BUCKLE SWITCH FRONT PASSENGER'S SWITCH FUEL FILL DOOR SWITCH HAZARD WARNING SWITCH HEADLIGHT SWITCH HOOD LATCH SWITCH HORN SWITCH HV SWITCH KEY CYLINDER SWITCH LANE WATCH SWITCH LEFT FRONT INDIVIDUAL MAP LIGHT SWITCH LEFT REAR DOOR SWITCH LEFT REAR INDIVIDUAL MAP LIGHT SWITCH LEFT REAR POWER WINDOW SWITCH LEFT REAR SWITCH LKAS SWITCH LOCK KNOB SWITCH LOCK SWITCH MAIN SWITCH POSITION 1 SWITCH POSITION 2 SWITCH POWER MIRROR SWITCH POWER SWITCH POWER WINDOW MASTER SWITCH RDM SWITCH RECLINE SWITCH RES/+ SWITCH RIGHT FRONT INDIVIDUAL MAP LIGHT SWITCH RIGHT REAR DOOR SWITCH RIGHT REAR INDIVIDUAL MAP LIGHT SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT REAR SWITCH ROCKER ARM OIL PRESSURE SWITCH SET SWITCH SLIDE SWITCH SPORT SWITCH TRUNK LID LATCH SWITCH TRUNK LID OUTER HANDLE SWITCH/ LICENSE PLATE LIGHT TRUNK LID OUTER HANDLE SWITCH/LICENSE PLATE LIGHT TRUNK LID/ FUEL FILL DOOR OPENER SWITCH TURN SIGNAL SWITCH VSA OFF SWITCH WASHER FLUID LEVEL SWITCH WASHER SWITCH WINDSHIELD WIPER/WASHER SWITCH WIPER SWITCH

BYPASS SOLENOID VALVE 1 BYPASS SOLENOID VALVE 2 COOLING SOLENOID VALVE EGR VALVE ELECTRIC EXPANSION VALVE ELECTRIC WATER VALVE ES WATER VALVE EVAP CANISTER PURGE VALVE FUEL FILL DOOR OPENER SOLENOID FUEL VAPOR CONTAINMENT VALVE HEATING SOLENOID VALVE ROCKER ARM OIL CONTROL VALVE SHIFT SOLENOID VALVE A SHIFT SOLENOID VALVE B

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/RED WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BRN WIRE GRN WIRE GRY WIRE LT BLU WIRE LT GRN WIRE NCA WIRE ORG/ WIRE PNK HEADLIGHTS SYSTEM WIRE PNK WIRE PPL PNK WIRE PPL/BLK WIRE PPL/BLU WIRE PPL/BRN WIRE PPL/GRN WIRE PPL/GRY WIRE PPL/LT BLU WIRE PPL/LT GRN WIRE PPL/PNK WIRE PPL/RED WIRE PPL/TAN WIRE PPL/WHT WIRE PPL/YEL WIRE RED WIRE RED/BLU WIRE TAN WIRE WHT WIRE WHT/BLK WIRE YEL WIRE

0 = LOW 1 = HIGH 2 = PASSING 0) OFF 1) PARK 2) AUTO 3) HEAD 6 PIN CONNCETOR 6 PIN CONNNECTOR 14 PIN CONNCETOR 14 PIN CONNNECTOR ABS IND. AIR CONDITIONING SYSTEM AS IND AUTO DOWN AUTO UP AUTOMATIC DIMMING INSIDE MIRROR B-CAN B-CAN H B-CAN L BACKUP LAMPS CIRCUIT BRAKE HOLD IND BRAKE LIGHT CABLE REEL CAN GATEWAY CENTER TRAY LIGHT CHARGE INLET CLIMATE CONTROL PANEL CMBS IND COMPUTER DATA LINES SYSTEM COOLING FANS SYSTEM COURTESY LAMPS CIRCUIT CRUISE CONTROL SYSTEM DATA LINES DC-DC CONVERTER DEFOGGER SYSTEM DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOWN RIGHT DOWN/ LEFT DR IND DRIVER'S AIR BAG FIRST INFLATOR DRIVER'S AIR BAG SECOND INFLATOR DRIVER'S DOOR DRIVER'S DOOR LATCH DRIVER'S DOOR OUTER HANDLE DRIVER'S FOOTWELL LIGHT DRIVER'S KNEE AIR BAG INFLATOR DRIVER'S SEAT BELT TENSIONER DRIVER'S SIDE AIR BAG INFLATOR DRIVER'S VANITY MIRROR LIGHT ELECTRIC A/C COMPRESSOR ELECTRIC PLUG-IN HYBRID ELECTRIC, PLUG-IN HYBRID W/ POWER SEAT EPS IND EVAP LEAK CHECK MODULE F-CAN F-CAN H F-CAN L FRONT HFL- NAVIGATION ANC MICROPHONE FRONT PASSENGER'S AIR BAG INFLATOR FRONT PASSENGER'S DOOR LATCH FRONT PASSENGER'S DOOR OUTER HANDLE FRONT PASSENGER'S FOOTWELL LIGHT FRONT PASSENGER'S SEAT BELT TENSIONER FRONT PASSENGER'S SIDE AIR BAG INFLATOR GLOVE BOX LIGHT HEADLIGHTS SYSTEM HIGH LOW HIGH MOUNT BRAKE LIGHT HORNS SYSTEM HOT AT ALL TIMES HOT W/ IDENTIFICATION RESISTANCE INFORMATION DISPLAY INJECTOR 1 INJECTOR 2 INJECTOR 3 INJECTOR 4 INSTRUMENT CLUSTER SYSTEM INSTRUMENT ILLUMINATION CIRCUIT INTERMITTENT DWELL TIME CONTROLLER IPU JUNCTION 1 IPU JUNCTION 2 JOINT 1 JOINT 2 JOINT 3 JOINT 4 JOINT 5 JOINT 6 JOINT 7 JOINT 8 JOINT 9 JOINT 10 JOINT 11 JOINT 12 JOINT 13 JOINT 14 JOINT 15 JOINT 15 JOINT 16 JOINT 16 JOINT 17 JOINT 17 JOINT 18 JOINT 18 JOINT 18 JOINT 19 JOINT 19 JOINT 20 JOINT 21 JOINT 22 JOINT 23 JOINT 24 JOINT 25 JOINT 26 JOINT 27 JOINT 28 JOINT 29 JOINT 30 JOINT 31 JOINT 32 JOINT 33 JOINT 34 JOINT 34 JOINT 38 JOINT 35 JOINT 35 JOINT 39 JOINT 36 JOINT 37 JOINT 37 JOINT 41 JOINT 38 JOINT 39 JOINT 40 JOINT 41 JUNCTION BOARD KEYLESS BUZZER LEFT FRONT PARKING/ DAYTIME RUNNING LIGHT LEFT FRONT TWEETER LEFT INNER TAILLIGHT LEFT POWER MIRROR LEFT REAR DOOR LATCH LEFT REAR TWEETER LEFT SIDE AIR BAG INFLATOR LEFT SIDE CURTAIN AIR BAG INFLATOR LEFT TAILLIGHT LOW TIRE PRESSURE/TPMS IND LOW TRIP/ TPMS IND LOWER REAR WINDOW DEFOGGER LR IND MAIN JUNCTION BOARD MEMORY SYSTEMS MILLIMETER WAVE RADAR MIST HIGH MULTI- MULTI-INFORMATION DISPLAY NAVIGATION SYSTEM NAVIGATION, CRUISE CONTROL SYSTEMS NOISE CONDENSER OVERHEAD CONSOLE PASSENGER'S VANITY MIRROR LIGHT PLUG-IN HYBRID PLUG-IN HYBRID ELECTRIC PLUG-IN HYBRID W/O POWER SEAT POWER DISTRIBUTION SYSTEM POWER MIRROR DEFOGGER POWER TRANSISTOR POWER WINDOWS SYSTEM PPL PPL QUICK CHARGE JUNCTION BOARD QUICK CHARGE JUNCTION BOARD SHIELD QUICK CHARGER JUNCTION BOARD RDM/LDW IND REAR ACTIVE NOISE CANCELLATION MICROPHONE REAR IND REAR INDIVIDUAL MAP LIGHT RIGHT FRONT PARKING/ DAYTIME RUNNING LIGHT RIGHT FRONT TWEETER RIGHT INNER TAILLIGHT RIGHT LEFT RIGHT POWER MIRROR RIGHT REAR DOOR LATCH RIGHT REAR TWEETER RIGHT SIDE AIR BAG INFLATOR RIGHT SIDE CURTAIN AIR BAG INFLATOR RIGHT TAILLIGHT ROOF CONSOLE MODULE ROOF MODULE) RR IND SEAT BELT REMINDER IND SELECTABLE ENERGY ABSORPTION DEVICE SERVICE PLUG A SERVICE PLUG B SHIFT INTERLOCK SYSTEM SIDE MARKER SOUND SYSTEMS SPARK PLUG SPEEDOMETER, MULTI-INFORMATION DISPLAY SUB JUNCTION BOARD SUPPLEMENTAL RESTRAINTS SYSTEM SW 1 SW 2 SW 3 THERMAL JOINT 4 TRANSMISSION HOUSING) TRANSMISSIONS SYSTEM TRUNK LID LATCH TRUNK, TAILGATE, FUEL DOORS SYSTEM UNDER-DASH SUBFUSE BOX A UNDER-DASH SUBFUSE BOX B UNLOCK IND UP LEFT UP/ RIGHT UPPER REAR WINDOW DEFOGGER USB PORT A USB PORT B VSA IND VSA OFF IND WIPER/WASHER SYSTEM
