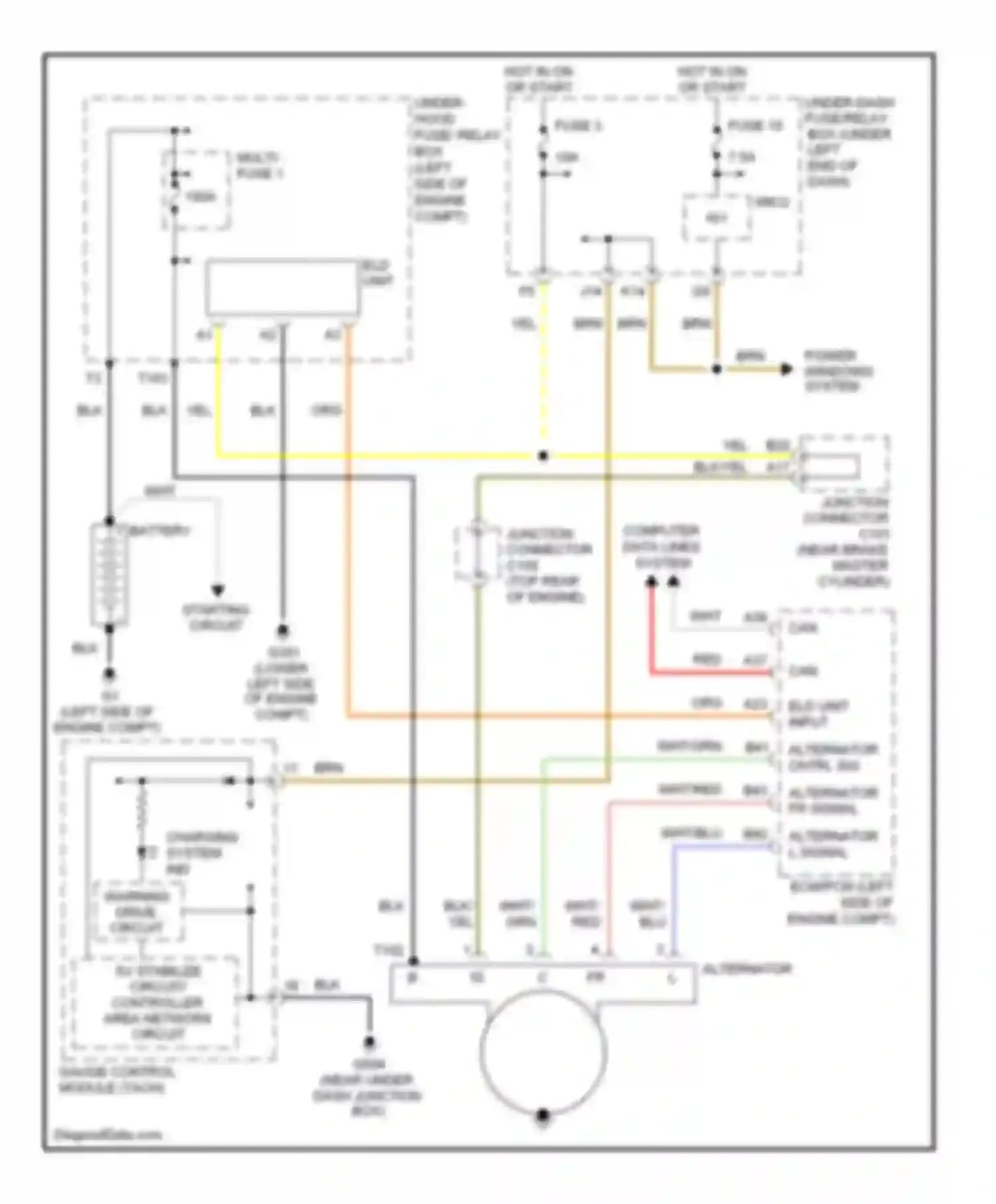

2.0l, charging circuit for Honda Civic VIII facelift (2008-2011)
2.0l, charging circuit
ALTERNATOR CNTRL SIG
ALTERNATOR FR
ALTERNATOR FR SIGNAL
ALTERNATOR L SIGNAL
BATTERY
BLK WIRE
BLK/YEL WIRE
BLU WIRE
BOX (UNDER LEFT END OF DASH)
BRN WIRE
CAN L
CHARGING SYSTEM IND
CIRCUIT/ CONTROLLER AREA NETWORK CIRCUIT
COMPUTER DATA LINES SYSTEM
ECM/PCM (LEFT SIDE OF ENGINE COMPT)
ELD UNIT
ELD UNIT INPUT
FUSE 10
FUSE 3
GAUGE CONTROL MODULE (TACH)
GRN WIRE
HOT IN ON OR START
JUNCTION CONNECTOR
MICU
MULTI FUSE 1
ORG/ WIRE
POWER WINDOWS SYSTEM
RED WIRE
STARTING CIRCUIT
UNDER- HOOD FUSE/ RELAY BOX (LEFT SIDE OF ENGINE COMPT)
UNDER-DASH FUSE/RELAY
WARNING DRIVE CIRCUIT
WHT WIRE
WHT/BLU WIRE
WHT/GRN WIRE
WHT/RED WIRE
YEL WIRE
