Wiring Diagrams for Honda Civic VII facelift (2003-2006)

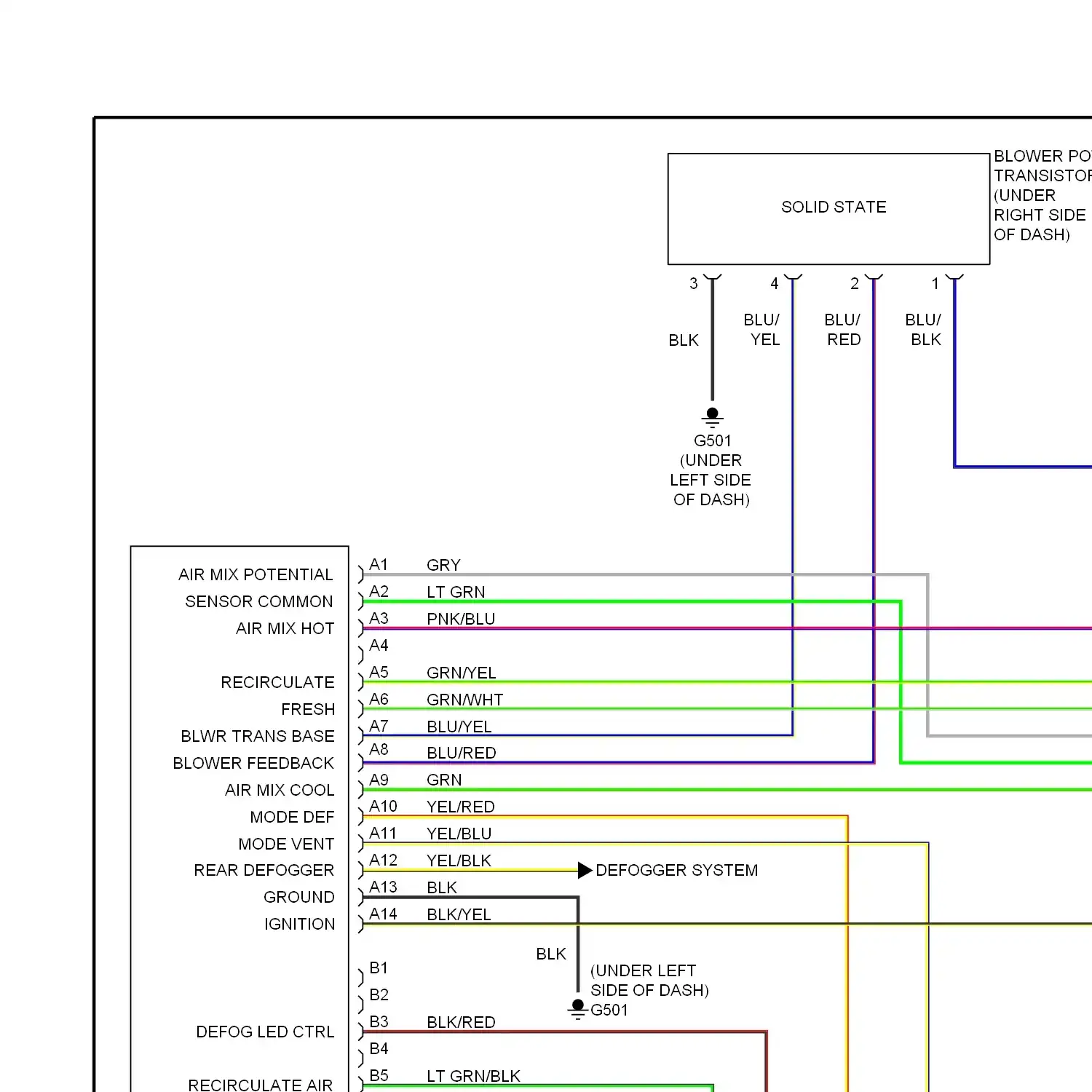

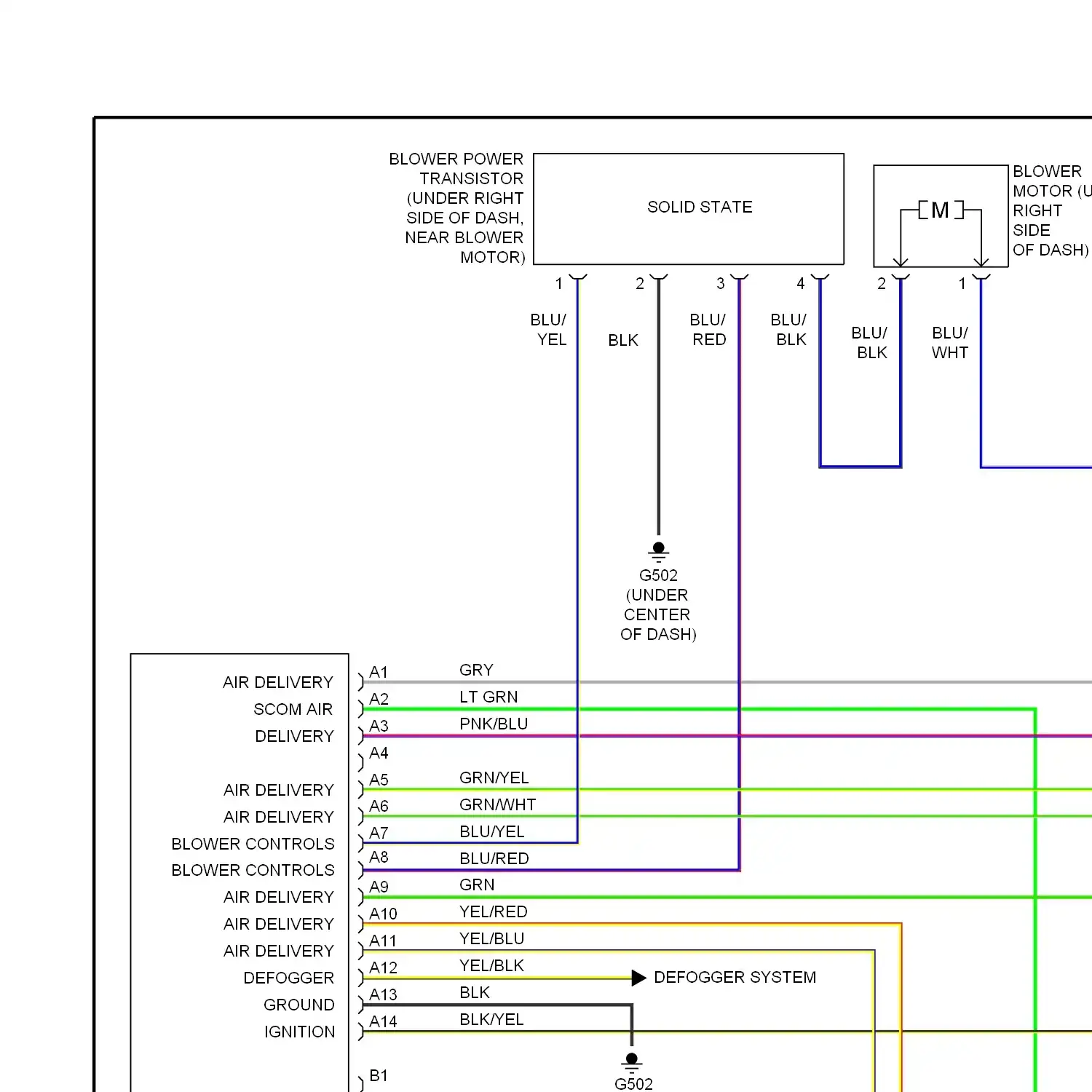

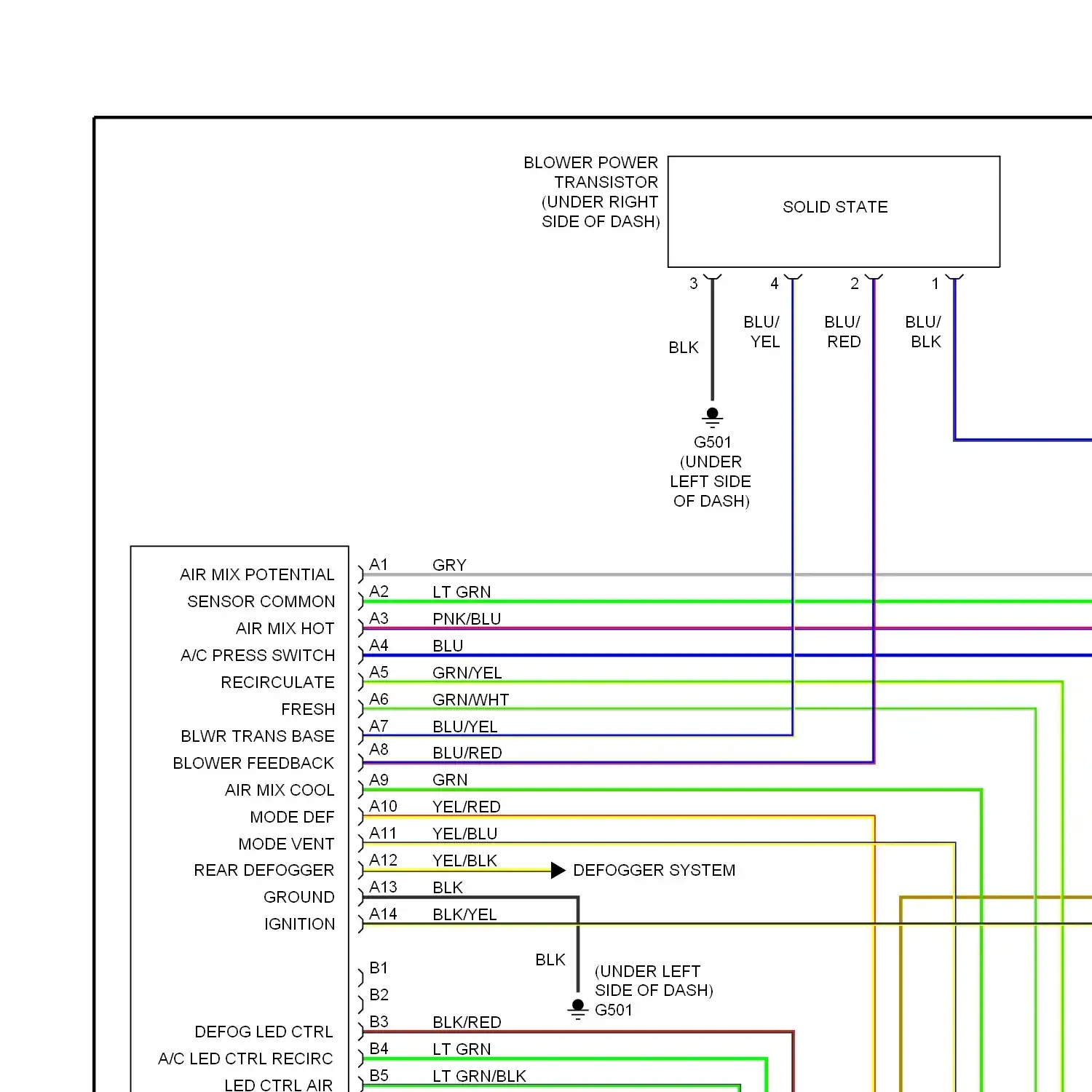

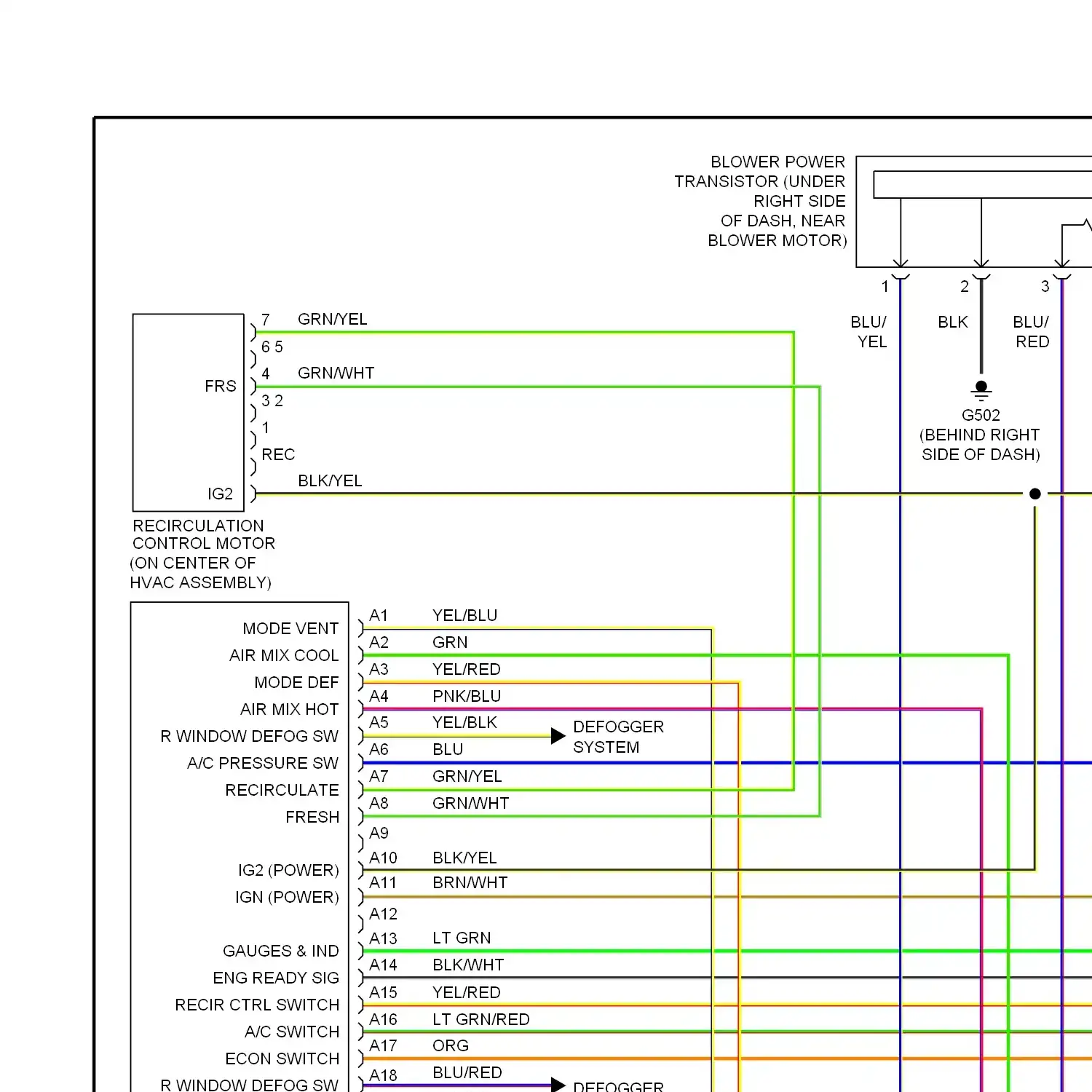

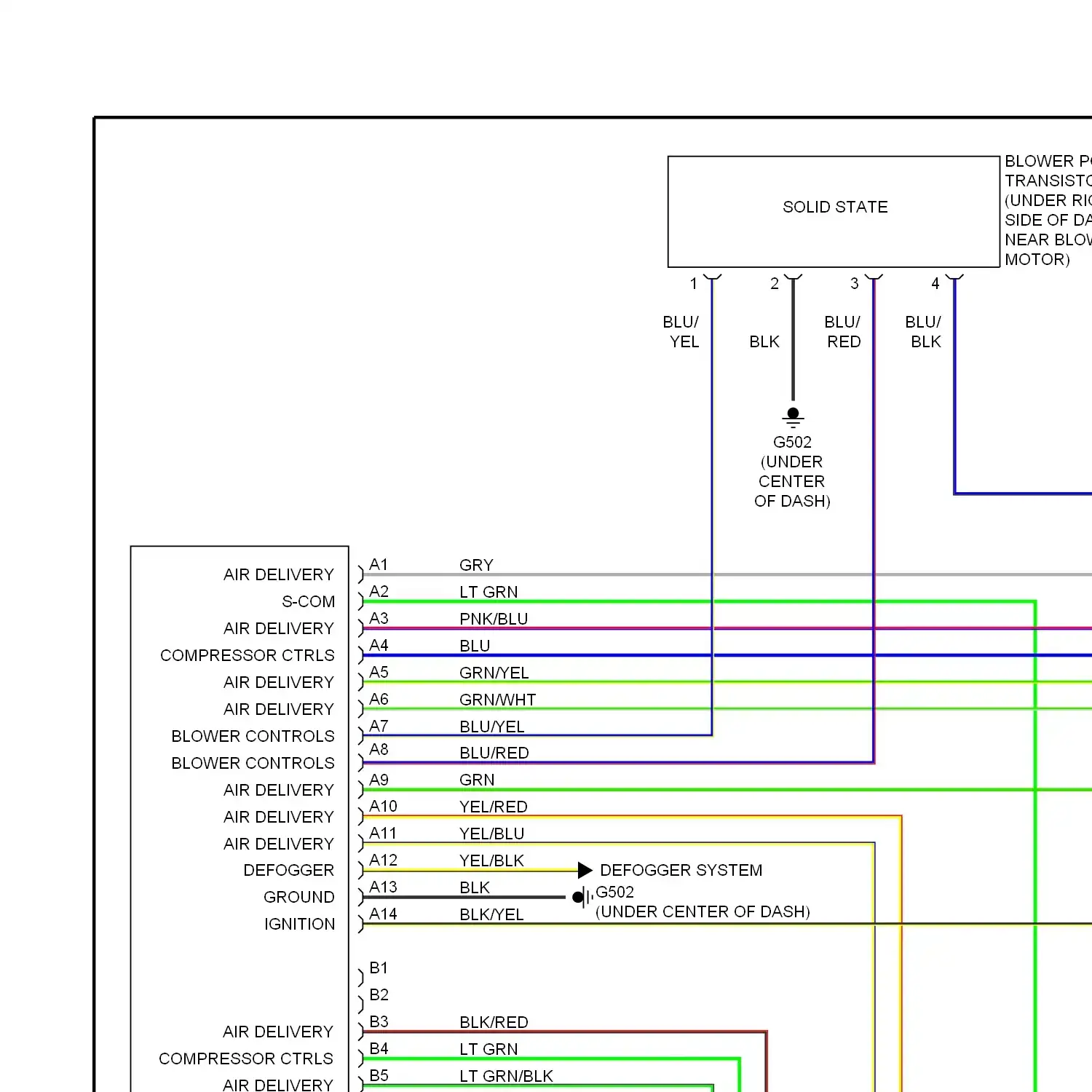

Automatic a/c circuit, hybrid Heater circuit, except hatchback & hybrid Heater circuit, hatchback Manual a/c circuit, except hatchback & hybrid Manual a/c circuit, hatchback

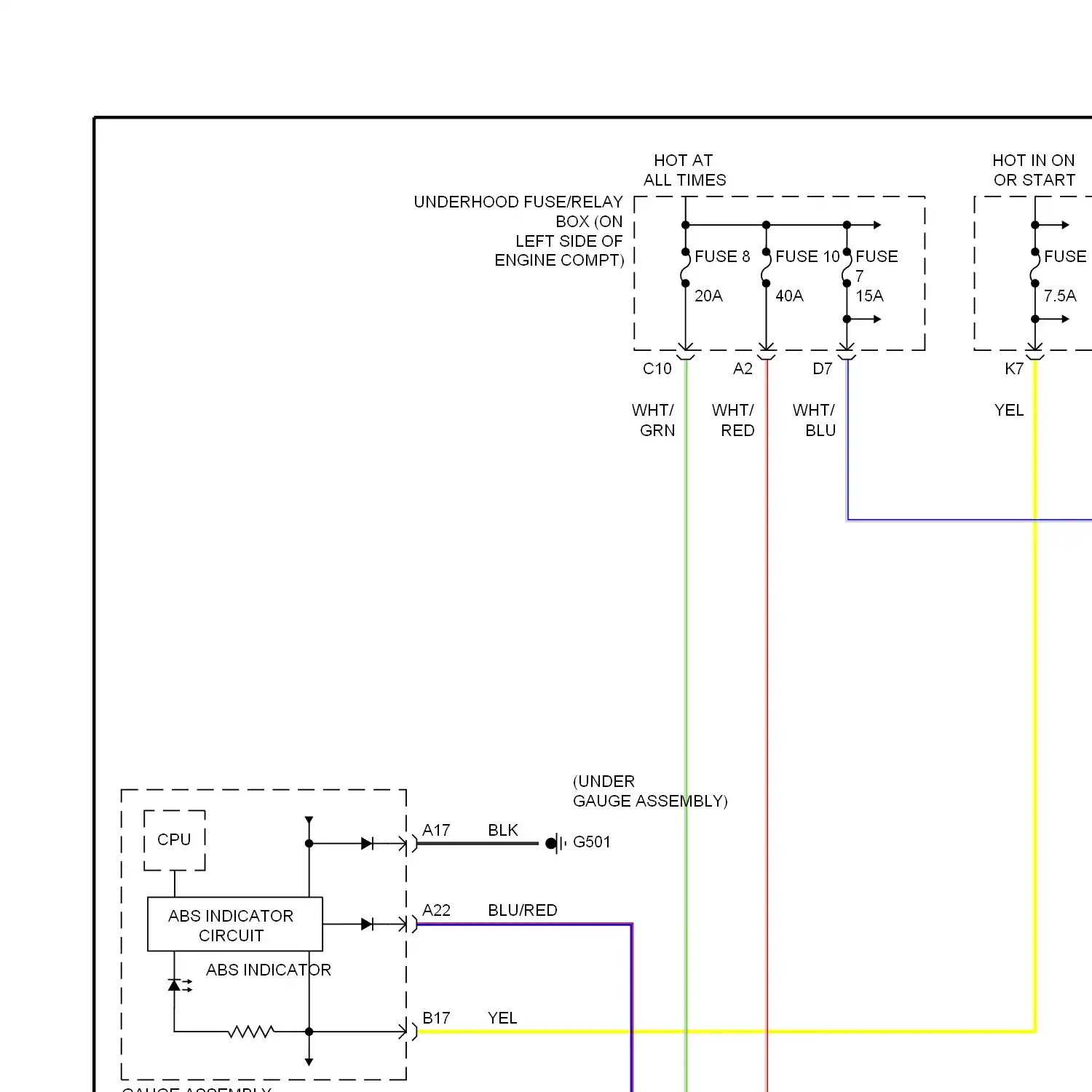

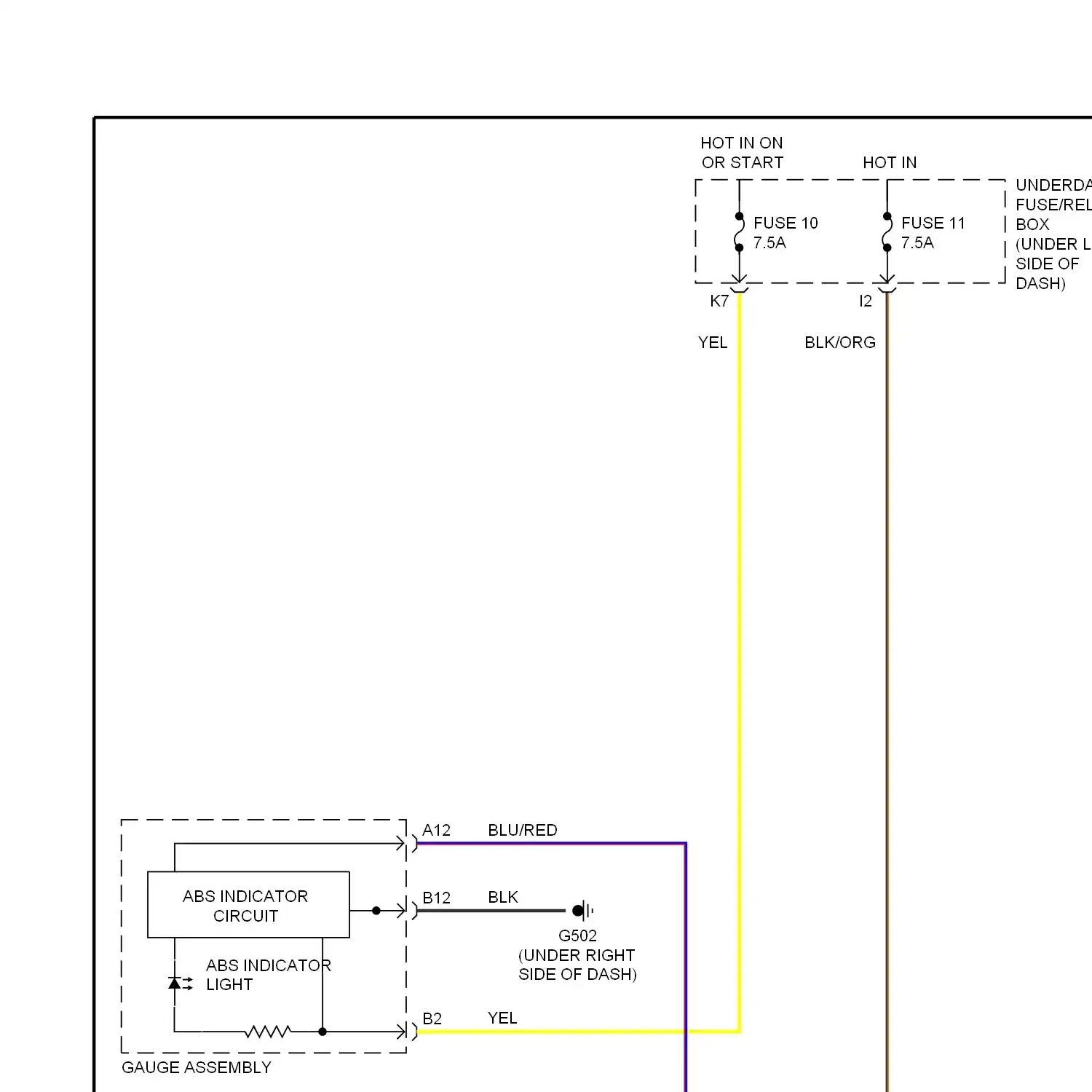

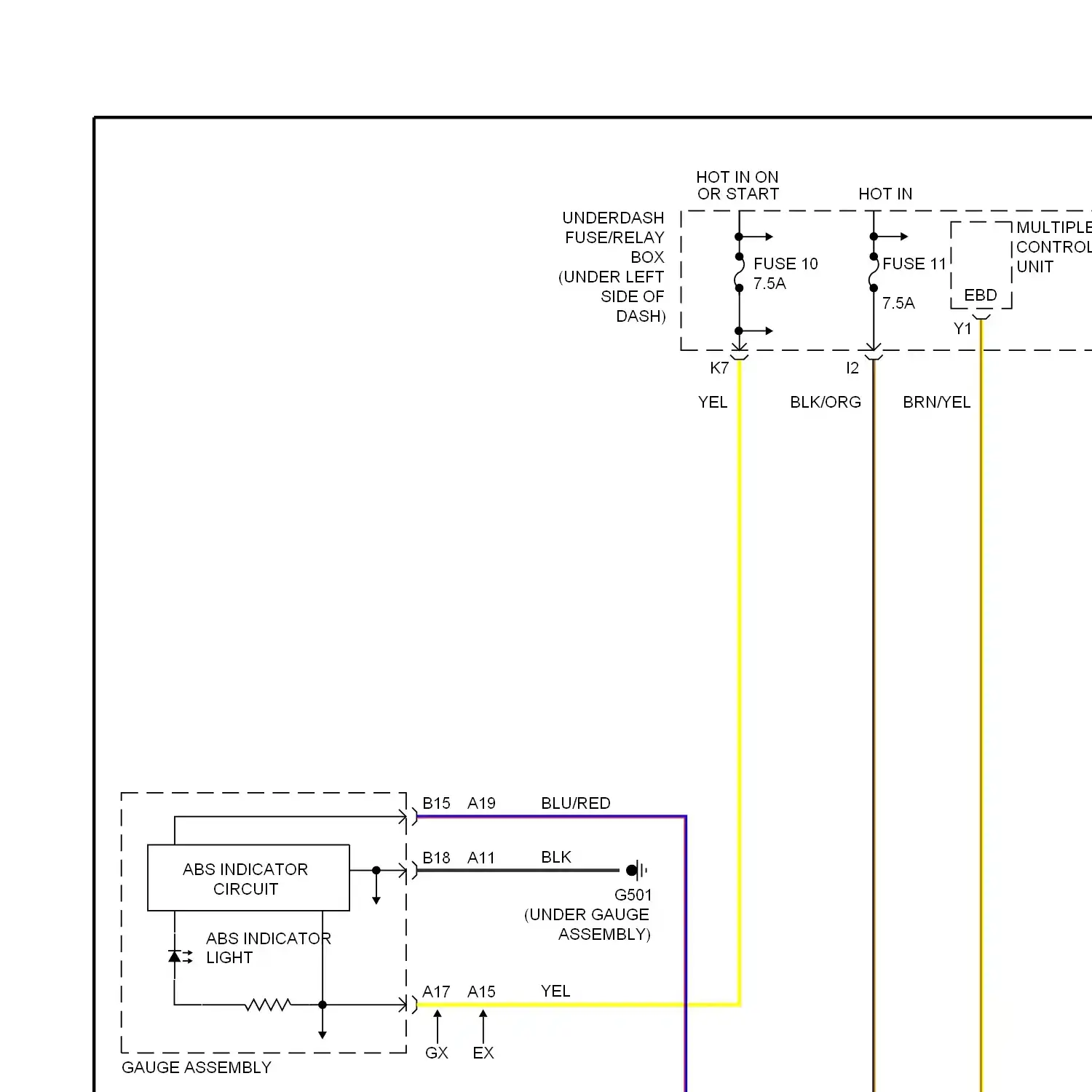

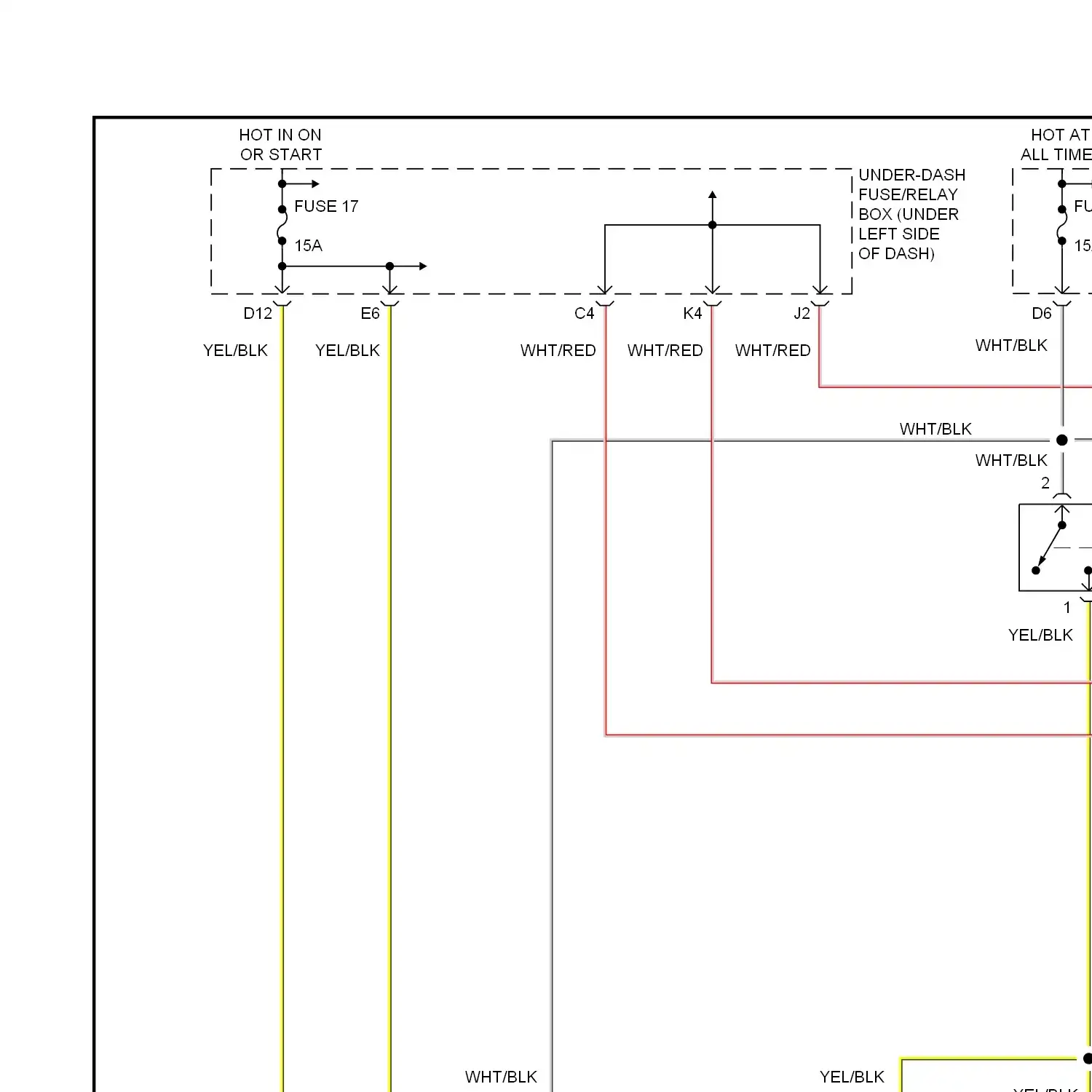

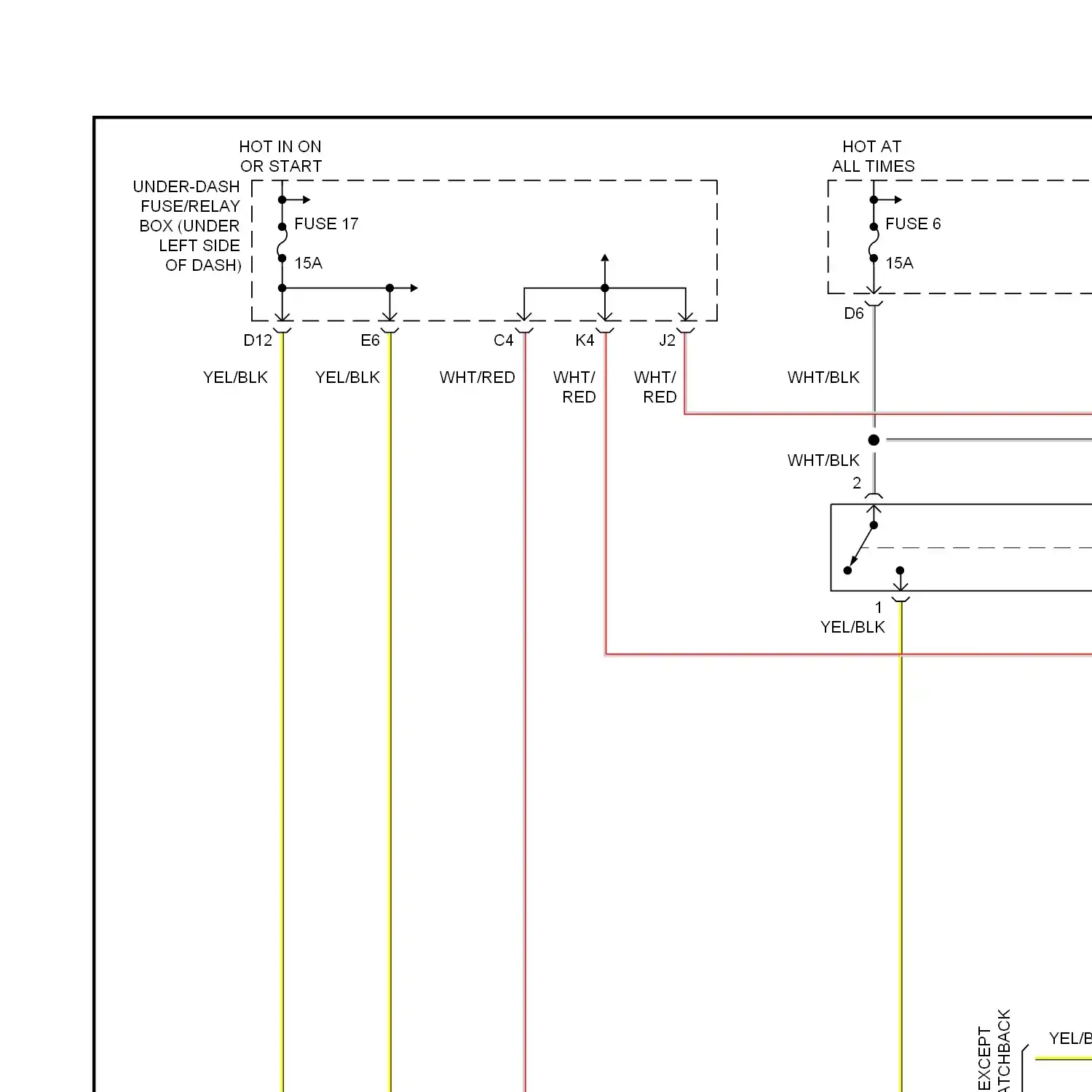

Anti-lock brakes circuit, except hatchback & hybrid Anti-lock brakes circuit, hatchback Anti-lock brakes circuit, hybrid

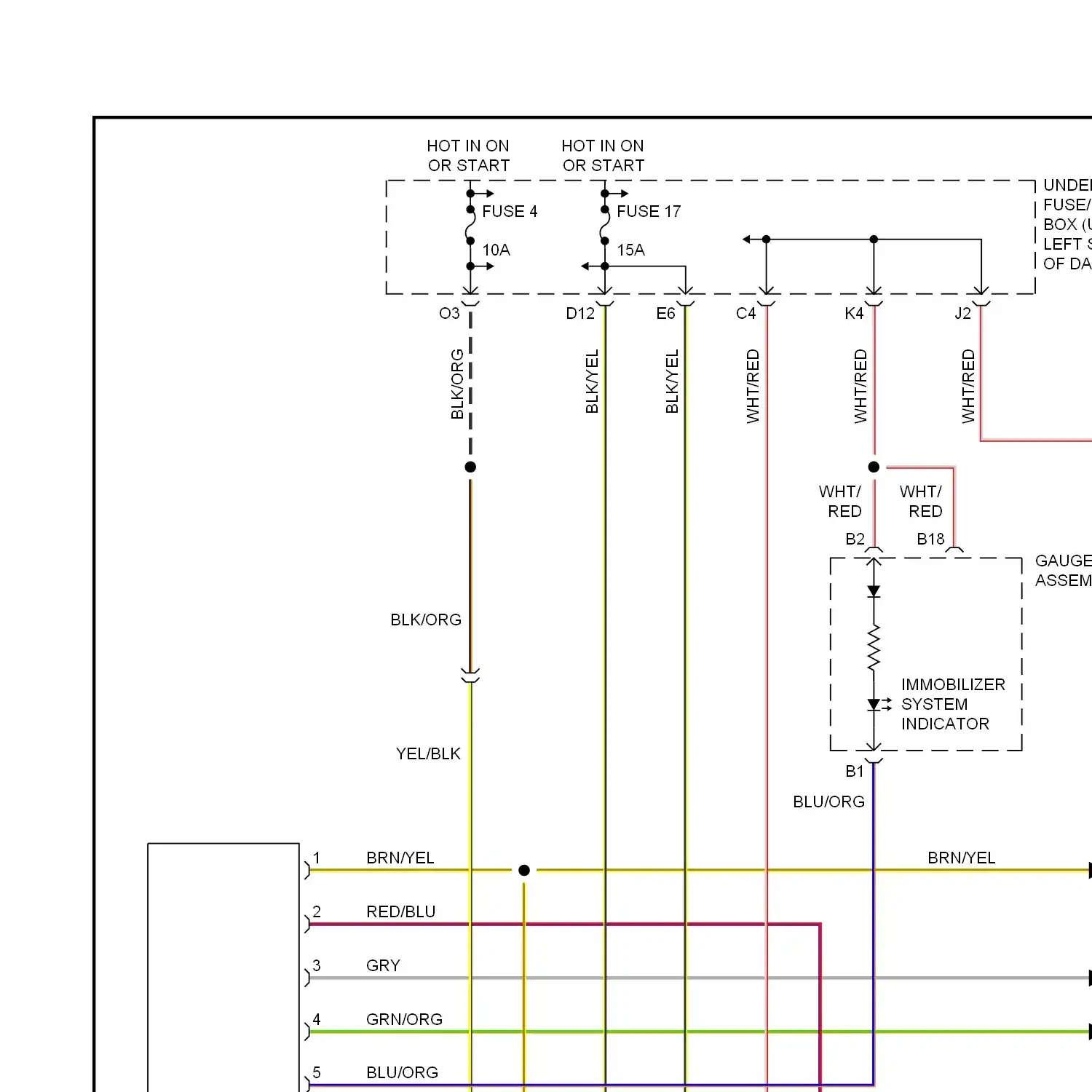

Forced entry circuit, except hatchback & hybrid Forced entry circuit, hatchback Forced entry circuit, hybrid Immobilizer circuit, except gx & hybrid Immobilizer circuit, gx Immobilizer circuit, hybrid

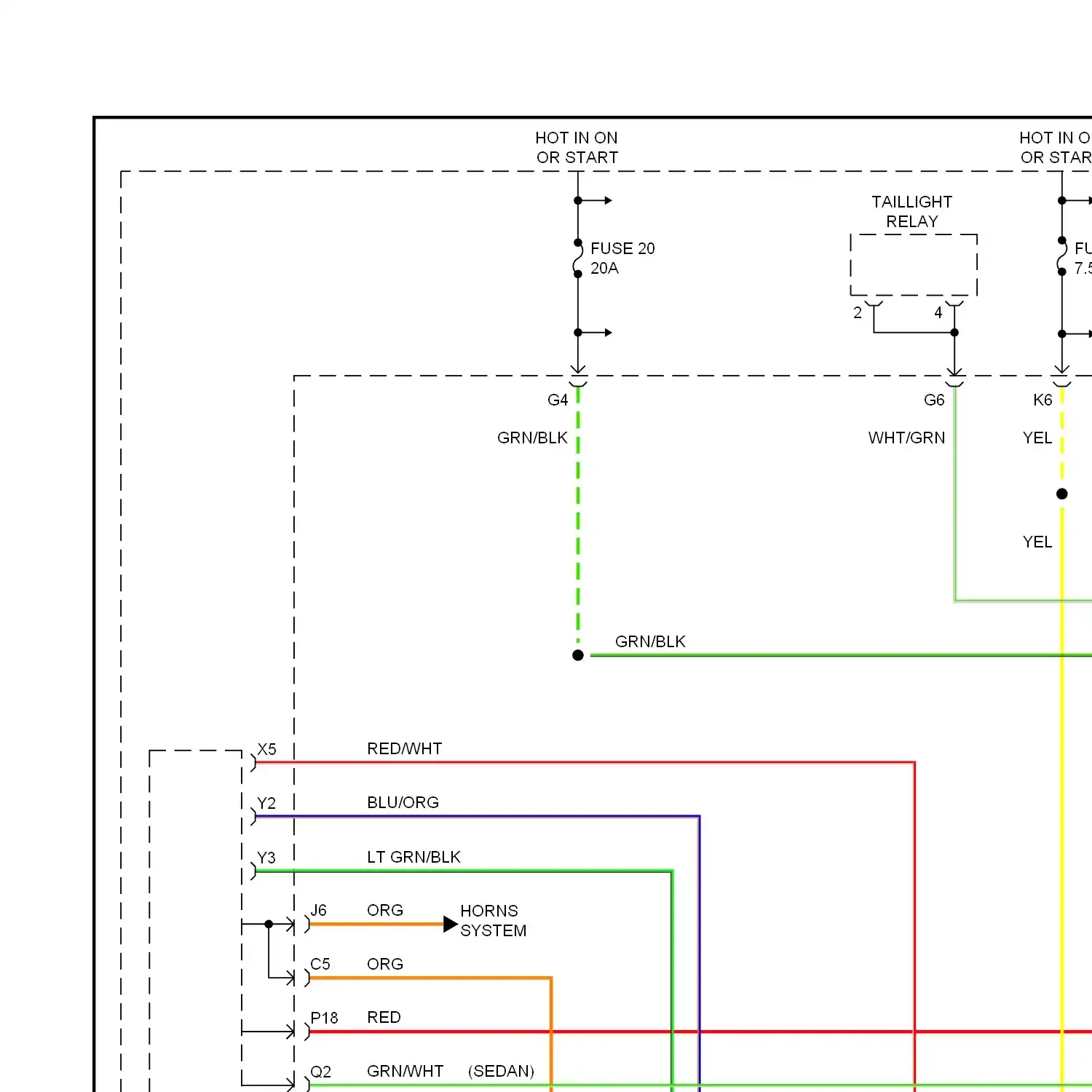

Body control modules circuit, except hatchback & hybrid Body control modules circuit, hatchback Body control modules circuit, hybrid

Computer data lines circuit, except hatchback & hybrid Computer data lines circuit, hatchback Computer data lines circuit, hybrid

Cooling fan circuit, except hatchback & hybrid Cooling fan circuit, hatchback Cooling fan circuit, hybrid

Cruise control circuit, except hatchback & hybrid Cruise control circuit, hatchback Cruise control circuit, hybrid

Heated mirrors circuit, except hatchback & hybrid Heated mirrors circuit, hatchback Heated mirrors circuit, hybrid Rear defogger circuit, coupe Rear defogger circuit, hatchback Rear defogger circuit, hybrid Rear defogger circuit, sedan

Electronic power steering circuit, hatchback Electronic power steering circuit, hybrid

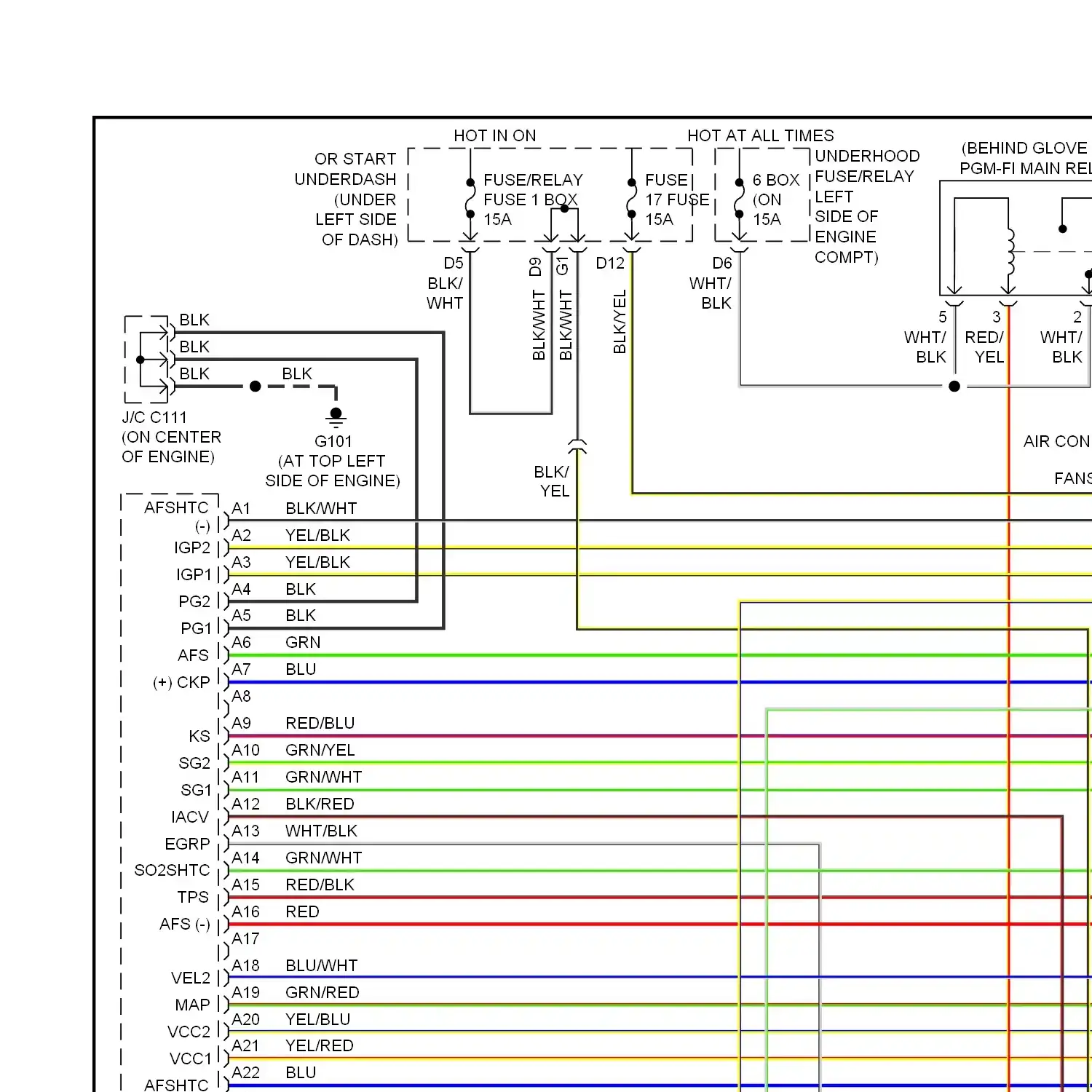

Wiring diagram engine performance ima circuit

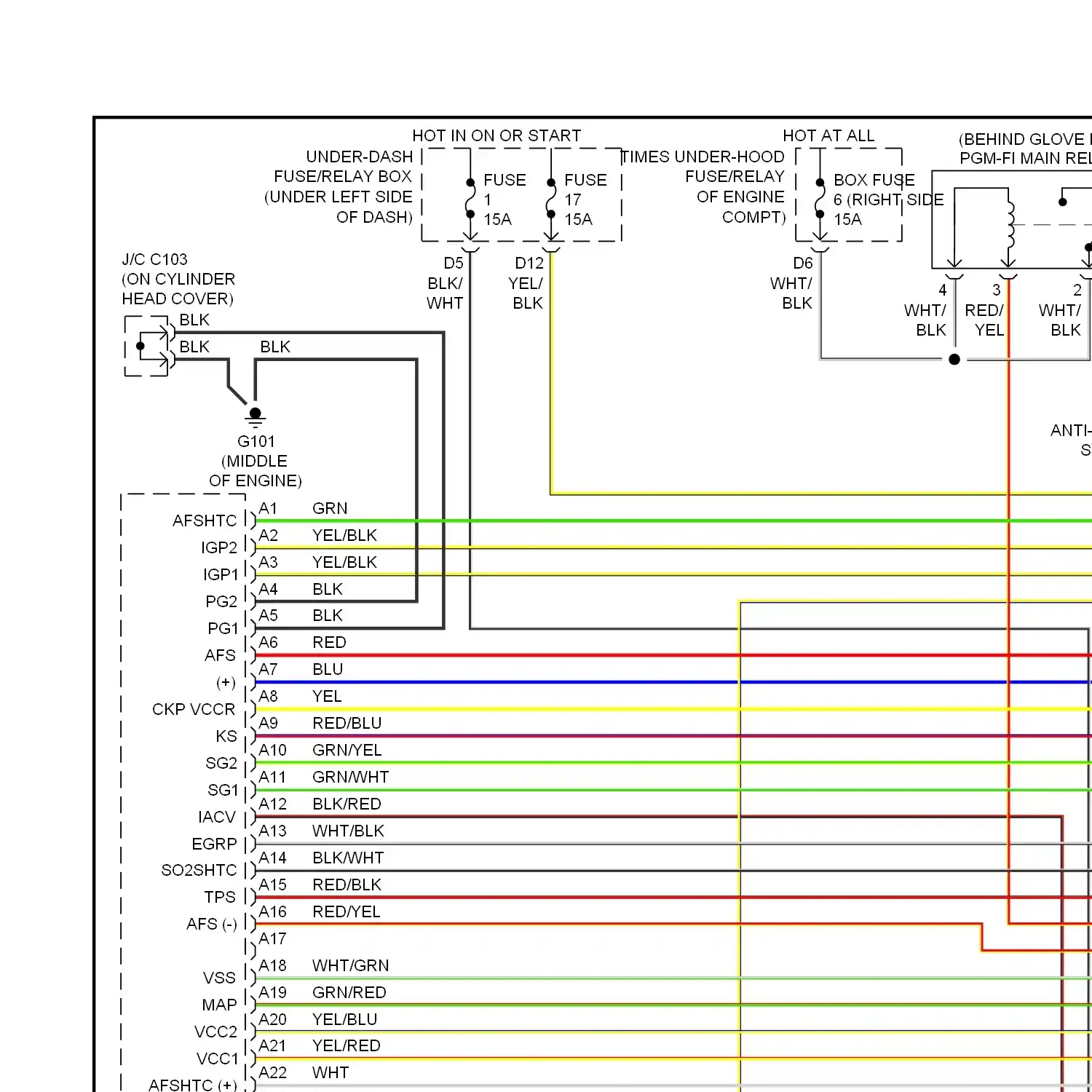

Wiring diagram engine performance 1.3l, a/t Wiring diagram engine performance 1.3l, m/t

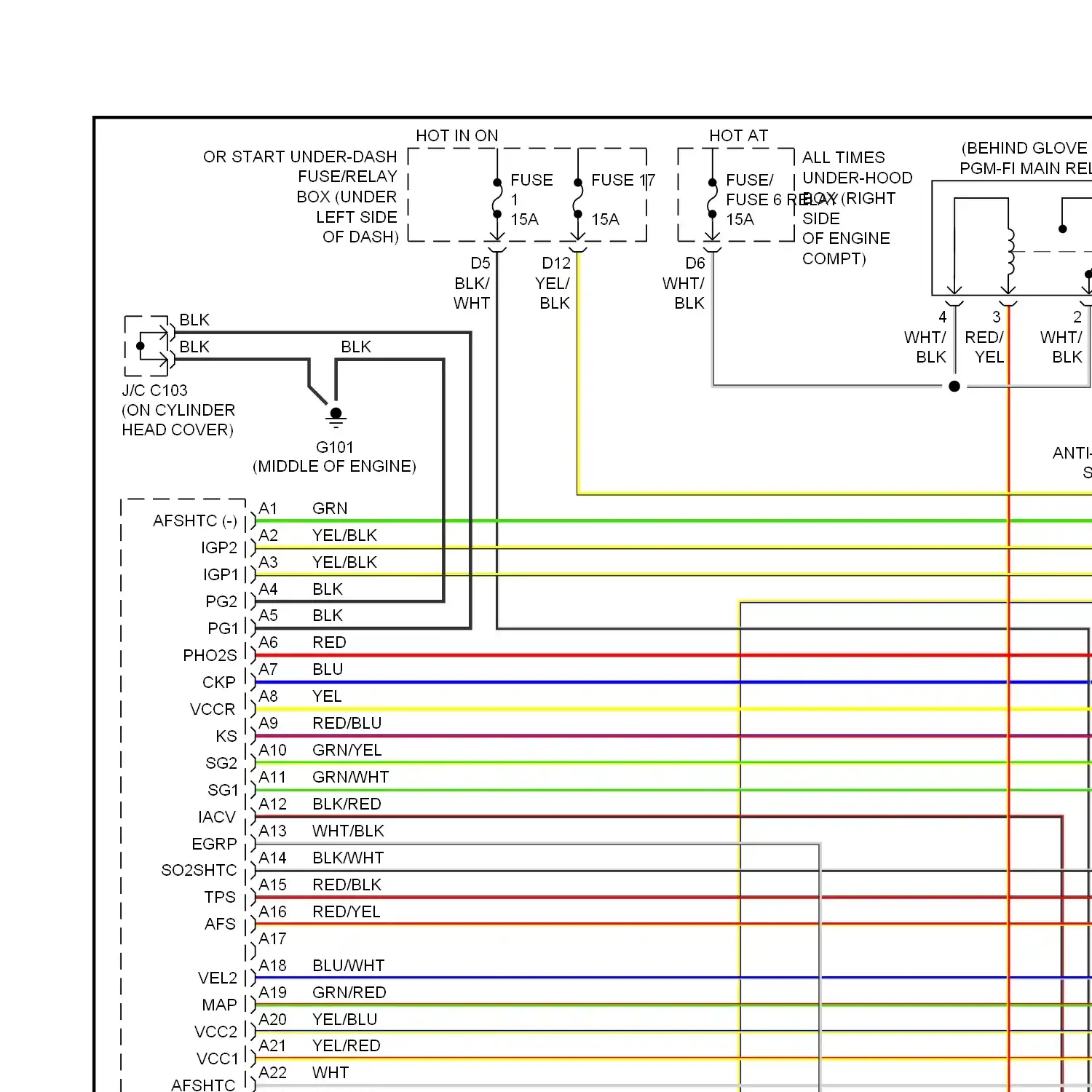

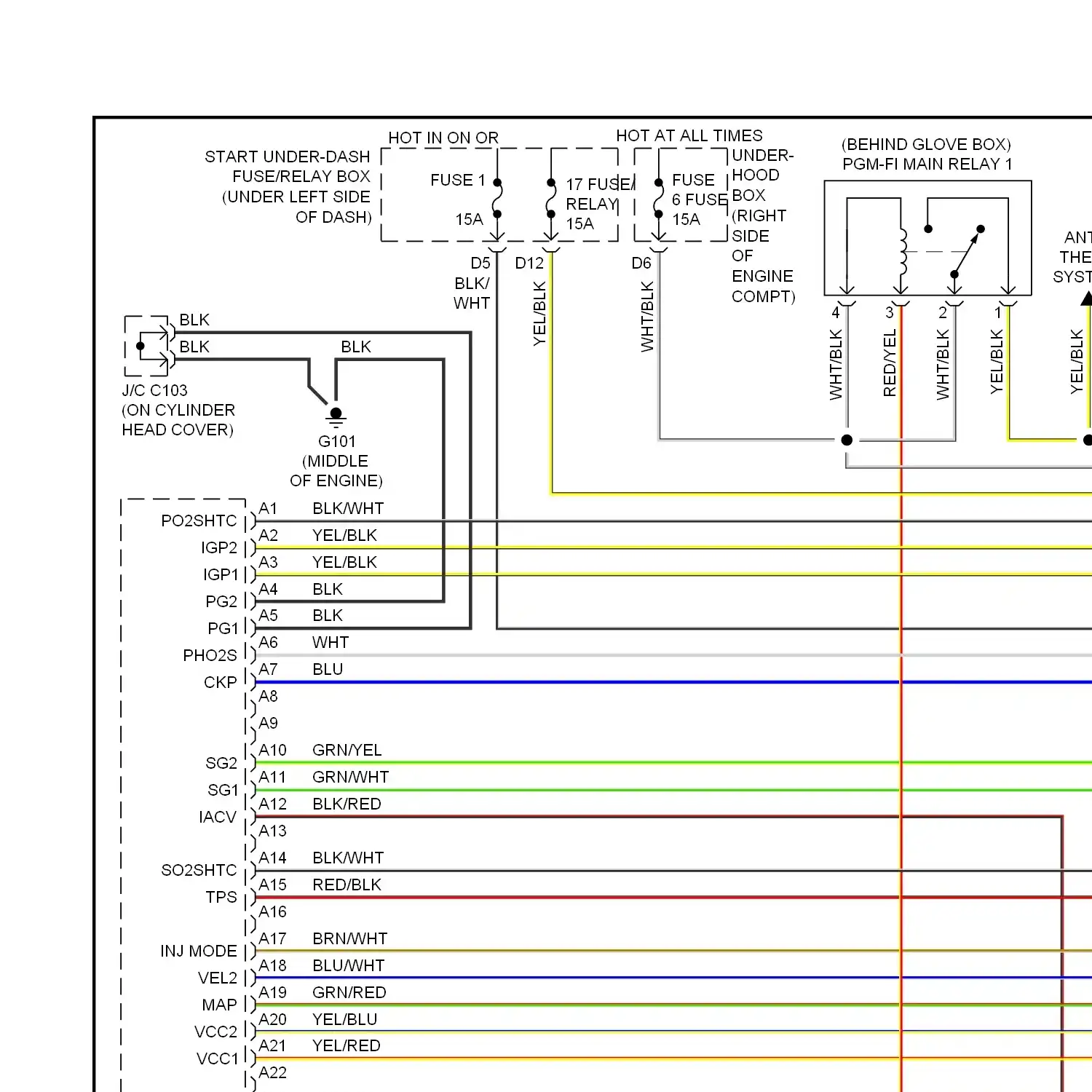

Wiring diagram engine performance 1.7l, except hx & gx Wiring diagram engine performance 1.7l, gx Wiring diagram engine performance 1.7l, hx a/t Wiring diagram engine performance 1.7l, hx m/t

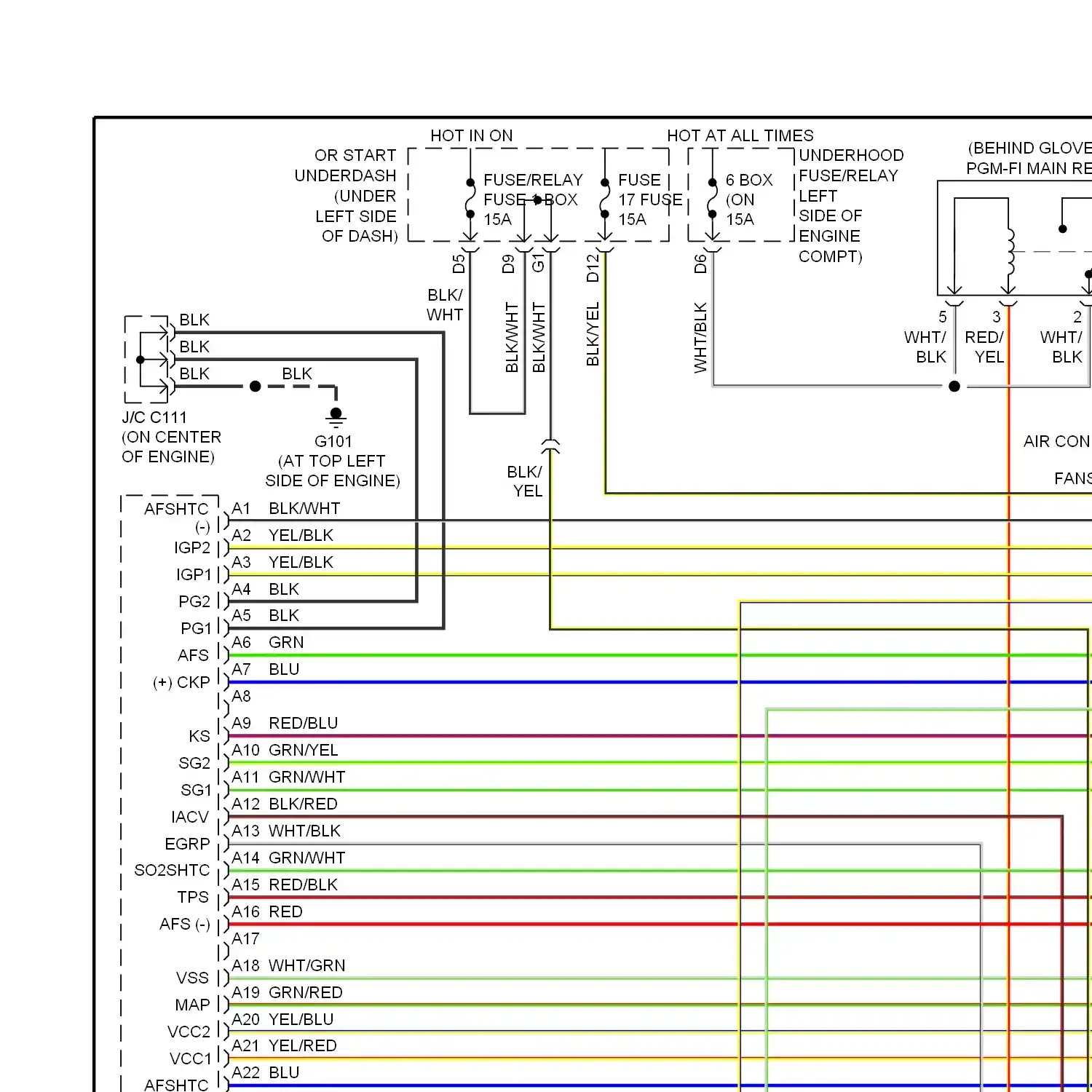

Wiring diagram engine performance 2.0l

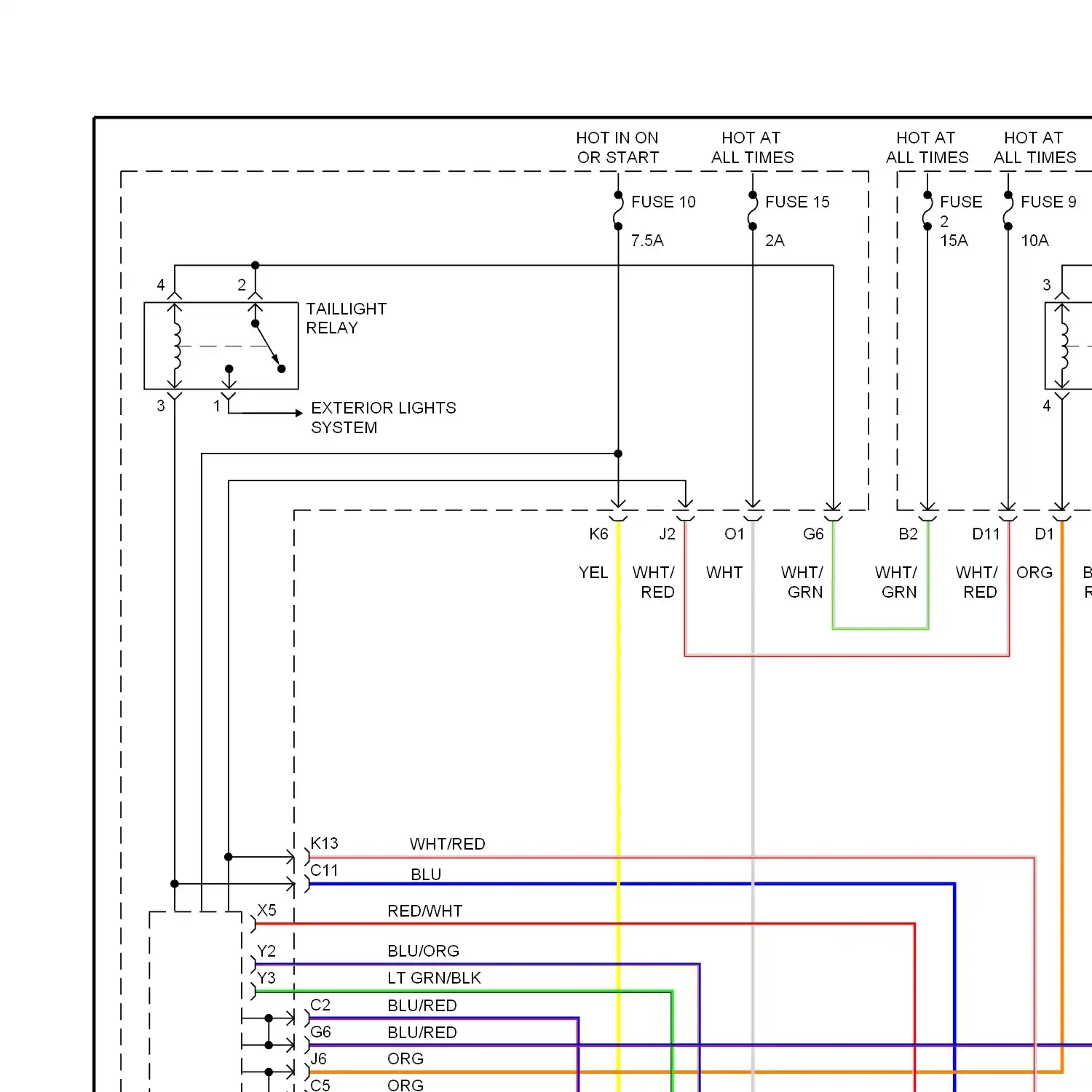

Back-up lamps circuit, except hatchback & hybrid Back-up lamps circuit, hatchback Back-up lamps circuit, hybrid Exterior lamps circuit, except hatchback & hybrid Exterior lamps circuit, hatchback Exterior lamps circuit, hybrid

Ground distribution circuit, except hatchback & hybrid Ground distribution circuit, hatchback Ground distribution circuit, hybrid

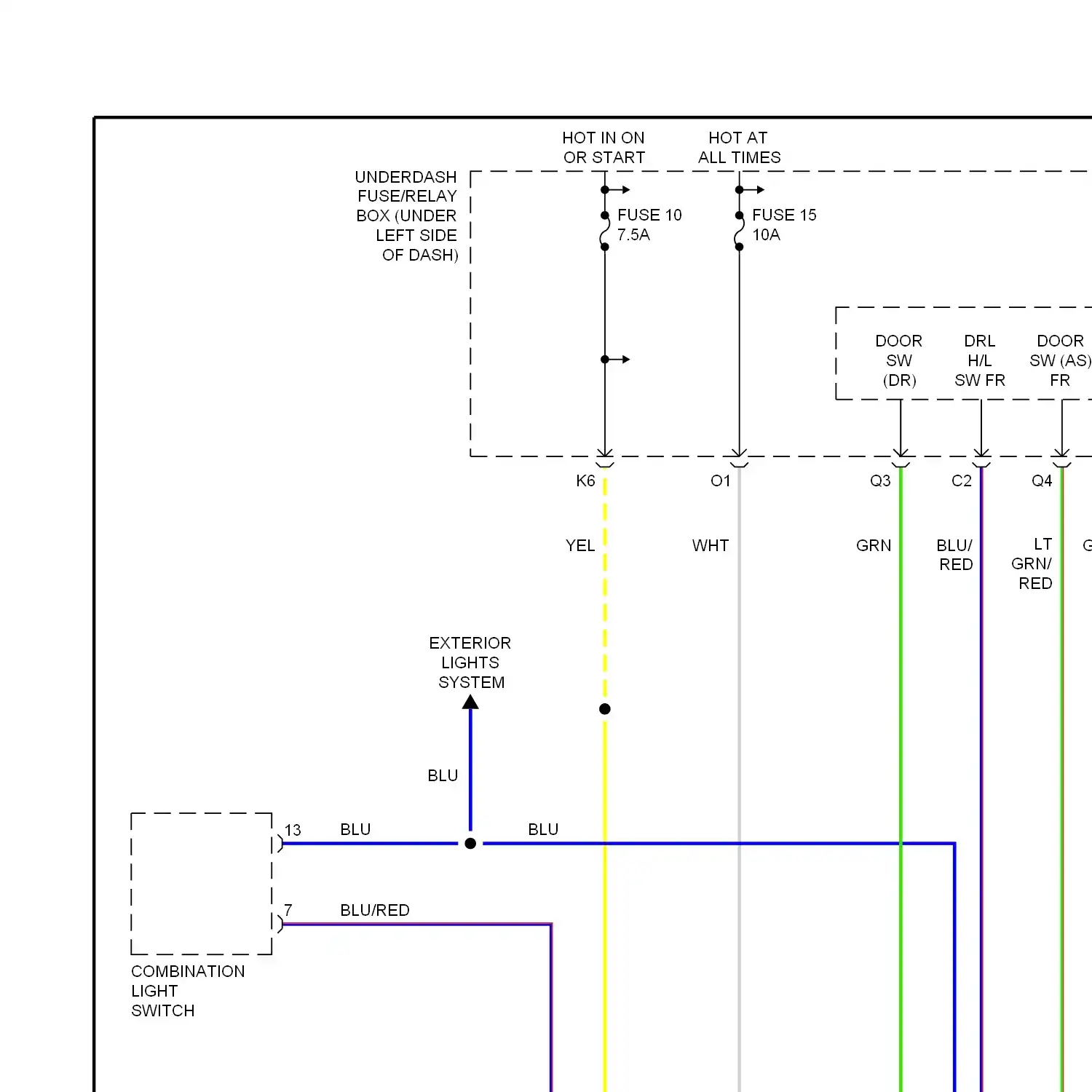

Headlights circuit, except hatchback or hybrid with drl Headlights circuit, except hatchback or hybrid without drl Headlights circuit, hatchback with drl Headlights circuit, hatchback without drl Headlights circuit, hybrid with drl Headlights circuit, hybrid without drl

Horn circuit, except hybrid Horn circuit, hybrid

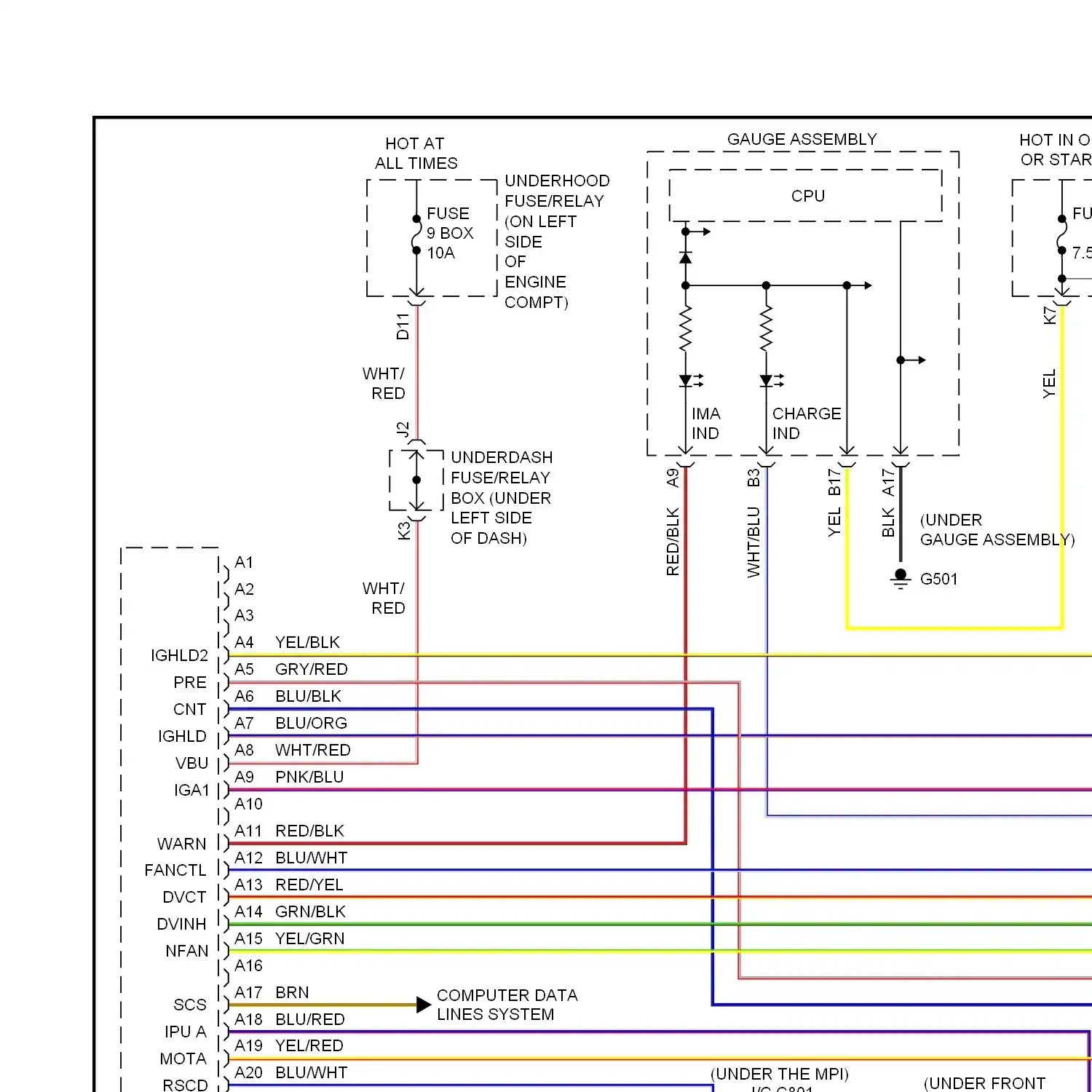

Instrument cluster circuit, dx, gx Instrument cluster circuit, ex, hx, lx Instrument cluster circuit, hatchback Instrument cluster circuit, hybrid

Courtesy lamps circuit, coupe with sunroof Courtesy lamps circuit, hatchback Courtesy lamps circuit, hybrid Courtesy lamps circuit, sedan with sunroof Courtesy lamps circuit, without sunroof Instrument illumination circuit, except hybrid Instrument illumination circuit, hybrid

Power distribution circuit, except hybrid Power distribution circuit, hybrid

Carlink circuit, except hybrid Carlink circuit, hybrid Door lock circuit, except hatchback & hybrid Door lock circuit, hatchback Door lock circuit, hybrid

Power mirrors circuit, with defogger except hatchback & hybrid Power mirrors circuit, with defogger hatchback Power mirrors circuit, with defogger hybrid Power mirrors circuit, without defogger except hatchback & hybrid Power mirrors circuit, without defogger hatchback Power mirrors circuit, without defogger hybrid

Power top/sunroof circuit, except hatchback Power top/sunroof circuit, hatchback

Power windows circuit, except hatchback & hybrid Power windows circuit, hatchback Power windows circuit, hybrid

Radio circuit, coupe Radio circuit, hatchback Radio circuit, hybrid Radio circuit, sedan

Shift interlock circuit, except hybrid Shift interlock circuit, hybrid

Charging circuit, except hatchback & hybrid Charging circuit, hatchback Starting circuit, except hatchback & hybrid Starting circuit, hatchback Starting circuit, hybrid

Supplemental restraints circuit, except hatchback & hybrid Supplemental restraints circuit, hatchback Supplemental restraints circuit, hybrid

A/t circuit, hybrid A/t circuit, with cvt except hybrid A/t circuit, without cvt

Warning systems circuit, except hatchback & hybrid Warning systems circuit, hatchback Warning systems circuit, hybrid

Front wiper/washer circuit, except hatchback & hybrid Front wiper/washer circuit, hatchback Front wiper/washer circuit, hybrid Rear washer/wiper circuit

+B BACK-UP +B DOOR LOCK HORN SW ALTERNATOR CNTRL SIG ALTERNATOR CTRL SIG ALTERNATOR FR SIGNAL ALTERNATOR IG ALTERNATOR L SIGNAL ANTI-LOCK BRAKE SYSTEM ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES SYSTEM COMPUTER DATA LINES SYSTEM B+ DOOR LOCK COIL ASSEMBLY DRL DIODE EXTERIOR LIGHTS, CRUISE CONTROL, ANTI-LOCK BRAKES SYSTEMS INTERIOR LIGHTS SYSTEM FRONT IGNITION COIL 1 FRONT IGNITION COIL 1 FRONT IGNITION COIL 2 FRONT IGNITION COIL 2 ECM FRONT IGNITION COIL 3 FRONT IGNITION COIL 4 FRONT IGNITION COIL 4 REAR IGNITION COIL 1 REAR IGNITION COIL 2 GND SHIFT LOCK SOL P PIN SW GROUND DR DOOR UNLOCK INPUT DR DOOR LOCK INPUT GROUND LOCK UNLOCK LOCK UNLOCK HEADLIGHTS SYSTEM ANTI-LOCK BRAKE SYSTEM HORN SW HORN SW +B DOOR LOCK FR WASHER MTR HORN SYSTEM IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 2 IGNITION COIL 1 IGNITION COIL 3 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 3 IGNITION COIL 4 KEY LOCK SOL + LOCK UNLOCK UNLOCK ON LOCK OFF REAR IGNITION COIL 1 REAR IGNITION COIL 2 REAR IGNITION COIL 3 REAR IGNITION COIL 4 RR + LR + RF + LF + ILLUM + BATTERY IN SHIFT-LOCK SOL SUPPLEMENTAL RESTRAINTS SYSTEM ANTI-LOCK BRAKES SYSTEM INTERIOR LIGHTS SYSTEM TRANSMISSION BATTERY WINDOW ANTENNA COIL

A/C CONDENSER FAN MOTOR A/C CONDENSOR FAN MOTOR ANTI-THEFT, ENGINE CONTROL SYSTEMS ANTI-THEFT, ENGINE CONTROLS SYSTEMS CRUISE CONTROL ACTUATOR DRIVER'S DOOR LOCK ACTUATOR DRIVER'S POWER WINDOW MOTOR DRIVER'S WINDOW MOTOR ENGINE COMPT) ENGINE CONTROL SYSTEM ENGINE CONTROLS SYSTEM ENGINE CONTROLS SYSTEM ENGINE CONTROLS SYSTEM EXTERIOR LIGHTS SYSTEM ENGINE CONTROLS SYSTEM EXTERIOR LIGHTS SYSTEM ENGINE CONTROLS SYSTEM EXTERIOR LIGHTS SYSTEM ENGINE CONTROLS SYSTEM FRONT PASS- ENGER'S POWER WINDOW MOTOR FRONT PASSENGER'S DOOR LOCK ACTUATOR FRONT PASSENGER'S OR PASSENGER'S DOOR LOCK ACTUATOR FRONT PASSENGER'S POWER WINDOW MOTOR HATCH LOCK ACTUATOR INTERIOR LIGHTS SYSTEM ENGINE CONTROLS SYSTEM EXTERIOR LIGHTS SYSTEM LEFT REAR DOOR LOCK ACTUATOR LEFT REAR POWER WINDOW MOTOR LEFT/ RIGHT MOTOR LEFT/ RIGHT MOTOR UP/ DOWN MOTOR MOONROOF MOTOR MOTOR STATOR OF ENGINE COMPT) PASSENGER'S DOOR LOCK ACTUATOR PASSENGER'S POWER WINDOW MOTOR RADIATOR FAN MOTOR REAR WINDOW WASHER MOTOR REAR WINDOW WIPER MOTOR REAR WINDOW WIPER MOTOR REAR WINDOW DEFOGGER RECIRCULATION CONTROL MOTOR RECIRCULATION CONTROL MOTOR HEATER CONTROL PANEL RIGHT REAR DOOR LOCK ACTUATOR RIGHT REAR POWER WINDOW MOTOR SIDE OF A/C CONDENSER FAN MOTOR) SIDE OF ENGINE COMPT) STARTER MOTOR TOP OF ENGINE) UP/ DOWN MOTOR WINDSHIELD WASHER MOTOR WINDSHIELD WIPER MOTOR

ANTENNA IN ANTENNA LEAD ANTENNA MODULE CELLULAR ANTENNA MAST ANTENNA SUB-ANTENNA LEAD WINDOW ANTENNA

FUEL PRESSURE REGULATOR SHUT-OFF SOLENOID VALVE FUEL PRESSURE REGULATOR SWITCH

ACCESSORY POWER SOCKET CAR LINK INTERFACE BOX CONNECTOR CARLINK INTERFACE BOX CONNECTOR CIGARETTE LIGHTER OR ACCESSORY POWER SOCKET DATA LINK CONNECTOR EX, LX, GX KEY LESS CONNECTOR JUNCTION CONNECTOR MES CONNECTOR MULTIPLEX CONTROL INSPECTION CONNECTOR

INJECTOR CONTROL MODULE ECM/ PCM MOTOR CONTROL MODULE TRANSMISSION CONTROL MODULE

ABS MODULATOR CONTROL UNIT AUDIO UNIT B+ DAY LT HEADLIGHTS LOW FR WIPER PASS ILLUMINATION KEYLESS RECEIVER UNIT BLOWER MOTOR RELAY ELD UNIT CLIMATE CONTROL UNIT CLIMATE CONTROL UNIT LIGHT CONTROL UNIT MULTIPLEX CRUISE CONTROL MAIN SWITCH CRUISE CONTROL UNIT CRUISE CONTROL UNIT DIM CONTROL + VSP FUEL UNIT DO RX IMMOBI CORD FR DOOR SW K-LINE GND DRL CONTROL UNIT ECU BUS + ELD UNIT ELD UNIT INPUT ELECTRICAL LOAD DETECTOR UNIT FUSE 20 EPS CONTROL UNIT EPS UNIT FR WIPER INT UNIT FR WIPER PASS ILLUMINATON KEYLESS RECEIVER UNIT DOOR LOCKS MULTIPLEX BUS FUEL GAUGE SENDING UNIT FUEL GAUGE SENDING UNIT FUEL PUMP FUEL TANK UNIT FUEL TANK UNIT FUEL PUMP FUSE 13 MULTIPLEX CONTROL UNIT HEATER CONTROL UNIT- PANEL HORN SW MULTIPLEX CONTROL UNIT IMMOBILIZER CONTROL UNIT- RECEIVER KEYLESS RECEIVER UNIT MOONROOF CONTROL UNIT MOONROOF CONTROL UNIT MOONROOF SWITCH MULTIPLEX CONTROL UNIT MULTIPLEX CONTROL UNIT B+ BACK UP MULTIPLEX CONTROL UNIT FR WASHER MOTOR MULTIPLEX CONTROL UNIT FR WIPER INT VOL+ MULTIPLEX CONTROL UNIT FUSE 20 MULTIPLEX CONTROL UNIT HATCH SWITCH MULTIPLEX CONTROL UNIT MPCS CHK MULTIPLEX CONTROL UNIT SERVICE CHECK CONNECTOR OPDS UNIT PGM-FI MAIN RELAY 2 SRS UNIT ECM/ PCM POWER WINDOW CONTROL UNIT REAR WINDOW WIPER INTERMITTENT CONTROL UNIT REAR WINDOW WIPER INTERMITTENT CONTROL UNIT WIPER/ WASHER SWITCH SECURITY CONTROL UNIT SECURITY CONTROL UNIT CONNECTOR SNUBBER UNIT SRS UNIT SRS UNIT EPS CONTROL UNIT

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 FUSE 9 AUXILIARY FUSE HOLDER AUXILIARY FUSE HOLDER FUSE 70 BATTERY MODULE FUSE DC-DC CONVERTER FUSE FOG LIGHT FUSE FUSE 1 FUSE 1 FUSE 4 FUSE 12 FUSE 1 FUSE 17 FUSE 2 FUSE 2 FUSE 9 FUSE 2 FUSE 15 FUSE 3 FUSE 4 FUSE 4 FUSE 10 FUSE 5 FUSE 6 FUSE 6 FUSE 10 FUSE 7 FUSE 7 FUSE 5 FUSE 7 FUSE 6 FUSE 7 FUSE 9 FUSE 7 FUSE 10 FUSE 8 FUSE 8 FUSE 10 FUSE 9 FUSE 9 FUSE 16 FUSE 10 FUSE 10 BUS FUSE 10 FUSE 4 FUSE 10 FUSE 8 FUSE 10 FUSE 17 FUSE 11 FUSE 12 FUSE 12 FUSE 20 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 17 FUSE 17 FUSE 10 FUSE 18 FUSE 19 FUSE 20 FUSE 20 WPR FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 60 FUSE 70 HOT IN ON FUSE 14 KEYLESS RECEIVER FUSE 2 (UNDER LEFT UNDER- HOOD FUSE/

LEFT HEADLIGHT RIGHT HEADLIGHT

HEATER CONTROL PANEL HEATER CONTROL PANEL POWER TRANSISTOR

ABS INDICATOR ABS INDICATOR CIRCUIT ABS INDICATOR CIRCUIT ABS INDICATOR ABS INDICATOR LIGHT AUTO IDLE STOP INDICATOR BRAKE SYSTEM INDICATOR CHARGING SYSTEM INDICATOR CRUISE CONTROL INDICATOR CRUISE INDICATOR DOOR INDICATOR DOOR INDICATOR LIGHT DOWN SHIFT INDICATOR DRL INDICATOR EPS INDICATOR FOGLIGHT ON INDICATOR HIGH BEAM INDICATOR HIGH BEAM INDICATOR GAUGE ASSEMBLY IMA SYSTEM INDICATOR IMMOBILIZER SYSTEM INDICATOR LEFT TURN SIGNAL INDICATOR LOW FUEL INDICATOR LOW OIL PRESSURE INDICATOR MAINTENANCE REQUIRED INDICATOR MALFUNCTION INDICATOR ODO/TRIP INDICATOR ON INDICATOR PARKING BRAKE, BRAKE SYSTEM INDICATOR RIGHT TURN SIGNAL INDICATOR SEAT BELT REMINDER INDICATOR SHIFT UP INDICATOR SIDE AIR BAG CUT-OFF INDICATOR SIDE AIRBAG CUT-OFF INDICATOR SIDE AIRBAG INDICATOR SRS INDICATOR SRS INDICATOR CIRCUIT TRUNK INDICATOR LIGHT TRUNK OPEN INDICATOR

CRUISE CONTROL SYSTEM EXTERIOR LIGHTS SYSTEM DASH LIGHTS BRIGHTNESS CONTROLLER DASH, CONSOLE LIGHTS DOOR LOCKS, ANTI-THEFT, INTERIOR LIGHTS SYSTEMS EXTERIOR LIGHTS SYSTEM HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM EXTERIOR LIGHTS, CRUISE CONTROL SYSTEMS INTERIOR LIGHTS SYSTEM GAUGE LIGHTS INTERIOR LIGHTS SYSTEM AIR CONDITIONING SYSTEM INTERIOR LIGHTS SYSTEM CRUISE CONTROL SYSTEM INTERIOR LIGHTS, ANTI-THEFT SYSTEMS LICENSE PLATE LIGHTS OFF CEILING LIGHTS ON SPOT- LIGHTS OFF WIPER/WASHER SYSTEM EXTERIOR LIGHTS, INTERIOR LIGHTS SYSTEMS

FUEL PUMP

A/C CLUTCH RELAY A/C COMPRESSOR CLUTCH RELAY A/C CONDENSER FAN RELAY A/T REVERSE RELAY BLOWER MOTOR RELAY BLOWER MOTOR RELAY REAR WINDOW DEFOGGER RELAY CONDENSER FAN RELAY DRL RELAY FROM UNDERHOOD FUSE/RELAY BOX HEAD- LIGHTS RELAY 1 HEAD- LIGHTS RELAY 2 HEADLIGHT RELAY 1 HEADLIGHT RELAY 2 HEADLIGHTS RELAY 1 HEADLIGHTS RELAY 2 HEATER CONTROL PANEL REAR WINDOW DEFOGGER RELAY CNTRL HORN RELAY HOT AT ALL TIMES UNDER DASH FUSE/ RELAY BOX (UNDER LEFT SIDE OF FUSE 2 HOT AT ALL TIMES UNDER- DASH FUSE/ RELAY BOX (UNDER LEFT SIDE FUSE 2 HOT IN ON OR START UNDER- DASH FUSE/ RELAY BOX HOT IN ON OR START UNDER- DASH FUSE/ RELAY BOX (UNDER LEFT SIDE FUSE 2 HOT IN ON OR START UNDER- DASH FUSE/ RELAY BOX FUSE 2 HOT RESTART FAN RELAY INJECTOR RELAY LIGHT RELAY LIGHTING RELAY BRAKE LEVEL SWITCH A/C PRESSURE SWITCH MCM RELAY 1 MCM RELAY 2 MOONROOF CLOSE RELAY MOONROOF CLOSE RELAY MOONROOF OPEN RELAY MOONROOF OPEN RELAY MOONROOF OPEN RELAY MOONROOF CLOSE RELAY PCM RELAY CONTROL PGM-FI MAIN RELAY 1 PGM-FI MAIN RELAY 2 PGM-FI MAIN RELAY 2 FUSE POWER WINDOW RELAY RADIATOR FAN RELAY RADIATOR FAN RELAY CONDENSER FAN RELAY A/C COMPRESSOR CLUTCH RELAY REAR WINDOW DEFOGGER RELAY REAR WINDOW DEFOGGER RELAY CNTRL REAR DEFOG LED CNTRL REAR DEFOG ON INPUT SHIFT LOCK A/T REVERSE RELAY SOLENOID SMALL LT RELAY - ATP-P SMALL LT RELAY TRANSMISSION RANGE SW STARTER CONTROL RELAY STARTER CUT RELAY TAILLIGHT RELAY TO UNDERHOOD FUSE/RELAY BOX TURN SIGNAL/ HAZARD RELAY TURN/ SIGNAL HAZARD RELAY POWER WINDOW RELAY UNDER- DASH FUSE/ RELAY UNDER- DASH FUSE/ RELAY BOX UNDER- DASH FUSE/ RELAY BOX (UNDER LEFT UNDER- DASH FUSE/ RELAY BOX (UNDER LEFT SIDE UNDER- DASH FUSE/ RELAY BOX FUSE 4 UNDER- HOOD FUSE/ RELAY UNDER- HOOD FUSE/ RELAY BOX UNDER- HOOD FUSE/ RELAY BOX FUSE 6 UNDER-DASH FUSE/RELAY BOX UNDER-DASH FUSE/RELAY BOX (UNDER LEFT UNDER-HOOD FUSE/RELAY BOX UNDER-HOOD FUSE/RELAY BOX (RIGHT SIDE OF FUSE 7 UNDERDASH FUSE/ RELAY UNDERDASH FUSE/RELAY UNDERDASH FUSE/RELAY BOX UNDERDASH FUSE/RELAY BOX (UNDER LEFT UNDERHOOD FUSE/ RELAY BOX UNDERHOOD FUSE/RELAY UNDERHOOD FUSE/RELAY BOX UNDERHOOD FUSE/RELAY BOX (ON LEFT

A/F SENSOR RELAY AIR MIX POTENTIAL SENSOR COMMON AIR MIX HOT CKP SENSOR CKP SENSOR IAC VALVE CMP SENSOR CMP SENSOR ECM CVT DRIVE PULLEY SPEED SENSOR CVT DRIVEN PULLEY SPEED SENSOR CVT DRIVEN PULLEY SPEED SENSOR CVT SPEED SENSOR 1 CVT SPEED SENSOR 2 CVT SPEED SENSOR 1 CVT SPEED SENSOR 2 DEFOG LED CTRL A/C LED CTRL RECIRC LED CTRL AIR MIX POTENTIAL EVAP TEMP SENSOR EGR VALVE/ EGR VALVE POSITION SENSOR FUEL TANK PRESSURE SENSOR IN-CAR TEMPERATURE SENSOR KNOCK SENSOR SHIELD KNOCK SENSOR SHIELD MCM SHIELD LEFT FRONT IMPACT SENSOR OPDS SENSOR RIGHT FRONT IMPACT SENSOR SECONDARY CMP SENSOR SENSOR A SENSOR GND SENSOR INPUT TDC SENSOR U PHASE MOTOR CURRENT SENSOR V PHASE MOTOR CURRENT SENSOR W PHASE MOTOR CURRENT SENSOR

DRIVER'S DOOR SPEAKER FRONT PASSENGER'S DOOR SPEAKER LEFT REAR SPEAKER PASSENGER'S DOOR SPEAKER RIGHT REAR SPEAKER

3 1 IGNITION KEY SWITCH A/C PRESS SWITCH BATTERY MODULE SWITCH BRAKE FLUID LEVEL SWITCH BRAKE LEVEL SWITCH BRAKE PEDAL POSITION HAZARD WARNING SWITCH BRAKE PEDAL POSITION SWITCH BRAKE SWITCH A/C PRESSURE SWITCH HEADLIGHTS LOW B+ DAY LT CANCEL SWITCH CLUTCH INTERLOCK SWITCH CLUTCH PEDAL POSITION SWITCH CLUTCH PEDAL POSITION SWITCH COMBINATION LIGHT SWITCH COMBINATION LIGHT SWITCH CRUISE CONTROL MAIN SWITCH CRUISE CONTROL MAIN SWITCH LIGHT CRUISE CONTROL SET/ RESUME CANCEL SWITCH CRUISE CONTROL SET/RESUME CANCEL SWITCH CRUISE CONTROL SWITCH LIGHT DEFOGGER SWITCH DIMMER SWITCH DRIVER DOOR SWITCH DRIVER'S DOOR LOCK KNOB SWITCH DRIVER'S DOOR LOCK SWITCH DRIVER'S DOOR SWITCH DRIVER'S DOOR SWITCH (ON LEFT DRIVER'S SEAT BELT SWITCH DRIVER'S SWITCH FOG LIGHT SWITCH FOG LIGHT SWITCH LIGHT FOGLIGHT SWITCH FOGLIGHT SWITCH LIGHT FR DOOR SWITCH FRONT PASS- ENGER'S POWER WINDOW SWITCH DRIVER'S POWER WINDOW MOTOR FRONT PASS- ENGER'S POWER WINDOW SWITCH UP FRONT PASSEN- GER'S DOOR SWITCH FRONT PASSENGER'S DOOR SWITCH FRONT PASSENGER'S OR PASSENGER'S DOOR SWITCH FRONT PASSENGER'S POWER WINDOW SWITCH FRONT PASSENGER'S SEAT BELT SWITCH HATCH LATCH SWITCH HAZARD WARNING SWITCH HAZARD WARNING SWITCH LIGHT HEADLIGHT SWITCH HEADLIGLHT SWITCH HORN SWITCH IGNITION KEY SWITCH IGNITION KEY SWITCH/ KEY LIGHT IGNITION KEY SWITCH/ KEY LIGHT CEILING LIGHT TRUNK LIGHT IGNITION KEY SWITCH/KEY LIGHT IGNITION LEY SWITCH/KEY LIGHT IGNITION SWITCH KEY SWITCH INPUT LEFT REAR DOOR SWITCH LEFT REAR POWER WINDOW SWITCH LEFT REAR POWER WINDOW SWITCH DN UP LEFT UP RIGHT DN SWITCH 3 LEFT UP RIGHT DOWN SWITCH 3 MAIN SWITCH MOONROOF AUTO-STOP SWITCH MOONROOF LIMIT SWITCH MOONROOF SWITCH MOONROOF SWITCH LIGHTS NEUTRAL POSITION SWITCH OFF FLASH-TO- PASS SWITCH OFF HEADLIGHT SWITCH OIL PRESSURE SWITCH PARK OFF HEADLIGHT SWITCH PARK PIN/ SHIFT SWITCH WINDSHIELD WIPER MOTOR PARK PIN/SHIFT SWITCH PARKING BRAKE SWITCH PASSENGER'S DOOR SWITCH PASSENGER'S POWER WINDOW SWITCH PASSENGER'S SEAT BELT SWITCH POWER MIRROR SWITCH POWER MIRROR SWITCH LIGHT POWER WINDOW MASTER SWITCH PSP SWITCH RADIATOR FAN SWITCH REAR WINDOW DEFOGGER SWITCH REAR WINDOW DEFOGGER SWITCH LIGHT REAR WINDOW WIPER/WASHER SWITCH RECIR-A/C REAR DEFOGGER SWITCH ASSEMBLY RECIR-A/C REAR DEFOGGER SWITCH ASSEMBLY AIR COND- ITIONING SYSTEM RECIR-A/C-ECON SWITCH ASSEMBLY RECIR-A/C-ECON SWITCH LIGHT RECIRC DEFOGGER SWITCH ASSEMBLY RECIRC-A/C DEFOGGER SWITCH ASSEMBLY RECIRC-A/C- REAR DEFOGGER SWITCH ASSEMBLY RESUME + SWITCH RIGHT DN LEFT UP RIGHT UP LEFT DN SWITCH 1 SWITCH 2 RIGHT DOWN LEFT UP RIGHT UP LEFT DN SWITCH 2 SWITCH 1 RIGHT REAR DOOR SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT UP LEFT DOWN SWITCH 2 SET SWITCH SWITCH 1 SWITCH 1 POWER MIRROR SWITCH LIGHT SWITCH 3 SWITCH ASSEMBLY LIGHT SWITCH LIGHT ASSEMBLY SWITCH TRIP SWITCH TRIP/RESET TRANSMISSION RANGE SWITCH TRANSMISSION RANGE SWITCH IAC VALVE TRUNK LATCH SWITCH TRUNK SWITCH TURN SIGNAL SWITCH VTEC OIL PRESSURE SWITCH WINDSHIELD WASHER FLUID LEVEL SWITCH WIPER/ WASHER SWITCH WIPER/ WASHER SWITCH 0 OFF 1 INTERMITTENT 2 LOW 3 HIGH 4 MIST 5 WASH WIPER/ WASHER SWITCH WINDSHIELD WIPER MOTOR WIPER/WASHER SWITCH

DC-DC CONVERTER EVAP BYPASS SOLENOID VALVE EGR VALVE EGR VALVE, EGR VALVE EVAP CANISTER PURGE VALVE EVAP CANISTER PURGE VALVE VSS EVAP CANISTER VENT SHUT VALVE HOUSING) CVT CONTROL VALVES, INHIBITOR SOLENOID ASSEMBLY IAC VALVE INHIBITOR SOLENOID KEY INTERLOCK SOLENOID KEY SOLENOID OUTPUT SHIFT LOCK SOLENOID SHIFT SOLENOID VALVE A, B SOLENOID INHIBITOR STARTER SOLENOID TCC SOLENOID VALVE VTEC SOLENOID VALVE

18 19 PNK WIRE (OR RED/ WIRE BLK LT GRN/ WIRE BLK ORG/ WIRE BLK RED/ WIRE BLK WIRE BLK/ WHT WIRE BLK/ YEL WIRE BLK/BLU WIRE BLK/ORG WIRE BLK/RED WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/ORG WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRAIDED WIRE BRAIDED WIRE BRAIDED WIRE BRAIDED WIRE RX/TX SH GND BRN WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/ WHT WIRE GRN/BLK WIRE GRN/ORG WIRE GRN/RED WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/RED WIRE LT BLU WIRE LT GRN RED/ WIRE LT GRN WIRE LT GRN/BLK WIRE LT GRN/RED WIRE NCA WIRE ORG/ WIRE PCS TMB ULEV PNK WIRE PNK (OR WIRE PNK PNK PNK PNK WIRE PNK PNK PNK WIRE PNK PNK WIRE PNK T/S GND WIRE PNK WIRE PNK/BLK WIRE PNK/BLU WIRE RED GRN/ WIRE RED WIRE RED/ WHT WIRE RED/BLK WIRE RED/BLU WIRE RED/GRN WIRE RED/WHT WIRE RED/YEL WIRE RUN WIRE T/SIG T/S GND PNK WIRE TMA TMB PNK WIRE WHT RED/ WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/GRN WIRE WHT/RED WIRE YEL RED/ WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/GRN WIRE YEL/RED WIRE YEL/WHT WIRE

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 RRS- RRS+ 1 2 3 4 5 M-COOL M-HOT AMD-P S-COM 1 2 3 4 5 REC FRS 3 2 UNLOCK 7 6 5 4 3 2 1 REC 15 1 DLC (UNDER CENTER "B" PILLAR) (BELOW RIGHT SIDE OF DASH (GX (OR (OR (OR (UNDER +B BACK UP +B BACKUP +B DAY LT/ FR FOG +BAT PG A/C CLUTCH A/C COMPRESSOR A/C COMPRESSOR (BEHIND LEFT A/C COMPRESSOR CLUTCH A/C COMPRESSOR THERMAL PROTECTOR A/C ON A/C PRES SW A/T EXCEPT CVT A/T EXCEPT CVT, CVT A/T W/ CVT A/T W/O CVT ACCESSORY A/C AIR CONDI- TIONING SYSTEM AIR CONDITIONING SYSTEM AIR CONDITIONING, COOLING FANS SYSTEMS AIR DELIVERY AIR DELIVERY AIR DELIVERY AIR DELIVERY AIR DELIVERY AIR DELIVERY AIR DELIVERY AIR DELIVERY AIR DELIVERY AIR DELIVERY COMPRESSOR CTRLS AIR DELIVERY AIR DELIVERY COMPRESSOR CTRLS AIR DELIVERY SCOM AIR DELIVERY ALTF EGR VTS ALTF EGR VTS LSB+ IAT ALTC ALTF EGR VTS SC LS + IAT ALTC AMD-P ANTI-THEFT SYSTEM ANTI-THEFT SYSTEM AIR CONDITIONING SYSTEM ATP D ATP L ATP NP ATP S ATP-P ATP-R ATPFWD ATPR ATPNP NEP BKSW RSCD VREF TMB TMA ATPNP NM NMSG NCSG NC LC SHA SHB LSB- LSA- ATPR ATPD ATPNP EGR VTS AUTO AUTO UP DN DN AUTO DN AUTO UP DN UP OFF AUTO-STOP B+ DAY LT B+ DAY LT B+ RR FOG BK SW CCS NEP BLOWER POWER TRANSISTOR BRAIDED BRAIDED BRAIDED BRAKE LEVEL SW BRAKE PEDAL POSITION BRAKE SW IN IGN INPUT GROUND B+ B+ GROUND ABS INDIC BRK SYS IND BRAKE SW IN IGN INPUT GROUND B+ B+ GROUND ABS INDIC EBD BUCK- LED BUS - BUS GROUND BUS METER BYPASS CONTACTOR CABLE REEL CANADA USA CAR LINK CARGO AREA LIGHT CARLINK INTERFACE BOX CCS ILU FTP ELD PSPSW CD CHANGER CEILING LIGHT CEILING LIGHT/ SPOTLIGHTS CEILING LIGHT/SPOTLIGHTS CHARGE IND CIRCUIT DIAMETER CKP VCCR KS CLOSE OPEN CLOSE OPEN OR TILT CLOSE TILT CMP TDC COMM LINE COMMU- NICATION COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEM ANTI-THEFT SYSTEM COMPUTER DATA LINES SYSTEM NEP IMOCD COOLANT TEMPERATURE GAUGE COOLING FANS SYSTEM COOLING FANS SYSTEM HRFANC COUPE DX, HX COUPE LX, EX COUPE, SEDAN COVER) CRS ILU CRS ILU FTP ELD PSPSW CRUISE CONTROL CRUISE CONTROL ELECTRONIC POWER STEERING, INSTRUMENT CLUSTER SYSTEMS CRUISE CONTROL SYETM CRUISE CONTROL SYSTEM CRUISE CONTROL SYSTEM DOOR LOCKS SYSTEM CRUISE CONTROL SYSTEM SUPPLEMENTAL RESTRAINTS SYSTEM CRUISE CONTROL, AIR CONDITIONING,, ELECTRONIC POWER STEERING SYSTEMS CRUISE CONTROL, INSTRUMENT CLUSTER SYSTEMS CVT M/T CVT SPEED CHANGE D/L REMOTE SW D/L REMOTE SW D/L REMOTE SW D/L REMOTE SW TXD/RXD D/L SIL-CON SW D/L SW DASH) DAY LT DC-DC CONVERTER DEFOG LED CTRL DEFOGGER SYSTEM DETECT CIRCUIT DIM CONTROL - LED PW SIG GND RX/TX SH GND KEYLESS COM METER BUS DIMMER CIRCUIT DIMMER HI DIMMER HI H/L HI DIMMER HI HEAD LT HI BUS DIMMER HIGH SMALL LT RLY- ATP-P DIMMING CANCEL CIRCUIT DIMMING CIRCUIT DLC INPUT DLC INPUT DLC INPUT/OUT DLC INPUT/OUT DN LS - DR LS - DN OFF DN UP DOOR LOCKS SYSTEM DR BELT SW DR DOOR LCK REMOTE IN DR DOOR UNLK REMOTE IN DRIVE CIRCUIT DRIVER BELT SW DRIVER CIRCUIT DRIVER SEAT BELT/SRS DRIVER'S AIR BAG FIRST INFLATOR DRIVER'S AIR BAG FIRST, SECOND INFLATORS DRIVER'S AIR BAG SECOND INFLATOR DRIVER'S SEAT BELT TENSIONER DRL H/L SW DRL H/L SW IMMOBI CODE DIMMER HIGH DRL H/L SW IMMOBI CORD DRL IND DX LX, EX DX, GX DX, GX HX, LX, EX ECM/ PCM ECT SENS INPUT ECT VTPSW ALTL ELD PSPSW ELECTRONIC POWER STEERING SYSTEM ELECTRONIC POWER STEERING, INSTRUMENT CLUSTER SYSTEMS EX+ EX, HATCHBACK EX, LX, GX EX,DX,LX EXCEPT ABS EXCEPT CAR LINK CAR LINK EXCEPT CARLINK EXCEPT CVT EXCEPT CVT CVT EXCEPT CVT EX, HX DX, LX EXCEPT DX EXCEPT DX, HX EXCEPT EX EXCEPT EX, HX, LX EXCEPT GX EXCEPT GX, HATCHBACK EXCEPT HATCHBACK EXCEPT HATCHBACK HATCHBACK HX,LX,EX EXCEPT HX, LX, EX FACTORY A/C FAN CONTROL FANC HLC LS + ECT FANC HLC LS + ECT VTPSW ALTL FANC LSA+ ECT VTPSW ALTL FR WASHER MTR FR WIPER INT VOL - FR WIPER INT VOL + KEY SW FR WIPER PASS FRONT PASSENGER'S FRONT PASSENGER'S AIR BAG FIRST INFLATOR FRONT PASSENGER'S AIR BAG SECOND INFLATOR (UNDER RIGHT FRS- FRS+ FLS- FLS+ RLS- RLS+ FRSR IGN IN IGN IN FRSR IGNITION IGNITION FTP ELD PSPSW FUEL CONSUMPTION INFORMATION FUEL GAUGE FUEL INJECTORS GAUGE ASSEMBLY GAUGES/ INDICATORS GLOVE BOX) GND GND GND GND GND GROUND GROUND GROUND MPCS CHK GX EX GX, DX GX, DX HX, LX, EX H/L HI H/L LOW HATCHBACK EXCEPT HATCHBACK SEDAN/COUPE HATCHBACK, EXCEPT GX HATCHBACK, EXCEPT CVT HEAD LT LOW HEAD OFF HEAD PARK HEAD PARK OFF HEADLIGHTS HIGH HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM HEADLIGHTS, ANTI-THEFT SYSTEMS HEADLIGHTS SYSTEM SUPPLEMENTAL RESTRAINTS SYSTEM HEADLT HI HEADLT LOW HI INT LO HI LO HI LO INT HI OFF LO INT HI OFF OFF LO INT HIGH BEAM IND HIGH BEAM INDIC HIGH MOUNT BRAKE LIGHT HIGH VOLTAGE CONTACTOR HONDA ACCESSORY HORNS SYSTEM HORNS, CRUISE CONTROL SYSTEMS HOT AT ALL TIMES HOT IN ACC OR ON HOT IN ACC OR ON HOT IN ON OR HOT IN HOT IN ON OR HOT IN ON HOT IN ON OR HOT IN ON OR HOT IN ON HOT IN ON OR HOT IN ON OR HOT IN ON OR START HOUSING) HX, LX, EX HX, LX, EX DX, GX HX, LX, EX EXCEPT HX, LX, EX HX, LX, EX GX, DX IACV EGRP IAT ALTC ICM ICM IDSSW NEP IMOCD ACS SCS WEN MIL IG KEY LT IGNITION COILS IGNITION INPUT IGNITION KEY LIGHT IGRTNE IGRTNI TIM ENGRDY STC DVC ILLUM 1+ ILLUMINATION ILLUMINATION IMA CIRCUIT IMA CIRCUIT CYLOUT IMA CIRCUIT MOTB FTP ELD MOTA RSCD IMA IND IMA SYS IMMOBI CORD IMMOBI- LIZER CODE IMMOBI- LIZER CORD IMMOBILIZER DIMMER HIGH IMO FPR INJ MODE INJECTOR CONTROL INSTRUMENT CLUSTER INSTRUMENT CLUSTER SYSTEM INSTRUMENT CLUSTER SYSTEMS INTERLOCK CTRL OUT INTERMITTENT DWELL TIME CONTROLLER INTR LT- IPIN TDV WPH IVPH IUPH IPU FAN MODULE IPU MODULE FAN K LINE K-LINE SCS K-LINE WEN K/L SET K/L UNSET KEY IN IGNITION KEY LT- KEY SW KEYLESS COM KEYLESS COM METER BUS KEYLESS CUT LCD BACK LIGHT LCD/DUAL DIAMETER CIRCUIT LEFT BACK-UP LIGHT LEFT BRAKE LIGHT/ TAIL- LIGHT LEFT BRAKE LIGHT/ TAILLIGHT LEFT BRAKE LIGHT/ TAILLIGHT RIGHT BRAKE LIGHT/ TAILLIGHT LEFT FOG LIGHT LEFT FOG LIGHT RIGHT FOG LIGHT LEFT FOGLIGHT LEFT FRONT PARK- ING LIGHT LEFT FRONT PARKING LIGHT LEFT FRONT SIDE MARKER LIGHT LEFT FRONT TURN SIGNAL LIGHT LEFT FRONT TURN SIGNAL/ SIDE MARKER/ PARKING LIGHT LEFT INNER TAILLIGHT LEFT INNER TAILLIGHT RIGHT INNER TAILLIGHT LEFT POWER MIRROR LEFT REAR SIDE MARKER LIGHT LEFT REAR SIDE MARKER LIGHT RIGHT REAR SIDE MARKER LIGHT LEFT REAR TURN SIGNAL LIGHT LEFT REAR TURN SIGNAL LIGHT RIGHT BRAKE LIGHT/ TAILLIGHT LEFT SIDE TURN SIGNAL LIGHT LEFT TURN SIGNAL IND LEFT TWEETER LEFT UP RIGHT DOWN LICENSE PLATE LIGHT LICENSE PLATE LIGHT LICENSE PLATE LIGHT LIGHTING RLY- BRAKE LEVEL SW LO HI LSA- LC LSB+ LSA+ ECT LT LT LX, DX, GX, HX M- VENT M- DEF M-COOL M-DEF M-HOT M-VENT MANUAL A/C CIRCUIT MCM (BEHIND MCM SHIELD MES CON DIAG-H BSPL BSDL SRS IND SCS BSPH BSDH MIL CNTRL MIL CTRL MIL IND MIST OFF MIST WIPER INPUT MIST WIPER INPUT FR WIPER PASS MODE 1 MODE 2 MODE 3 MODE 4 MODE -1 MODE -2 MODE -1 MODE -2 MODE -3 MODE -1 MODE -3 MODE -1 MODE -4 MODE -3 S- COM MODE -4 MODE -3 MPI MODULE MRLY AFSHTCR MRLY AFSHTOR MRLY BKSW SEFMJ ILU MRLY CCS BKSW SEFMJ ILU MTRA SIG MULTIPLEX BUS MULTIPLEX BUS PCM IGN 2 DAY LT NCSG NC NDRSG VELSG SCS ATPFWD ATPD ATPS ATPR ATPL ATPNP NEP DIAG-H NEP IMOCD NOT USED EXCEPT EX NTSW ALTF EGR VTS ODO/TRIP LCD BACK LIGHT STABILIZING POWER CIRCUIT ODO/TRIP LCD CIRCUIT BACK LIGHT STABILIZING POWER CIRCUIT ODOMETER/ TRIP DISPLAY ODOMETER/TRIP LCD DISPLAY ODUS GND OF DASH) OFF CEILING LIGHT OFF DN OFF DN UP OFF DOOR OFF MIST OFF OFF OFF OFF OFF OFF OFF UP OFF ON OFF PARK HEAD OFF UP OFF UP DN ON DOOR ON IND. ON OFF OR ON P PIN SW PARK OFF HEAD PARK OR RUN IN PFO STSWC TFO BKSW K-LINE SEFMJ VSSOUT NEP IMOCD PG PG ATPFWD ATPR ATPD ATPS ATPL ATPNP POIL STS HTRS M/P MON POIL STS HTRS M/P MON VREF POWER CIRCUIT POWER DISTRIBUTION SYSTEM PPL 18 19 PRE CNT IGHLD VBU PRESSURE CVT PULLEY PRESSURE CVT START PTC - PTC + REAR CEILING LIGHT REAR DEFOG REAR DEFOG A/C ON INPUT RECIRC REQUEST MODE 4 MODE 3 MODE 2 MODE 1 IGNITION REAR DOOR SWITCHES REAR WINDOW REAR WINDOW DEFOG SW LED REAR WINDOW DEFOGGER REAR WINDOW DEFOGGER NOISE CONDENSER REAR WINDOW DEFOGGER SW REAR WINDOW WIPER NOISE CONDENSER REAR WPR/WSHR REAR WPR/WSHR GROUND RECIRCULATE AIR MIX POTENTAL RECIRCULATE MODE 4 MODE 3 MODE 2 MODE 1 IGNITION RIGHT BACK-UP LIGHT RIGHT BACK-UP LIGHT LEFT BACK-UP LIGHT RIGHT BRAKE LIGHT/ TAILLIGHT RIGHT DOWN LEFT UP RIGHT FOG LIGHT RIGHT FOGLIGHT RIGHT FRONT PARK- ING LIGHT RIGHT SIDE TURN SIGNAL LIGHT RIGHT FRONT PARKING LIGHT RIGHT FRONT SIDE MARKER LIGHT RIGHT FRONT TURN SIGNAL LIGHT RIGHT FRONT TURN SIGNAL/ SIDE MARKER/ PARKING LIGHT RIGHT INNER TAILLIGHT RIGHT LEFT RIGHT POWER MIRROR RIGHT REAR SIDE MARKER LIGHT RIGHT REAR TURN SIGNAL LIGHT RIGHT REAR TURN SIGNAL LIGHT HIGH MOUNT BRAKE LIGHT RIGHT SIDE TURN SIGNAL LIGHT RIGHT TURN SIGNAL IND RIGHT TWEETER RR + RL + FL + FR + ILLUM + BATT POWER RR + RL + FR + FL + ILLUM + BATT POWER RR - LR - RF - LF - ILLUM - GROUND RR - RL - FL - FR - ILLUM - GROUND RR - RL - FR - FL - ILLUM - GROUND RR DOOR SW RSCD VREF RSCDC TMB TMA S-COM SBDC SBPC ODUS SBPDC SBPRC ODUS SBPLC SBPRC ODUS SC LS + SC LS + HLC LS + SH LS + ECT SC LS + IAT ALTC SCS IPU A MOTA RSCD SCS WEN INPUT MIL SCS WEN MIL SDG SPG SSDH SSPH SEAT BELT REMINDER SECURITY LED SEDAN COUPE 3 1 4 2 SEDAN COUPE 4 2 3 1 SEDAN, COUPE SEFMS PCM IGN 2 DAY LT GROUND SENS GND SENS INPUT SET- SGIP SGDV SGIW SGIV SGIU SH LS + SHA NM LSB- SHIFT INTERLOCK SYSTEM SHIFT INTERLOCK SYSTEM HEADLIGHTS SYSTEM SHORT CONTACT SIDE OF DASH) SIG GND SMALL LT RLY- SOL INH CAS B CAS A DR LS + SOLID STATE SOUND SYSTEMS SPLC SPRC FRSL GND 1 GND 2 SPLH SPRH SPOTLIGHTS CEILING LIGHT SRPLC SRPRC FRSL GNDA GNDB SRPLH SRPRH SSDC SSPC SDV SPV SBDH SBPH SSDC SSPC SDV SPV SBPDH SBPRH SSDC SSPC SDV SPV SBPLH SBPRH STARTING CIRCUIT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING WHEEL) STNOFF-OUT STOP LIGHT STOP LIGHT CEILING LIGHT STS CNTL SULEV PCS SUPPLEMENTAL RESTRAINTS SYSTEM SUPPLEMENTAL RESTRAINTS SYSTEM WARNING SYSTEM SW IGN SW IN SW OUT SW IGN T/SIG CVT: ATP NP, M/T: CL SW TACH INPUT THERMAL PROTECTOR TI SIG TILT OPEN TIMER CIRCUIT TO BRAKE LIGHT/ TAILLIGHTS TRANSMISSIONS SYSTEM TRUNK LATCH TRUNK LIGHT UL UH SGCMB SGCMA UN- BUCK- LED UNDER- DASH UNDER- HOOD UNLOCK UNLOCK UP AUTO DN AUTO DN UP DN UP DN DN USA CANADA USA HX, SEDAN LX EX, GX USA HX, SEDAN LX, EX, GX COUPE LX, EX USA HX, SEDAN LX, EX, GX, HATCHBACK USA HX, SEDAN LX, GX, EX USA, CANADA EX USA, CANADA: LX USA, W/ SIDE AIR BAG VBU SEFMJ VCCIP VCCIW VCCIV VCCIU VEL NDN NDR SC LS - IAT TPS MAP PB ECT VL VH SGCMC CMB CMA VCCCMA VSS M/T VSS MAP VSS OUT VSS OUT CRUISE CTRL SIG IN ATP FWD VSV BKSW K-LINE VSV BKSW K-LINE SEFMJ VSV BKSW K-LINE SEFMJ VSSOUT NEP IMOCD W/ ABS W/ ACCESSORY REAR SPOILER W/ CARLINK W/ DRL W/O ABS W/O ACCESSORY INSTALLED W/ ACCESSORY INSTALLED W/O ACCESSORY REAR SPOILER W/O DRL W/SIDE AIRBAG WARN FANCTL DVCT DVINH NFAN WARNING SYSTEMS WEN CYLOUT ABSBUSY K-LINE MOTB WIPER OFF WIPER/ WASHER SYSTEM WIPER/WASHER SYSTEM WIPER/WASHER SYSTEM HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM WL WH CMC VCCCMC VCCCMB WLP VSP SCS WLP VSP SCS SCS WRN POW Y CAPACITOR
