Wiring Diagrams for Honda Civic IX facelift (2013-2016)

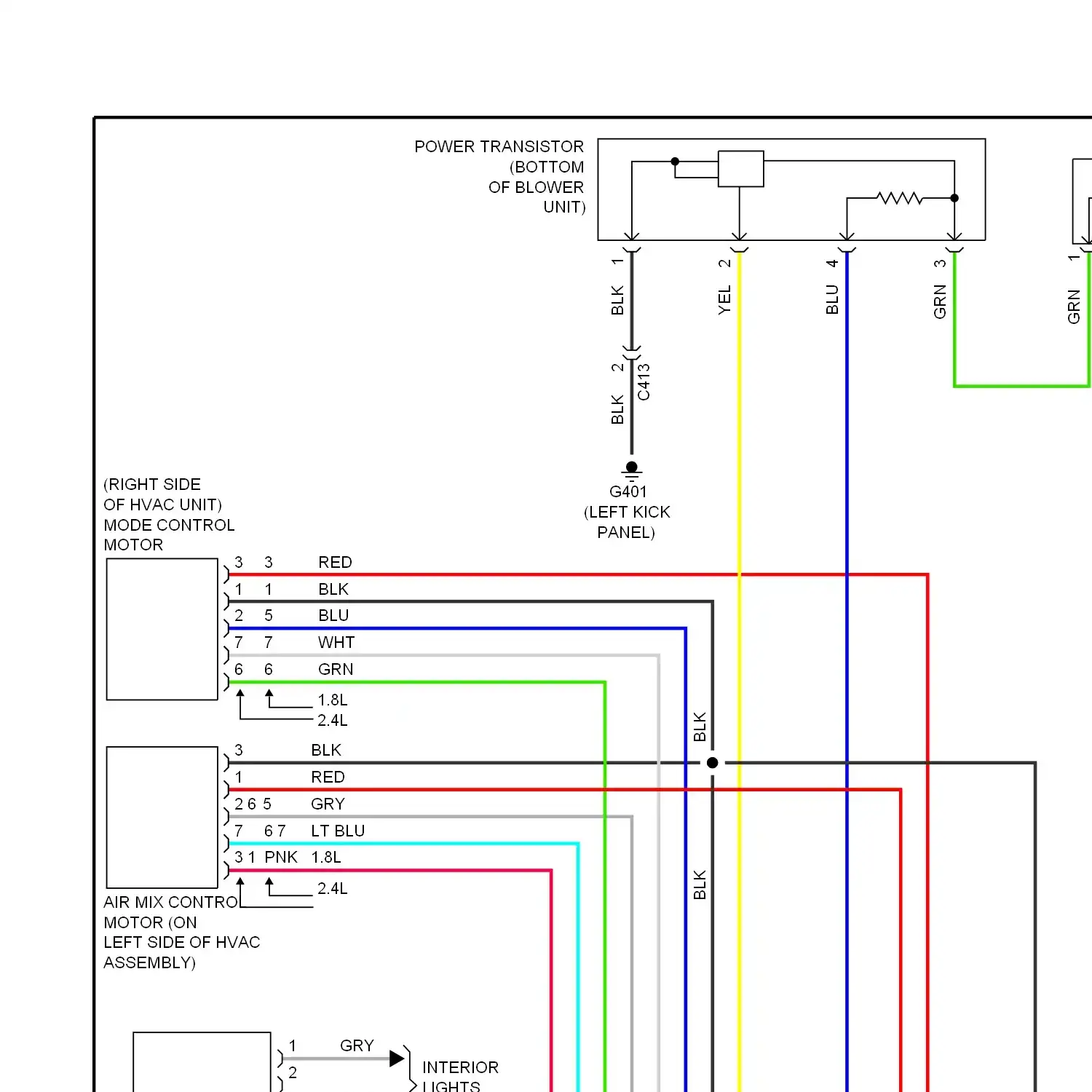

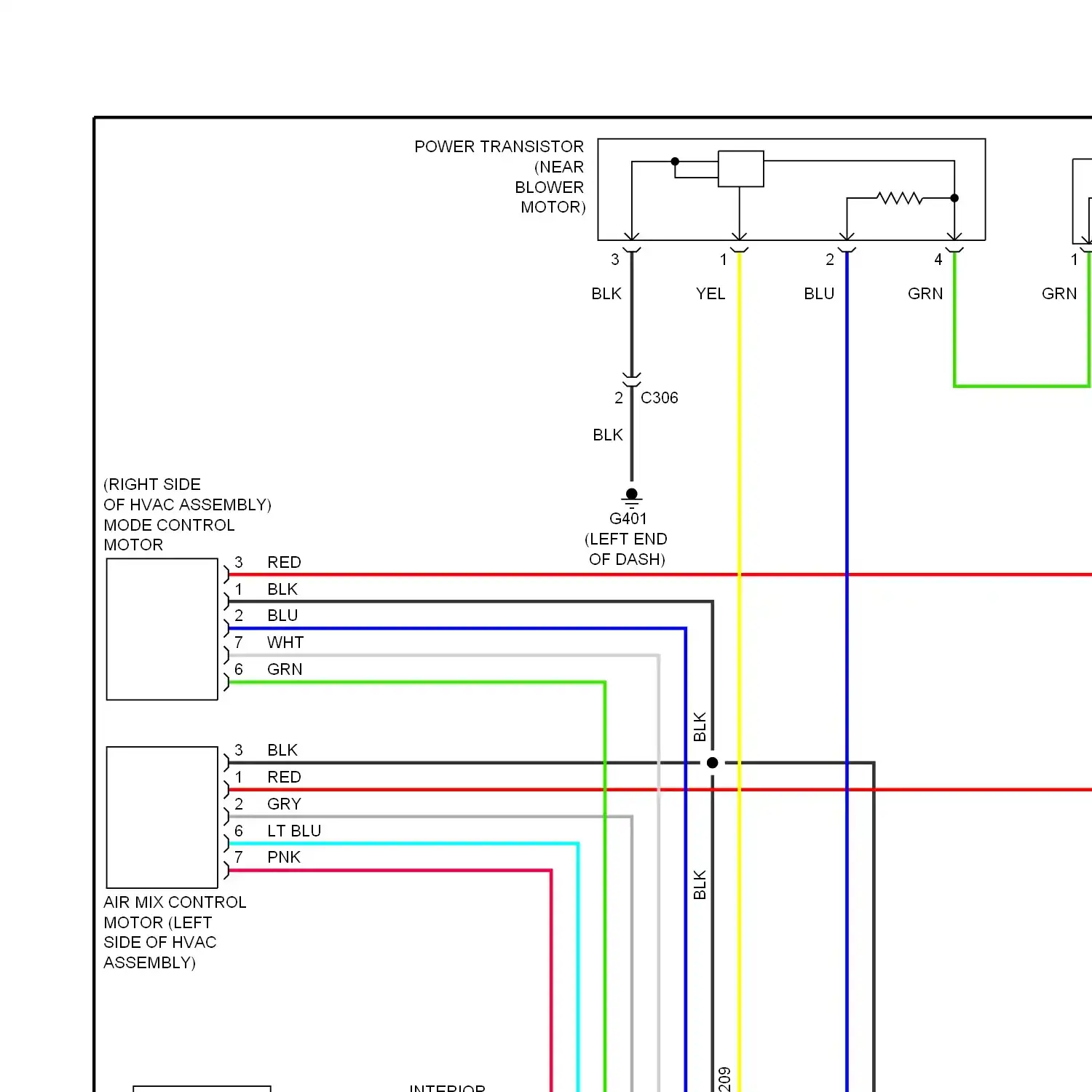

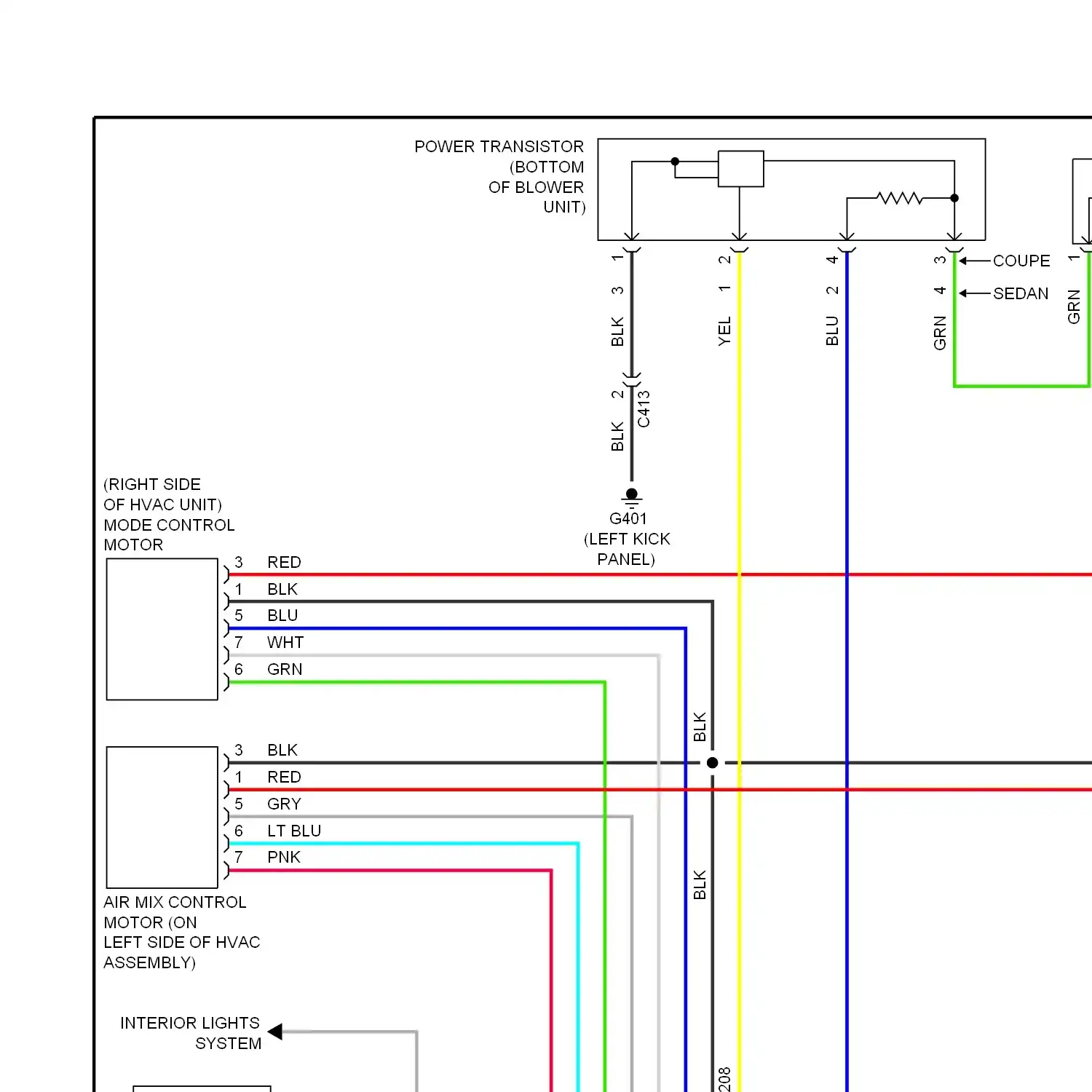

Automatic a/c circuit, except hybrid Automatic a/c circuit, hybrid Manual a/c circuit

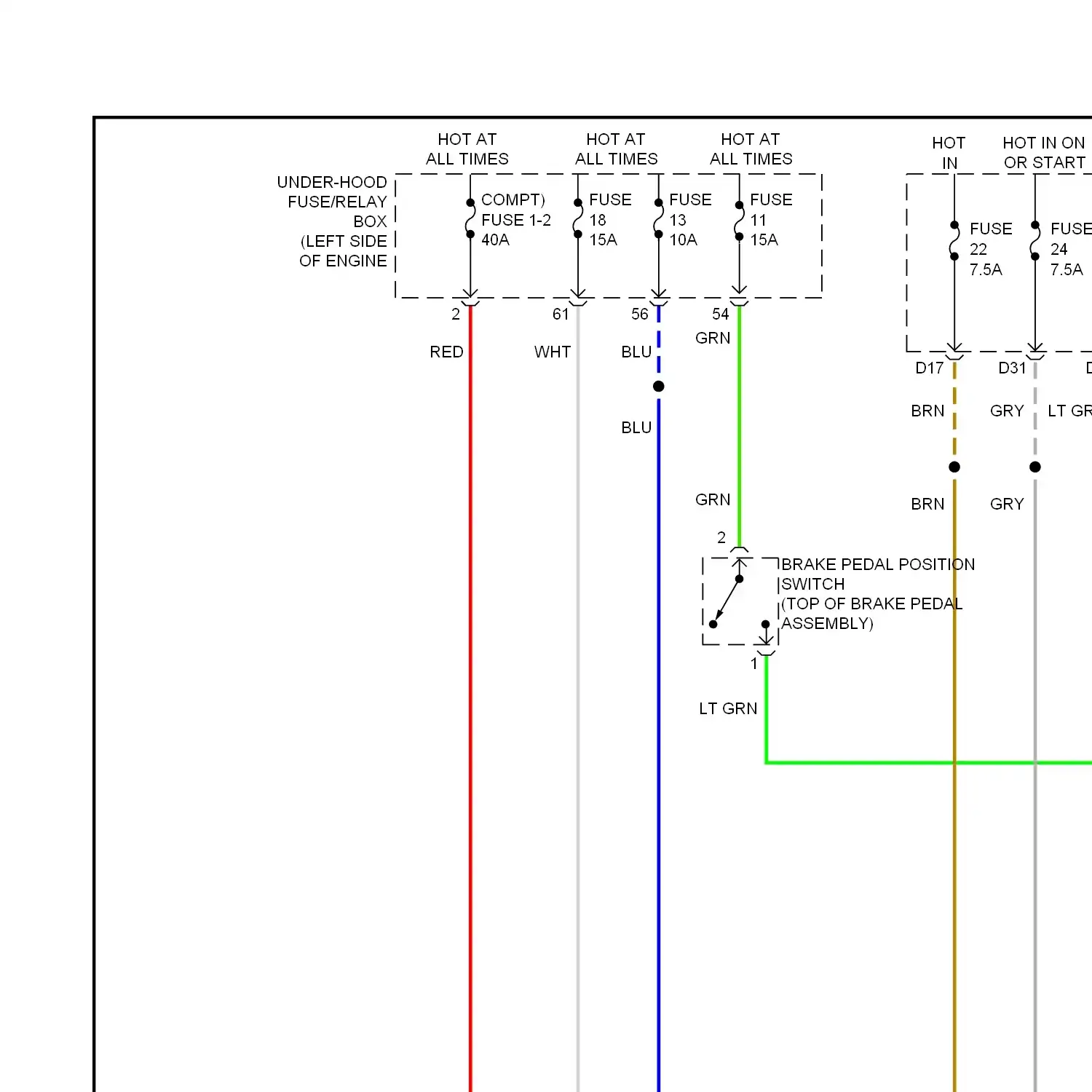

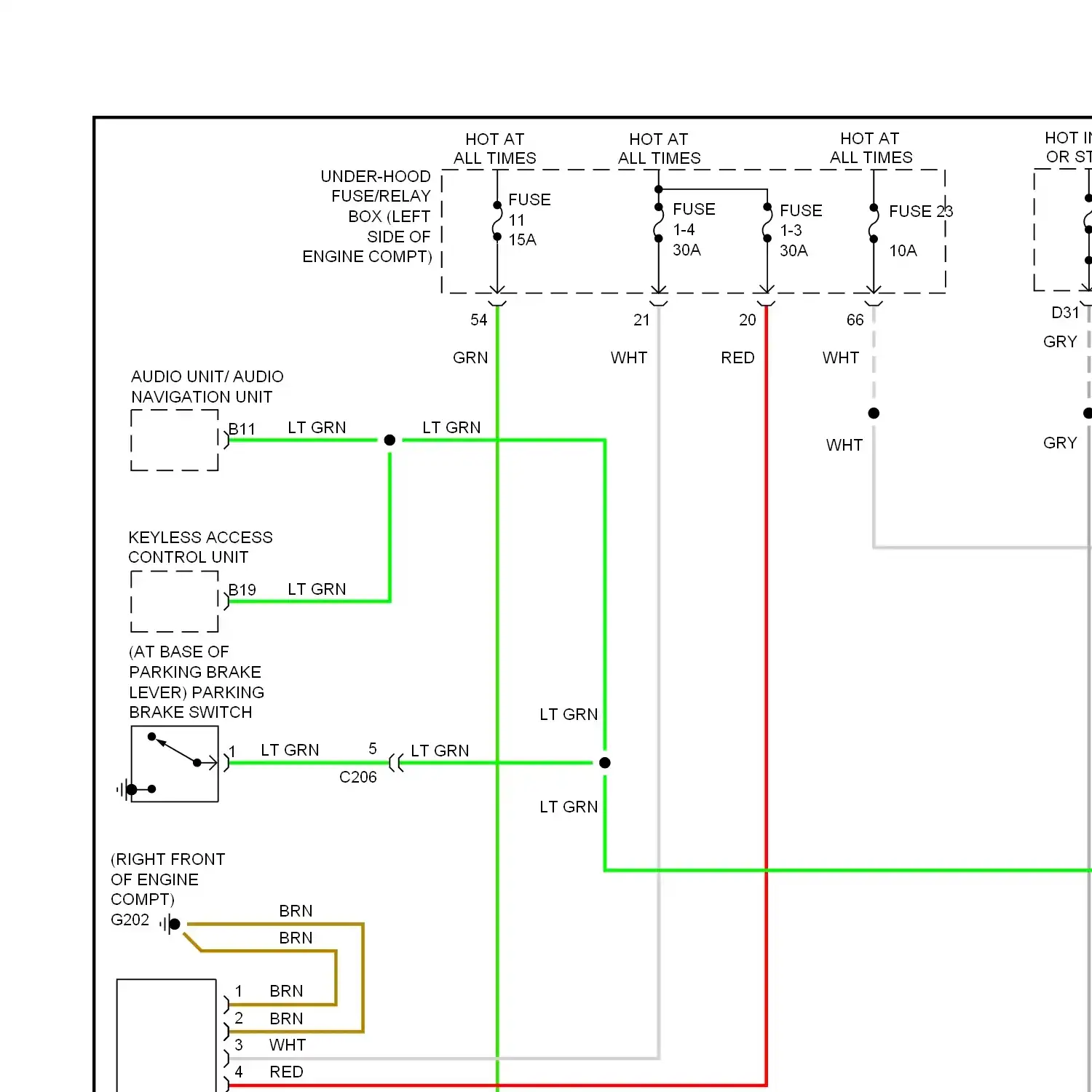

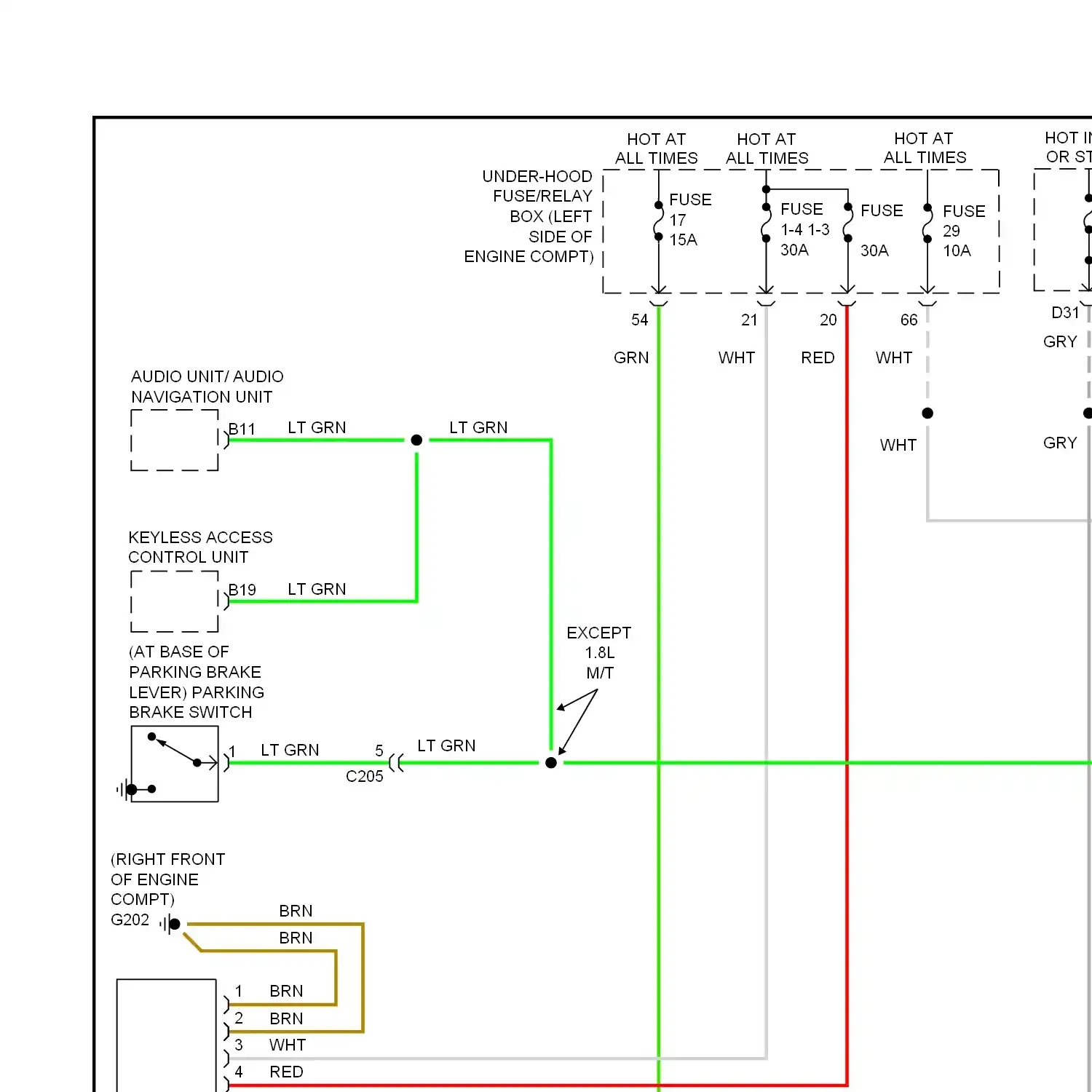

Advanced hydraulic booster circuit Anti-lock brakes circuit, except hybrid Anti-lock brakes circuit, hybrid

Forced entry circuit, except hybrid Forced entry circuit, hybrid Immobilizer circuit, except hybrid

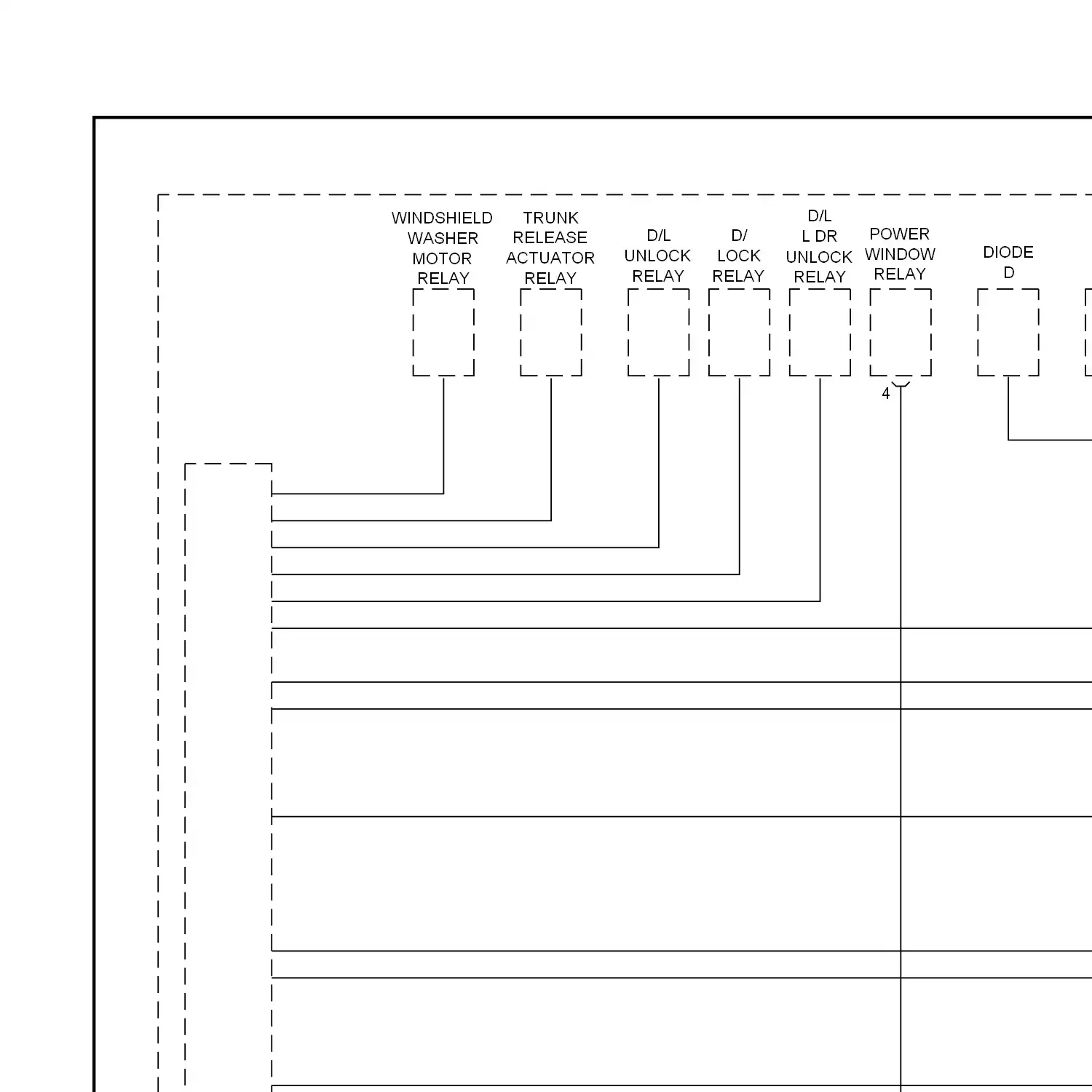

Body control modules circuit, except hybrid Body control modules circuit, hybrid

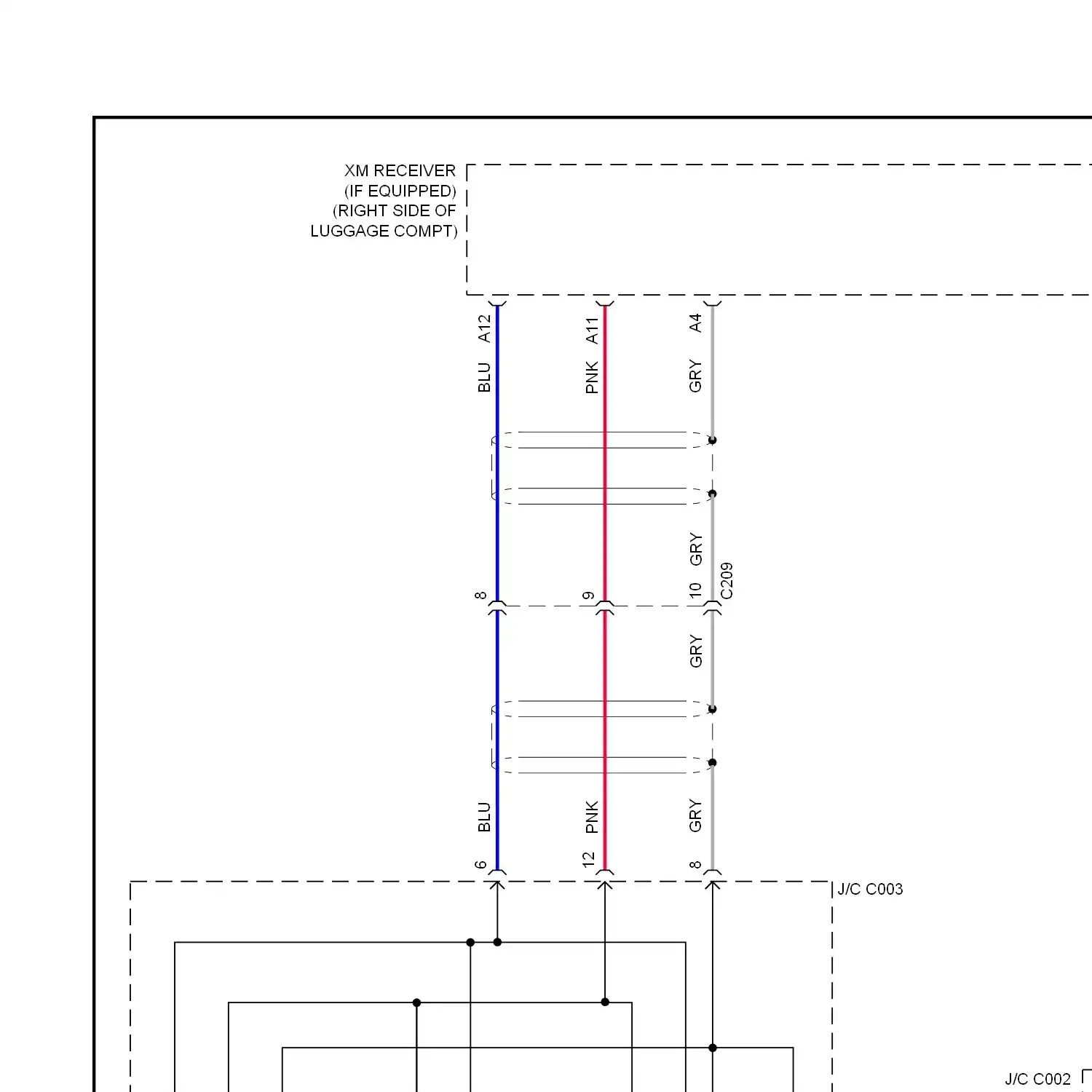

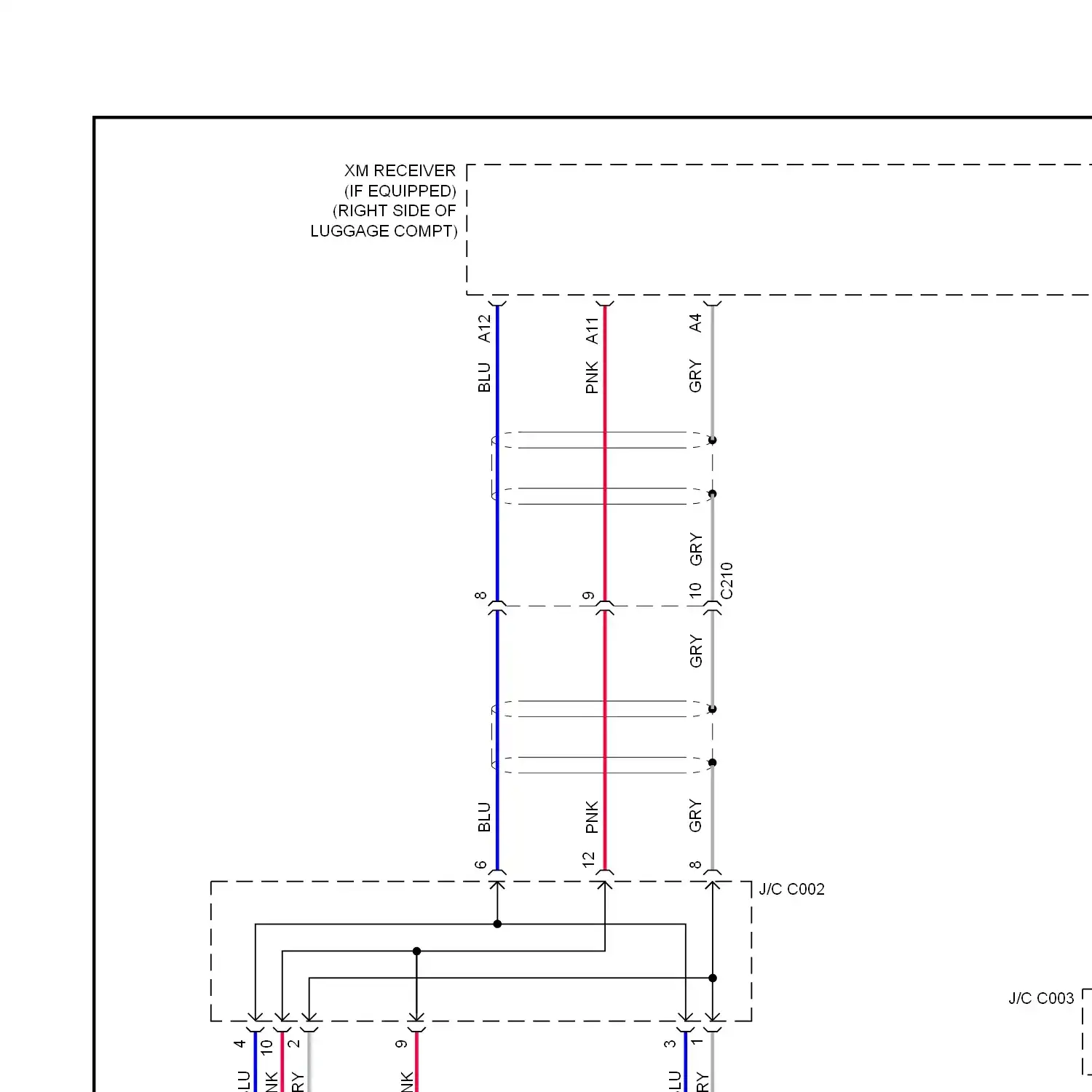

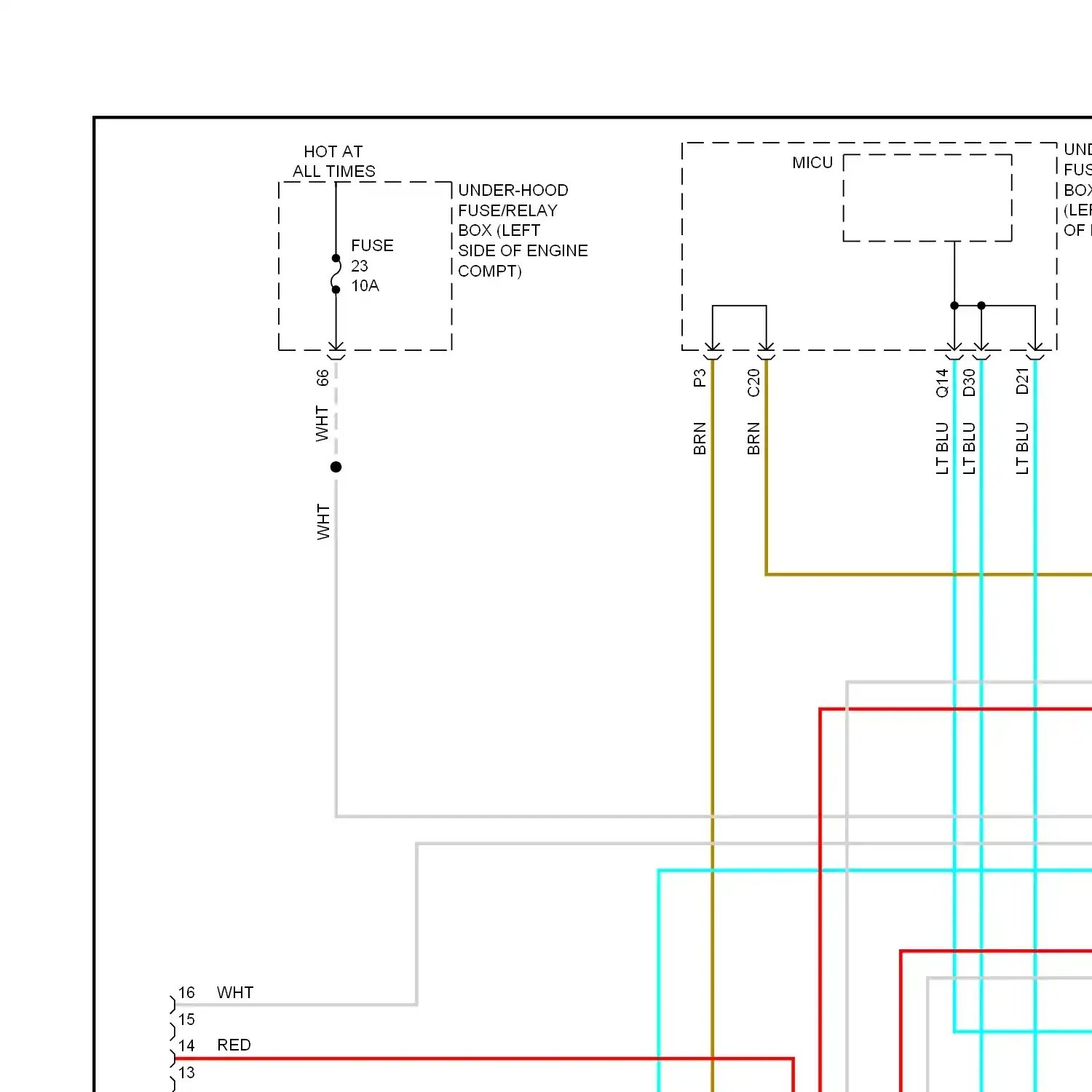

B-can circuit & s-net circuit, except hybrid B-can circuit & s-net circuit, hybrid Data link connector circuit, except hybrid Data link connector circuit, hybrid Ga-net bus/ga-net audio circuit, except hybrid Ga-net bus/ga-net audio circuit, hybrid

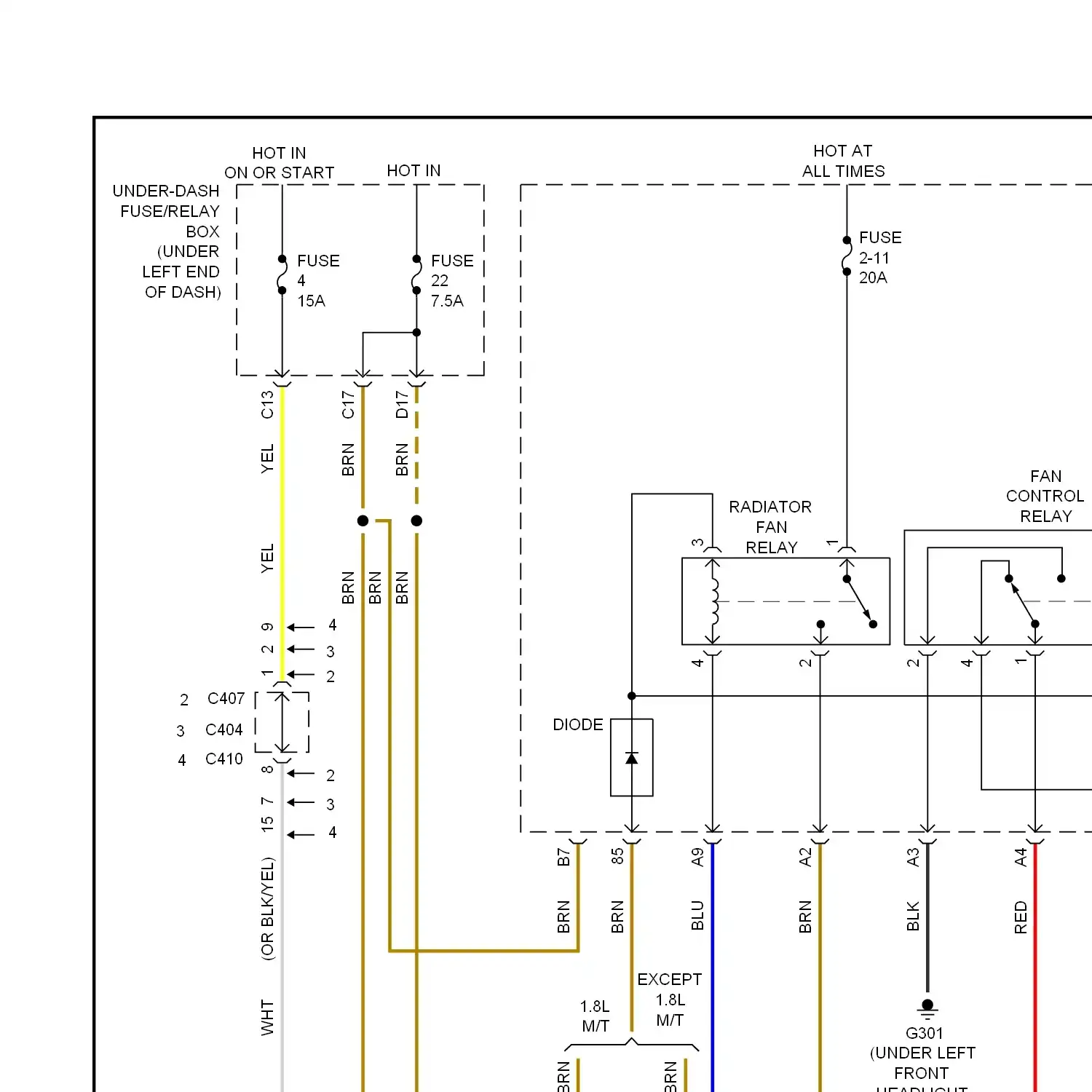

Cooling fan circuit, except hybrid Cooling fan circuit, hybrid

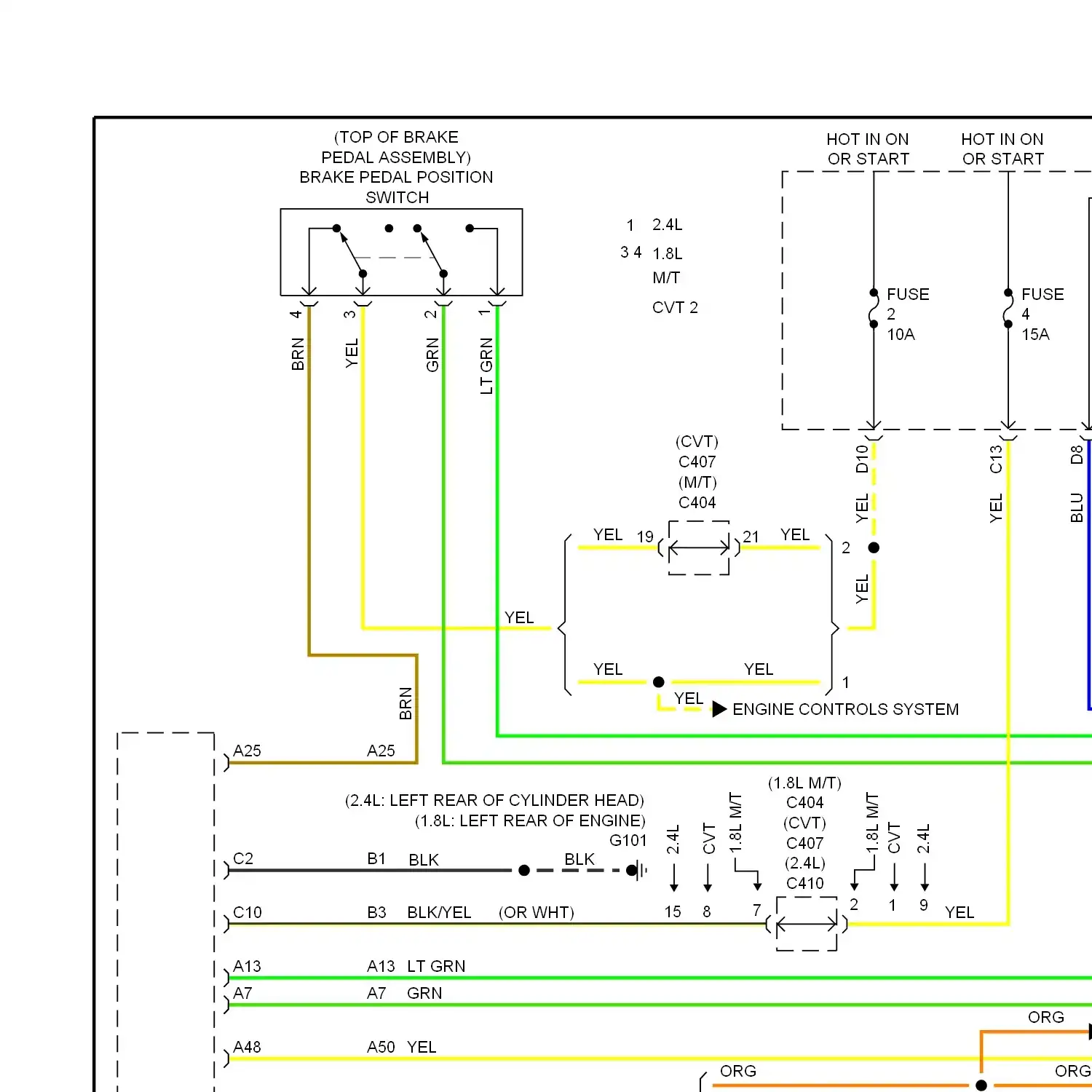

Cruise control circuit, except hybrid Cruise control circuit, hybrid

Defoggers circuit, except hybrid Defoggers circuit, hybrid

Electronic power steering circuit, except hybrid Electronic power steering circuit, hybrid

Wiring diagram engine performance 1.5l hybrid, engine controls circuit Wiring diagram engine performance 1.5l hybrid, ima circuit

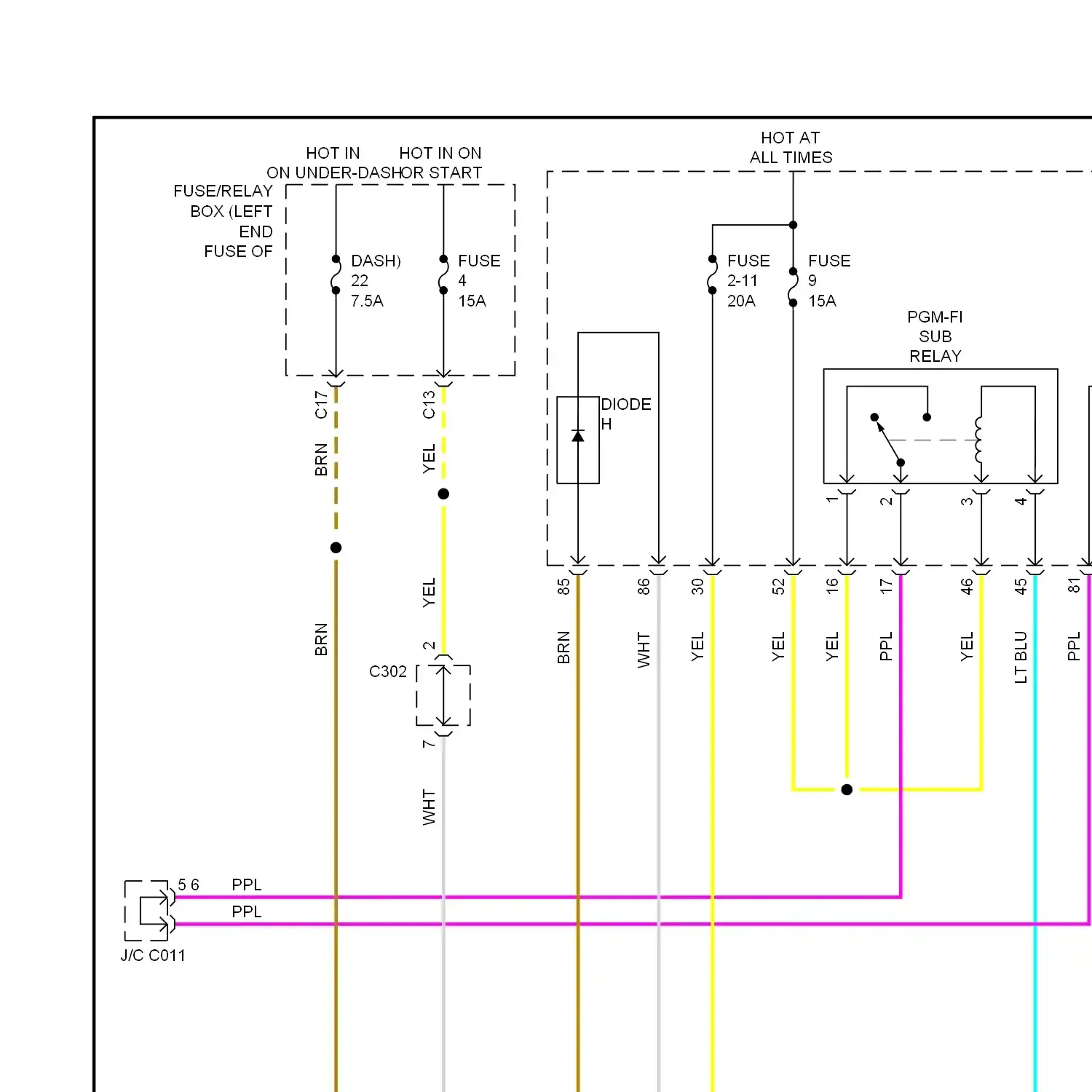

Wiring diagram engine performance 1.8l, cvt Wiring diagram engine performance 1.8l, m/t

Wiring diagram engine performance 2.4l

Backup lamps circuit, except hybrid with cvt Backup lamps circuit, hybrid with cvt Backup lamps circuit, m/t Exterior lamps circuit, except hybrid Exterior lamps circuit, hybrid

Ground distribution circuit, except hybrid Ground distribution circuit, hybrid

Headlights circuit, except hybrid Headlights circuit, hybrid

Horn circuit, except hybrid Horn circuit, hybrid

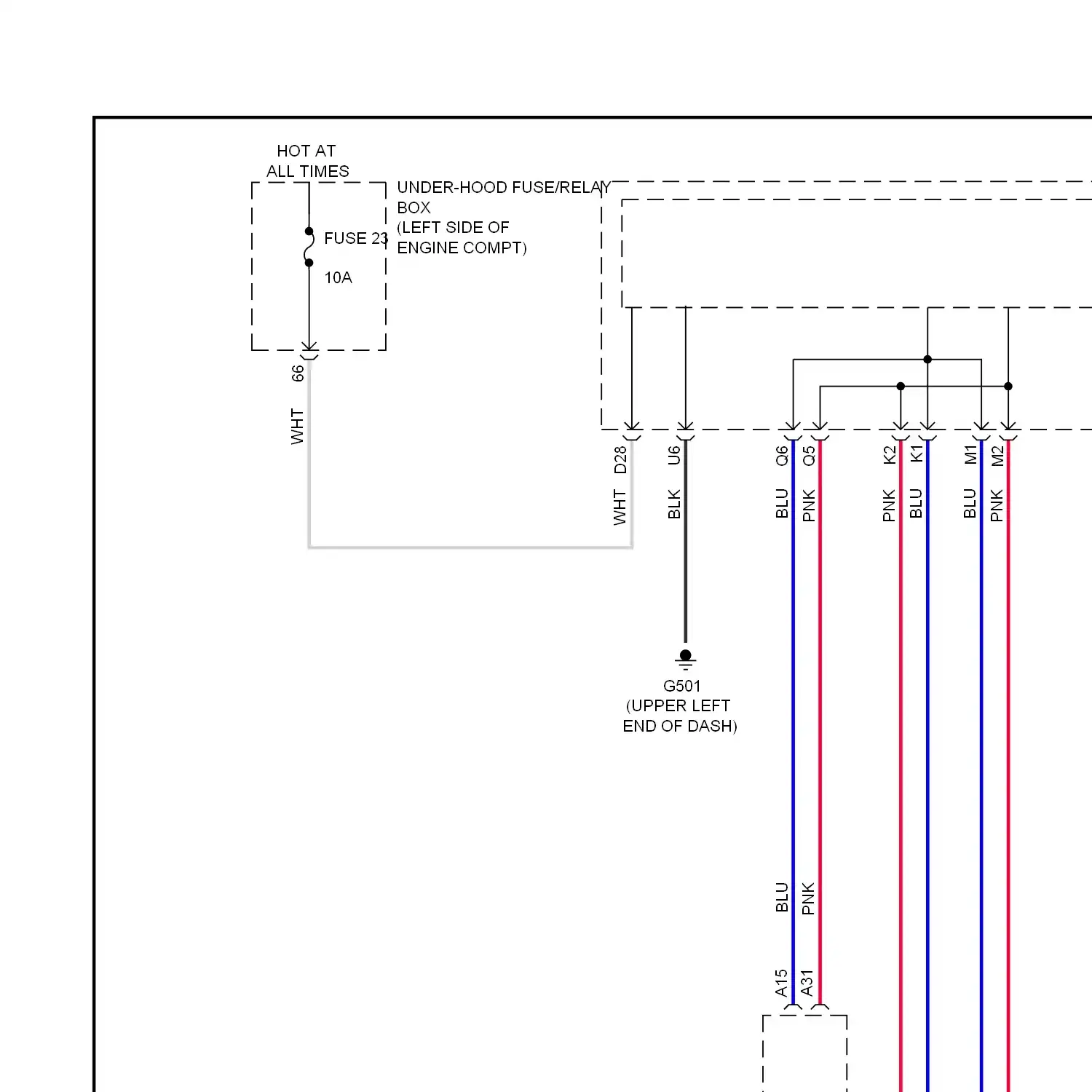

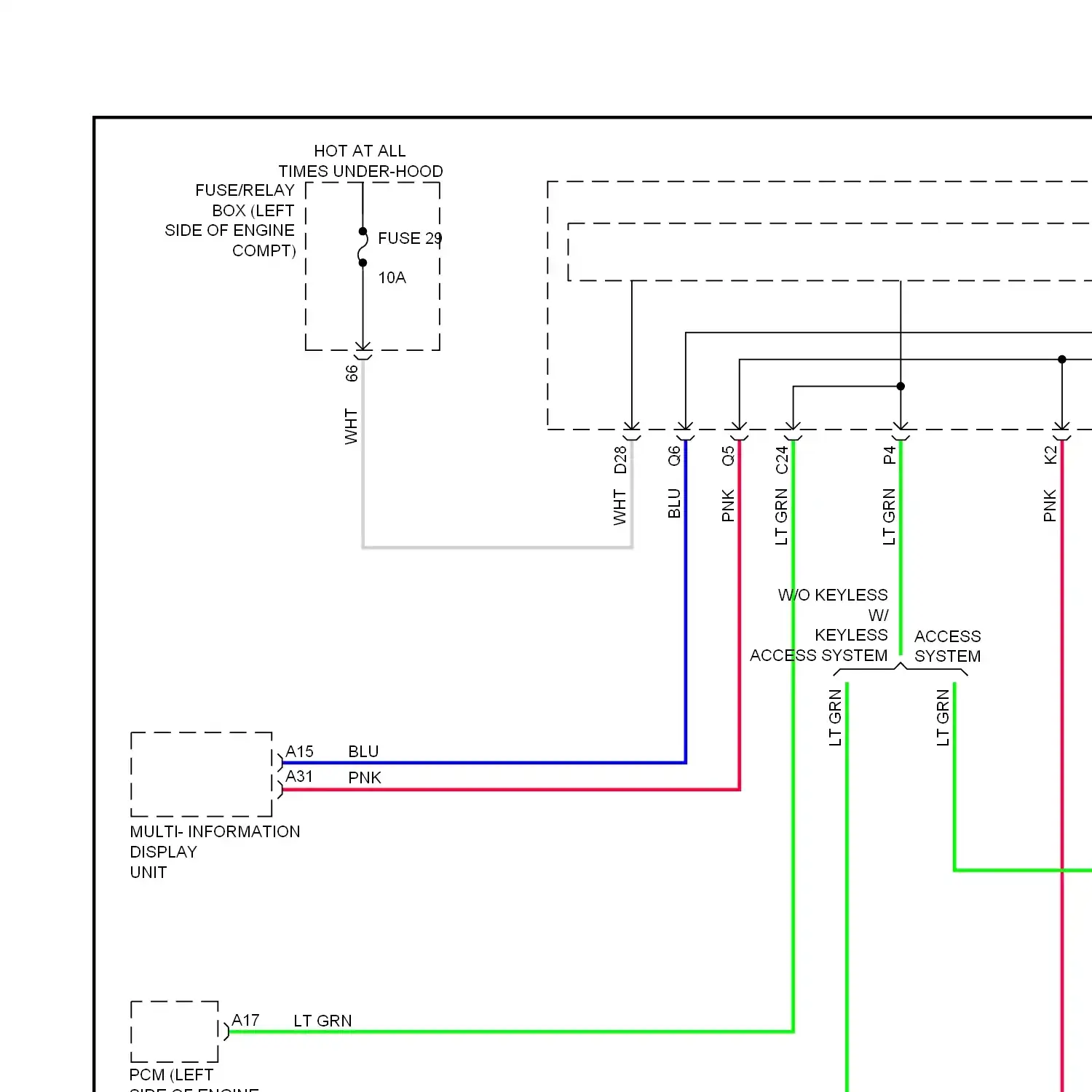

Instrument cluster circuit, except hybrid Instrument cluster circuit, hybrid

Courtesy lamps circuit, except hybrid Courtesy lamps circuit, hybrid Entry light timer circuit, except hybrid Entry light timer circuit, hybrid Instrument illumination circuit, except hybrid Instrument illumination circuit, hybrid

Hands free module circuit Lane departure warning circuit Lane watch camera circuit Navigation circuit, except hybrid Navigation circuit, hybrid Rear camera circuit, except hybrid with multi-information display Rear camera circuit, except hybrid without multi-information display Rear camera circuit, hybrid with navigation Rear camera circuit, hybrid without navigation

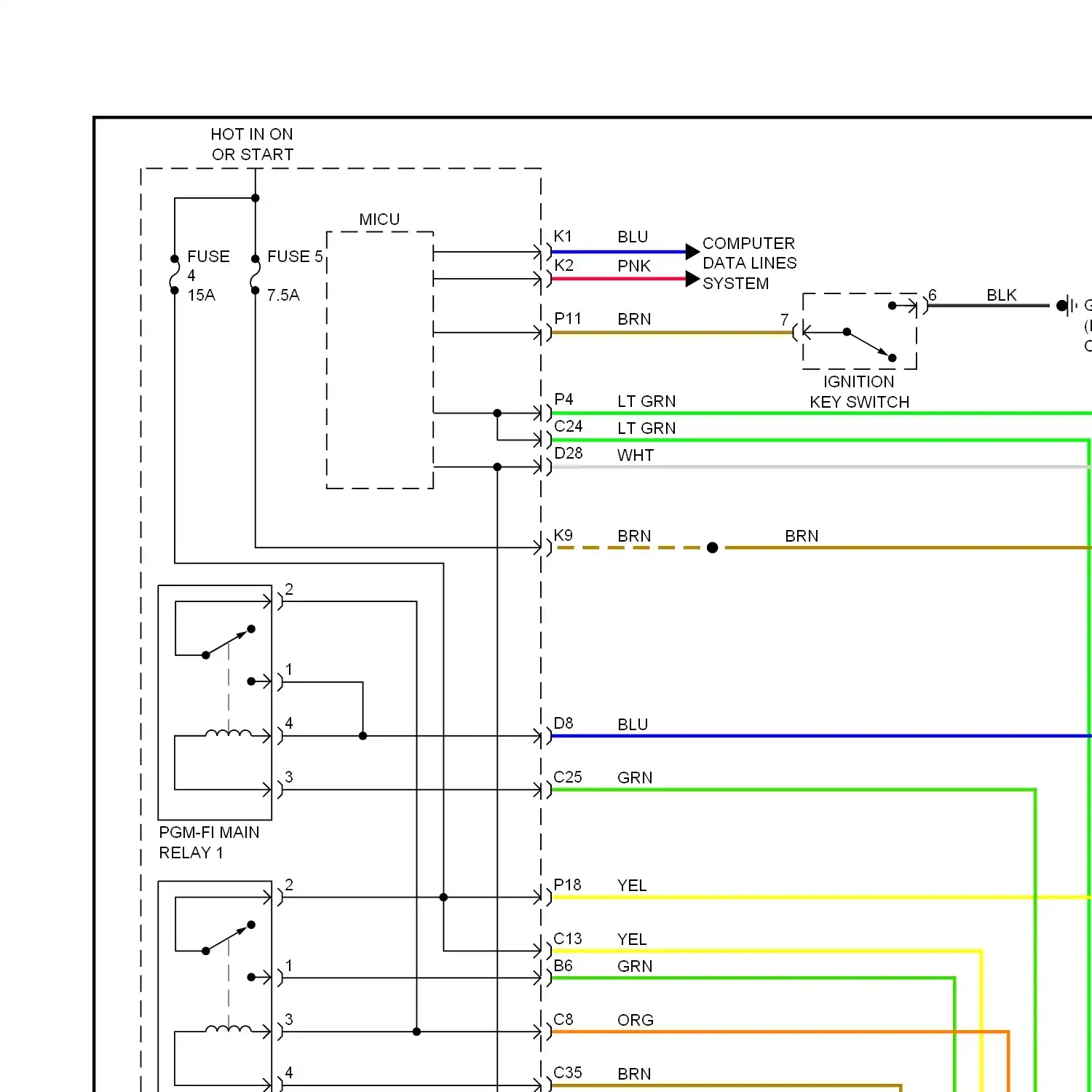

Power distribution circuit, except hybrid with keyless access Power distribution circuit, except hybrid without keyless access Power distribution circuit, hybrid

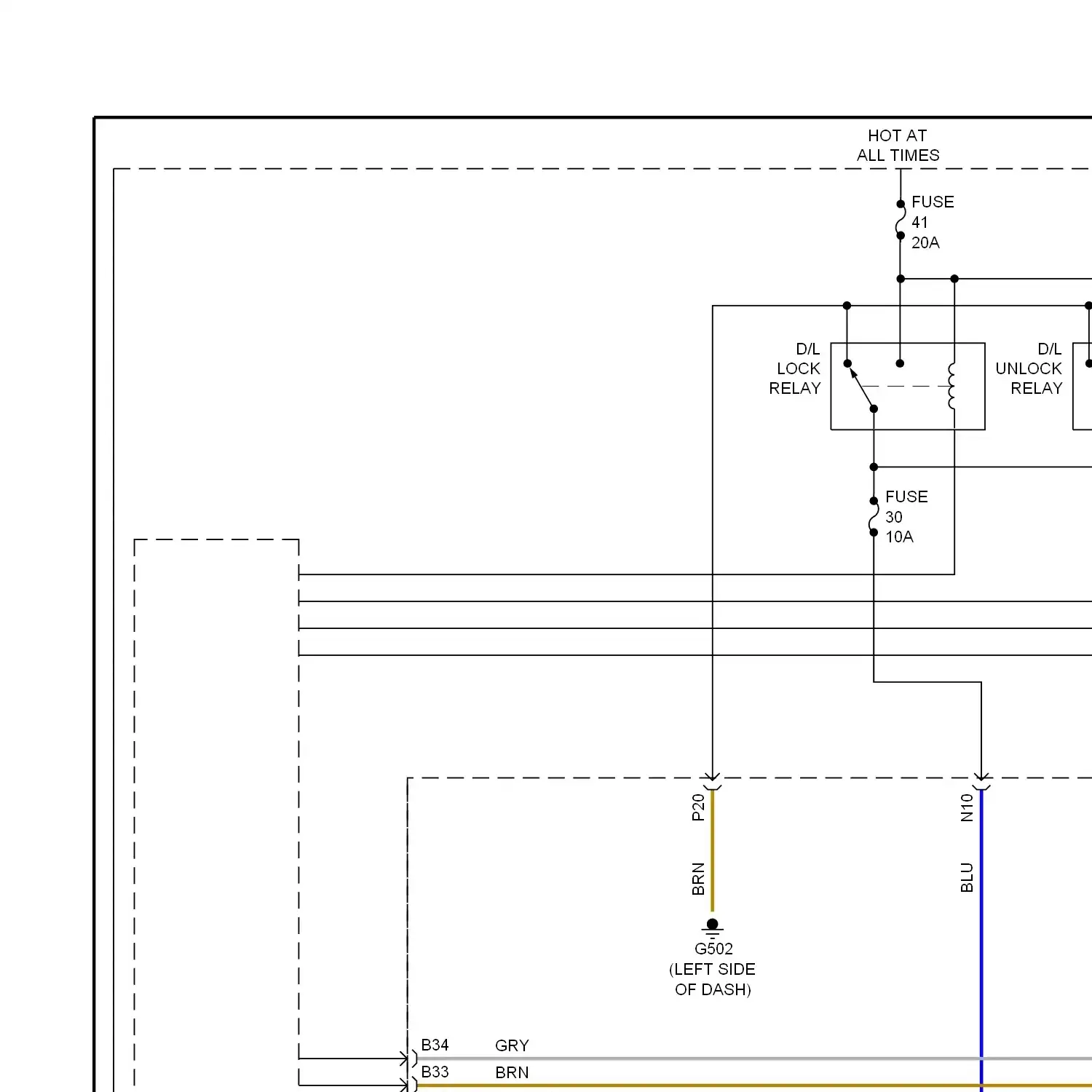

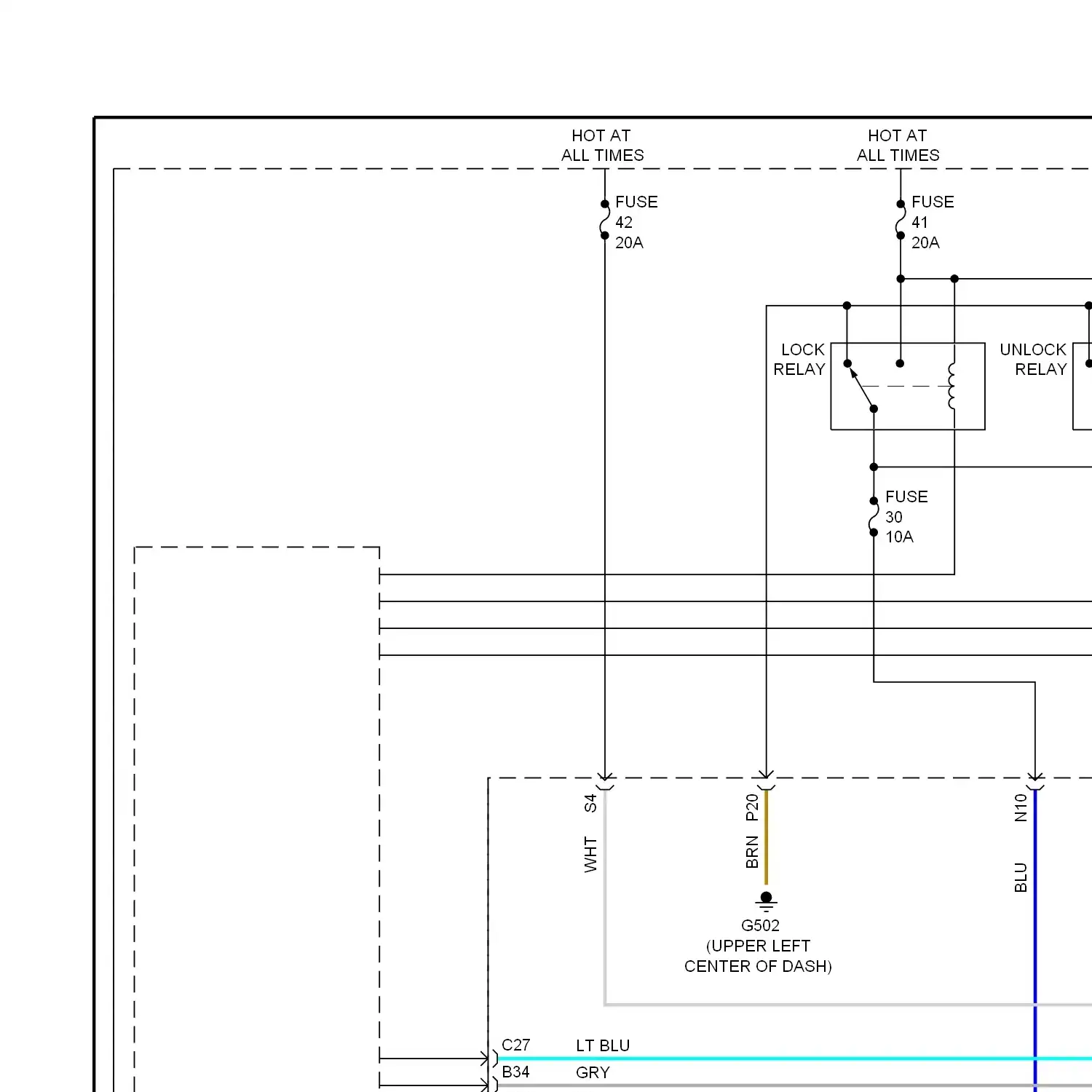

Power door locks circuit, except hybrid Power door locks circuit, hybrid

Power mirrors circuit, except hybrid Power mirrors circuit, hybrid

Driver power seat circuit Heated seats circuit

Power top/sunroof circuit

Power windows circuit, except hybrid Power windows circuit, hybrid

Base radio circuit, except hybrid coupe Base radio circuit, except hybrid sedan Base radio circuit, hybrid Premium radio circuit, with navigation Premium radio circuit, without navigation

Reverse lockout circuit Shift interlock circuit, except hybrid Shift interlock circuit, hybrid

1.5l hybrid, starting circuit

1.8l, charging circuit 1.8l, starting circuit, cvt 1.8l, starting circuit, m/t

2.4l, charging circuit 2.4l, starting circuit

Supplemental restraints circuit, except hybrid coupe Supplemental restraints circuit, except hybrid sedan Supplemental restraints circuit, hybrid

Transmission circuit, except hybrid Transmission circuit, hybrid

Trunk release circuit, except hybrid Trunk release circuit, hybrid

Warning systems circuit, except hybrid Warning systems circuit, hybrid

Wiper/washer circuit, except hybrid with keyless access Wiper/washer circuit, except hybrid without keyless access Wiper/washer circuit, hybrid

ALTERNATOR VOL AMPLIFIER AMP ANTI-LOCK BRAKES SYSTEM B-CAN L B-CAN H B-CAN TRANSCEIVER B-CAN L B-CAN TRANSCEIVER B-CAN TRANSCEIVER B-CAN TRANSCEIVER B- B- CAN L CAN H B-CAN TRANSCEIVER B-CAN H B-CANL B-CANH B CAN TRANSCEIVER BATTERY MODULE DIODE A DIODE B DIODE C DIODE D DIODE E DIODE G DOOR LOCK DOOR LOCK KNOB EXHAUST SIDE IGNITION COIL 1 EXHAUST SIDE IGNITION COIL 2 EXHAUST SIDE IGNITION COIL 3 EXHAUST SIDE IGNITION COIL 4 F-CAN F-CAN F-CAN TRANSCEIVER F-CAN H F-CAN L F-CAN TRANSCEIVER F-CAN H F-CAN TRANSCEIVER F-CAN L F-CAN H F-CAN TRANSCEIVER F-CAN TRANSCEIVER IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 IGNITION IGNITION COIL 3 COIL 1 IGNITION VTC OIL COIL 2 CONTROL SOLENOID VALVE INTAKE INTAKE SIDE SIDE IGNITION IGNITION COIL 3 COIL 4 INTAKE ROCKER ARM SIDE OIL CONTROL IGNITION SOLENOID A COIL 1 INTAKE SIDE IGNITION COIL 2 KEY/DOOR LOCK KNOB MICU DIODE D STEREO AMPLIFIER

A/C CONDENSER FAN MOTOR ANTI-THEFT SYSTEM ENGINE CONTROLS SYSTEM BLOWER MOTOR DOOR LOCKS, ANTI-THEFT SYSTEMS ENGINE CONTROLS SYSTEM DRIVER'S POWER SEAT FRONT UP-DOWN MOTOR DRIVER'S POWER SEAT REAR UP-DOWN MOTOR DRIVER'S POWER SEAT RECLINE MOTOR DRIVER'S POWER SEAT SLIDE MOTOR DRIVER'S POWER WINDOW MOTOR DRIVER'S POWER WINDOW PULSER MOTOR ENGINE COMPT) ENGINE CONTROLS ENGINE CONTROLS SYSTEM ENGINE CONTROLS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS ENGINE CONTROLS, SHIFT INTERLOCK, TRANSMISSIONS SYSTEMS ENGINE PPL CONTROLS SYSTEM ENGINE START/STOP FRONT PASSENGER'S POWER WINDOW MOTOR LEFT POWER MIRROR LEFT/ RIGHT MOTOR LEFT POWER MIRROR UP/ DOWN MOTOR LEFT REAR POWER WINDOW MOTOR LEFT/ RIGHT MOTOR OF ENGINE COMPT) STARTER MOTOR TAILGATE ACTUATOR THROTTLE ACTUATOR TRUNK RELEASE ACTUATOR UP/ DOWN MOTOR UP/ DOWN MOTOR LEFT/ RIGHT MOTOR WINDOW MOTOR WINDOW WASHER MOTOR (IN WASHER FLUID WINDSHIELD WASHER MOTOR WINDSHIELD WIPER MOTOR

AM/FM ANTENNA AMPLIFIER AM/FM, XM ANTENNA DOOR LF ANTENNA FRONT INTERIOR LF ANTENNA GPS ANTENNA LF ANTENNA MIDDLE INTERIOR LF ANTENNA REAR BUMPER LF ANTENNA REAR INTERIOR LF ANTENNA XM ANTENNA SIGNAL ANTENNA

CANCEL BUTTON CONTROL REGULATOR CIRCUIT MAIN BUTTON RESUME BUTTON SET BUTTON

LANE WATCH CAMERA REARVIEW CAMERA REARVIEW CAMERA CIRCUIT W/ DEFOGGER, LANEWATCH CAMERA W/O DEFOGGER, LANEWATCH CAMERA

AUXILIARY JACK ASSEMBLY 5 PIN CONNECTOR PNK WIRE DATA LINK CONNECTOR FRONT ACCESSORY POWER SOCKET OPTIONAL CONNECTOR USB PORT B 5 PIN CONNECTOR

GAUGE CONTROL MODULE RELAY CONTROL MODULE RELAY CONTROL MODULE (IN UNDER-HOOD

AUDIO UNIT/ AUDIO NAVIGATION UNIT AUDIO UNIT/ KEYLESS AUDIO- ACCESS NAVIGATION CONTROL UNIT UNIT AUDIO UNIT/ KEYLESS AUDIO- ACCESS NAVIGATION UNIT CONTROL UNIT AUDIO UNIT/ KEYLESS AUDIO-NAVIGATION ACCESS UNIT CONTROL UNIT AUDIO UNIT/AUDIO NAVIGATION UNIT CAMERA UNIT CEILING FRONT TRUNK FCW/LDW LIGHT INDIVIDUAL LIGHT CAMERA MAP UNIT LIGHT CLIMATE CONTROL UNIT CONTROL UNIT) ELD UNIT EPS CONTROL UNIT FCW/LDW CAMERA UNIT FUEL GAUGE SENDING UNIT FUEL TANK UNIT HVAC CONTROL CIRCUIT/ CLIMATE CONTROL UNIT HVAC CONTROL UNIT/ CLIMATE CONTROL UNIT HVAC CONTROL UNIT/CLIMATE CONTROL UNIT HVAC/ CLIMATE REAR CONTROL WINDOW/ UNIT POWER MIRROR DEFOGGER SWITCH IMMOBILIZER KEYLESS CONTROL UNIT KEYLESS ACCESS CONTROL UNIT MULTI INFORMATION DISPLAY UNIT POWER VSA MODULATOR UNIT CONTROL UNIT SERVO UNIT SRS UNIT UNIT) VSA MODULATOR CONTROL UNIT

DIODE FUSE FUSE 1 FUSE 1 1 FUSE 1-3 FUSE 1-4 FUSE 1-5 FUSE 1-6 FUSE 2 FUSE 2 FUSE 4 FUSE 2-1 FUSE 2-2 FUSE 2-2 FUSE 2-1 FUSE 2-3 FUSE 2-4 FUSE 2-5 FUSE 2-6 FUSE 2-7 FUSE 2-8 FUSE 2-10 FUSE 2-11 FUSE 3 FUSE 4 FUSE 4 FUSE 5 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 11 ENGINE COMPT) FUSE 12 FUSE 13 FUSE 14 FUSE 14-1 FUSE 15 FUSE 15 FUSE 16 FUSE 16 FUSE 17 FUSE 17-1 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 22 FUSE 17 FUSE 22 FUSE 23 FUSE 23 FUSE 23 FUSE 8 FUSE 24 FUSE 25 FUSE 27 FUSE 27 FUSE 41 FUSE 28 FUSE 28 FUSE 29 FUSE 29 FUSE 29 FUSE 14 FUSE 29 FUSE 17 FUSE 29 FUSE 19 FUSE 29 FUSE 20 FUSE 31 FUSE 32 FUSE 33 FUSE 34 FUSE 35 FUSE 38 FUSE 38 FUSE 40 FUSE 39 FUSE 41 FUSE 46 FUSE DIODE FUSE FUSE FUSE FUSE 1-3 1-4 FUSE FUSE 1-5 FUSE FUSE 1-6 2-3 FUSE FUSE 2-6 FUSE FUSE 2-8 2-10 FUSE FUSE 2-11 FUSE FUSE 14-1 FUSE FUSE 29 1-4 1-3 FUSE FUSE FUSE FUSE FUSE FUSE 1-2 1-6 FUSE FUSE FUSE 2-2 2-5 FUSE FUSE FUSE 2-8 2-10 2-11 FUSE FUSE FUSE FUSE FUSE FUSE FUSE LEFT END OF DASH) FUSE FUSE FUSE OF DASH) FUSE OF DASH) HOT AT ALL TIMES FUSE 7 HOT AT ALL TIMES FUSE 13 HOT AT ALL TIMES FUSE 23 HOT AT ALL TIMES FUSE 27 TO FUSE 29

DRIVER'S SEAT CUSHION HEATER DRIVER'S SEAT HEATER DRIVER'S SEAT- BACK HEATER FRONT PASSENGER'S SEAT BACK HEATER FRONT PASSENGER'S SEAT CUSHION HEATER FRONT PASSENGER'S SEAT HEATER

A/T GEAR POSITION INDICATOR DRIVING CIRCUIT A/T GEAR POSITION INDICATOR PANEL LIGHT/PARK-PIN SWITCH AUTO STOP INDICATOR BRAKE INDICATOR BRAKE SYSTEM INDICATOR CHARGING SYSTEM INDICATOR CRUISE CONTROL INDICATOR CRUISE MAIN INDICATOR DOOR INDICATOR DRIVE CIRCUIT INDICATOR FRONT PASSENGER'S AIR BAG CUT-OFF INDICATOR FRONT PASSENGER'S AIR BAG CUTOFF INDICATOR FRONT PASSENGER'S AIRBAG CUTOFF INDICATOR HIGH INDICATOR IMA SYSTEM INDICATOR INDICATOR DRIVE INDICATOR DRIVE CIRCUIT INDICATOR DRIVE CIRCUITS INDICATOR DRIVER CIRCUIT INDICATOR DRIVING CIRCUIT LEFT TURN SIGNAL INDICATOR LIGHTS ON INDICATOR LOW INDICATOR LOW OIL PRESSURE INDICATOR LOW TIRE PRESSURE INDICATOR MALFUNCTION INDICATOR LAMP REAR WINDOW/ POWER MIRROR DEFOGGER SWITCH INDICATOR RIGHT TURN SIGNAL INDICATOR SEAT BELT REMINDER INDICATOR TPMS INDICATOR

6 7 8 9 10 11 12 EXTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM NAVIGATION, SOUND SYSTEMS EXTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS, CRUISE CONTROL SYSTEMS EXTERIOR LIGHTS SYSTEM INSTRUMENT CLUSTER SYSTEM SHIFT INTERLOCK SYSTEM EXTERIOR LIGHTS SYSTEM NAVIGATION, SOUND SYSTEMS FRONT FOG LIGHTS IND FRONT INDIVIDUAL MAP LIGHTS FRONT LIGHTS FOG ON LIGHT IND IND INTERIOR LIGHTS SYSTEM DEFOGGER SYSTEM INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM LIGHTS ON IND PPL EXTERIOR 23 9 22 17 10 23 16 16 LIGHTS SYSTEM

AUXILIARY ELECTRIC WATER PUMP FUEL PUMP FUEL PUMP/ SENDER

A/C COMPRESSOR CLUTCH RELAY A/C CONDENSER FAN RELAY ACC RELAY ACCRY RELAY AUXILIARY ELECTRIC WATER PUMP RELAY AUXILIARY ELECTRICAL WATER PUMP RELAY AUXILIARY UNDER HOOD RELAY BOX BLOWER A/C MOTOR CONDENSER RELAY FAN RELAY BLOWER MOTOR RELAY BLOWER RADIATOR A/C MOTOR FAN RELAY CONDENSER RELAY FAN RELAY CLOSE RELAY D/L DR UNLOCK RELAY D/L LOCK RELAY D/L OR UNLOCK RELAY D/L POWER D/L DR WINDOW UNLOCK LOCK UNLOCK RELAY RELAY RELAY RELAY D/L UNLOCK D/L DR UNLOCK RELAY RELAY D/L UNLOCK RELAY DAYTIME RUNNING LIGHTS RELAY ETCS CONTROL RELAY FAN CONTROL RELAY FRONT ACCESSORY POWER SOCKET RELAY FRONT FOG LIGHT RELAY FUSE POWER WINDOW RELAY FUSE/RELAY BOX HEADLIGHT LOW BEAM RELAY HEADLIGHT TAILLIGHT LOW BEAM RELAY RELAY HORN RELAY HOT AT ALL TIMES UNDER-HOOD FUSE/RELAY BOX (LEFT SIDE FUSE 22 HOT AT ALL TIMES UNDER-HOOD FUSE/RELAY BOX (LEFT SIDE OF ENGINE HOT AT ALL TIMES UNDER-HOOD FUSE/RELAY BOX FUSE 28 HOT W/ ACC RELAY ENERGIZED IGNITION COIL RELAY INHIBITOR RELAY LEFT HEADLIGHT LOW BEAM RELAY LEFT HEADLIGHT RIGHT HEADLIGHT LOW BEAM LOW BEAM RELAY RELAY LOCK RELAY LOCK TAILGATE DRIVER'S RELAY ACTUATOR UNLOCK RELAY RELAY MAIN RELAY MCM RELAY 1 MCM RELAY 1 (IN IPU RELAY MCM RELAY 2 MCM RELAY 2 (IN IPU RELAY OPEN RELAY PGM-FI MAIN ETCS CONTROL RELAY 1 RELAY PGM-FI MAIN RELAY 1 PGM-FI MAIN RELAY 2 PGM-FI SUB- RELAY POWER MIRROR DEFOGGER RELAY POWER WINDOW D/L UNLOCK TRUNK RELEASE RELAY RELAY ACTUATOR RELAY POWER WINDOW RELAY POWER WINDOW UNLOCK LOCK RELAY RELAY RELAY RELAY RADIATOR FAN RELAY REAR WINDOW DEFOGGER RELAY RELAY 1 ENERGIZED RELAY A/C CONTROL COMPRESSOR MODULE CLUTCH RELAY RELAY ENERGIZED REVERSE RELAY REVERSE RELAY CIRCUIT RIGHT HEADLIGHT LOW BEAM RELAY STARTER CUT RELAY STARTER CUT RELAY 1 STARTER CUT RELAY 2 TAILGATE ACTUATOR RELAY TAILLIGHT RELAY TRUNK RELEASE ACTUATOR RELAY TRUNK RELEASE POWER WINDOW ACTUATOR RELAY RELAY UNDER- DASH FUSE/ RELAY BOX (UNDER LEFT END OF UNDER-DASH FUSE/RELAY UNDER-DASH FUSE/RELAY BOX UNDER-DASH FUSE/RELAY BOX (EXCEPT HYBRID: UNDER LEFT UNDER-DASH FUSE/RELAY BOX (LEFT END UNDER-DASH FUSE/RELAY BOX (LEFT END OF UNDER-DASH FUSE/RELAY BOX (UNDER UNDER-DASH FUSE/RELAY BOX (UNDER LEFT UNDER-DASH SUB-RELAY BOX UNDER-HOOD FUSE/RELAY UNDER-HOOD FUSE/RELAY BOX UNDER-HOOD FUSE/RELAY BOX (LEFT SIDE UNDER-HOOD FUSE/RELAY BOX (LEFT SIDE OF UNLOCK RELAY WINDSHIELD WASHER MAIN RELAY WINDSHIELD WASHER MOTOR RELAY WINDSHIELD WIPER HIGH/LOW RELAY WINDSHIELD WIPER INTERMITTENT RELAY WINDSHIELD WIPER MAIN RELAY WINDSHIELD WIPER MOTOR RELAY

APP SENSOR A APP SENSOR B APP SENSOR B 3 2 AUTOMATIC LIGHTING/ SUNLIGHT SENSOR AUTOMATIC LIGHTING/SUNLIGHT SENSOR BAROMETER SENSOR BATTERY SENSOR BATTERY SENSOR SHIELD CKP SENSOR CMP CKP SENSOR SENSOR CMP SENSOR B DRIVER DOOR TOUCH SENSOR DRIVER'S DOOR TOUCH SENSOR DRIVER'S SEAT POSITION SENSOR EGR VALVE/ EGR VALVE POSITION SENSOR EPS STEERING CONTROL ANGLE UNIT SENSOR FRONT PASSENGER'S DOOR TOUCH SENSOR FRONT PASSENGER'S WEIGHT SENSOR FRONT PASSENGER'S WEIGHT SENSOR UNIT HALL SENSOR HUMIDITY SENSOR IAT SENSOR IN-CAR TEMPERATURE SENSOR KNOCK SENSOR SHIELD MAF EVAP SENSOR/ CANISTER IAT PURGE SENSOR VALVE MAF SENSOR MAF SENSOR/ IAT SENSOR MOTOR ROTOR POSITION SENSOR SHIELD ROCKER ARM OIL PRESSURE CMP SWITCH SENSOR A ROCKER ARM ROCKER OIL PRESSURE ARM OIL SENSOR A PRESSURE SENSOR B SENSOR 2 SENSOR 2 SHIELD STEERING ANGLE SENSOR SUNLIGHT SENSOR THROTTLE OPEN SENSOR TORQUE SENSOR TOUCH SENSOR V-SENSOR 1 V-SENSOR 2 V-SENSOR 3 V-SENSOR 4

DRIVER'S DOOR SPEAKER FRONT PASSENGER'S DOOR SPEAKER LEFT REAR SPEAKER PASSENGER'S DOOR SPEAKER PASSENGER'S DOOR SPEAKER PPL RIGHT REAR SPEAKER SPEAKER AMP

AUDIO REMOTE MULTI- INFORMATION DISPLAY SWITCH AUDIO REMOTE MULTI-INFORMATION SWITCH AUDIO REMOTE/MULTI-INFORMATION DISPLAY SWITCH BACKUP LIGHT SWITCH BRAKE FLUID LEVEL SWITCH BRAKE PEDAL POSITION SWITCH CANCEL SWITCH CH+ SWITCH CH+ SWITCH CH- SWITCH CLOCK SWITCH CLUTCH INTERLOCK SWITCH A CLUTCH PEDAL POSITION SWITCH A CLUTCH PEDAL POSITION SWITCH A (TOP OF CLUTCH COMBINATION LIGHT SWITCH CRUISE CONTROL COMBINATION SWITCH DIMMER/ FLASH-TO- PASS SWITCH 0) LOW 1) HIGH 2) PASS DRIVER'S DOOR KEY CYLINDER SWITCH DRIVER'S DOOR LOCK ACTUATOR/ KNOB SWITCH/ KEY CYLINDER DRIVER'S DOOR LOCK ACTUATOR/ KNOB SWITCH/KEY CYLINDER SWITCH DRIVER'S DOOR LOCK ACTUATOR/KNOB SWITCH/ KEY CYLINDER SWITCH DRIVER'S DOOR LOCK ACTUATOR/KNOB SWITCH/KEY CYLINDER SWITCH DRIVER'S DOOR LOCK KNOB SWITCH DRIVER'S DOOR SWITCH DRIVER'S FRONT SEAT PASSENGER'S HEATER SEAT HEATER SWITCH SWITCH DRIVER'S POWER SEAT ADJUSTMENT SWITCH DRIVER'S SEAT BELT BUCKLE SWITCH DRIVER'S SEAT HEATER SWITCH DRIVER'S SWITCH AUTO AUTO UP DN DRIVER'S SWITCH AUTO AUTO UP UP DN ECON SWITCH ENGINE START/STOP SWITCH FOG LIGHT SWITCH FRONT PASSENGER'S DOOR LOCK ACTUATOR/ KNOB SWITCH FRONT PASSENGER'S DOOR LOCK ACTUATOR/KNOB SWITCH FRONT PASSENGER'S POWER WINDOW SWITCH FRONT PASSENGER'S SEAT BELT BUCKLE SWITCH FRONT PASSENGER'S SEAT HEATER SWITCH FRONT PASSENGER'S SWITCH HAZARD WARNING SWITCH HEADLIGHT SWITCH HEADLIGHT SWITCH 0) OFF 1) PARK 2) AUTO 3) HEAD HEADLIGHT SWITCH COMBINATION LIGHT SWITCH HFL- NAVIGATION VOICE CONTROL SWITCH HFL-NAVIGATION VOICE CONTROL SWITCH/ HFT-NAVIGATION VOICE CONTROL SWITCH HFL/HFL- NAVIGATION VOICE CONTROL SWITCH IGNITION KEY SWITCH IGNITION SWITCH INFO SWITCH KEY CYLINDER SWITCH KEY CYLINDER SWITCH DRIVER'S DOOR KNOB SWITCH LANE WATCH SWITCH LDW OFF SWITCH LEFT REAR DOOR LOCK ACTUATOR/ KNOB SWITCH LEFT REAR DOOR LOCK ACTUATOR/KNOB SWITCH LEFT REAR DOOR SWITCH LEFT REAR PASSENGER'S SWITCH LEFT REAR POWER WINDOW SWITCH UP DN LOCK SWITCH MAGNETIC SWITCH MAIN SWITCH MAP LIGHT SWITCH MASTER SWITCH MENU SWITCH MENU SWITCH INFO SWITCH MOONROOF SWITCH/INTERIOR LIGHT SWITCH MOONROOF/SUNROOF SWITCH/INTERIOR LIGHT SWITCH OFF HOOK SWITCH OFF WASH WASHER SWITCH ON HOOK/ BACK SWITCH PARK PIN SWITCH/ A/T GEAR POSITION PARKING BRAKE SWITCH (AT BASE OF PARKING POWER MIRROR SWITCH POWER WINDOW MASTER SWITCH REAR WINDOW/ POWER MIRROR DEFOGGER SWITCH RES/+ SWITCH RIGHT REAR DOOR LOCK ACTUATOR/ KNOB SWITCH RIGHT REAR DOOR LOCK ACTUATOR/KNOB SWITCH RIGHT REAR DOOR SWITCH RIGHT REAR PASSENGER'S SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT REAR POWER WINDOW SWITCH (1.8L SEDAN ROCKER ARM OIL PRESSURE SWITCH SECURITY HOOD SWITCH SET SWITCH SOURCE SWITCH STARTER MAGNETIC SWITCH SWITCH SWITCH SWITCH/TRUNK RELEASE ACTUATOR TALK SWITCH TRANSMISSION RANGE SWITCH TRUNK LID LATCH SWITCH/ TRUNK LEFT RELEASE TAILLIGHT, ACTUATOR BRAKE LIGHT TRUNK LID LATCH SWITCH/ TRUNK RELEASE ACTUATOR TRUNK LID OPENER LOCK SWITCH TRUNK LID OUTER HANDLE SWITCH TURN SIGNAL SWITCH VOLUME DOWN SWITCH VOLUME UP SWITCH VSA OFF ECON SWITCH SWITCH VSA OFF SWITCH WASH SWITCH WASHER SWITCH WINDSHIELD WIPER SWITCH WIPER/ WASHER SWITCH

CVT CLUTCH PRESSURE CONTROL SOLENOID VALVE CVT DRIVE PULLEY PRESSURE CONTROL SOLENOID VALVE CVT DRIVEN PULLEY PRESSURE CONTROL SOLENOID VALVE CVT LOCK-UP CLUTCH CONTROL SOLENOID VALVE EVAP CANISTER PURGE VALVE INHIBITOR SOLENOID KEY INTERLOCK SOLENOID PPL KEY INTERLOCK SOLENOID REVERSE LOCKOUT SOLENOID ROCKER ARM OIL CONTROL SOLENOID ROCKER ARM OIL CONTROL SOLENOID A ROCKER ARM OIL CONTROL SOLENOID B SHIFT LOCK SOLENOID SHIFT MCM LOCK SOLENOID SHIFT SOLENOID VALVE B VTC OIL CONTROL SOLENOID VALVE

2 3 4 5 PNK WIRE 3 2 PNK WIRE 5 6 7 8 9 PNK PPL WIRE 6 7 PNK 1.8L 2.4L WIRE 6 7 PNK WIRE 8 9 10 PNK WIRE 10 1 14 13 19 20 5 9 18 12 11 2 PNK WIRE 10 1 14 13 19 20 5 9 18 12 11 PNK WIRE 10 1 14 13 19 20 PNK WIRE 10 11 12 PNK PNK WIRE 11 12 13 14 15 PNK WIRE 14 15 16 17 18 19 20 21 PNK PPL WIRE 15 16 17 PNK WIRE 20 21 19 PNK PNK PNK WIRE 21 22 23 24 25 26 27 28 29 30 PPL PNK WIRE 22 21 23 PNK WIRE 29 30 31 32 33 34 35 36 37 38 39 40 41 PNK WIRE 30 31 PNK WIRE (OR RED/ WIRE BLK WIRE BLK/ BLU WIRE BLK/RED WIRE BLK/WHT BLK WIRE BLK/WHT WIRE BLK/YEL WIRE BLU PNK WIRE BLU WIRE BLU/ BLK WIRE BLU/BLK WIRE BLU/RED BLK WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/WHT WIRE BRN/YEL WIRE COMPUTER DATA LINES PNK SYSTEM WIRE GRN WIRE GRN/RED WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE LT BLU WIRE LT GRN WIRE NCA WIRE OFF PNK DOOR ON WIRE ON OFF DOOR PNK WIRE ORG/ WIRE PNK 1 2 3 4 5 6 7 8 WIRE PNK 1 2 3 4 WIRE PNK 1 5 WIRE PNK 3 4 5 6 WIRE PNK 6 7 8 WIRE PNK 7 8 WIRE PNK 30 31 32 WIRE PNK COMPUTER DATA LINES SYSTEM WIRE PNK PNK PNK PNK PNK PNK PNK WIRE PNK PNK PNK WIRE PNK PNK WIRE PNK PPL 15 16 17 18 WIRE PNK PPL WIRE PNK SHIFT INTERLOCK SYSTEM WIRE PNK STARTING/ CHARGING SYSTEM WIRE PNK STARTING/CHARGING SYSTEM WIRE PNK WIRE PPL PNK PPL WIRE PPL PNK WIRE RED WIRE RED/ BLU WIRE RED/BLK WIRE RED/BLU WIRE RED/WHT WIRE RED/YEL WIRE RUN WIRE TAN WIRE W/ MOONROOF PNK WIRE WHT WIRE WHT/BLK BRN WIRE WHT/BLK WIRE WHT/BLU BLK WIRE WHT/BLU WIRE WHT/GRN WIRE WHT/RED WIRE YEL BLU/ WIRE YEL GRN/ WIRE YEL PPL WIRE YEL RED/ WIRE YEL TAN WIRE YEL WIRE YEL/ LT BLU WIRE YEL/BLK BLU WIRE YEL/BLK BRN WIRE YEL/BLK RED WIRE YEL/BLK WIRE YEL/BLK YEL WIRE YEL/BLU WIRE YEL/GRN WIRE YEL/RED WIRE

0) OFF 1) PARK 2) AUTO 3) HEAD 1 1 4 5 8 8 3 6 PPL 1 2 3 4 5 PPL 1 2 PPL 1.8L 1.8L 1.8L CVT M/T, 2.4L 1.8L 2.4L 1.8L 2.4L 3 1 2 6 7 3 1 1.8L 2.4L W/ KEYLESS ACCESS W/O KEYLESS ACCESS 2 3 4 1.8L COUPE CVT 1.8L COUPE M/T EXCEPT 1.8L COUPE M/T 1.8L COUPE M/T, CANADA COUPE 1.8L CVT 1.8L CVT 2.4L 1.8L M/T 2 3 1.8L M/T, 2.4L CVT 1.8L 2.4L 2 3 1.8L SEDAN CVT EXCEPT 1.8L SEDAN CVT 1.8L W/ START/STOP 2 3 4 5 6 7 PPL 2.4L 2.4L 1.8L 2.4L 1.8L M/T CVT 2 3 4 2.4L CVT 1.8L M/T 2.4L, 1.8L COUPE CVT 2.4L, 1.8L W/O START/STOP 3 4 5 6 PPL 4 3 2 1 PPL 4 DOOR 5 6 PPL 5 9 18 PPL 6 7 PPL 7 1 CVT M/T 8 5 11 10 9 12 7 PPL PPL 11 12 PPL 23 15 EXCEPT SI SI 33 34 35 PPL (2.4L: LEFT REAR OF (UNDER FRONT (UNDER FRONT PASSENGER'S (UPPER LEFT CENTER (UPPER LEFT CENTER OF A/C COMPRESSOR A/C COMPRESSOR DRIVER A/C COMPRESSOR DRIVER MCM A/T GEAR POSITION ABS IND. AIR CONDITIONING SYSTEM AUTO AUTO CLOSE OPEN AUTO AUTO OPEN CLOSE AUTO DN AUTO STOP IND AUTO UP B- B- CAN L CAN H B-CAN B-CAN B-CAN B-CAN H B-CAN H B-CAN L B-CAN L BLINKING CIRCUIT BOX 1 BRAKE IND BRAKE LEVER) BRAKE SYSTEM IND CABLE REEL (ON STEERING CABLE REEL (TOP OF STEERING CANH COMPUTER DATA LINES SYSTEM CEILING FRONT LIGHT INDIVIDUAL MAP LIGHT CEILING LIGHT CENTER CENTER JUNCTION JUNCTION BOX 2 BOX 1 CENTER J/B 1 CENTER J/B 2 CENTER JUNCTION CENTER JUNCTION BOX 1 CENTER JUNCTION BOX 2 CENTRAL JUNCTION BOX 1 CENTRAL JUNCTION BOX 2 CH- CHANNEL CHANNEL CHARGING SYSTEM IND CIRCUIT FAIL-SAFE CLOCK ADJ CLOCK SW CLUTCH/ THERMAL PROTECTOR COLUMN) COMPRESSOR) COMPT) COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEM CONTROL BLOCK COOLING FANS SYSTEM COOLING FANS SYSTEM COMPUTER DATA LINES SYSTEM PPL CORNER OF IPU MODULE) COUPE CVT COUPE, SEDAN COURTESY LAMPS CIRCUIT CRUISE CONTROL IND CRUISE CONTROL SYSTEM CRUISE CONTROL SYSTEM COOLING FANS SYSTEM ANTI-THEFT SYSTEM CRUISE CONTROL SYSTEM COOLING FANS SYSTEM COMPUTER DATA LINES SYSTEM CRUISE CONTROL SYSTEM NAVIGATION SYSTEM CRUISE MAIN IND DASH) DATA LINES SYSTEM DC-DC CONVERTER DEFOGGER SYSTEM DIMMER CIRCUIT DIMMING CIRCUIT DIMMING CIRCUIT CIRCUIT DOOR IND DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, SHIFT INTERLOCK, TRANSMISSIONS SYSTEMS DOOR ON DOWN RIGHT DOWN/ LEFT UP/ RIGHT DRIVE CIRCUIT DRIVER UNLOCK DRIVER'S DOOR DRIVER'S DOOR OUTER HANDLE DRIVER'S SEAT BELT OUTER LAP TENSIONER DRL IND ECO IND END OF DASH) EPS IND EVAP CANISTER EXCEPT 1.8L 1.8L M/T M/T EXCEPT 1.8L COUPE CVT EXCEPT 1.8L COUPE M/T EXCEPT 1.8L COUPE M/T, CANADA COUPE EXCEPT 1.8L M/T EXCEPT 1.8L SEDAN CVT EXCEPT COUPE CVT EXCEPT HYBRID EXCEPT LX, DX F-CAN F-CAN H F-CAN H F-CAN L F-CAN L F-CAN L F-CAN H FAIL SAFE CIRCUIT FAIL-SAFE FCW IND FLUID RESERVOIR) FORCED TURNING OFF CIRCUIT FORCED TURNING ON CIRCUIT FRONT FOG LIGHT IND FRONT PASSENGER'S FRONT PASSENGER'S DOOR OUTER HANDLE FUEL DISPLAY HDMI PORT HEAD AUTO HEAD AUTO PARK HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM HI LO HIGH BEAM IND HIGH MOUNT BRAKE HIGH MOUNT BRAKE LIGHT HIGH TEMPERATURE IND HORNS SYSTEM HORNS SYSTEM COMPUTER DATA LINES SYSTEM HORNS SYSTEM HORNS SYSTEM HOT AT ALL TIMES HOT IN ACC OR ON HOT IN ON HOT IN ON OR HOT IN ON OR ACC HOT IN ON OR START HYBRID CENTER JUNCTION BOX 1 HYBRID EXCEPT HYBRID I- VTEC IND ICM ICM ICM SECONDARY IGNITION KEY LIGHT ILLUMINATION CONTROL ILLUMINATION CONTROL, DIMMING ILLUMINATION CONTROL, DIMMING CIRCUIT ILLUMINATION CONTROL, DIMMING CIRCUIT FOR AMBIENT ILLUMINATION ENCODER IMA SYSTEM IND IMMOBILIZER IND INSTANT FUEL DISPLAY INSTRUMENT CLUSTER SYSTEM INSTRUMENT CLUSTER SYSTEM SHIFT INTERLOCK SYSTEM INTERMITTENT DWELL TIME CONTROLLER INTERMITTENT DWELL TIME CONTROLLER MIST OFF INT IPU FAN MODULE KEY IN KEYLESS ACCESS IND KEYLESS ACCESS SYSTEM IND KEYLESS BUZZER KICK PANEL) KM/H-MHP/ CLOCK ADJ LANE WATCH LDW IND LEFT BACKUP LIGHT LEFT DAYTIME RUNNING LIGHT LEFT END OF DASH) LEFT FOG LIGHT LEFT FRONT TURN SIGNAL LIGHT LEFT INNER TAILLIGHT LEFT LICENSE PLATE LIGHT LEFT POWER MIRROR LEFT REAR LEFT REAR TURN LEFT SIGNAL BACKUP LIGHT LIGHT LEFT REAR TURN SIGNAL LIGHT LEFT REAR TURN SIGNAL LIGHT LEFT FRONT TURN SIGNAL LIGHT LEFT REAR TURN SIGNAL LIGHT RIGHT REAR TURN SIGNAL LIGHT LEFT RIGHT BACKUP BACKUP LIGHT LIGHT LEFT TAILLIGHT/ BRAKE LIGHT LEFT TURN SIGNAL IND LEFT TWEETER LICENSE PLATE LIGHT LINES SYSTEM COMPUTER DATA LOW FUEL IND LOW INT LOW OIL PRESSURE IND LOW TEMPERATURE IND LOW TIRE PRESSURE IND LX EXCEPT LX MAIN CIRCUIT MAINTENANCE REQUIRED IND SEAT BELT REMINDER IND MAP LIGHT MESSAGE IND MIL IND MIST HIGH LOW OFF MPI MODULE NAVI BACK NAVI NAVI TALK BACK NAVIGATION SYSTEM NAVIGATION SYSTEM INSTRUMENT CLUSTER SYSTEM NAVIGATION, SOUND SYSTEMS NOT USED NOT USED OF DASH) OF LUGGAGE COMPT LID) OFF ON OFF OPEN CLOSE ON CIRCUIT ON DOOR ON OFF PARK OFF PASSENGER'S SEAT) PCM (LEFT SIDE PCM (LEFT SIDE OF PEDAL ASSEMBLY) POWER DISTRIBUTION SYSTEM POWER DISTRIBUTION SYSTEM INSTRUMENT CLUSTER SYSTEM POWER MIRROR POWER TOPS SYSTEM POWER TRANSISTOR POWER WINDOWS SYSTEM PPL 1 2 PPL 3 3 2 4 PPL 3 4 PPL 3 4 5 6 PPL 6 7 PPL 7 8 PPL 8 9 PPL 9 10 12 11 PPL 10 11 PPL 11 12 PPL 13 5 6 3 4 11 PPL 15 16 PPL (OR PPL PPL PPL PPL 5 6 PPL/ PPL/ PPL/ REAR WINDOW DEFOGGER RESERVOIR) REV IND 1 REV IND 5 REV IND REV IND 6 REV REV IND IND RIGHT BACKUP LIGHT RIGHT DAYTIME RUNNING LIGHT RIGHT END OF DASH) RIGHT FOG LIGHT RIGHT FRONT RIGHT FRONT TURN SIGNAL LIGHT RIGHT INNER TAILLIGHT RIGHT LEFT RIGHT LICENSE PLATE LIGHT RIGHT POWER MIRROR RIGHT REAR RIGHT REAR POWER RIGHT REAR TURN SIGNAL RIGHT REAR TURN SIGNAL LIGHT RIGHT TAILLIGHT/ BRAKE LIGHT RIGHT TURN SIGNAL IND RIGHT TWEETER ROCKER ARM OIL CONTROL S GND SEAT BELT REMINDER IND SEAT) SECURITY IND SEDAN COUPE LX EXCEPT LX SEDAN, COUPE SEL RESET SELECTABLE ENERGY ABSORPTION DEVICE SHIFT INTERLOCK SYSTEM SHIFT INTERLOCK SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS SHIFT INTERLOCK SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM SHIFT INTERLOCK, DOOR LOCKS, ANTI-THEFT SYSTEMS SHIFT LEVER) SI EXCEPT SI SIDE AIR BAG CUT-OFF IND SIDE MARKER LIGHT SMART BUZZER SOUND SYSTEMS SPARK PLUG SPARK SPARK PLUG PLUG SPEEDO DISPLAY SRS IND STABILIZING CIRCUIT STARTING CIRCUIT STARTING/ CHARGING SYSTEM STARTING/ CHARGING SYSTEM AIR CONDITIONING SYSTEM STARTING/CHARGING SYSTEM STARTING/CHARGING SYSTEM AIR CONDITIONING SYSTEM STARTING/CHARGING SYSTEM CRUISE CONTROL SYSTEM POWER TOPS, NAVIGATION SYSTEMS STEERING GEAR BOX THERMAL PROTECTOR TOP OF TRANSMISSION) TPMS IND TRANSMISSION HOUSING) TRANSMISSION RANGE TRANSMISSIONS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS TRIP RESET TRUNK IND TRUNK LIGHT TRUNK, TAILGATE, FUEL DOORS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM AIR CONDITIONING SYSTEM TURNING- FORCED TURNING-OFF FORCED UP DN UP DN CVT) UP LEFT UP LEFT DOWN RIGHT USB ADAPTER USB PORT B USB PORT C VOL DOWN VOL UP VSA IND VSA OFF IND W/ DEFOGGER W/ DEFOGGER W/O DEFOGGER W/ DUEL HORNS W/ KEYLESS ACCESS W/ KEYLESS ACCESS SYSTEM W/ LICENSE PLATE LIGHT W/O LICENSE PLATE LIGHT W/ NAVIGATION W/ POWER MIRROR DEFOGGER W/O DEFOGGER W/O KEYLESS ACCESS W/O KEYLESS ACCESS SYSTEM W/O KEYLESS W/ KEYLESS ACCESS ACCESS SYSTEM SYSTEM W/O NAVIGATION W/O POWER MIRROR DEFOGGER WARNING DRIVE CIRCUIT WASH OFF WASHER FLUID LEVEL IND WINDSHIELD WASHER WIPER/ WASHER SYSTEM WIPER/WASHER SYSTEM WIPER/WASHER SYSTEM WIPER/WASHER SYSTEM WIPER/WASHER SYSTEM WIPER/WASHER SYSTEM HEADLIGHTS SYSTEM
