Interior light circuit for Honda Civic II (1979-1997)

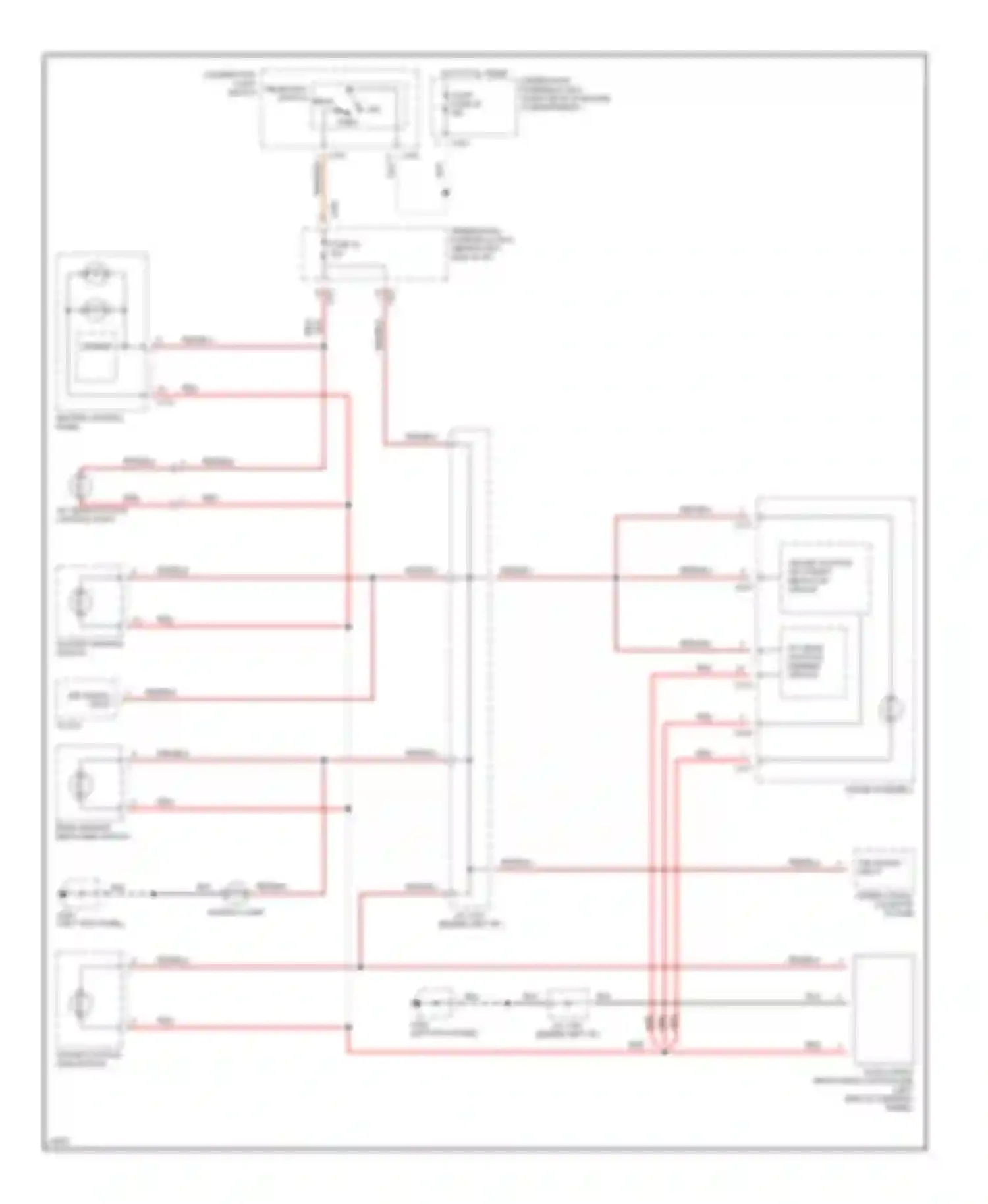

Interior light circuit (1 of 2)
A/T GEAR POSITION CONSOLE LIGHT
A/T GEAR POSITION DIMMING CIRCUIT
ASHTRAY LIGHT
BLK WIRE
CLOCK
COMBINATION LIGHT SWITCH
CRUISE CONTROL MAIN SWITCH
CRUISE CONTROL OR UPSHIFT INDICATOR CIRCUIT
DASH LIGHTS BRIGHTNESS CONTROLLER (LEFT SIDE OF STEERING WHEEL)
DIM SIGNAL INPUT
DIMMER
FUSE 19
GAUGE ASSEMBLY
HAZARD WARNING SWITCH
HEADLIGHT SWITCH HEAD OFF PARK
HEATER CONTROL PANEL
HOT AT ALL TIMES
LIGHT FUSE 40
REAR WINDOW DEFOGGER SWITCH
RED WIRE
RED/BLK WIRE
RED/GRN WIRE
STEREO RADIO/ CASSETTE PLAYER
UNDER-DASH FUSE/RELAY BOX (BEHIND LEFT SIDE OF I/P)
UNDER-HOOD FUSE/RELAY BOX
WHT WIRE

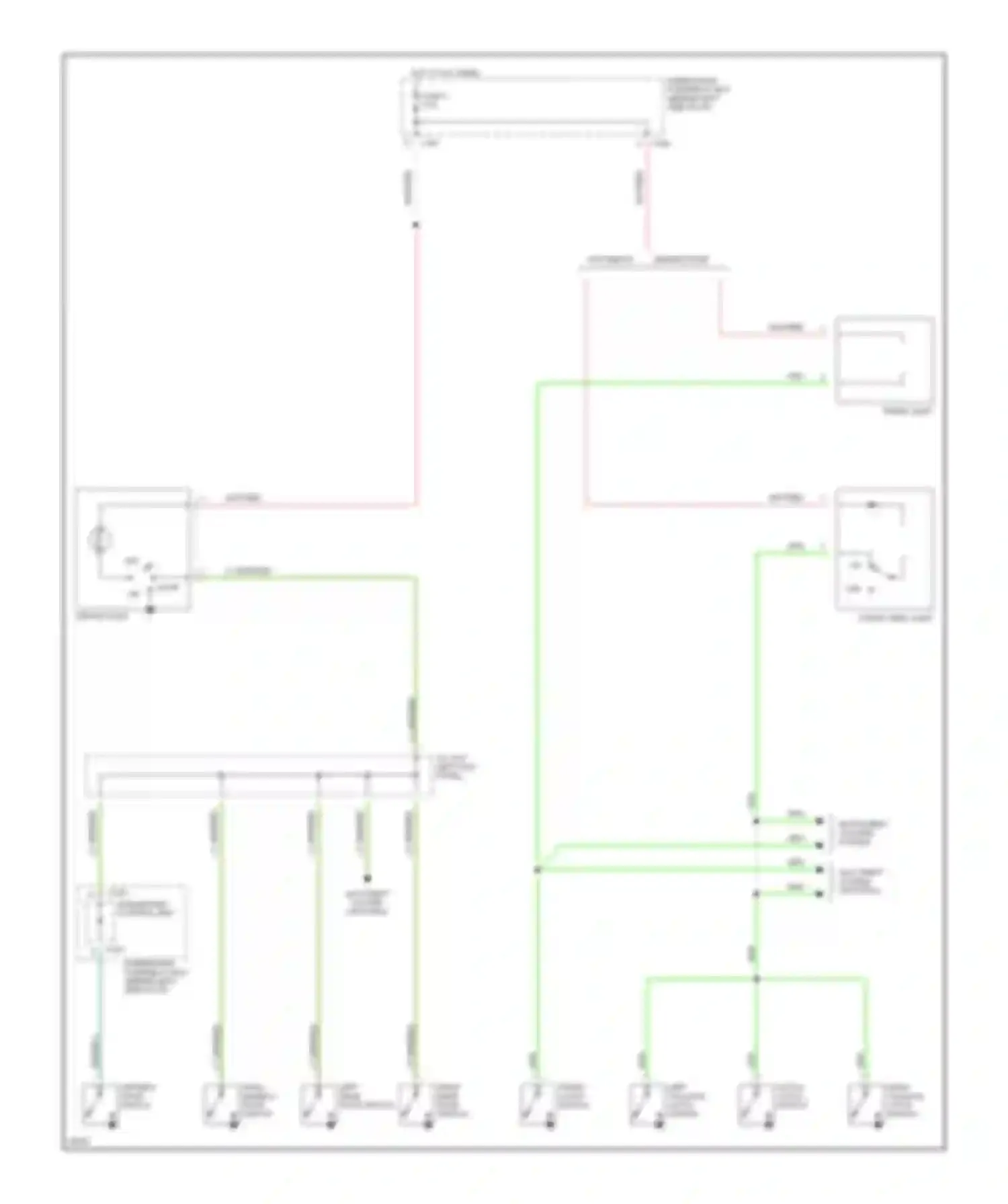

Interior light circuit (2 of 2)
ANTI-THEFT SYSTEM (OPTIONAL)
CARGO AREA LIGHT
CEILING LIGHT
DOOR ON
DRIVER'S DOOR SWITCH
FUSE 3
GRN WIRE
GRN/BLU WIRE
HATCH LATCH SWITCH
HATCHBACK SEDAN/COUPE
HOT AT ALL TIMES
INSTRUMENT CLUSTER SYSTEM
INTEGRATED CONTROL UNIT
LEFT REAR DOOR SWITCH
LEFT TAILGATE LATCH SWITCH
LT GRN/RED WIRE
OFF
PASS- ENGER'S DOOR SWITCH
RIGHT REAR DOOR SWITCH
RIGHT TAILGATE LATCH SWITCH
TRUNK LATCH SWITCH
TRUNK LIGHT
UNDER-DASH FUSE/RELAY BOX
WHT/RED WIRE
