Honda Civic II (1979-1997) passengers window switch wiring diagram
This page shows the only wiring diagram for the component.passengers window switch, which is found in the car Honda Civic II (1979-1997). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

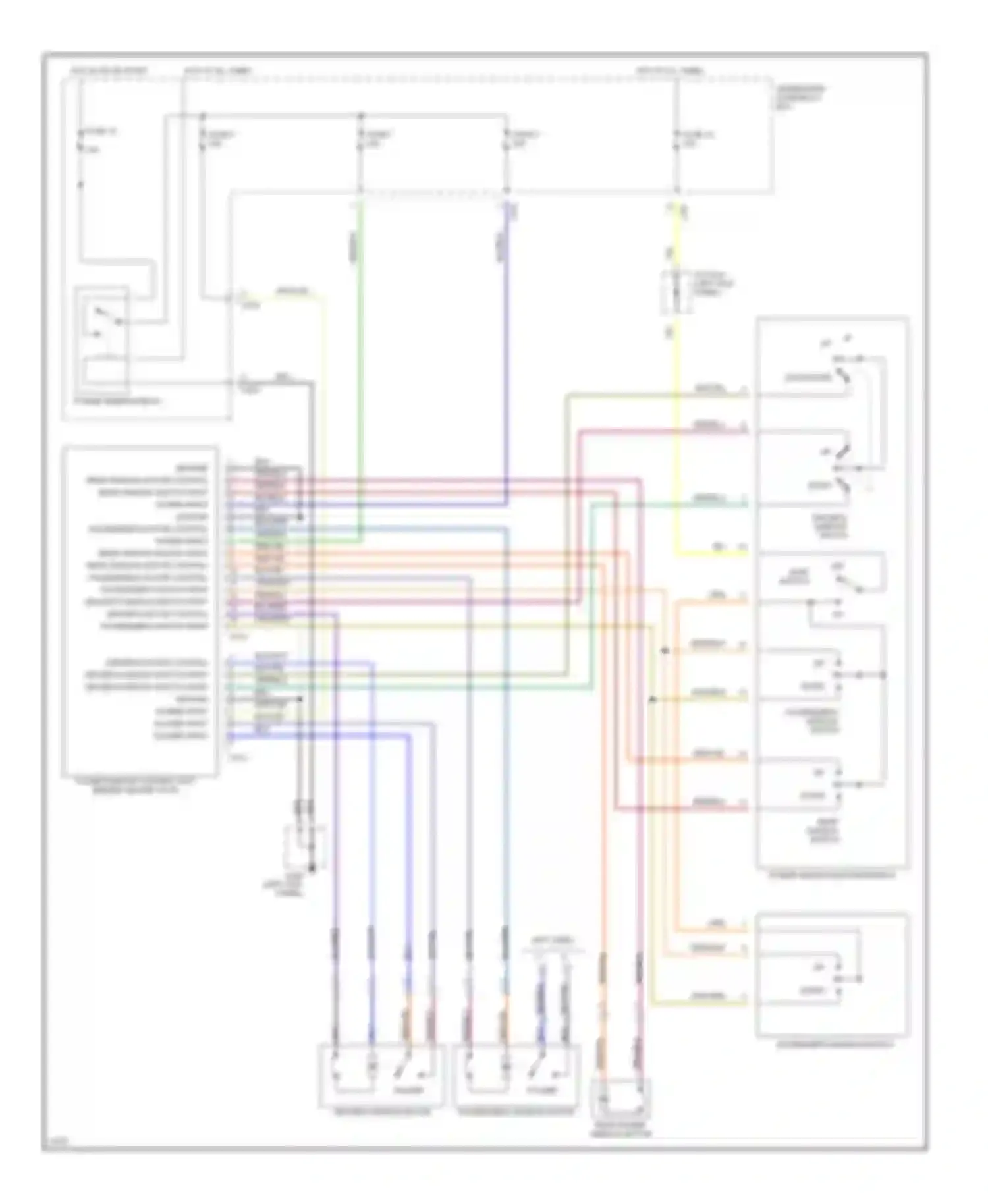

passengers window switch wiring diagram (1 of 1)
AUTO DOWN
BLK WIRE
BLK/YEL WIRE
BLU WIRE
BLU/BLK WIRE
BLU/GRN WIRE
BLU/RED WIRE
BLU/WHT WIRE
BLU/YEL WIRE
DOWN
DRIVER'S WINDOW MOTOR
DRIVERS WINDOW SWITCH
FUSE 14
FUSE 15
FUSE 5
FUSE 7
FUSE 8
GRN/BLK WIRE
GRN/BLU WIRE
HOT AT ALL TIMES
HOT IN ON OR START
MAIN SWITCH
OFF
ORG/ WIRE
ORG/GRN WIRE
ORG/WHT WIRE
PASSENGER'S WINDOW MOTOR
PASSENGERS WINDOW SWITCH
POWER WINDOW CONTROL UNIT (BEHIND CENTER OF I/P)
POWER WINDOW MASTER SWITCH
POWER WINDOW RELAY
PULSER
REAR POWER WINDOW MOTOR
REAR WINDOW SWITCH
RED/BLK WIRE
RED/BLU WIRE
RED/YEL WIRE
UNDER-DASH FUSE/RELAY BOX
WHT/YEL WIRE
YEL WIRE
Go to component -> Power window circuit -> PASSENGERS WINDOW SWITCH
