Honda Civic II (1979-1997) defogger timer circuit Wiring diagram
This page shows the only wiring diagram for the component.defogger timer circuit, which is found in the car Honda Civic II (1979-1997). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

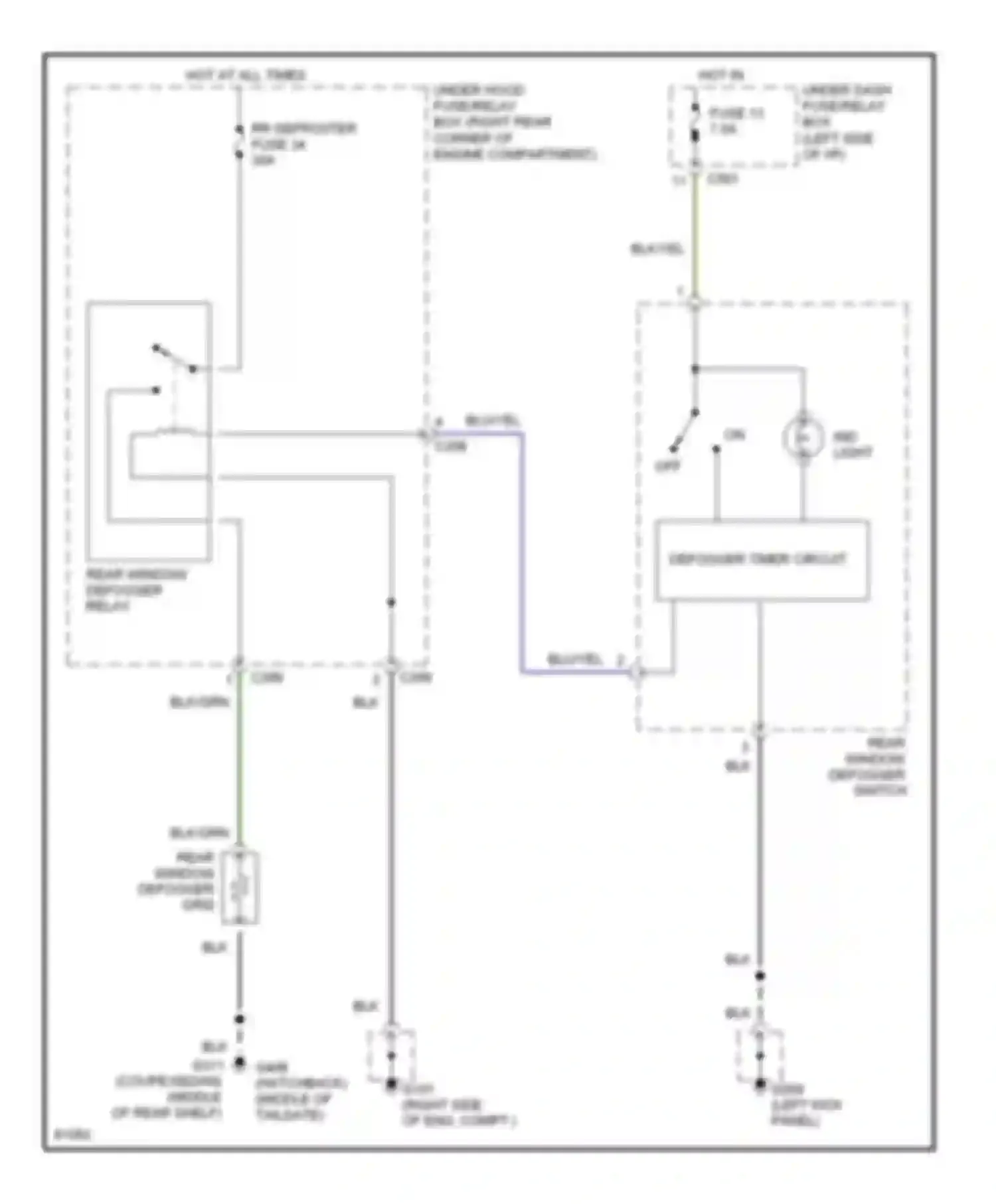

Wiring diagram defogger timer circuit (1 of 1)
BLK WIRE
BLK/GRN WIRE
BLK/YEL WIRE
BLU/YEL WIRE
DEFOGGER TIMER CIRCUIT
FUSE 13
HOT AT ALL TIMES
HOT IN ON
IND LIGHT
OFF
REAR WINDOW DEFOGGER GRID
REAR WINDOW DEFOGGER RELAY
REAR WINDOW DEFOGGER SWITCH
RR DEFROSTER FUSE 34
UNDER-DASH FUSE/RELAY BOX (LEFT SIDE OF I/P)
UNDER-HOOD FUSE/RELAY BOX (RIGHT REAR CORNER OF ENGINE COMPARTMENT)
Go to component -> Defogger circuit -> DEFOGGER TIMER CIRCUIT
