Honda Civic Type R XI (2021-2024) turn signal switch Wiring diagrams

This page contains all the electrical diagrams for the component. turn signal switch, in which he is found in the car Honda Civic Type R XI (2021-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

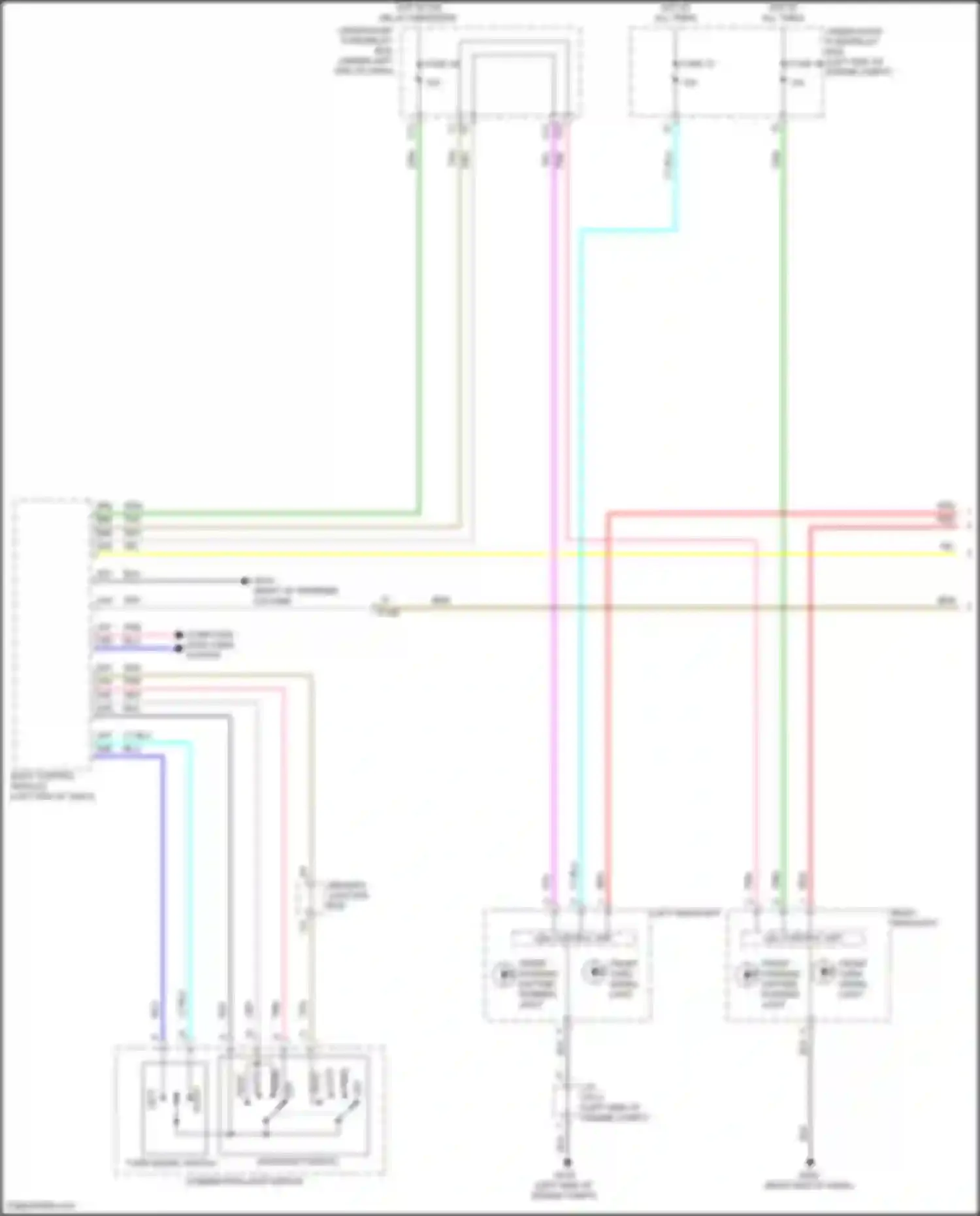

Wiring diagram turn signal switch (1 of 2)

Wiring diagram turn signal switch for Honda Civic Type R XI (2021-2024)

Get access

AUTO BLK WIRE BLU WIRE BODY CONTROL MODULE BRN WIRE COMBINATION LIGHT SWITCH COMPUTER DATA LINES SYSTEM DASHBOARD WIRE HARNESS JUNCTION BOX J FRONT PARKING/ DAYTIME RUNNING LIGHT FRONT TURN SIGNAL LIGHT FUSE 27 FUSE 30 FUSE 44 FUSE HOLDER A GRN WIRE GRY WIRE HEAD HEADLIGHT SWITCH HOT AT ALL TIMES LED CONTROL UNIT LEFT LEFT "C" PILLAR) LEFT HEADLIGHT LEFT REAR TURN SIGNAL LIGHT LT BLU WIRE OFF PARK PNK WIRE PPL RED WIRE RELAY ENERGIZED RIGHT RIGHT END OF DASH) RIGHT HEADLIGHT RIGHT REAR TURN SIGNAL LIGHT TAN WIRE TURN SIGNAL SWITCH UNDER-DASH FUSE/RELAY BOX UNDER-HOOD FUSE/RELAY BOX YEL WIRE

Go to component: -> Exterior lamps circuit, hatchback (1 of 3) -> TURN SIGNAL SWITCH

Wiring diagram turn signal switch (2 of 2)

Wiring diagram turn signal switch for Honda Civic Type R XI (2021-2024)

Get access

AUTO BLK WIRE BLU WIRE BODY CONTROL MODULE BRN WIRE COMBINATION LIGHT SWITCH COMPUTER DATA LINES SYSTEM DRIVER'S JUNCTION BOX A FRONT PARKING/ DAYTIME RUNNING LIGHT FRONT TURN SIGNAL LIGHT FUSE 27 FUSE 30 FUSE 44 GRN WIRE GRY WIRE HEAD HEADLIGHT SWITCH HOT AT ALL TIMES LED CONTROL UNIT LEFT LEFT HEADLIGHT LT BLU WIRE OFF PARK PNK WIRE PPL RED WIRE RELAY ENERGIZED RIGHT RIGHT END OF DASH) RIGHT HEADLIGHT TAN WIRE TURN SIGNAL SWITCH UNDER-DASH FUSE/RELAY BOX UNDER-HOOD FUSE/RELAY BOX YEL WIRE

Go to component: -> Exterior lamps circuit, sedan (1 of 3) -> TURN SIGNAL SWITCH
