Honda Civic Type R XI (2021-2024) rear shelf lf antenna Wiring diagrams

This page contains all the electrical diagrams for the component. rear shelf lf antenna, in which he is found in the car Honda Civic Type R XI (2021-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

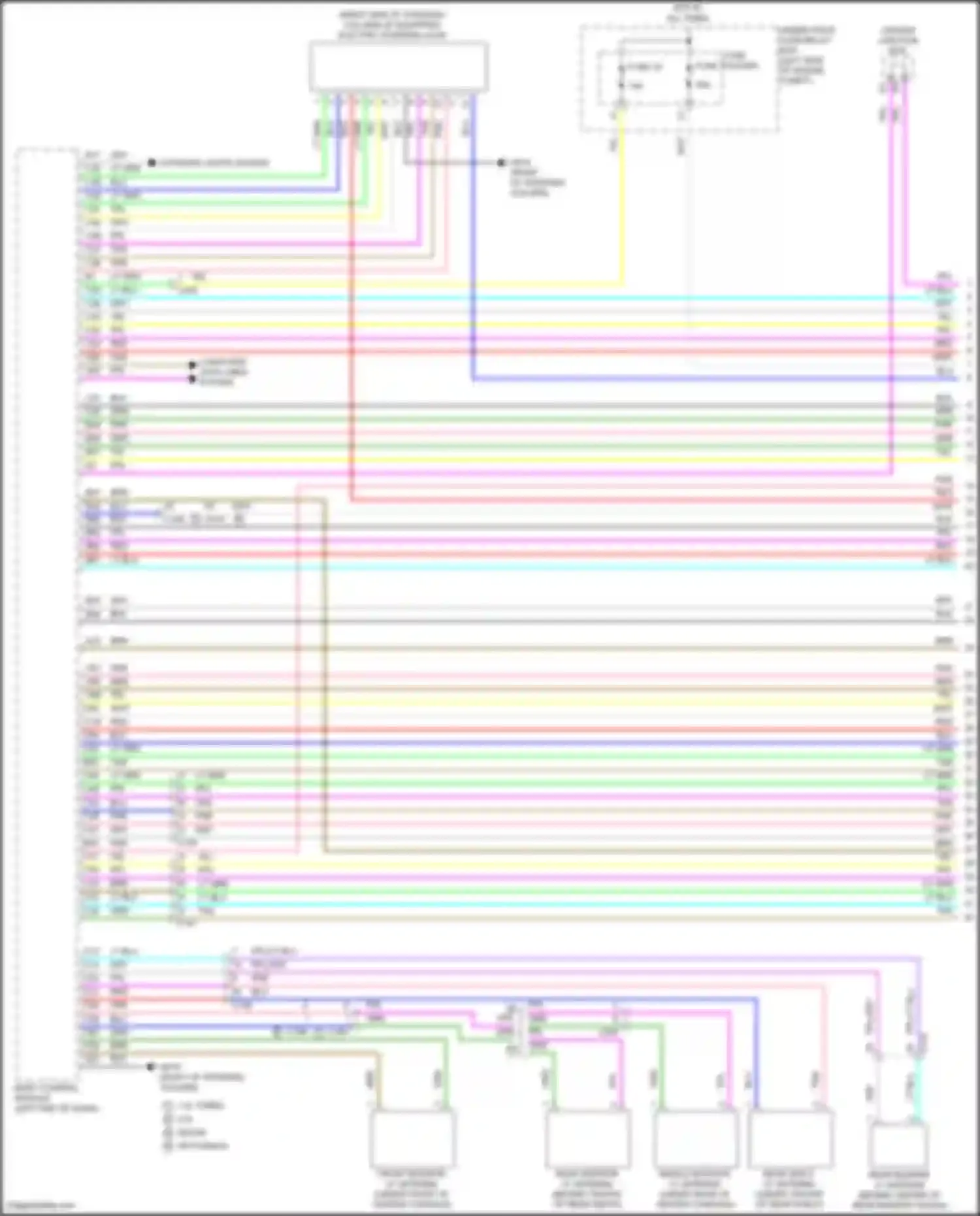

Wiring diagram rear shelf lf antenna (1 of 2)

Wiring diagram rear shelf lf antenna for Honda Civic Type R XI (2021-2024)

Get access

2.0L BLK WIRE BLU WIRE BODY CONTROL MODULE BRN WIRE CENTER JUNCTION BOX D COMPUTER DATA LINES SYSTEM FRONT INTERIOR LF ANTENNA FUSE 33 FUSE 7 FUSE HOLDER A GRN WIRE GRY WIRE HATCHBACK HOT AT ALL TIMES LT BLU WIRE LT GRN WIRE MIDDLE INTERIOR LF ANTENNA PNK WIRE PPL PPL/GRY WIRE PPL/LT BLU WIRE REAR BUMPER LF ANTENNA REAR INTERIOR LF ANTENNA REAR SHELF LF ANTENNA RED WIRE SEDAN TAN WIRE UNDER-HOOD FUSE/RELAY BOX WHT WIRE YEL WIRE

Go to component: -> Anti-theft circuit (1 of 6) -> REAR SHELF LF ANTENNA
