Wiring Diagrams for Honda Accord XI (2023-2024)

Acoustic vehicle alerting system circuit Grille shutter circuit

Automatic a/c circuit, except hybrid Automatic a/c circuit, hybrid

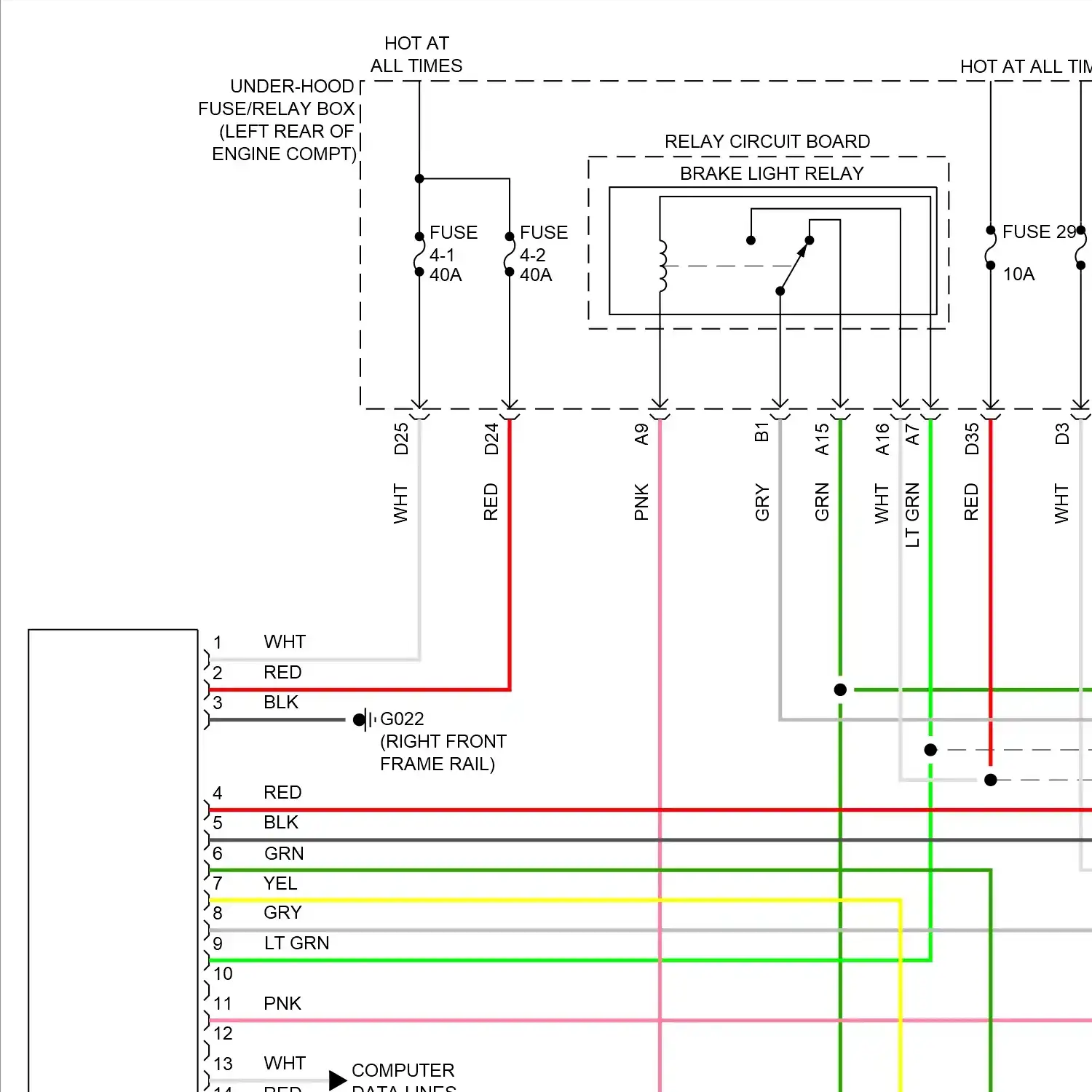

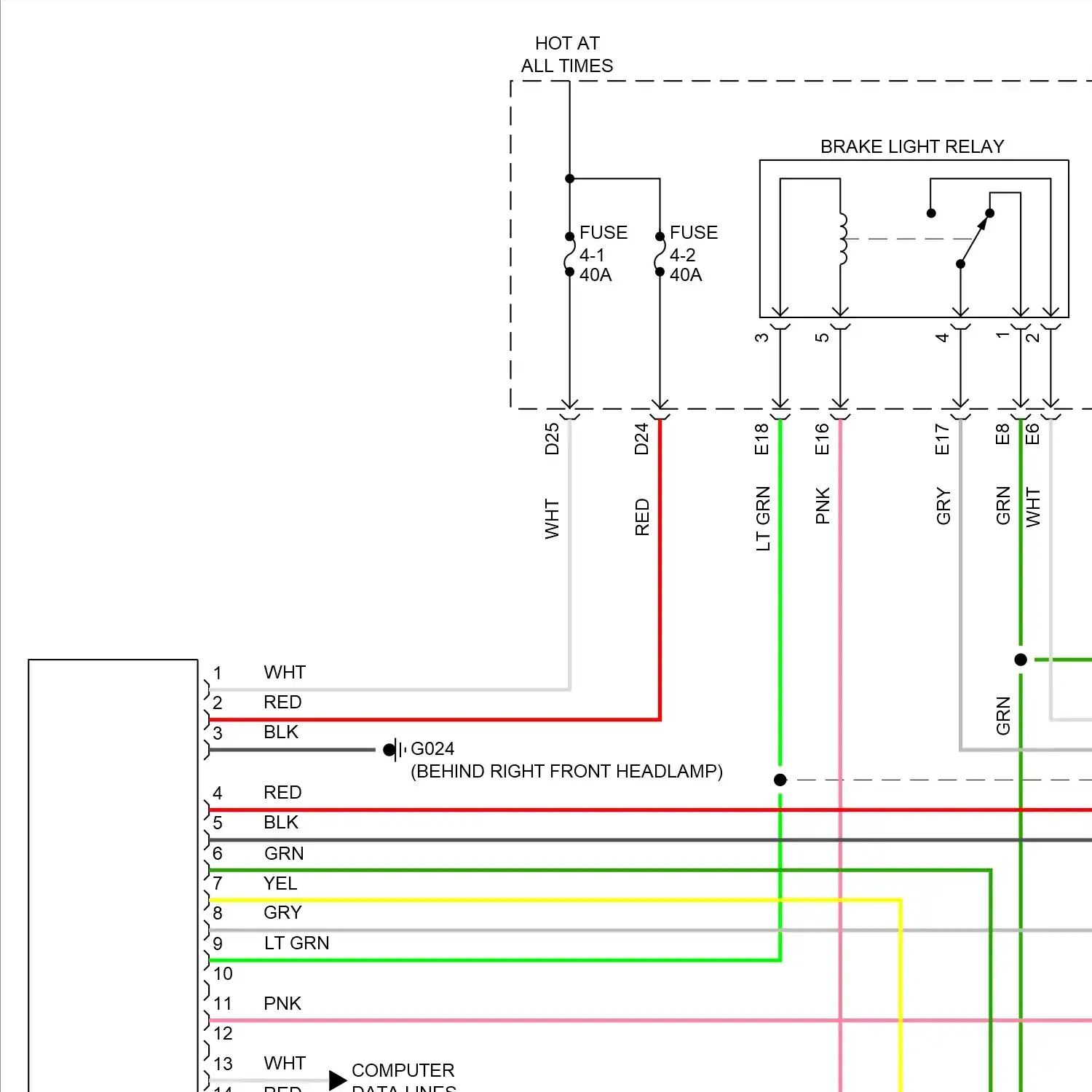

Anti-lock brakes circuit, except hybrid Anti-lock brakes circuit, hybrid Electric servo brake system circuit

Anti-theft circuit

Body control modules circuit

Computer data lines circuit, except hybrid Computer data lines circuit, hybrid

Cooling fan circuit, except hybrid Cooling fan circuit, hybrid

Cruise control circuit, except hybrid Cruise control circuit, hybrid

Defoggers circuit

Electronic power steering circuit

Wiring diagram engine performance 1.5l turbo

Wiring diagram engine performance 2.0l hybrid, engine controls circuit Wiring diagram engine performance 2.0l hybrid, hybrid system circuit

Backup lamps circuit Exterior lamps circuit

Ground distribution circuit, except hybrid Ground distribution circuit, hybrid

Headlights circuit

Horn circuit

Head-up display circuit Instrument cluster circuit, except hybrid Instrument cluster circuit, hybrid

Courtesy lamps circuit Entry light timer circuit Instrument illumination circuit

Memory systems circuit

Blind spot monitoring circuit, except hybrid Blind spot monitoring circuit, hybrid Hands free module circuit, except hybrid Hands free module circuit, hybrid Multipurpose camera circuit, except hybrid Multipurpose camera circuit, hybrid Navigation circuit, except hybrid Navigation circuit, hybrid w/ amplifier Navigation circuit, hybrid w/o amplifier Parking assistant circuit, hybrid

Power distribution circuit, except hybrid Power distribution circuit, hybrid

Power door locks circuit

Automatic day/night mirror circuit Power mirrors circuit, except hybrid Power mirrors circuit, hybrid

Driver power seat circuit Driver"s lumbar circuit Front heated seats circuit, except hybrid Front heated seats circuit, hybrid Passenger power seat circuit Rear heated seats circuit

Power top/sunroof circuit

Power windows circuit

Radio circuit, except hybrid Radio circuit, hybrid w/ amplifier Radio circuit, hybrid w/o amplifier

Electric parking brake circuit Shift interlock circuit, except hybrid Shift interlock circuit, hybrid

Charging circuit Starting circuit

Supplemental restraints circuit

1.5l turbo, transmission circuit

2.0l hybrid, transmission circuit

Trunk release circuit

Warning systems circuit, except hybrid Warning systems circuit, hybrid

Wiper/washer circuit

12 VOLT BATTERY ANTI-LOCK BRAKES SYSTEM B-CAN TRANSCEIVER BATTERY CONDITION MONITOR MODULE BATTERY MODULE 1 BATTERY MODULE 2 BYPASS RESISTOR DIODE A DIODE B DOOR LOCK DOOR LOCK KNOB F-CAN TRANSCEIVER IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 LIN TRANSCEIVER ON BATTERY) STARTER MAGNET DIODE STEREO AMPLIFIER UN LOCK W/ AMPLIFIER W/O AMPLIFIER

(RIGHT FRONT OF ENGINE (RIGHT SIDE OF ENGINE A/C CONDENSER FAN MOTOR BLOWER MOTOR COOLING FAN MOTOR DOOR LOCK ACTUATOR DRIVER'S AIR MIX CONTROL MOTOR DRIVER'S POWER LUMBAR SUPPORT MOTOR DRIVER'S POWER SEAT HEIGHT MOTOR DRIVER'S POWER SEAT RECLINE MOTOR DRIVER'S POWER SEAT SLIDE MOTOR DRIVER'S POWER SEAT TILT MOTOR DRIVER'S POWER WINDOW MOTOR DRIVER'S SEAT CUSHION BLOWER MOTOR DRIVER'S SEAT-BACK BLOWER MOTOR ELECTRIC ENGINE COOLANT PUMP ELECTRIC VTC MOTOR ENGINE CONTROLS SYSTEM FRONT PASSENGER'S POWER SEAT RECLINE MOTOR FRONT PASSENGER'S POWER SEAT SLIDE MOTOR FRONT PASSENGER'S POWER WINDOW MOTOR FRONT PASSENGER'S SEAT CUSHION BLOWER MOTOR FRONT PASSENGER'S SEAT-BACK BLOWER MOTOR FUEL FILL DOOR LOCK ACTUATOR GENERATOR MOTOR HEIGHT MOTOR LEFT REAR ELECTRIC PARKING BRAKE ACTUATOR LEFT REAR POWER WINDOW MOTOR MIRROR ACTUATOR MODE CONTROL MOTOR MOTOR DRIVE IC PASSENGER'S AIR MIX CONTROL MOTOR RADIATOR FAN MOTOR REAR OF ENGINE COMPT) RECIRCULATION CONTROL MOTOR RECLINE MOTOR RIGHT REAR ELECTRIC PARKING BRAKE ACTUATOR RIGHT REAR POWER WINDOW MOTOR SLIDE MOTOR THROTTLE ACTUATOR TILT MOTOR TRACTION MOTOR TRUNK LID RELEASE ACTUATOR TURBOCHARGER WASTEGATE CONTROL ACTUATOR WINDSHIELD WASHER MOTOR

FRONT INTERIOR LF ANTENNA GNSS ANTENNA LF ANTENNA REAR BUMPER LF ANTENNA REAR INTERIOR LF ANTENNA REAR SHELF LF ANTENNA ROOF ANTENNA WINDOW ANTENNA WINDOW ANTENNA AMPLIFIER

CAMERA HEATER REAR VIEW CAMERA

CENTER CONSOLE ACCESSORY POWER SOCKET

BODY CONTROL MODULE GAUGE CONTROL MODULE RELAY CONTROL MODULE RELAY CONTROL MODULE UNDER-HOOD FUSE/RELAY BOX UNDER-HOOD FUSE/RELAY BOX RELAY CONTROL MODULE

ACOUSTIC VEHICLE ALERTING CONTROL UNIT ACTIVE NOISE CANCELLATION UNIT AUDIO UNIT CENTER DISPLAY UNIT CLIMATE CONTROL UNIT CONTROL UNIT) COOLING FAN MOTOR/RFC UNIT DOOR MULTIPLEX CONTROL UNIT ELECTRIC SERVO BRAKE CONTROL UNIT/ PEDAL FEEL SIMULATOR ELECTRIC SERVO BRAKE CONTROL UNIT/PEDAL FEEL SIMULATOR EPS CONTROL UNIT FRONT SEAT HEATER CONTROL UNIT FUEL TANK UNIT INFOTAINMENT CONTROL UNIT LEFT SIDE BSI RADAR UNIT LIGHTING CONTROL UNIT MOONROOF MOTOR/ CONTROL UNIT MULTIPURPOSE CAMERA UNIT POWER SEAT CONTROL UNIT REAR SEAT HEATER CONTROL UNIT RIGHT SIDE BSI RADAR UNIT SRS UNIT TELEMATICS CONTROL UNIT USB CHARGER UNIT USB HUB UNIT VENTILATED SEAT CONTROL UNIT/ FRONT SEAT HEATER CONTROL UNIT VENTILATED SEAT CONTROL UNIT/FRONT SEAT HEATER CONTROL UNIT VSA MODULATOR CONTROL UNIT WINDSHIELD WIPER CONTROL UNIT/ MOTOR WINDSHIELD WIPER CONTROL UNIT/MOTOR

FUSE 1 FUSE 2 FUSE 2-1 FUSE 2-3 FUSE 2-4 FUSE 2-5 FUSE 2-7 FUSE 3 FUSE 3-1 FUSE 3-2 FUSE 3-3 FUSE 3-6 FUSE 3-7 FUSE 4 FUSE 4-1 FUSE 4-2 FUSE 4-3 FUSE 4-4 FUSE 4-5 FUSE 4-7 FUSE 5 FUSE 5-1 FUSE 5-2 FUSE 5-3 FUSE 5-4 FUSE 5-5 FUSE 5-6 FUSE 5-7 FUSE 6 FUSE 7 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 29 FUSE 30 FUSE 31 FUSE 32 FUSE 33 FUSE 34 FUSE 36 FUSE 37 FUSE 38 FUSE 39 FUSE 40 FUSE 41 FUSE 42 FUSE 43 FUSE 44 FUSE 45 FUSE 46 FUSE 47 FUSE 48 FUSE 49 FUSE 50 FUSE 53 FUSE 54 FUSE C FUSE CG FUSE D FUSE G FUSE H MAIN FUSE

LEFT HEADLIGHT RIGHT HEADLIGHT

DRIVER'S SEAT CUSHION HEATER DRIVER'S SEAT- BACK HEATER DRIVER'S/ FRONT PASSENGER'S SEAT HEATER SWITCHES FRONT PASSENGER'S SEAT BACK HEATER FRONT PASSENGER'S SEAT CUSHION HEATER LEFT REAR SEAT BACK HEATER LEFT REAR SEAT CUSHION HEATER PTC HEATER A PTC HEATER B PTC HEATER CORE RIGHT REAR SEAT BACK HEATER RIGHT REAR SEAT CUSHION HEATER

BRAKE SYSTEM INDICATOR DOOR, TRUNK LID OPEN INDICATOR EPS INDICATOR FRONT PASSENGER'S AIR BAG CUT-OFF INDICATOR FRONT PASSENGER'S AIR BAG CUTOFF INDICATOR HIGH BEAM INDICATOR HIGH INDICATOR IMMOBILIZER/ SECURITY INDICATOR INDICATOR 1 KEYLESS ACCESS INDICATOR KEYLESS ACCESS INDICATOR PARKING BRAKE REMINDER SEAT BELT REMINDER LEFT BSI INDICATOR LEFT TURN SIGNAL INDICATOR LIGHTS ON INDICATOR LOW INDICATOR LOW OIL PRESSURE INDICATOR MIDDLE INDICATOR REAR WINDOW DEFOGGER/ MIRROR DEFOGGER SWITCH INDICATOR RIGHT BSI INDICATOR RIGHT TURN SIGNAL INDICATOR SEAT BELT REMINDER INDICATOR SECURITY INDICATOR SHIFT POSITION INDICATOR PANEL SRS INDICATOR SWITCH INDICATOR W/ MIRROR DEFOGGER, BSI INDICATOR W/O MIRROR DEFOGGER, BSI INDICATOR

EXTERIOR LIGHTS, DEFOGGER SYSTEMS LIGHTS ON REMINDER

ELECTRIC OIL PUMP HIGH PRESSURE FUEL PUMP HIGH PRESSURE FUEL PUMP SHIELD PCU ELECTRIC COOLANT PUMP VACUUM PUMP

A/C COMPRESSOR CLUTCH RELAY A/C CONDENSER FAN RELAY ACC RELAY BLOWER MOTOR RELAY BRAKE LIGHT RELAY BRAKE LIGHT RELAY RELAY CIRCUIT BOARD UNDER-HOOD FUSE/RELAY BOX BRAKE LIGHT RELAY UNDER-HOOD FUSE/RELAY BOX BYPASS CONTACTOR RELAY CENTER CONSOLE ACCESSORY POWER SOCKET RELAY CLOSE RELAY DC-DC CONVERTER ACC RELAY ELECTRIC OIL PUMP RELAY ELECTRIC VTC RELAY ENGINE EWP RELAY FAN CONTROL RELAY FRONT SEAT HEATER RELAY FUSE/ RELAY BOX HOLDER A FUSE/ RELAY HOLDER A FUSE/RELAY HOLDER A HIGH VOLTAGE CONTACTOR RELAY HIGH VOLTAGE SUB CONTACTOR RELAY HORN RELAY HOT W/ ACC RELAY ENERGIZED HOT W/ PGM-FI SUB RELAY ENERGIZED HOT W/ POWER WINDOW RELAY ENERGIZED IGHLDA RELAY IGHLDB RELAY IGNITION COIL RELAY INJECTOR RELAY OPEN RELAY PCU ELECTRIC COOLANT PUMP RELAY PGM-FI MAIN RELAY 1 PGM-FI MAIN RELAY 2 PGM-FI SUB- RELAY POWER WINDOW RELAY PTC HEATER A RELAY PTC HEATER B RELAY RADIATOR FAN RELAY REAR SEAT HEATER RELAY REAR WINDOW DEFOGGER RELAY RELAY 1 ENERGIZED RELAY CIRCUIT BOARD RELAY CIRCUIT BOARD UNDER-HOOD FUSE/RELAY BOX RELAY ENERGIZED REVERSE RELAY RFC RELAY STARTER CUT RELAY 1 STARTER CUT RELAY 1 RELAY CIRCUIT BOARD UNDER-HOOD FUSE/RELAY BOX STARTER CUT RELAY 2 TRUNK LID RELEASE ACTUATOR RELAY UNDER- DASH FUSE/ RELAY BOX UNDER- HOOD FUSE/ RELAY BOX UNDER-DASH FUSE/RELAY BOX UNDER-HOOD FUSE/RELAY BOX WINDSHIELD WASHER MOTOR RELAY

12 VOLT BATTERY SENSOR A/C PRESSURE SENSOR APP SENSOR APP SENSOR A APP SENSOR B AUTOMATIC LIGHTING CONTROL UNIT-SENSOR AUTOMATIC LIGHTING/ RAIN SENSOR AUTOMATIC LIGHTING/RAIN SENSOR BATTERY CURRENT SENSOR BRAKE PEDAL STROKE SENSOR BRAKE PEDAL STROKE SENSOR SHIELD CKP SENSOR CMP SENSOR A CMP SENSOR B CVT DRIVE PULLEY SPEED SENSOR CVT DRIVEN PULLEY PRESSURE SENSOR CVT SPEED SENSOR DRIVER'S SEAT POSITION SENSOR ECT SENSOR 1 ECT SENSOR 2 ENGINE OIL PRESSURE SENSOR EVAPORATOR TEMPERATURE SENSOR FTP SENSOR FTP SENSOR SHIELD FUEL RAIL PRESSURE SENSOR GENERATOR MOTOR ROTOR POSITION SENSOR HALL SENSOR HEIGHT POSITION SENSOR HIGH VOLTAGE BATTERY MODULE TEMPERATURE SENSOR 1 HIGH VOLTAGE BATTERY MODULE TEMPERATURE SENSOR 2 HIGH VOLTAGE BATTERY MODULE TEMPERATURE SENSOR 3 HIGH VOLTAGE BATTERY MODULE TEMPERATURE SENSOR A HIGH VOLTAGE BATTERY MODULE TEMPERATURE SENSOR B HUMIDITY/IN-CAR TEMPERATURE SENSOR IAT SENSOR 1 IAT SENSOR 2 KNOCK SENSOR KNOCK SENSOR SHIELD LEAK SENSOR LEFT FRONT CENTER SENSOR LEFT FRONT CORNER SENSOR LEFT FRONT IMPACT SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT REAR CENTER SENSOR LEFT REAR CORNER SENSOR LEFT REAR WHEEL SPEED SENSOR LEFT SIDE IMPACT PRESSURE SENSOR LOWER HYDRAULIC PRESSURE SENSOR MAF SENSOR MAP SENSOR OUTSIDE AIR TEMPERATURE SENSOR PARKING, BACKUP SENSOR CONTROL UNIT PCU COOLANT TEMPERATURE SENSOR POSITION SENSOR PRESSURE SENSOR RECLINE POSITION SENSOR RIGHT FRONT CENTER SENSOR RIGHT FRONT CORNER SENSOR RIGHT FRONT IMPACT SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT REAR CENTER SENSOR RIGHT REAR CORNER SENSOR RIGHT REAR WHEEL SPEED SENSOR RIGHT SIDE IMPACT PRESSURE SENSOR ROCKER ARM OIL PRESSURE SENSOR SLIDE POSITION SENSOR TILT POSITION SENSOR TORQUE CONVERTER TURBINE SPEED SENSOR TP SENSOR TRACTION MOTOR ROTOR POSITION SENSOR TRACTION MOTOR TEMPERATURE SENSOR TRANSMISSION FLUID PRESSURE SENSOR TRANSMISSION FLUID TEMPERATURE SENSOR TURBOCHARGER BOOST SENSOR TURBOCHARGER WASTEGATE CONTROL ACTUATOR POSITION SENSOR UPPER HYDRAULIC PRESSURE SENSOR

ACOUSTIC VEHICLE ALERTING SPEAKER DRIVER'S DOOR SPEAKER FRONT PASSENGER'S DOOR SPEAKER LEFT REAR DOOR SPEAKER LEFT REAR SPEAKER LEFT SATELLITE SPEAKER RIGHT REAR DOOR SPEAKER RIGHT REAR SPEAKER RIGHT SATELLITE SPEAKER

ACC COMBINATION SWITCH APPLY SWITCH AUDIO REMOTE- HFL SWITCH AUDIO SWITCH PANEL AUTOMATIC BRAKE HOLD SWITCH BRAKE FLUID LEVEL SWITCH BRAKE HOLD SWITCH BRAKE PEDAL POSITION SWITCH CANCEL SWITCH CENTER/ LEFT REAR SEAT BELT BUCKLE SWITCH CENTER/LEFT REAR SEAT BELT BUCKLE SWITCH CLIMATE CONTROL SWITCH COMBINATION LIGHT SWITCH CRUISE SWITCH CYLINDER SWITCH DIMMER/ FLASH-TO- PASS SWITCH DISTANCE SWITCH DOOR LOCK SWITCH DOOR SWITCH DRIVE MODE SWITCH DRIVER'S DOOR LOCK SWITCH DRIVER'S POWER LUMBAR SUPPORT SWITCH DRIVER'S POWER LUMBER SUPPORT SWITCH DRIVER'S POWER SEAT ADJUSTMENT SWITCH DRIVER'S SEAT BELT BUCKLE SWITCH DRIVER'S SWITCH DRIVER'S/ FRONT PASSENGER'S SEAT HEATER SWITCH DRIVING POSITION MEMORY SWITCH ECON SWITCH ELECTRIC PARKING BRAKE SWITCH ELECTRIC PARKING BRAKE/ AUTOMATIC BRAKE HOLD SWITCH ELECTRIC PARKING BRAKE/AUTOMATIC BRAKE HOLD SWITCH ENGINE START/STOP SWITCH EV SWITCH FRONT PASSENGER'S POWER SEAT ADJUSTMENT SWITCH FRONT PASSENGER'S POWER WINDOW SWITCH FRONT PASSENGER'S SEAT BELT BUCKLE SWITCH FRONT PASSENGER'S SWITCH HAZARD WARNING SWITCH HEADLIGHT SWITCH HEIGHT SWITCH HOOD LATCH SWITCH HORN SWITCH IDLE STOP OFF SWITCH IDLE STOP OFF/ ECON SWITCH IDLE STOP OFF/ECON SWITCH INTERIOR LIGHT SWITCH KNOB SWITCH LEFT REAR POWER WINDOW SWITCH LEFT REAR SEAT HEATER SWITCH LEFT REAR SWITCH LIGHT INTERIOR SWITCH LKAS SWITCH MAGNETIC SWITCH MAIN SWITCH MOONROOF SWITCH PARK PIN SWITCH/ SHIFT LOCK SOLENOID PARK PIN SWITCH/SHIFT LOCK SOLENOID POWER MIRROR SWITCH POWER SWITCH POWER WINDOW MASTER SWITCH REAR WINDOW DEFOGGER/ MIRROR DEFOGGER SWITCH REAR WINDOW DEFOGGER/ MIRROR DEFOGGER SWITCH IND RECLINE SWITCH RELEASE SWITCH RES/+ SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT REAR SEAT BELT BUCKLE SWITCH RIGHT REAR SEAT HEATER SWITCH RIGHT REAR SWITCH SET SWITCH SLIDE SWITCH STOP SWITCH TILT SWITCH TRANSMISSION RANGE SWITCH TRUNK LID LATCH SWITCH TRUNK LID OPEN SWITCH TRUNK LID OPENER MAIN SWITCH TRUNK LID OPENER SWITCH TURN SIGNAL SWITCH VANITY MIRROR LIGHT SWITCH WASHER FLUID LEVEL SWITCH WASHER SWITCH WINDSHIELD WIPER/ WASHER SWITCH WIPER/WASHER SWITCH

CANISTER CHANGE OVER VALVE CVT CLUTCH PRESSURE CONTROL SOLENOID VALVE CVT DRIVE PULLEY PRESSURE CONTROL SOLENOID VALVE CVT DRIVEN PULLEY PRESSURE CONTROL SOLENOID VALVE CVT LOCK-UP CLUTCH CONTROL SOLENOID VALVE EGR VALVE EVAP CANISTER PURGE VALVE EVAP CANISTER VENT SHUT VALVE HIGH PRESSURE FUEL PUMP FUEL CONTROL SOLENOID PEDAL FEEL SIMULATOR CUT VALVE ROCKER ARM OIL CONTROL VALVE SHIFT SOLENOID VALVE A SHIFT SOLENOID VALVE B SHIFT SOLENOID VALVE O/P TURBOCHARGER BYPASS CONTROL SOLENOID VALVE VARIABLE CAPACITY CONTROL SOLENOID VTC OIL CONTROL SOLENOID VALVE VTC OIL CONTROL SOLENOID VALVE A VTC OIL CONTROL SOLENOID VALVE B

BLK WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BRN WIRE GRN WIRE GRY WIRE LT BLU WIRE LT GRN WIRE NCA WIRE ORG/ WIRE PNK WIRE PPL/BLU WIRE PPL/BRN WIRE PPL/GRN WIRE PPL/GRY WIRE PPL/LT BLU WIRE PPL/LT GRN WIRE PPL/PNK WIRE PPL/RED WIRE PPL/TAN WIRE PPL/WHT WIRE PPL/YEL WIRE RED WIRE TAN WIRE VIO WIRE WHT WIRE YEL WIRE

0) LOW 1) HIGH 2) PASS 0) LOW 1) RIGHT 2) LEFT 0) OFF 1) AUTO 2) PARK 3) HEAD 0) OFF 1) PARK 2) AUTO 3) HEAD (CENTER A/C COMPRESSOR CLUTCH ACTIVE BODYWORKS SYSTEM AIR CONDITIONING SYSTEM AUTO AUTO CLOSE OPEN AUTO AUTO OPEN CLOSE AUTOMATIC DIMMING INSIDE MIRROR B-CAN B-CAN B-CAN B-CAN H B-CAN L B-CAN L B-CAN H BACKUP LAMPS CIRCUIT BB-CAN BB-CAN H BB-CAN L BRAKE LIGHT CABLE REEL CAN CONTROLLER CAN GATEWAY CAN L CEILING LIGHT CENTER CONSOLE CH- COMPUTER DATA LINES SYSTEM CONSOLE TRAY LIGHT CONTROL CIRCUIT COOLING FAN COOLING FANS SYSTEM CRUISE CONTROL SYSTEM DC-DC CONVERTER DEFOGGER SYSTEM DOOR KEY DOOR LOCKS, ANTI-THEFT SYSTEMS DOWN AUTO DOWN OFF DOWN RIGHT DOWN/ LEFT DRIVER'S AIR BAG FIRST/SECOND INFLATOR DRIVER'S DOOR LATCH DRIVER'S DOOR OUTER HANDLE DRIVER'S KNEE AIR BAG INFLATOR DRIVER'S SEAT BELT OUTER LAP TENSIONER DRIVER'S SEAT BELT TENSIONER DRIVER'S SIDE AIR BAG INFLATOR DRIVER'S SUNVISOR ELECTRIC A/C COMPRESSOR ELECTRIC A/C COMPRESSOR SHIELD ELECTRIC BRAKE BOOSTER EPS IND EVAP LEAK CHECK MODULE EVAP LEAK CHECK MODULE SHIELD EX LX EX+ EXCEPT EX EXCEPT HSPORT EXCEPT HSPORT, HSPO-L EXCEPT HYBRID EXCEPT HYBRID EX EXCEPT HYBRID LX EXCEPT LX EXCEPT SPORT F-CAN F-CAN H F-CAN L F-CAN L F-CAN H FRONT HFL-ANC MICROPHONE FRONT INDIVIDUAL MAP LIGHT FRONT PARKING/ DAYTIME RUNNING LIGHT FRONT PASSENGER'S AIR BAG FIRST/SECOND INFLATOR FRONT PASSENGER'S DOOR LATCH FRONT PASSENGER'S DOOR OUTER HANDLE FRONT PASSENGER'S KNEE AIR BAG INFLATOR FRONT PASSENGER'S SEAT BELT TENSIONER FRONT PASSENGER'S SIDE AIR BAG INFLATOR FRONT SIDE MARKER LIGHT HEAD-UP DISPLAY HEAD-UP DISPLAY CIRCUIT HEADLIGHTS SYSTEM HIGH BEAM HIGH MOUNT BRAKE LIGHT HOT AT ALL TIMES HOT W/ HOT W/ DC-DC HOT W/ DC-DC CONVERTER HSPORT, HSPO-L HYBRID EXCEPT HSPORT HYBRID EXCEPT HYBRID HYBRID EXCEPT TOURING HYBRID HSPORT HYBRID TOURING IF-CAN H IF-CAN L IF-CAN L IF-CAN H INJECTOR 1 INJECTOR 1 SHIELD INJECTOR 2 INJECTOR 2 SHIELD INJECTOR 3 INJECTOR 3 SHIELD INJECTOR 4 INJECTOR 4 SHIELD INSTRUMENT CLUSTER SYSTEM INTERMITTENT DWELL TIME CONTROLLER JUNCTION BOARD JUNCTION BOX B JUNCTION BOX C JUNCTION BOX D JUNCTION BOX F JUNCTION BOX G JUNCTION BOX H JUNCTION BOX I JUNCTION BOX J JUNCTION BOX K KEYLESS BUZZER LED ILL LEFT "C" PILLAR) LEFT BSI ALERT IND LEFT FRONT TWEETER LEFT POWER MIRROR LEFT REAR DOOR LATCH LEFT REAR DOOR TWEETER LEFT REAR SEAT BELT TENSIONER LEFT REAR SIDE AIR BAG INFLATOR LEFT REAR TWEETER LEFT SIDE CURTAIN AIR BAG INFLATOR LEFT SIDE TURN SIGNAL LIGHT LEFT TAILLIGHT LEFT TURN SIGNAL LIGHT LEFT/ RIGHT BACKUP LIGHT LEFT/ RIGHT INNER TAIL LIGHT LEFT/RIGHT BACKUP LIGHT LICENSE PLATE LIGHT LIN I/F LOW BEAM LX, EX MAIN/ DR/AS/ RR/RL MIDDLE ACTIVE NOISE CANCELLATION MICROPHONE MILLIMETER WAVE RADAR MIRROR DEFOGGER MIST HIGH NAVIGATION SYSTEM NAVIGATION, SOUND SYSTEMS OFF OPEN CLOSE ON DOOR PADDLE SHIFTER PARKING BRAKE REMINDER PARKING BRAKE REMINDER SEAT BELT REMINDER PASSENGER'S SUNVISOR PCU SHIELD POSITION 1 POSITION 2 POWER DISTRIBUTION SYSTEM POWER MIRROR DEFOGGER POWER TRANSISTOR POWER WINDOWS SYSTEM PPL 7 13 PPL PPL REAR ACTIVE NOISE CANCELLATION MICROPHONE REAR PANEL LIGHT REAR VIEW MIRROR) REAR WINDOW DEFOGGER REARVIEW MIRROR) RIGHT BSI ALERT IND RIGHT END OF DASH) RIGHT FRONT TWEETER RIGHT LEFT RIGHT POWER MIRROR RIGHT REAR DOOR LATCH RIGHT REAR DOOR TWEETER RIGHT REAR SEAT BELT TENSIONER RIGHT REAR SIDE AIR BAG INFLATOR RIGHT REAR TWEETER RIGHT SIDE CURTAIN AIR BAG INFLATOR RIGHT SIDE OF RADIATOR) RIGHT SIDE TURN SIGNAL LIGHT RIGHT TAILLIGHT RIGHT TURN SIGNAL LIGHT ROOF MODULE) SEAT BELT REMINDER SEAT BELT REMINDER IND SERVICE PLUG SET- SHIFT INTERLOCK SYSTEM SHUTTER GRILLE SIDE MARKER LIGHT SOS VOICE SOUND SYSTEMS SPARK PLUG STARTING/CHARGING SYSTEM THERMAL JOINT 1 THERMAL JOINT 2 THERMAL JOINT 3 THERMAL JOINT 4 THERMAL JOINT 5 THERMAL JOINT 6 THERMAL JOINT 7 THERMAL JOINT 8 THERMAL JOINT 9 THERMAL JOINT 10 THERMAL JOINT 11 THERMAL JOINT 14 THERMAL JOINT 15 THERMAL JOINT 16 TOP OF TRANSMISSION) TOURING EXCEPT TOURING TRANSMISSION HOUSING) TRANSMISSIONS SYSTEM TRUNK LID LATCH TRUNK LIGHT TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN SIGNAL LIGHT UP AUTO UP LEFT UP OFF UP/ LEFT DOWN/ LEFT UP/ RIGHT USB PORT A USB PORT C CHARGE USB PORT D CHARGE VOL DOWN VOL UP W/ HEAD UP DISPLAY W/ MEMORY W/ MIRROR DEFOGGER, TURN SIGNAL LIGHT W/O HEAD-UP DISPLAY W/O MEMORY W/O MIRROR DEFOGGER, TURN SIGNAL LIGHT WIPER/WASHER SYSTEM WIRELESS CHARGER
