Trunk release circuit for Honda Accord VIII facelift (2011-2013)

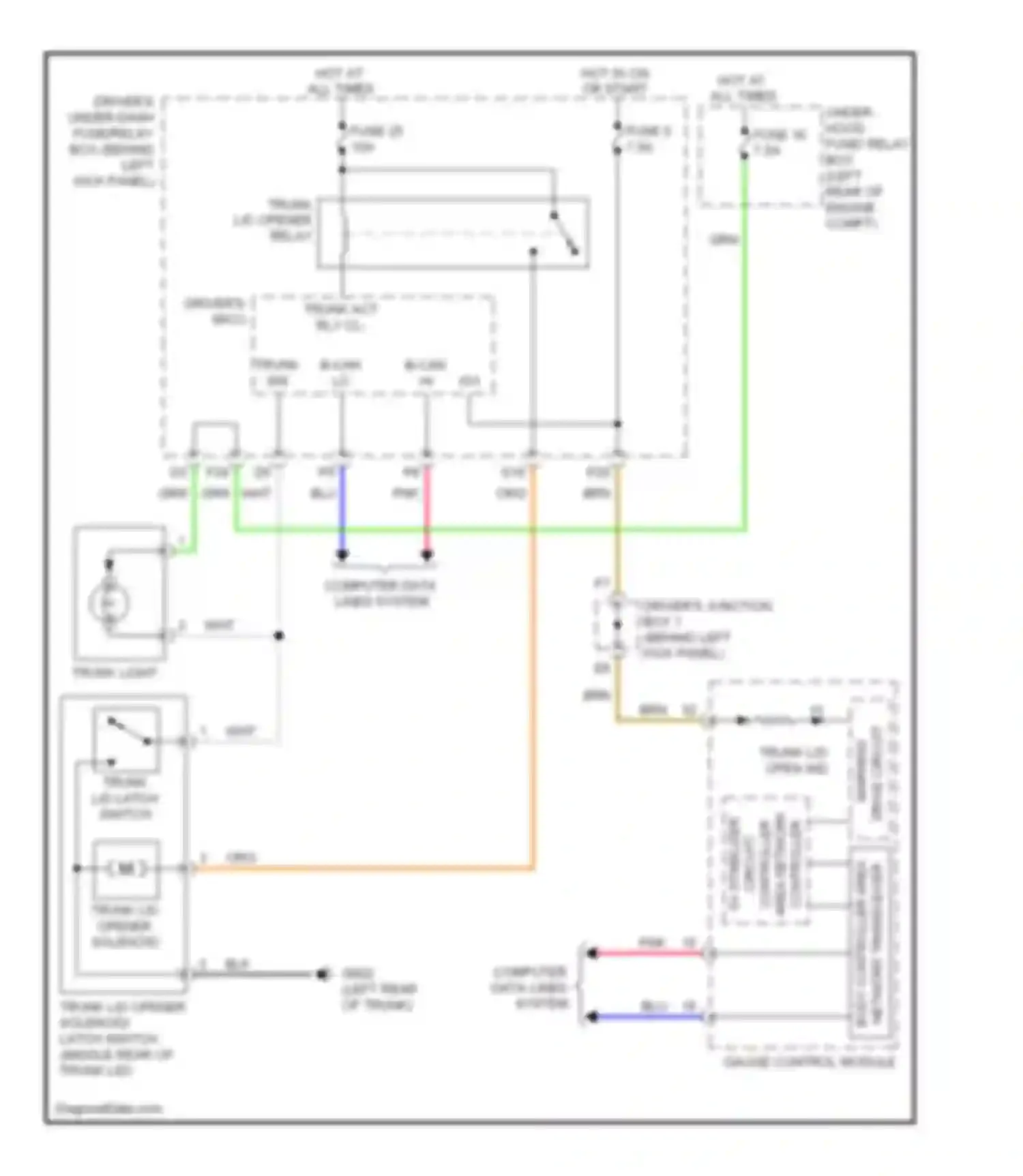

Trunk release circuit
AREA NETWORK
B-CAN HI
BLK WIRE
BLU WIRE
BODY CONTROLLER AREA
BRN WIRE
CIRCUIT
COMPUTER DATA LINES SYSTEM
CONTROLLER
DRIVE CIRCUIT
DRIVER'S JUNCTION BOX 1 (BEHIND LEFT KICK PANEL)
DRIVER'S MICU
DRIVER'S UNDER-DASH FUSE/RELAY BOX (BEHIND LEFT KICK PANEL)
FUSE 16
FUSE 25
FUSE 5
GAUGE CONTROL MODULE
GRN WIRE
HOT AT ALL TIMES
HOT IN ON OR START
NETWORK TRANSCEIVER
ORG/ WIRE
PNK WIRE
TRUNK ACT RLY CL-
TRUNK B-CAN SW LO
TRUNK LID LATCH SWITCH
TRUNK LID OPEN IND
TRUNK LID OPENER RELAY
TRUNK LID OPENER SOLENOID
TRUNK LID OPENER SOLENOID/ LATCH SWITCH (MIDDLE REAR OF TRUNK LID)
TRUNK LIGHT
UNDER- HOOD FUSE/ RELAY BOX (LEFT REAR OF ENGINE COMPT)
WARNING
WHT WIRE
