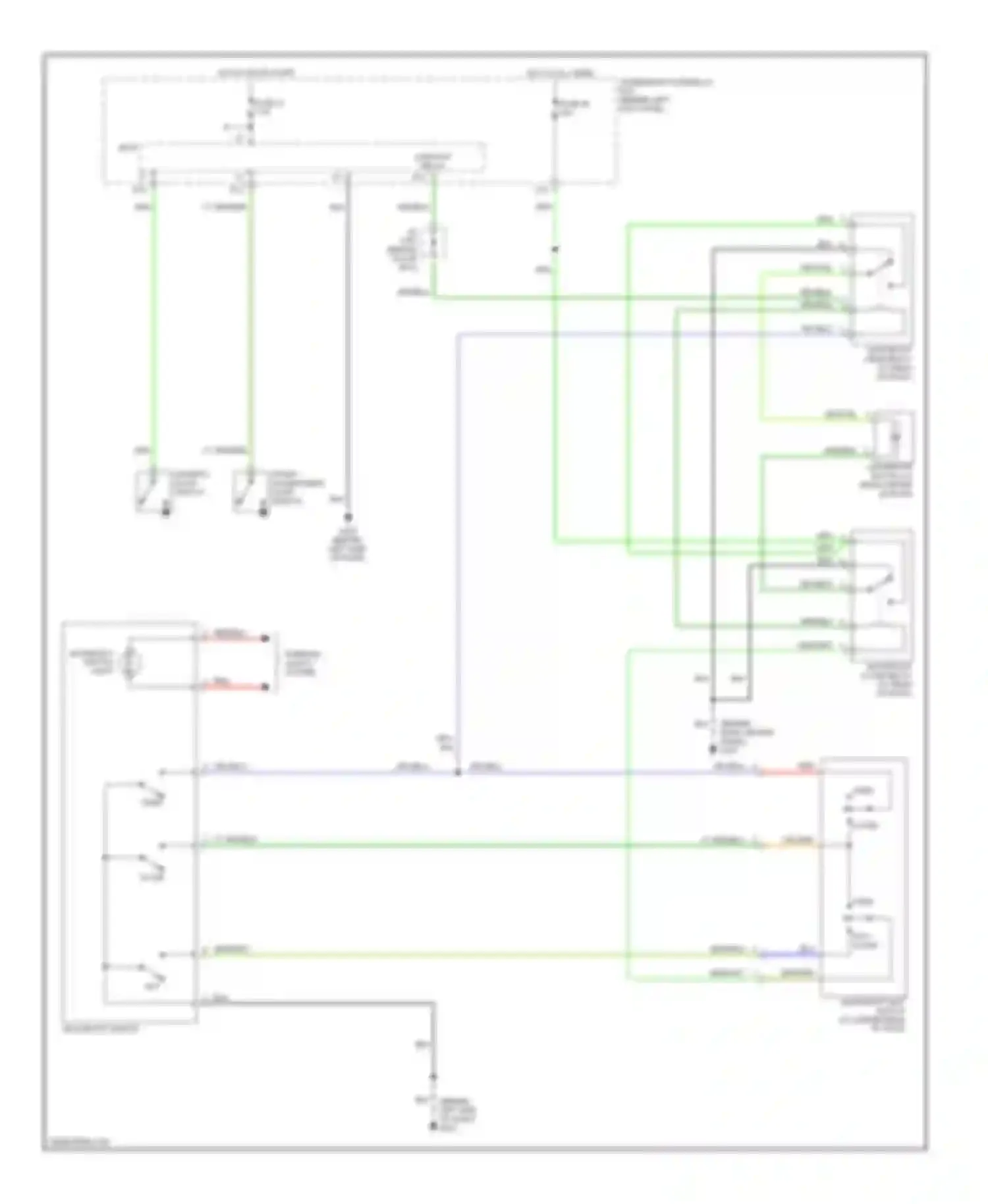

Power top/sunroof circuit, sedan for Honda Accord VII (2002-2006)
Power top/sunroof circuit, sedan
BLK WIRE
BLU WIRE
CLOSE
DRIVER'S DOOR SWITCH
FRONT PASSENGER'S DOOR SWITCH
FUSE 21
FUSE 28
GRN WIRE
GRN/BLK WIRE
GRN/ORG WIRE
GRN/RED WIRE
GRN/WHT WIRE
GRN/YEL WIRE
GRY WIRE
GRY/BLU WIRE
HOT AT ALL TIMES
HOT IN ON OR START
J/C
LT GRN/BLK WIRE
LT GRN/RED WIRE
MICU
MOONROOF CLOSE RELAY (AT REAR OF ROOF)
MOONROOF LIMIT SWITCH (AT CENTER REAR OF ROOF)
MOONROOF MOTOR (AT REAR CENTER OF ROOF)
MOONROOF OPEN RELAY (AT REAR OF ROOF)
MOONROOF SWITCH
MOONROOF SWITCH LIGHT
RED WIRE
RED/BLK WIRE
SUNROOF RELAY
TILT
TILT/ CLOSE
UNDERDASH FUSE/RELAY BOX (BEHIND LEFT KICK PANEL)
YEL/RED WIRE
