Honda Accord VI (1997-2002) latch switch opener motor trunk key cylinder switch Wiring diagram
This page shows the only wiring diagram for the component.latch switch opener motor trunk key cylinder switch, which is found in the car Honda Accord VI (1997-2002). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

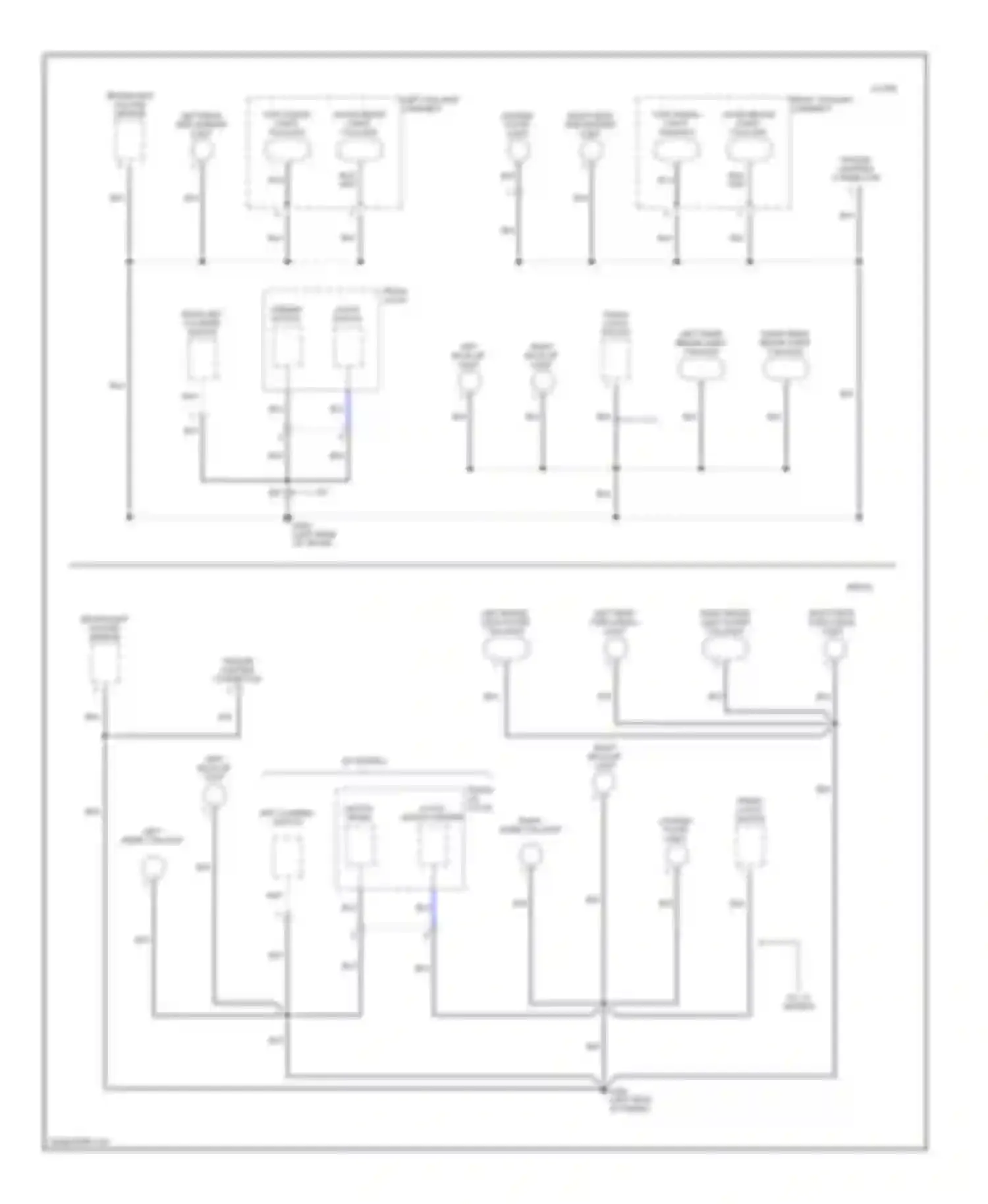

Wiring diagram latch switch opener motor trunk key cylinder switch (1 of 1)
BLK WIRE
BLU WIRE
BRAKELIGHT FAILURE SENSOR
COUPE
DX, LX MODELS
EX MODELS
LATCH SWITCH
LATCH SWITCH OPENER MOTOR TRUNK KEY CYLINDER SWITCH
LEFT BACK-UP LIGHT
LEFT BRAKE LIGHT/OUTER TAILLIGHT
LEFT INNER BRAKE- LIGHT/ TAILLIGHT
LEFT INNER TAILLIGHT
LEFT REAR SIDE MARKER LIGHT
LEFT REAR TURN SIGNAL LIGHT
LEFT TAILLIGHT ASSEMBLY
LICENSE PLATE LIGHT
NCA WIRE
OPENER MOTOR
OUTER BRAKE LIGHT/ TAILLIGHT
RIGHT BACK-UP LIGHT
RIGHT BRAKE LIGHT/OUTER TAILLIGHT
RIGHT INNER BRAKE LIGHT/ TAILLIGHT
RIGHT INNER TAILLIGHT
RIGHT REAR SIDE MARKER LIGHT
RIGHT REAR TURN SIGNAL LIGHT
RIGHT TAILLIGHT ASSEMBLY
SEDAN
TRAILER LIGHTING CONNECTOR
TRUNK KEY CYLINDER SWITCH
TRUNK LATCH
TRUNK LATCH SWITCH
TRUNK LID LATCH
TURN SIGNAL LIGHT/ TAILLIGHT
WHT WIRE
