Honda Accord V (1993-1998) right rear side marker light Wiring diagrams
This page contains all the electrical diagrams for the component. right rear side marker light, in which he is found in the car Honda Accord V (1993-1998). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
right rear side marker light wiring diagram (1 of 3)
BLK WIRE
BRAKE LIGHT FAILURE SENSOR (BEHIND LEFT TAILLIGHT)
BRAKE LIGHT SWITCH (LEFT SIDE OF I/P)
COMBINATION LIGHT SWITCH
FUSE 30
GRN WIRE
GRN/BLU WIRE
GRN/WHT WIRE
GRN/YEL WIRE
HEADLIGHT SWITCH HEAD OFF PARK
HIGH MOUNT BRAKE LIGHT
HOT AT ALL TIMES
INSTRUMENT CLUSTER SYSTEM
LEFT BACK-UP LIGHT
LEFT BRAKE LIGHT/ TAILLIGHT
LEFT FRONT FENDER)
LEFT FRONT PARKING LIGHT
LEFT FRONT SIDE MARKER
LEFT FRONT TURN SIGNAL
LEFT LICENSE LIGHT
LEFT REAR SIDE MARKER LIGHT
LEFT REAR TURN SIGNAL LIGHT
ORG/ WIRE
RED/BLK WIRE
RED/GRN WIRE
RIGHT BACK-UP LIGHT
RIGHT BRAKE LIGHT/ TAILLIGHT
RIGHT FRONT PARKING LIGHT
RIGHT FRONT SIDE MARKER
RIGHT FRONT TURN SIGNAL
RIGHT LICENSE LIGHT
RIGHT REAR SIDE MARKER LIGHT
RIGHT REAR TURN SIGNAL LIGHT
RIGHT TAIL LIGHT
SMALL LIGHT FUSE 32
STOP LIGHT HORN
TO TRAILER LIGHTING CONNECTOR (DIAGRAM 2 OF 2)
TO TRAILER LIGHTING CONNECTOR (DIAGRAM 2 OF 2) LEFT TAIL- LIGHT
TO UNDER-DASH FUSE/RELAY BOX (DIAGRAM 2 OF 2)
UNDER-DASH FUSE/RELAY BOX (LEFT KICK PANEL)
UNDER-HOOD FUSE/RELAY BOX
W/ CRUISE CONTROL
W/ SPOILER
W/O CORNERING LIGHTS
W/O CRUISE CONTROL
W/O SPOILER
WHT/GRN WIRE
WHT/YEL WIRE
Go to component -> Exterior light circuit, coupe & sedan (1 of 2) -> RIGHT REAR SIDE MARKER LIGHT

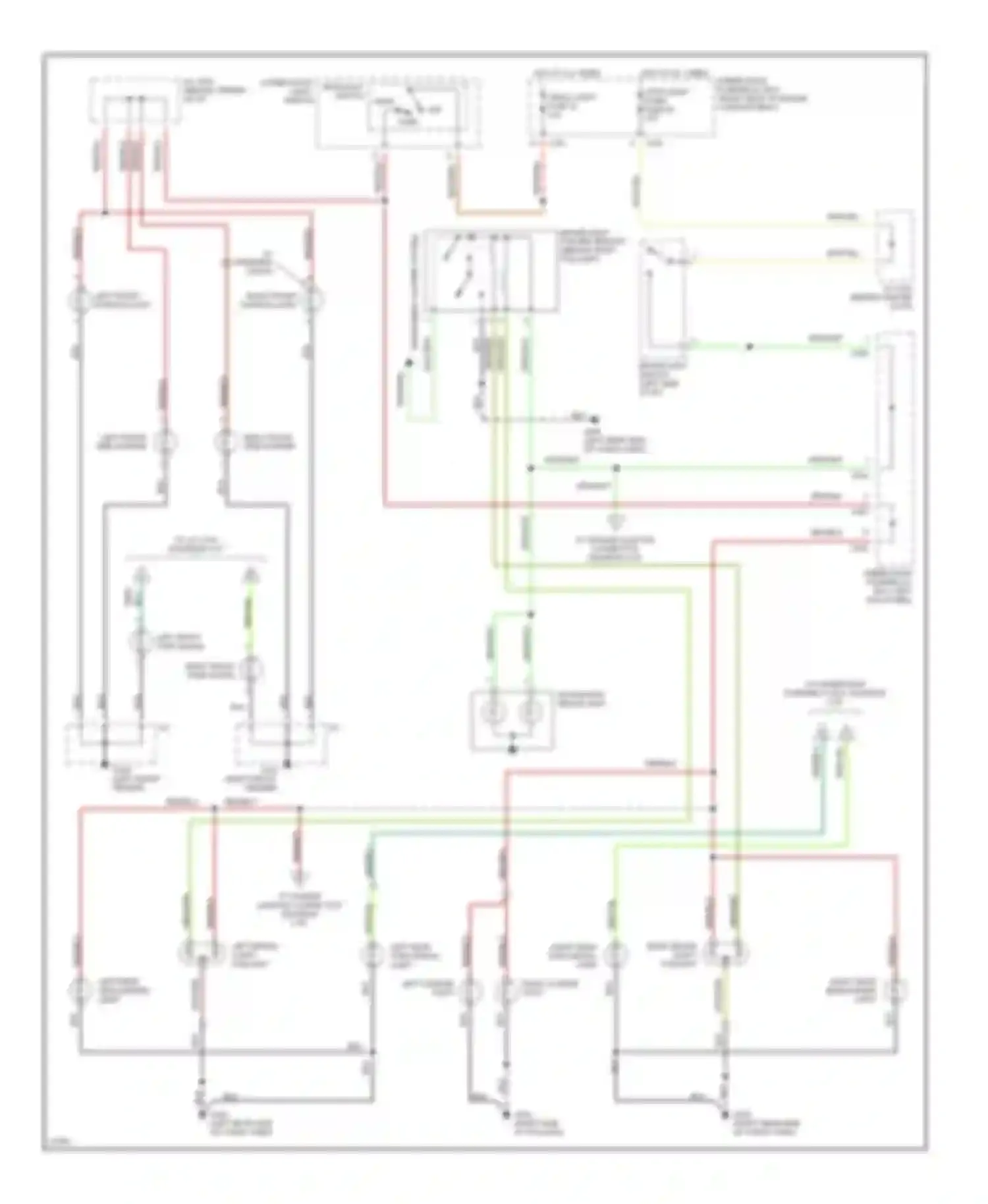

right rear side marker light wiring diagram (2 of 3)
BLK WIRE
BLK/RED WIRE
BLU/ GRN WIRE
BRAKE LIGHT FAILURE SENSOR (BEHIND RIGHT TAILLIGHT)
BRAKE LIGHT SWITCH (LEFT SIDE OF I/P)
COMBINATION LIGHT SWITCH
GRN/BLU WIRE
GRN/ORG WIRE
GRN/RED WIRE
GRN/WHT WIRE
GRN/YEL WIRE
HEADLIGHT SWITCH HEAD OFF PARK
HIGH MOUNT BRAKE LIGHT
HOT AT ALL TIMES
INSTRUMENT CLUSTER SYSTEM
J/C
LEFT BRAKE LIGHT/ TAILLIGHT
LEFT FRONT FENDER)
LEFT FRONT PARKING LIGHT
LEFT FRONT SIDE MARKER
LEFT FRONT TURN SIGNAL
LEFT LICENSE LIGHT
LEFT REAR SIDE MARKER LIGHT
LEFT REAR TURN SIGNAL LIGHT
ORG/GRN WIRE
RED/BLK WIRE
RED/GRN WIRE
RIGHT BRAKE LIGHT/ TAILLIGHT
RIGHT FRONT PARKING LIGHT
RIGHT FRONT SIDE MARKER
RIGHT FRONT TURN SIGNAL
RIGHT LICENSE LIGHT
RIGHT REAR SIDE MARKER LIGHT
RIGHT REAR TURN SIGNAL LIGHT
SMALL LIGHT FUSE 32
STOP LIGHT, HORN FUSE 30
TO TRAILER LIGHTING CONNECTOR (DIAGRAM 2 OF 2)
TO UNDER-DASH FUSE/RELAY BOX (DIAGRAM 2 OF 2)
UNDER-DASH FUSE/RELAY BOX (LEFT KICK PANEL)
UNDER-HOOD FUSE/RELAY BOX
W/O CORNERING LIGHTS
WHT/GRN WIRE
WHT/YEL WIRE
Go to component -> Exterior light circuit, wagon (1 of 2) -> RIGHT REAR SIDE MARKER LIGHT

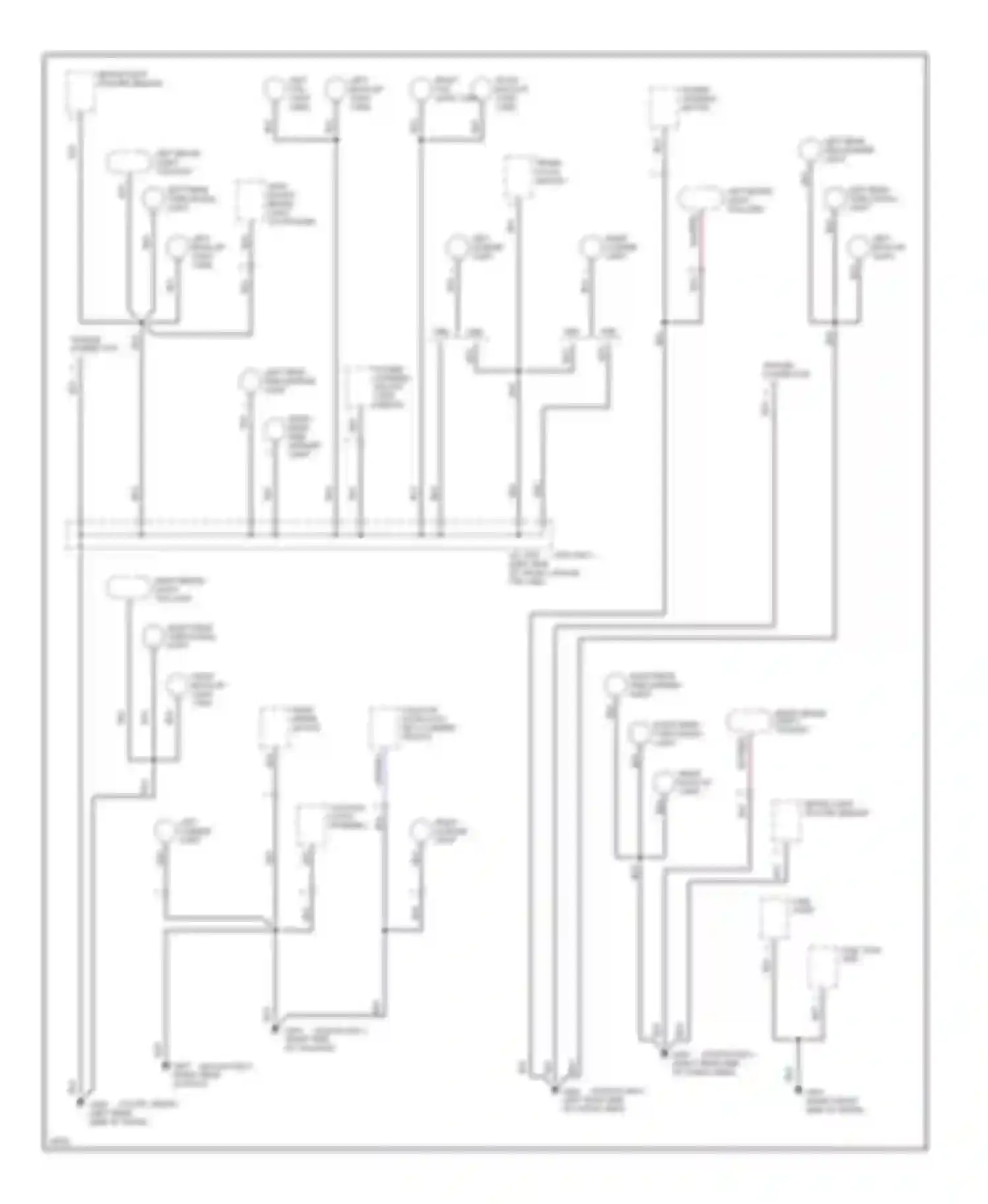

right rear side marker light wiring diagram (3 of 3)
1995 ONLY
BLK BLK BLK WIRE
BLK BLK WIRE
BLK WIRE
BLK/RED WIRE
BRAKE LIGHT FAILURE SENSOR
FUEL PUMP
FUEL TANK UNIT
HIGH MOUNT BRAKE LIGHT (W/ SPOILER)
LEFT BACK-UP LIGHT
LEFT BACK-UP LIGHT (1995)
LEFT BACK-UP LIGHT (1996)
LEFT BRAKE LIGHT/ TAILLIGHT
LEFT LICENSE LIGHT
LEFT REAR SIDE MARKER LIGHT
LEFT REAR TURN SIGNAL LIGHT
LEFT TAIL- LIGHT (1996)
POWER ANTENNA MOTOR
POWER ANTENNA MOTOR (1995 SEDAN)
REAR WIPER MOTOR
RIGHT BACK-UP LIGHT
RIGHT BACK-UP LIGHT (1995)
RIGHT BACK-UP LIGHT (1996)
RIGHT BRAKE LIGHT/ TAILIGHT
RIGHT BRAKE LIGHT/ TAILLIGHT
RIGHT LICENSE LIGHT
RIGHT REAR SIDE MARKER LIGHT
RIGHT REAR TURN SIGNAL LIGHT
RIGHT TAIL- LIGHT (1996)
TAILGATE DOOR LOCK KEY CYLINDER SWITCH
TAILGATE LATCH ASSEMBLY
TRAILER CONNECTOR
TRUNK LATCH SWITCH
WAGON ONLY
WHT/BLU WIRE
Go to component -> Ground distribution circuit (4 of 4) -> RIGHT REAR SIDE MARKER LIGHT
