Honda Accord V (1993-1998) rear defogger timer circuit Wiring diagram
This page shows the only wiring diagram for the component.rear defogger timer circuit, which is found in the car Honda Accord V (1993-1998). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

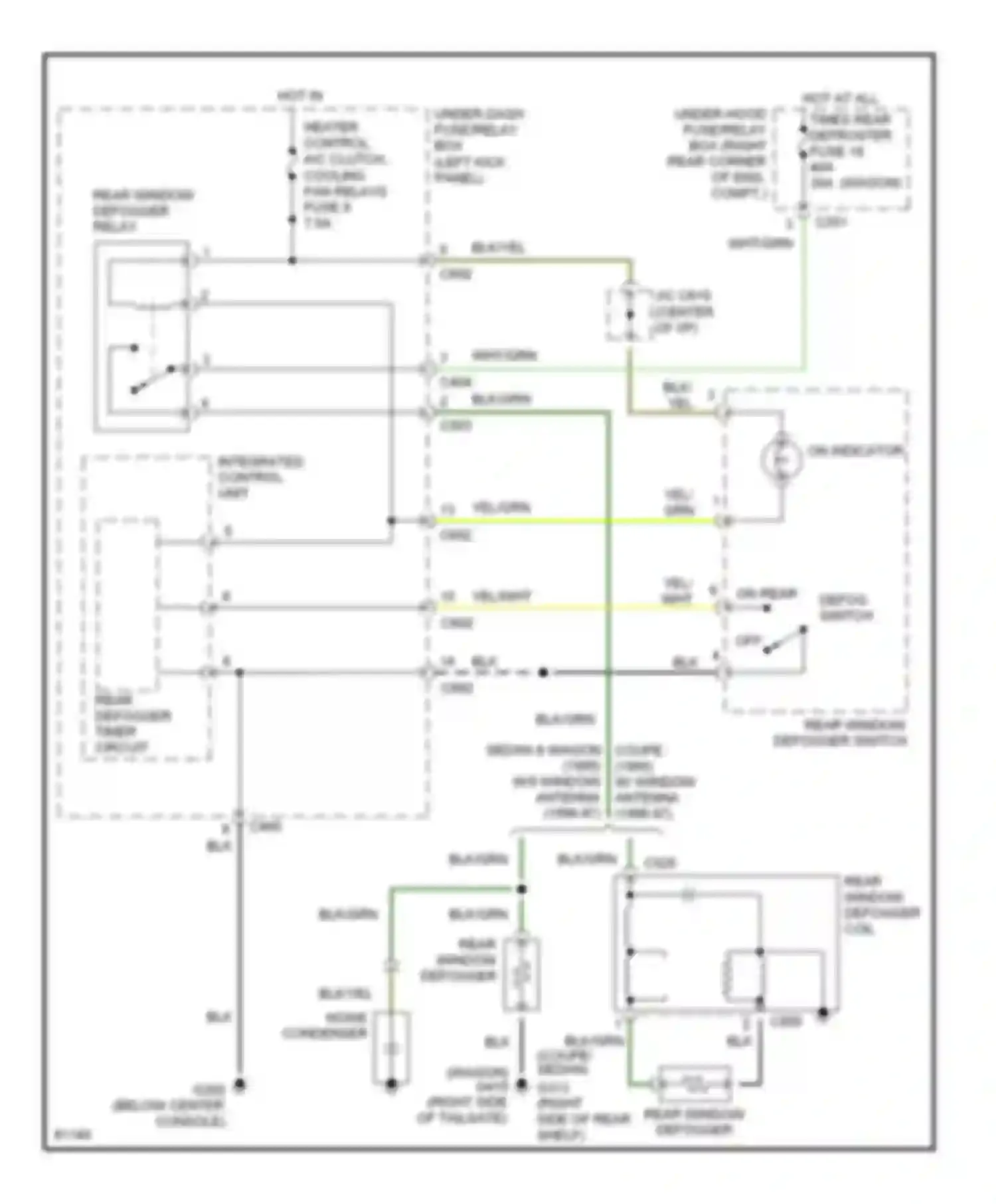

Wiring diagram rear defogger timer circuit (1 of 1)
BLK WIRE
BLK/GRN WIRE
BLK/YEL WIRE
COUPE, SEDAN, WAGON
GRN WIRE
HEATER CONTROL, A/C CLUTCH, COOLING FAN RELAYS FUSE 8
HOT AT ALL TIMES REAR DEFROSTER FUSE 16
HOT IN ON
INTEGRATED CONTROL UNIT
NOISE CONDENSER
OFF
ON INDICATOR
ON REAR DEFOG SWITCH
REAR DEFOGGER TIMER CIRCUIT
REAR WINDOW DEFOGGER
REAR WINDOW DEFOGGER COIL
REAR WINDOW DEFOGGER RELAY
REAR WINDOW DEFOGGER SWITCH
UNDER-DASH FUSE/RELAY BOX (LEFT KICK PANEL)
UNDER-HOOD FUSE/RELAY BOX (RIGHT REAR CORNER OF ENG. COMPT.)
WAGON
WHT WIRE
WHT/GRN WIRE
YEL WIRE
YEL/GRN WIRE
YEL/WHT WIRE
Go to component -> Defogger circuit -> REAR DEFOGGER TIMER CIRCUIT
