2.4l, charging circuit for Honda Accord IX (2012-2016)

2.4l, charging circuit

Get access

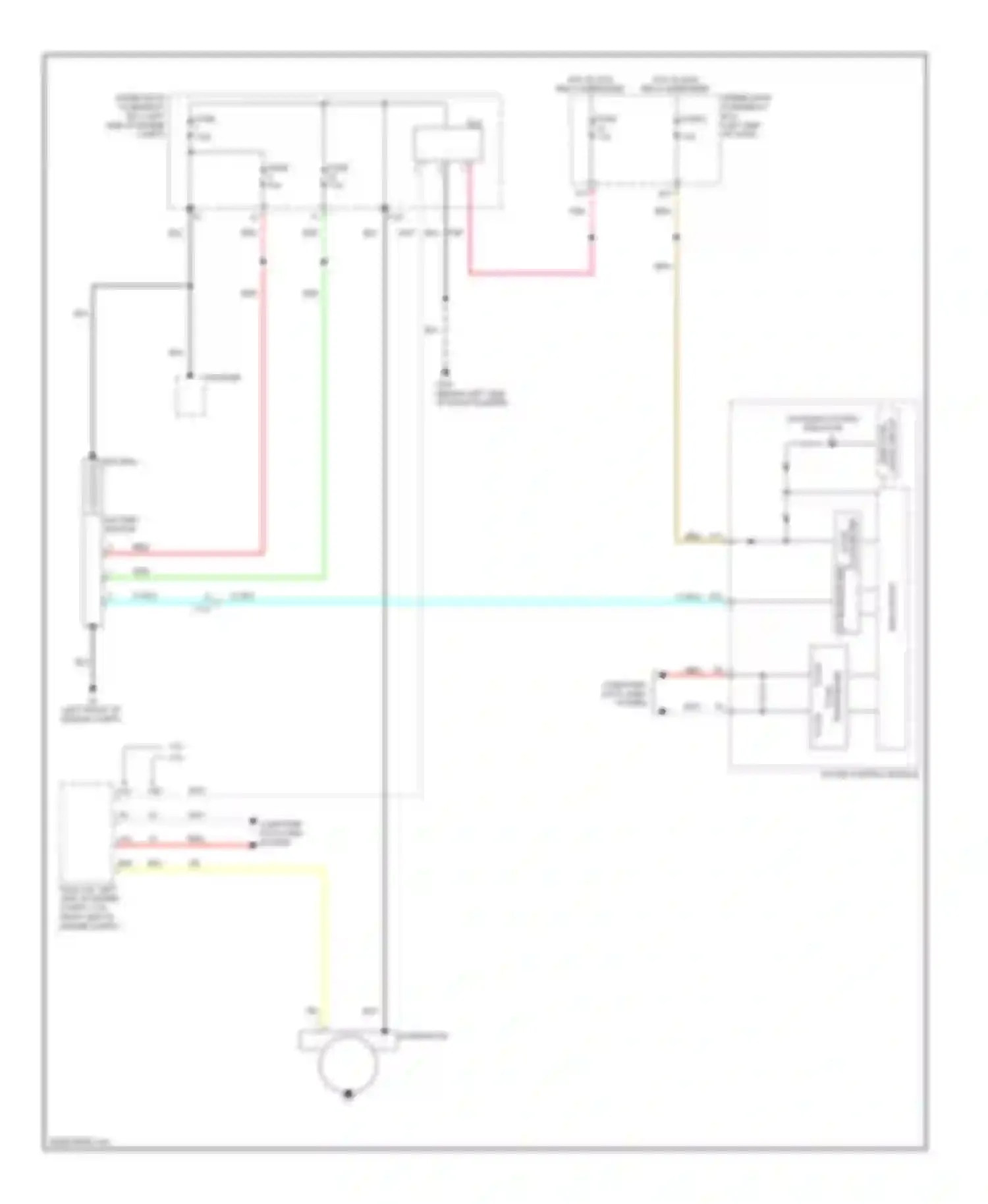

3.5L 2.4L ALTERNATOR BATTERY BATTERY SENSOR BLK WIRE BRN WIRE CHARGING SYSTEM INDICATOR COMPUTER DATA LINES SYSTEM CONVERTER DC-DC DRIVE CIRCUIT INDICATOR ELD F-CAN H F-CAN L FUSE FUSE 5 GAUGE CONTROL MODULE GRN WIRE LIN TRANSCEIVER LT BLU WIRE MAIN CIRCUIT PCM (2.4L: LEFT SIDE OF ENGINE COMPT) (3.5L: RIGHT SIDE OF ENGINE COMPT) PNK WIRE RED WIRE RELAY ENERGIZED STARTER TRANSCEIVER F-CAN UNDER-DASH FUSE/RELAY BOX (LEFT END OF DASH) UNDER-HOOD FUSE/RELAY BOX (LEFT SIDE OF ENGINE COMPT) WHT WIRE YEL WIRE
