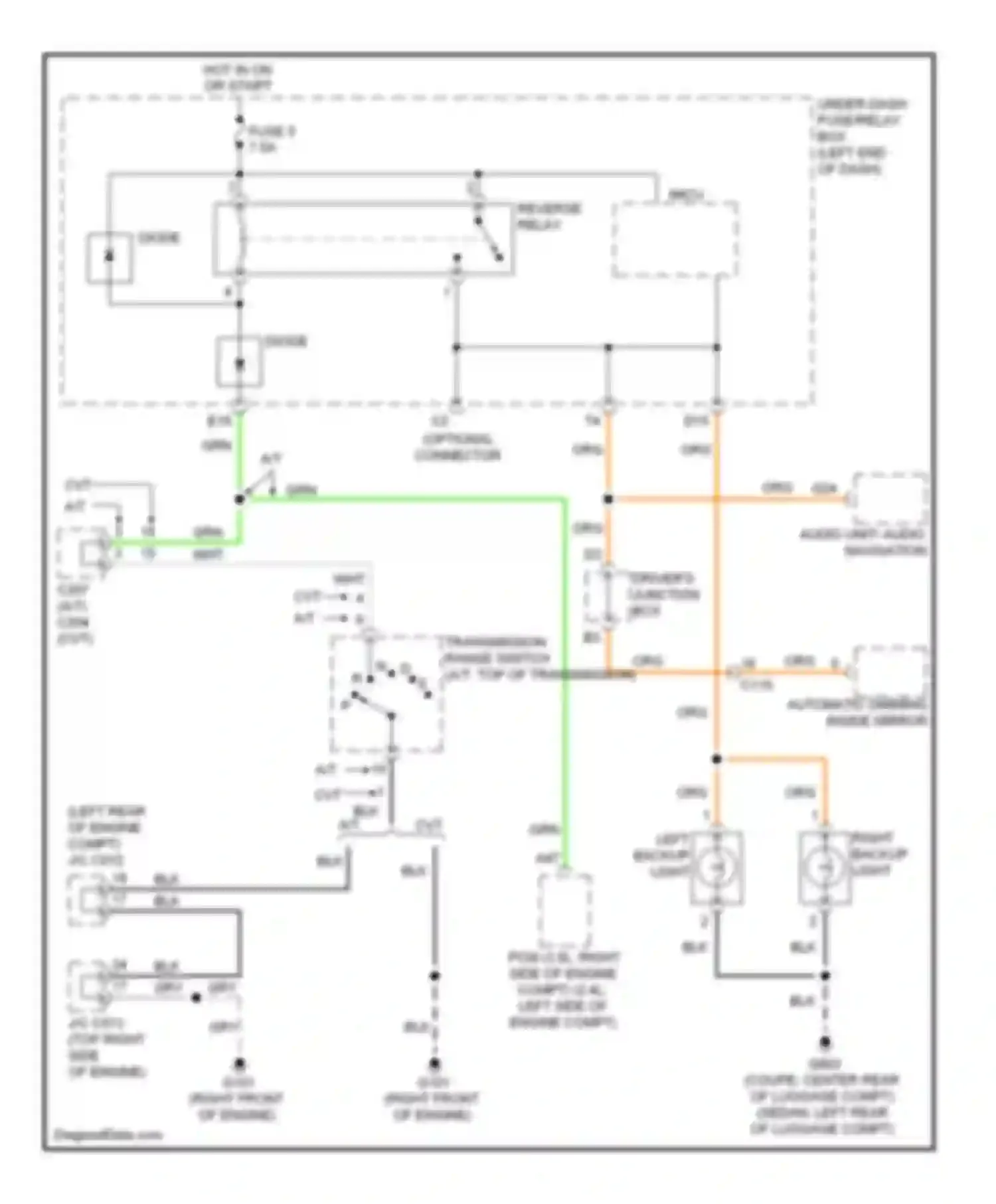

Backup lamps circuit, except hybrid with a/t for Honda Accord IX (2012-2016)
Backup lamps circuit, except hybrid with a/t
A/T
A/T CVT
AUDIO UNIT/ AUDIO NAVIGATION
AUTOMATIC DIMMING INSIDE MIRROR
BLK WIRE
CVT
CVT A/T
DIODE B
DIODE C
DRIVER'S JUNCTION BOX
FUSE 5
GRN WIRE
GRY WIRE
HOT IN ON OR START
LEFT BACKUP LIGHT
MICU
ORG/ WIRE
PCM (3.5L: RIGHT SIDE OF ENGINE COMPT) (2.4L: LEFT SIDE OF ENGINE COMPT)
REVERSE RELAY
RIGHT BACKUP LIGHT
TRANSMISSION RANGE SWITCH (A/T) (TOP OF TRANSMISSION)
UNDER-DASH FUSE/RELAY BOX (LEFT END OF DASH)
WHT WIRE
