GMC Vandura G2500 (1985-1995) on/off sw set/coast resume/accel brake sw in Wiring diagram
This page shows the only wiring diagram for the component.on/off sw set/coast resume/accel brake sw in, which is found in the car GMC Vandura G2500 (1985-1995). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

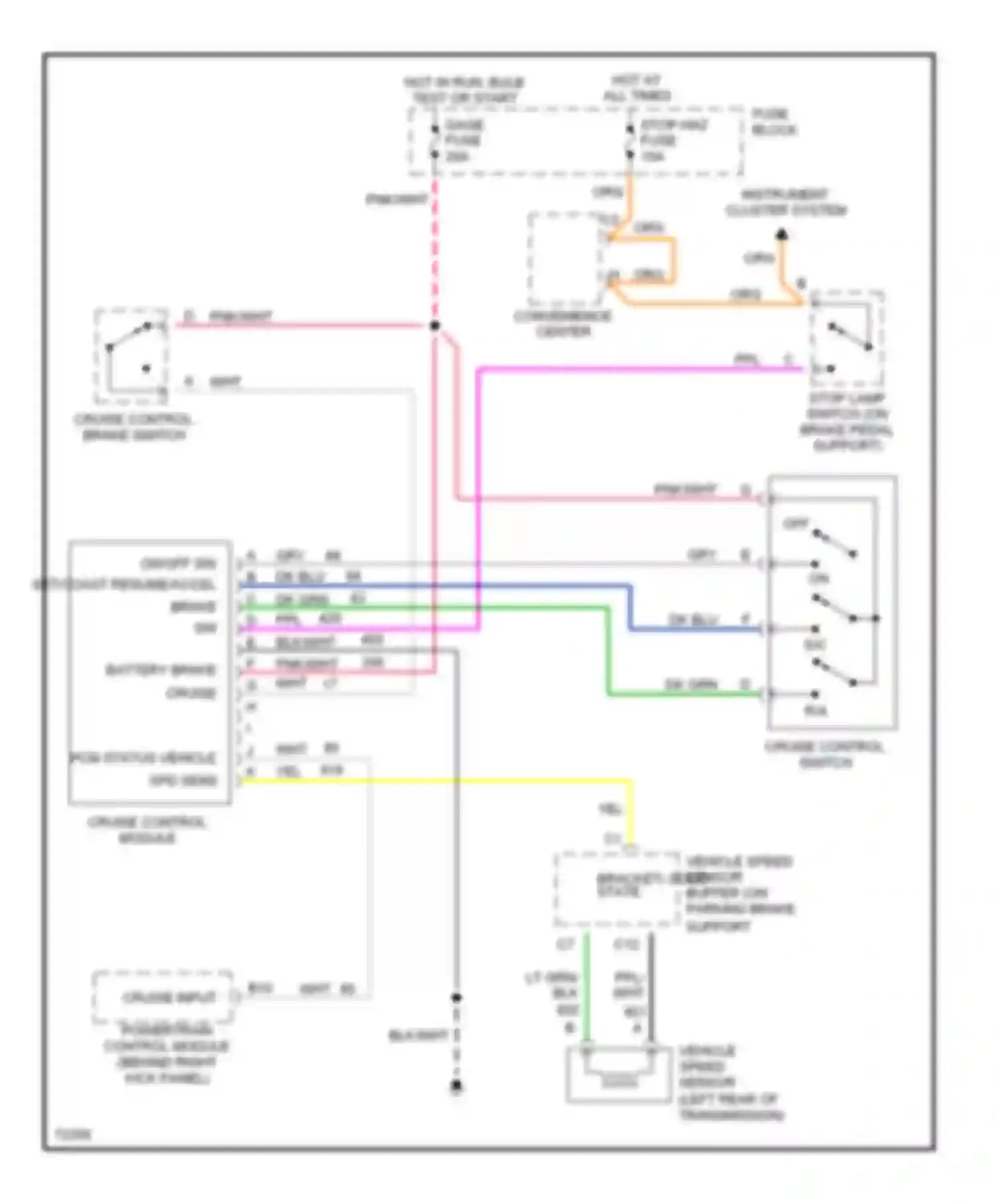

Wiring diagram on/off sw set/coast resume/accel brake sw in (1 of 1)
BATTERY BRAKE CRUISE SW
BLK WIRE
BLK/WHT WIRE
CONVENIENCE CENTER
CRUISE CONTROL BRAKE SWITCH
CRUISE CONTROL MODULE
CRUISE CONTROL SWITCH
CRUISE INPUT
DK BLU WIRE
DK GRN WIRE
FUSE BLOCK
GAGE FUSE
GRY WIRE
HOT AT ALL TIMES
HOT IN RUN, BULB TEST OR START
INSTRUMENT CLUSTER SYSTEM
LT GRN WIRE
OFF
ON/OFF SW SET/COAST RESUME/ACCEL BRAKE SW IN
ORG/ WIRE
PCM STATUS VEHICLE SPD SENS
PNK/WHT WIRE
POWERTRAIN CONTROL MODULE (BEHIND RIGHT KICK PANEL)
PPL
R/A
S/C
STOP LAMP SWITCH (ON BRAKE PEDAL SUPPORT)
STOP/ HAZ FUSE
VEHICLE SPEED SENSOR
VEHICLE SPEED SENSOR BUFFER (ON PARKING BRAKE SUPPORT BRACKET) SOLID STATE
WHT WIRE
YEL WIRE
Go to component -> Cruise control circuit -> ON/OFF SW SET/COAST RESUME/ACCEL BRAKE SW IN
