GMC Terrain II (2017-2021) driver seat lumbar support motor Wiring diagrams
This page contains all the electrical diagrams for the component. driver seat lumbar support motor, in which he is found in the car GMC Terrain II (2017-2021). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

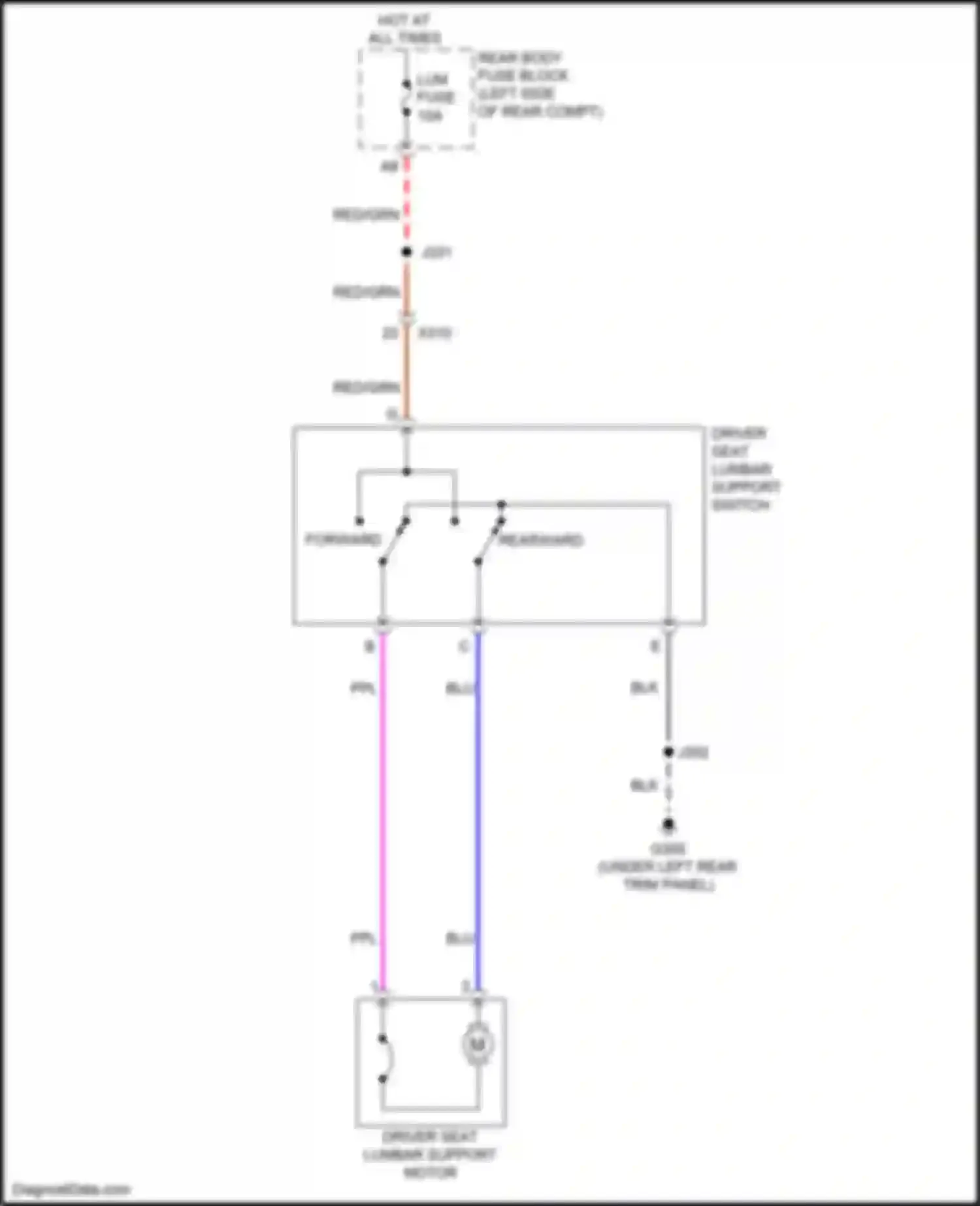

Wiring diagram driver seat lumbar support motor (1 of 2)
Go to component -> Driver"s lumbar circuit -> DRIVER SEAT LUMBAR SUPPORT MOTOR
Wiring diagram driver seat lumbar support motor (2 of 2)
BLK WIRE
BLU WIRE
BLU/GRN WIRE
BLU/PPL WIRE
BLU/YEL WIRE
BRN/WHT WIRE
DRIVER SEAT FRONT VERTICAL MOTOR
DRIVER SEAT HORIZONTAL MOTOR
DRIVER SEAT LUMBAR SUPPORT MOTOR
DRIVER SEAT LUMBAR SUPPORT SWITCH
DRIVER SEAT MEMORY CONTROL MODULE
DRIVER SEAT MEMORY SWITCH
DRIVER SEAT REAR VERTICAL MOTOR
DRIVER SEAT RECLINE MOTOR
FRONT VERTICAL MTR DWN CTRL
FRONT VERTICAL MTR UP CTRL
GRN WIRE
GRN/BRN WIRE
GRN/YEL WIRE
GRY/BLU WIRE
GRY/GRN WIRE
HORIZONTAL MTR FORWARD CTRL
HORIZONTAL MTR REARWARD CTRL
MEMORY 1 SWITCH
MEMORY 2 SWITCH
PPL
REAR VERTICAL MTR DOWN CTRL
REAR VERTICAL MTR UP CTRL
RECLINE MTR FORWARD CTRL
RECLINE MTR REARWARD CTRL
RED/GRN WIRE
RWD
SET SWITCH
WHT WIRE
WHT/BLK WIRE
WHT/RED WIRE
YEL WIRE
YEL/BLU WIRE
Go to component -> Driver"s memory seat circuit (2 of 2) -> DRIVER SEAT LUMBAR SUPPORT MOTOR
