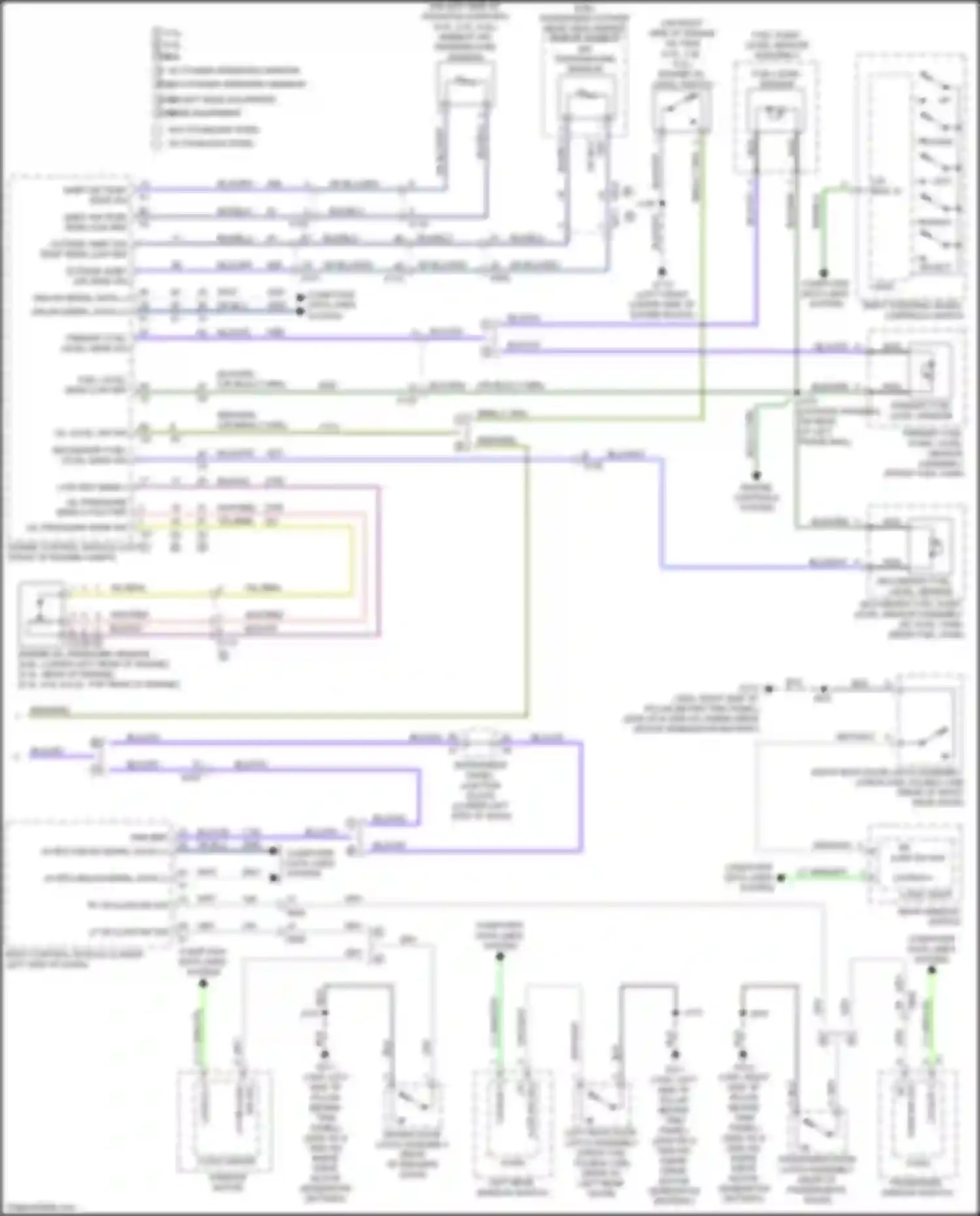

GMC Sierra III facelift (2015-2018) lin bus 12 Wiring diagram

4.3L, 6.2L, 5.3L 6.6L 3 6.0L 4 5 6 7 8 9 AJAR SW SIG AMBIENT AIR TEMPERATURE SENSOR AMBT AIR TEMP SENS LOW REF AMBT AIR TEMP SENS SIG BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/LT GRN WIRE BLK/VIO WIRE BLK/WHT WIRE BLU/GRY WIRE BLU/VIO WIRE BLU/WHT WIRE BODY CONTROL MODULE (LOWER LEFT SIDE OF DASH) BRN/GRN WIRE BRN/LT GRN WIRE COMPUTER DATA LINES SYSTEM DK BLU WIRE DK BLU/GRY WIRE DOWN DRIVER DOOR LATCH ASSEMBLY ENGINE CONTROL MODULE (LEFT FRONT OF ENGINE COMPT) ENGINE CONTROLS SYSTEM ENGINE OIL LEVEL SWITCH ENGINE OIL PRESSURE SENSOR FUEL LEVEL SENS LOW REF FUEL LEVEL SENSOR FUEL PUMP, LEVEL SENSOR ASSEMBLY GMLAN SERIAL DATA GRN/BLK WIRE GRY WIRE GRY/WHT WIRE HI SPD GMLAN SERIAL DATA INSTRUMENT PANEL JUNCTION BLOCK LEFT LEFT REAR DOOR LATCH ASSEMBLY LEFT REAR WINDOW SWITCH LF DR AJAR LF DR AJAR SW SIG LIN BUS 12 LIN BUS 3 LIN BUS 4 LOGIC LOGIC DRIVER WINDOW MOTOR LOGIC RIGHT REAR WINDOW SWITCH LOW REF BANK 2 LR DR LT GRN/GRY WIRE LT GRN/YEL WIRE MIRROR AMBIENT AIR TEMPERATURE SENSOR NCA WIRE OIL LEVEL SW SIG OIL PRESSURE SENS 5 VOLT REF OIL PRESSURE SENS SIG OUTSIDE AMBT AIR SENS SIG OUTSIDE AMBT AIR TEMP SENS LOW REF PASSENGER DOOR LATCH ASSEMBLY PASSENGER OUTSIDE REAR VIEW MIRROR PASSENGER WINDOW SWITCH PRIMARY FUEL LEVEL SENS SIG PRIMARY FUEL LEVEL SENSOR PRIMARY FUEL PUMP, LEVEL SENSOR ASSEMBLY PRK BRK SW RF DR RF DR AJAR SW SIG RIGHT RIGHT REAR DOOR LATCH ASSEMBLY (CREW CAB, DOUBLE CAB) RIGHT STEERING WHEEL CONTROLS SWITCH RR DR - SECONDARY FUEL LEVEL SENS SIG SECONDARY FUEL LEVEL SENSOR SECONDARY FUEL PUMP, LEVEL SENSOR ASSEMBLY SELECT SW SIG WHT WIRE WHT/RED WIRE YEL/BRN WIRE
