GMC Sierra III (2013-2015) Cruise control circuit

12 VOLT REF 24 25 HI SPD GMLAN SRL DATA (-) HI SPD GMLAN SRL DATA (+) 5360 5361 BRK APPLY SENS LO REF 7 13 STP LP SW SIG 5 VOLT SIG ADAP CRUISE CTRL UP DWN SW SIG BATT POS VOLT BCM 1 PANEL FUSE FUSE BLOCK BLK WIRE BLK/BRN WIRE BLK/DK BLU WIRE BLK/GRN WIRE BLK/VIO WIRE BLK/WHT WIRE BODY CONTROL MODULE (LOWER LEFT SIDE OF DASH) BRAKE PEDAL POSITION SENSOR (BEHIND BRAKE PEDAL ASSEMBLY) BRN/GRN WIRE BRN/RED WIRE BRN/WHT WIRE COMPUTER DATA LINES SYSTEM CRUISE CTRL SET/COAST/ RES/ACC SW SIG CRUISE/ETC/TCC/BRAKE SIG DK BLU WIRE DK BLU/BLK WIRE DK BLU/WHT WIRE DK BLU/YEL WIRE ECM IGN FUSE ENGINE CONTROL MODULE (LEFT FRONT OF ENGINE COMPT, NEAR FAN SHROUD) GROUND GRY/GRN WIRE GRY/RED WIRE HOT AT ALL TIMES HOT W/ IGNITION MAIN RELAY ENERGIZED INSTRUMENT PANEL JUNCTION BLOCK LEFT INSTRUMENT LT GRN/WHT WIRE RED/WHT WIRE SENSOR LO REF SIG GND THRTL ACTR CTRL CLOSE THRTL ACTR CTRL OPEN UNDERHOOD FUSE BLOCK (LEFT SIDE OF ENGINE COMPT) VIO/GRN WIRE WHT WIRE WHT/BLU WIRE WHT/GRN WIRE WHT/RED WIRE YEL WIRE YEL/WHT WIRE

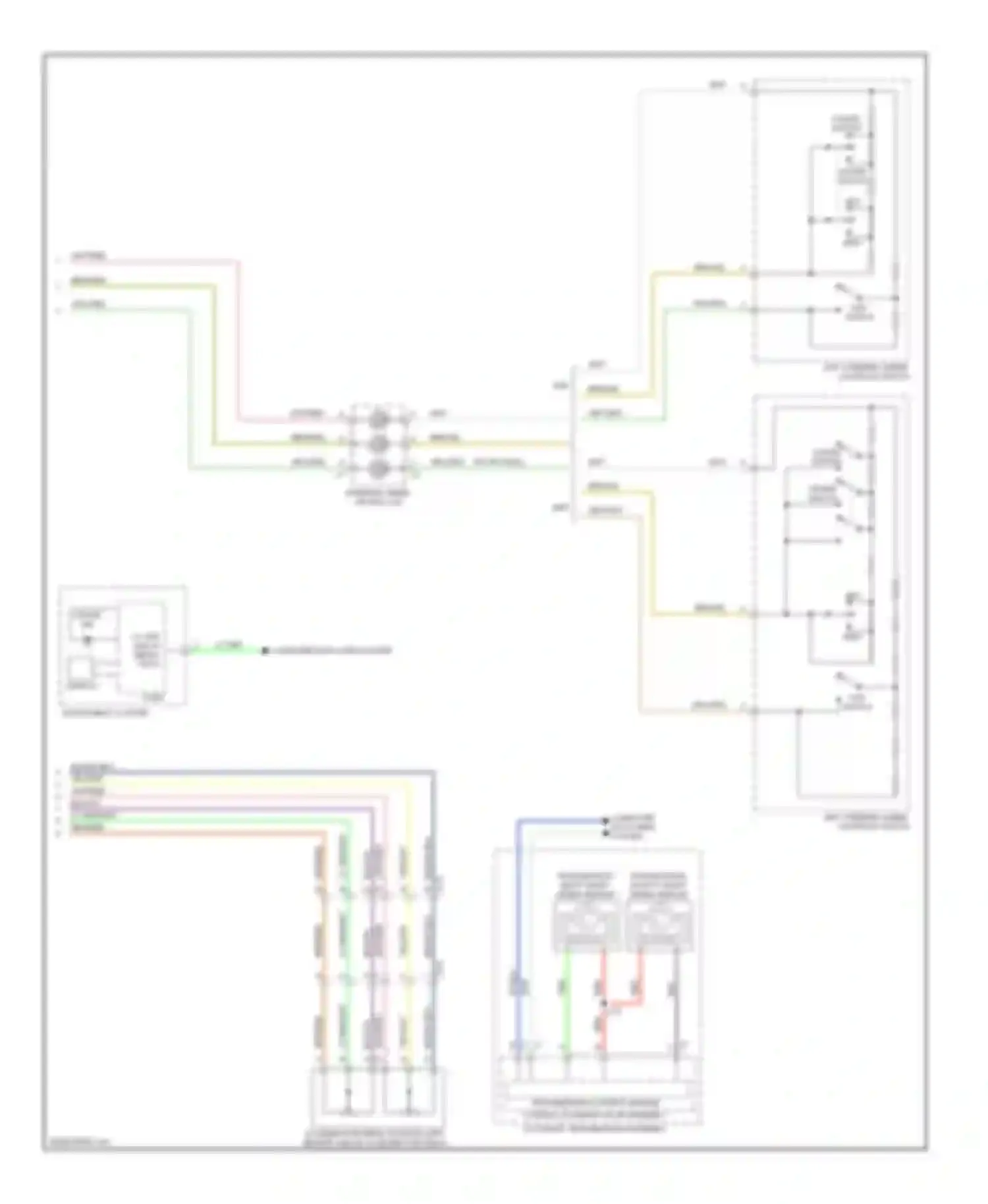

ACCELERATOR PEDAL POSITION (APP) SENSOR (ABOVE ACCELERATOR PEDAL) BLK WIRE BLK/DK BLU WIRE BLK/VIO WIRE BRN/GRN WIRE BRN/RED WIRE BRN/YEL WIRE CANCEL SWITCH COMPUTER DATA LINES SYSTEM CRUISE IND CRUISE SWITCH DISPLAY DK BLU WIRE GAP SWITCH GRN WIRE GRY/GRN WIRE GRY/ORG WIRE INSTRUMENT CLUSTER LEFT STEERING WHEEL CONTROLS SWITCH LO SPD GMLAN SERIAL DATA LOGIC LT GRN WIRE LT GRN/WHT WIRE RED WIRE RES+ SET- STEERING WHEEL AIR BAG COIL TRANSMISSION INPUT SHAFT SPEED SENSOR TRANSMISSION OUTPUT SHAFT SPEED SENSOR WHT WIRE WHT/RED WIRE YEL/WHT WIRE
