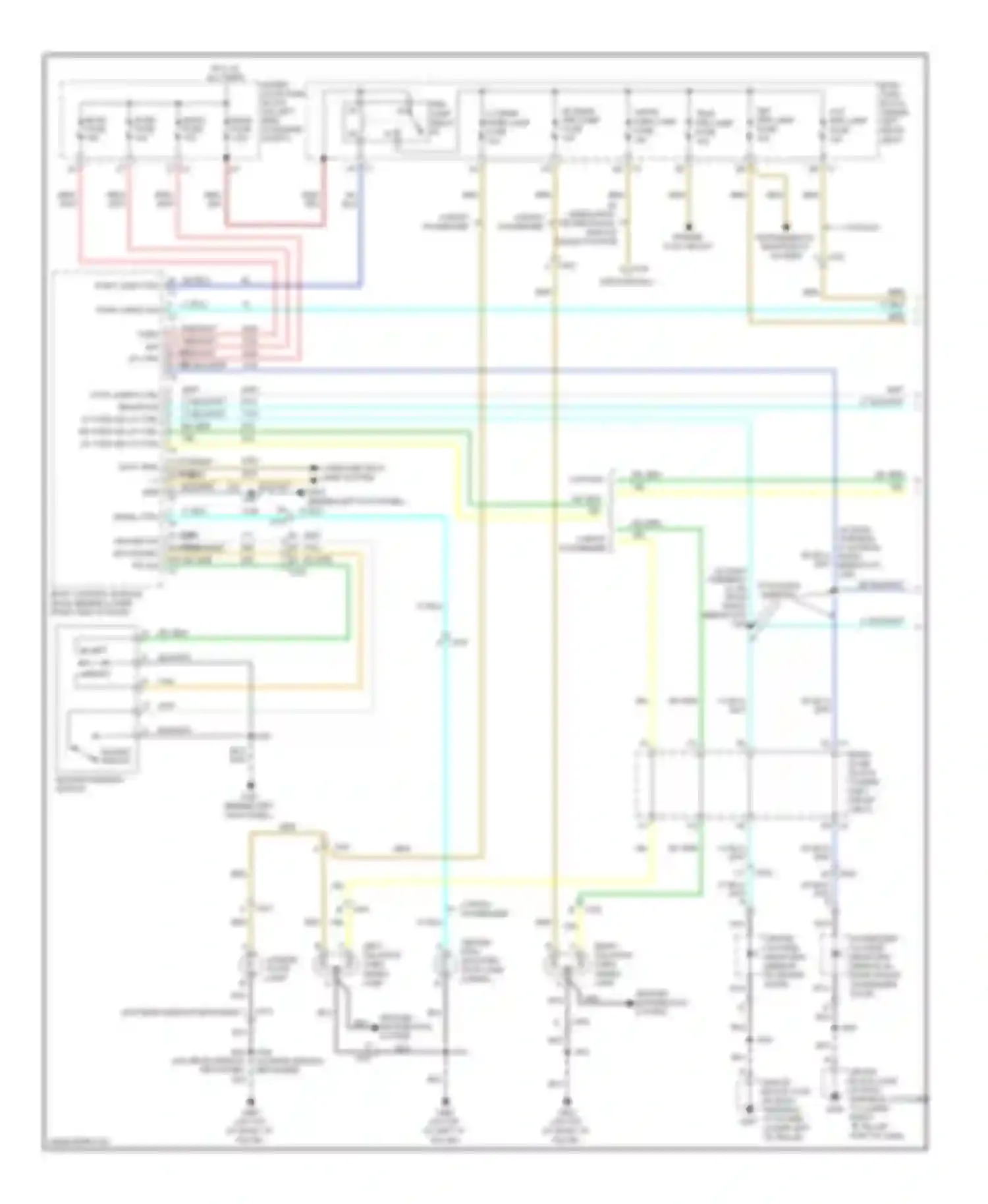

GMC Savana H1500 (2003-2013) 19 16 15 alarm enable sig hazard sw sig hazard sw sig Wiring diagram

19 16 15 ALARM ENABLE SIG HAZARD SW SIG HAZARD SW SIG 2 1 3 5 B+ B+ B+ RF TURN SIG LP CTRL 8 9 1 DATA BUS (+) DATA BUS (-) GND AUX PRK LAMP FUSE BCM 6 FUSE BLK WIRE BLK/WHT WIRE BLU WIRE BODY CONTROL MODULE (BCM) (BEHIND LOWER RIGHT SIDE OF DASH) BODY FUSE BLOCK BRN WIRE CARGO/ PASSENGER CENTER HIGH MOUNTED STOP LAMP (CHMSL) CHMSL CTRL COMPUTER DATA LINES SYSTEM CUTAWAY DK BLU WIRE DK BLU/WHT WIRE DK GRN WIRE DRIVER OUTSIDE REARVIEW FRT PRK LAMP FUSE FUSE GROUND DISTRIBUTION SYSTEM HAZARD SWITCH HAZARD WARNING SWITCH HOT AT ALL TIMES UNDER- HOOD FUSE BLOCK (ON LEFT SIDE OF ENGINE COMPT) LEFT LEFT TAIL/STOP, TURN SIGNAL LAMP LICENSE PLATE LAMP LT BLU WIRE LT BLU/WHT WIRE LT REAR PARK LAMP FUSE MEGA FUSE MIRROR (IN DRIVER DOOR) MIRROR (IN RIGHT FRONT PASSENGER DOOR) NCA WIRE PARK LAMP CTRL PARK LAMPS SIG PASSENGER OUTSIDE REARVIEW PRK LAMP RELAY PROVISIONAL RED WIRE RED/WHT WIRE RIGHT RIGHT TAIL/STOP, TURN SIGNAL LAMP RT REAR PRK LAMP FUSE SPLICE SUPPLEMENTAL RESTRAINTS SYSTEM TAN WIRE TAN/BLK WIRE TRAILER TOW CIRCUIT TRLR PRK LAMP FUSE UPFTR PARK LAMP FUSE W/ AMBULANCE, RECREATIONAL VEHICLE SALES PACKAGE W/ FOLDING MIRRORS RADIO BREAKOUT) W/O REAR WINDOW DEFOGGER WHT WIRE YEL WIRE
