GMC Hummer EV I (2021-2024) horizontal mtr rearward ctrl Wiring diagram
This page shows the only wiring diagram for the component.horizontal mtr rearward ctrl, which is found in the car GMC Hummer EV I (2021-2024). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

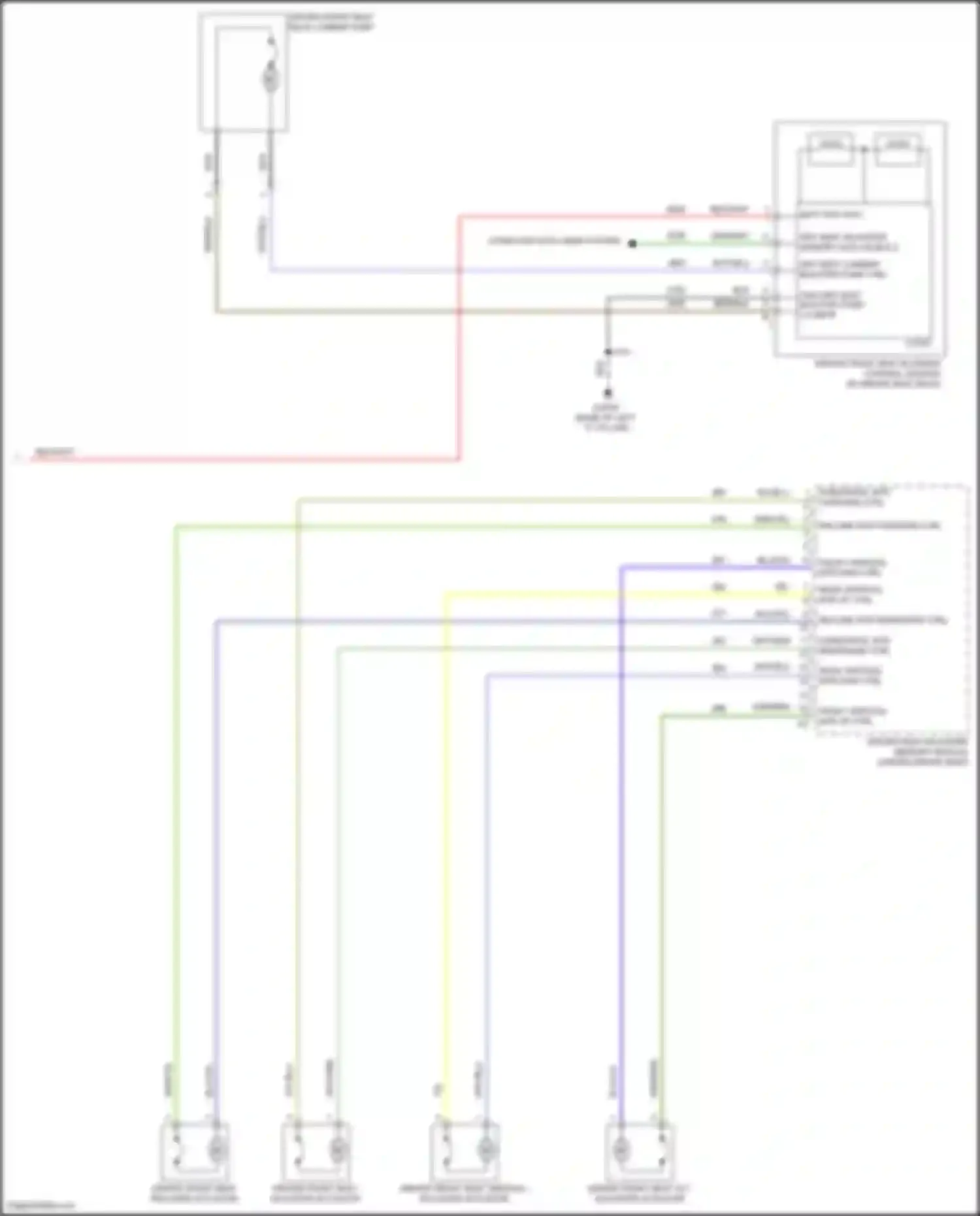

Wiring diagram horizontal mtr rearward ctrl (1 of 1)
BATT POS VOLT
BLK WIRE
BLU/VIO WIRE
BLU/YEL WIRE
BRN/BLK WIRE
COMPUTER DATA LINES SYSTEM
DRIVER FRONT SEAT ADJUSTER ACTUATOR
DRIVER FRONT SEAT BACK LUMBAR PUMP
DRIVER FRONT SEAT BLADDER CONTROL MODULE
DRIVER FRONT SEAT RECLINER ACTUATOR
DRIVER FRONT SEAT TILT ADJUSTER ACTUATOR
DRIVER FRONT SEAT VERTICAL ADJUSTER ACTUATOR
DRIVER SEAT ADJUSTER MEMORY MODULE
DRV SEAT ADJUSTER MEMORY MOD LIN BUS 2
DRV SEAT LUMBAR/ BOLSTER PUMP CTRL
FRONT VERTICAL MTR DWN CTRL
FRONT VERTICAL MTR UP CTRL
GND DRV SEAT BOLSTER PUMP LO REFR
GRN/BRN WIRE
GRN/GRY WIRE
GRN/YEL WIRE
GRY/BLU WIRE
GRY/GRN WIRE
HORIZONTAL MTR FORWARD CTRL
HORIZONTAL MTR REARWARD CTRL
LOGIC
NCA WIRE
REAR VERTICAL MTR DWN CTRL
REAR VERTICAL MTR UP CTRL
RECLINE MTR FORWARD CTRL
RECLINE MTR REARWARD CTRL
RED/WHT WIRE
WHT/BLU WIRE
YEL WIRE
YEL/BLU WIRE
Go to component -> Driver"s memory seat circuit (2 of 2) -> HORIZONTAL MTR REARWARD CTRL
