Rear clearance lamps circuit, with dual rear wheels for GMC C3500 HD (1991-2000)

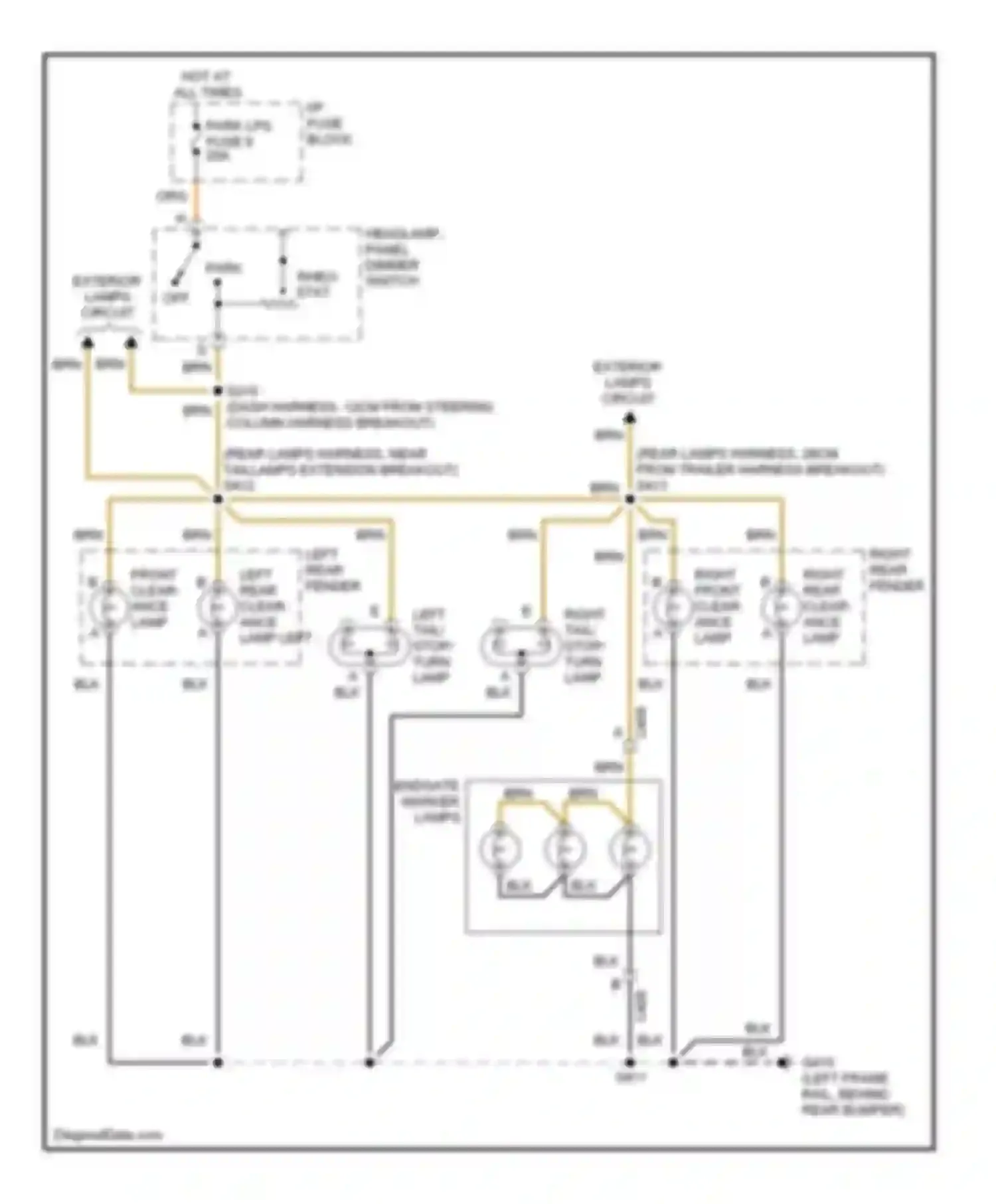

Rear clearance lamps circuit, with dual rear wheels
BLK WIRE
BRN WIRE
COLUMN HARNESS BREAKOUT)
ENDGATE MARKER LAMPS
EXTERIOR LAMPS CIRCUIT
FROM TRAILER HARNESS BREAKOUT)
HEADLAMP, PANEL DIMMER SWITCH
HOT AT ALL TIMES
I/P FUSE BLOCK
LEFT REAR CLEAR- ANCE LAMP LEFT FRONT CLEAR- ANCE LAMP
LEFT REAR FENDER
LEFT TAIL/ STOP/ TURN LAMP
OFF
ORG/ WIRE
PARK
PARK LPS FUSE 9
RHEO- STAT
RIGHT FRONT CLEAR- ANCE LAMP
RIGHT REAR CLEAR- ANCE LAMP
RIGHT REAR FENDER
RIGHT TAIL/ STOP/ TURN LAMP
